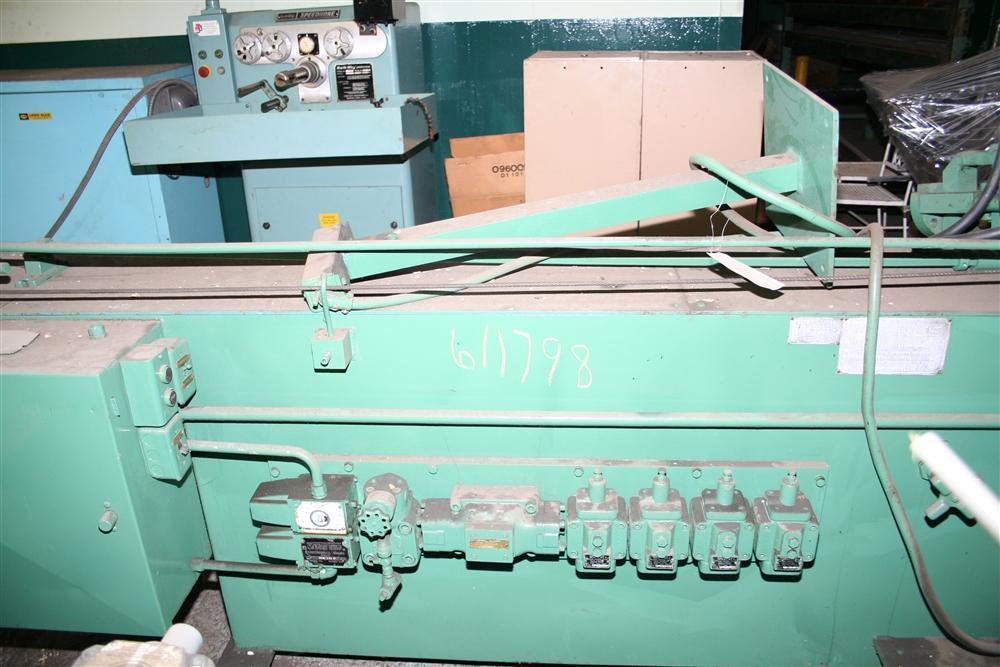

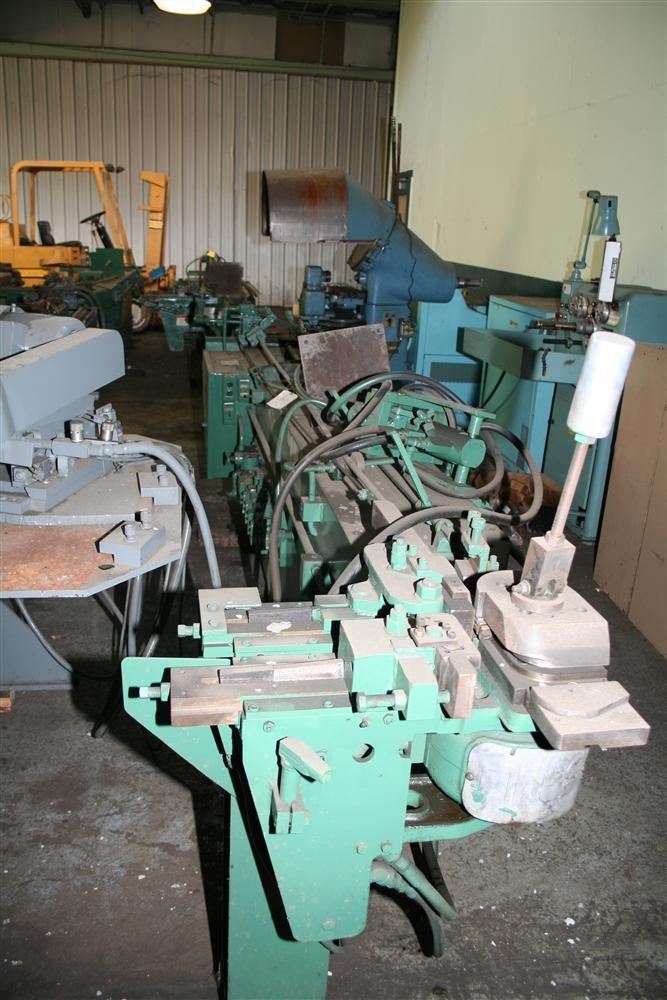

1' PINES #1 ROTARY HYDRAULIC BAR, TUBE & PIPE BENDER: STOCK #19259

Manufacturer

Category

Tube Machinery

Type

TUBE BENDERS

Stock

19259

Model

1

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 11046-61286
MODEL ................................ 1
NON-FERROUS TUBE Y.P. TO 25,000 PSI .. 1-3/4" O.D. X .120" WALL
STEEL TUBE Y.P. TO 40,000 PSI ........ 1-3/4" O.D. X .072" WALL
STEEL PIPE SCHEDULE 80 ............... 1"
STEEL BAR RD. Y.P. TO 40,000 PSI ..... 7/8" DIA.
S.S. TUBE Y.P. TO 60,000 PSI ......... 1-3/8" O.D. X .065" WALL
MAXIMUM TUBE LENGTH OVER MANDREL ..... 9 11"
MAXIMUM BENDING RADIUS ............... 10"
HYD & MANUAL SPLIT DIE ACTUATOR ...... YES
HYDRAULIC MANDREL EXTRACTOR .......... YES
3 BUTTON PILOT CONTROL ............... YES
8 POSITION MANUAL D.O.B. SELECTOR .... YES
COUNTER CLOCKWISE ROTATION ........... YES
HYDRAULIC CLAMPING ................... YES
MOTOR, HORSEPOWER .................... 5
