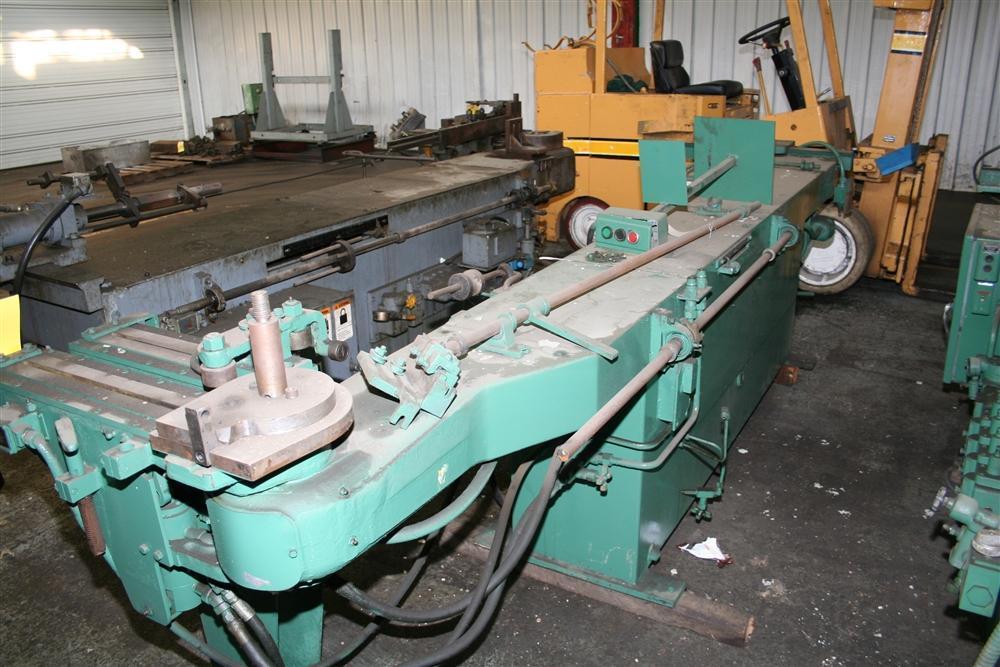

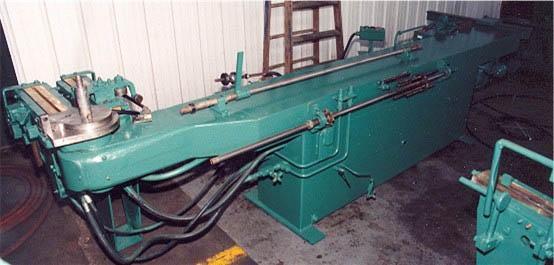

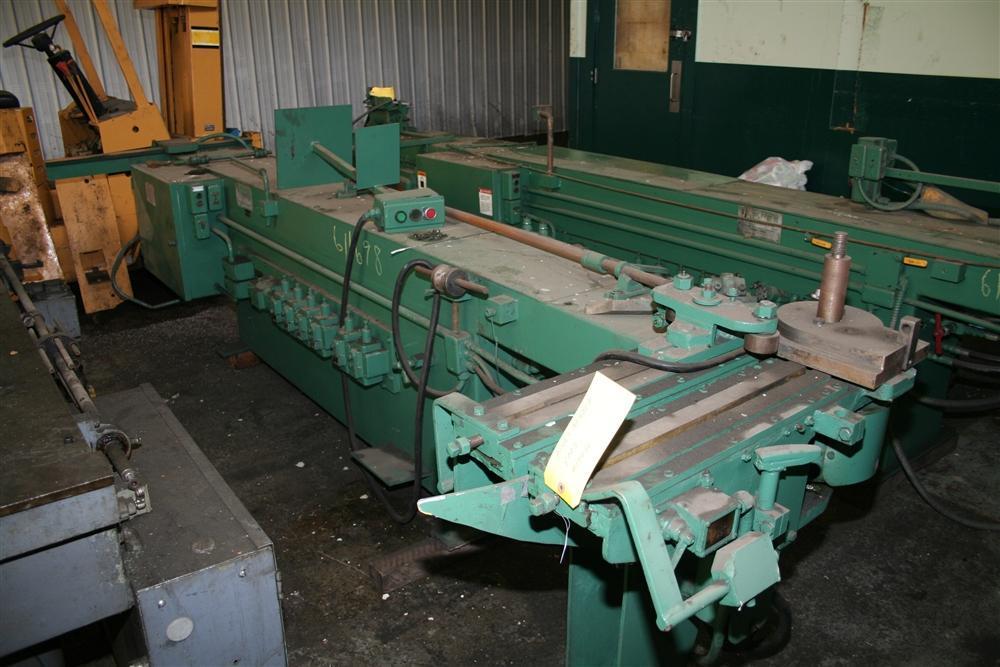

1' PINES #1 HYDRAULIC BAR TUBE & PIPE BENDER: STOCK #19436

Manufacturer

Category

Tube Machinery

Type

TUBE BENDERS

Stock

19436

Model

1'

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL NUMBER ....................... 11045-66245
MODEL ............................... #1

BENDING CAPACITY:
NON-FERROUS TUBE YP TO 25000 PSI .... 1-3/4" OD X .120" WALL
STEEL TUBE UP TO 40000 PSI .......... 1-3/4" OD X .072" WALL
STEEL PIPE SCHEDULE ................. 80 - 1"
STEEL BAR RD UP TO 40,000 PSI ....... 7/8" DIAMETER
SS TUBE UP TO 60,000 PSI ............ 1-3/8" OD X .065" WALL
MAX TUBE LENGTH OVER MANDREL ........ 9'11"
BENDING ARM ......................... 22-1/4"
MAX BENDING RADIUS .................. 18"
HYDRAULIC CLAMPING .................. YES
(3) BUTTON PILOT CONTROL ............ YES
8-POSITION DEGREE OF BEND (MANUAL) .. YES
COUNTERCLOCKWISE ROTATION ........... YES
MOTOR ............................... 5 HORSEPOWER
