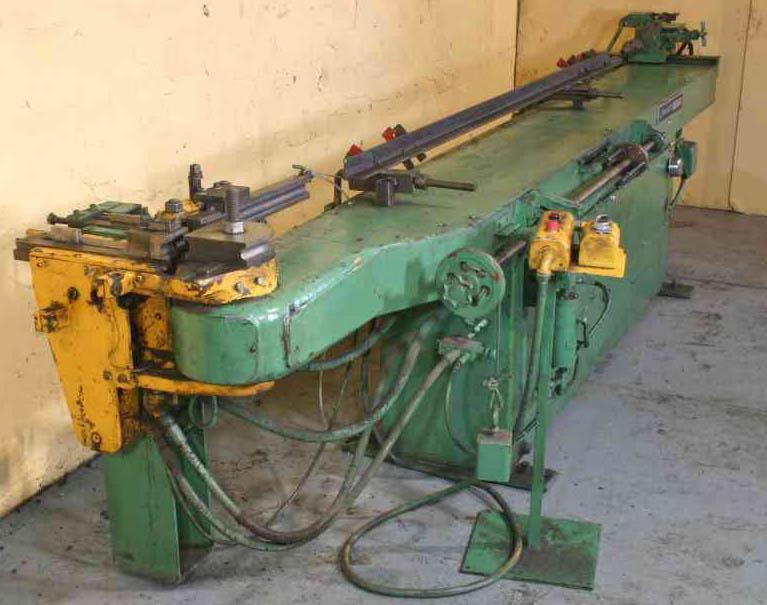

3/4" PINES HYDRAULIC BENDER: STOCK #50698

Manufacturer

PINES

Category

Tube Machinery

Type

TUBE BENDERS

Stock

50698

Model

.750

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................................ 11015-690899010
MODEL ......................................... 110
CAPACITY STEEL PIPE (SCHEDULE 80) ............. 3/4"
CAPACITY NON-FERROUS TUBE (Y.P. TO 25K PSI) ... 1-1/2" OD. X .065
CAPACITY STEEL TUBE (Y.P. TO 40K PSI) ......... 1-3/8" OD X .065
CAPACITY STAINLESS TUBE (Y.P. TO 60K PSI) ..... 1-1/8" OD X .065
CAPACITY SQUARE BAR (MILD STEEL) .............. 1-11/16"
MAXIMUM RADIUS ................................ 10"
MAXIMUM BEND ANGLE ............................ 180 DEGREE + OVERBEND
MAXIMUM TUBE LENGTH OVER MANDREL .............. 9 11"
BENDING ROTATION .............................. COUNTER CLOCKWISE
AVERAGE BENDING ARM SPEED ..................... 27 RPM
OPERATING PRESSURE ............................ 2000 PSI
8-POSITION DEGREE OF BEND SELECTOR ............ YES

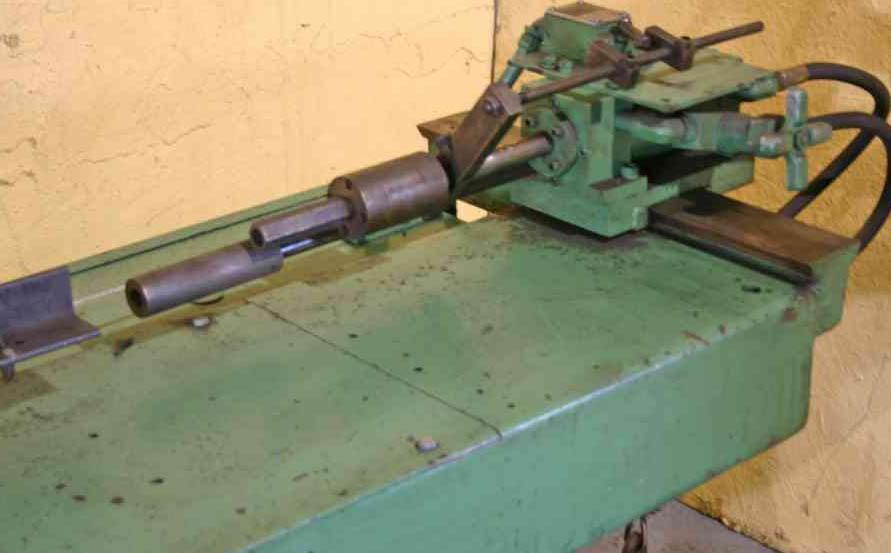

HYDRAULIC MANDREL EXTRACTOR & CLAMPING ........ YES
BIJUR LUBRICATION ............................. YES
MOTOR ......................................... 5 HORSEPOWER
