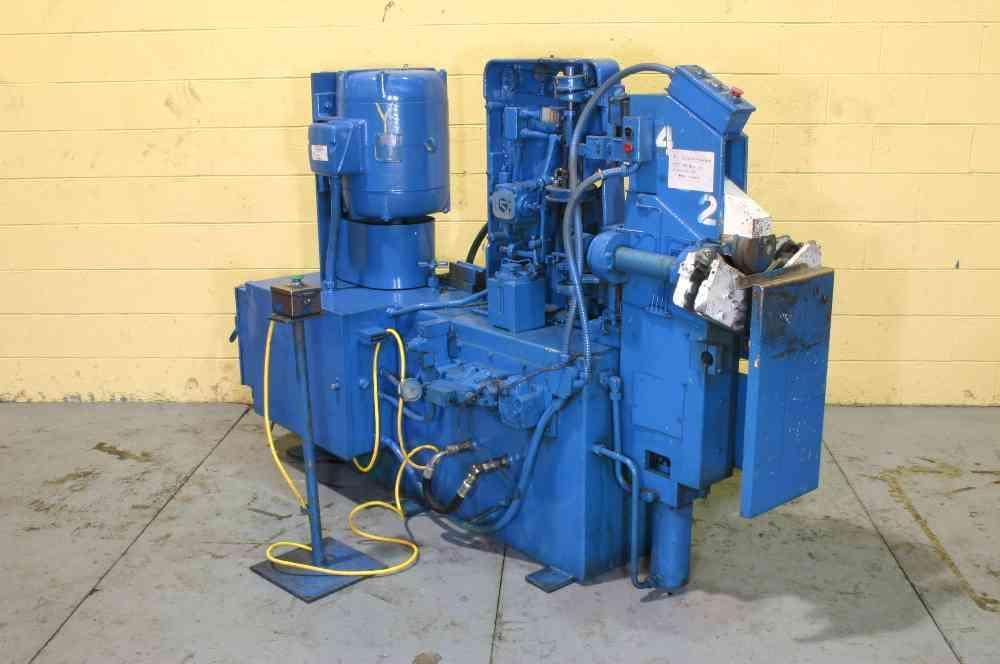

PINES MODEL #3T VERTICAL HYDRAULIC BENDER: STOCK #51175

Manufacturer

PINES

Category

Tube Machinery

Type

TUBE BENDERS

Stock

51175

Model

1 - 3T

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL NUMBER ........................ 44350-63264
MODEL ................................ 3T
CAPACITY ............................. 3 TONS
NON-FERROUS TUBING (25,000 PSI) ...... 1" X .083" WALL
MILD STEEL TUBING (40,000 PSI) ....... 1-1/4" X .065" WALL
STAINLESS STEEL TUBING (60,000 PSI) .. 1-1/4" X .049" WALL
SQUARE TUBING, MILD STEEL ............ 1" X .065"
ROUND BAR - MILD STEEL ............... 3/4"
SQUARE BAR - MILD STEEL .............. 9/16"
CENTERLINE RADIUS .................... 4-1/2" MAXIMUM
BEND ANGLE WITH NORMAL TOOLING ....... 140 DEGREES MAXIMUM
BEND ANGLE WITH SPECIAL TOOLING ...... 165 DEGREES MAXIMUM
PRODUCTION SPEED ..................... 1500 BENDS PER HOUR
MANUAL BEND SELECTOR ................. YES

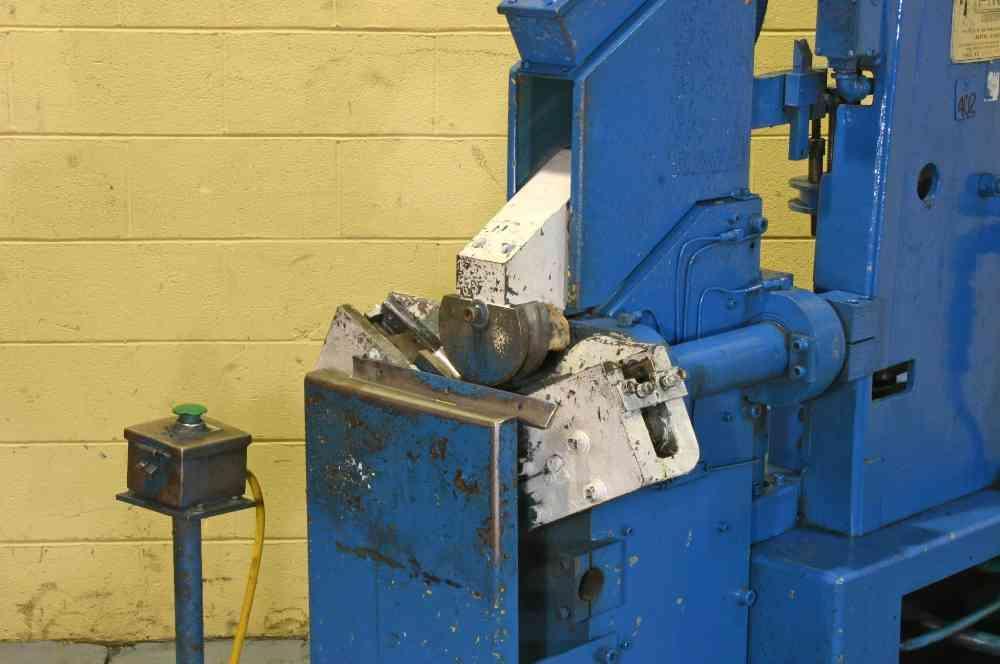

KNEE MOUNTED WING DIE ................ YES
CUSHION CYLINDER ..................... YES
OIL COOLER ........................... YES
PALM BUTTON .......................... YES
MOTOR ................................ 20 HORSEPOWER
