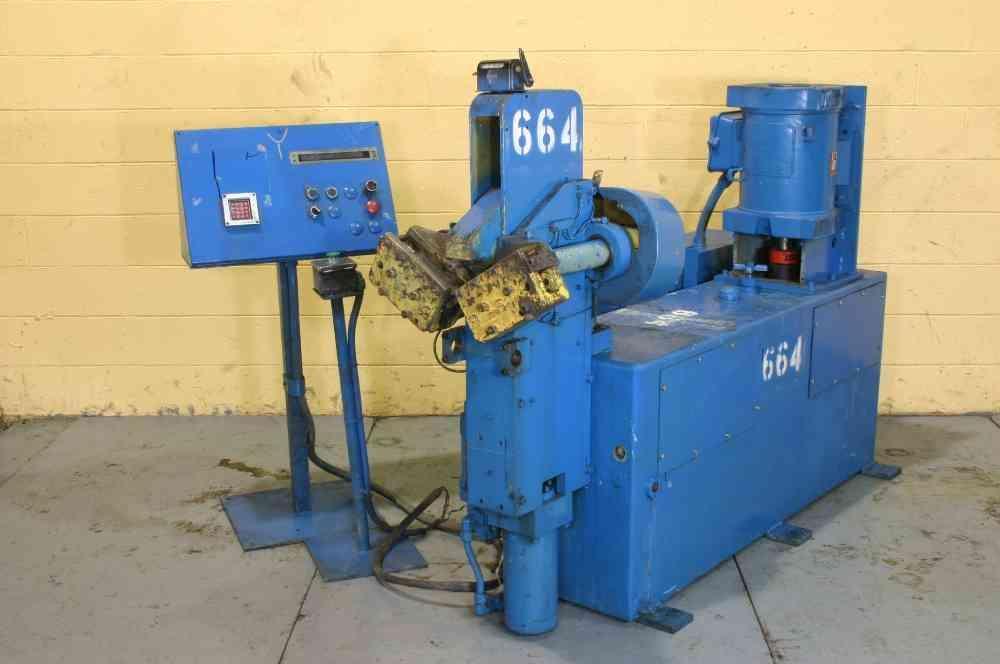

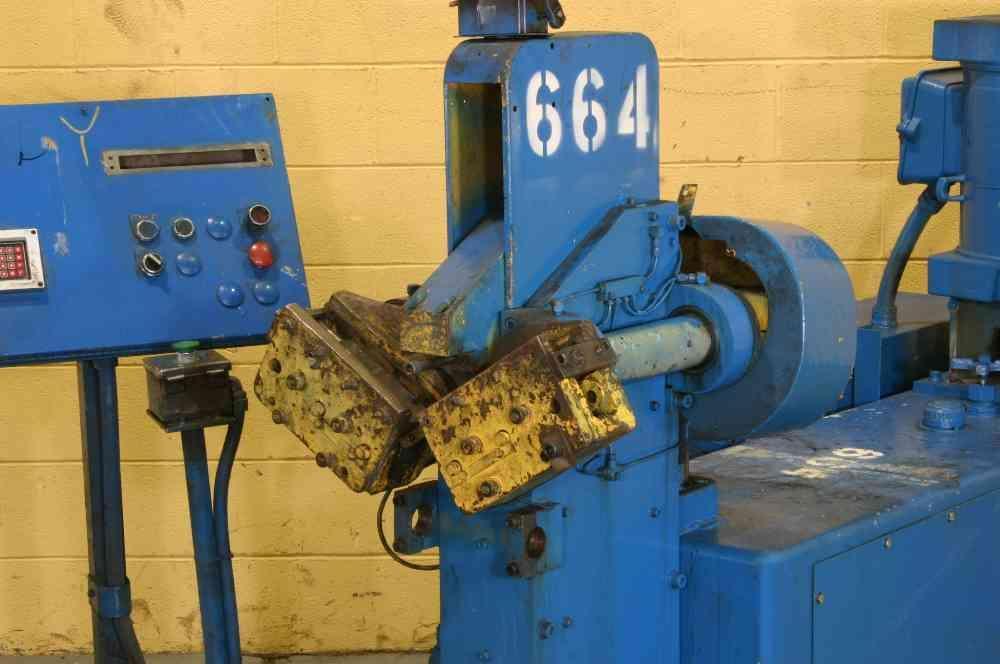

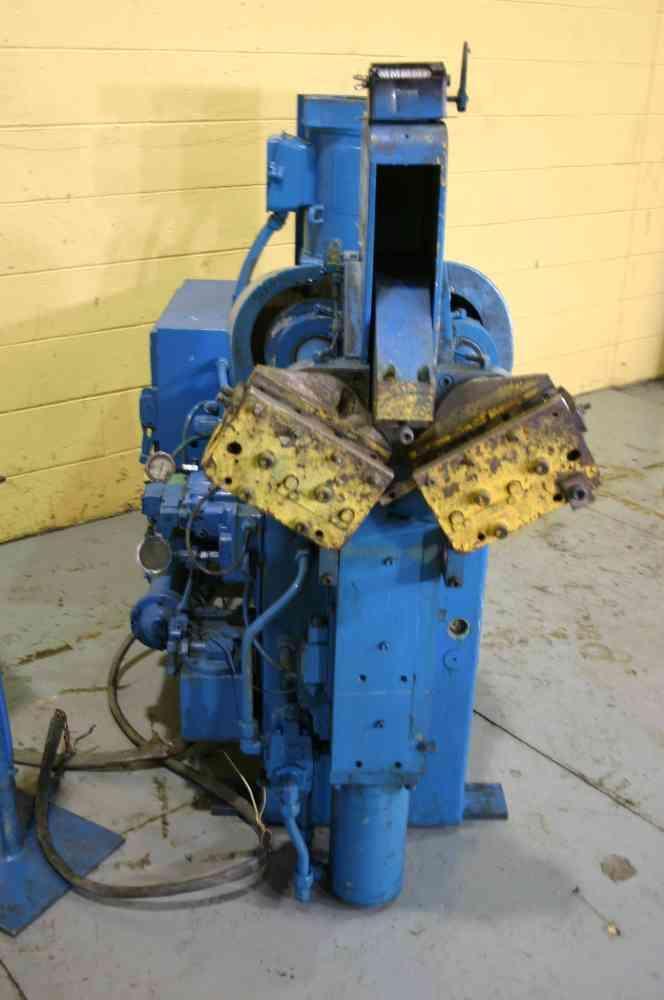

PINES MODEL #3T VERTICAL HYDRAULIC BENDER: STOCK #51192

Manufacturer

PINES

Category

Tube Machinery

Stock

51192

Model

1 - 3T

Dealer Location

Ohio

Spec Sheet



SERIAL ............................... 44361-83143
MODEL ................................ 3T
AGE - NEW ............................ 1983
CAPACITY ............................. 3 TONS
NON-FERROUS TUBING (25,000 PSI) ...... 1" X .083" WALL
MILD STEEL TUBING (40,000 PSI) ....... 1-1/4" X .065" WALL
STAINLESS STEEL TUBING (60,000 PSI) .. 1-1/4" X .049" WALL
SQUARE TUBING, MILD STEEL ............ 1" X .065"
ROUND BAR - MILD STEEL ............... 3/4"
SQUARE BAR - MILD STEEL .............. 9/16"
CENTERLINE RADIUS .................... 4-1/2" MAXIMUM
BEND ANGLE WITH NORMAL TOOLING ....... 140 DEGREES MAXIMUM
BEND ANGLE WITH SPECIAL TOOLING ...... 165 DEGREES MAXIMUM
PRODUCTION SPEED ..................... 1500 BENDS PER HOUR
DIGITAL DIAL-A-BEND SELECTOR ......... YES
KNEE MOUNTED WING DIE ................ YES
CUSHION CYLINDER ..................... YES
OIL COOLER ........................... YES
PALM BUTTON .......................... YES
MOTOR ................................ 20 HORSEPOWER

No Video Available
