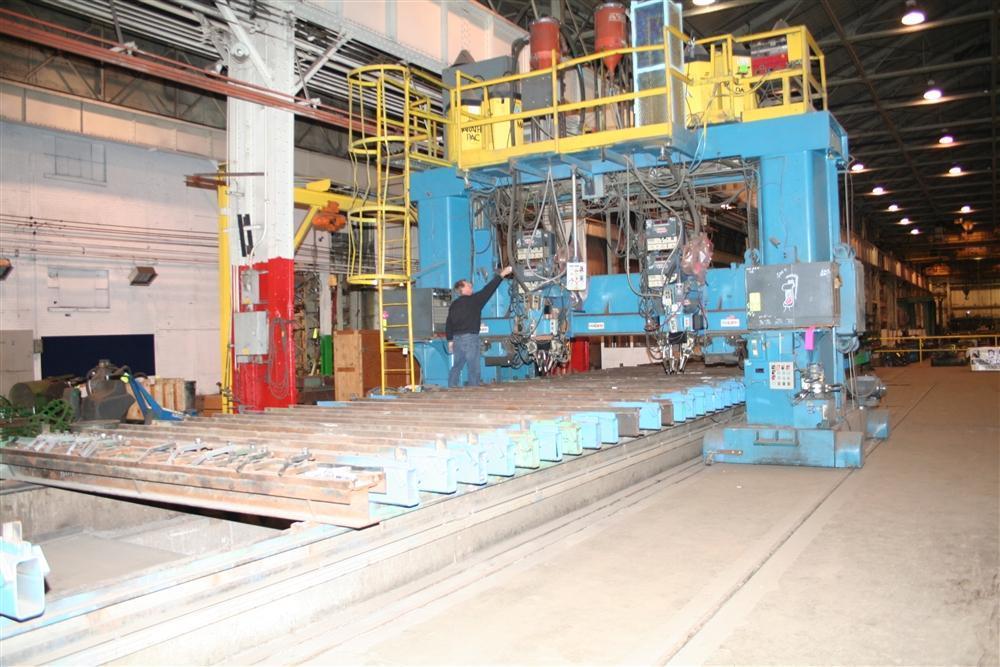

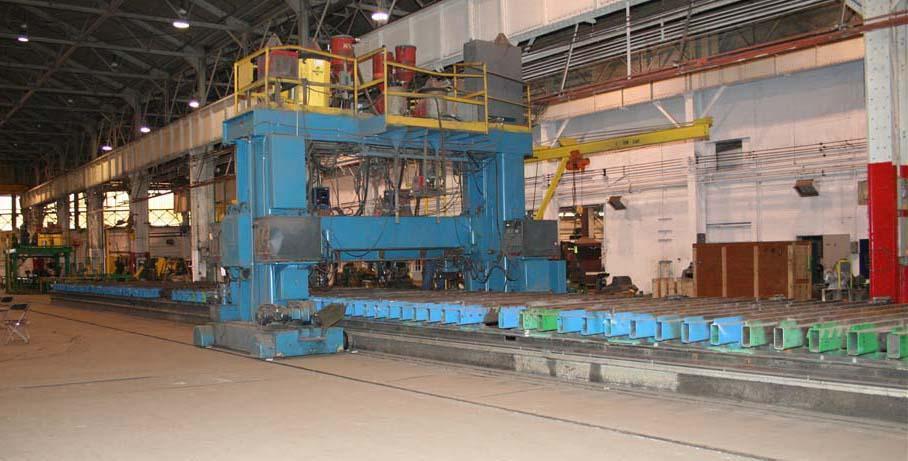

12'6' X 120' PANDJIRIS GANTRY WELDER: STOCK #55913

Manufacturer

Category

Welding Machines

Type

WELDERS, MISCELLANEOUS

Stock

55913

Model

12 x 10

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Features:

- 4 Lincoln Electric submerged-arc welding heads with location assistance
provided by Cyclomatic tactile seam trackers
- Automatic flux delivery and flux recovery
- 120 ft of longitudinal weld travel over 12 ft 6 in wide bed with 36" cross beam lift
- Variable speed gantry with powered height adjustment of cross beam

Specifications:

Pandjiris Gantry
- Heavy duty gantry frame mounted on twin powered travel cars
- Travel cars, master & slave (recently rebuilt motors, gearbox, control), approx 120" x 70"
- Rail track is 60 lb with 59" between rails
- Cross beam that weld apparatus is mounted on has powered lift of up to 60" of vertical travel via ball-screw on each side, currently configured for 36" of travel
- Hydraulic hold down devices (2 ea) with 6" vertical stroke
- All welding apparatus and flux equipment is mounted on the gantry
- Floor mounted as well as boom mounted controls

Welding Bed Frame:
- 120 ft long frame
- 12 ft 6 in long cross beams (93 ea)
- Cross beams seat into master frame channel via v-shaped foot for easy alignment
- Cross beam are made from 4 x 8 tube with 1 x 2 bar welded to top
- Current height of bed is 35" above floor

Welding Apparatus:
- Lincoln Electric (4 ea) DC-1000 power supplies
- Lincoln Electric (4 ea) NA-5 digital automatic weld controller
- Cyclomtic (4 ea) automatic seam tracker, tactile type, for independent tracking of each of 4 weld heads, 10" x 10" stroke
- Joystick and pendant control of powered cross-slides

Flux Equipment:
- Invincible Flux Recovery system with 2 ea vacuum blowers mounted atop the gantry frame and hoses to both pickup unused flux as well as re-distribute it to the storage hoppers.
- Invincible flux delivery hoppers (4 ea) designed to deliver and store 2 different types of flux and allows for quick and easy changeover of flux supply.
- One hopper supplies 2 heads
