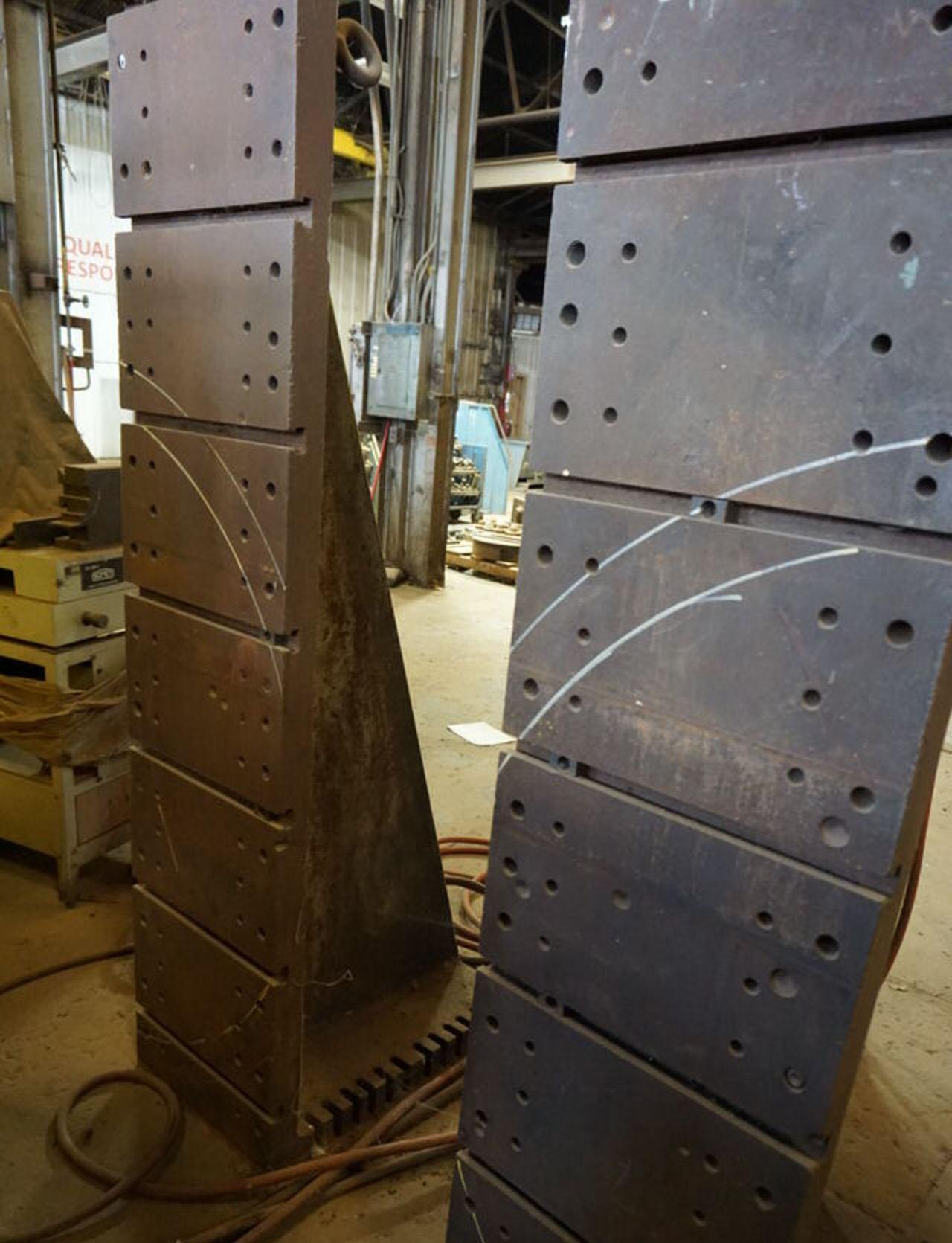

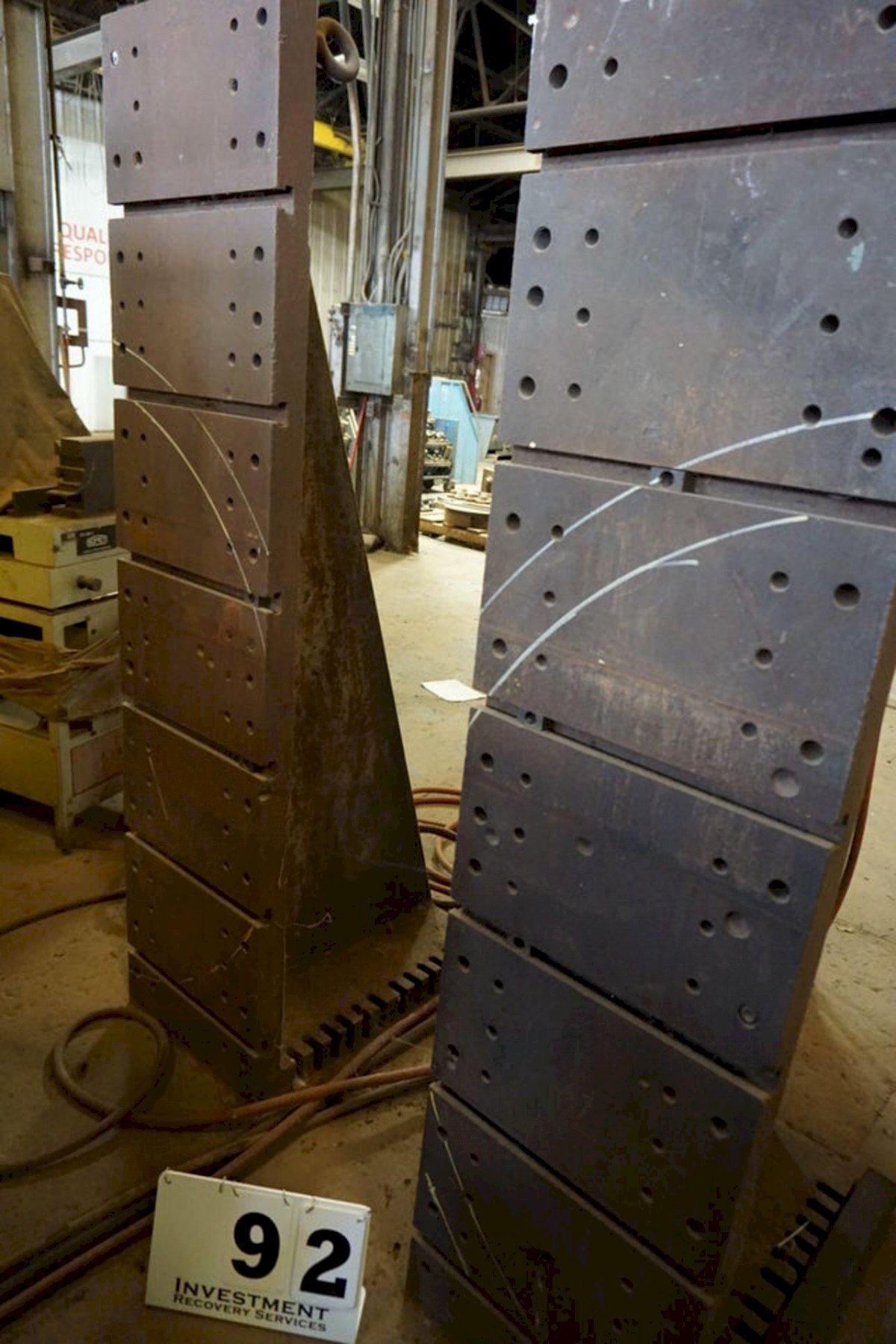

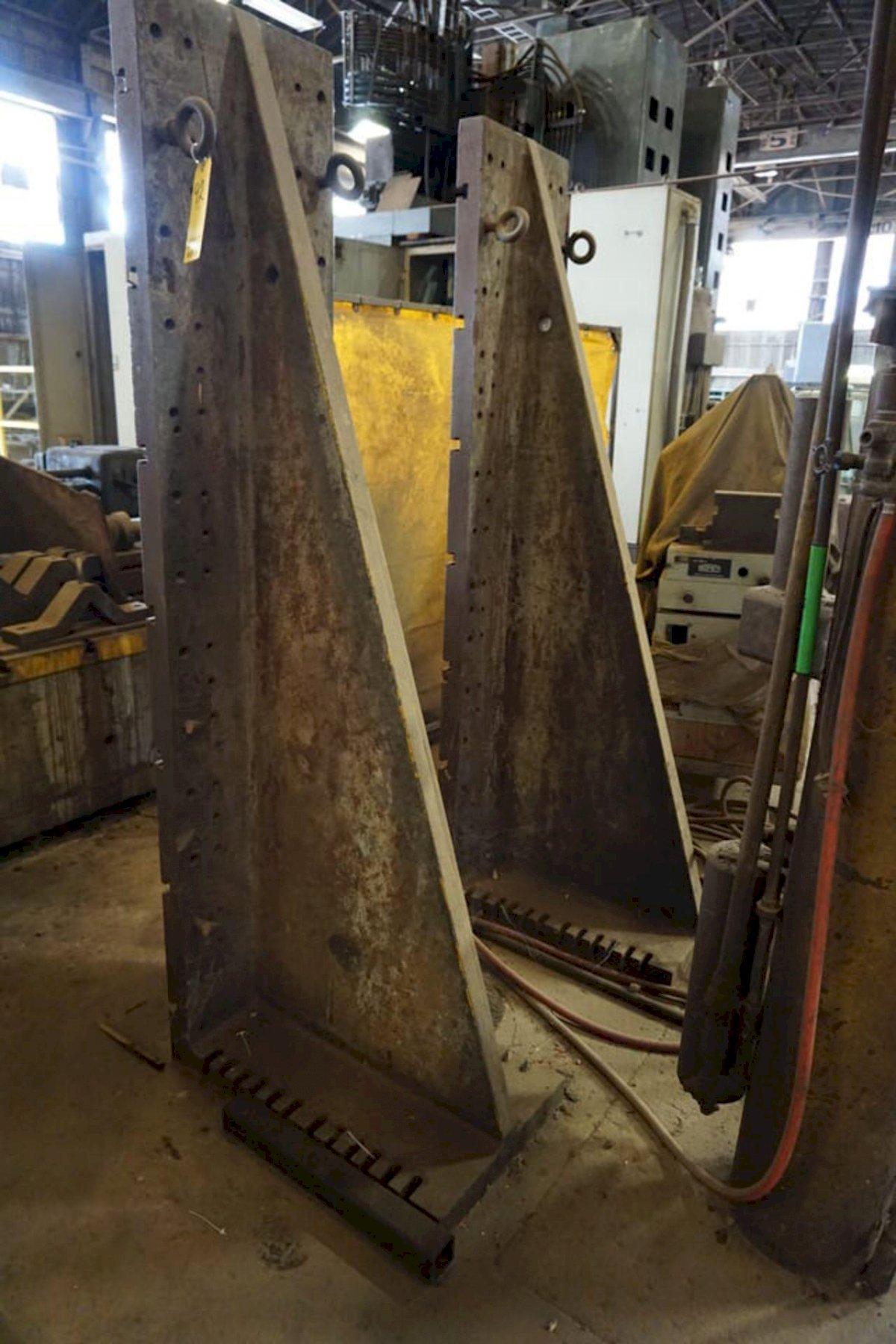

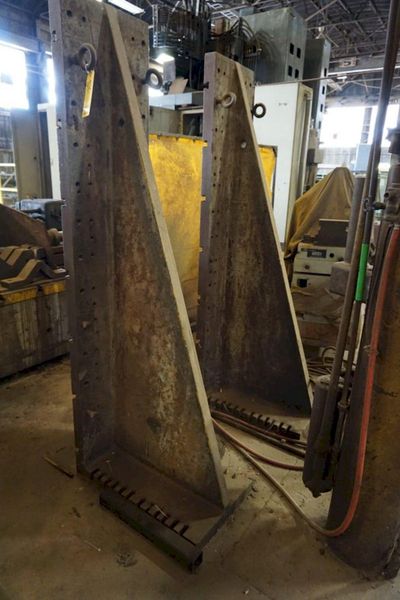

18' X 72' CUSTOM ANGLE PLATES: STOCK #73419

Manufacturer

Category

Tooling & Accessories

Type

ANGLE PLATES

Stock

73419

Model

18 X 072

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



HEIGHT OF PLATE ................ 72"
WIDTH OF PLATE ................. 18"
DEPTH OF PLATE (BOTTOM) ........ 30-1/2"
FACE THICKNESS ................. 2-3/4"
NUMBER OF T SLOTS .............. 7
SLOTS CENTERS .................. 12"
WIDTH OF SLOT AT TOP ........... 3/4"
DEPTH OF SLOT .................. 1-1/4"
WIDTH OF SLOT AT BOTTOM ........ 3/4"
DRILL & TAPPED 3/4" HOLES ...... 28
HOLE CENTERS ................... 15-1/4"
DRILLED & TAPPED 1/2" HOLES .... 40"
HOLE CENTERS ................... 10"
