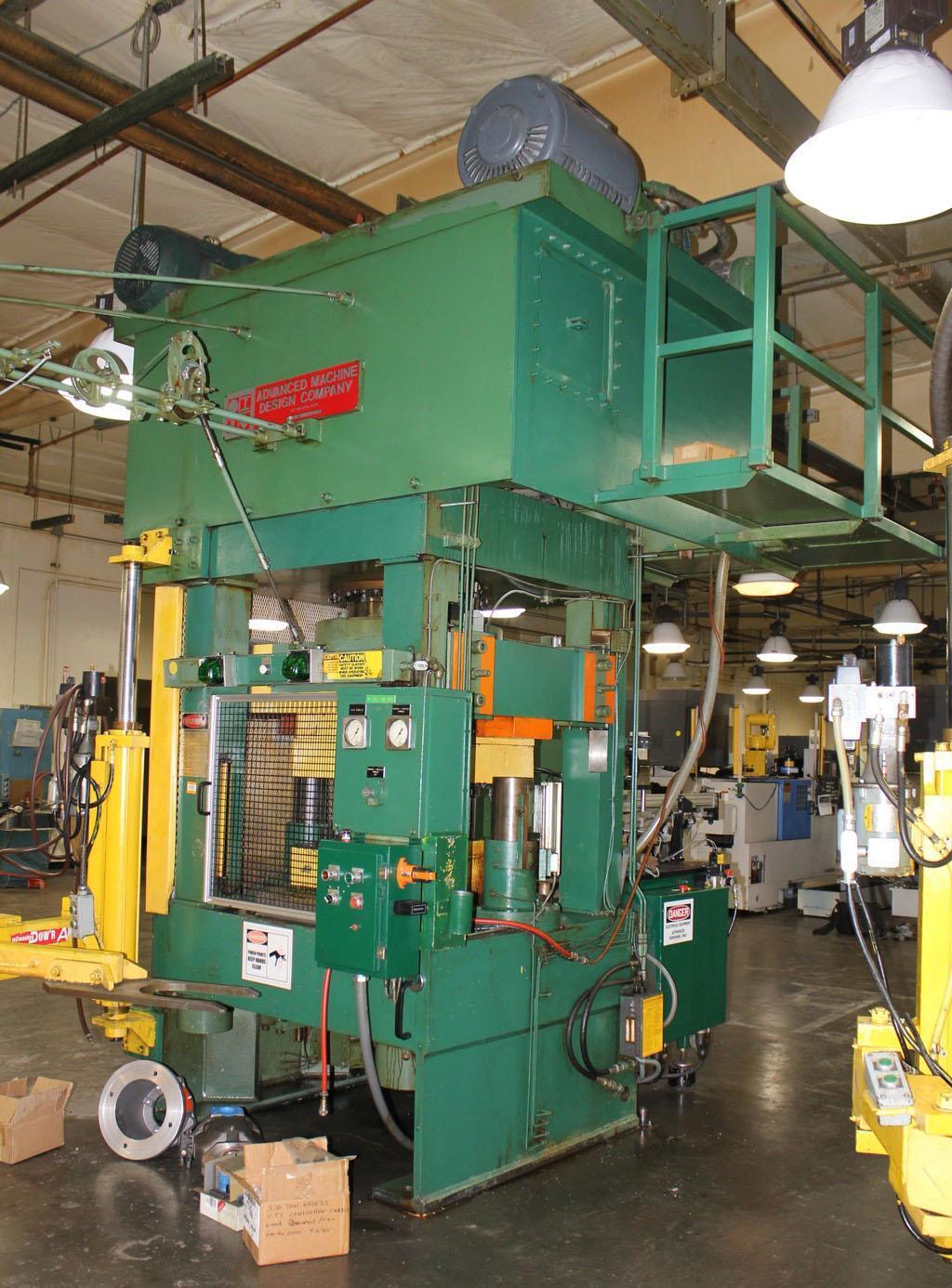

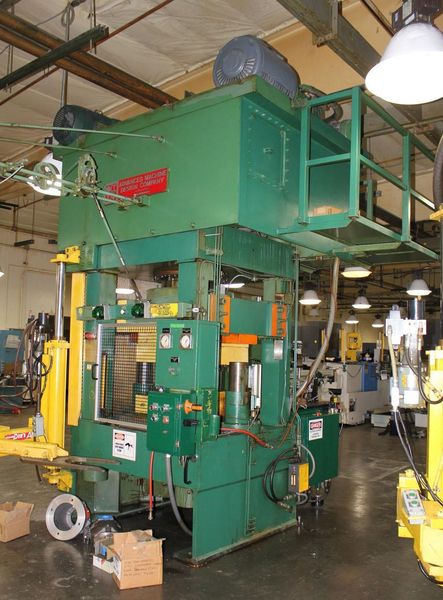

570 TON ADVANCED HYDRAULIC STRAIGHT SIDE PRESS: STOCK #59116

Manufacturer

ADVANCED

Category

Presses

Type

PRESSES, HYDRAULIC

Stock

59116

Model

0570

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

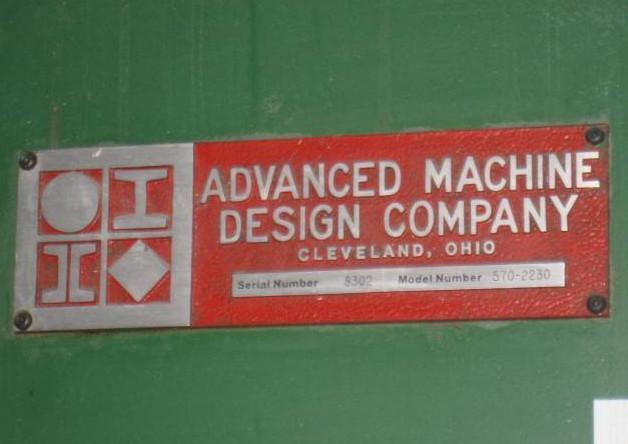

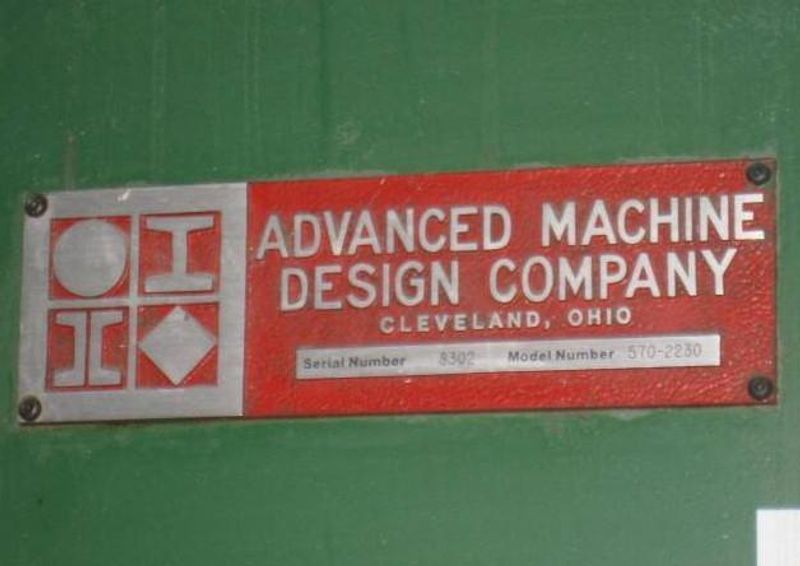

SERIAL .............................. 8302
MODEL ............................... 570-2230
YEAR ................................ 1983
CAPACITY ............................ 570 TONS
RAM STROKE .......................... 8"
DAYLIGHT ............................ 32"
CLOSED HEIGHT ....................... 24"
BED SIZE (L-R, F-B) ................. 36" X 53"
RAM SIZE (L-R, F-B) ................. 36" X 34"
BOLSTER SIZE ........................ 34-1/2" X 34-1/2" X 2-1/2"

RAM SPEEDS:
APPROACH ............................ 300 IPM
FORMING ............................. 0.05-50 IPM
RETURN .............................. 300 IPM
RAM PISTON DIAMETER ................. 20"
DIMENSIONS .......................... 112" X 90" X 157"
WEIGHT .............................. 55,000 LBS (APPROX)

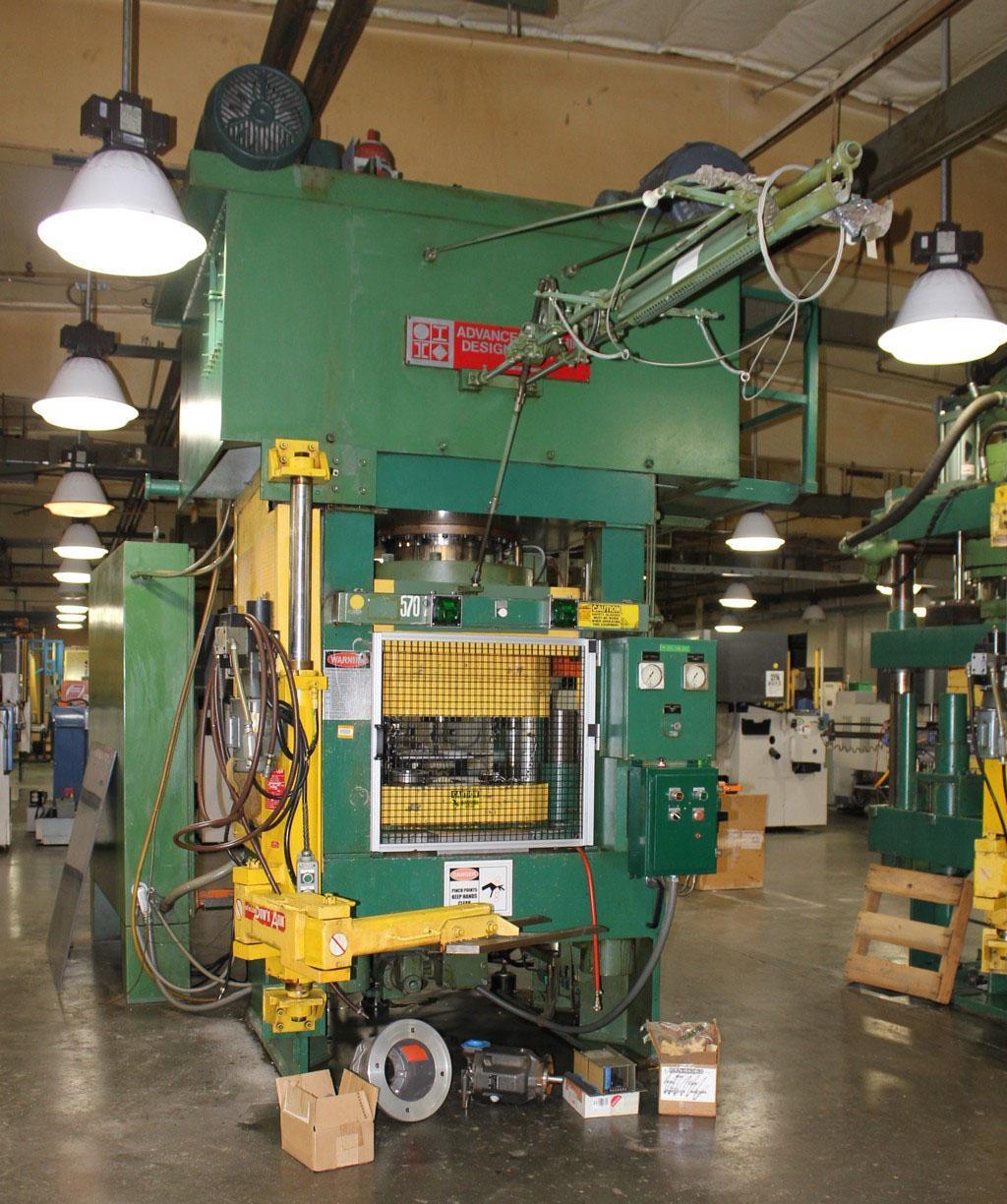

MILWAUKEE POWER ARM
MODEL ............................... MPA-50-24-24-24-SHV
WORK LOAD ........................... 500 LBS
WORKING RADIUS ...................... 48"

EQUIPPED WITH:
BED CUSHION (20 TON)
STI LIGHT CURTAINS

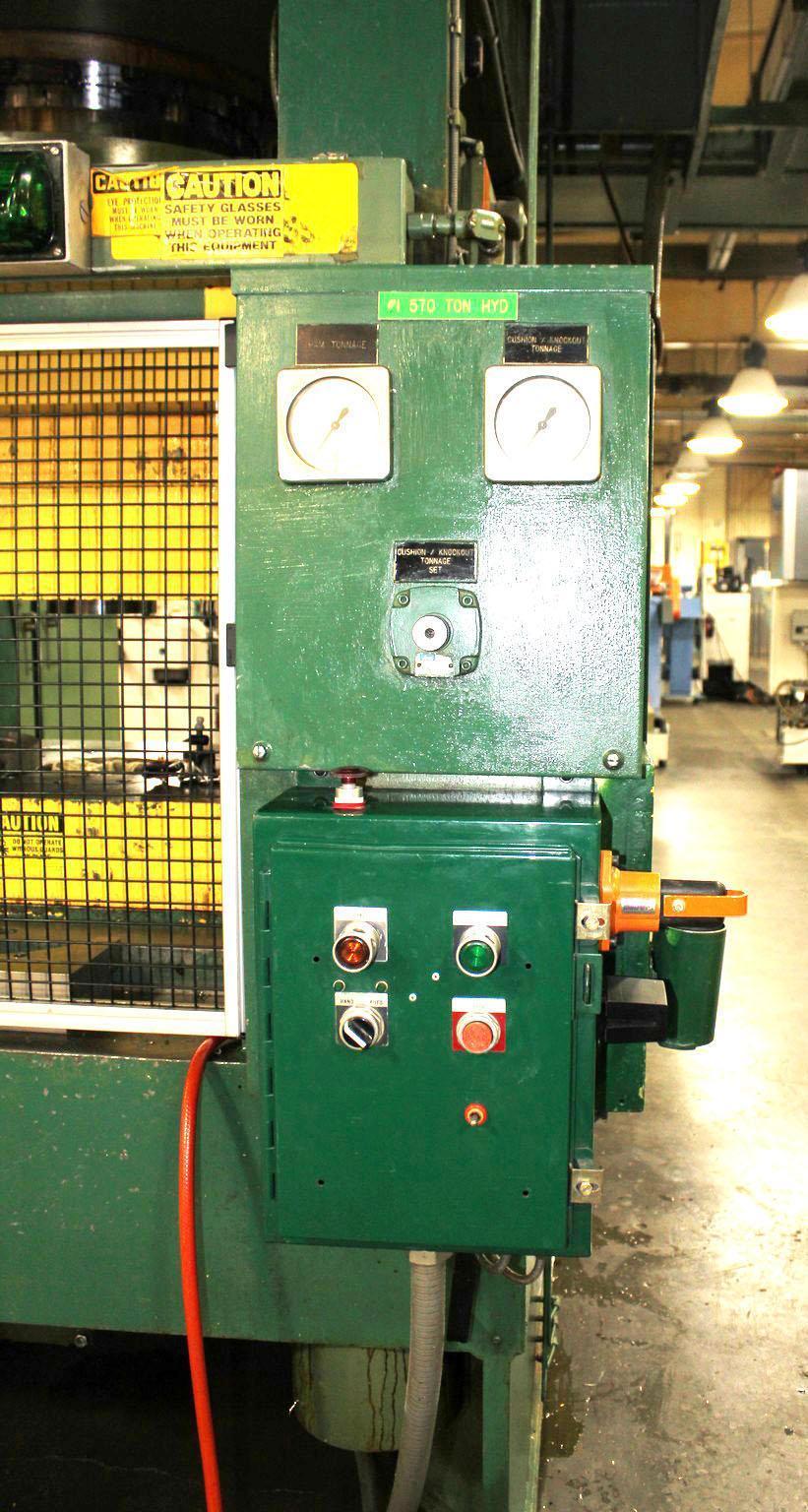

TONNAGE VALVE CONTROL WITH GAUGE
TOOL EJECTOR

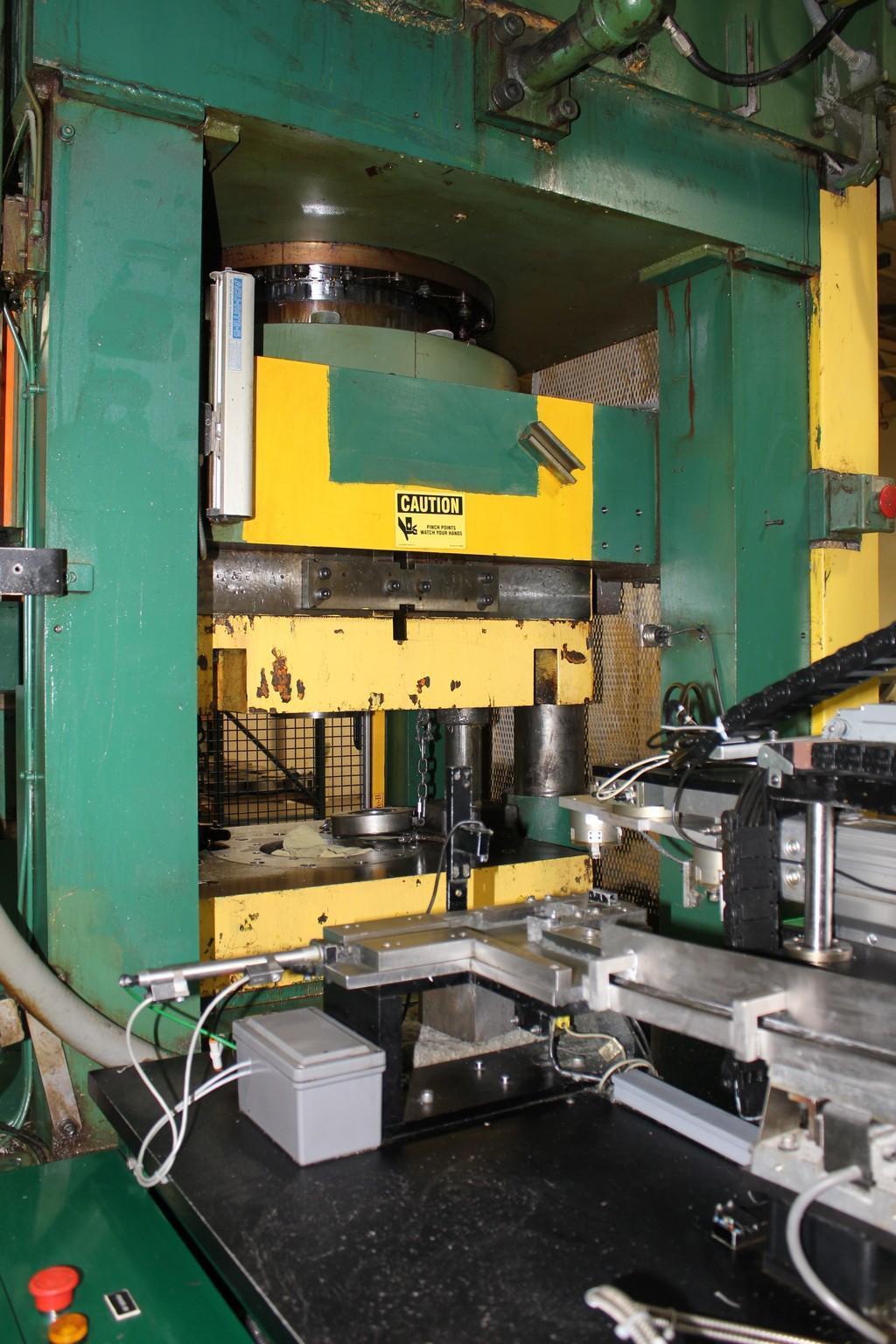

AUTOMATIC LOADER
POSSONS SAFETY HAND STRAP CONTROLS
BARRIER SAFETY GUARDS
DUAL INFRARED HAND CONTROL
DIE SET ............................. 32" X 26
MOTOR ............................... 150/75
