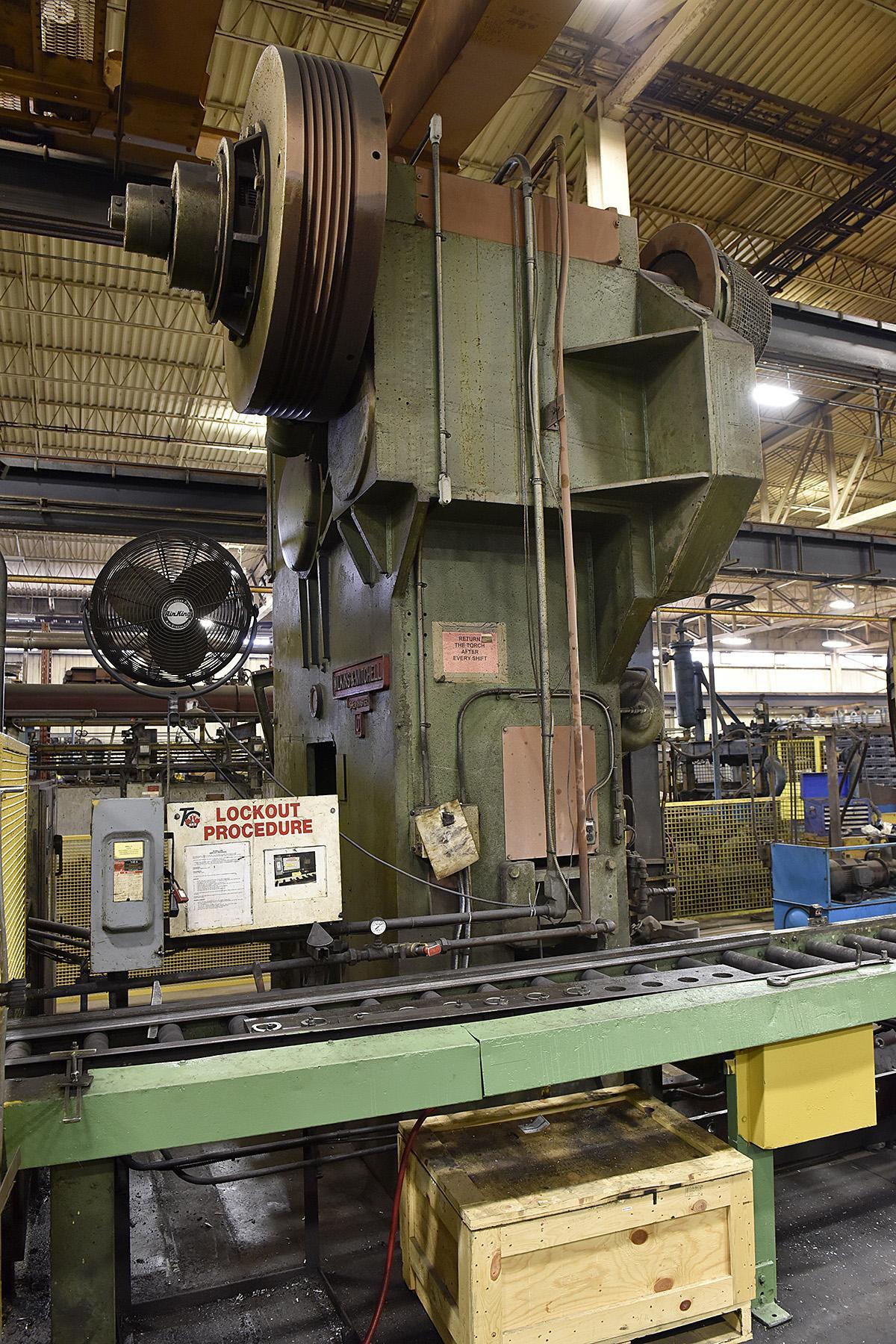

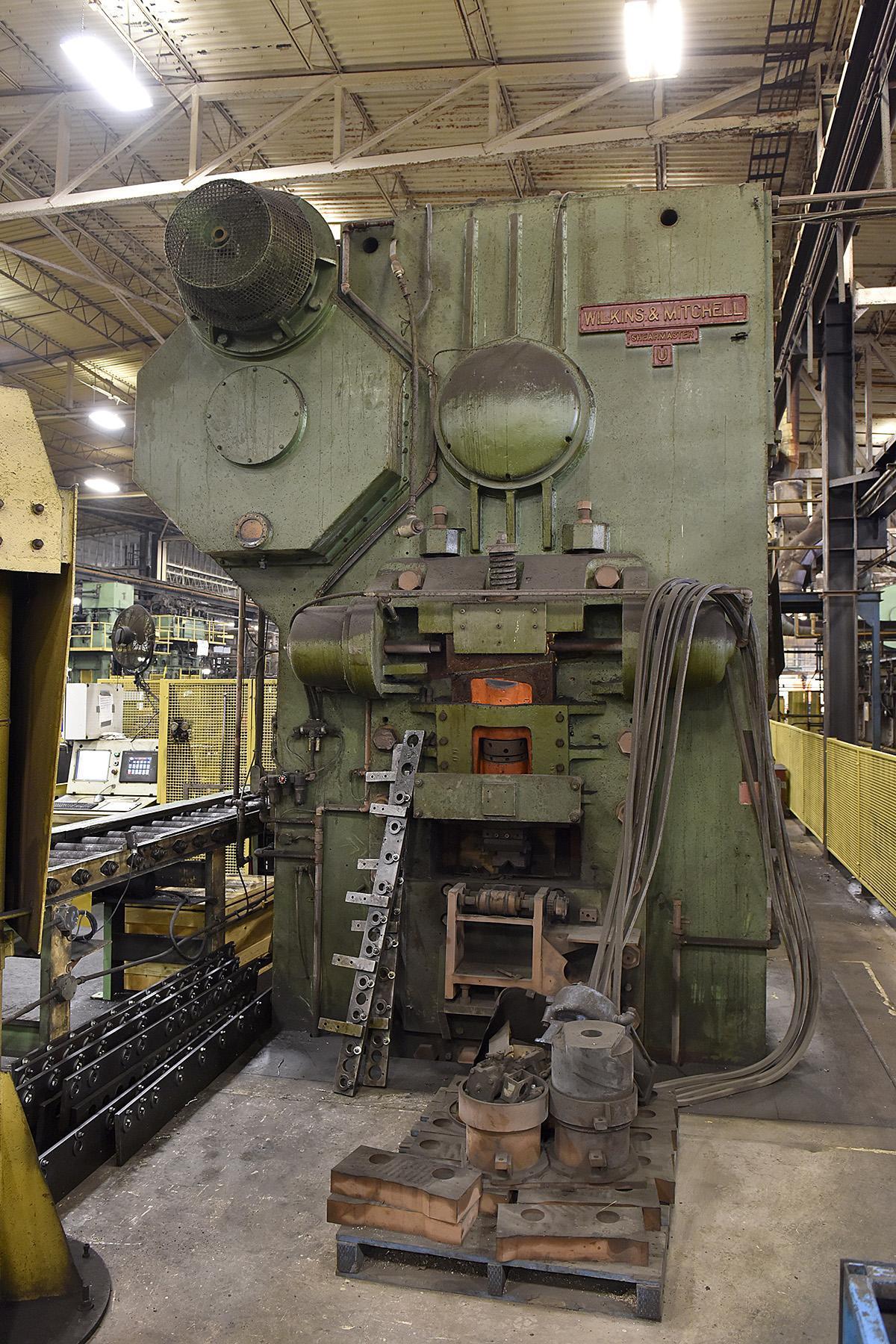

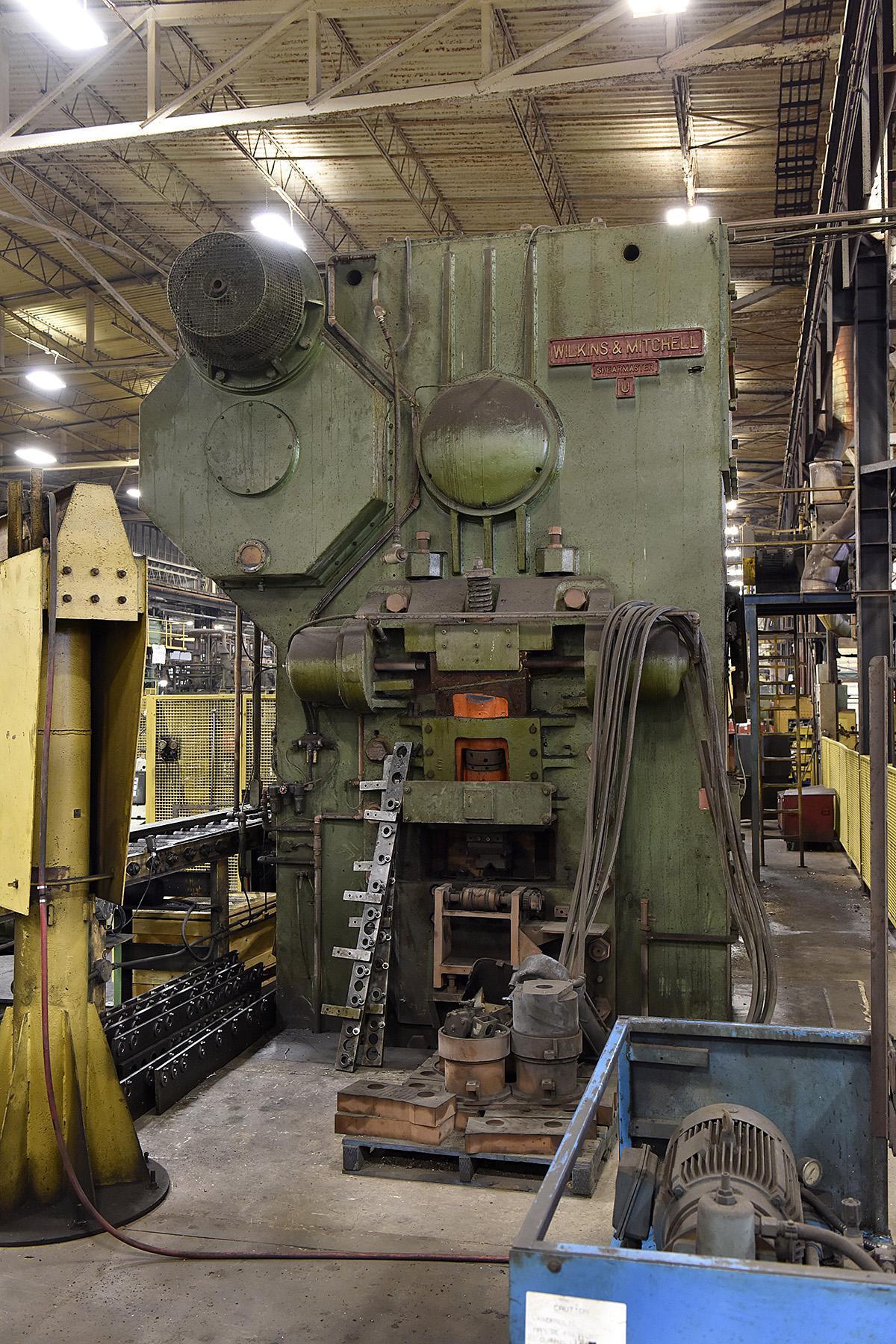

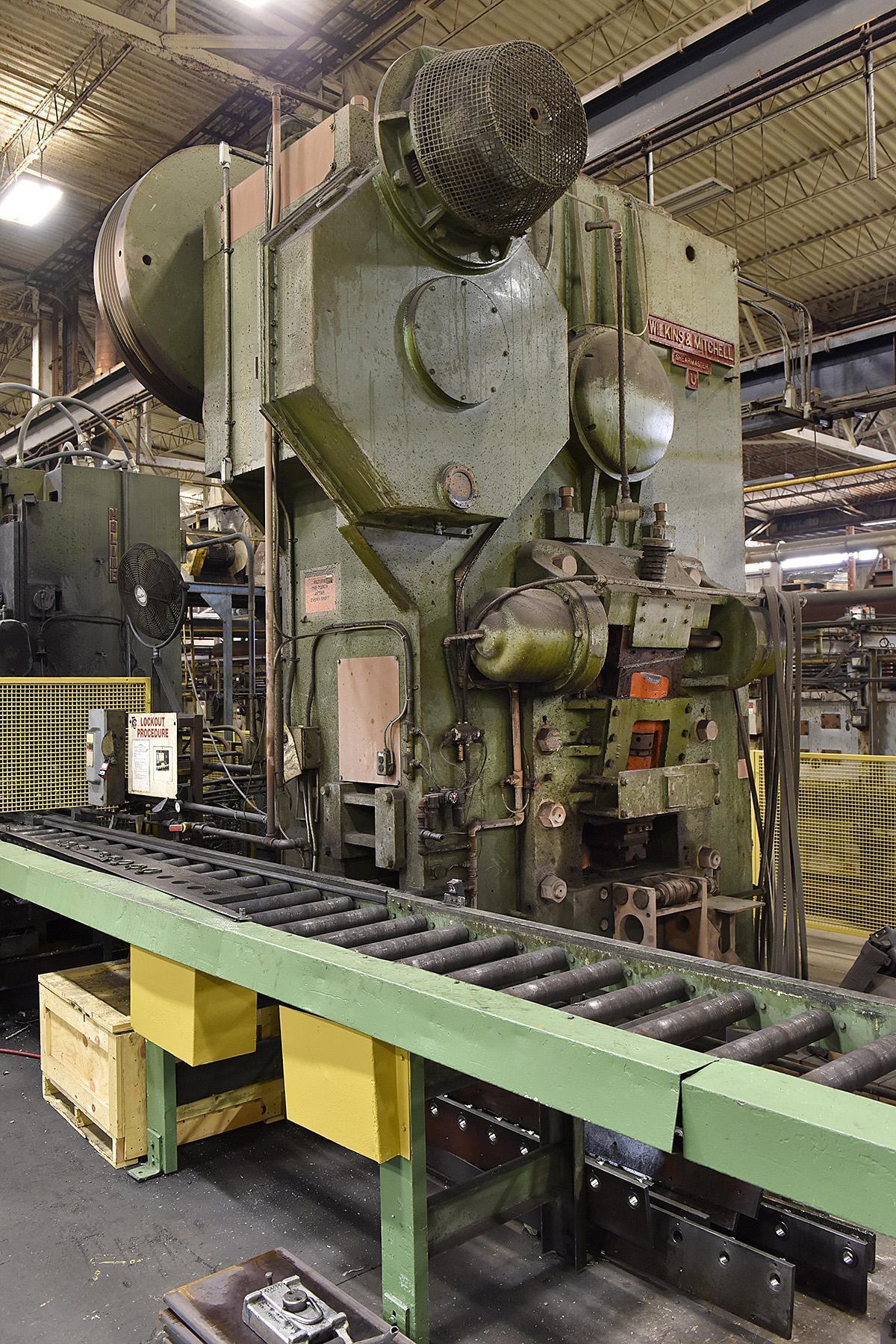

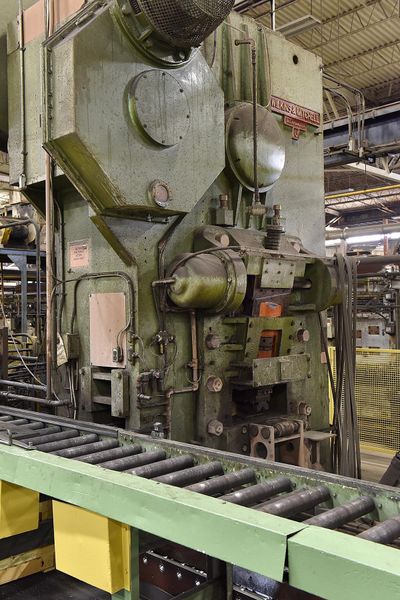

8" 1200 TON WILKINS & MITCHELL PRESS: STOCK #68751

Manufacturer

WILKINS & MITCHELL

Category

Presses

Type

PRESSES, HYDRAULIC

Stock

68751

Model

1200

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



CAPACITY ........................... 1200 TON
TYPE ............................... SHEARMASTER "U"
SUSPENSION ......................... I - ROD
AIR VALVES ......................... YES
FLYWHEEL GUARD ..................... YES
FLYWHEEL BRAKE ..................... YES
CAPACITY SQUARE (MILD STEEL) ....... 7"
CAPACITY ROUND (MILD STEEL) ........ 8"
STROKE ............................. 5-1/2"
STROKES PER MIN .................... 10
WEDGE TYPE HOLD DOWN ............... YES
PNEUMATIC CYLINDER OPERATION ....... YES
PNEUMATIC VALVE CONTROL ............ YES
AUTO ROLL FEED ..................... YES
FEED ROLLER ........................ YES
SPRING LOADED ...................... YES
ELECTRICAL CONTROL ................. YES

MAX BACK STOP ...................... 40"
MIN BACK STOP ...................... 16"
PNEUMATIC TYPE ..................... YES
ELECTRICAL CONTROL ................. YES

DRIVE MOTOR ........................ 75HP @ 1500RPM
STAR DELTA STARTER ................. YES
ELECTRICAL SUPPLY .................. 400V / 3PH / 50CY

AUTOMATIC GREASE LUBRICATION OPERATION:
GEARS IN OIL BATH
BEARINGS
SLIDEWAYS

FOUNDATION LOADING ................. 119 TON PER SQ FT
FINISHED WEIGHT .................... 69 TONS
BLADE HEIGHT ABOVE FLOOR ........... 38"
MACHINE HEIGHT ABOVE FLOOR ......... 17'9"
MAX PRESS DEPTH .................... 11'6"
MAX PRESS WIDTH .................... 12'0"
PLATFORMS .......................... YES
BDC POINTER ........................ YES
