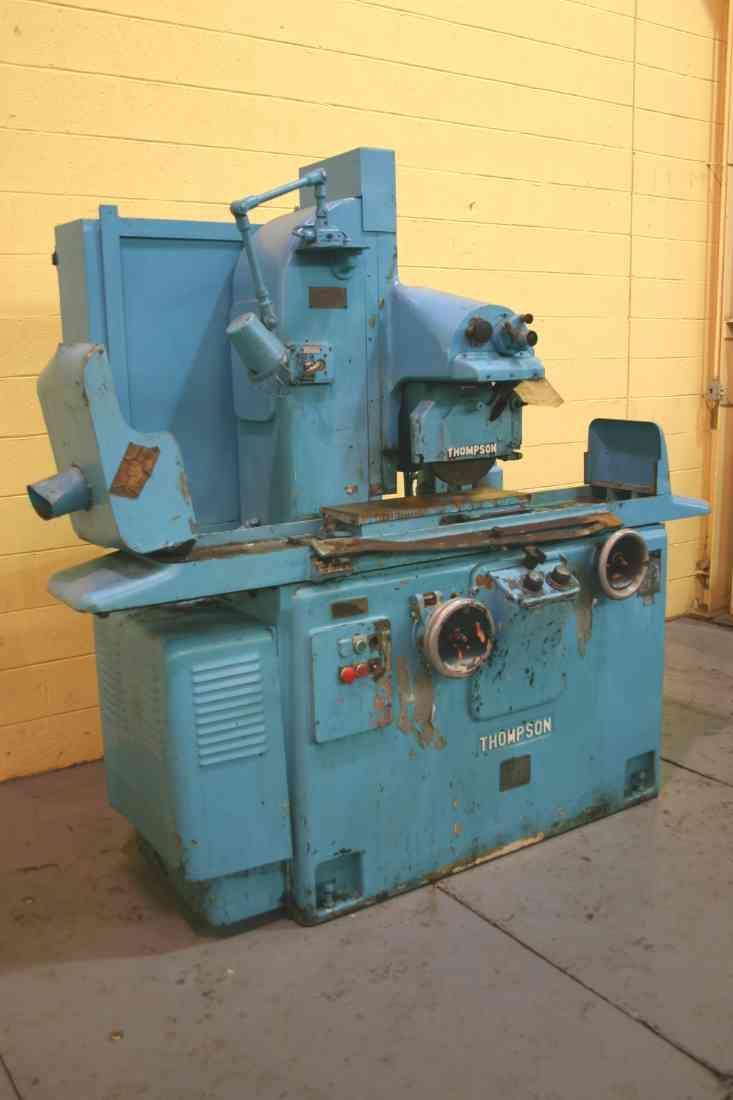

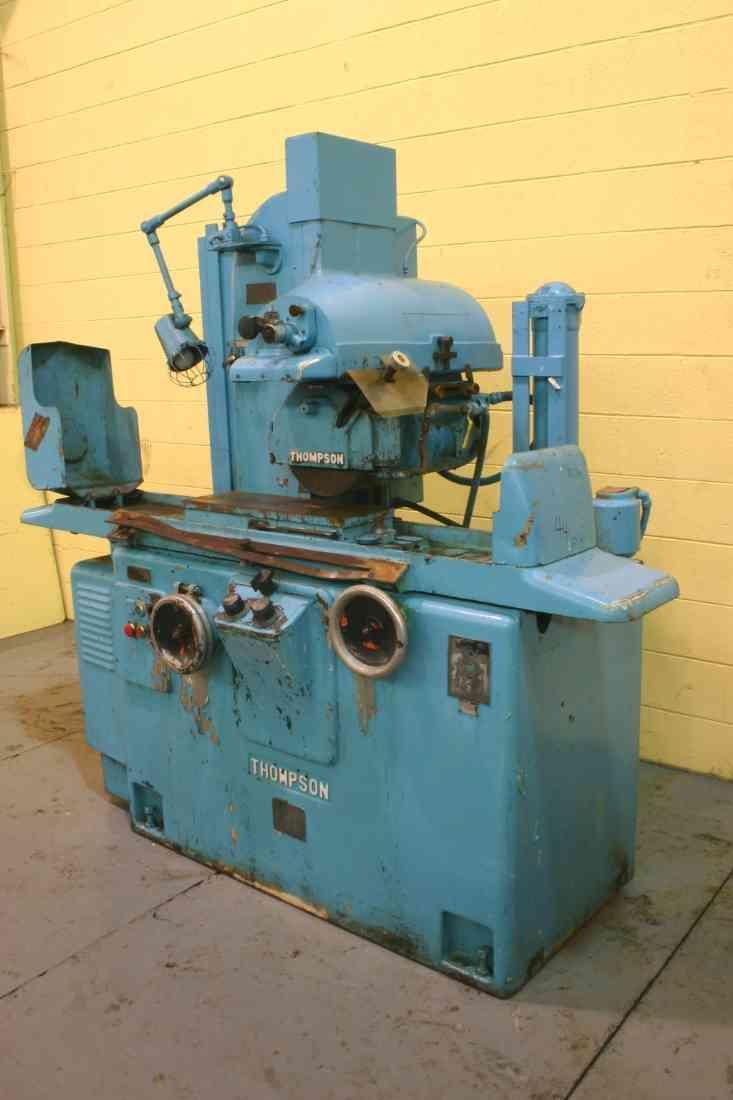

8' X 24' THOMPSON HORIZONTAL HYDRAULIC SURFACE GRINDER: STOCK #18584

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

18584

Model

08 X 024

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 2F652640
MODEL ............................... 2F
GRINDING CAPACITY ................... 24" X 8"
HEIGHT UNDER NEW WHEEL .............. 12-1/2"
TABLE TRAVEL ........................ 29"
WHEEL HEAD CROSS TRAVEL ............. 9"
TABLE SPEED, VARIABLE ............... 5 TO 75 FPM
CROSS FEED RANGE .................... .010 TO .375 IPM
CHUCK SIZE .......................... 8" X 24" X 3" HT
GRINDING WHEEL SIZE ................. 12" X 3/4" X 3" HOLE
GRINDING WHEEL SPEED ................ 5,400 SFPM
POWER ELEVATION ..................... YES
OVER THE WHEEL DRESSER .............. YES
COOLANT ............................. YES
HYDRAULIC MOTOR ..................... 1-1/2 HORSEPOWER
SPINDLE MOTOR ....................... 3 HORSEPOWER
