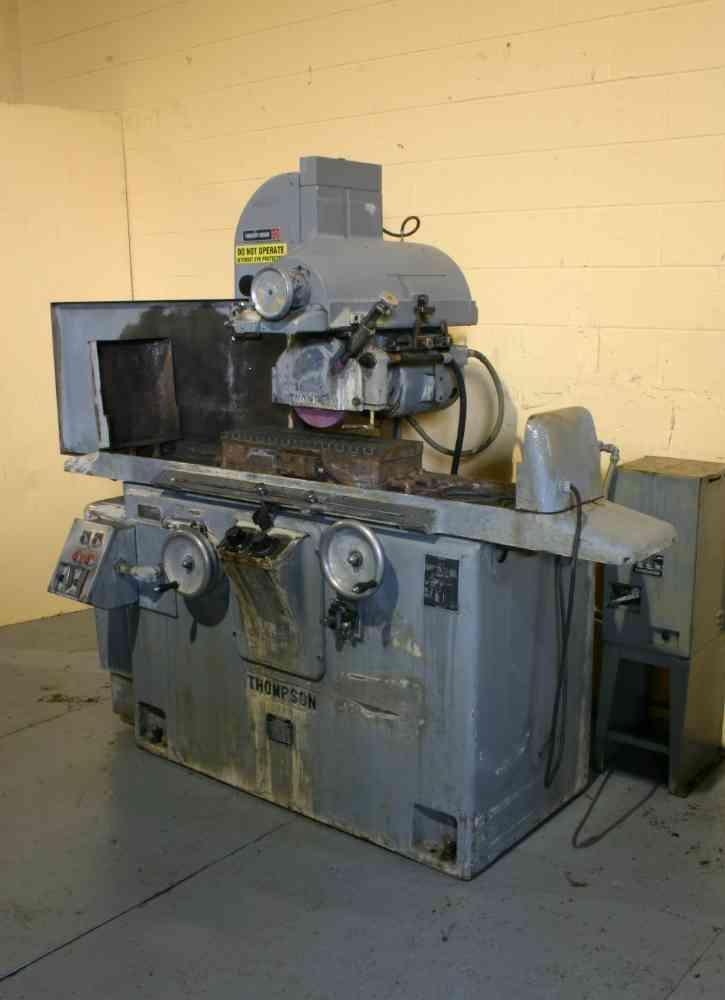

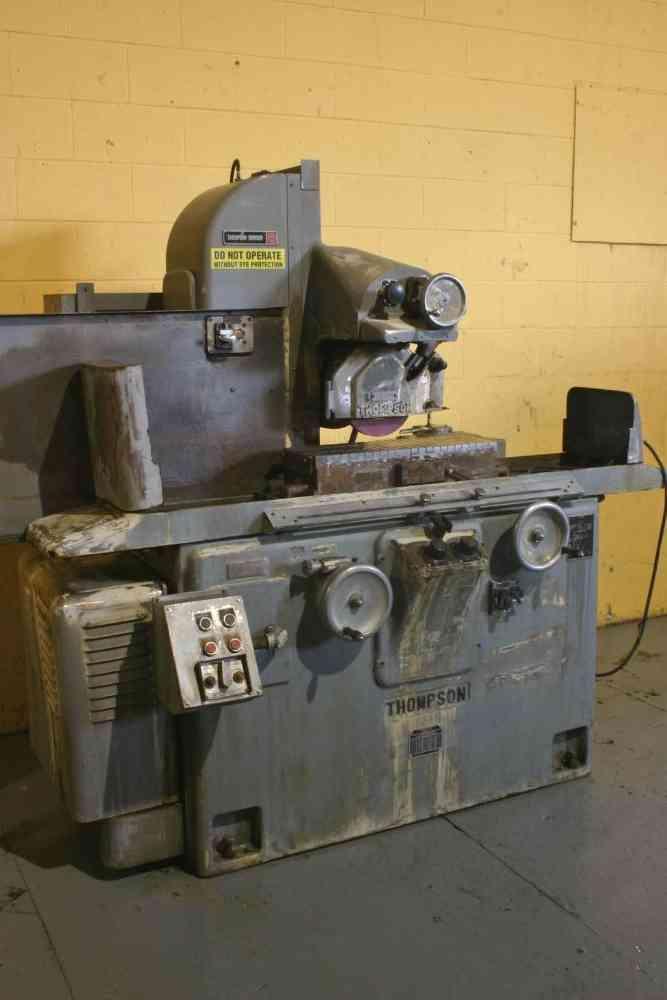

8' X 24' THOMPSON MODEL#2F HORIZONTAL SURFACE GRINDER: STOCK #19853

Stock

19853

Model

08 X 024

Dealer Location

Ohio

Spec Sheet



SERIAL ............................... 2F-7322590-1007953
MODEL ................................ 2F
YEAR NEW ............................. 1973
GRINDING CAPACITY .................... 8" X 24"
MAXIMUM WORK HEIGHT .................. 12"
WALKER MAGNETIC CHUCK ................ 8" X 24" X 4"
GRINDING WHEEL SIZE .................. 12" X 1" X 3"
GRINDING WHEEL SPEED ................. 1750 RPM
HYDRAULIC LONGITUDINAL TRAVEL ........ 5 TO 70 FPM
AUTOMATIC CROSS FEED ................. 1/32" TO 3/8"
CROSS RAPID TRAVEL ................... 20 FPM
POWER ELEVATION ...................... YES
WALKER CHUCK CONTROL ................. VARIABLE HOLD
COOLANT .............................. YES
HYDRAULIC MOTOR, HORSEPOWER .......... 1-1/2
SPINDLE MOTOR, HORSEPOWER ............ 3
