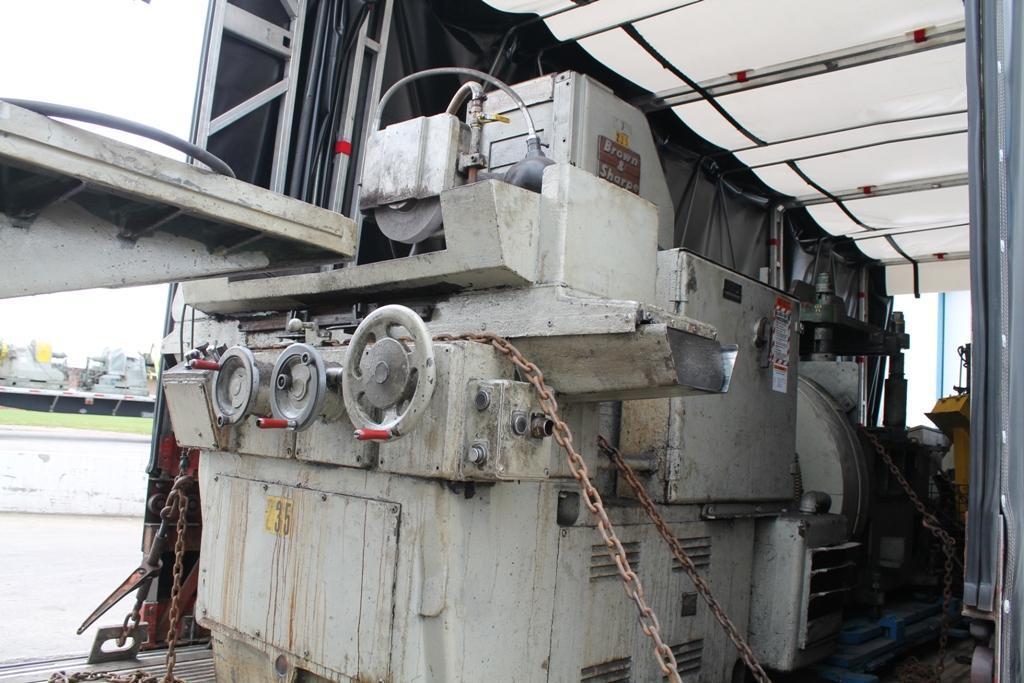

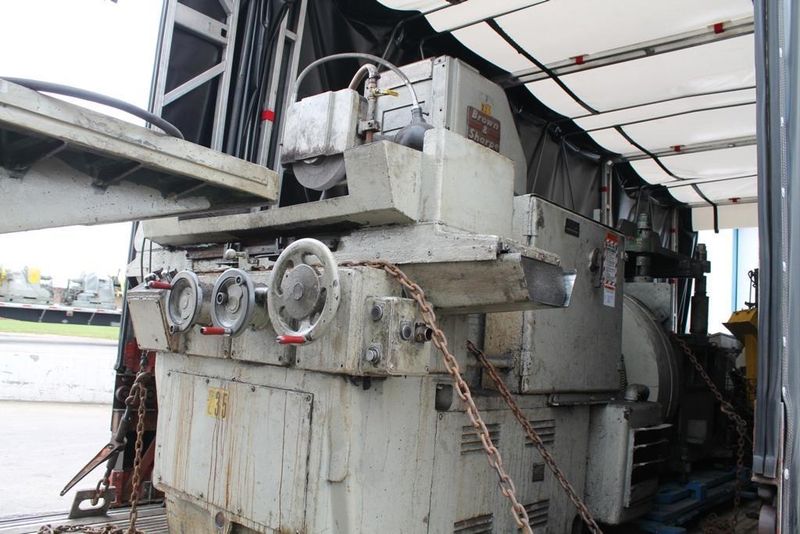

8' X 24' BROWN & SHARPE HORIZONTAL SURFACE GRINDER: STOCK #63350

Manufacturer

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

63350

Model

08 X 024

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................... 523-824-359
MODEL .................................... 824
CAPACITY ................................. 8" X 24"
MAXIMUM HEIGHT UNDER 14" WHEEL ........... 13-1/2"
HYDRAULIC TABLE TRAVEL ................... 10 TO 125 FPM
AUTOMATIC CROSS TRAVEL ................... 10"
HYDRAULIC TABLE TRAVEL (LONGITUDINAL) .... 28"
AUTOMATIC INFEED AT TABLE REVERSE ........ .010 TO .500
VERTICAL MOVEMENT OF WHEEL HEAD .......... 14-3/4"
GRINDING WHEEL DIAMETER .................. 12"
WIDTH OF GRINDING WHEEL .................. 1"
SPINDLE SPEED ............................ 1750 RPM
MAGNETIC CHUCK ........................... 8" X 24" X 3"
POWER SPINDLE ELEVATION .................. YES
SPINDLE MOTOR, HORSEPOWER ................ 5
HYDRAULIC MOTOR, HORSEPOWER .............. 3
COOLANT .................................. YES
