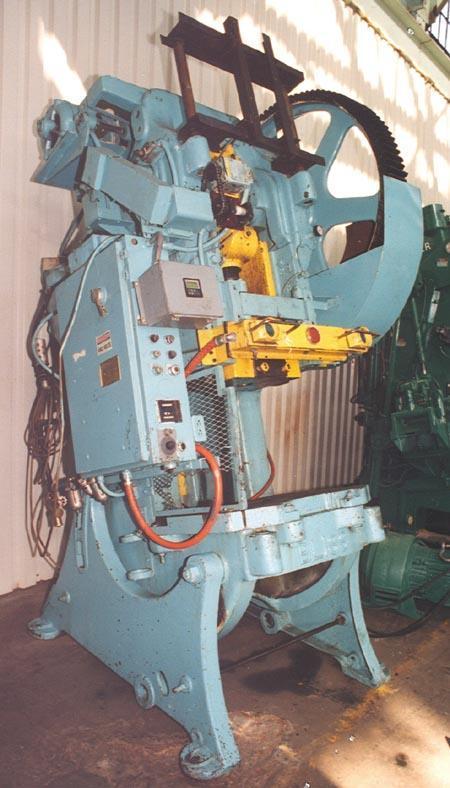

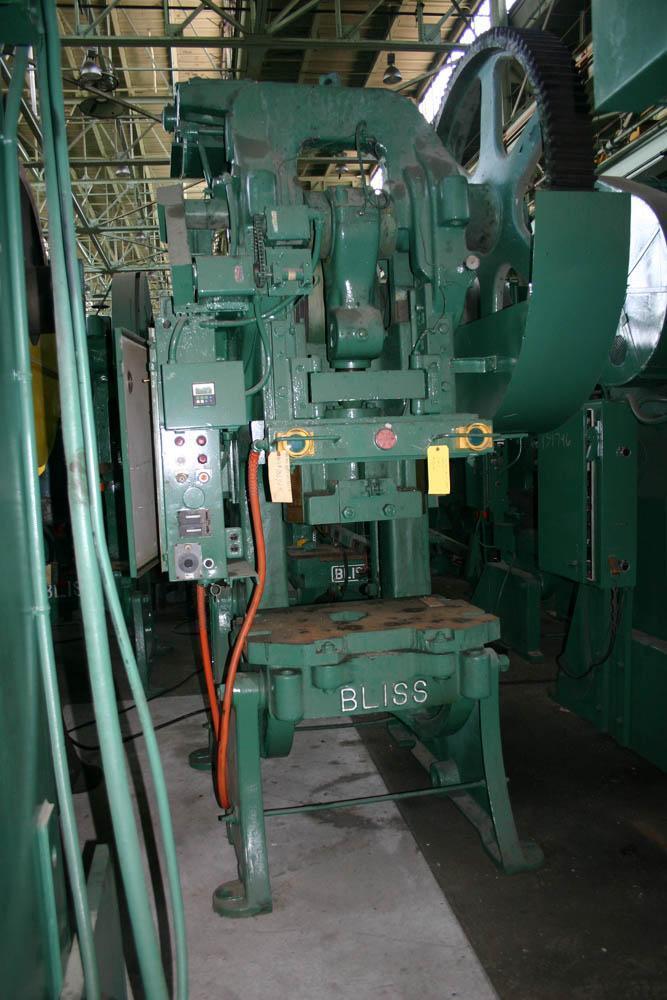

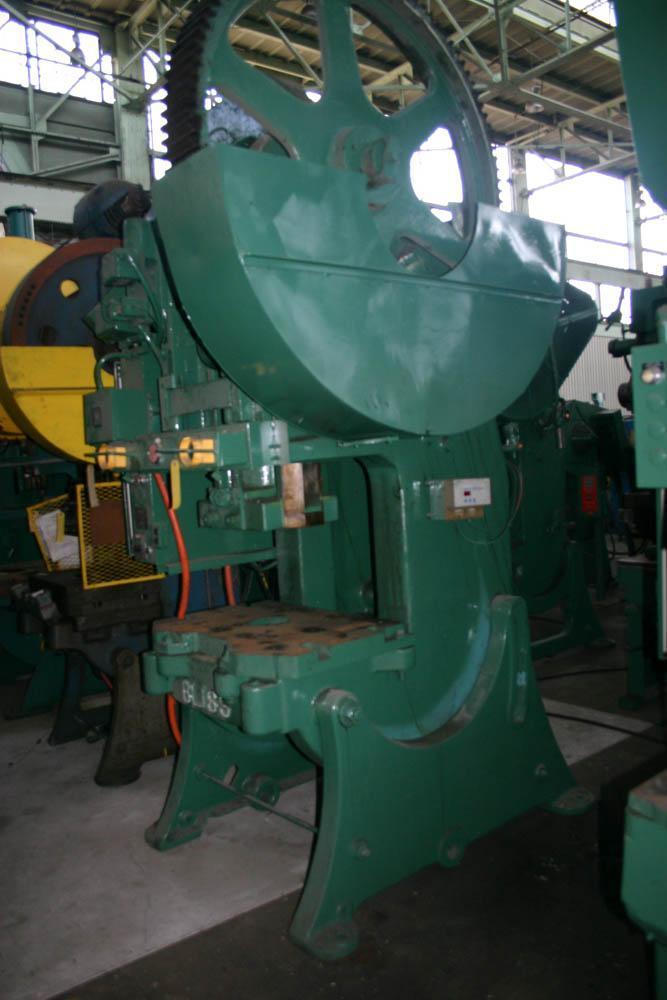

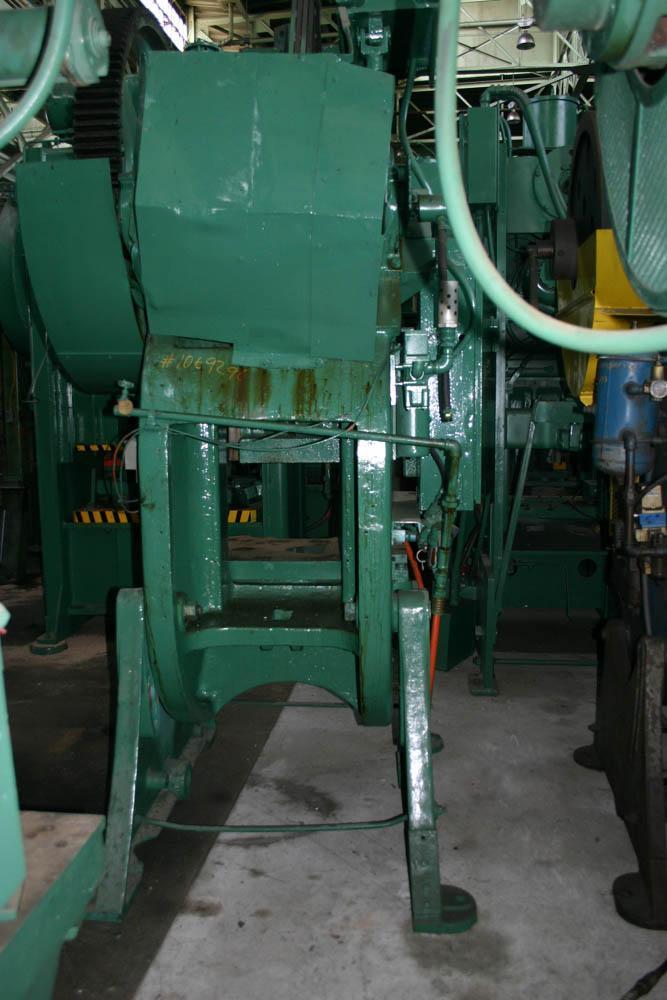

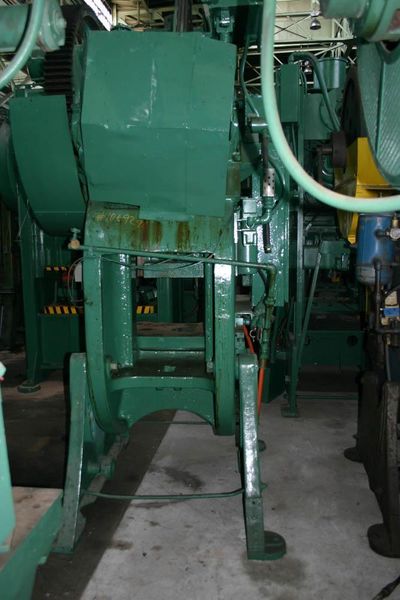

75 TON BLISS OBI PRESS: STOCK #19334

Stock

19334

Model

0075

Dealer Location

Ohio

Spec Sheet



SERIAL ....................... H43560
MODEL ........................ 23
STROKE ....................... 8"
SHUT HEIGHT (SDAU) ........... 15"
SLIDE ADJUSTMENT ............. 3"
STROKES PER MINUTE ........... 40
SLIDE AREA ................... 14" FB X 17" LR
BED AREA ..................... 24" FB X 32" LR
HOLE IN BED .................. 14" FB X 18" LR X 18" DIAMETER
BED BOLSTER SIZE ............. 24" FB X 32" LR X 3" THICK
DISTANCE BETWEEN UPRIGHTS .... 18"
DISTANCE FROM BED TO GIBS .... 27"
THROAT ....................... 12.5"
MOTOR ........................ 7.5 HORSEPOWER
SINGLE BACK GEARED ........... YES
AIR CLUTCH ................... YES
AIR BRAKE .................... YES
SLIDE ADJUSTMENT ............. MANUAL
DUAL PALM BUTTON CONTROLS .... YES
OPERATOR'S CONTROLS W/INCH, SINGLE & CONTINUOUS
BIJUR LUBRICATION ............ YES
DIGITAL BRAKE MONITOR ........ YES
