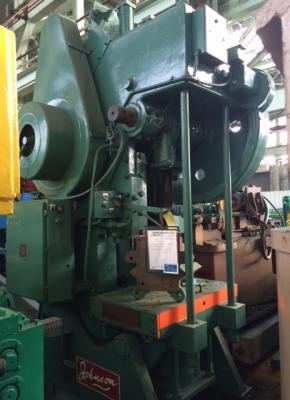

90 TON JOHNSON OBI PRESS: STOCK #19347

Manufacturer

JOHNSON

Category

Presses

Type

PRESSES, O.B.I., BACK GEARED, (Single Crank)

Stock

19347

Model

0090

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

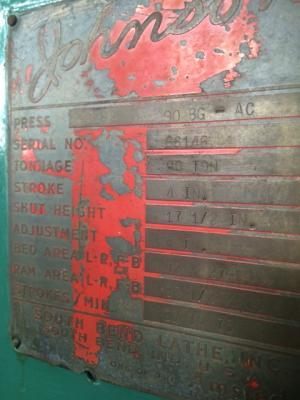

SERIAL .............................. 66146
MODEL ............................... 90
AGE ................................. 1966
STROKE .............................. 4"
SHUT HEIGHT (SDAU) .................. 17 1/2"
SLIDE ADJ ........................... 4"
SPM ................................. 25 - 75 (INF. VARIABLE)
BED ................................. 27" FB X 42" LR
BED BOLSTER ......................... 27" FB X 42" LR X 4" THICK
SLIDE ............................... 15" FB X 20 1/2" LR
DISTANCE BETWEEN UPRIGHTS ........... 17 1/2"
DISTANCE FROM BED TO GIBS ........... 21 1/2"
THROAT .............................. 15"
SINGLE BACK GEARED
EQUIPPED WITH:
AIR CLUTCH & AIR BRAKE .............. YES
AIR COUNTERBALANCES ................. 2
AIR CUSHION ......................... 1
MANUAL SLIDE ADJUSTMENT ............. YES
KNOCKOUT SLOT IN RAM ................ YES
FRONT TIE-BARS ...................... YES
REEVES VARIABLE SPEED DRIVE ......... YES
LINK LOGIC BRAKE MONITOR ............ YES
PUSH-BUTTON OPERATOR'S CONTROLS ..... YES
DUAL PALM BUTTONS ................... YES
FOOT PEDAL CONTROL .................. YES
MOTOR ............................... 7.5 HP
