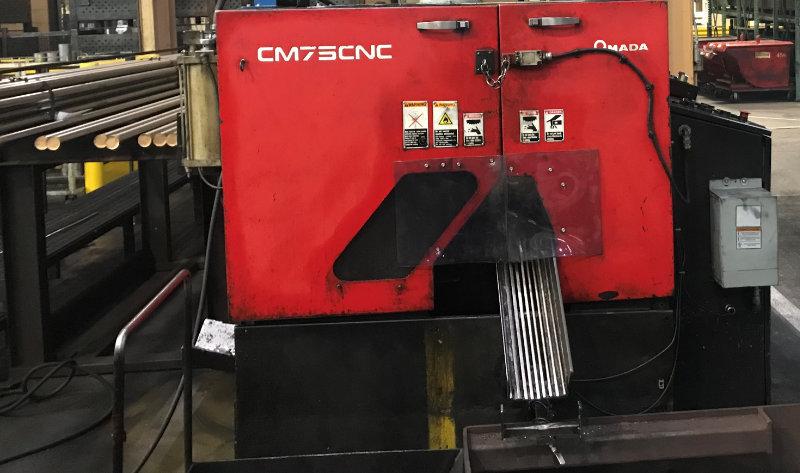

Used AMADA FULLY AUTOMATIC CARBIDE CIRCULAR SAW , Model CM75, 2.95”, Stock No. 10597, Year 2005

Manufacturer

AMADA

Category

Saws

Type

SAWS, COLD & CARBIDE

Stock

10597

Model

CM75

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Max Blade Dia. - 11.2 inches
Power - 10 horsepower
CNC Control - yes
Weight - 5512 pounds


Brand: Amada
Model: CM75

Specifications:
Cutting Capacity, Round Solid @ 90 deg: 0.4” - 2.95”
Cutting Capacity, Flat & Profile @ 90 deg: 0.4” x 0.4” - 2.16” x 2.16”
Loading Magazine Type: Incline
Loading Magazine Length: 20’
Saw Blade Dimensions: 11.2” x 1.57” x 0.08”
Automatic Feed Length (one stroke): 28.15”
Shortest Cut-off Length (Automatic): 0.4”
Head feed (manual / powered): Powered
Material Discharge: Sorting chute
Way type: Slides

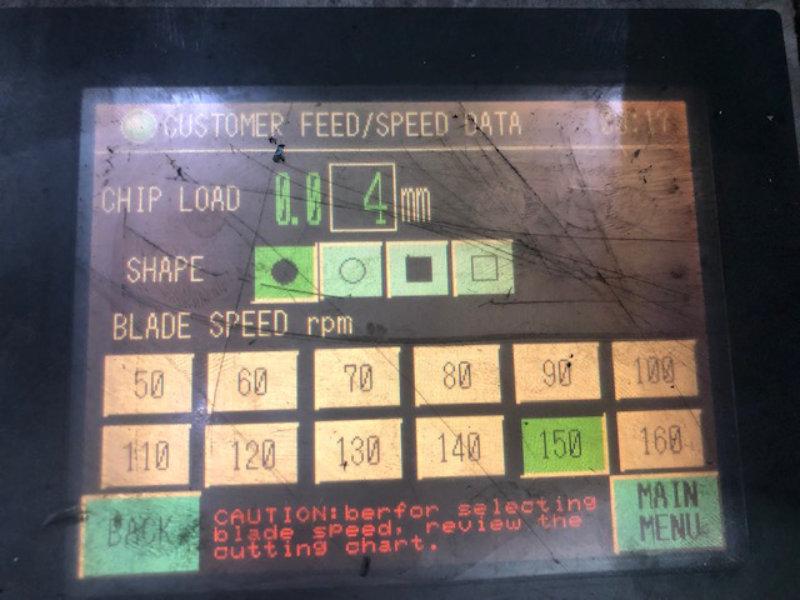

Cutting Speeds: 56-255 RPM (inverter drive)
# of Speeds: Infinate
Manual / Air / Hydraulic Vise: Hydraulic
Coolant Type: Mist
Hydraulic Motor: 3 H.P.
Air Requirements: 90 PSI
Main Saw Motor: 10 H.P.
Voltage: 220 volt 3 phase
Dimensions: 80” x 67” x 62” (saw only)
Weight: 5,512 Lbs.

Equipped with:

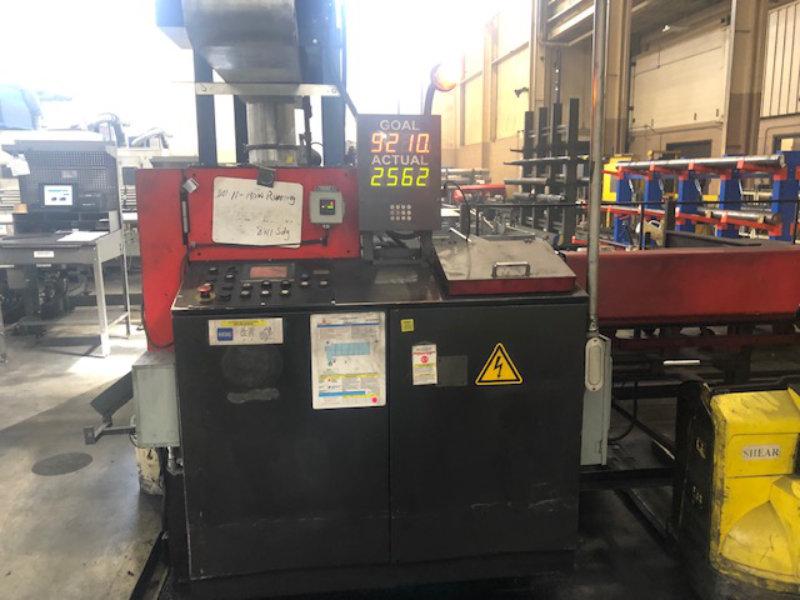

PLC control
Anti backlash device
Cut piece counter
Ammeter for main motor amp draw
Self diagnostics
Chip conveyor

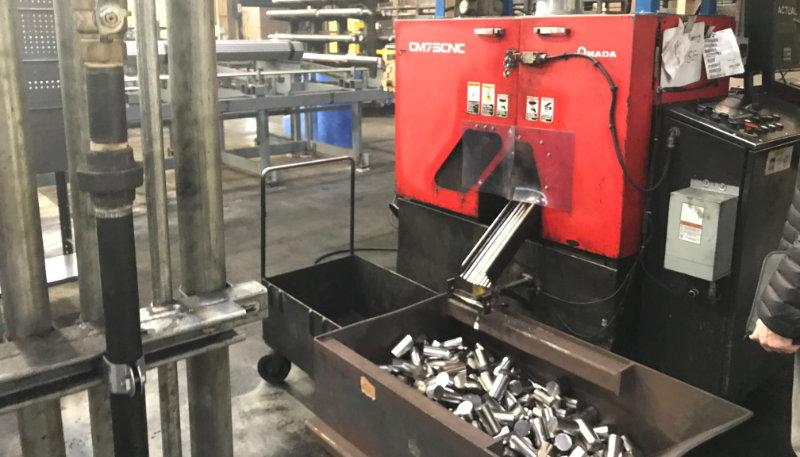

Sorting chute to separate trim and remnants from good cut pieces
Automatic trim cut
Carbide stabilizer pads

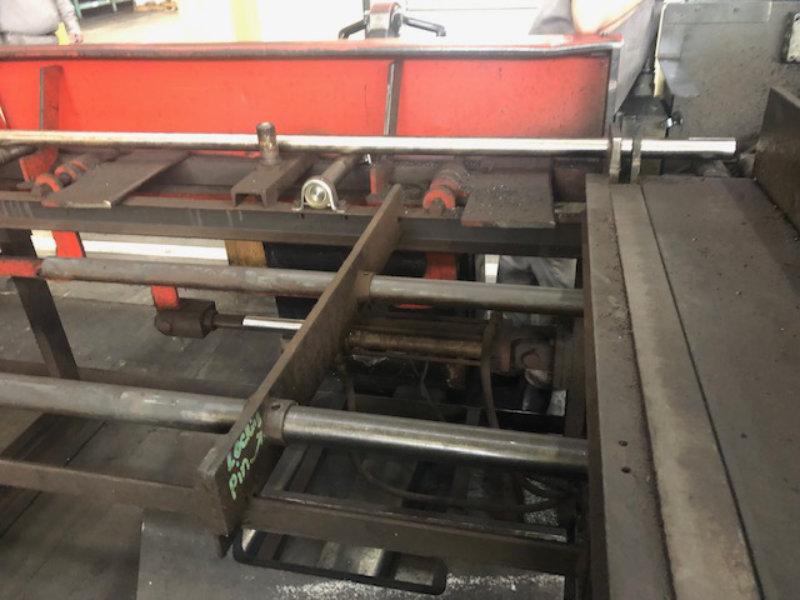

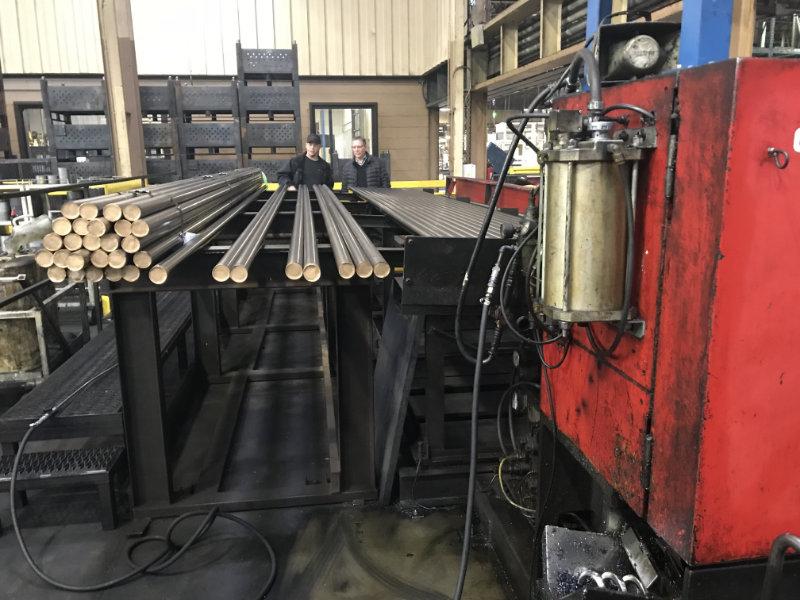

20’ incline table
Controlled mist system
Wire blade chip brush
