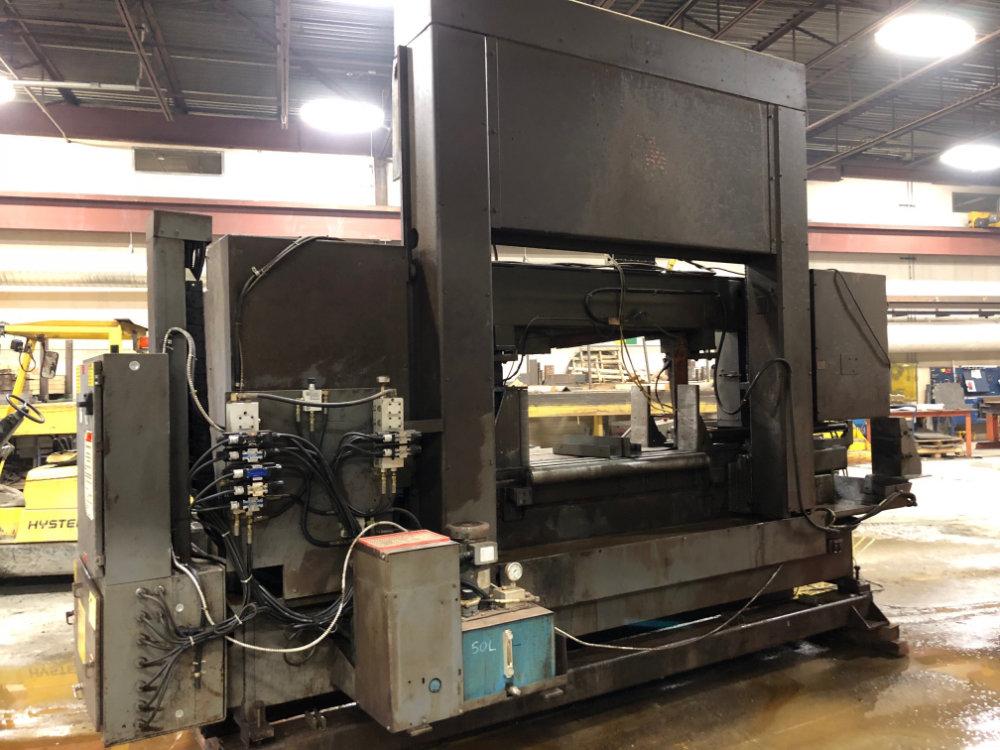

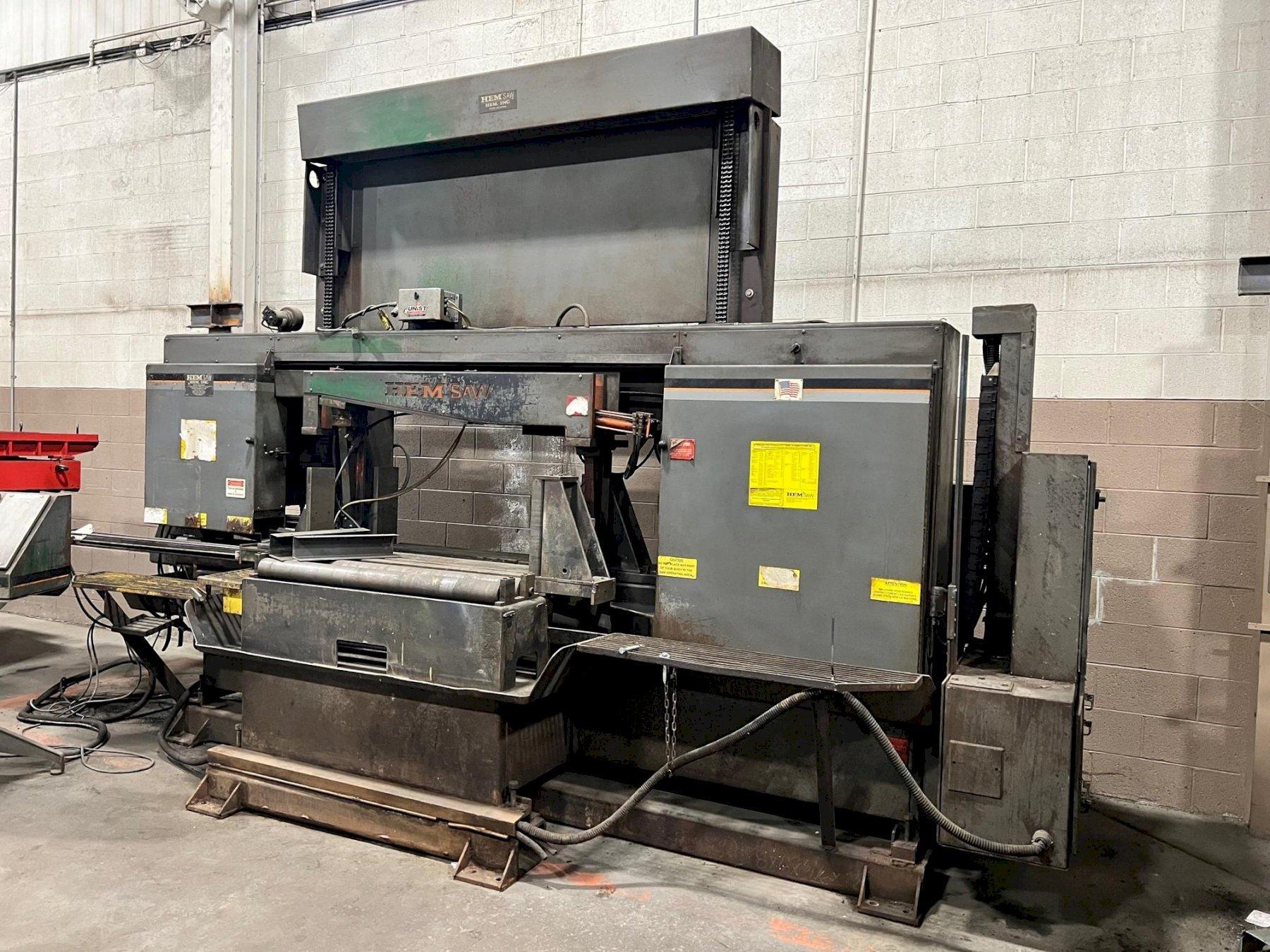

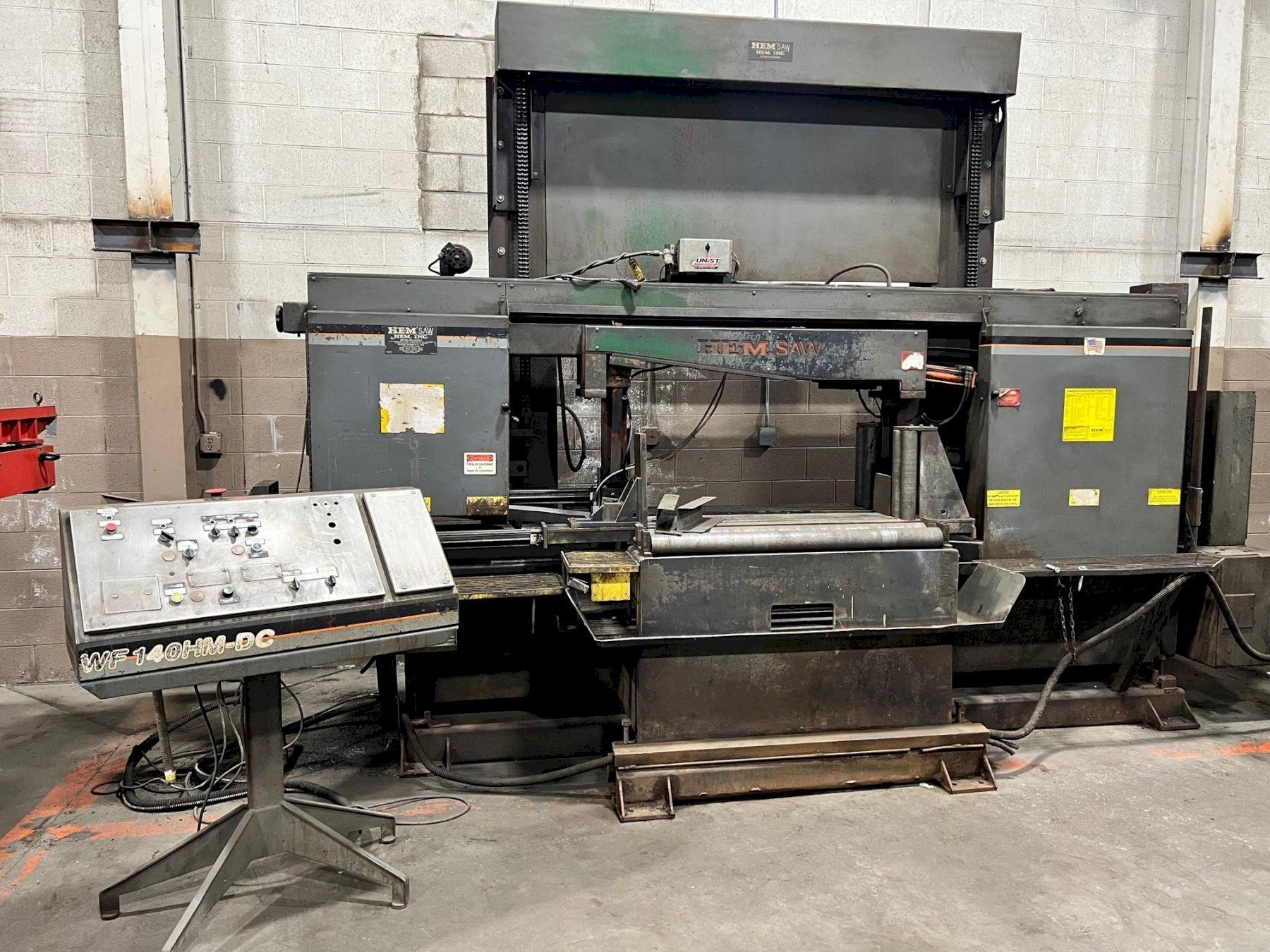

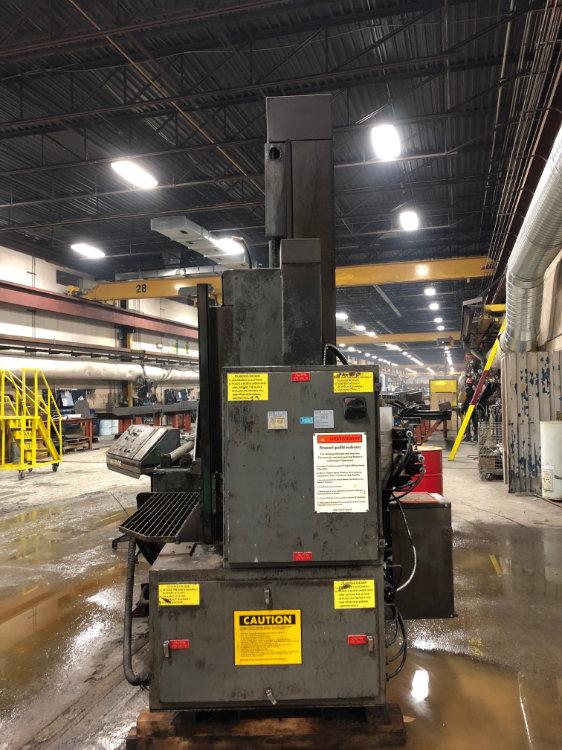

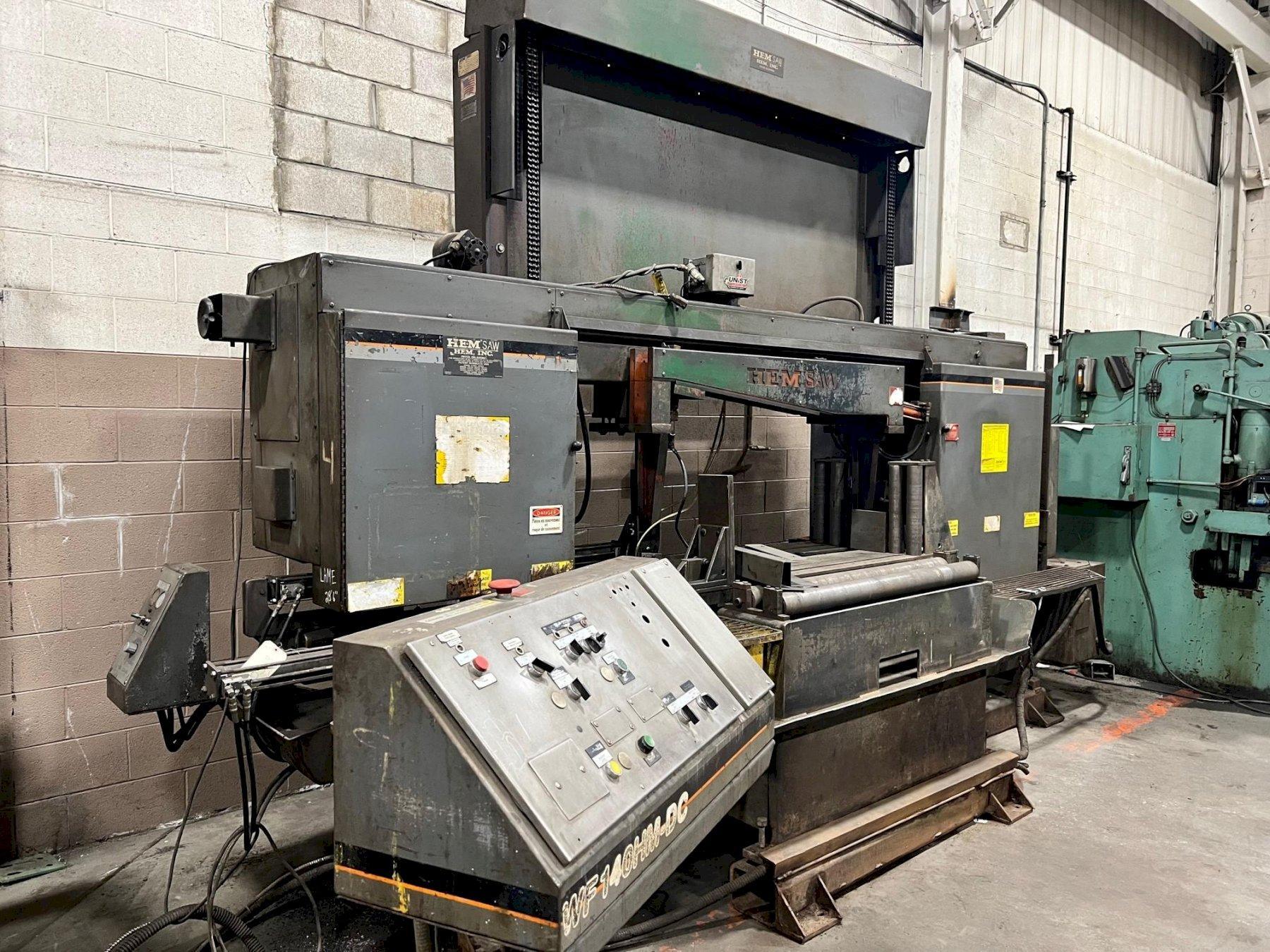

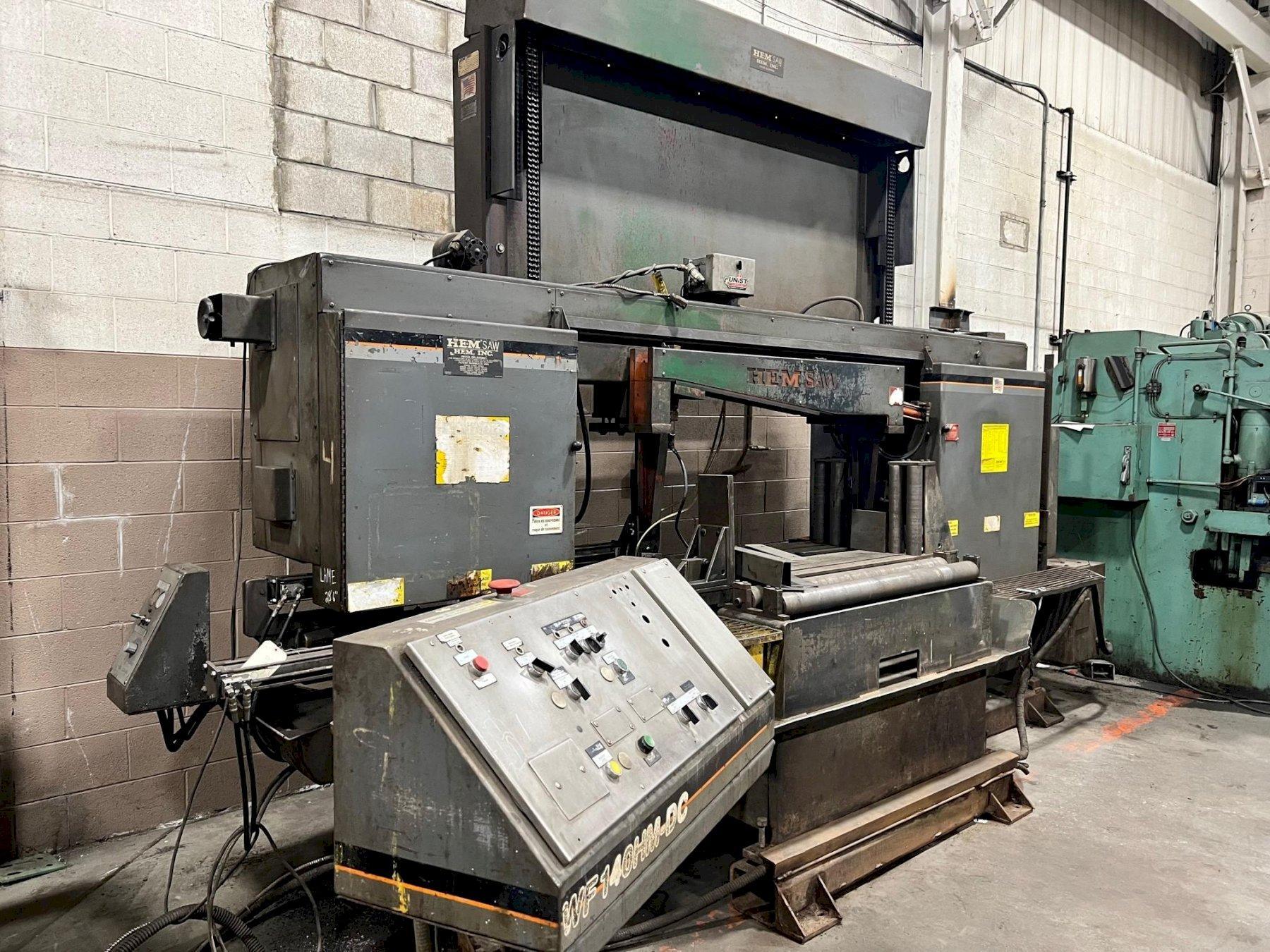

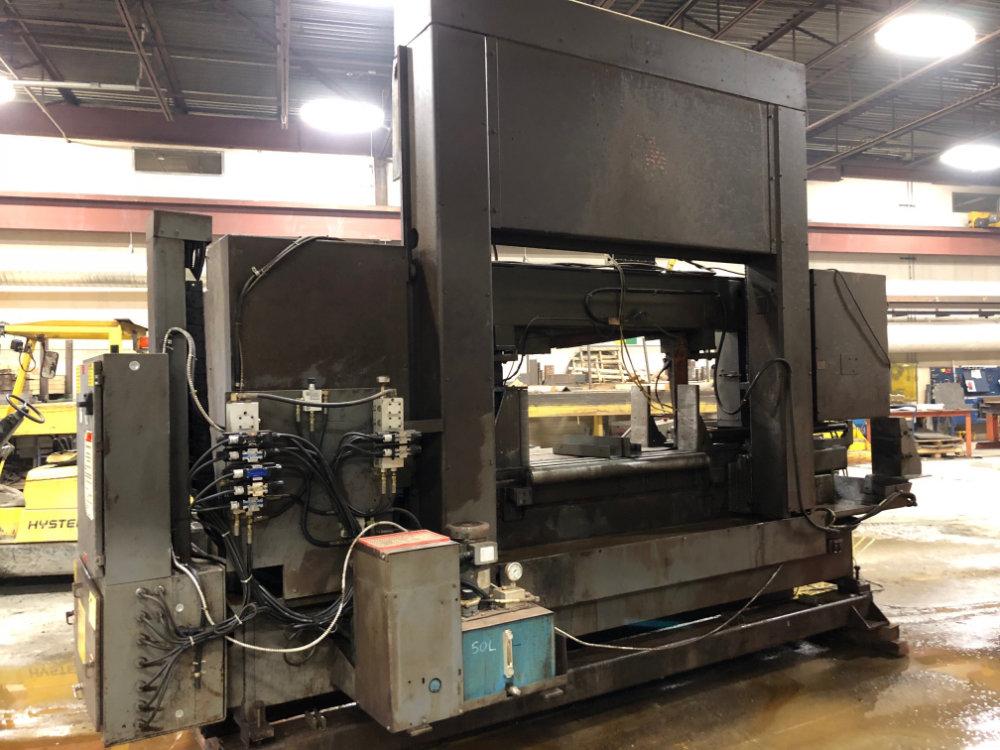

USED HEM DUAL POST SEMI-AUTOMATIC HORIZONTAL BANDSAW , Model WF140HM-DC, 20” x 44”, Stock No. 10

Manufacturer

HEM

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

10518

Model

WF140HM-DC

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Rect-Cap (H) - 20 inches
Rect-Cap (W) - 44 inches
CNC Control - no
Dimensions - 16’3” x 6’6” x 10’1”
Weight - 14000 pounds


Brand: Hem
Model: WF140HM-DC

Specifications
Max. cutting cap. 90 deg, round: 21”
Max. cutting cap. 90 deg, rectangular: 20” x 44”
Blade dimensions: 2” x 28’6” x .063”
Blade guides: Carbide
Guide Arm (Manual / powered): Powered
Blade speeds: 60 - 360 FPM
Number of speeds: Infinite
Blade motor: 10 H.P.
Blade drive type: Motor to pulley to gearbox
Blade tension type: Hydraulic

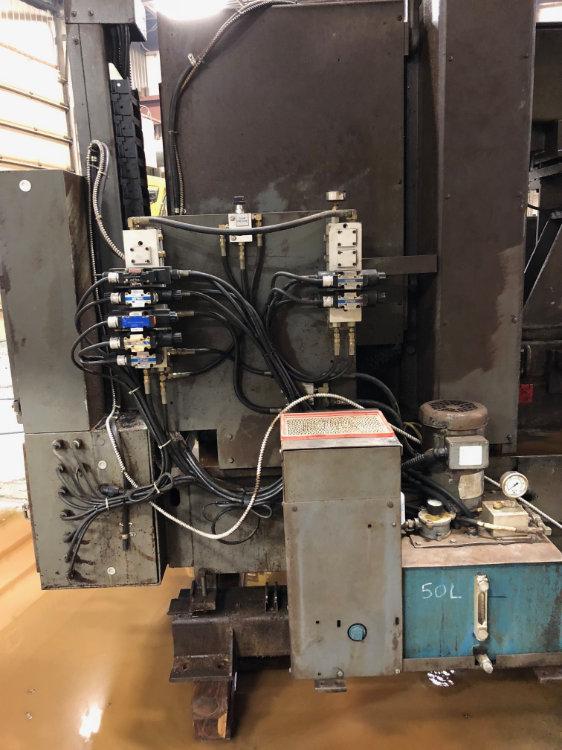

Head Lift Type: Hydraulic
Hydraulic motor: 2 H.P.

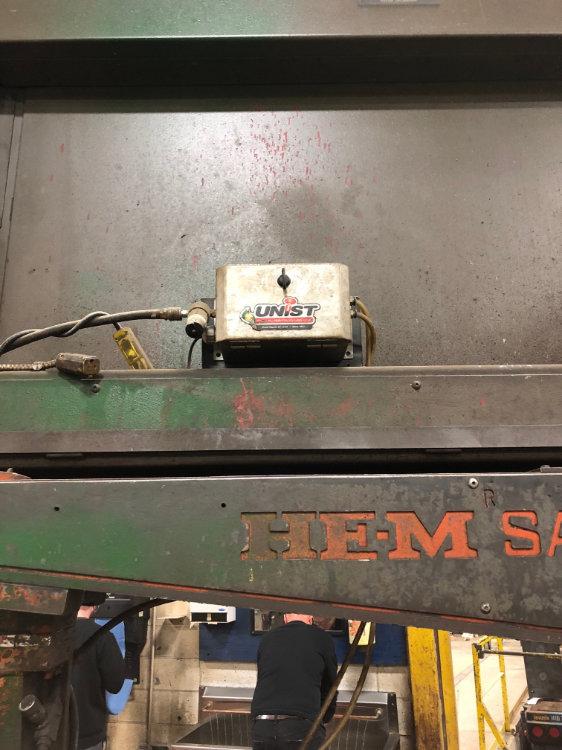

Coolant type: Mist
Number of Vises: 2
Vise Type (Manual / Hydraulic / Air): Hydraulic

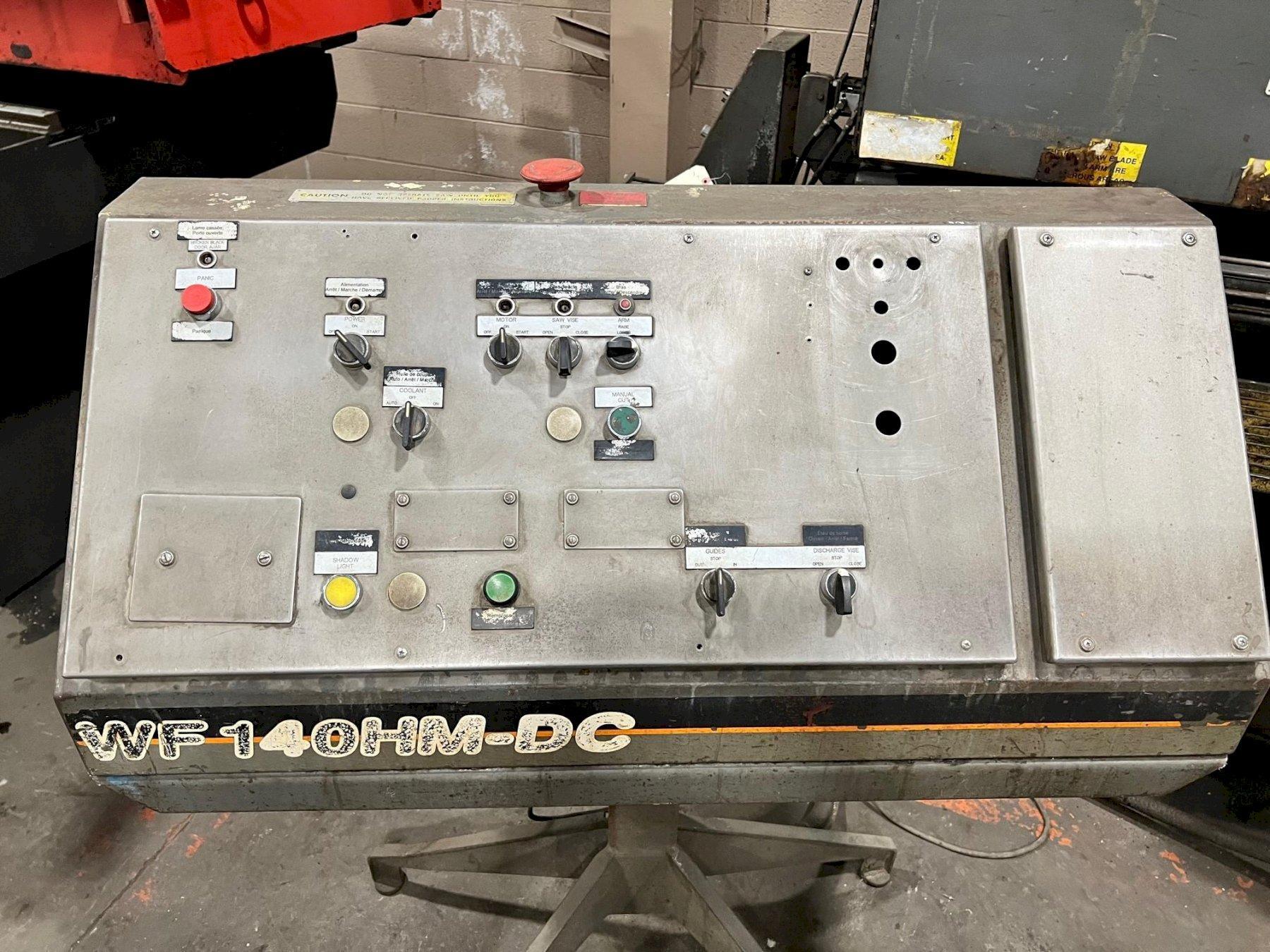

Controls: Movable pedestal control
Currently Wired: 575 volt 3 phase
Dimensions: 16’3” x 6’6” x 10’1”
Weight: 14,000 Lbs.

Equipped with:
7 degree arm tilt (canted head)
Variable vise pressure
Variable cutting pressure
Powered blade chip brush
Work light
Blade brake switch

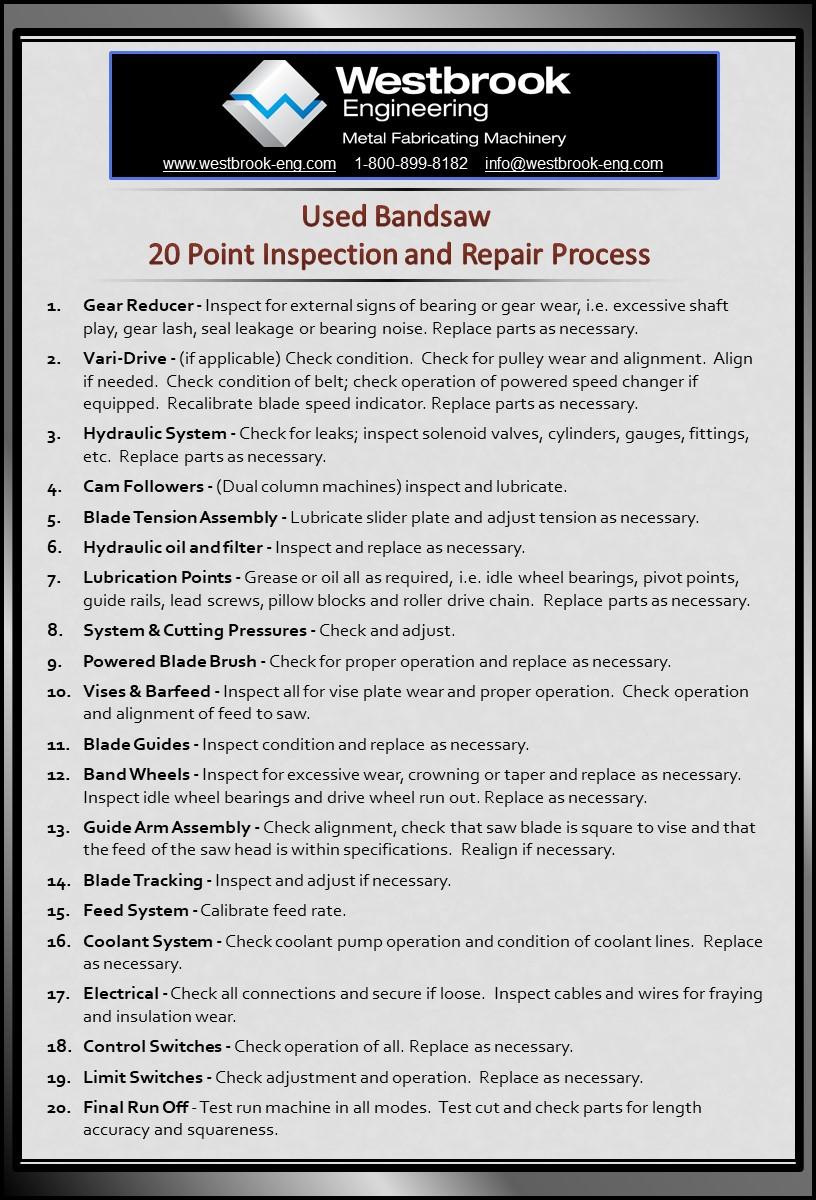

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
