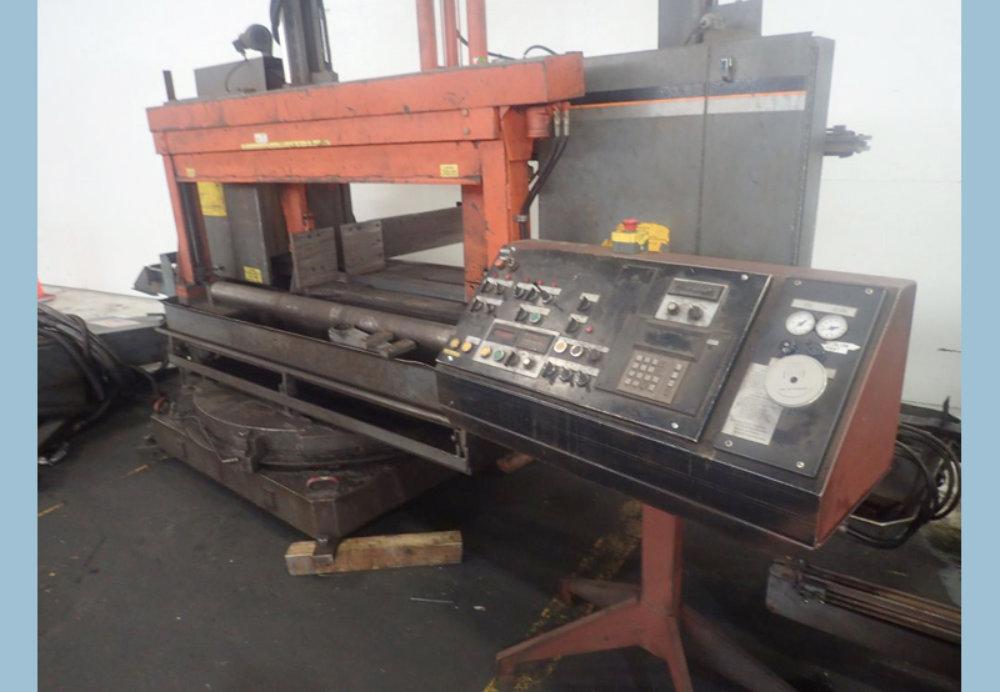

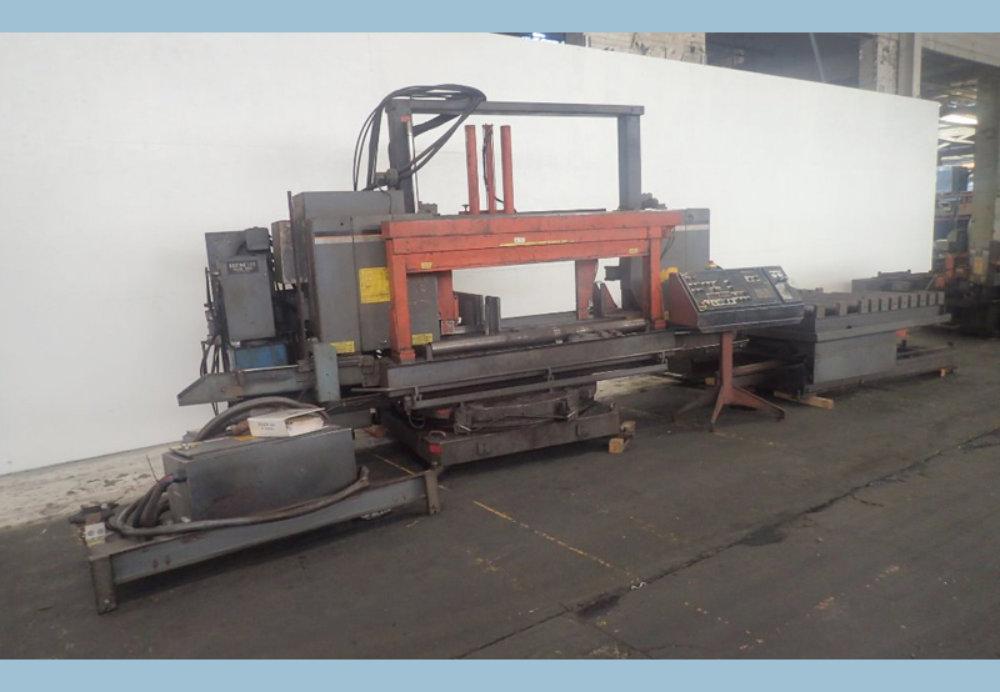

USED HEM HORIZONTAL MITERING BASE BANDSAW, Model DC-2038RBI, 20” x 38”, Stock No. 10264

Manufacturer

HEM

Category

Saws

Type

SAWS, MITER

Stock

10264

Model

DC-2038RBI

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Rect-Cap (W) - 38 inches
Rect-Cap (H) - 20 inches
Power - 15 horsepower


Brand: Hem
Model: DC-2038RBI




Specifications
Max. cutting cap. 90 deg, round: 20”
Max. cutting cap. 45 deg, round: 20”
Max. cutting cap. 30 deg, round: 20”
Max. cutting cap. 90 deg, rectangular: 20” H x 38” W
Max. cutting cap. 45 deg, rectangular: 20” H x 24” W both directions
Max. cutting cap. 30 deg, rectangular: 20” H x 16” W one direction
Max degree of miter: 30 degrees
Blade dimensions: 2” x .062 x 24’6”
Blade guides: Carbide
Guide Arm (Manual / powered): Powered
Blade speeds: 65 - 350 FPM
Number of speeds: Infinite
Blade motor: 15 H.P.
Blade drive type: Motor to gearbox
Blade tension type: Hydraulic
Blade wheel size: 28”
Head Lift Type: Hydraulic
Hydraulic motor: 5 H.P.
Coolant type: Flood
Number of Vises: 4
Vise Type (Manual / Hydraulic / Air): Hydraulic

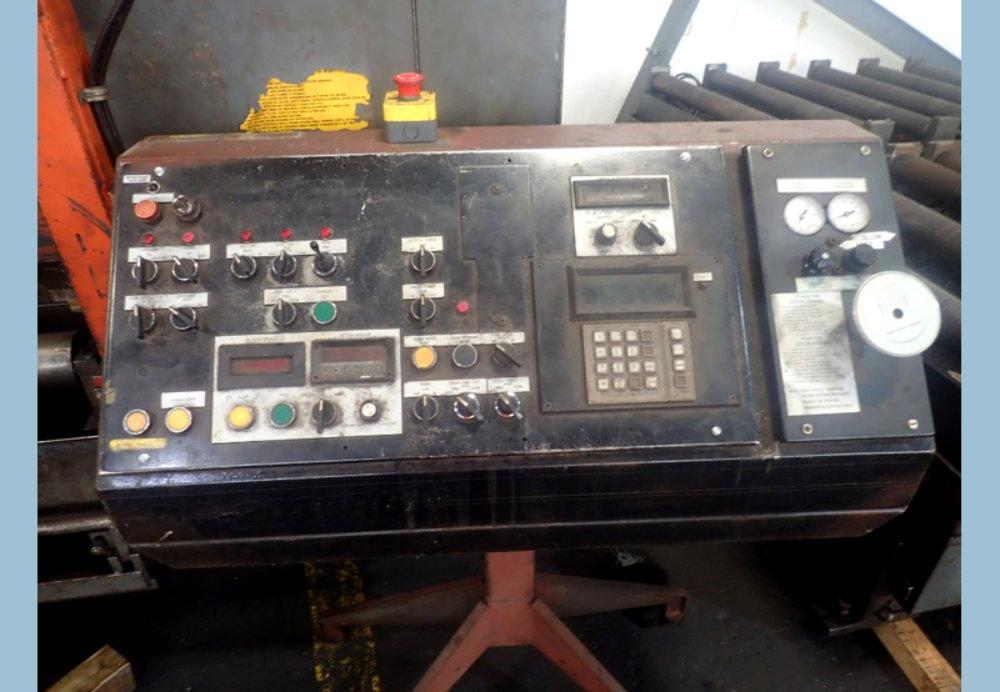

Controls: Free standing console
Voltage: 220 / 440 volt 3 phase
Currently Wired: 440 volt 3 phase

EQUIPPED WITH:
2 degree canted head
Split front vise
Hydraulic blade tension
Powered miter from control with LED readout
Cut watcher system
Full capacity top clamps (both in/out feed sides of blade)
Input and Output 48” roller tables that telescope out of the way when saw base rotates
Powered chip conveyor
Powered blade chip brush
Push button blade speed control with LED readout
Laser light

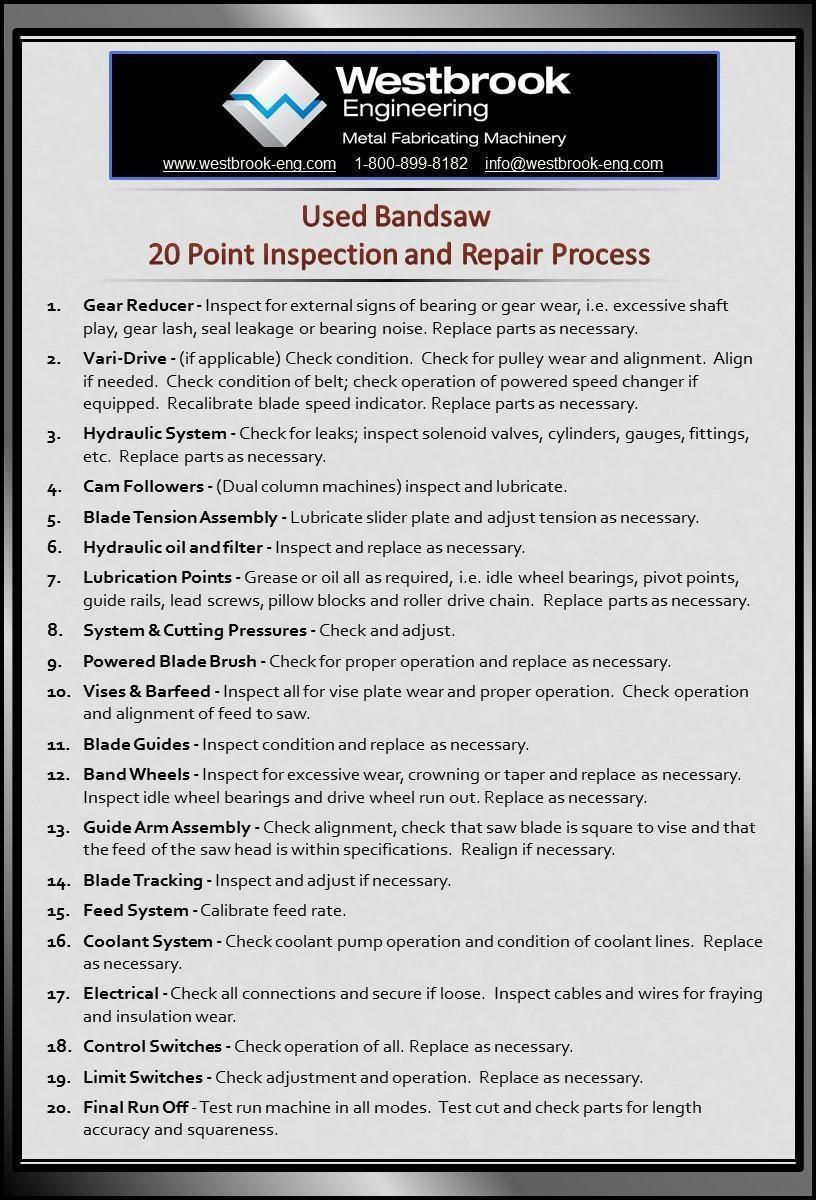

We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
