SNK RB-3NM-APC, 5-Face, X-167", Y-94", W-43", Z-23", (2) 59" x 157" Pallets, Right Angle Head, Fanuc 18i-MB, 2005 #31212

Manufacturer

SNK

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

31212

Model

RB3-NM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31212

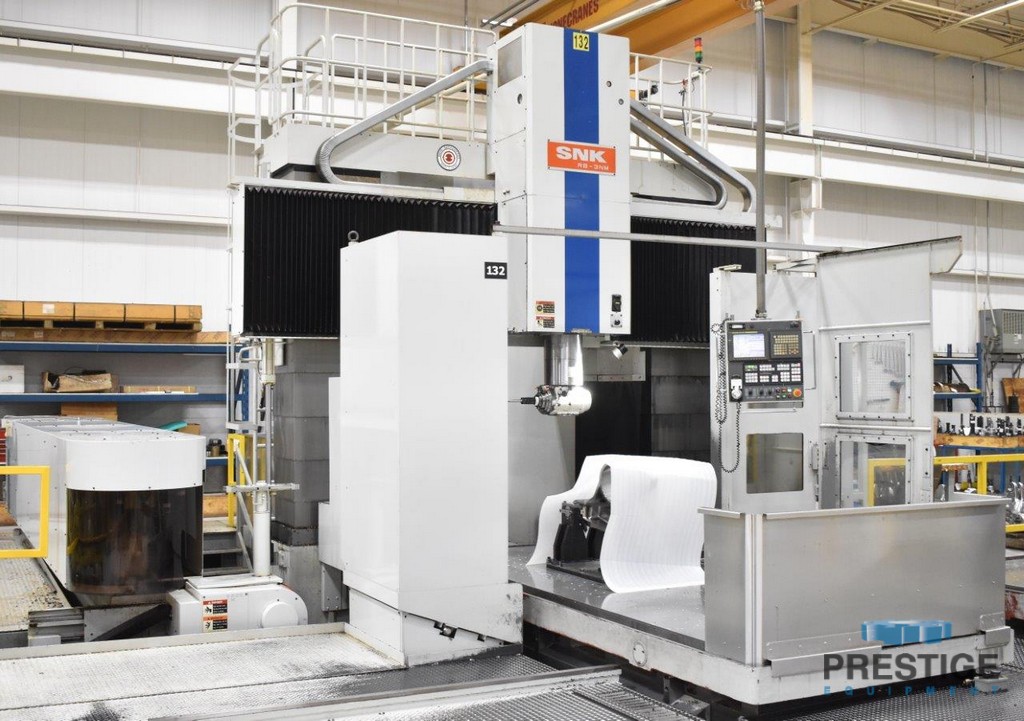

SNK RB-3NM CNC Bridge Type Vertical Machining Center

FEATURES:
Fanuc 18i-MB CNC Control
80-Station Automatic Tool Changer
Auto Indexing Right Angle Head
Pallet Shuttle System

CAPACITY:
X-Axis, Table Travel .................. 167.32"
Y-Axis, Spindle Head Travel ........... 94.48"
Z-Axis, Quill Stroke .................. 23.62"
W-Axis, Cross Rail Vertical Travel..... 43.30"
Right Angle Head Attachment Indexing .. 1-Degree
Distance Between Columns .............. 94.48"
Distance Spindle to Pallet Surface .... 0 to 59.05"
Table Size ............................ 59.05" x 157.48"
Table Weight Capacity ................. 15,400 lbs
Spindle Speeds ........................ 40-4500 RPM
Spindle Nose Taper .................... CAT #50 Big Plus
Spindle Motor ......................... 50 HP

EQUIPPED WITH:
Fanuc 18i-MB CNC Control
80-Station Automatic Tool Changer
Auto-Indexing Right Angle Head (1 Degree)
Pallet Shuttle System with (2) 59" x 157" Pallets
Programable CNC Cross Rail
50 HP Spindle Motor
