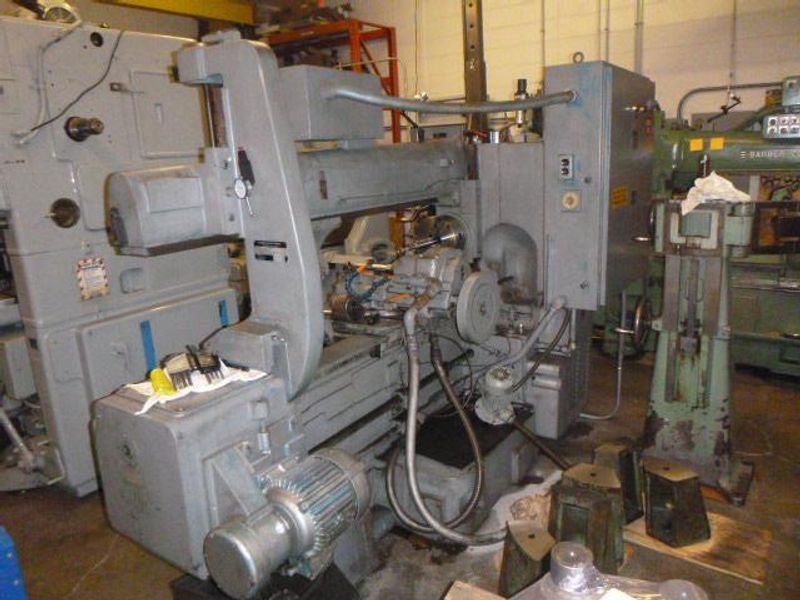

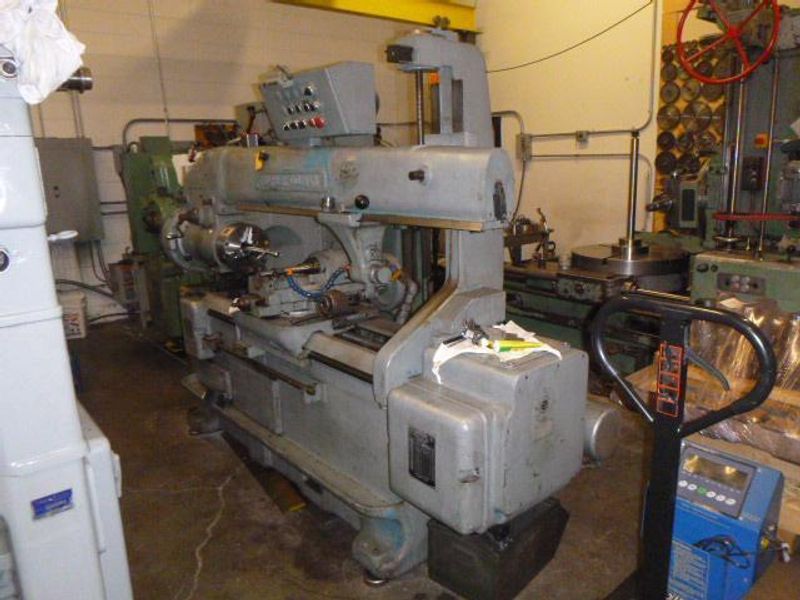

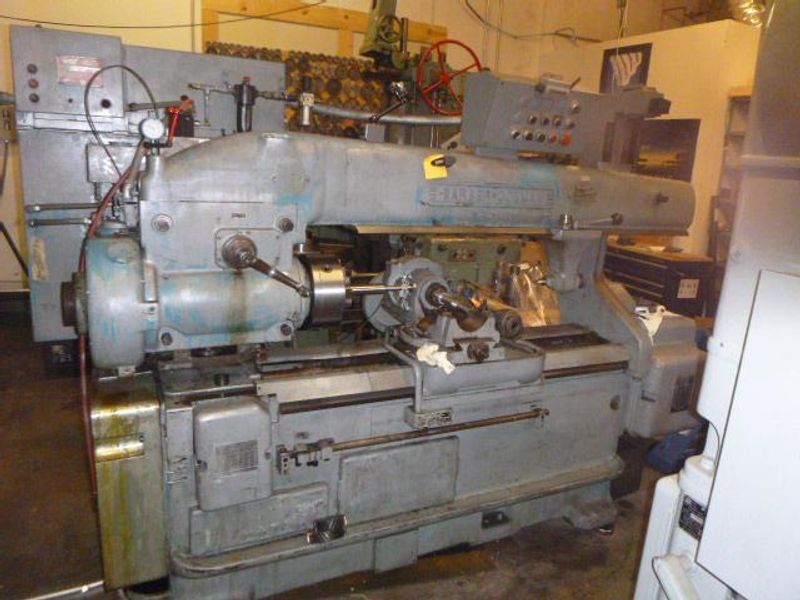

No. 16-36 Barber-Colman Universal Gear Hobber

Manufacturer

BARBER COLMAN

Category

Gear Machines

Type

GEAR HOBBERS, VERTICAL, CNC

Stock

GH1044X

Model

16-36

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Capacity in Steel, 1 Cut - 6 DP (4.2 Mod)
Max. Rated Work Diameter - 16 inches
Max. Travel of Hob Carriage - 36.5 inches
Max. Distance Work Spindle Face to Tail Center - 64 inches
Max. Work Spindle to Centerline of Hob Spindle - 39.5 inches
Min. Work Spindle to Centerline of Hob Spindle - 3.5 inches
Max. Dist. of C/L Work Spindle to C/L Hob Spindle - 9.5 inches
Min. Dist. of C/L Work Spindle to C/L Hob Spindle - 0.5 inches
C/L of Work Spindle to Bottom of Overarm - 8 inches
Max. Hob Diameter - 5 inches
Diameter of Work Spindle Bore - 4.125 inches
Max. Swivel Angle Setting (Left or Right) - 45°
Hob Speed Range - 59 - 246 RPM
Hob Arbor, Straight - 1.25 inches
Max. Index Worm Speed - 1500 RPM
Approximate Weight - 7000 pounds

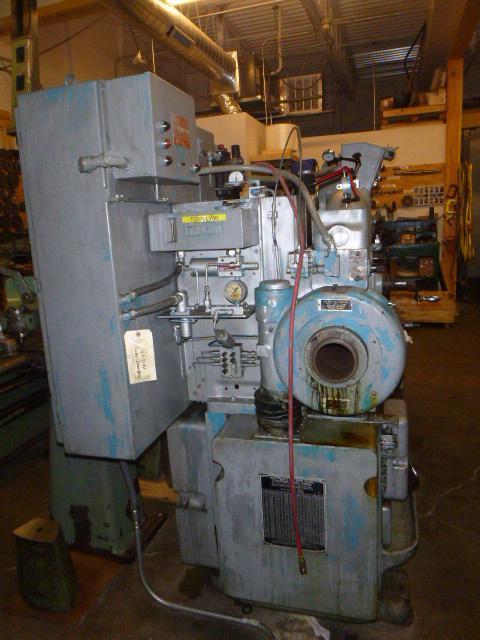

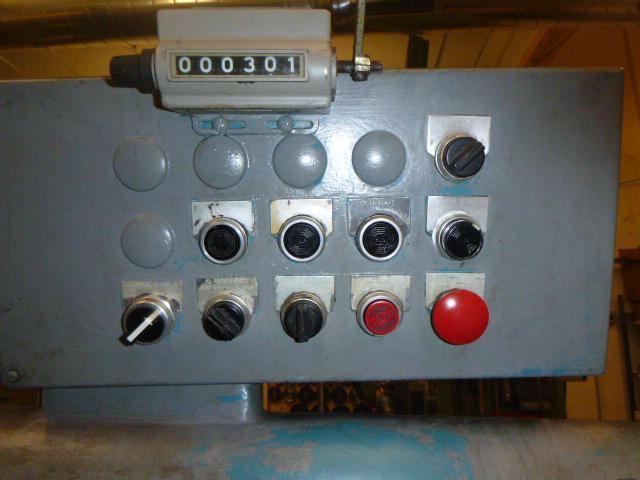

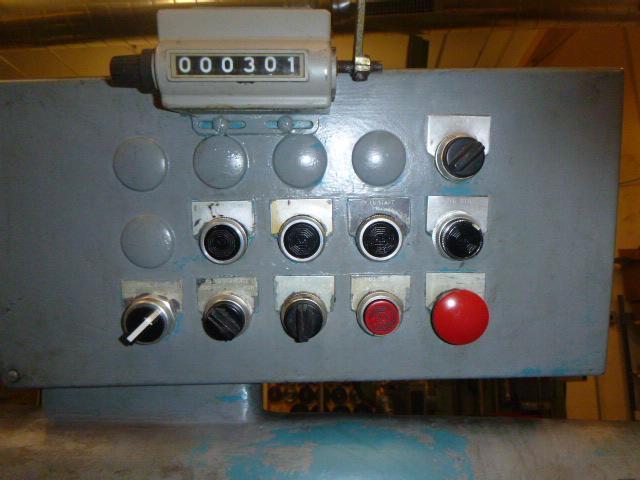

Motor Driven With 5 HP, 3 Phase, 60 Cycle AC Main Drive Motor. 2 HP, 3 Phase, 60 Cycle AC Rapid Traverse Motor. 1 HP, 3 Phase, 60 Cycle AC Hydraulic Pump Motor. 3 Phase, 60 Cycle AC Motor For The Lube Pump and Coolant Pump. With Electrical Control Cabinet, Dwell Timer, Hob Rotation Selector And Operators Control Panel. Presently Wired For 3/60/480V Operation.

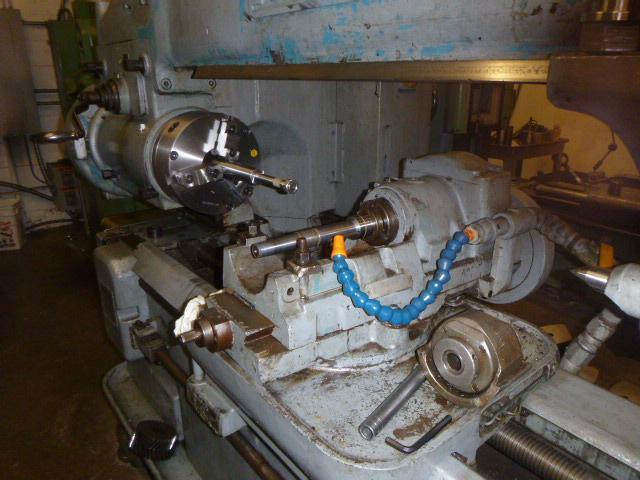

Double Thread Index. 10" 3-Jaw Chuck. Lever Operated Tailstock. Rapid Traverse Hob Slide. Hob Jog. Trabon Lubrication System. Coolant.

The 16-36 Barber-Colman appears to be in very good condition and can be inspected under power in the Chicago Area at your convenience.
