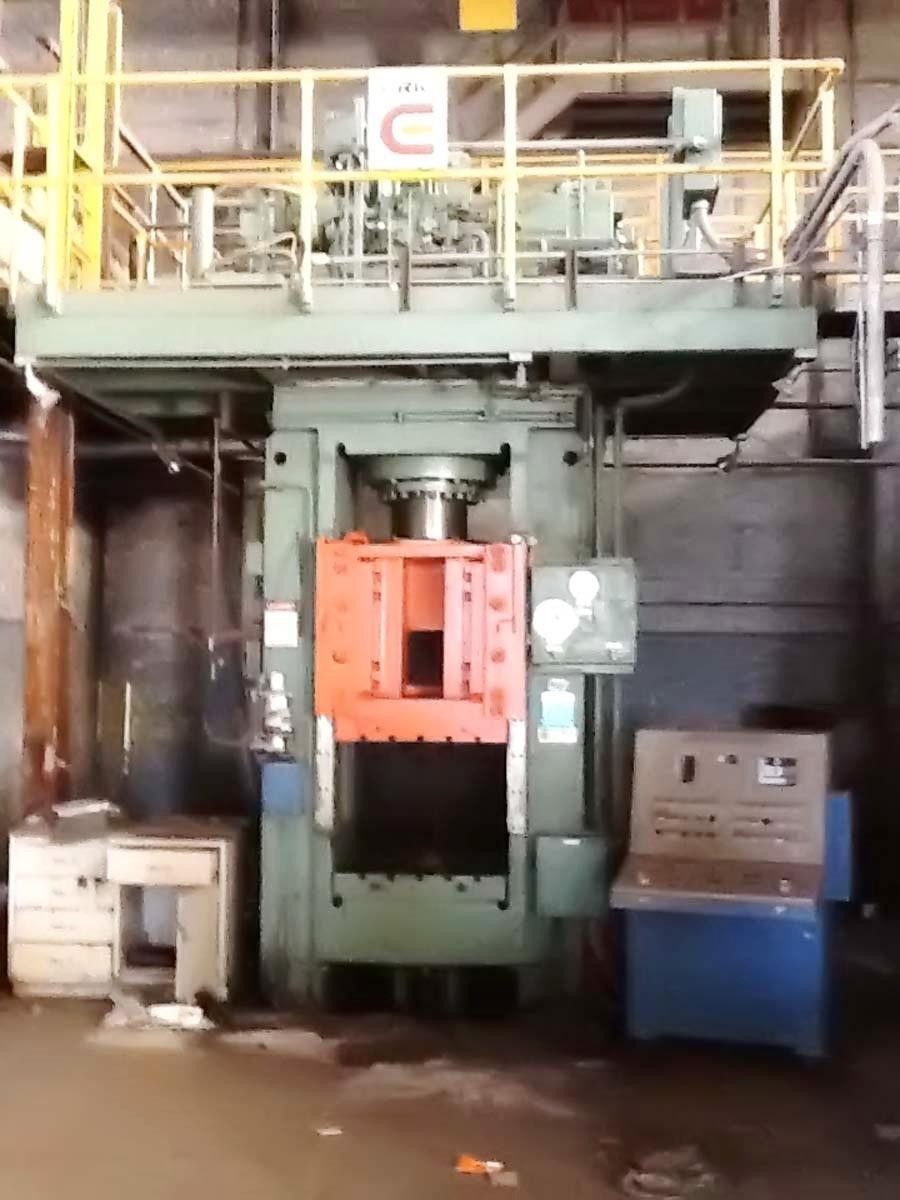

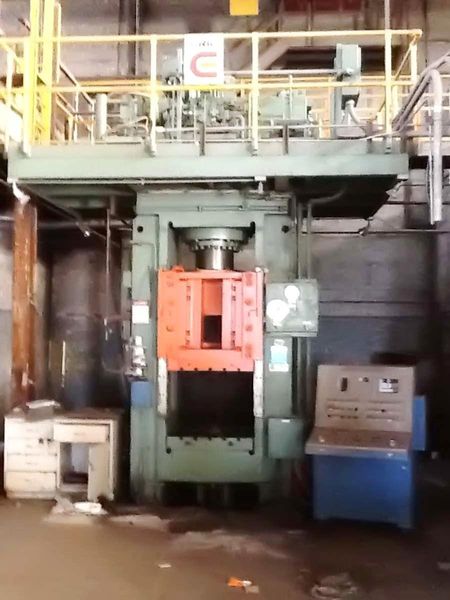

Lake Erie 500 Ton Hydraulic Press

Manufacturer

LAKE ERIE

Category

Presses

Type

PRESSES, HYDRAULIC, AIR OPERATED

Stock

16389

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Principal Specifications:

PRESSING FORCE-MAIN SLIDE
500 Ton full tonnage pressing
100 Ton low tonnage pressing
55" Ton return capacity @ 3500 P.S.I.
17" Diameter main ram diameter (single acting)
6-4" Closing & return rams (double acting)**
3537 PSI System pressure
**By selector switch setting closing rams only using low pressing

PRESSING FORCE-TOP & BOTTOM EJECTORS
50 Ton bottom ejector capacity (up acting)
50 Ton top ejector capacity (machining provisions only)
2000 P.S.I. system pressure
8-3-1/2" Diameter top & bottom ejector rams (double acting)

WORKING DIMENSIONS
36" x36" x 5" Bed bolster (R-L x F-B x Thickness)
36" x36" x 5" Slide bolster (R-L x F-B x Thickness)
30" Daylight (between bolsters)
24" Main slide stroke (maximum)
6" Shut height
2" Top ejector stroke
6" Bottom ejector stroke
30" floor to top of bolster

OPERATING SPEEDS
315"/Min. Rapid advance
315"/Min. Low tonnage pressing to 100 ton
63"/Min. Full tonnage pressing to 500 ton
50"/Min. Breakaway stripping
700"/Min. Return after breakaway
100"/Min. Bottom ejector (up acting)

Machine requires complete electrical upgrade and hydraulics repair

Price "As-Is" Open to offers

Reconditioned price available upon request
