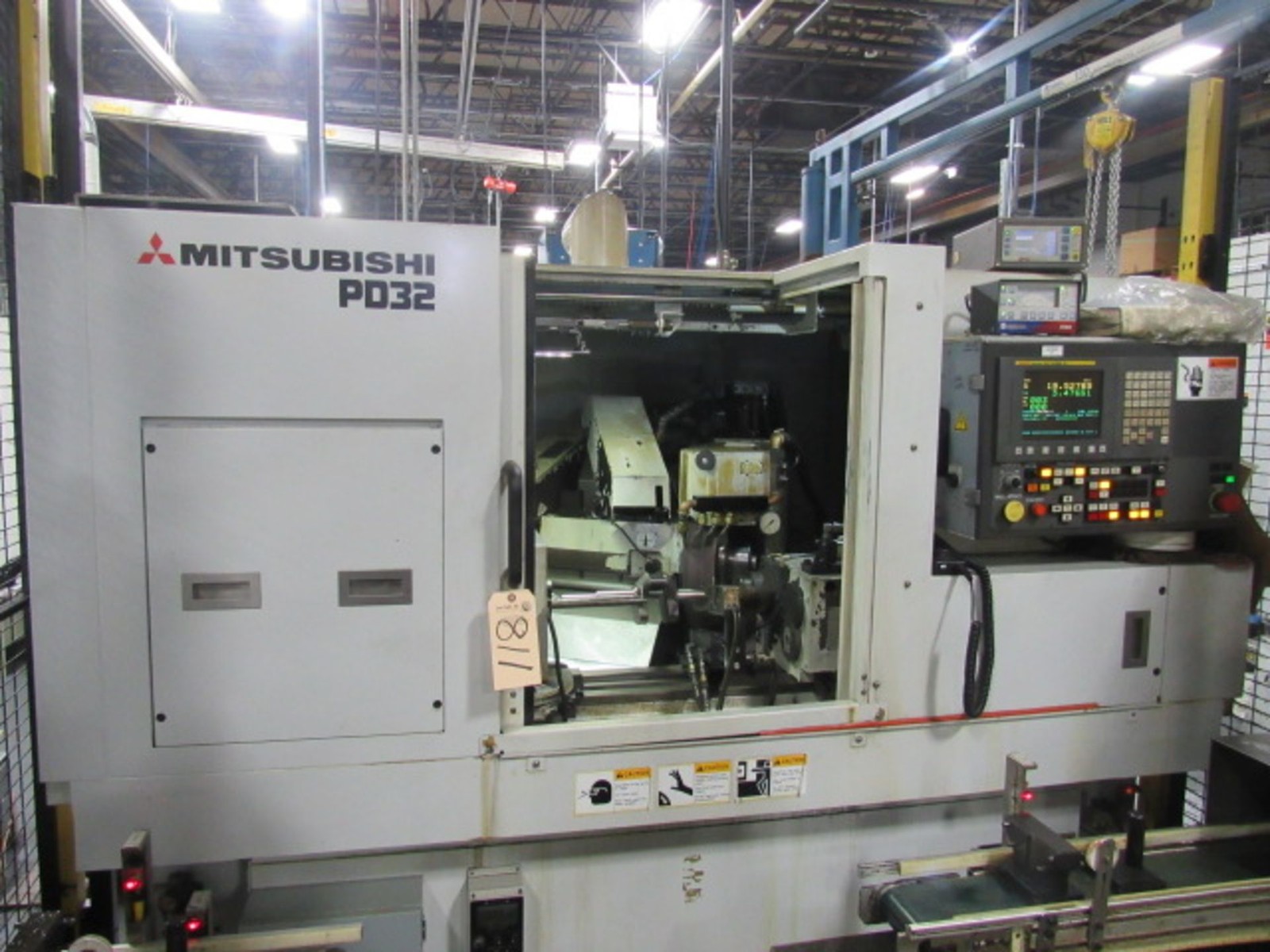

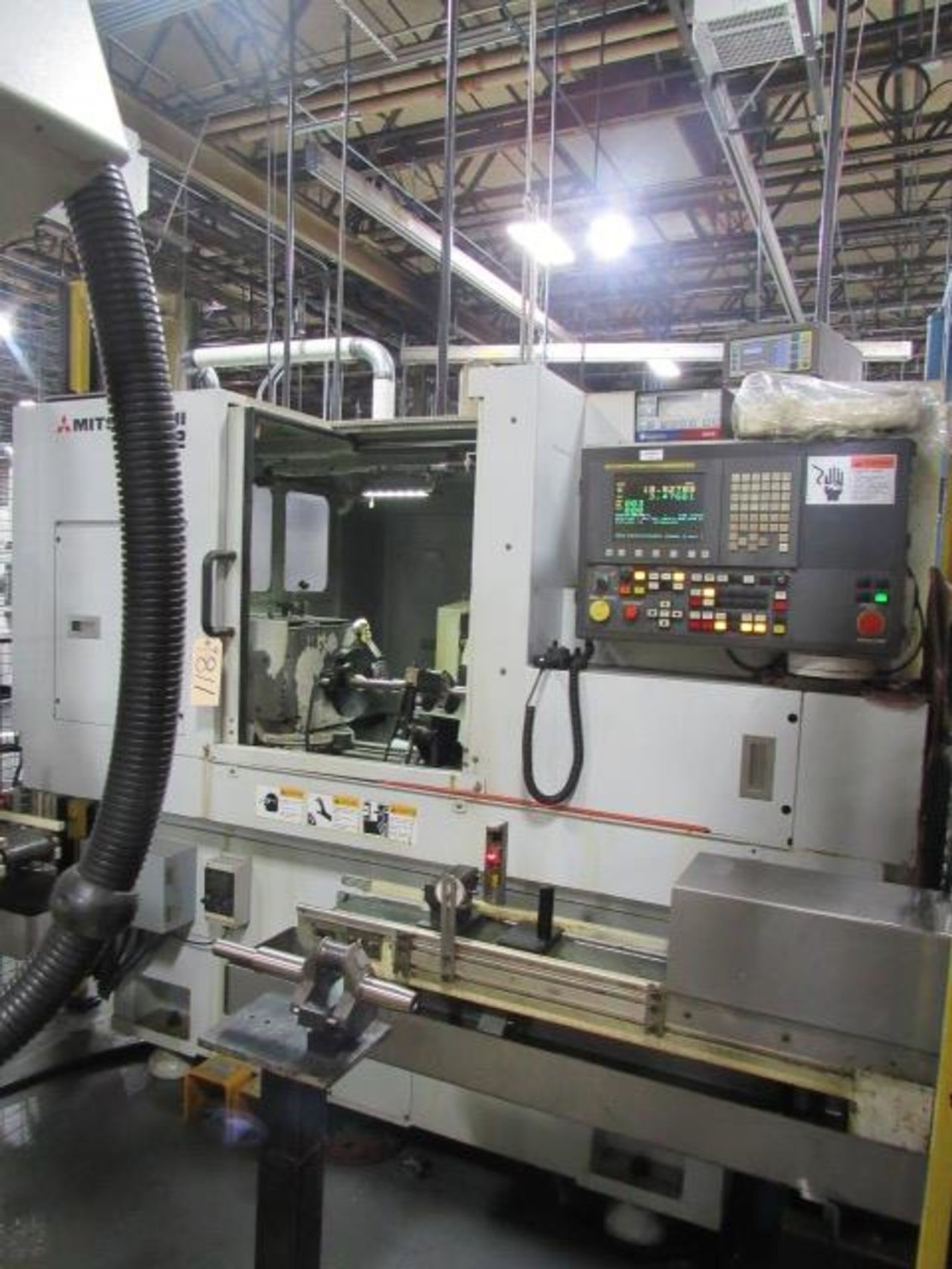

MITSUBISHI PD32-50A CNC ANGLEHEAD CYLINDRICAL GRINDER, NEW 2013, Fanuc Series 32i-B CNC Control, Rotary Dresser, SBS Auto Wheel Balancing, In-Process Sizing Gauge, Lateral Locating (Shoulder Gauge)

Manufacturer

MITSUBISHI

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN (Angle Head), CNC

Stock

None

Model

PD32-50A

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum ................ 12.59"
Distance Between Centers, Maximum......... 19.7"
Grinding Wheel Diameter, Maximum.......... 20" (MIGHT BE 24”, WILL CONFIRM)
Grinding Wheel Width, Maximum............. 4.72” (MIGHT BE 5.70”, WILL CONFIRM)
Wheelhead Grinding Wheel Speed............ 60 m/s
Workhead Spindle Speeds, Range............ 0 to 500 RPM
Grinding Wheelhead Spindle Motor.......... 15 HP (11 KW)

EQUIPPED With:

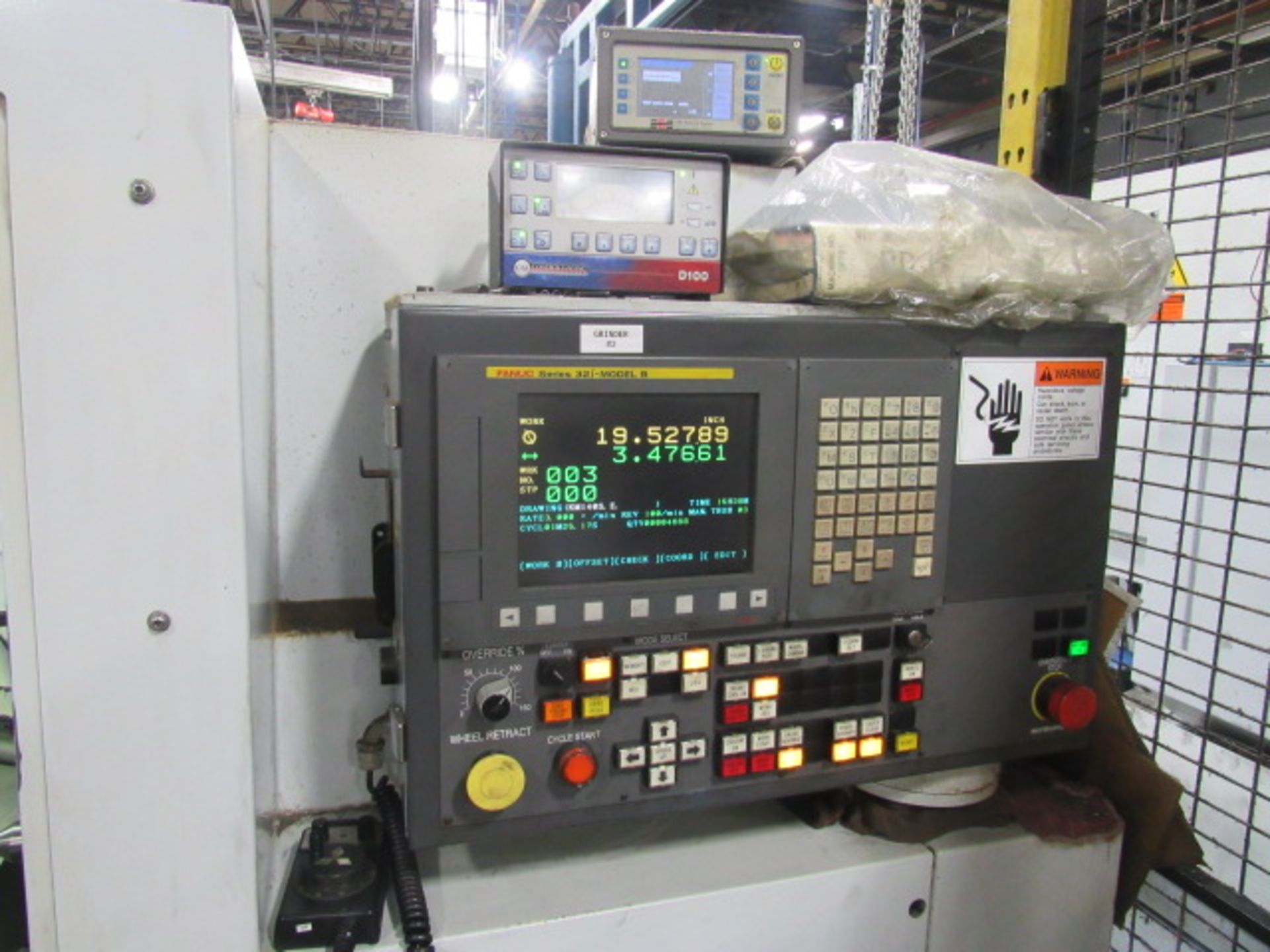

Fanuc Series 32i-B CNC Control

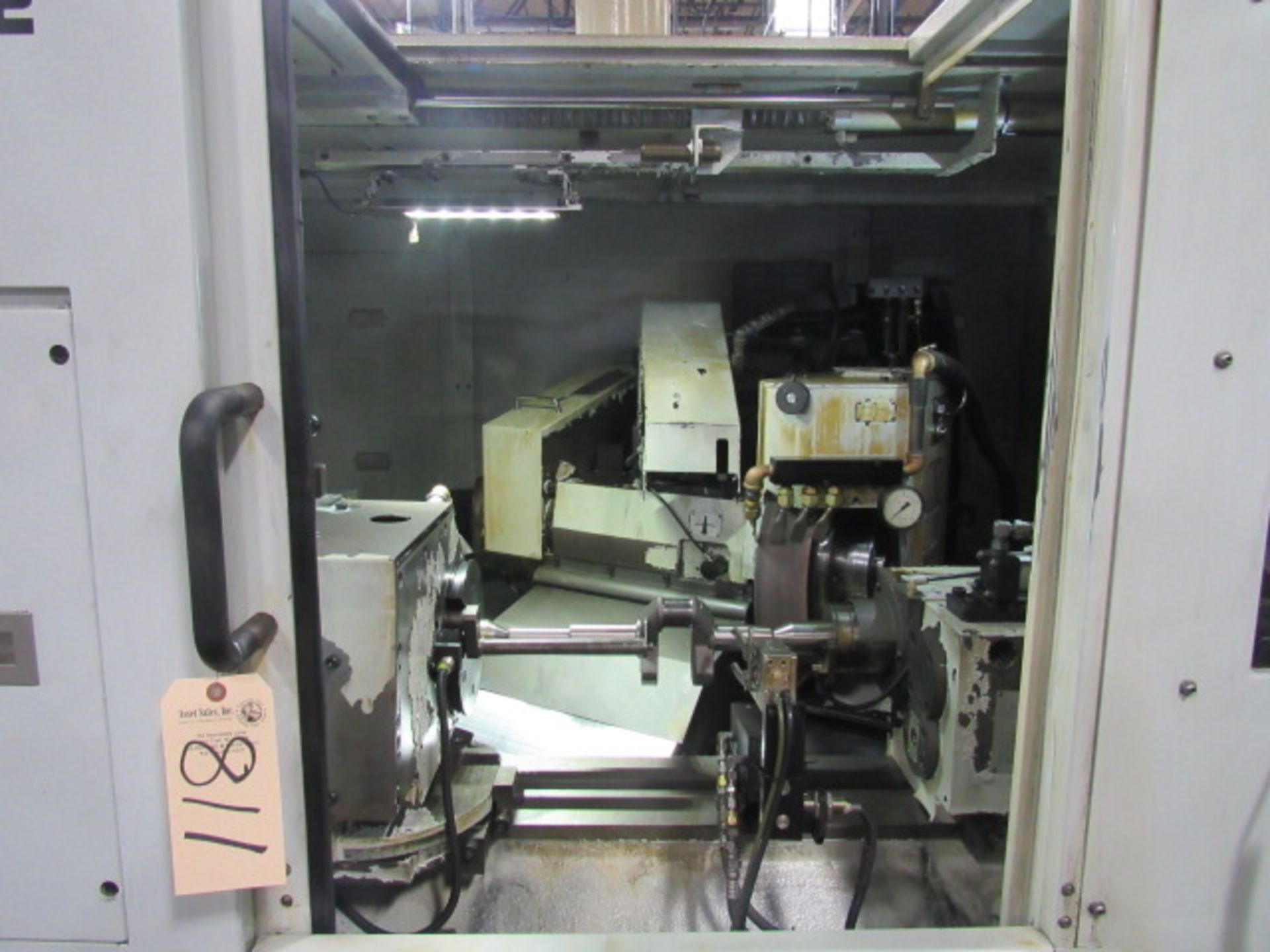

Swiveling Live/Dead Combination Workhead
Rotary Dresser
SBS Automatic Wheel Balancing
Control Gauge D100 In-Process Sizing Gauge
Lateral Locating (Shoulder Gauge)

NOTE: NO COOLANT TANK, RAN ON CENTRAL SYSTEM
