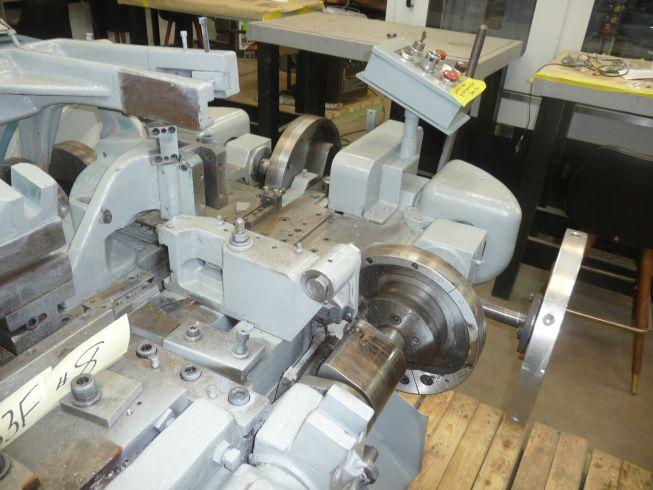

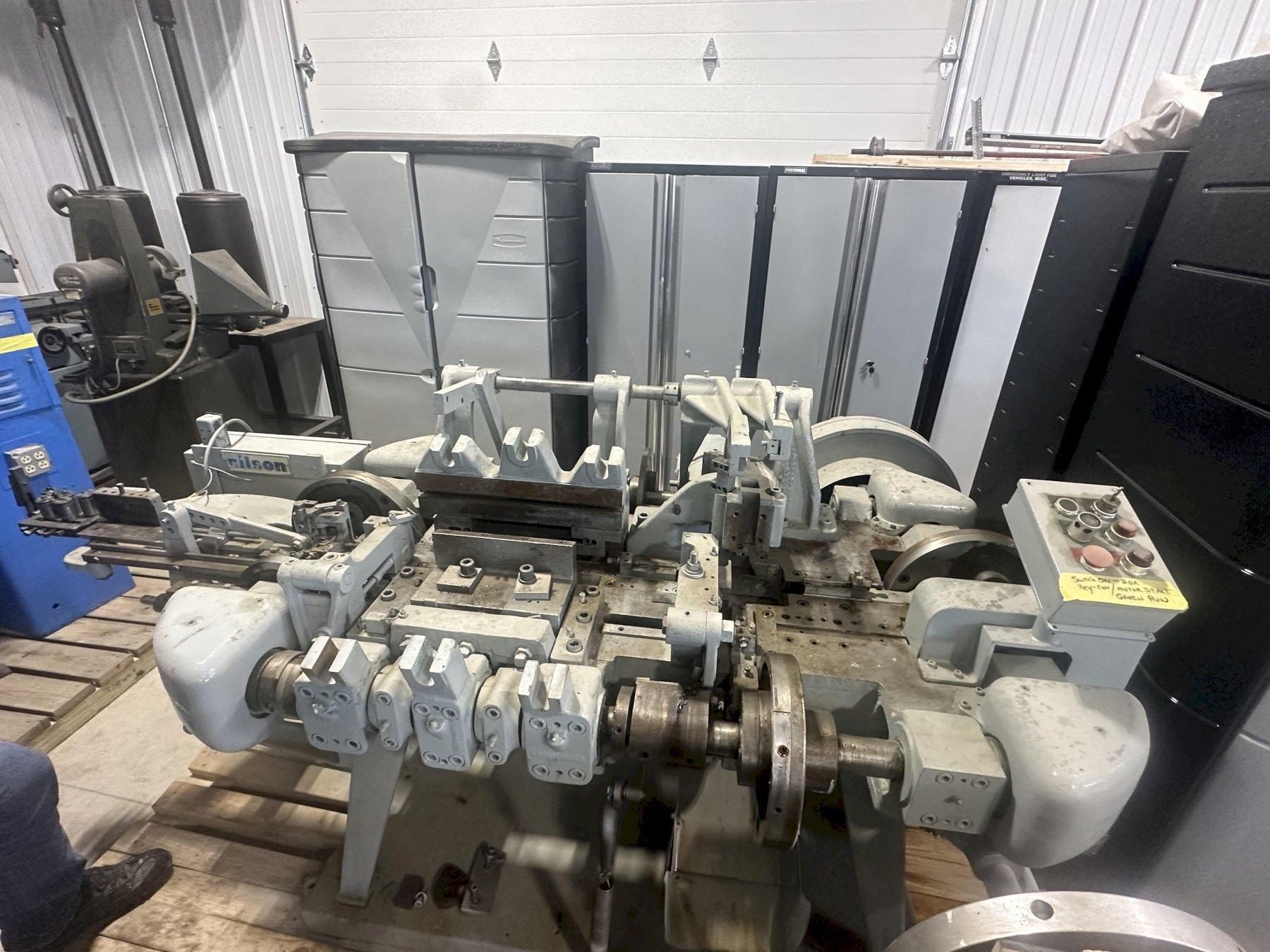

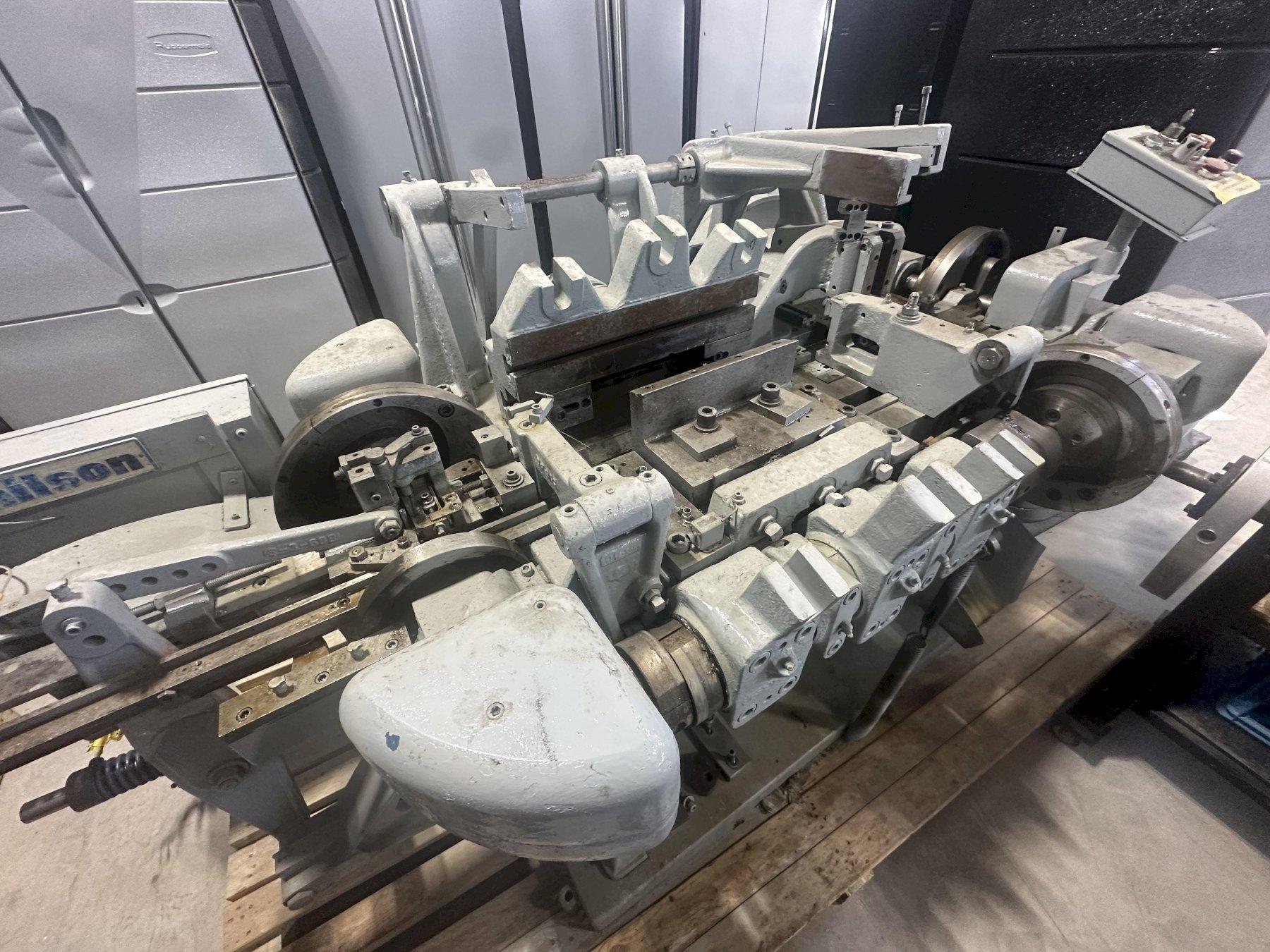

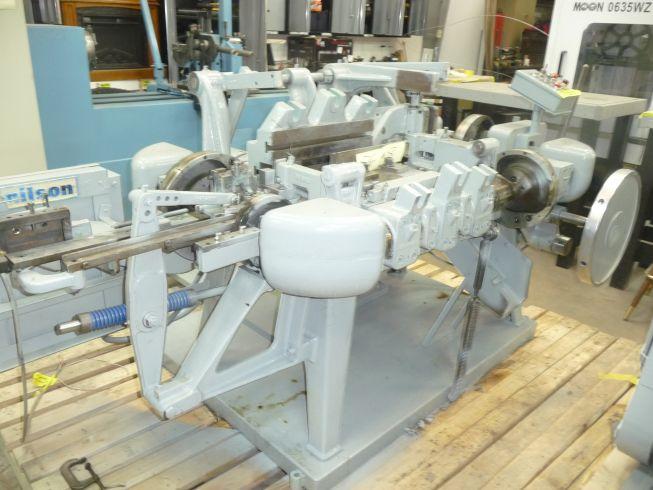

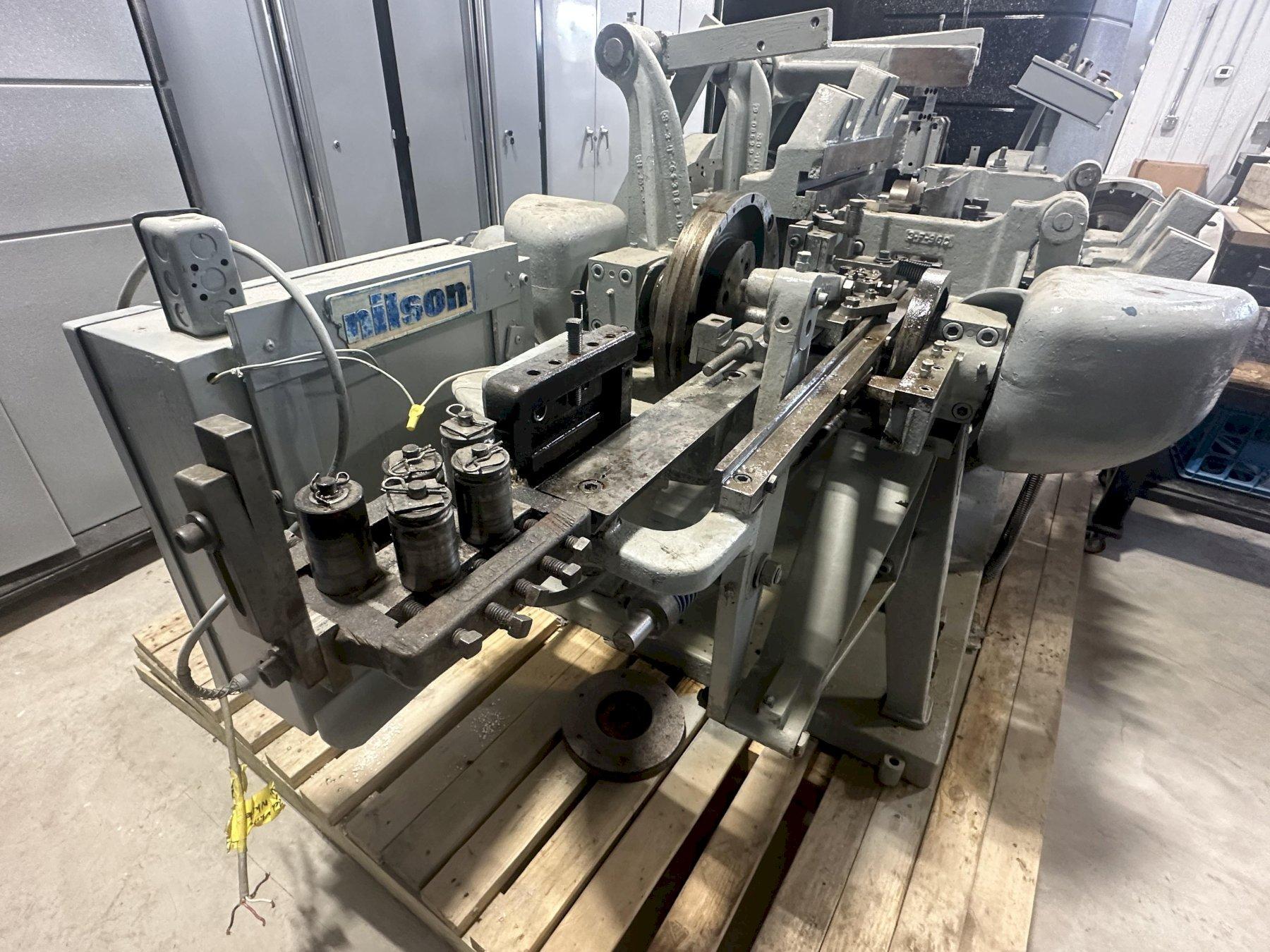

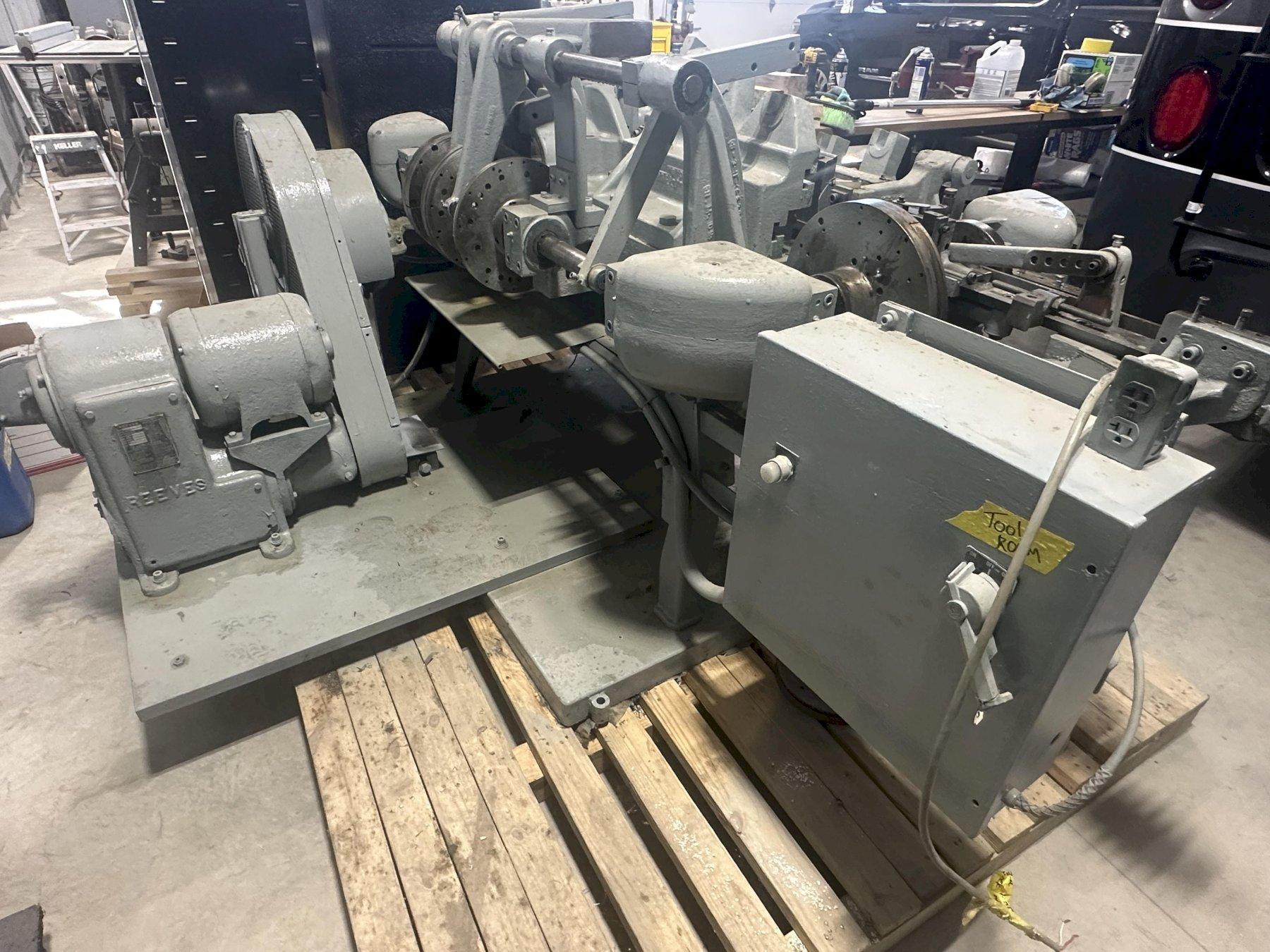

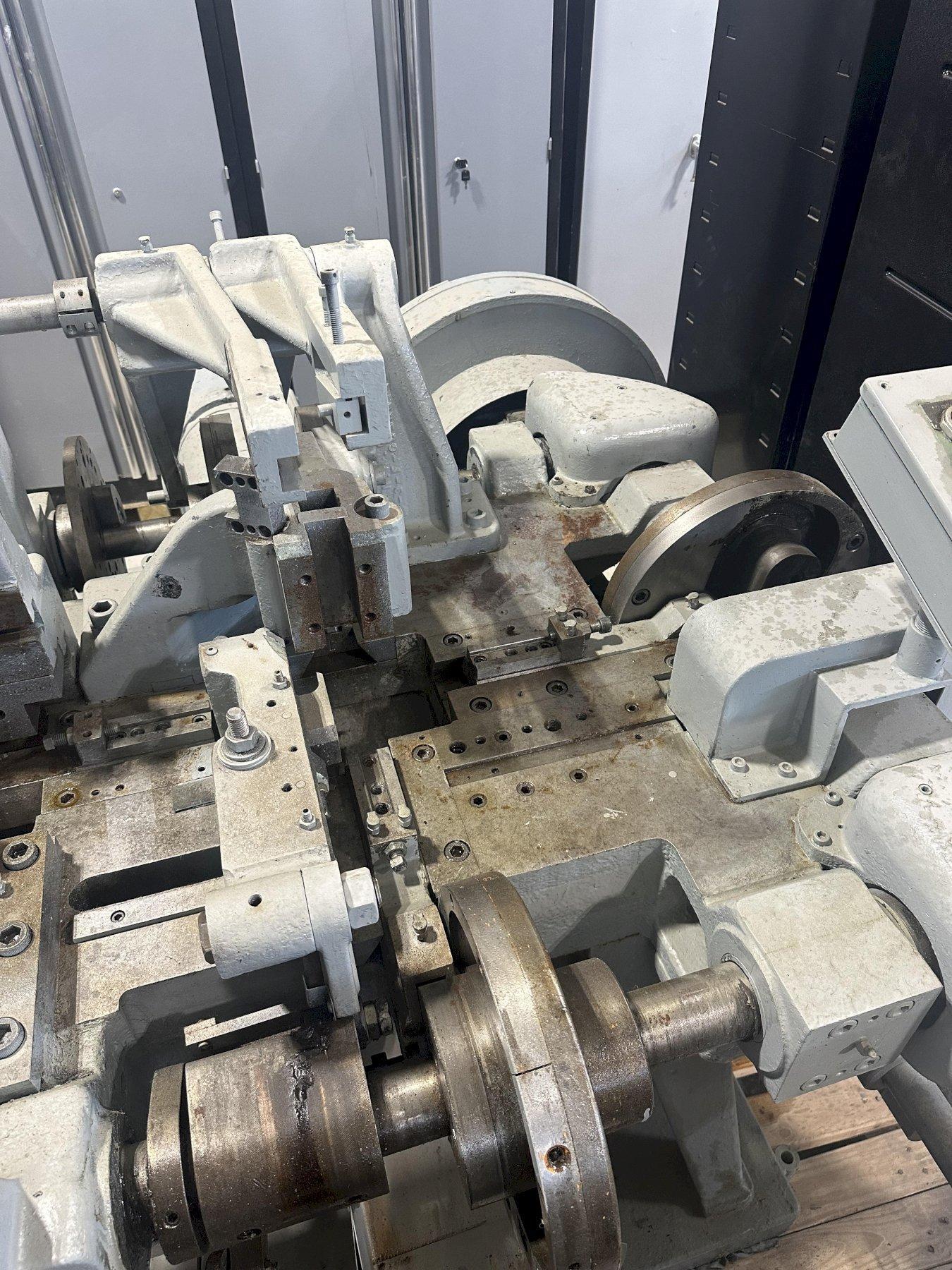

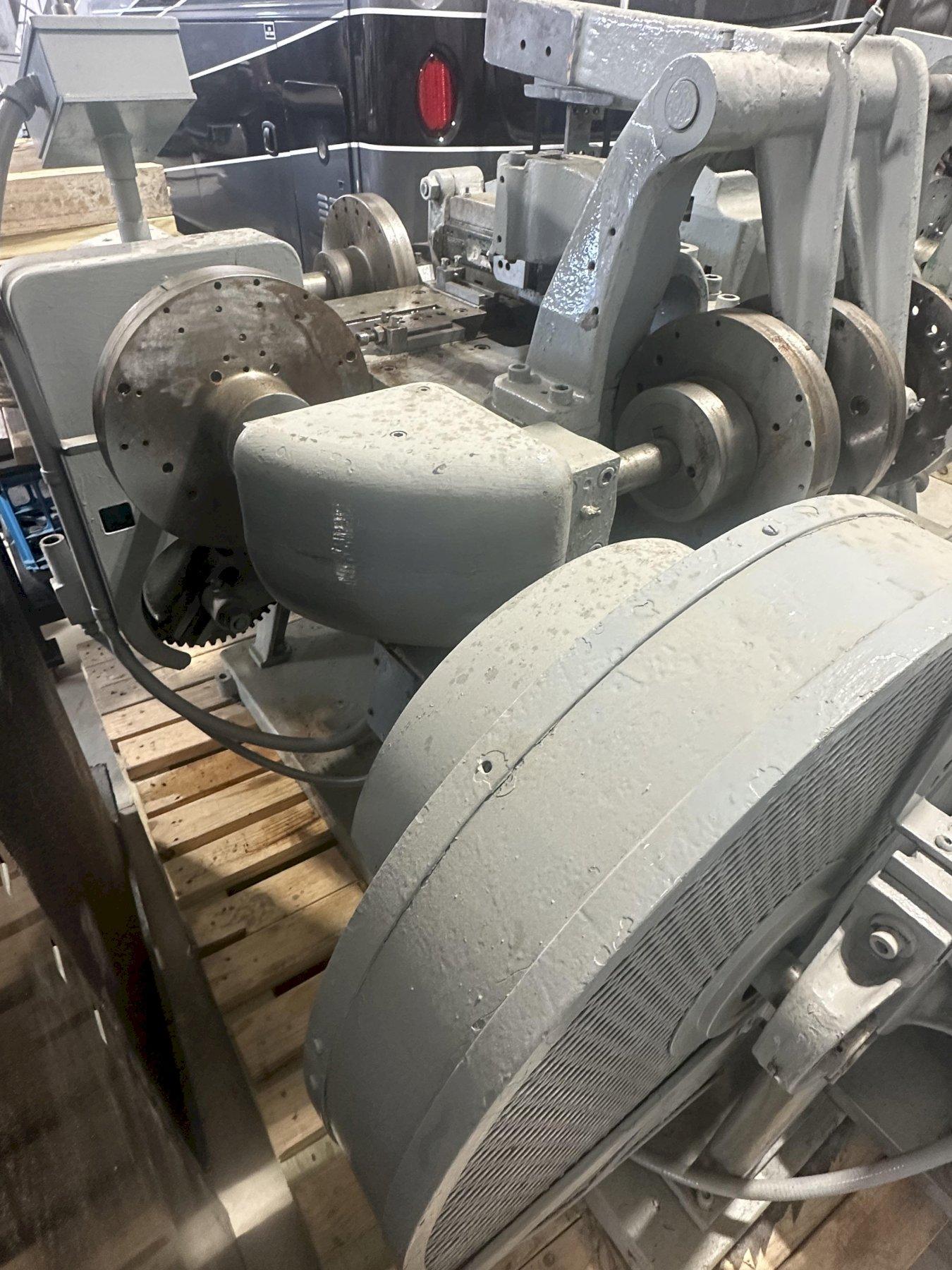

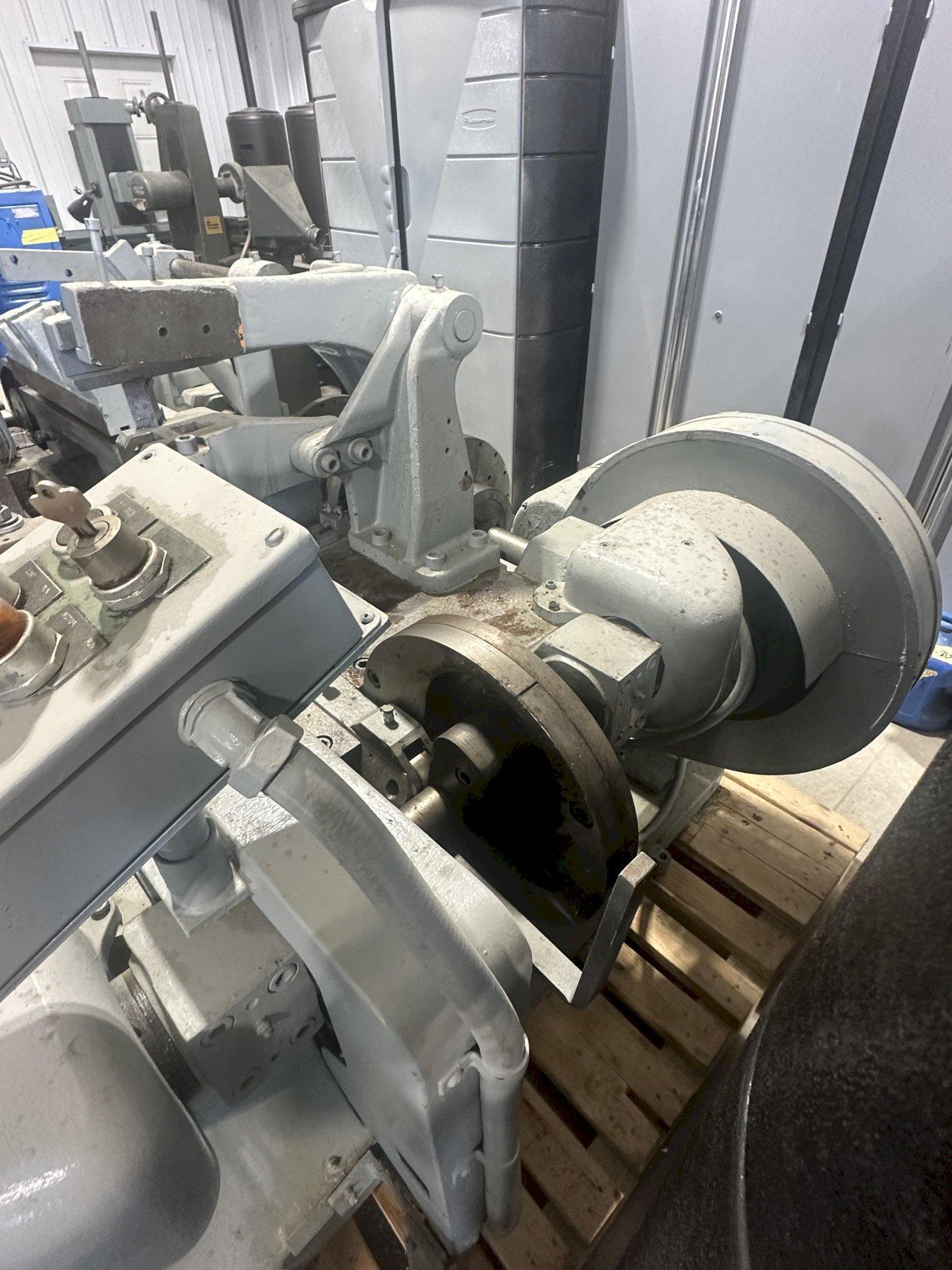

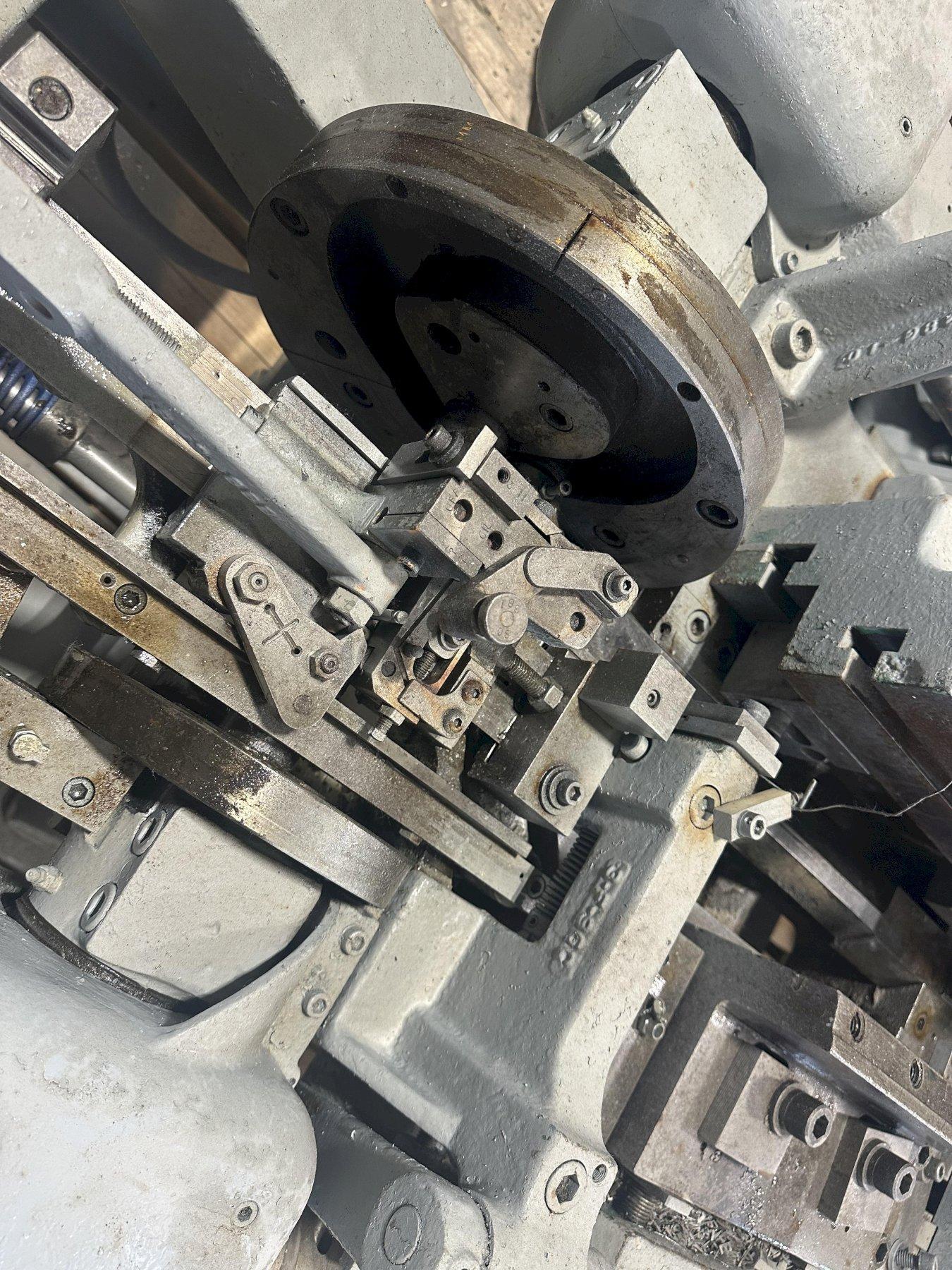

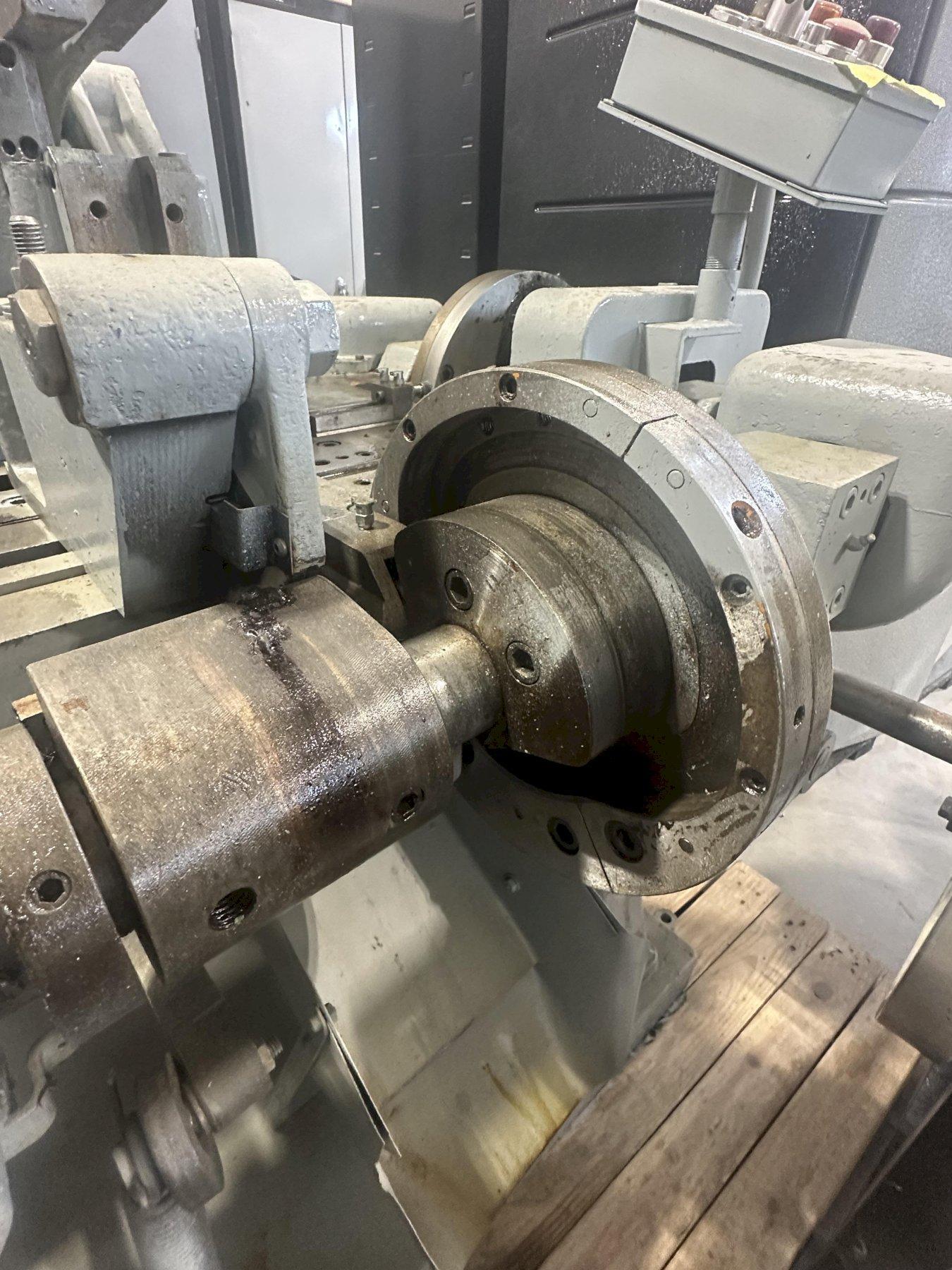

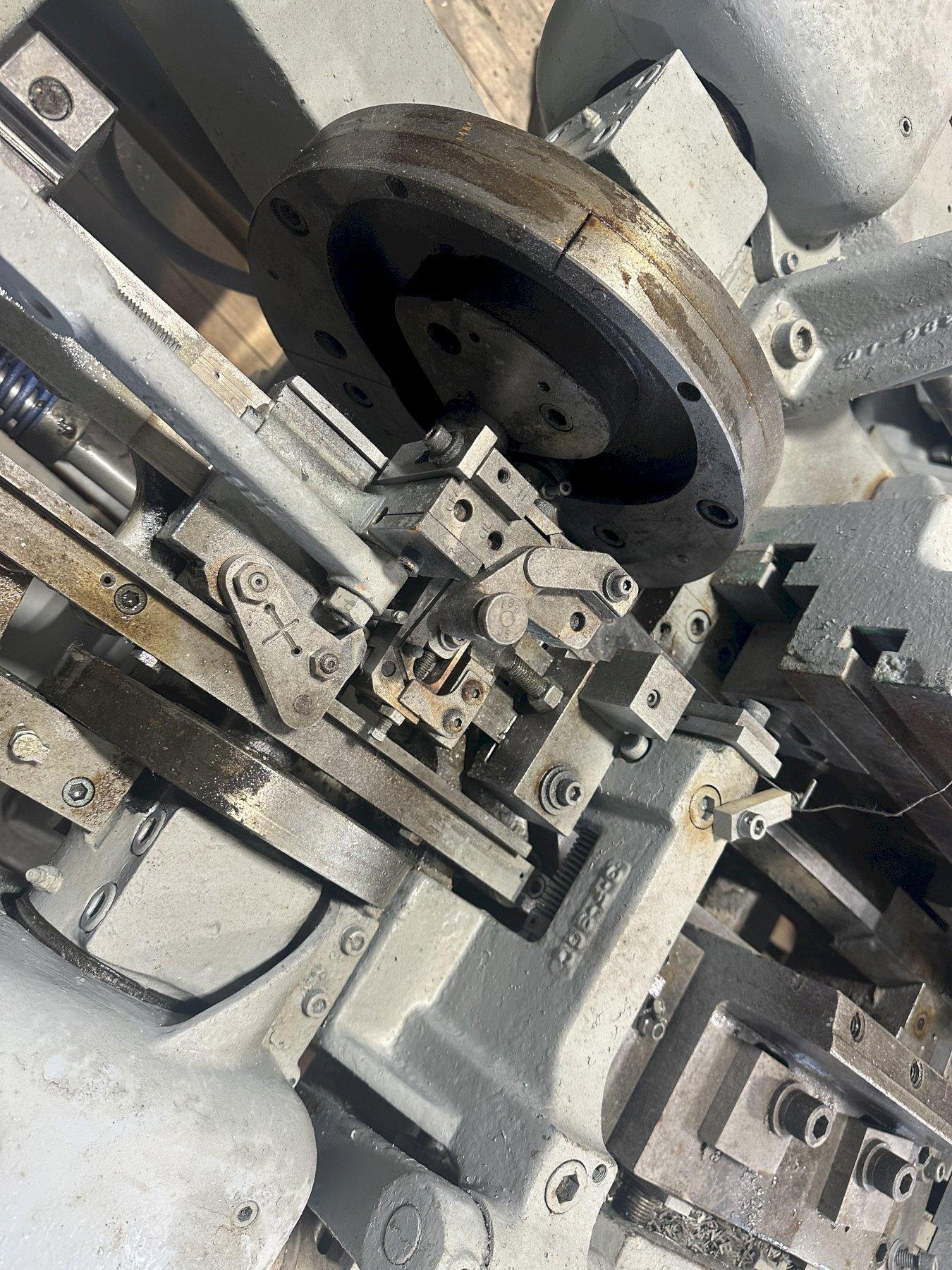

3/16" NILSON MODEL #S3F FOUR SLIDE WIRE FORMING MACHINE: STOCK 10088

Stock

10088

Model

S3F

Dealer Location

Ohio

Spec Sheet

Max Wire Dia. - .1875 inches
Dimensions - 90" LR x 67" FB x 48" H
Weight - 3700 pounds
# Slides - 4
CNC Control - no


SERIAL ....................... 108800
NEW .......................... 1980
SERIAL ....................... 85850
SLIDES ....................... 4

WIRE DIAMETER ................ 3/16"
STRIP WIDTH .................. 2"
LENGTH OF FEED ............... 15"
FRONT SLIDE STROKE ........... 1.75"
SIDE SLIDES STROKE ........... 3.5"
BACK SLIDE STROKE ............ 1.75"
STRIPPER STROKE .............. 2"
PRESS STROKE ................. 1"
DIE SPACE .................... 14"
PRESS CAPACITY ............... 20 TON
ENTRY HEIGHT ................. 35.5"
ENTRY STRAIGHTENER ........... YES
SPEED RANGE .................. 32 TO 130 SPM

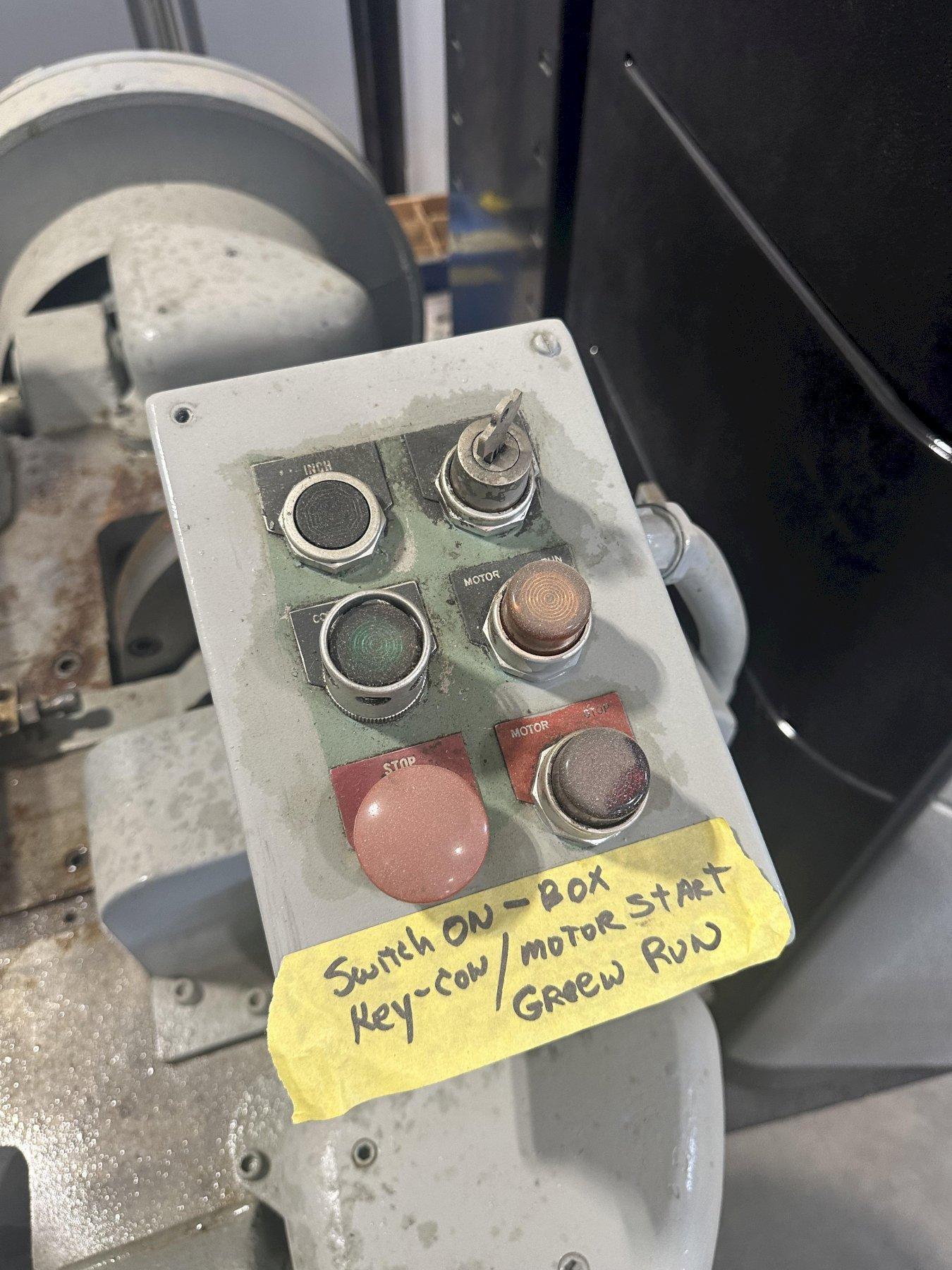

CONTROLS ..................... JOG & CONTINUOUS

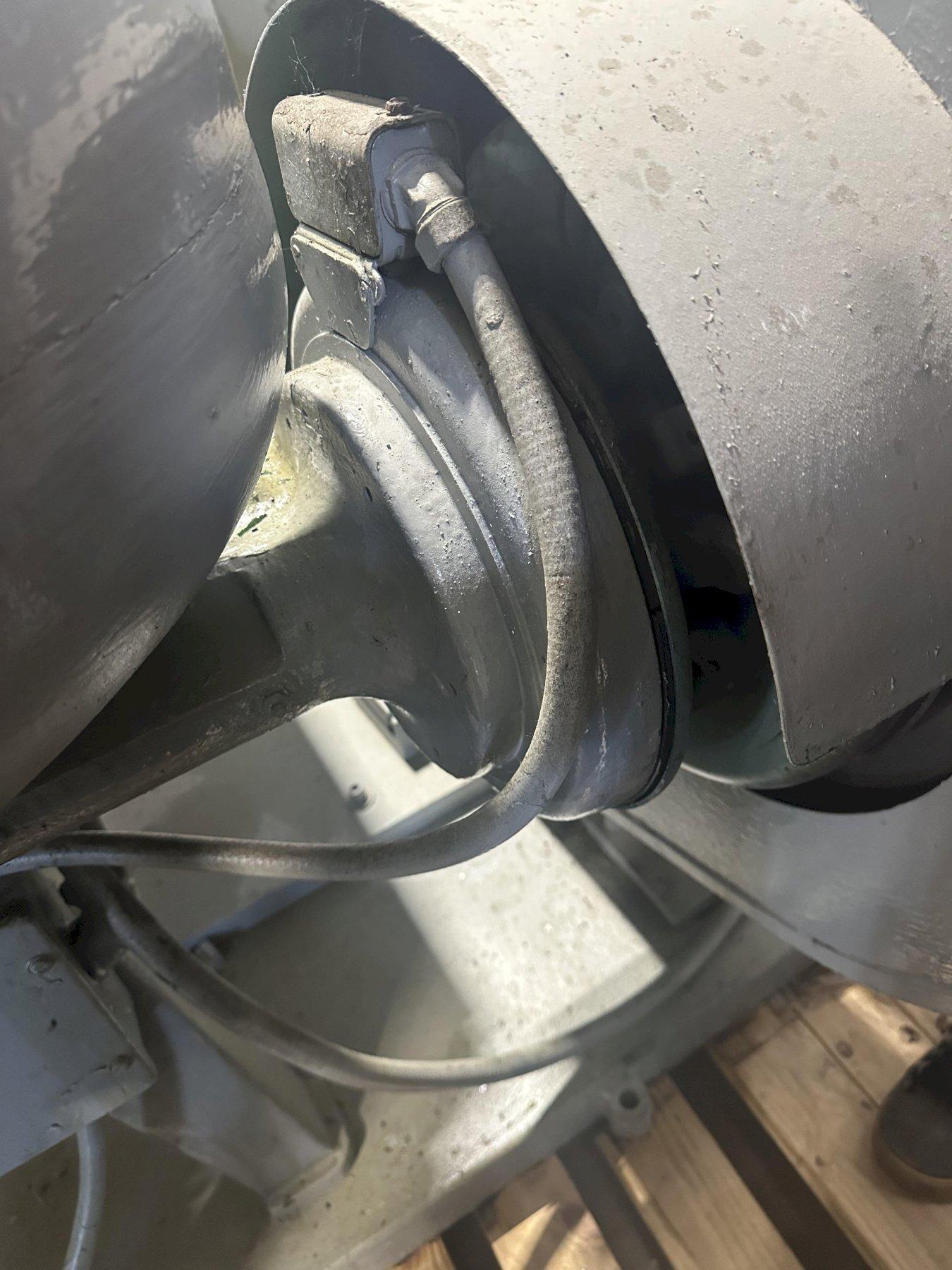

CLUTCH ....................... ELECTRIC

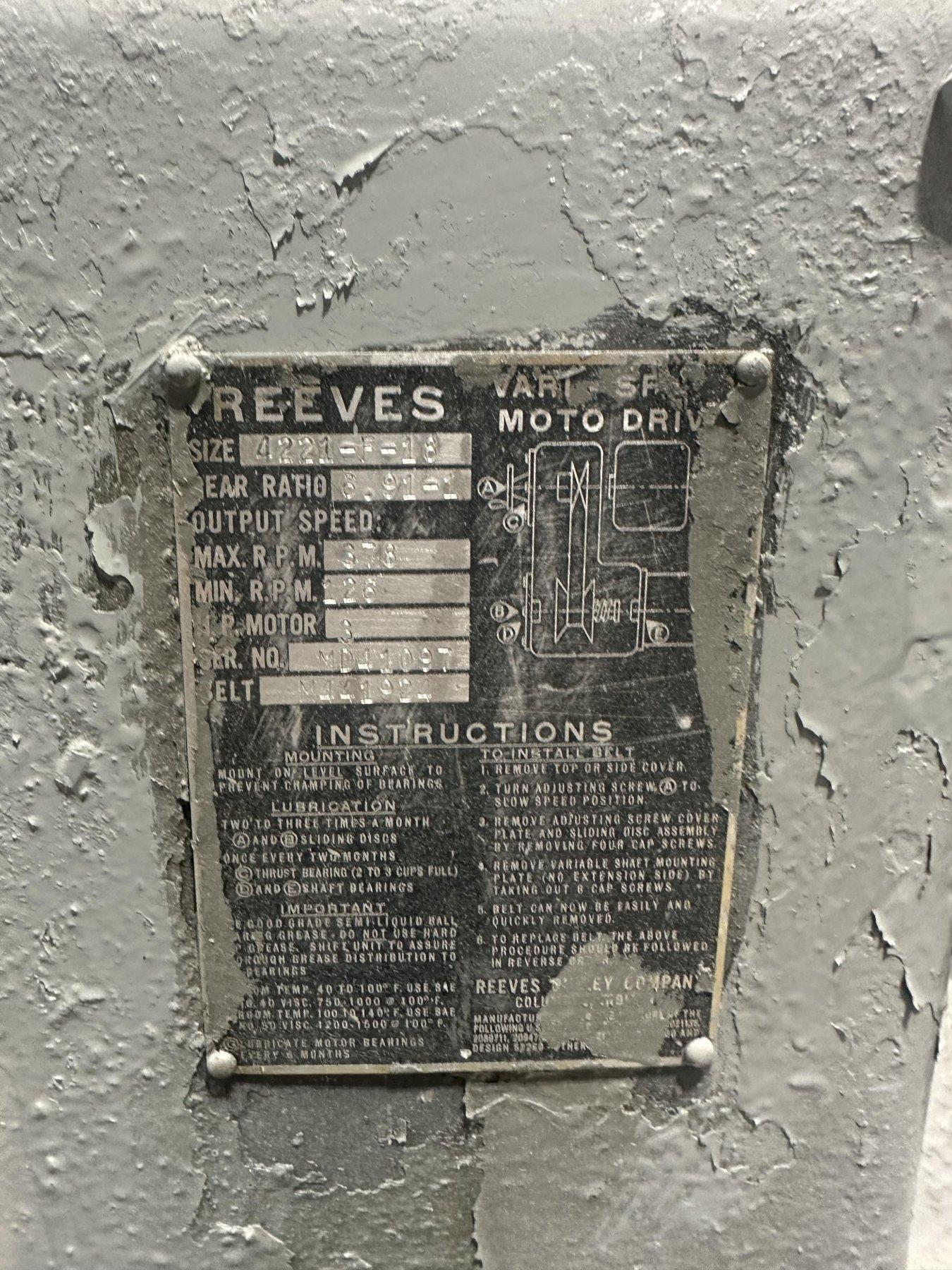

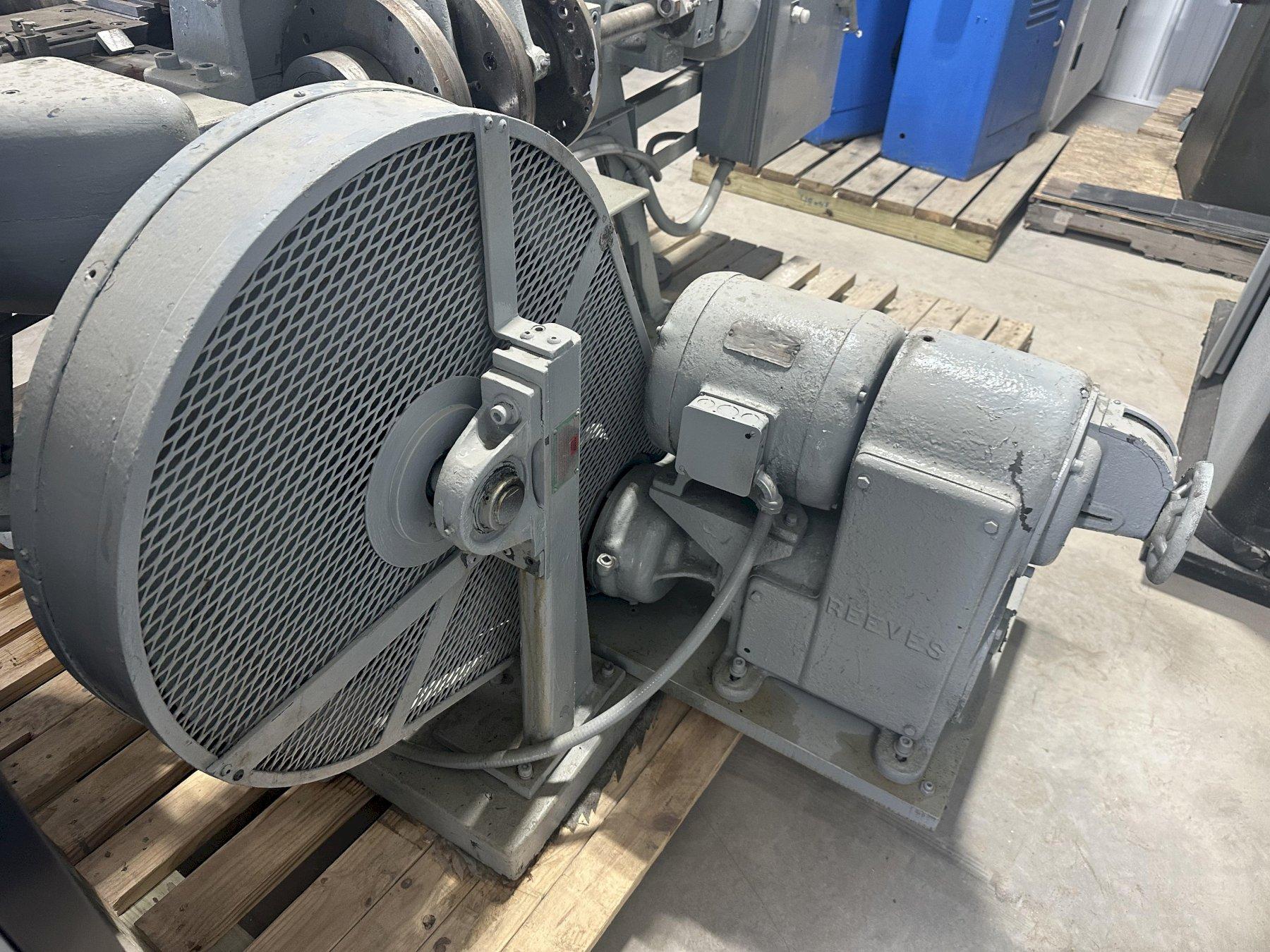

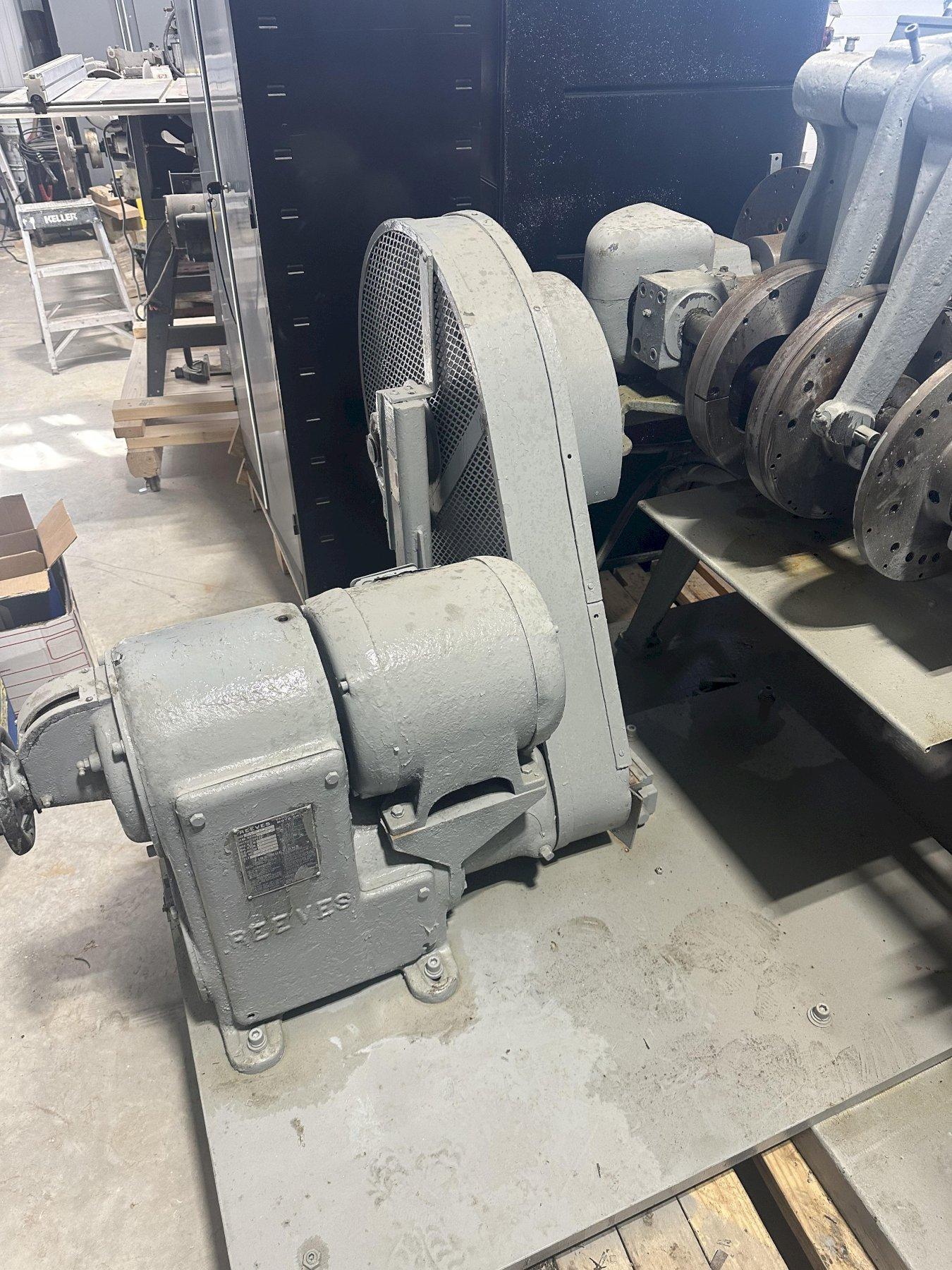

MOTOR, VARIABLE SPEED ........ 3 HP
