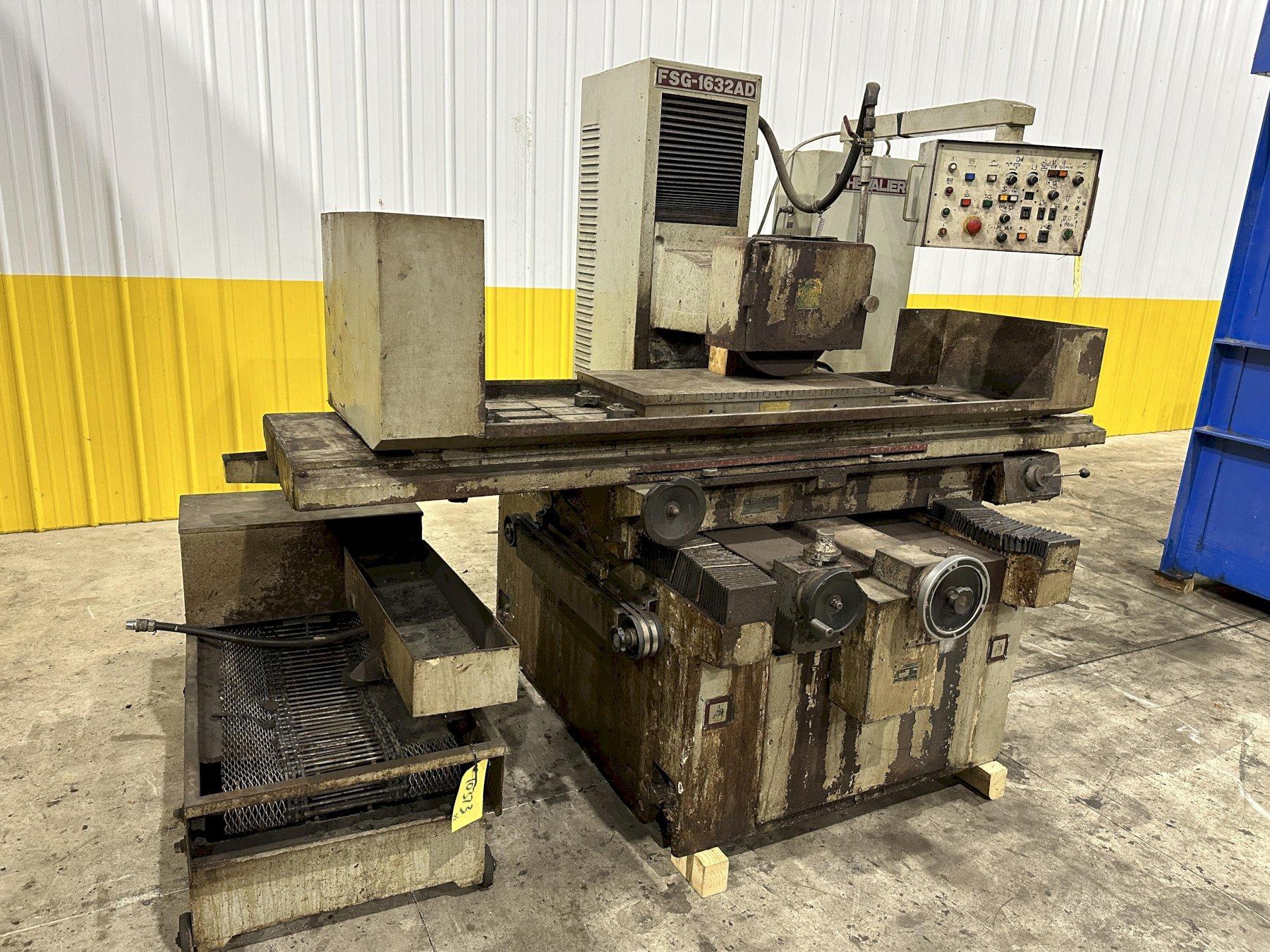

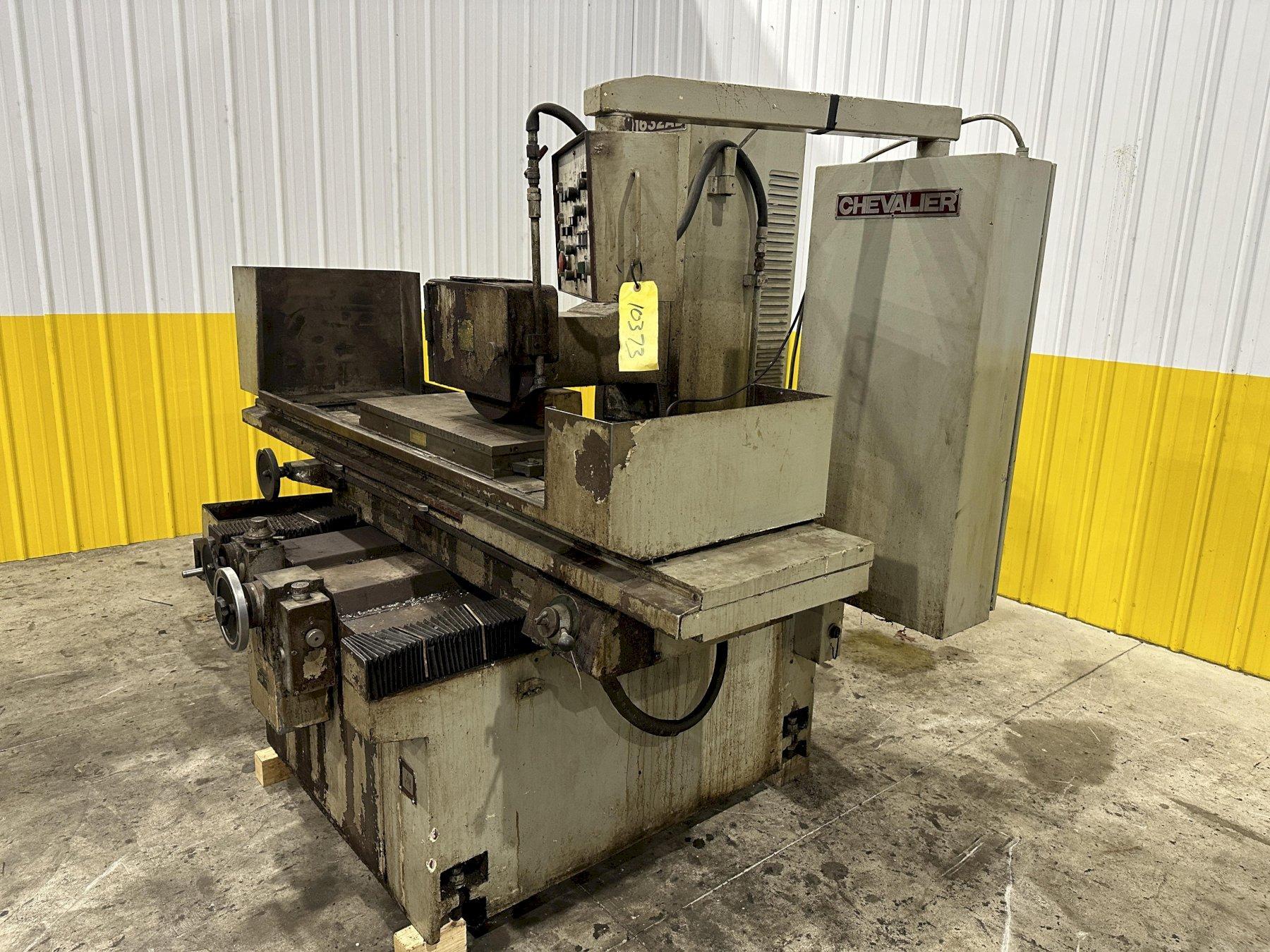

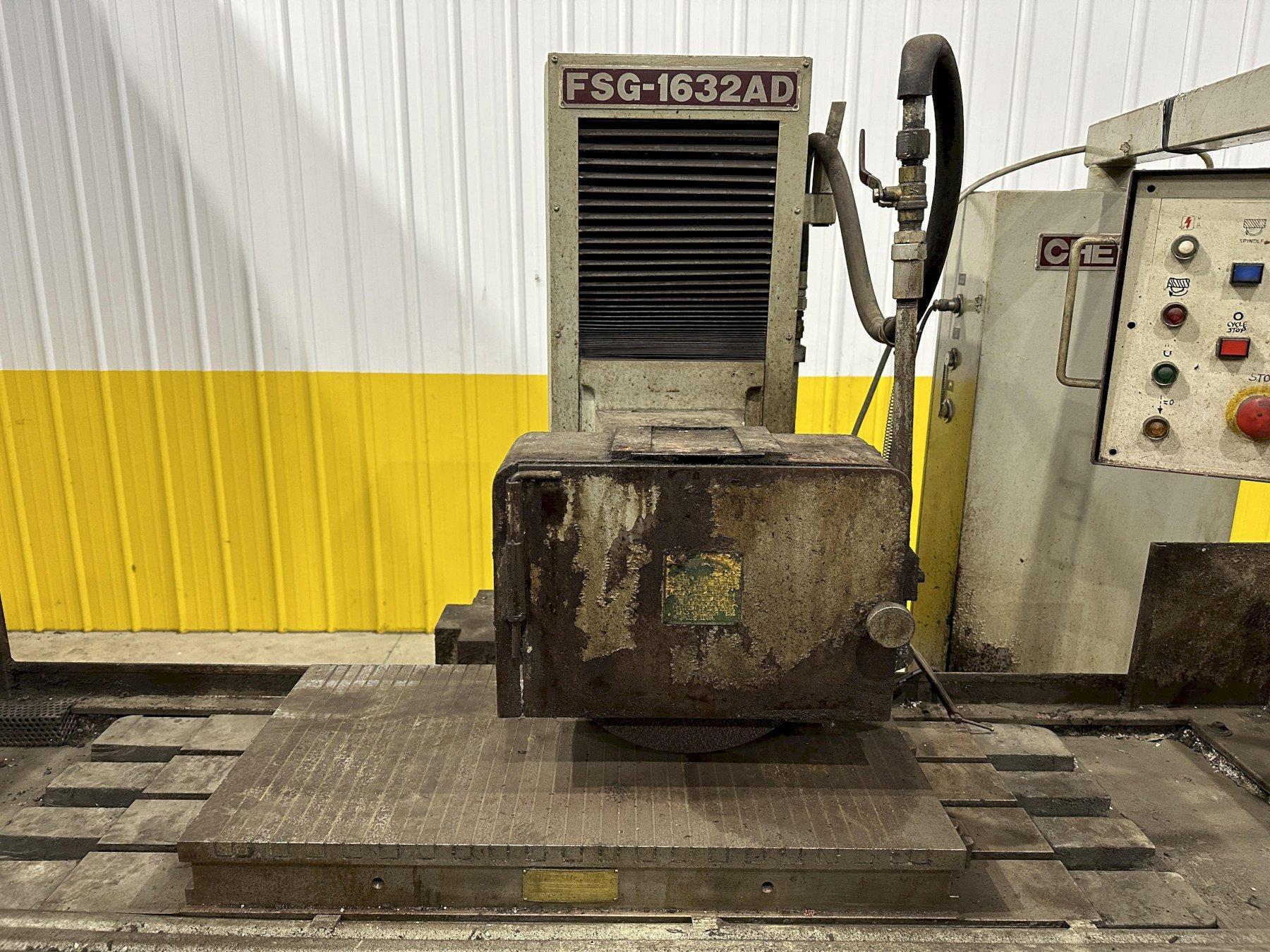

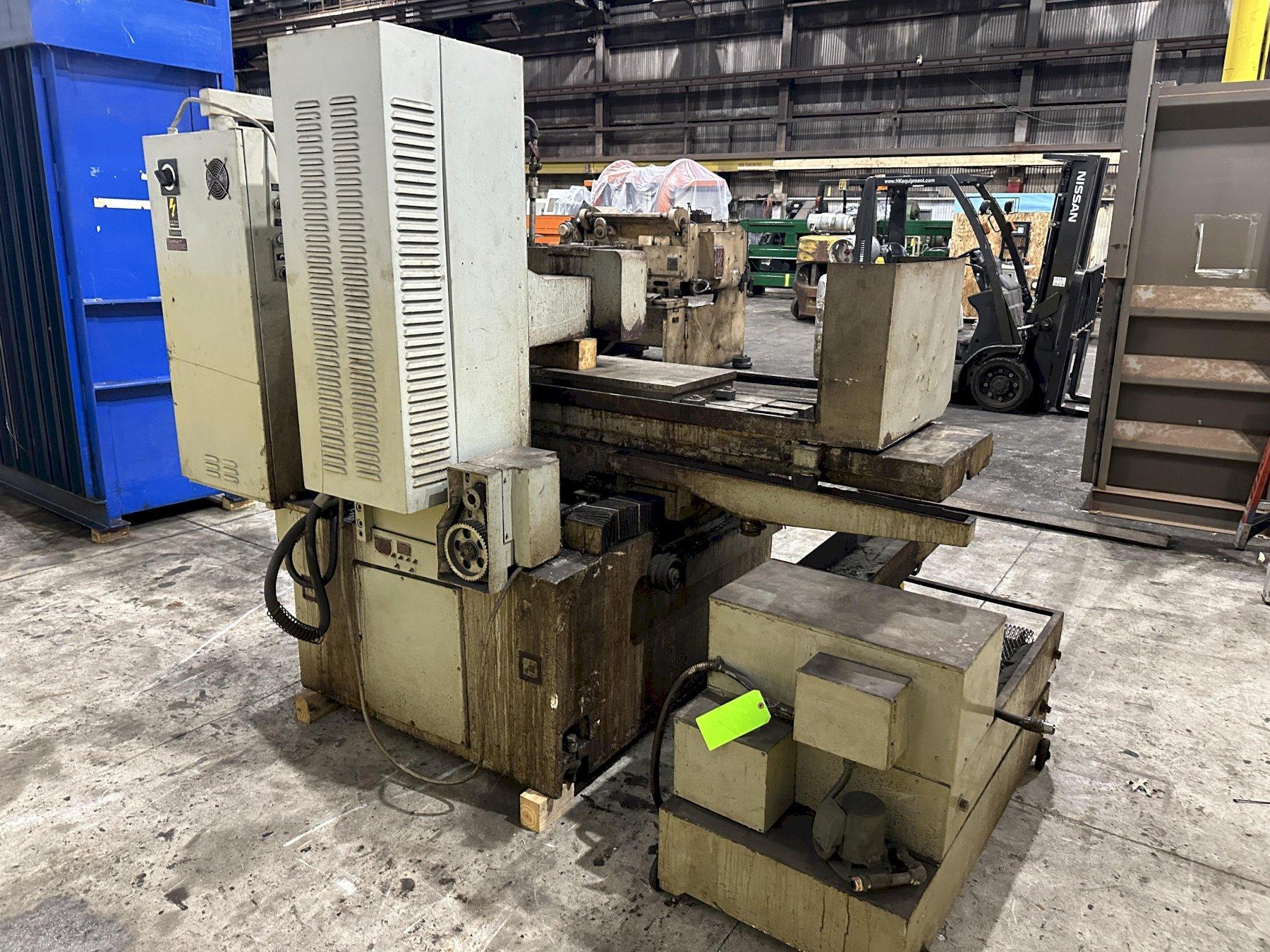

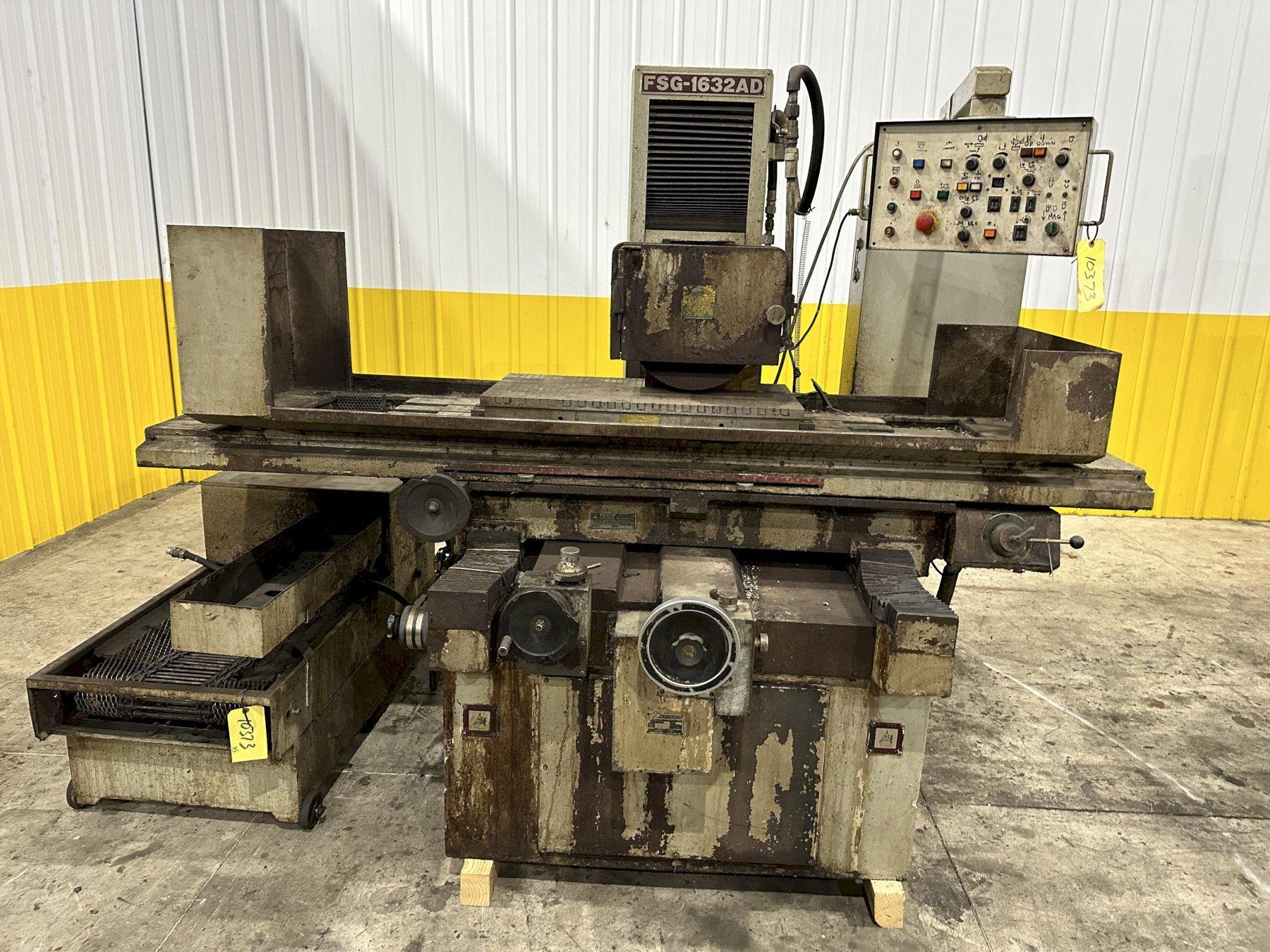

16" x 32" CHEVALIER MODEL #FSG-1632AD HORIZONTAL SURFACE GRINDER: STOCK #10373

Manufacturer

CHEVALIER

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIP. TABLE, (Horizontal Spdl), CNC

Stock

10373

Model

FSG-1632AD

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Incremental Downfeed - yes
Chuck Size - 16 X 32
Spindle (Horz/Vert) - horizontal
X-Axis Travel - 35 inches
Y-Axis Travel - 18 inches
Z-Axis Travel - 24 inches
Main Motor - 5
Grinding Wheel Speed RPM - 3450
Table-W - 16 inches
Table-L - 32 inches
Power - 5 horsepower
Grinding Wheel Width - 2 inches
Grinding Wheel Dia. - 14 inches


MODEL ................................. FSG-1632AD
GRINDING CAPACITY ..................... 16" X 32"
SPINDLE TO TABLE (MAXIMUM) ............ 24"
LONGITUDINAL TABLE TRAVEL ............. 35-3/8"
CROSS TABLE TRAVEL .................... 18"
TABLE SPEED (VARIABLE) ................ 5 TO 25 FPM
SPINDLE SPEED ......................... 3450 RPM

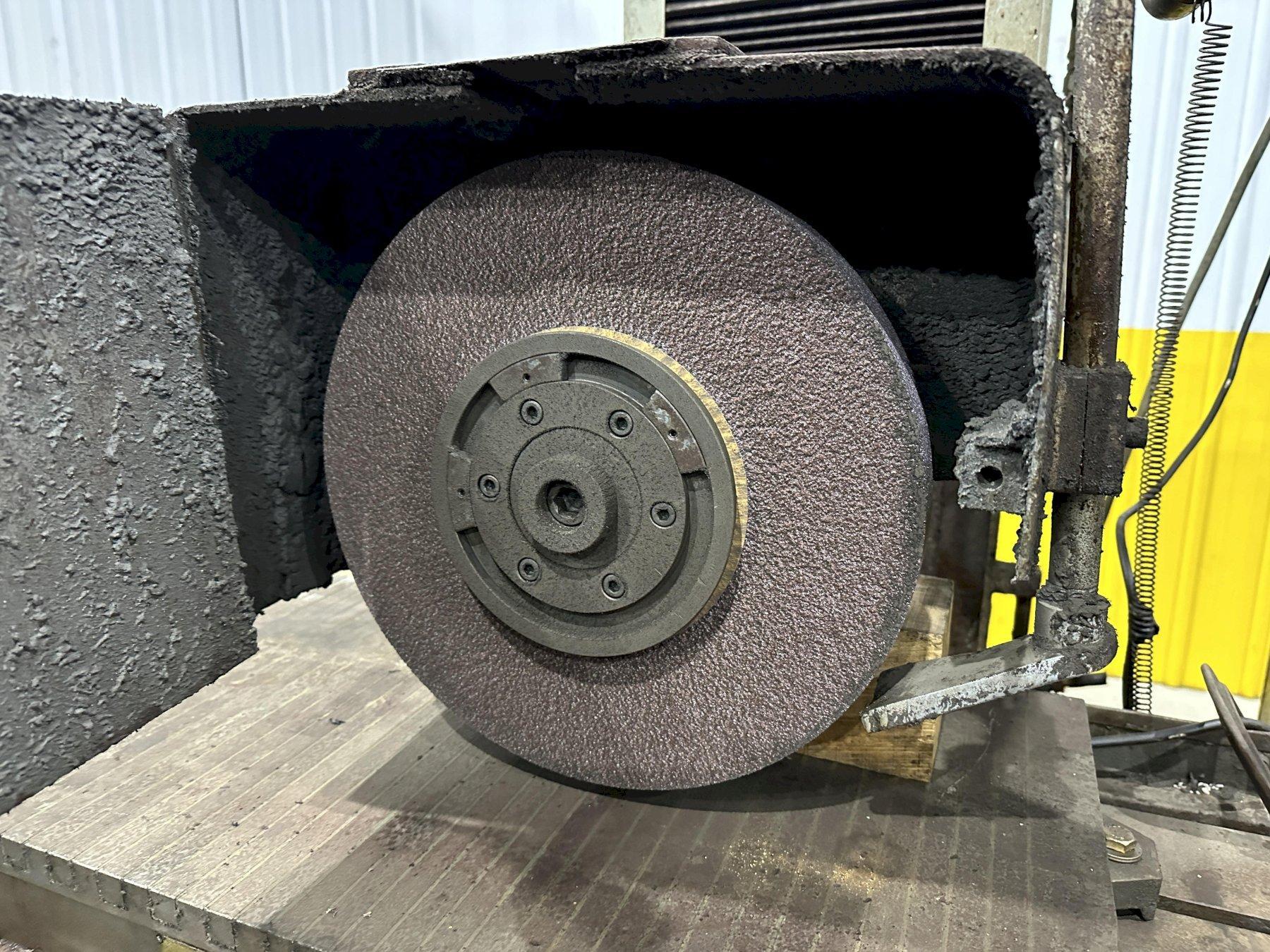

GRINDING WHEEL SIZE ................... 14" X 2" X 5"

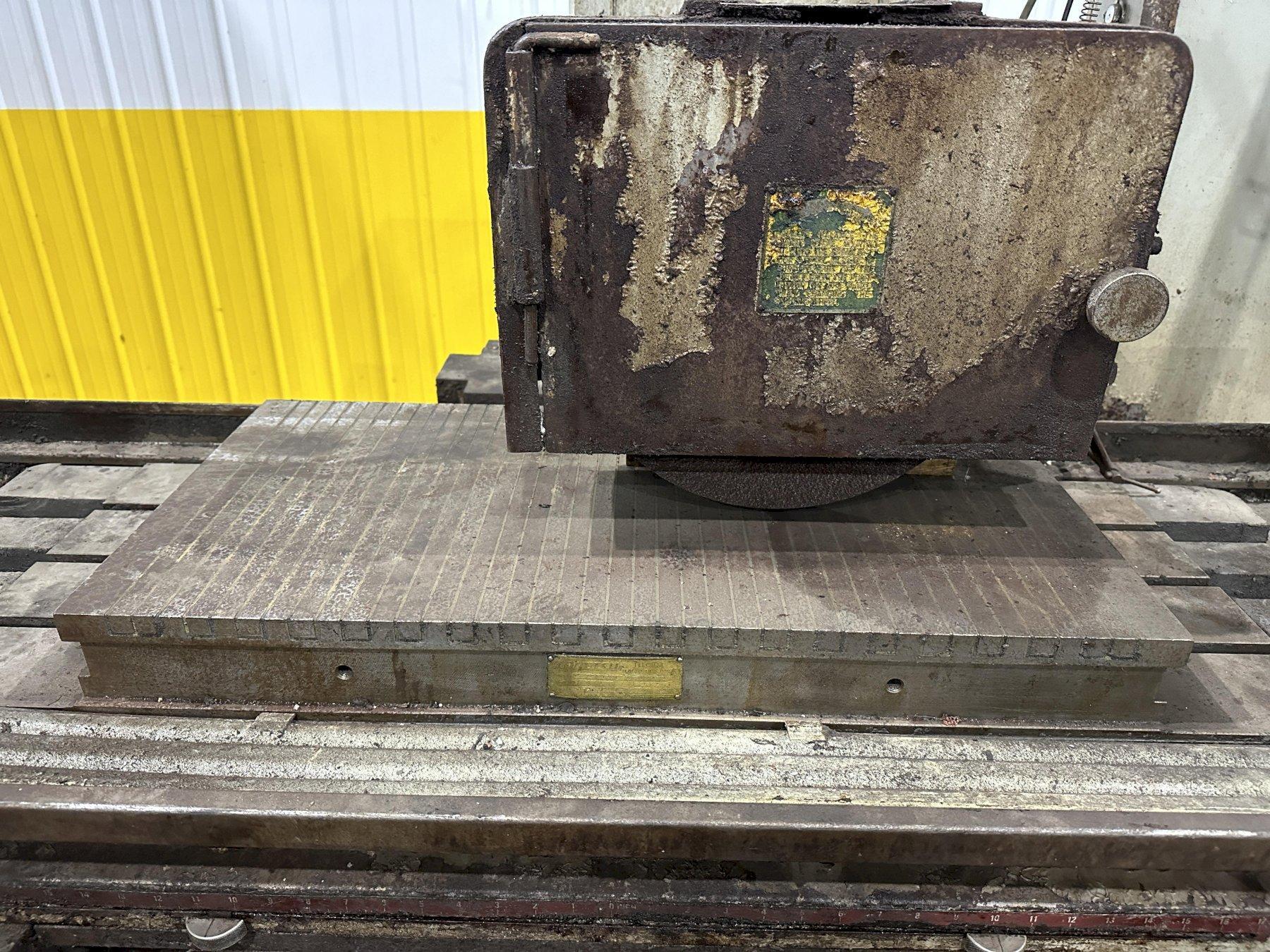

ELECTRO-MAGNETIC CHUCK SIZE ........... 32-3/8" X 15-3/4"
INCREMENTAL DOWNFEED .................. 0.00005" TO 0.002"
AUTOMATIC CROSSFEED ................... 0.005 IPR
POWER ELEVATION ....................... 12 FPM

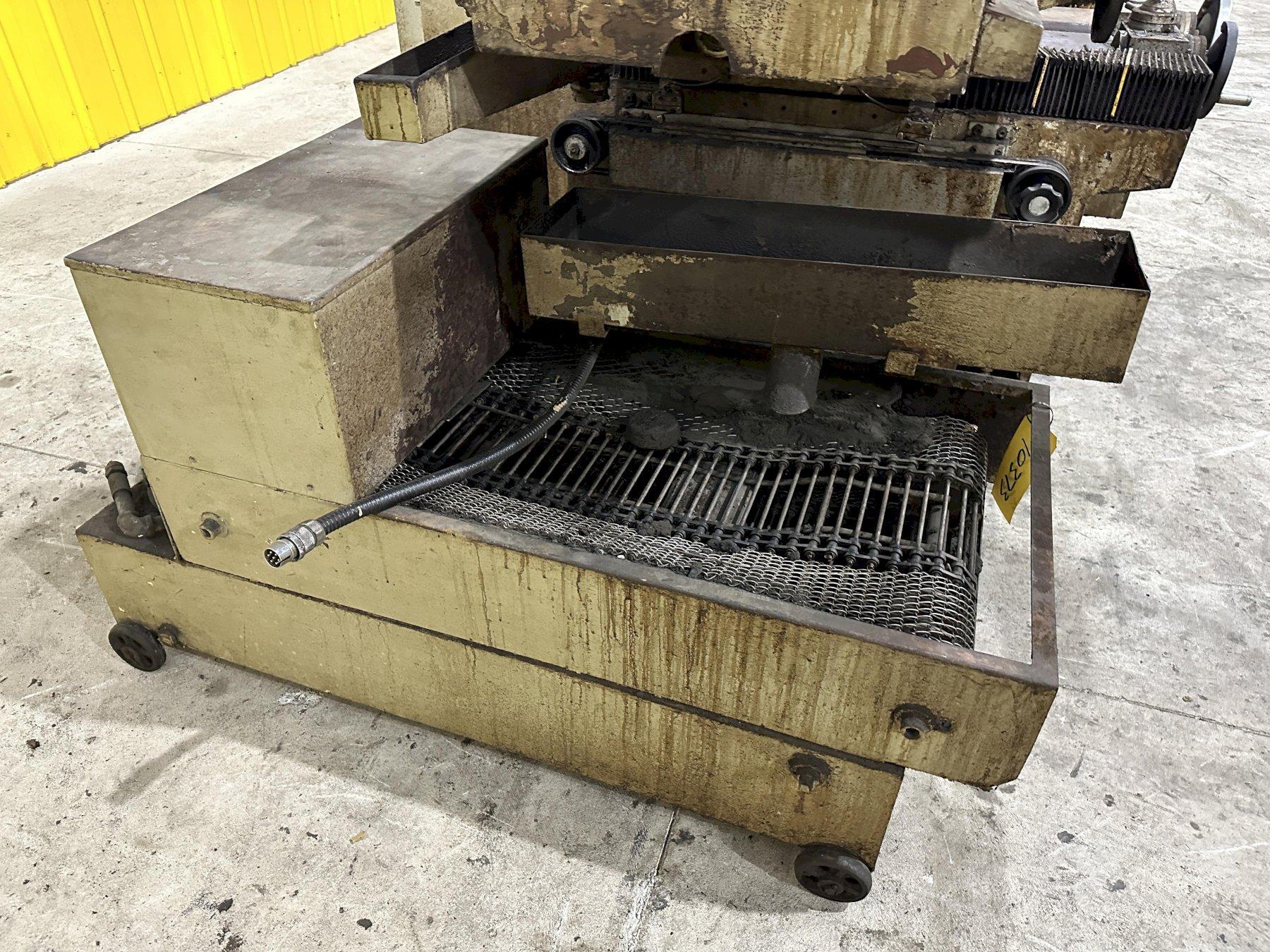

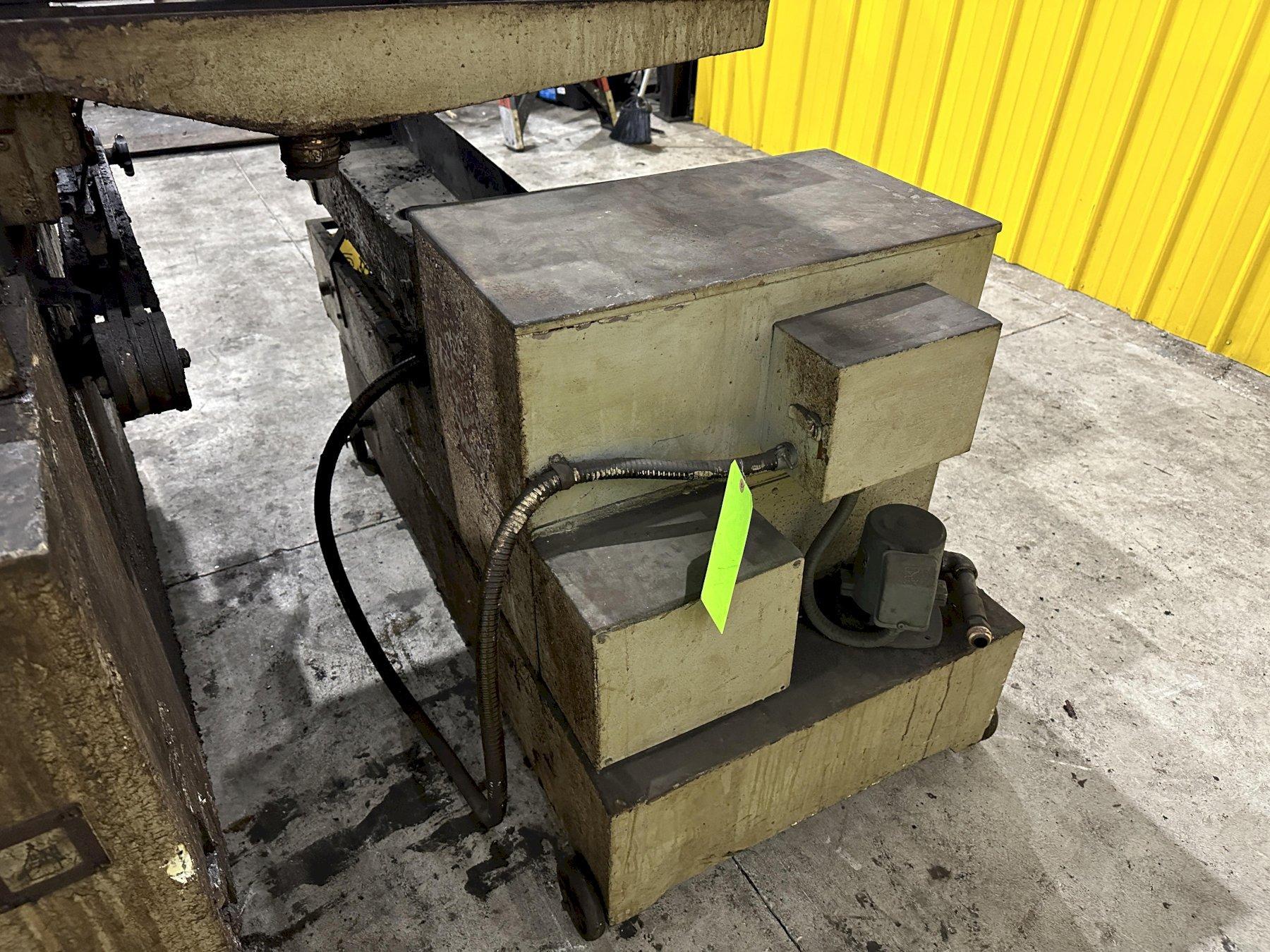

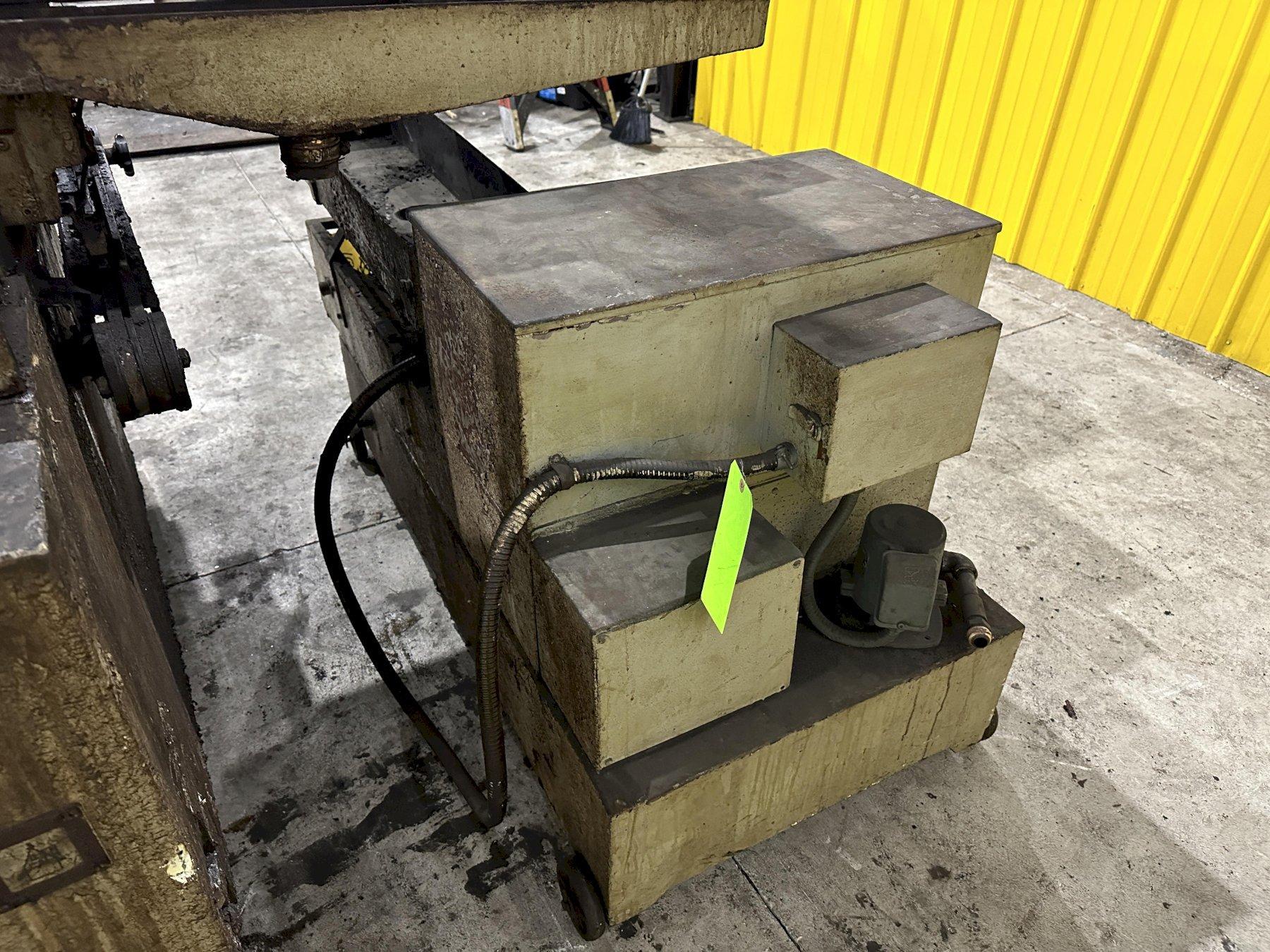

COOLANT W/PAPER FILTRATION ............ YES

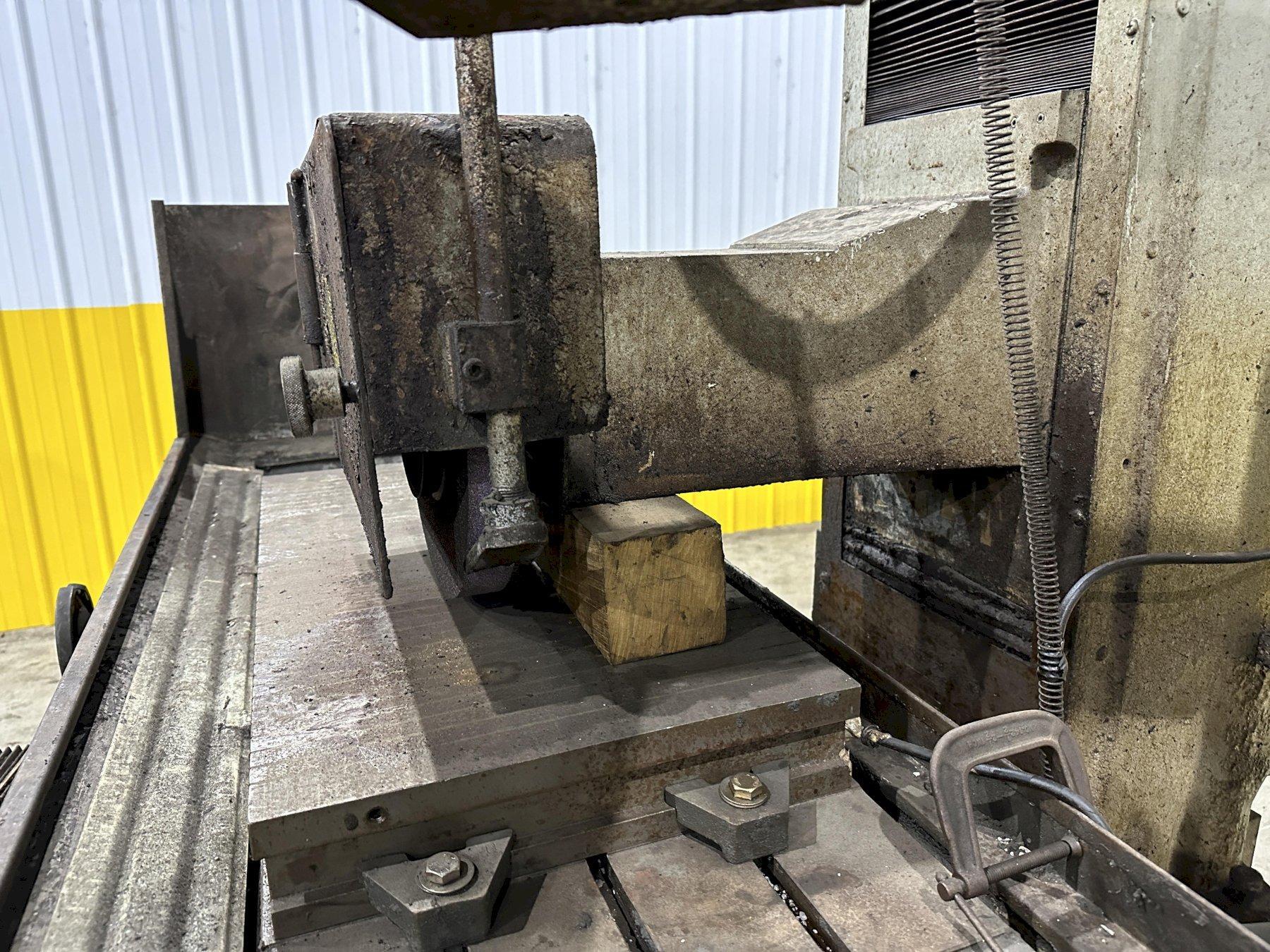

OVER THE WHEEL DRESSER ................ YES

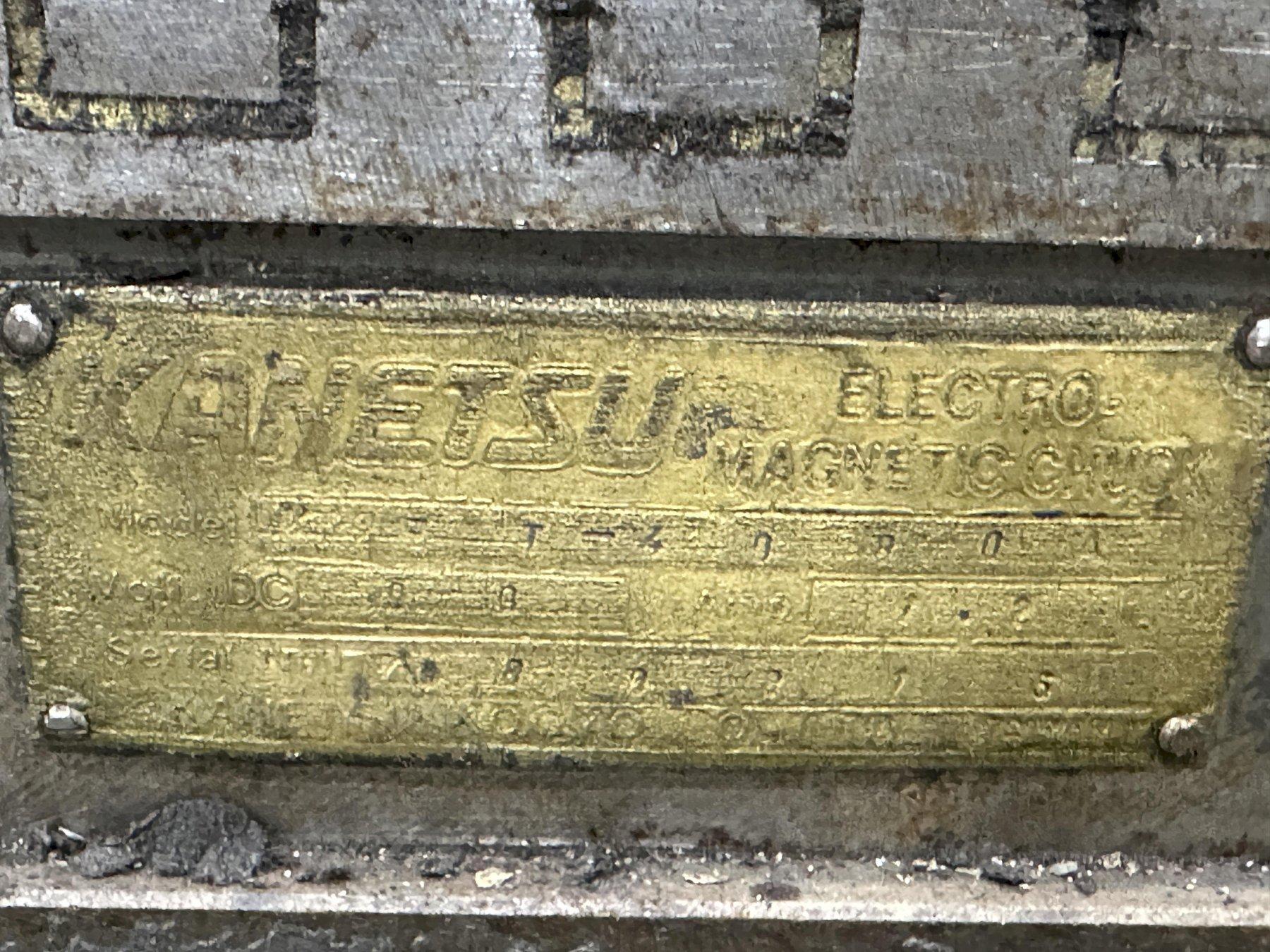

ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 5 HORSEPOWER
HYDRAULIC MOTOR ....................... 2 HORSEPOWER
