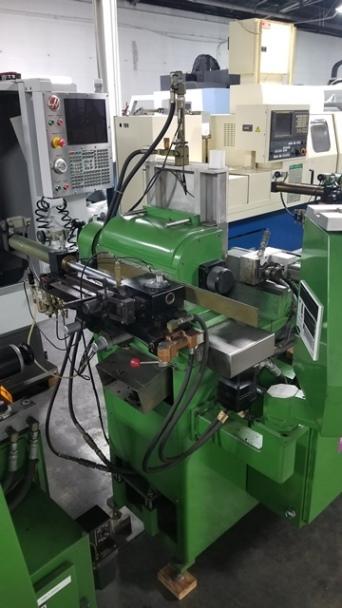

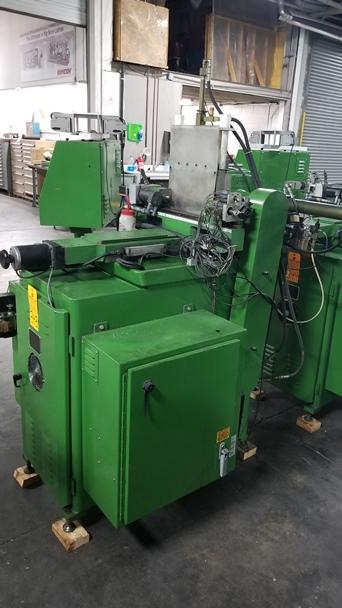

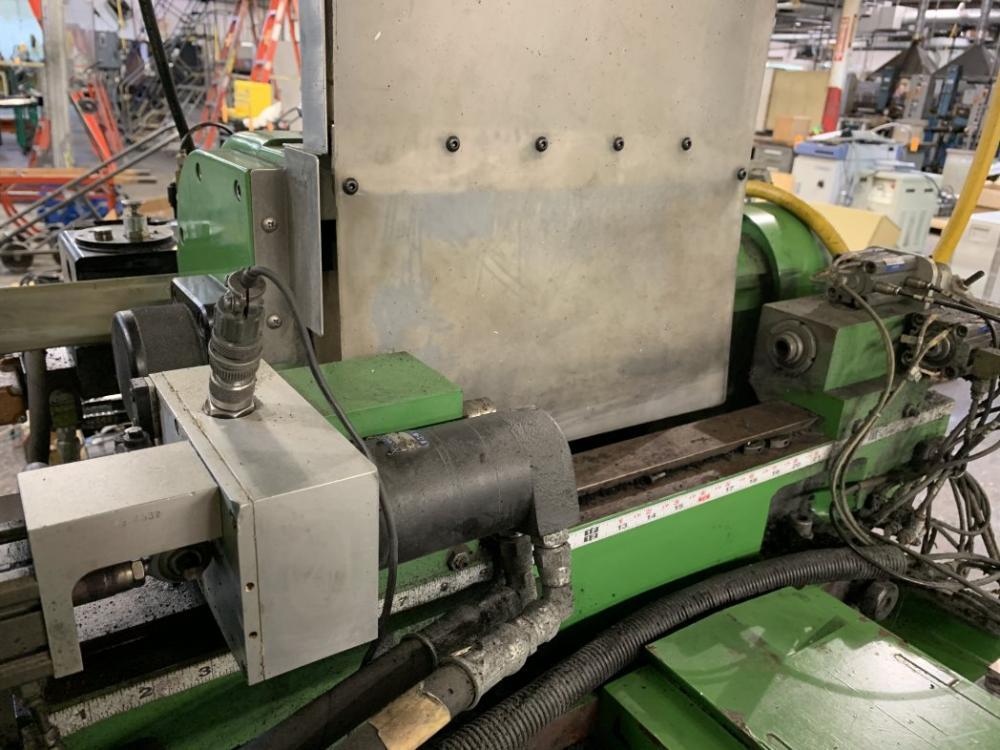

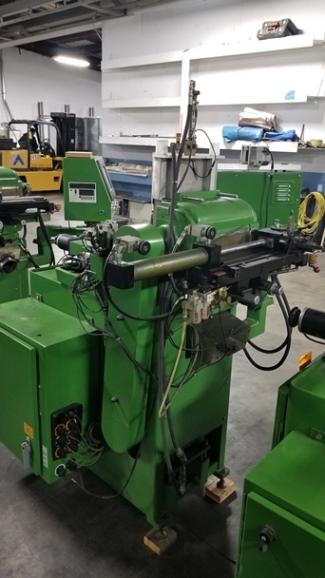

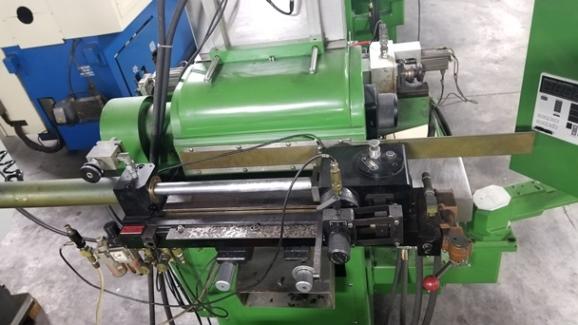

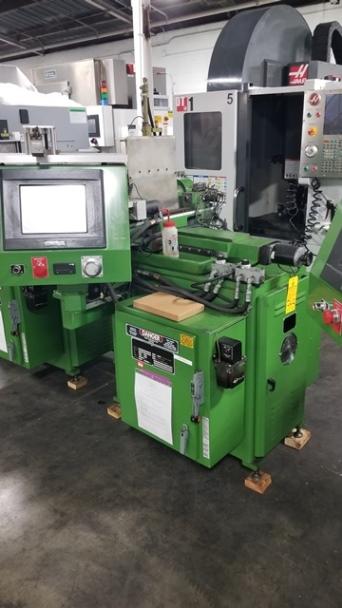

2" X 15 HP GLEBAR MODEL #PG-9CRG CNC PLUNGER GRINDER: STOCK #10387

Manufacturer

GLEBAR

Category

Grinding Machines

Type

GRINDERS, CENTERLESS-ACCESSORIES

Stock

10387

Model

PG-9CRG

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Work Capacity - 2 inches
Grinding Wheel Dia. - 9 inches
GW Power - 15 horsepower
CNC Control - yes

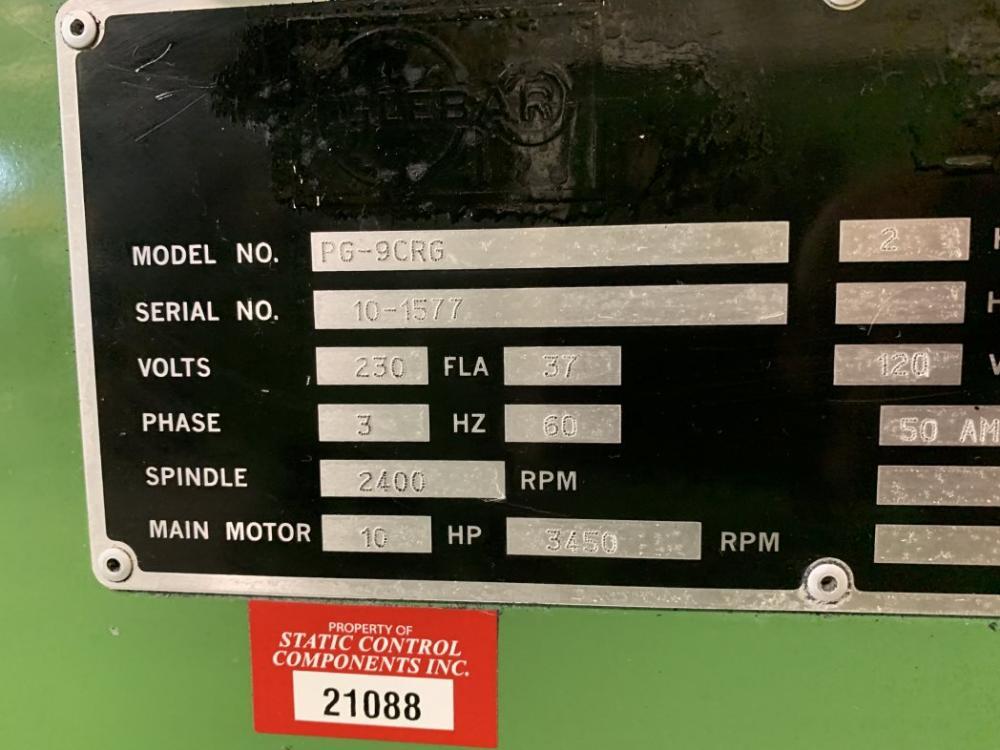

SERIAL ........................................ 10-1577
Model ......................................... PG-9CRG
Year .......................................... 2011

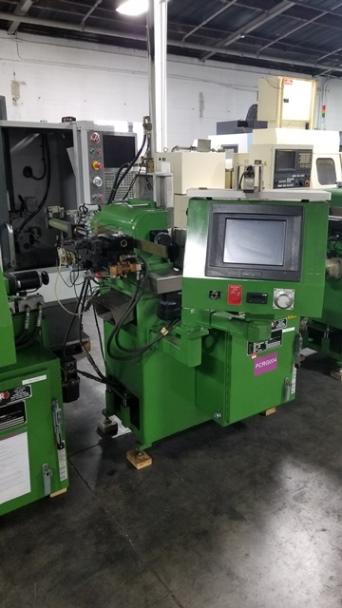

PARKER HANIFAN PLC Touchscreen HMI Controls ... YES
WORK WHEEL POWER .............................. 15 HP
GRINDING WHEEL LENGTH DIAMETER ................ 9" X 12-5/8" diamond or vitrified

MAX STOCK SIZE CAPACITY ....................... 2"(50.8MM) DIA
MIN STOCK SIZE CAPACITY ....................... 375"(9.5MM) DIA
MAX SHAFT DIAMETER ............................ 1.5"(38.1mm)
MIN SHAFT DIAMETER ............................ 0.187"(4.76mm)
Max ground roll face: 12-5/8"(321mm) max. (custom sizes available)

CONDITION: MACHINES APPEAR TO BE IN VERY GOOD TO EXCELLENT CONDITION.

TRADITIONAL OD GRINDING METHODS RELY ON CNC PROGRAMMING TO PROFILE SHAPES. ALTHOUGH ADEQUATE FOR PROTOTYPING, AN OD MACHINE IS SLOW SINCE THE GRINDING HEAD HAS TO TRAVERSE THE LENGTH OF THE PART. ALTERNATIVELY, THE PG-9CRG IS ABLE TO FORM COMPONENTS IN ONE PASS.

ADDITIONALLY THE PG-9CRG LEVERAGES GLEBAR'S VAST KNOWLEDGE IN GRINDING WHEEL COMPOSITIONS TO MATCH THE OPTIMUM GRINDING WHEEL FOR YOUR MATERIAL. AS A COMPACT MACHINE THAT CAN BE HIGHLY AUTOMATED, THE MACHINE CAN BE SIMPLY ADAPTED TO GRIND SMALL COMPONENTS USING THE INSTALLED COLLATES.

OPTIONS AVAILABLE(PRICE ON REQUEST):

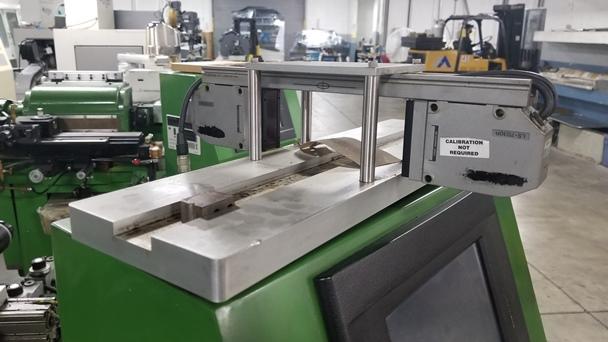

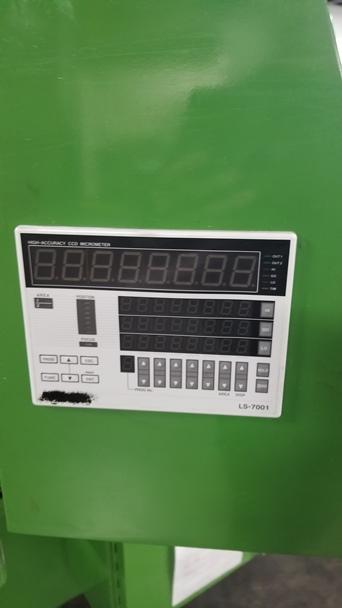

IN-LINE GAUGING
MIST COLLECTOR
OFF-MACHINE WHEEL BALANCING SYSTEM
POST PROCESS GAUGING
PART COUNTER
ROBOT PICK & PLACE
THREE STAGE RECIRCULATING COOLANT SYSTEM
