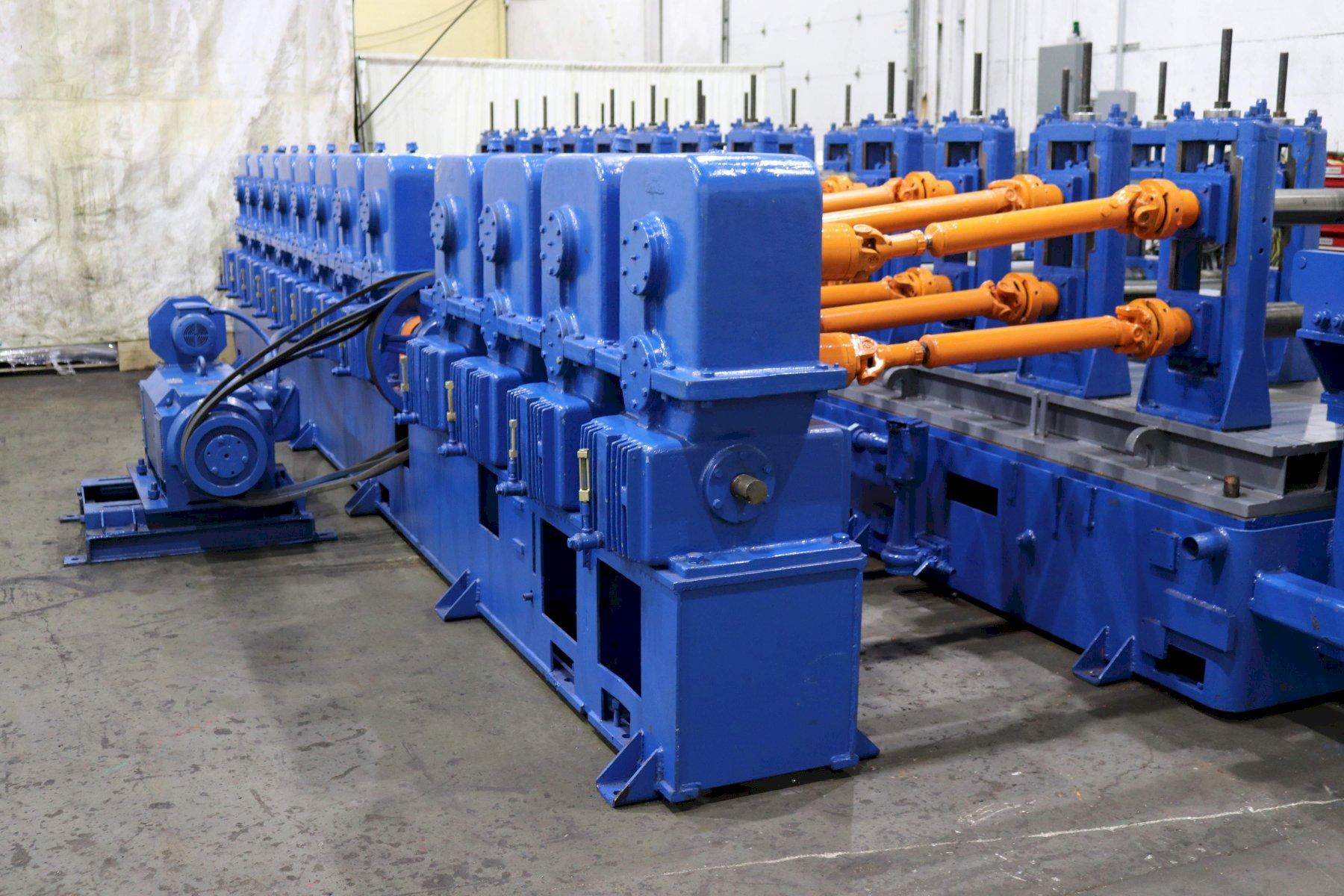

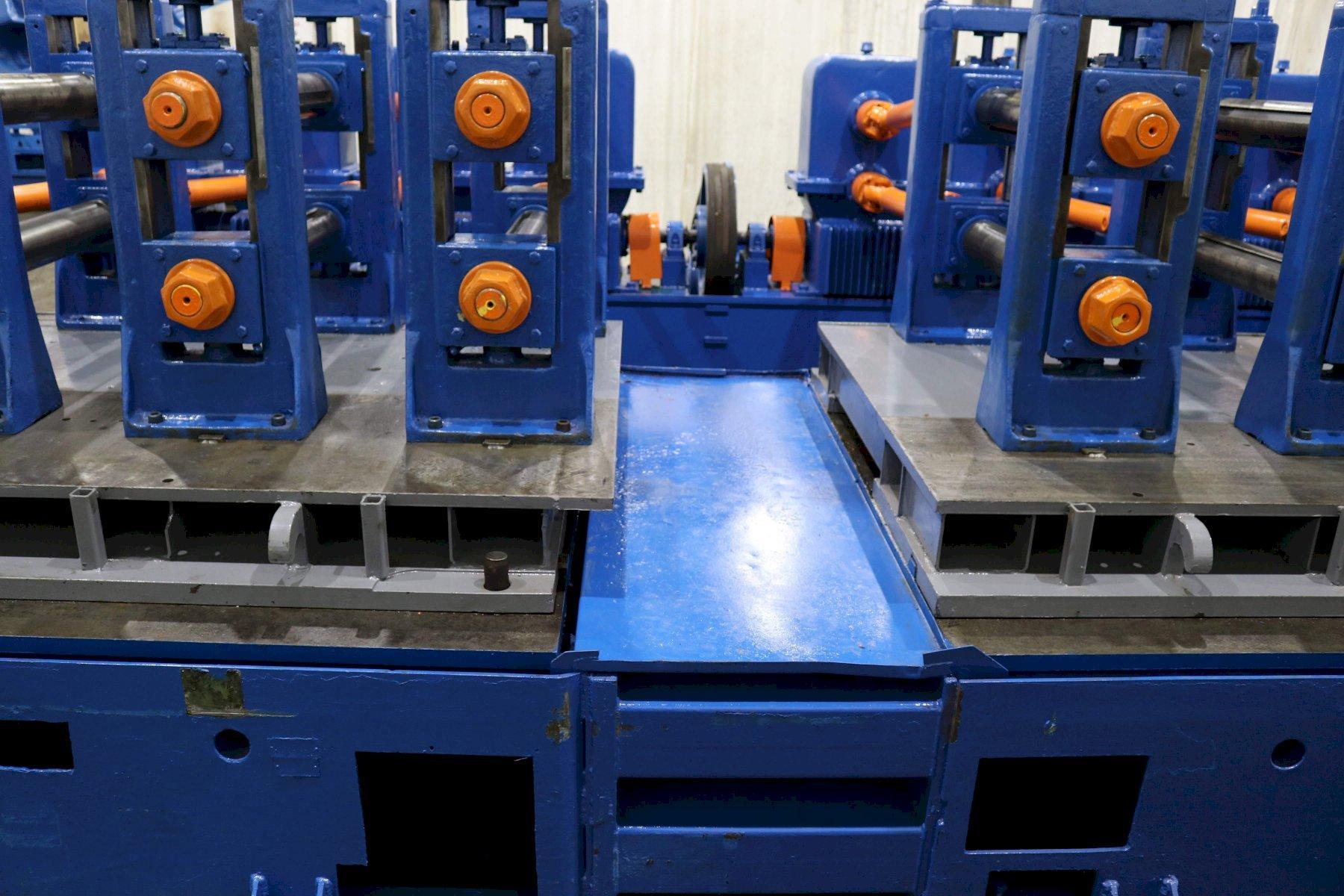

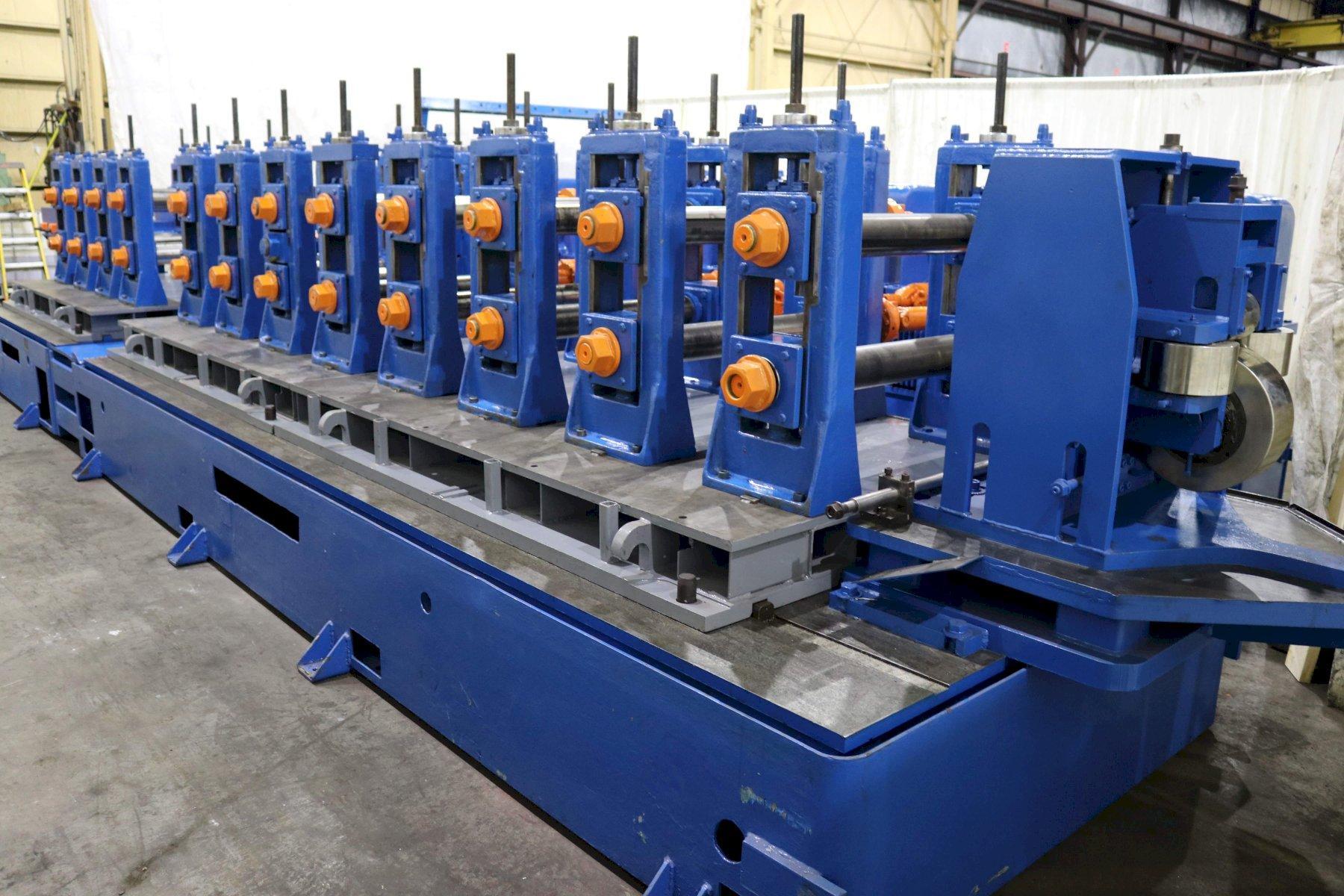

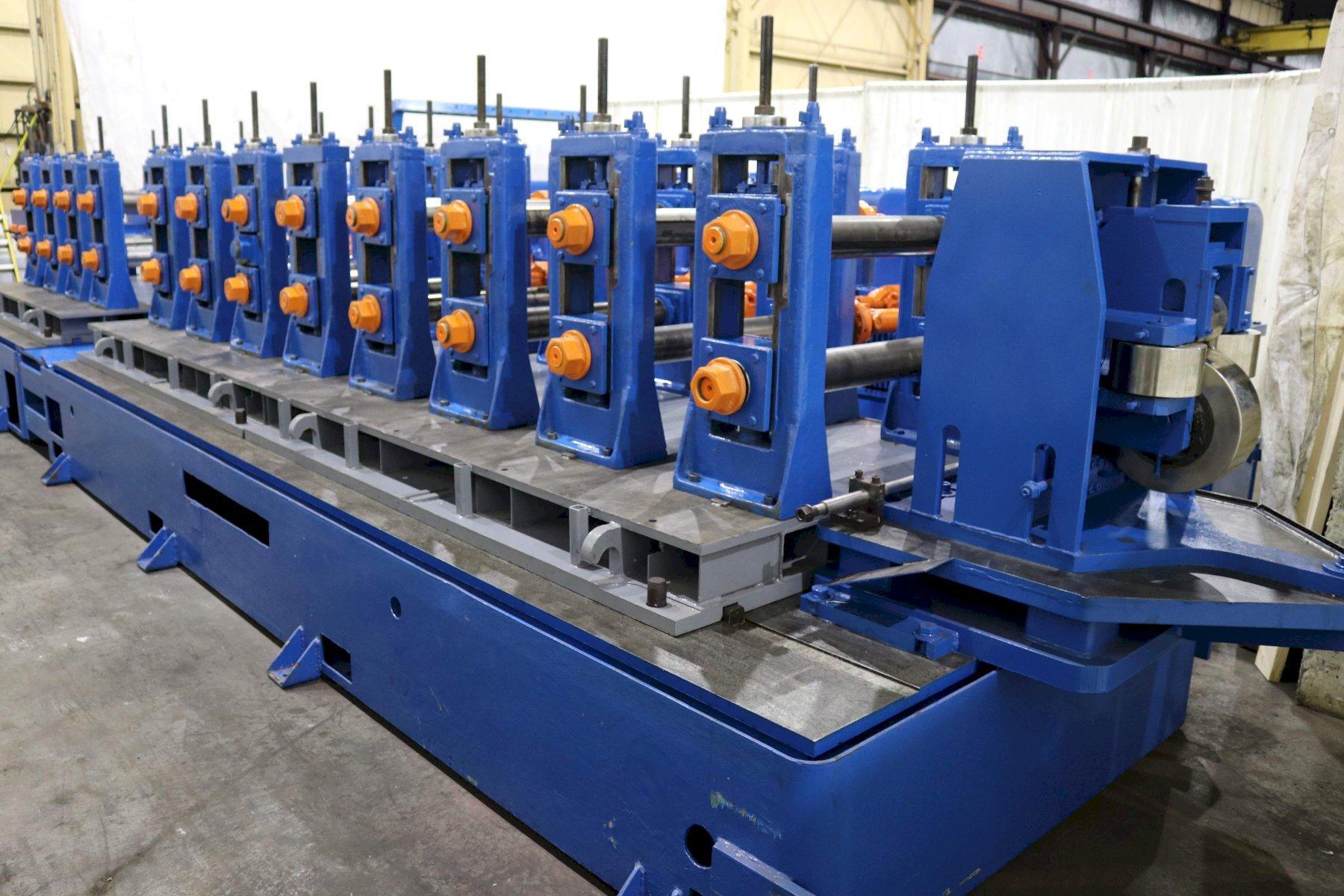

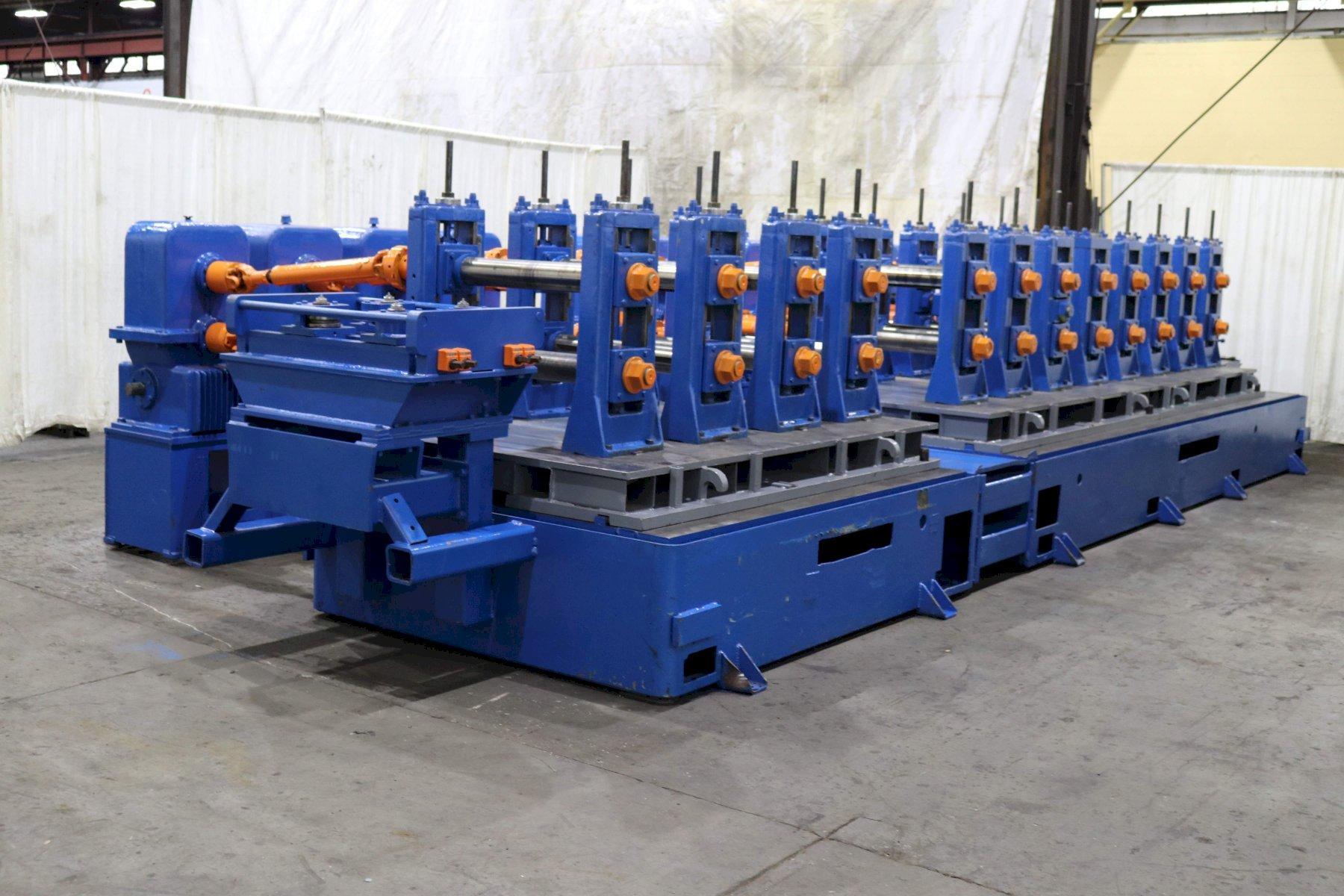

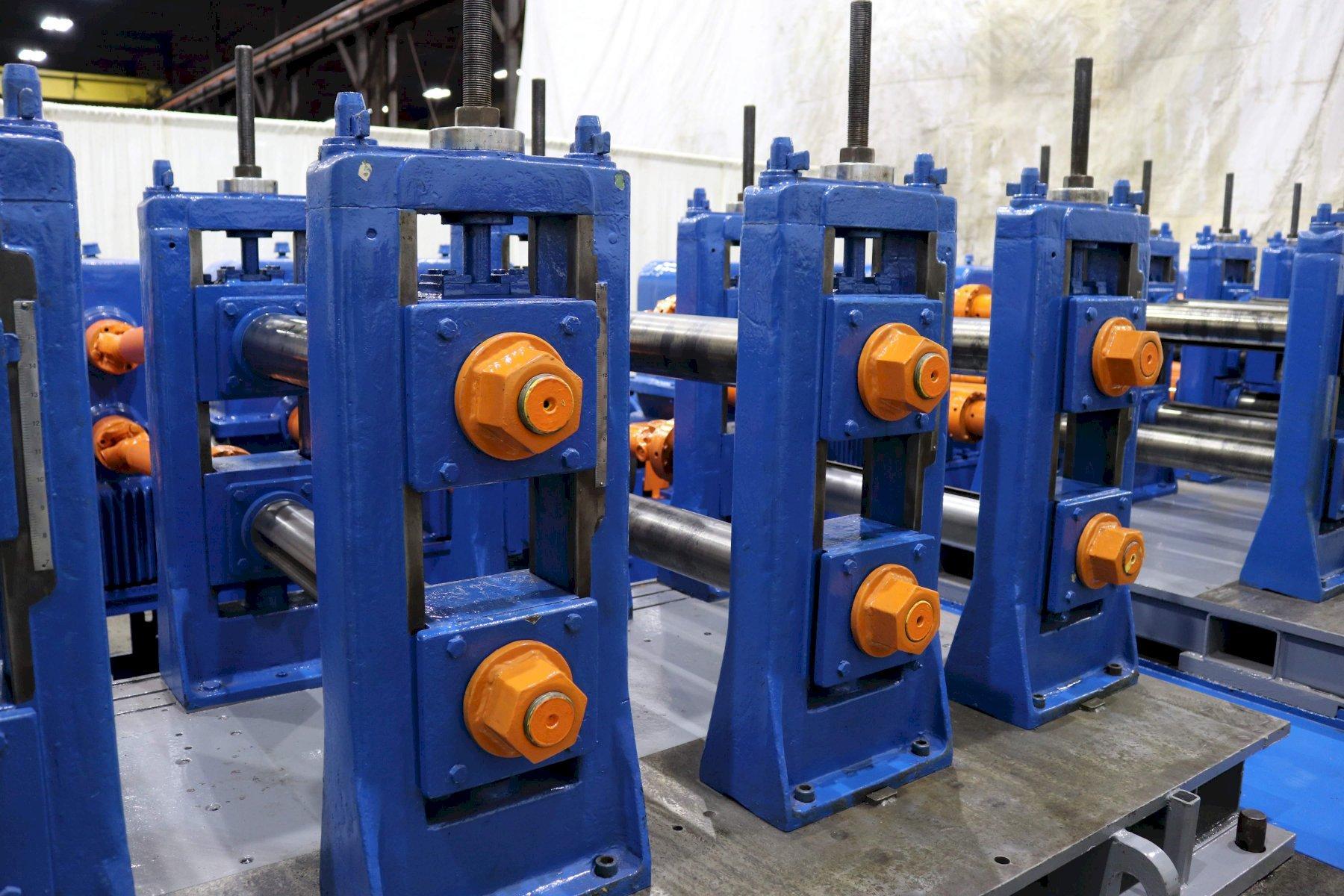

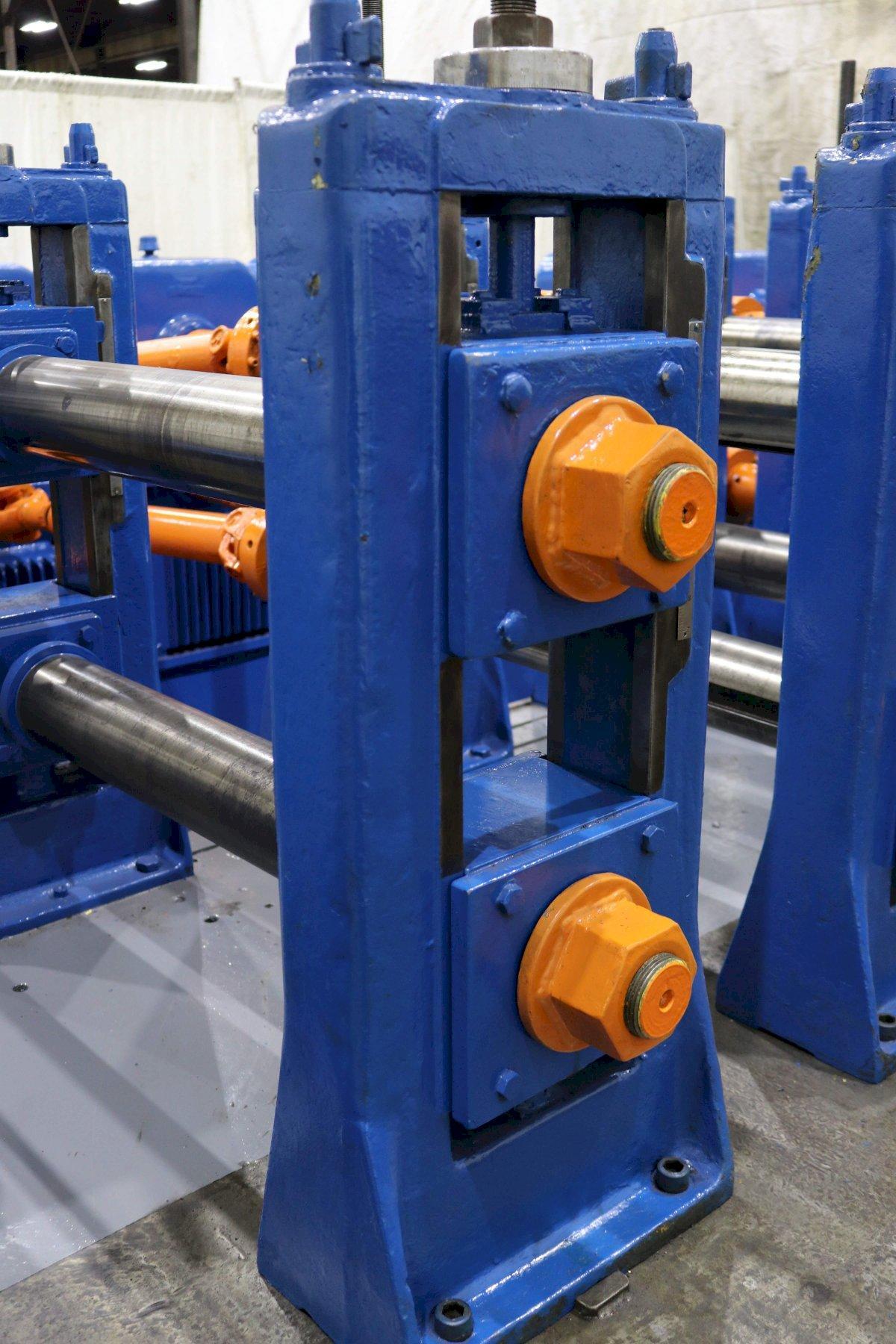

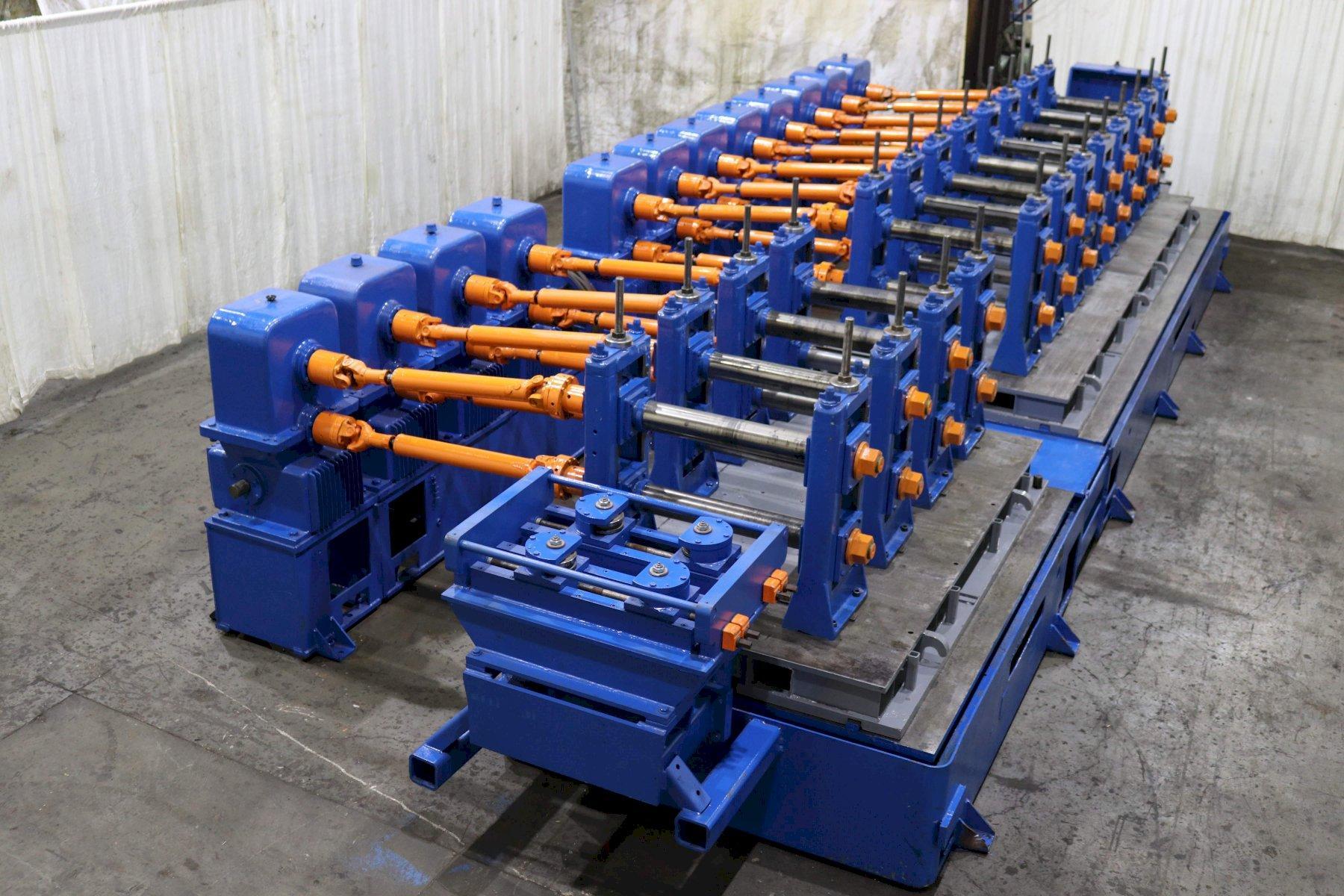

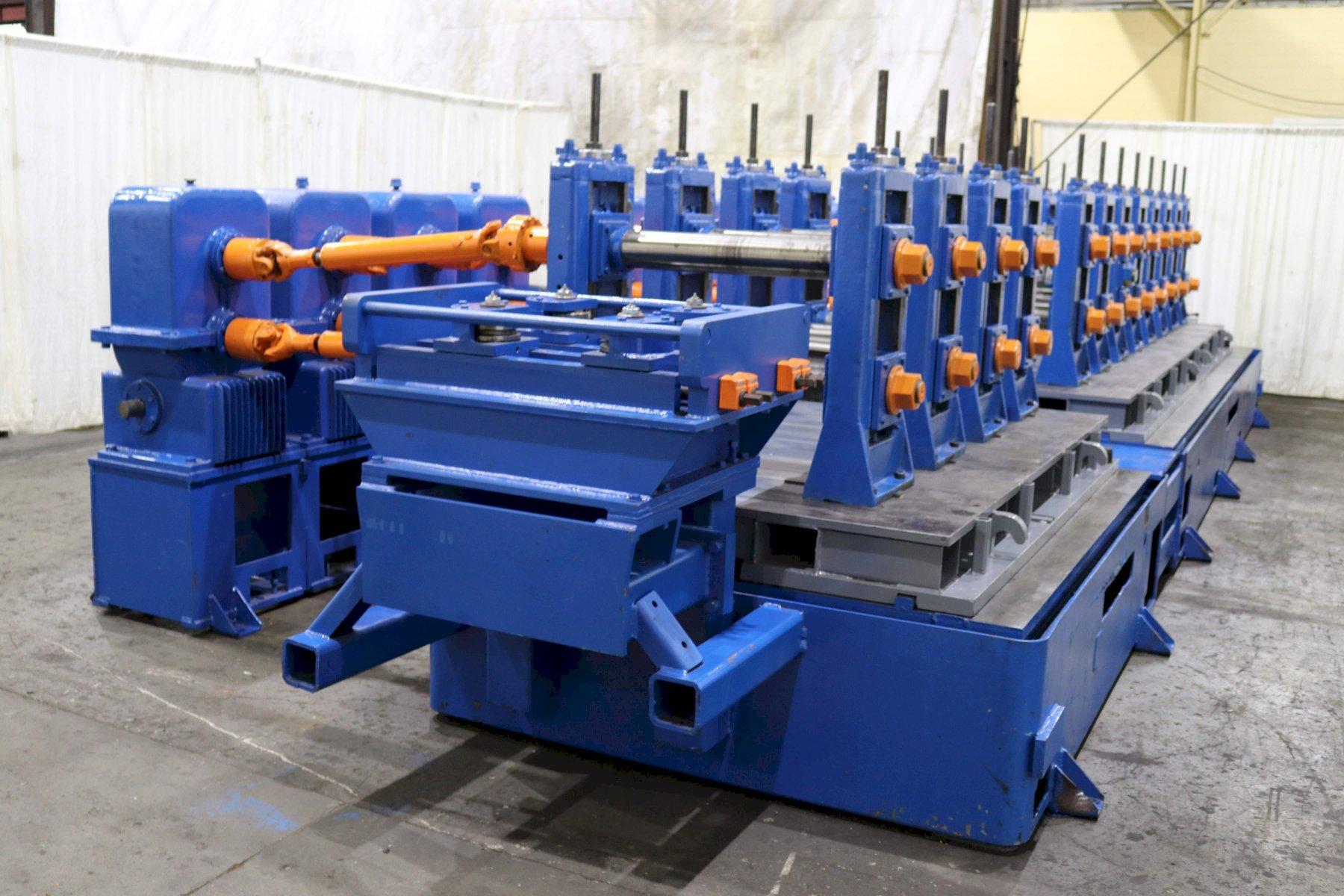

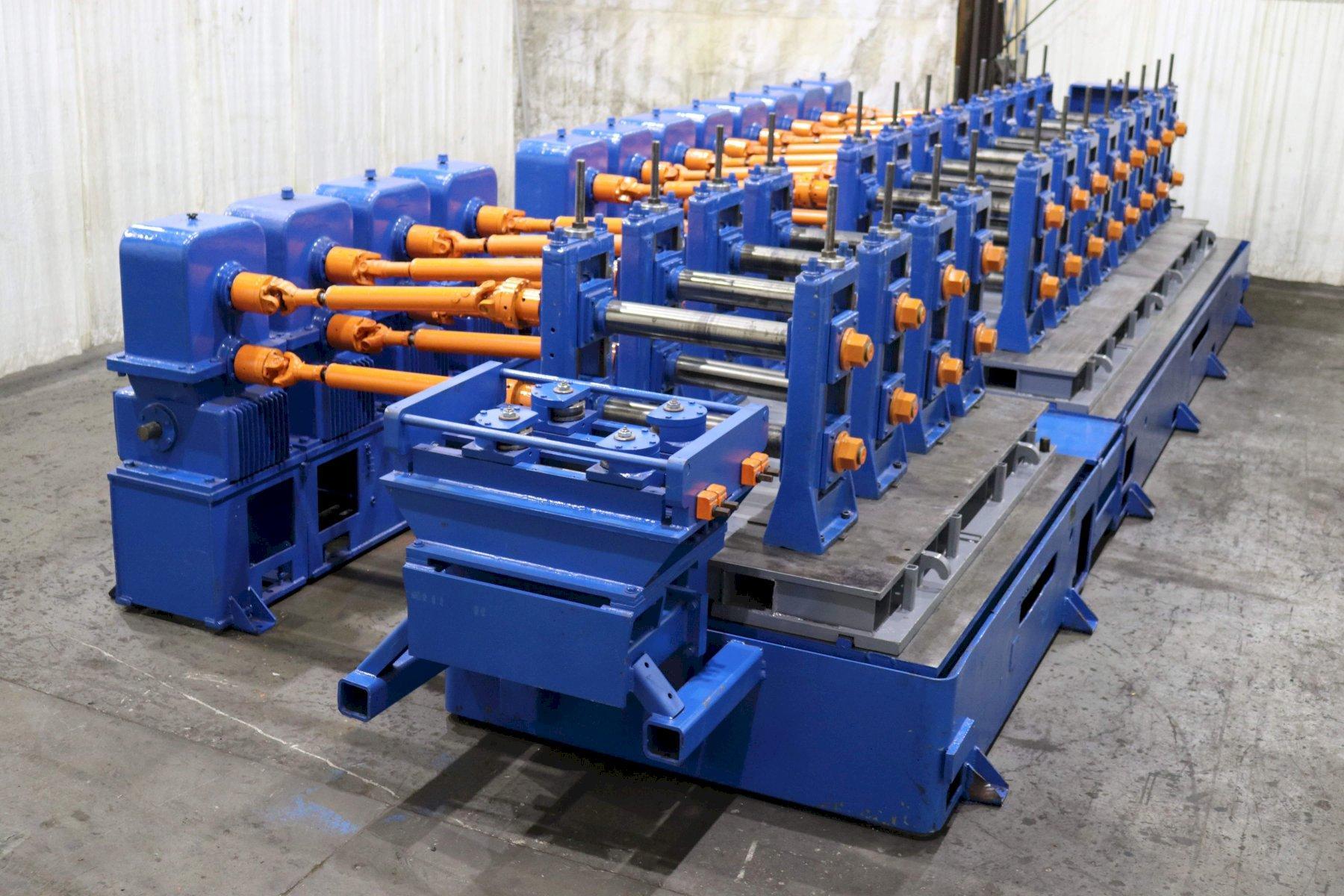

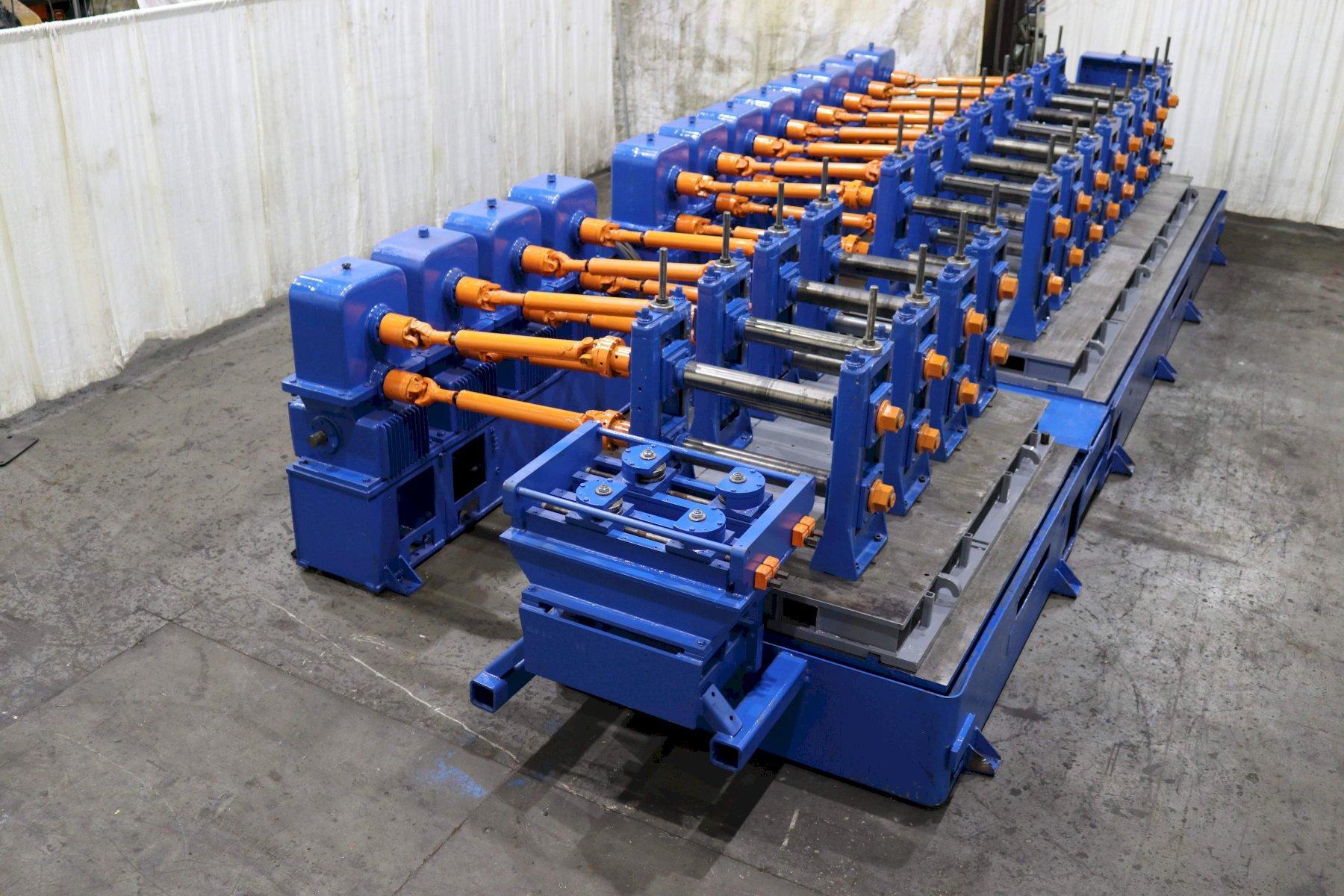

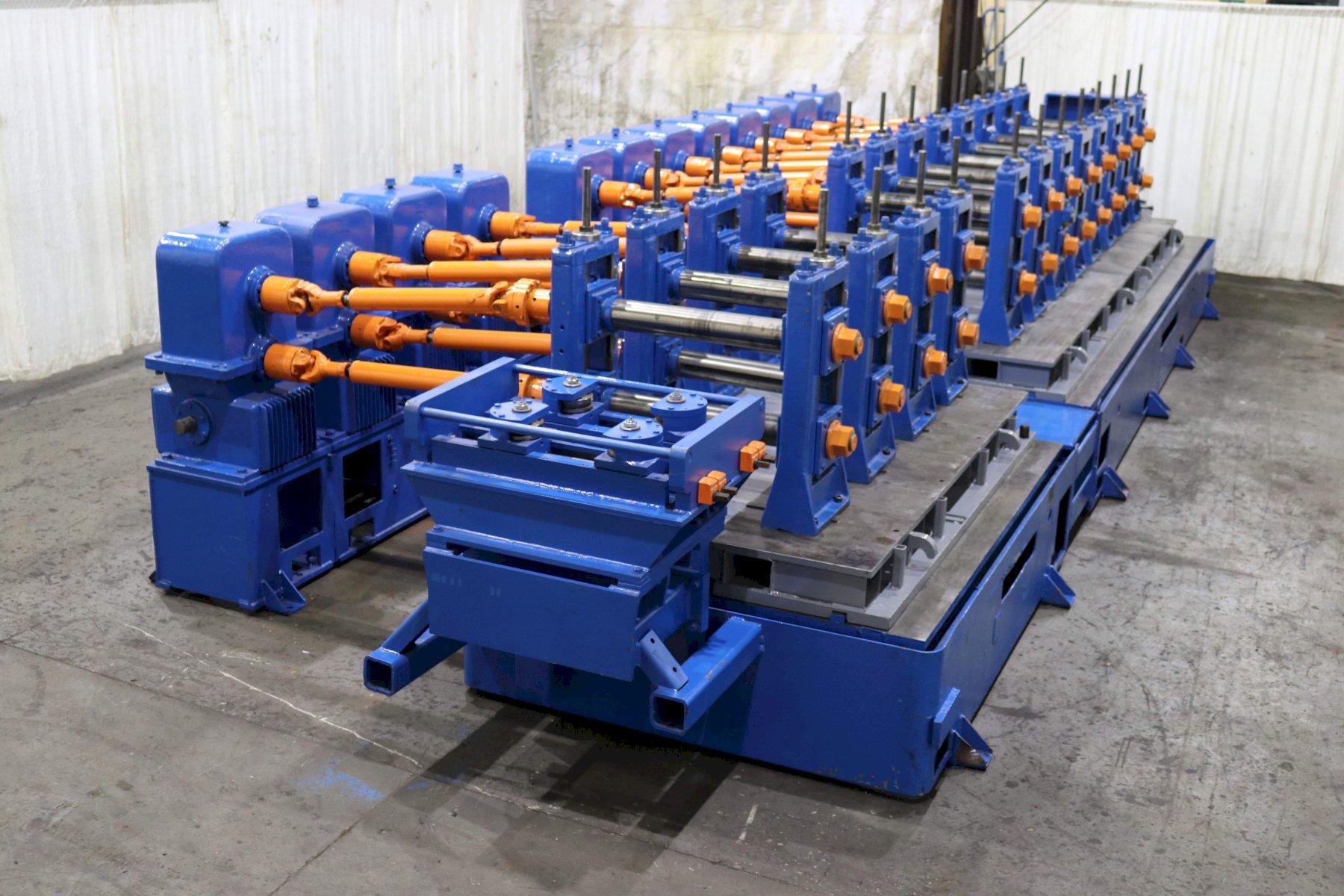

12 STAND X 4-1/2" X 32" YODER W35 RAFTED ROLLFORMER LINE: STOCK #10523

Manufacturer

YODER

Category

Roll Formers

Type

ROLL FORMERS

Stock

10523

Model

12 STAND

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ Y7715
MODEL ............................. W35
YEAR NEW .......................... 1983

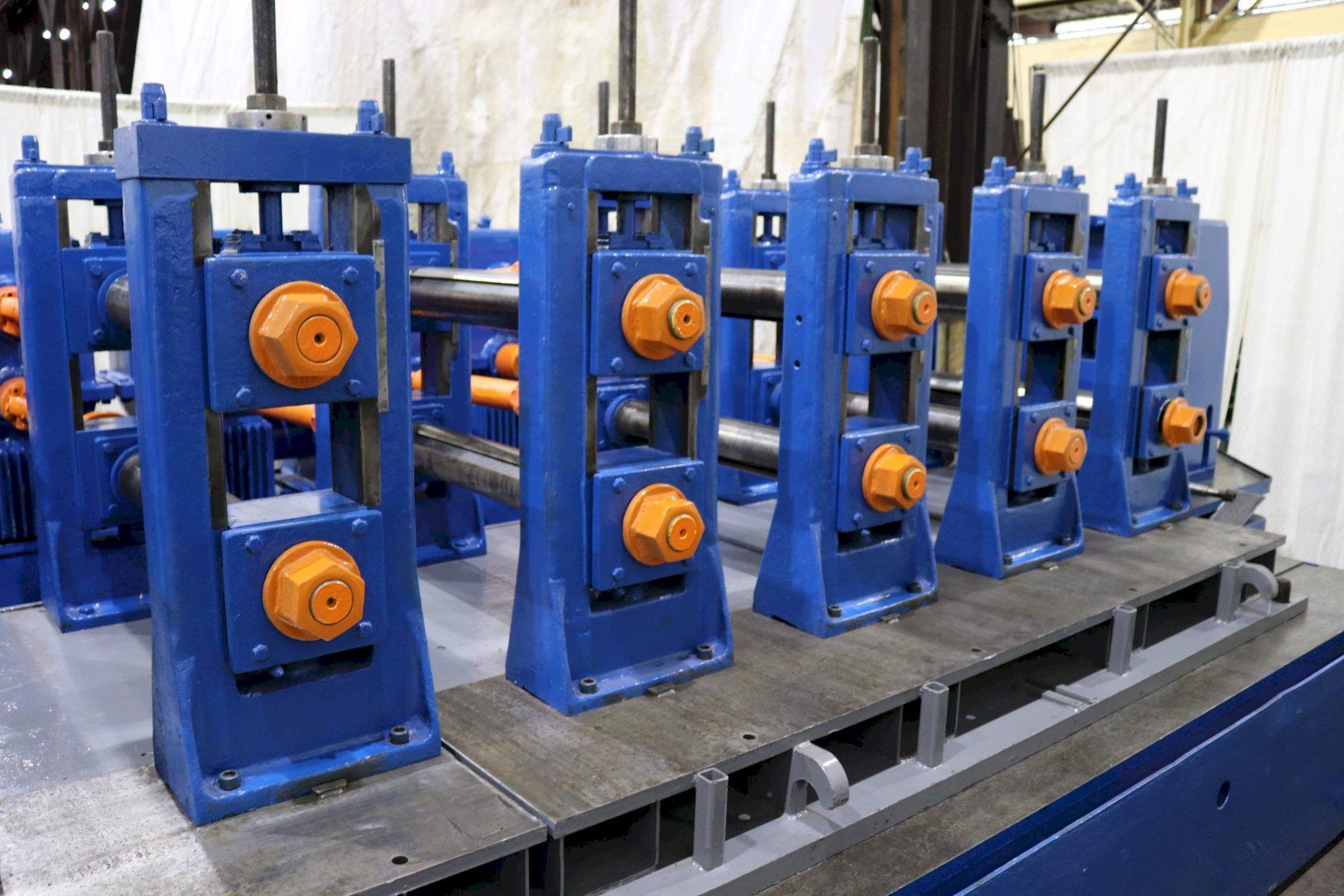

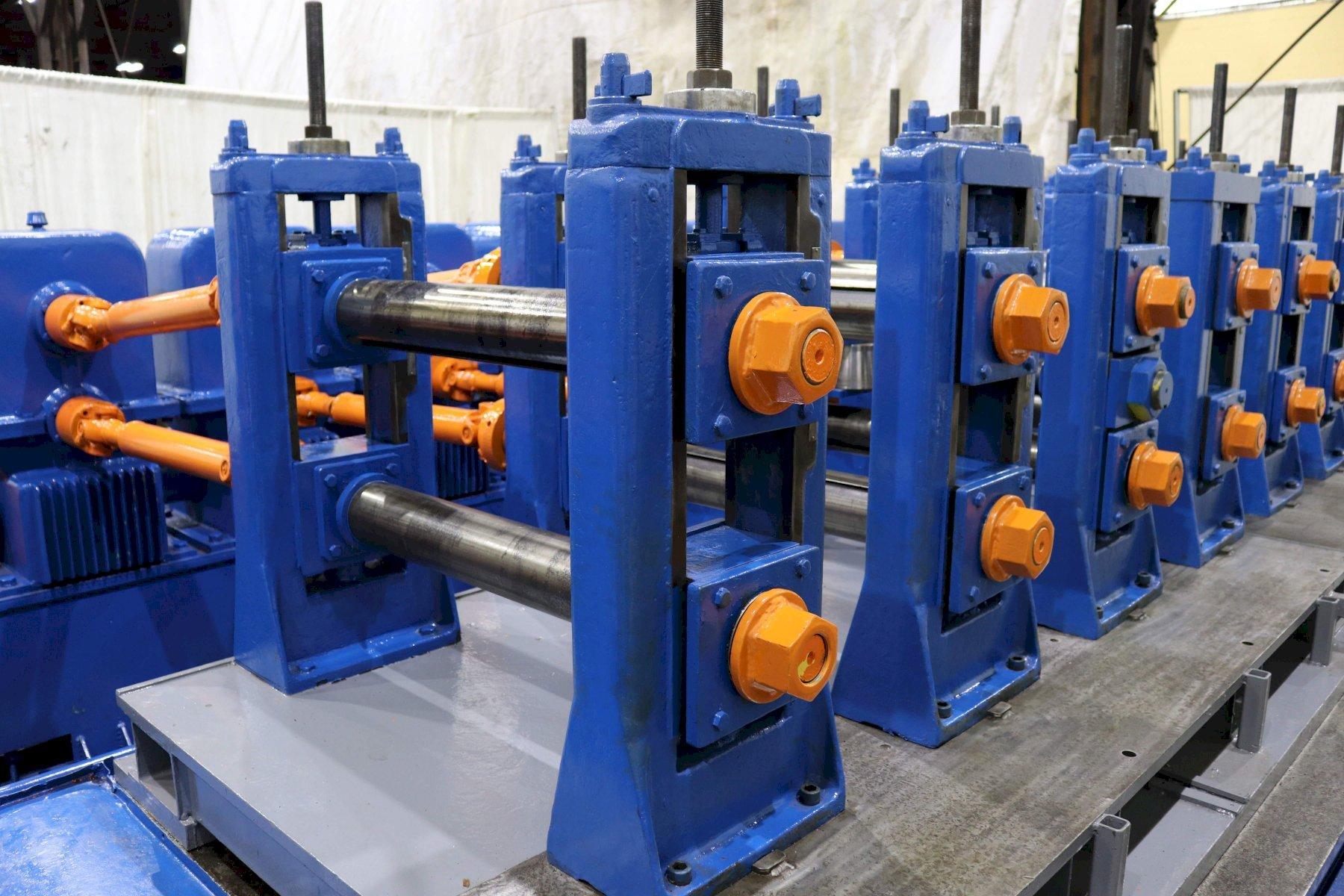

NUMBER OF STANDS .................. 12

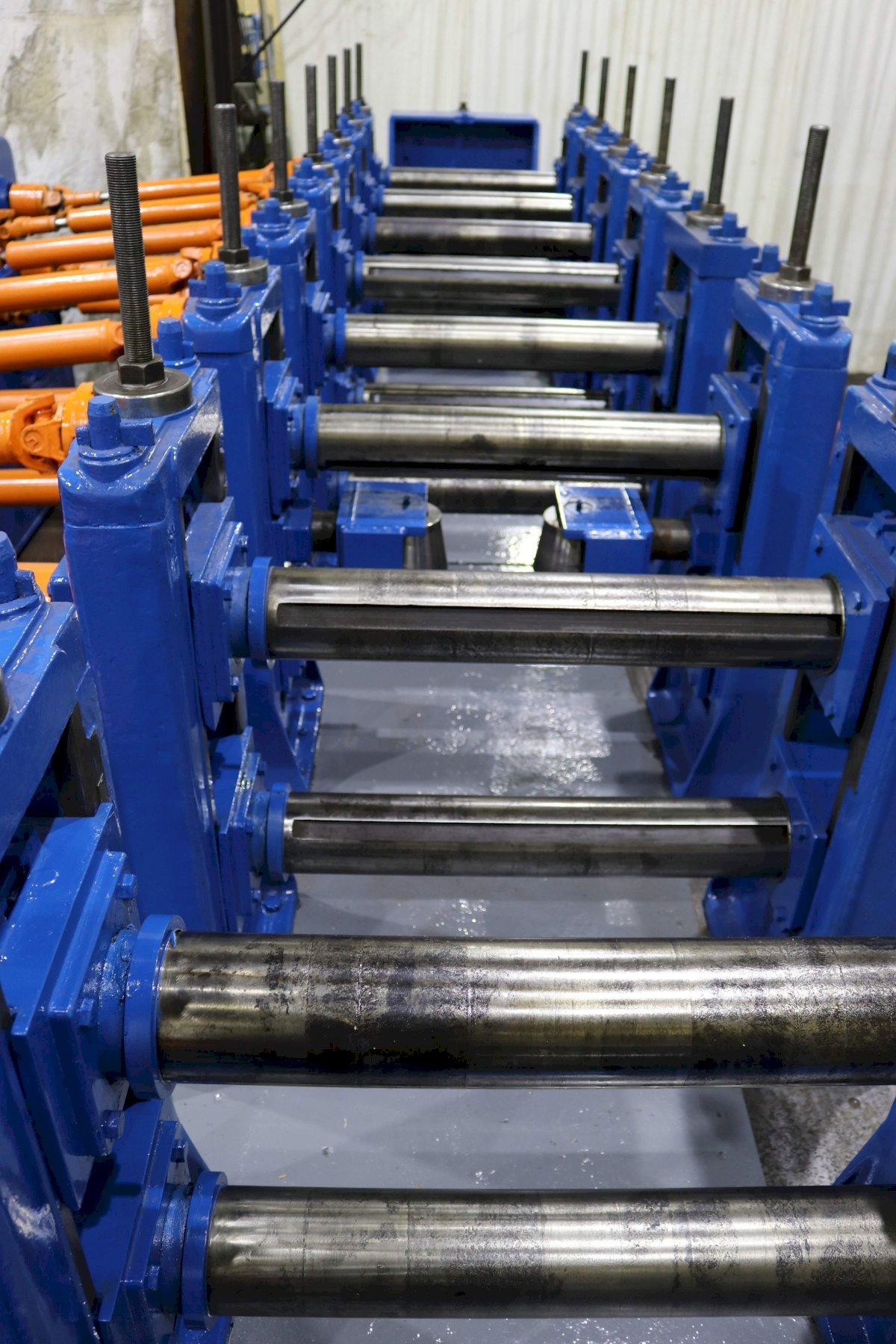

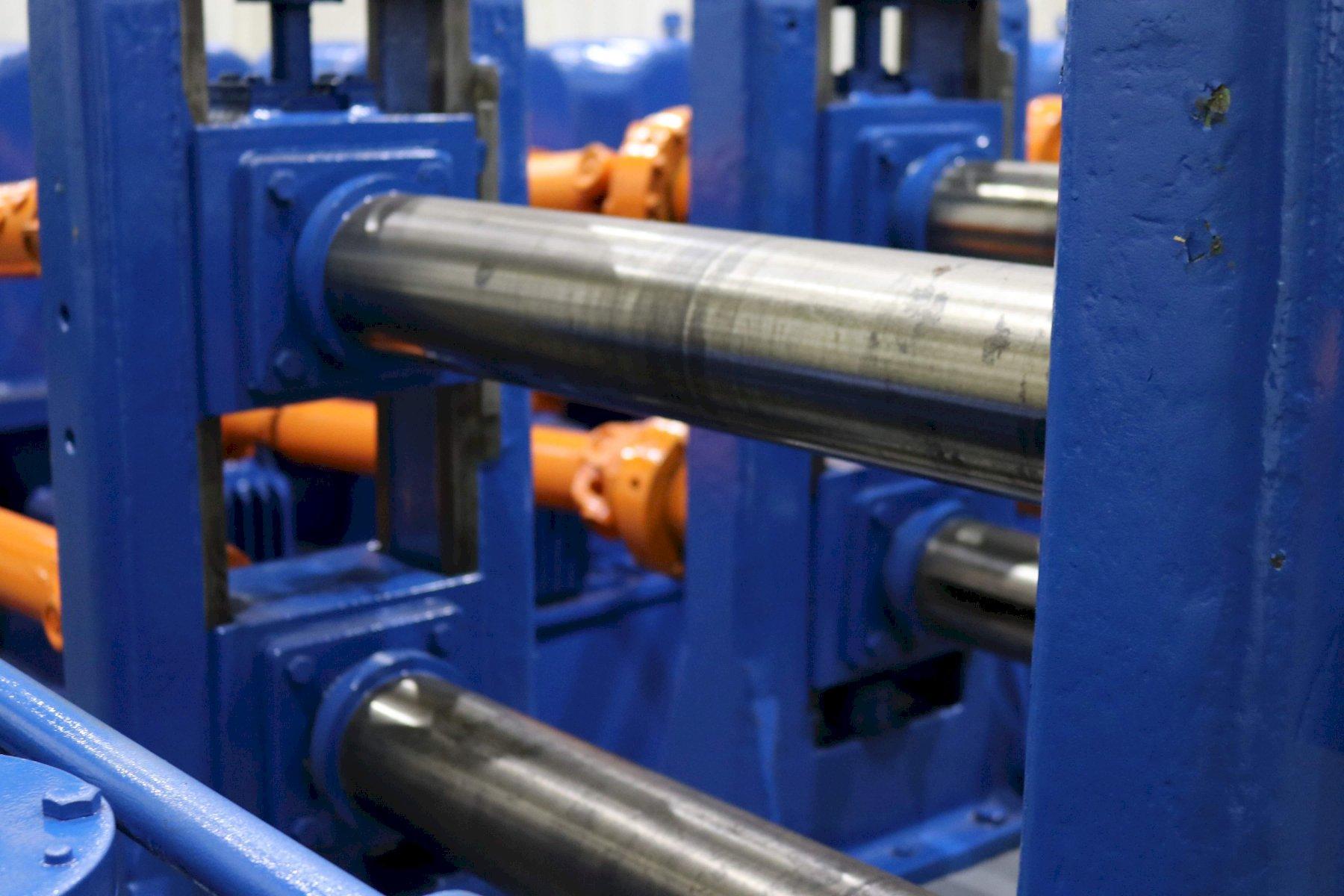

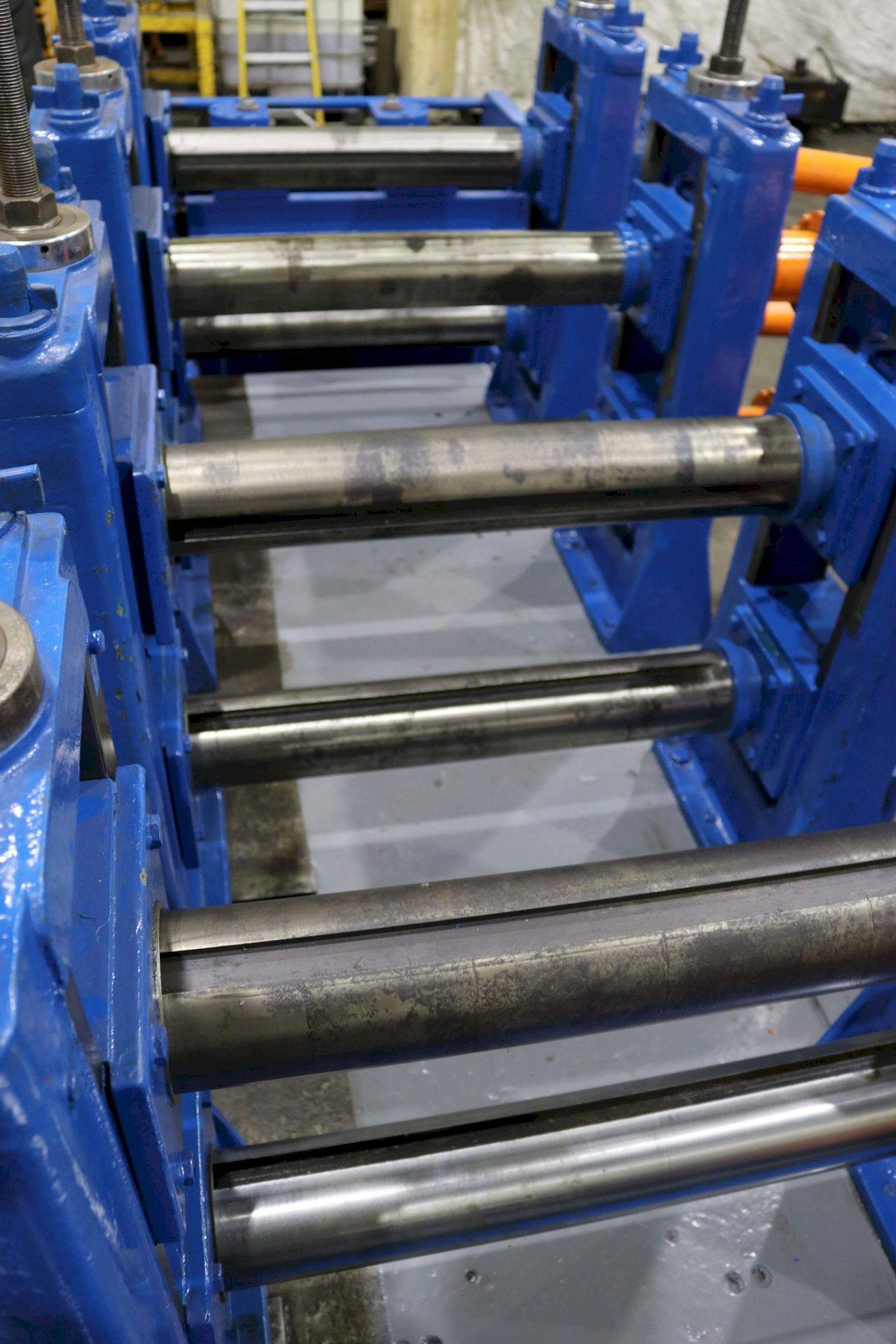

SHAFT DIAMETER .................... 4-1/2"
ROLL SPACE ........................ 26"
VERTICAL CENTER ................... 8" TO 14"
HORIZONTAL CENTER ................. 24"
BASE TO BOTTOM SHAFT CENTERLINE ... 11"
DIRECTION OF TRAVEL ............... R TO L
RAFTED ............................ YES

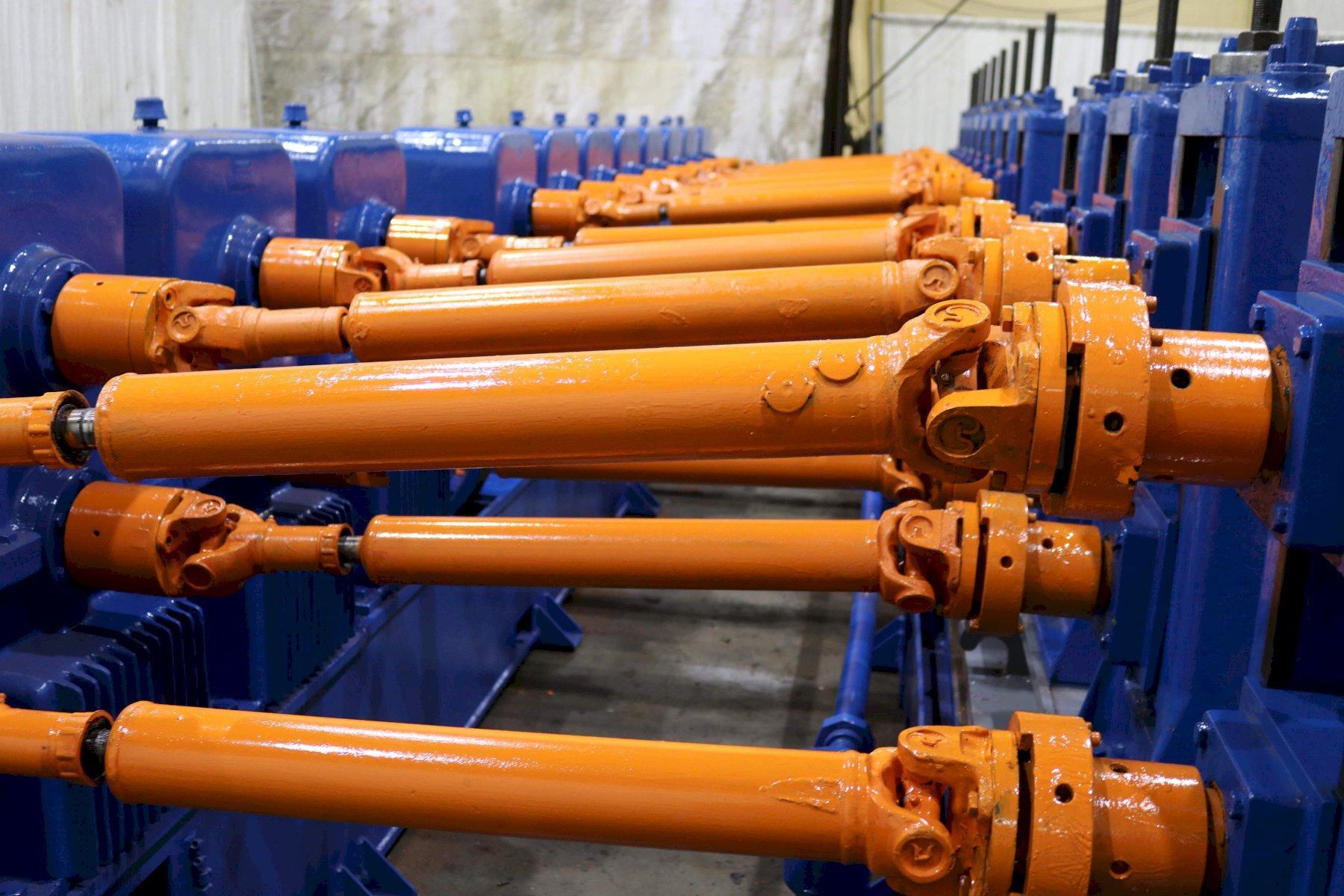

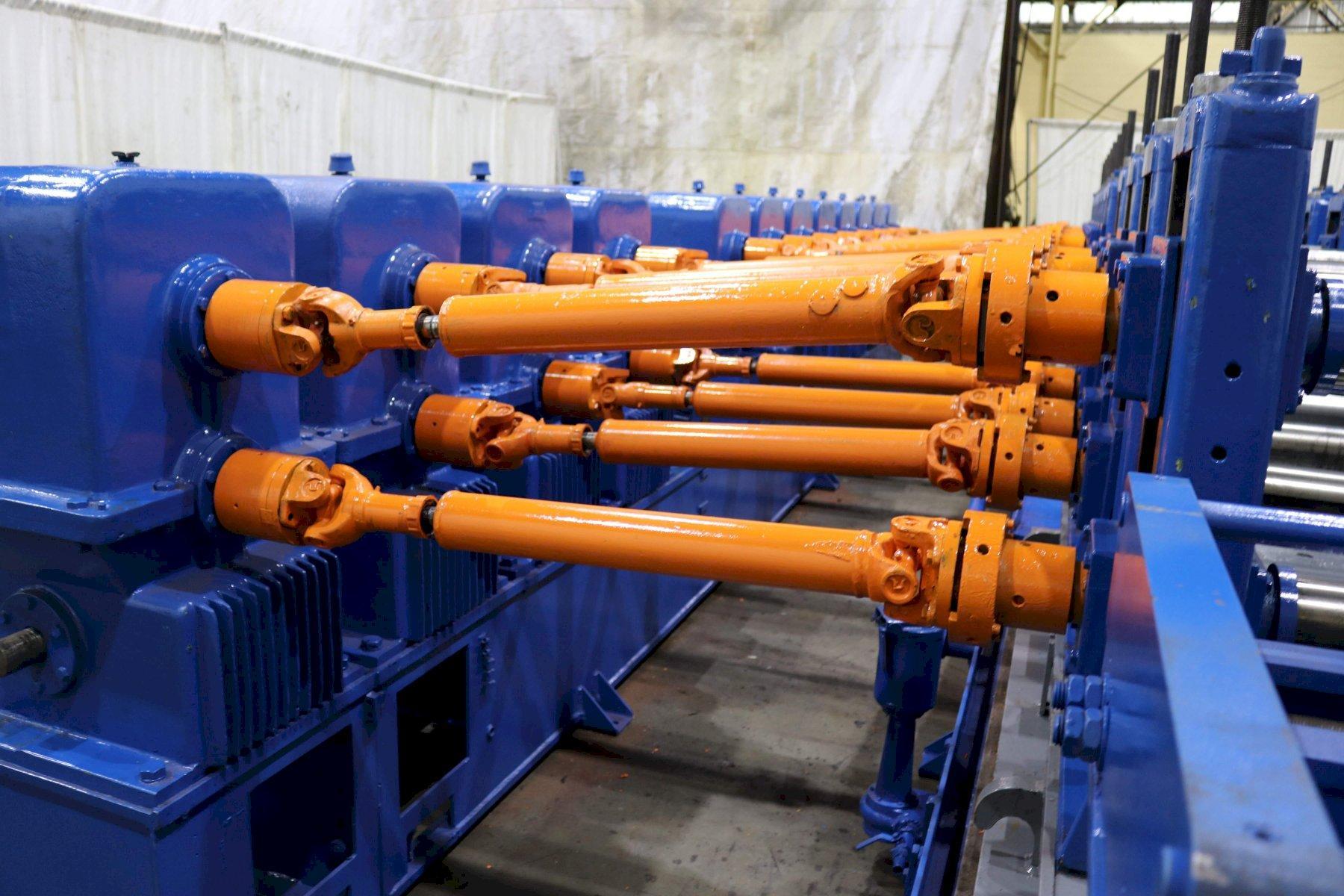

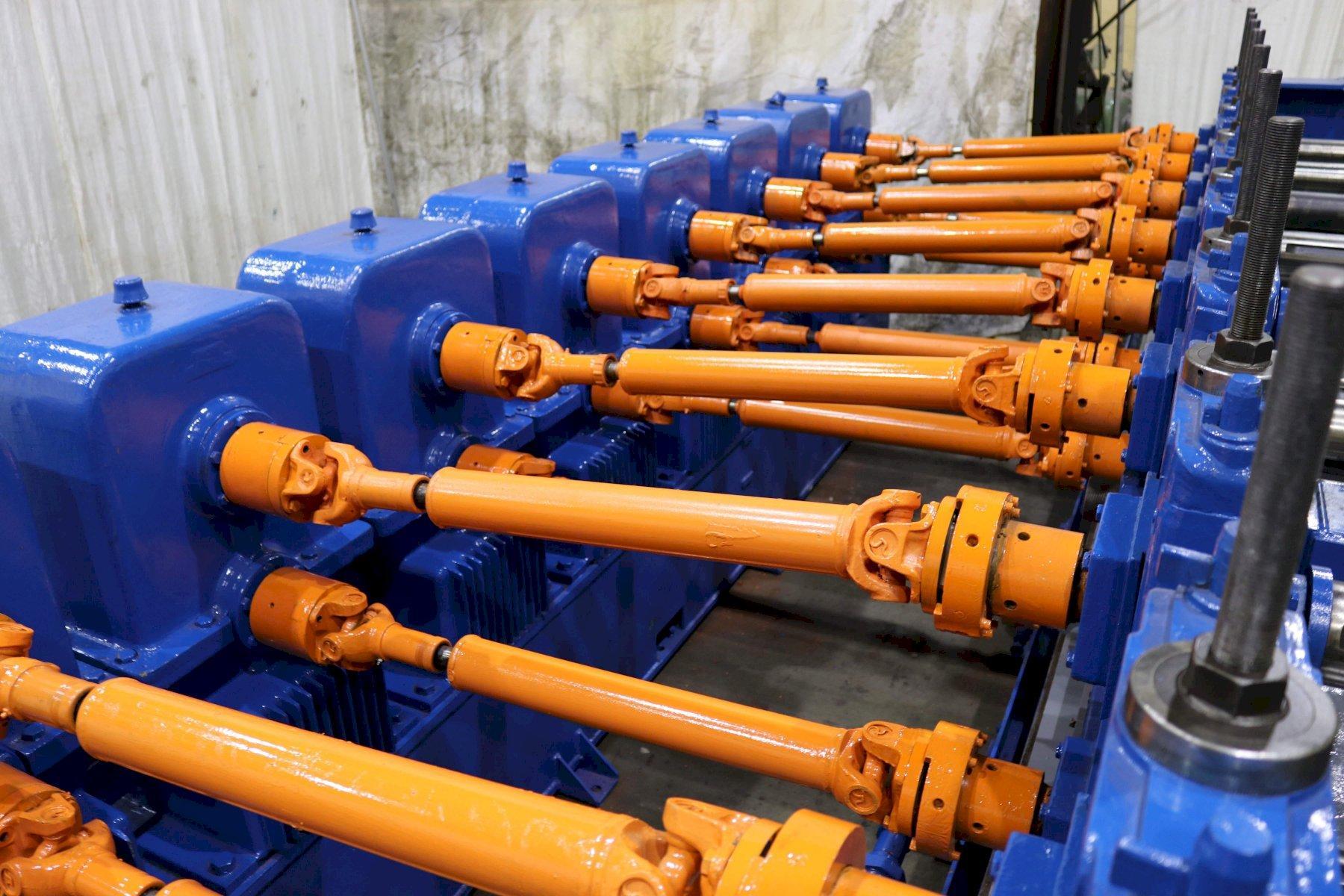

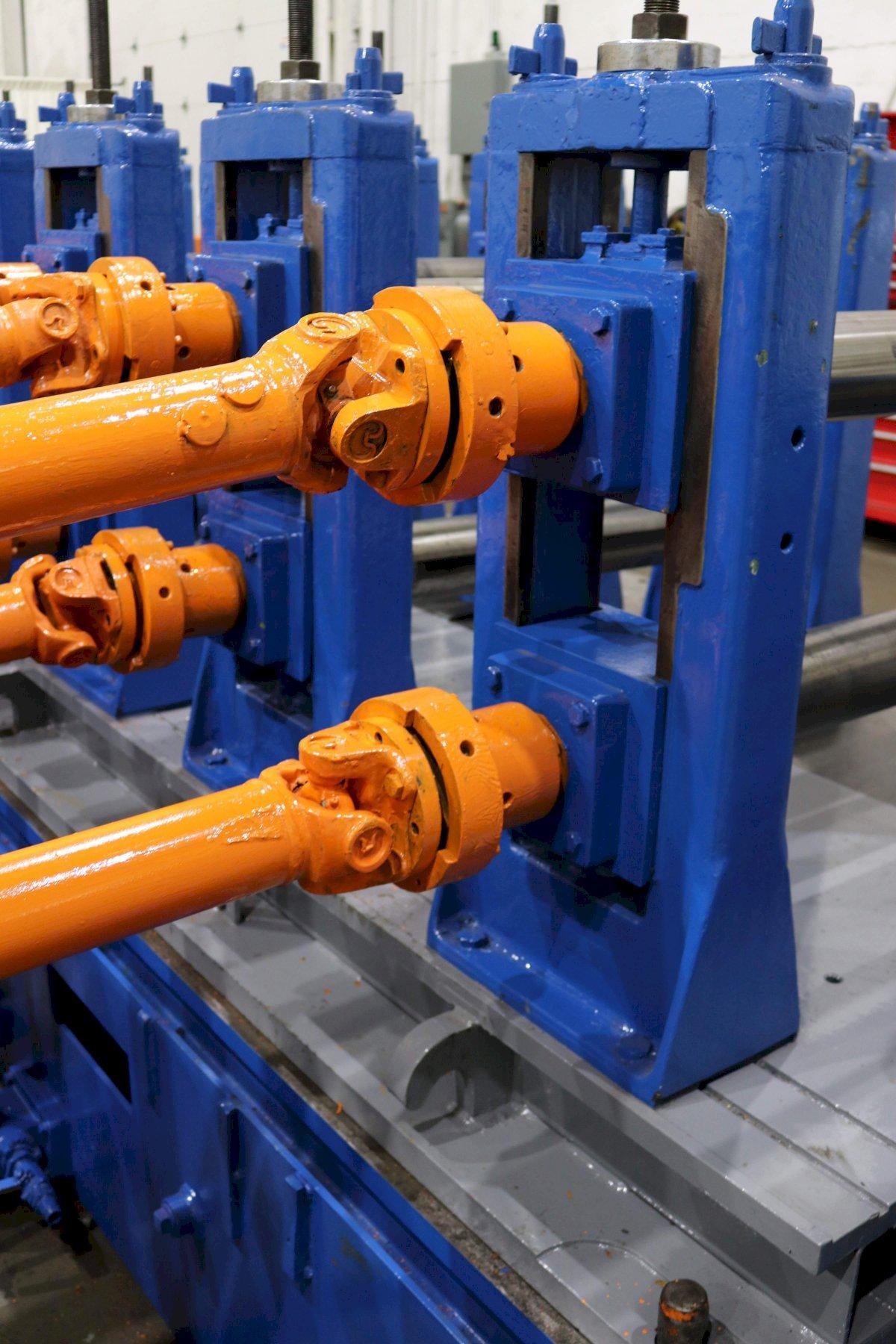

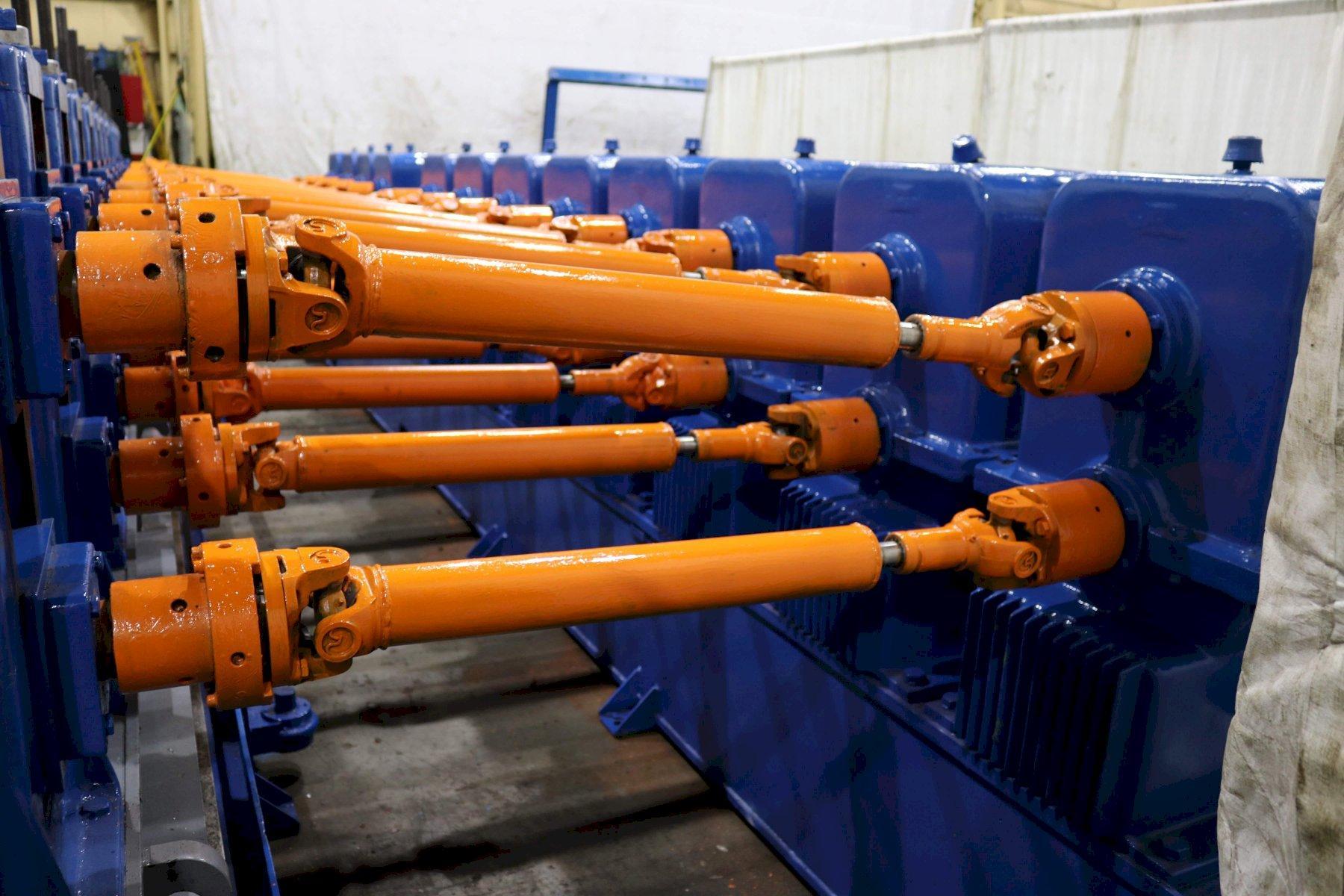

U-JOINT DRIVE ..................... YES

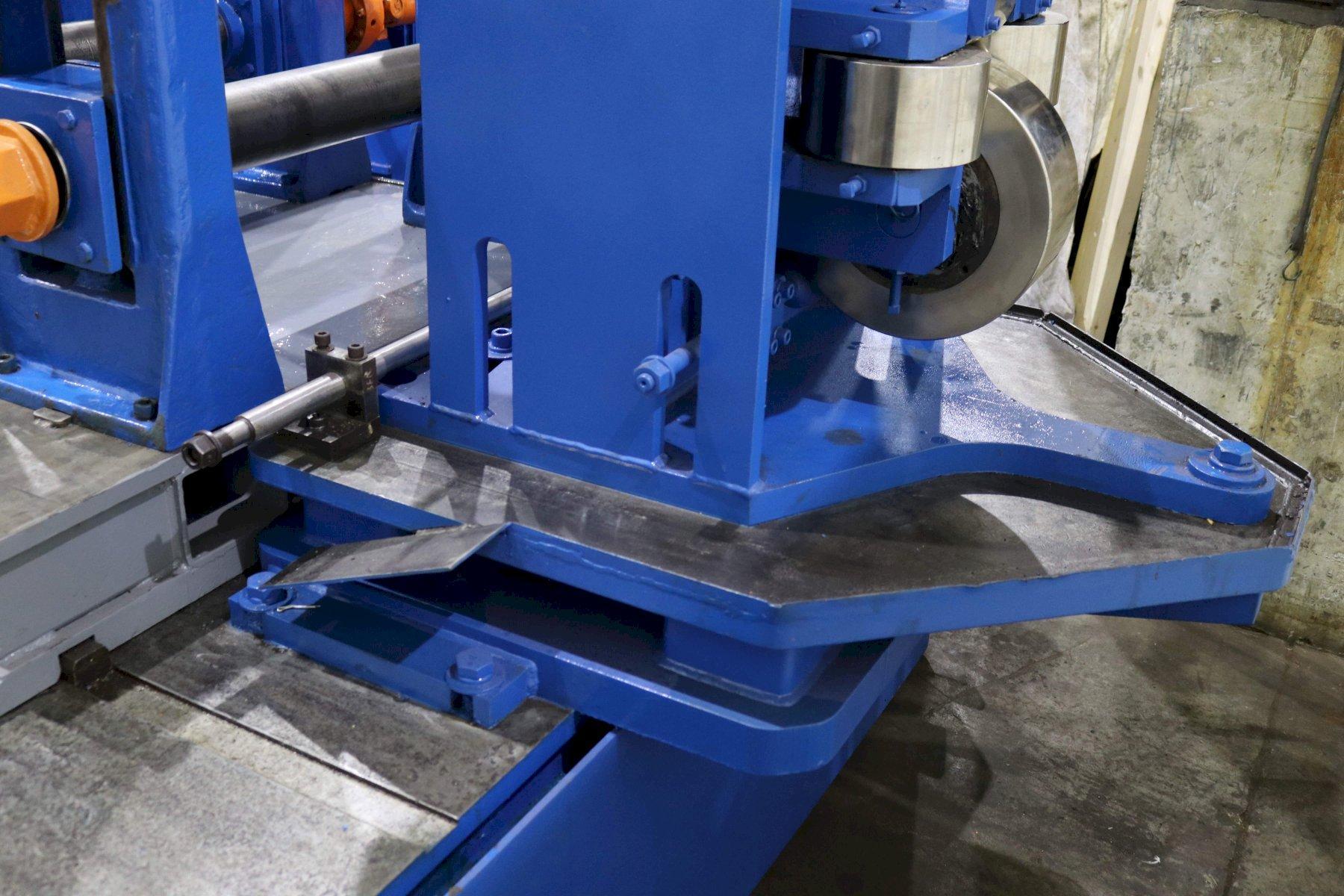

ENTRY EDGE GUIDES ................. YES

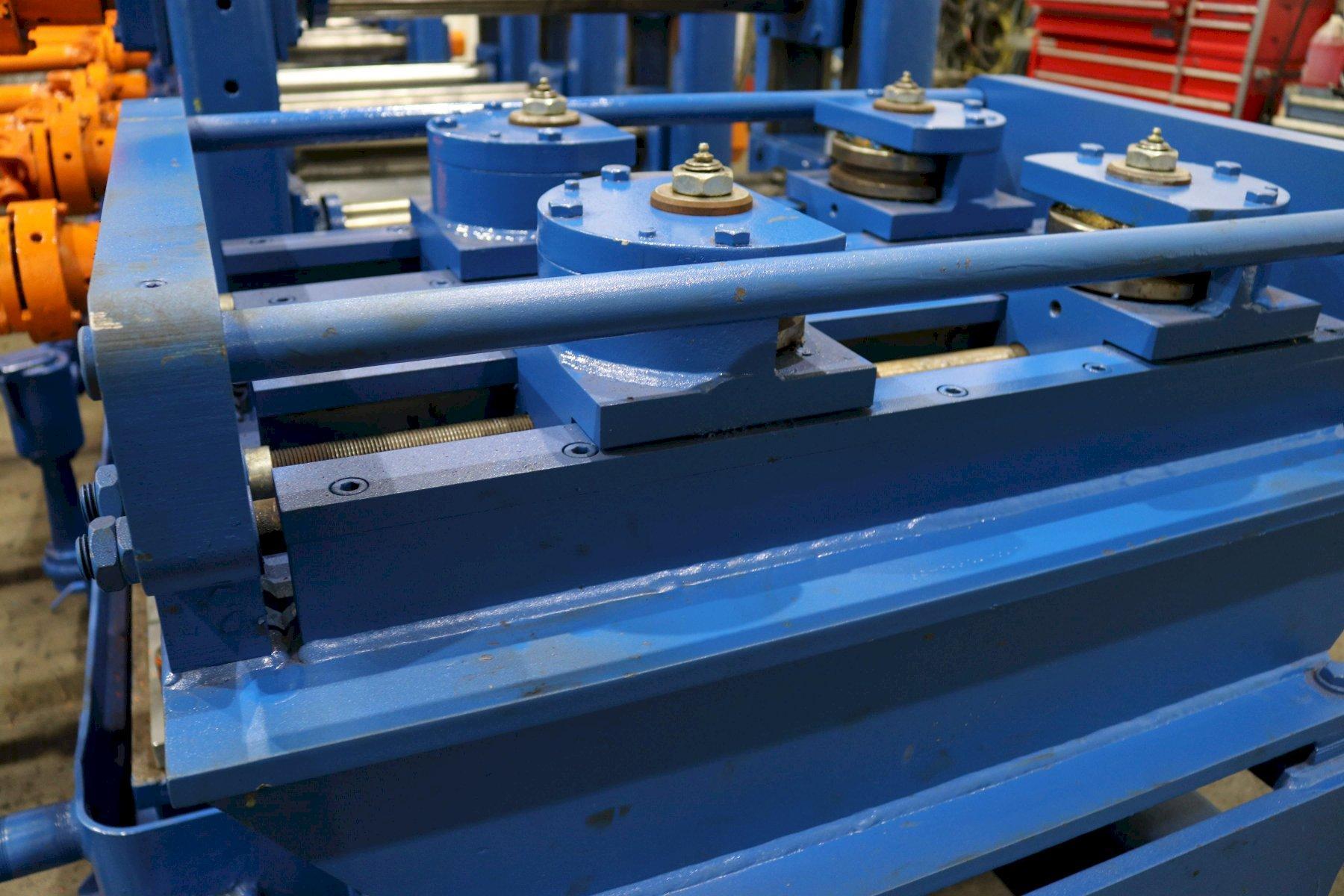

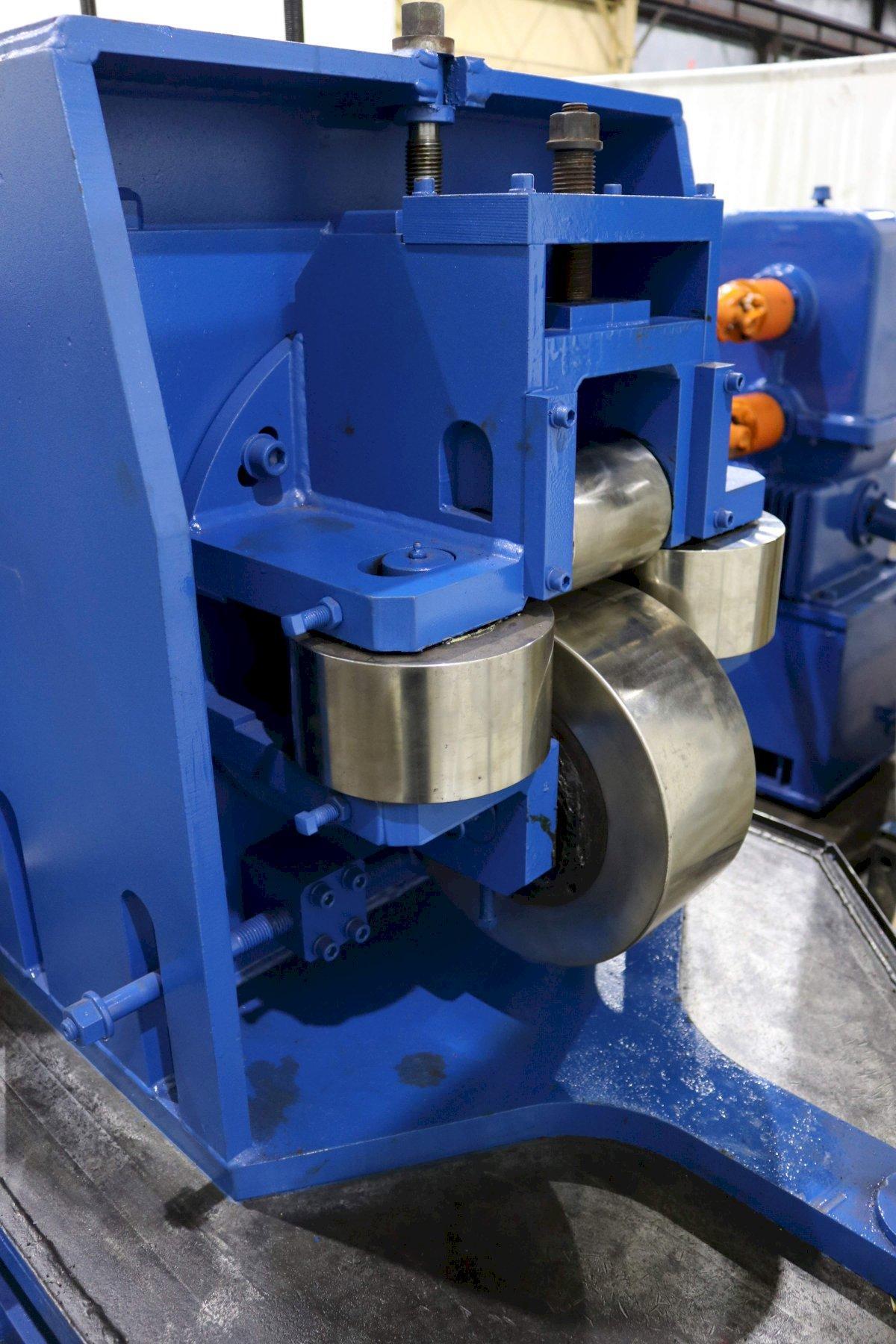

TURKS HEAD ........................ YES

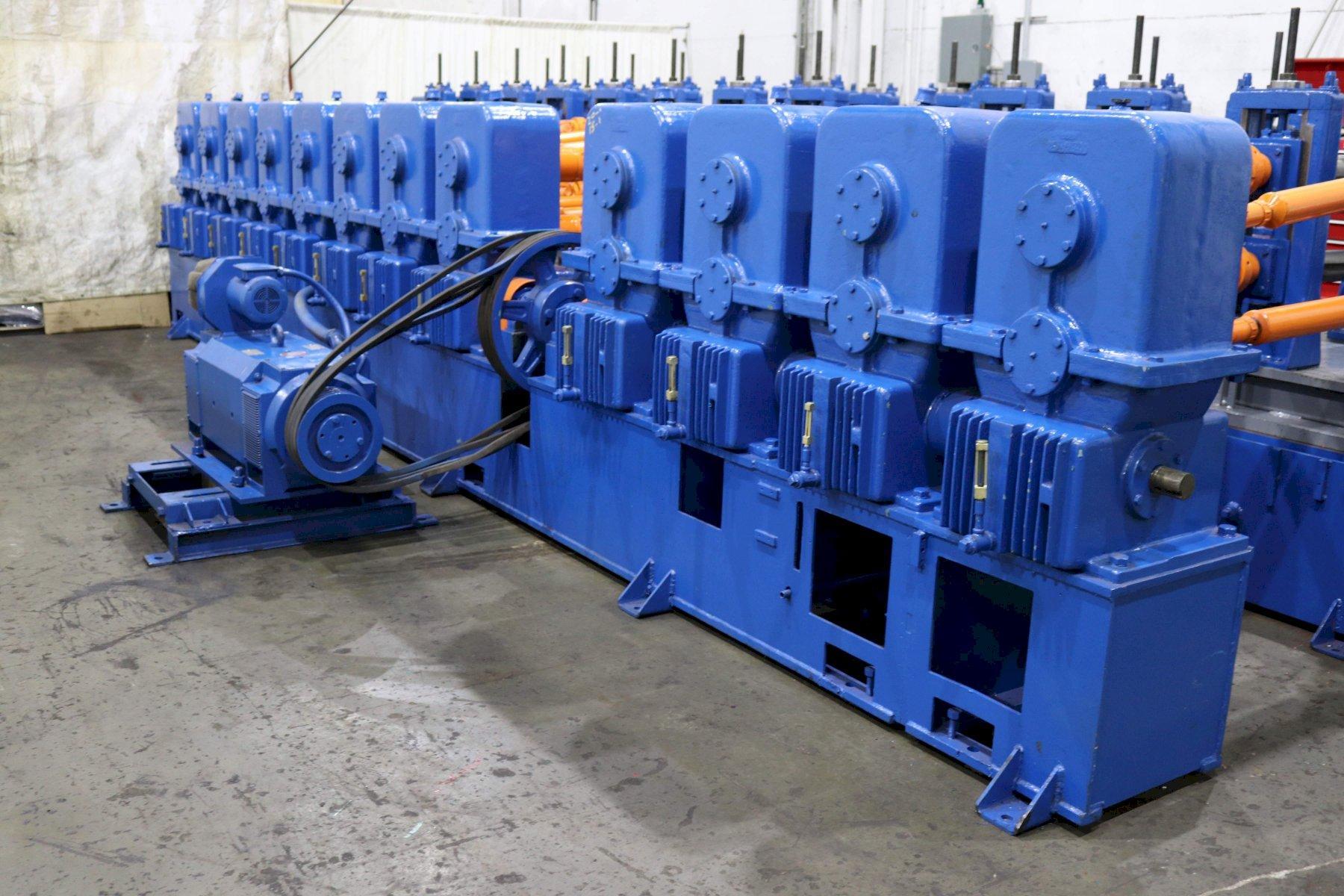

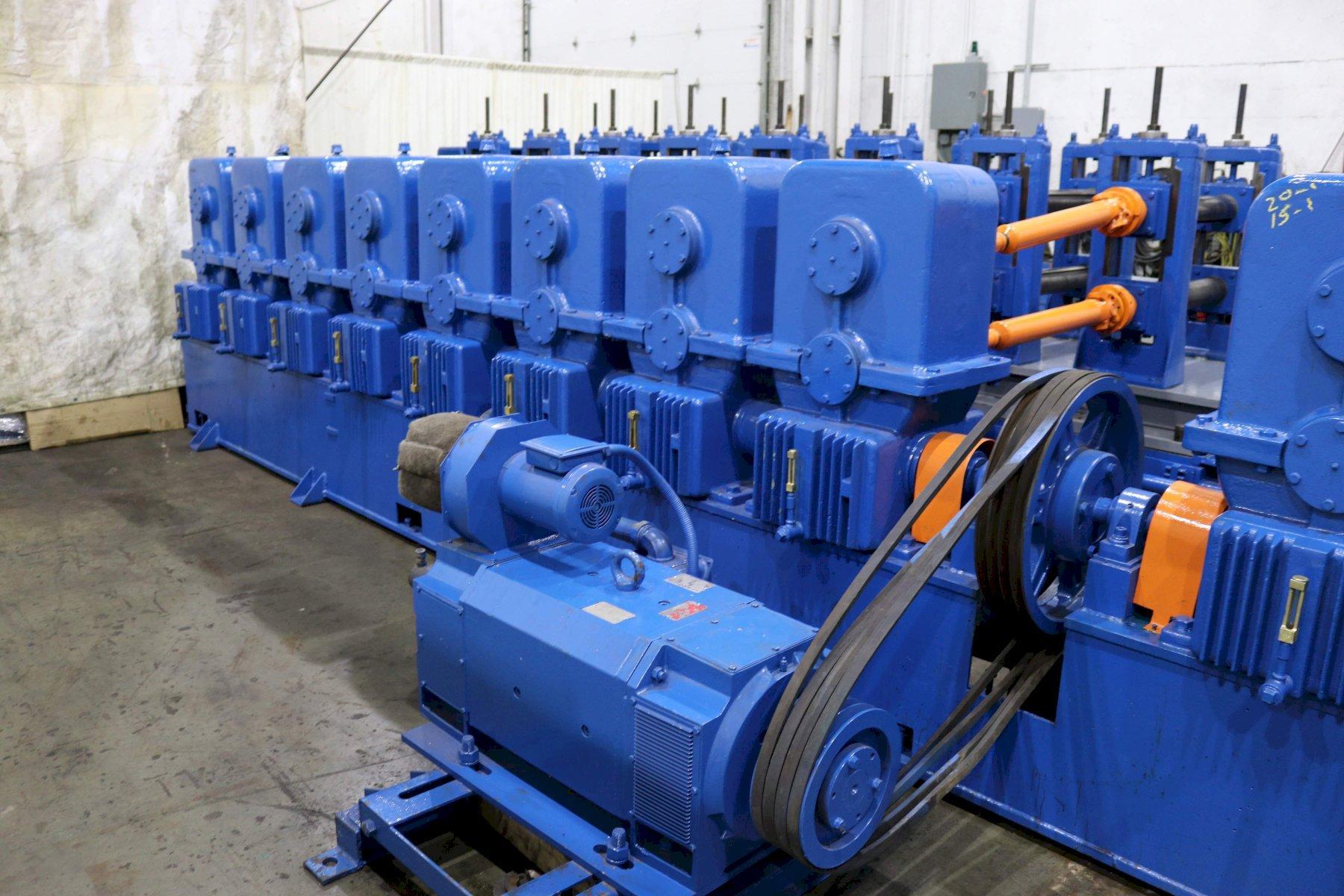

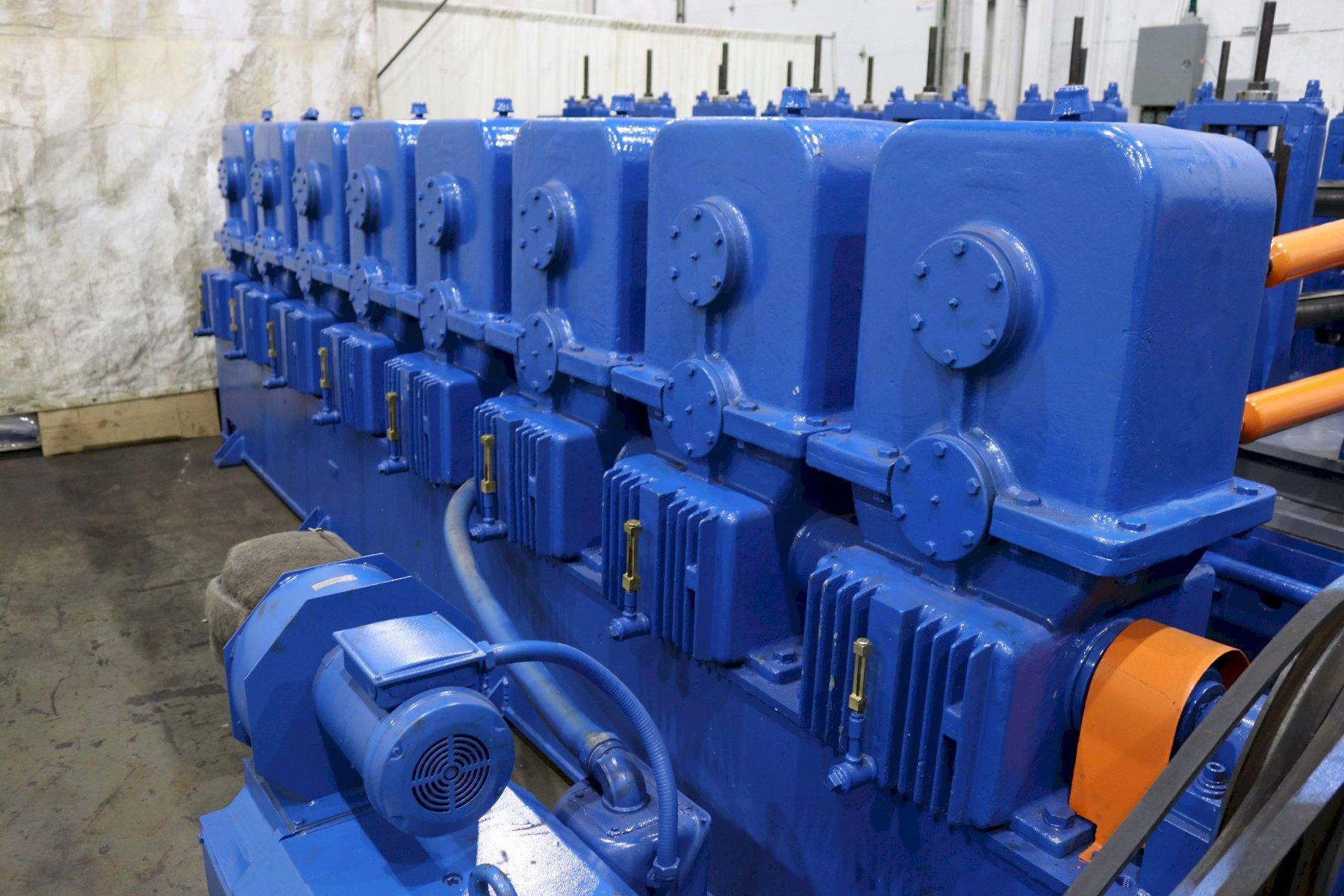

AC MOTOR & CONTROLS ............... YES

RAFTED HEADS (ADDITIONAL) ......... 12 HEADS ON 3 STANDS

20,000 LB X 32" MOTORIZED UNCOILER:
YEAR ............................. 1986
CAPACITY ......................... 20,000 LBS
MAX WIDTH ........................ 32"
COIL ID .......................... 16-20"
COIL ID (WITH BUILD UP LEAVES).... 24"
COIL OD .......................... 60"
HYDRAULIC EXPANSION .............. YES
DRAG BRAKE ....................... YES

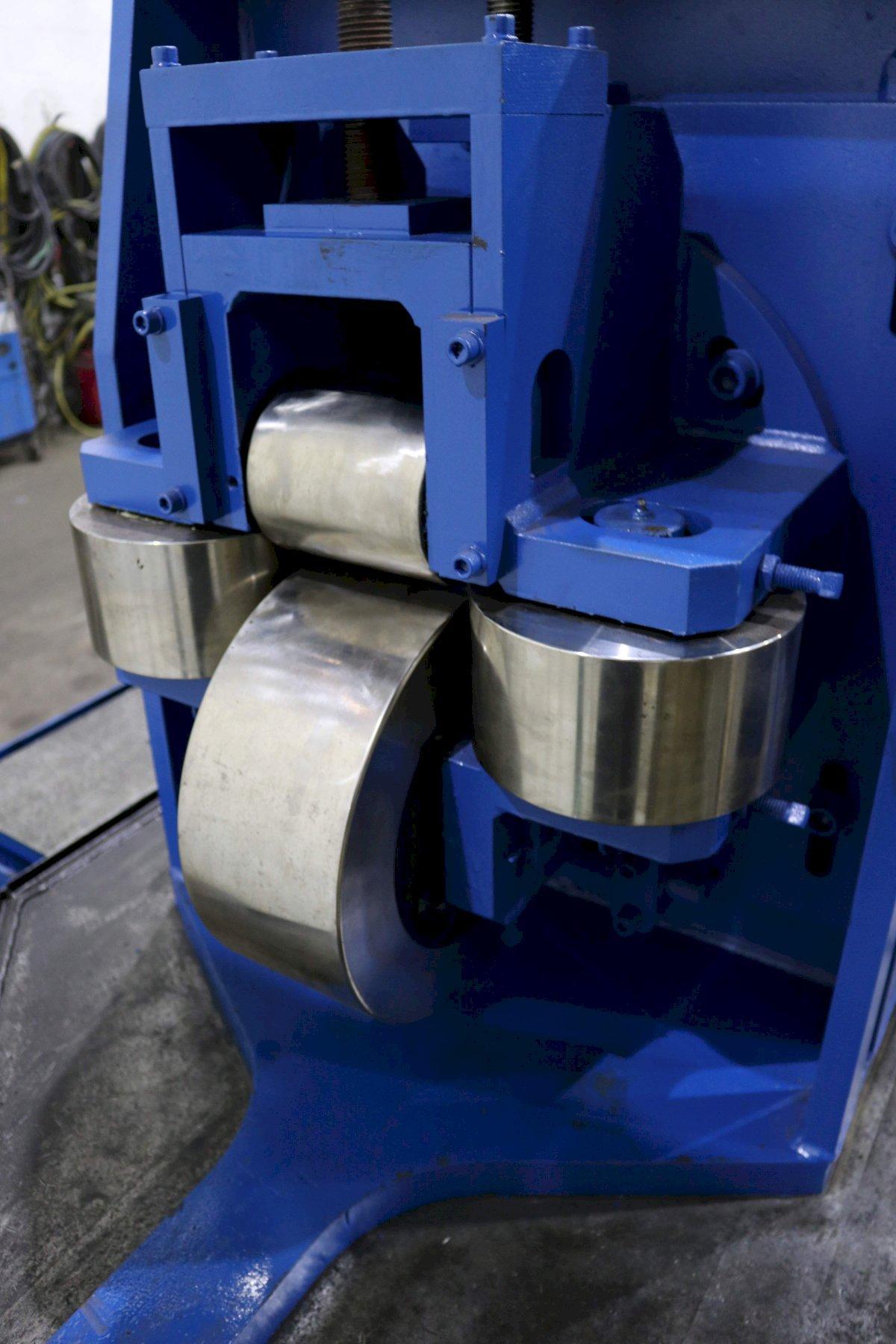

YODER STRAIGHTENER WITH HOLD DOWN & PEELER:
CAPACITY ....................... 24" X 1/4"
ROLL DIAMETER .................. 4-1/2"
ROLL FACE ...................... 32"
NUMBER OF STRAIGHTENING ROLLS .. 5
HYDRAULIC HOLD DOWN ............ YES
OVER & UNDER PEELER ............ YES
