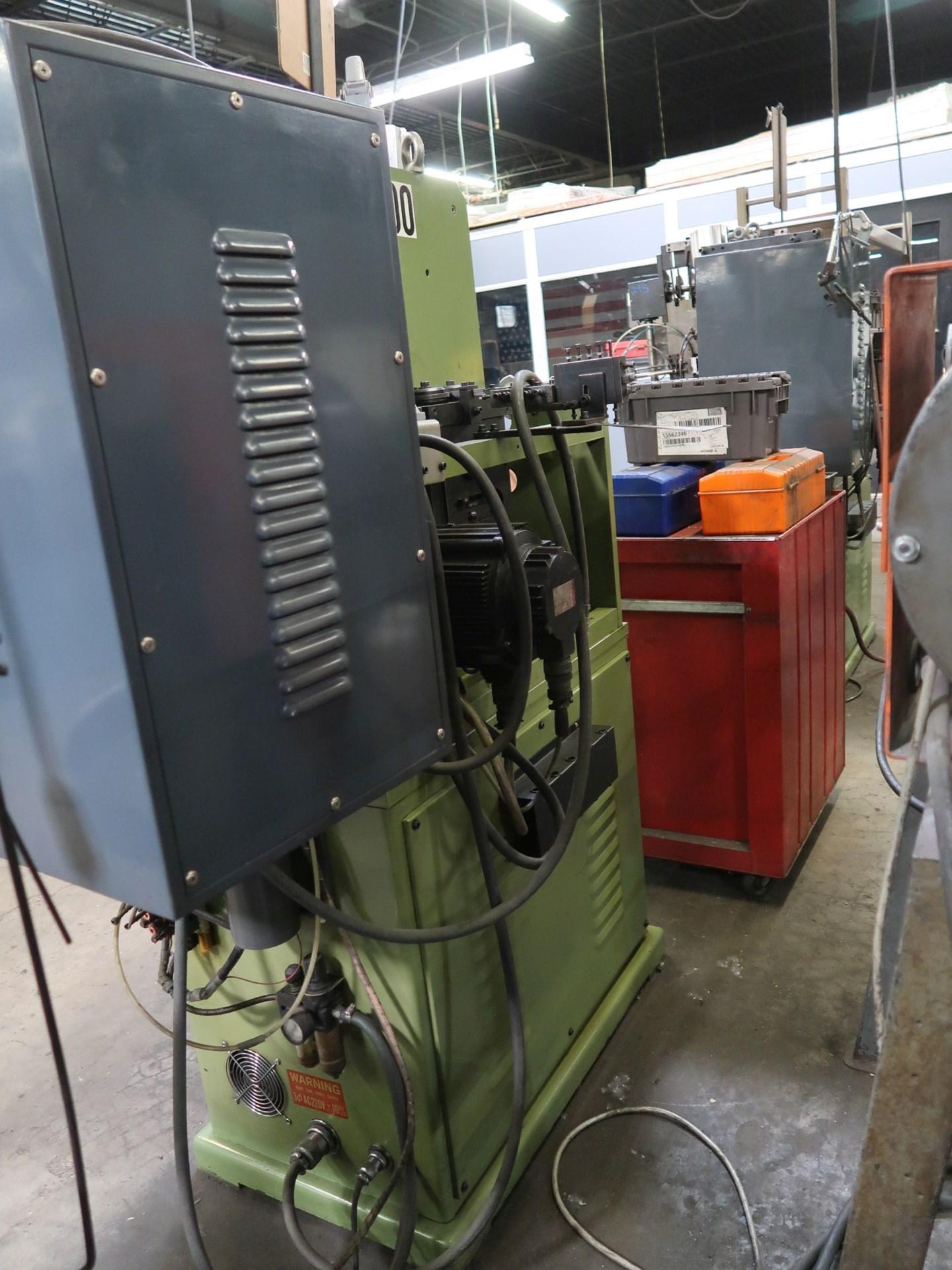

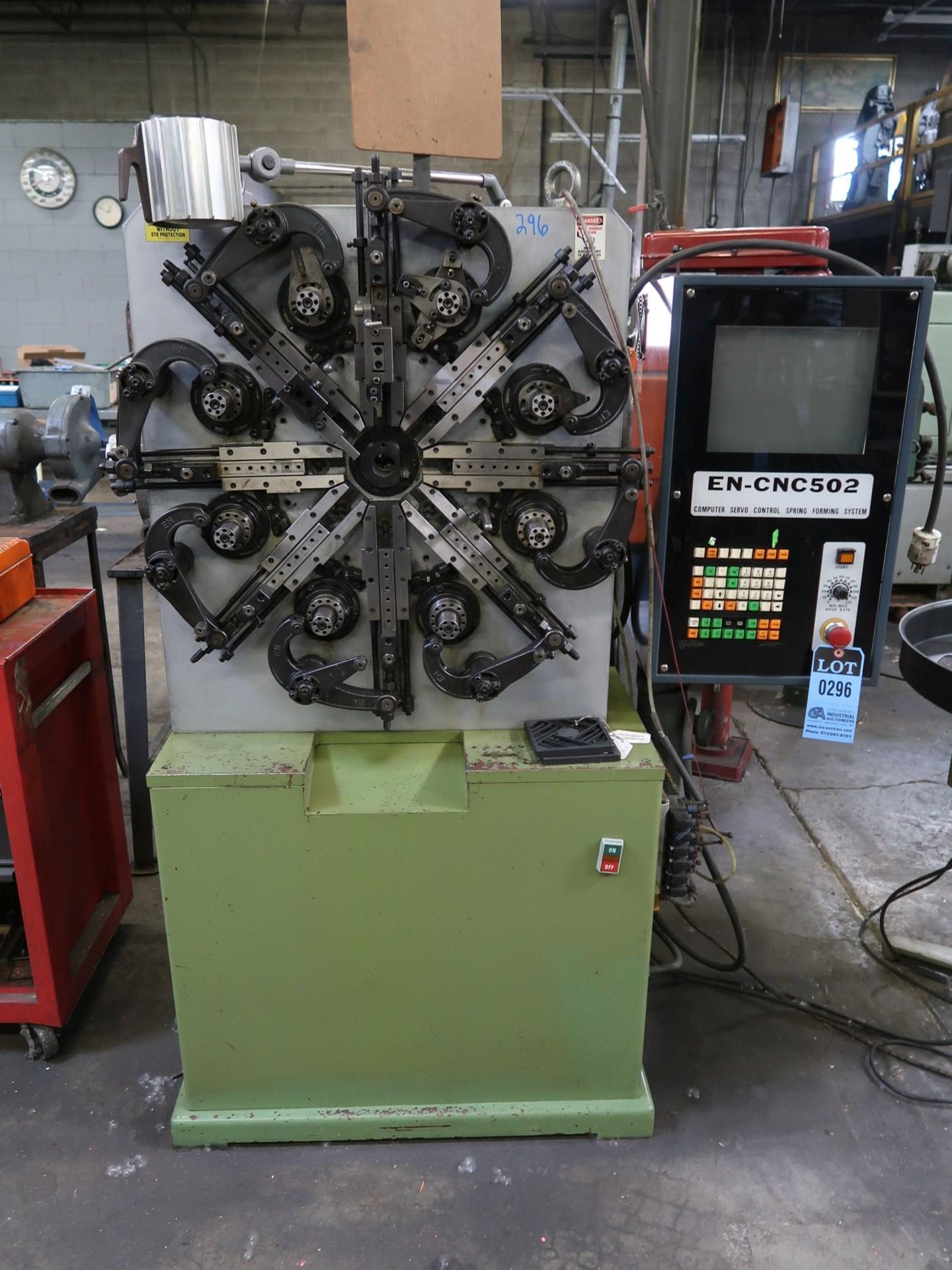

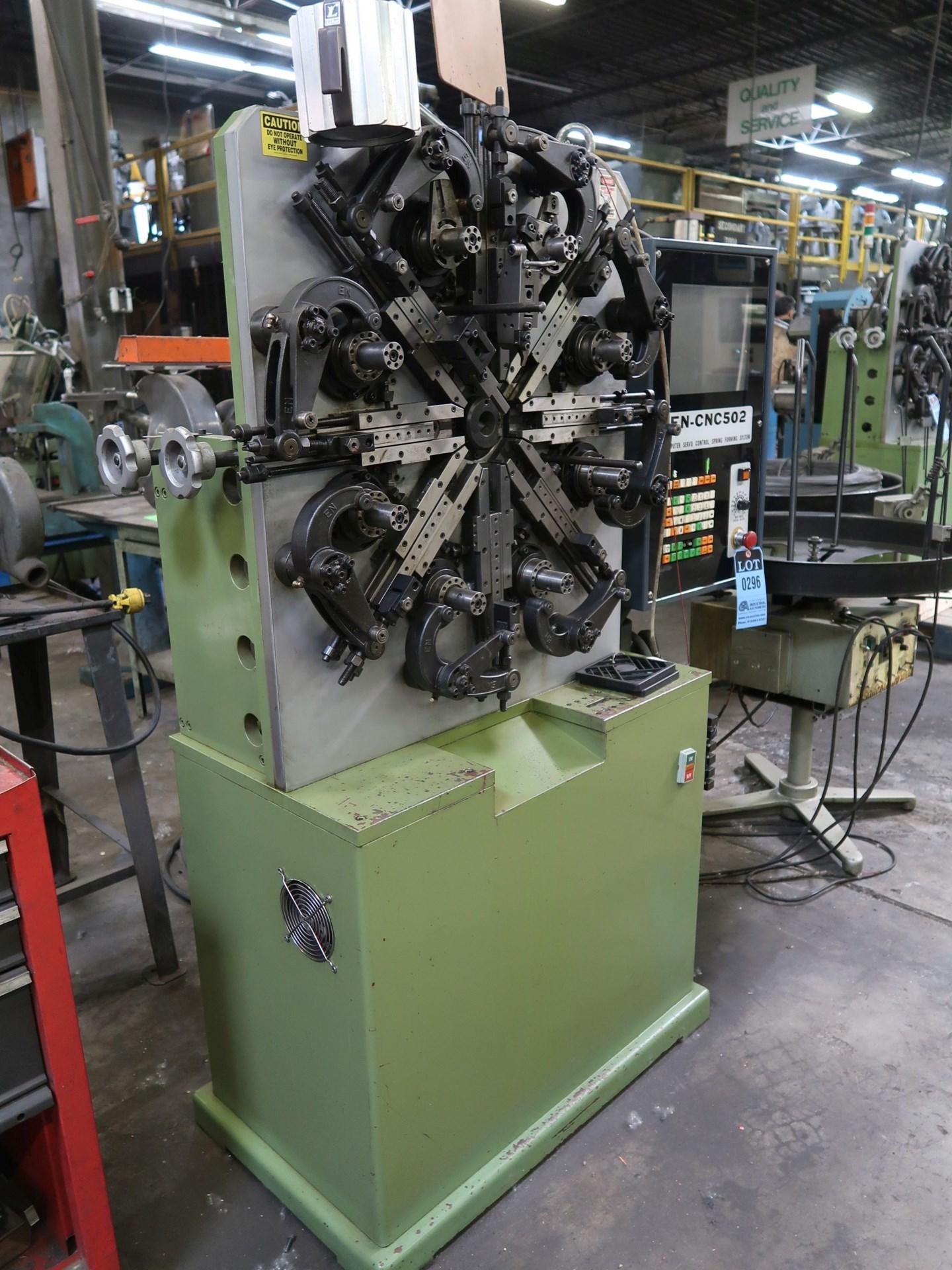

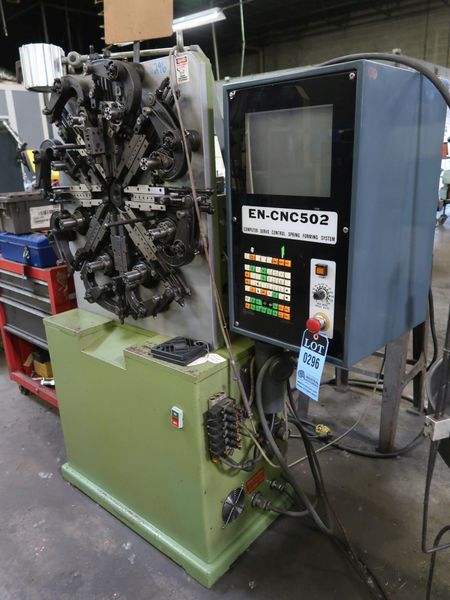

EN-CNC-502 ELECTRICALCNC SPRING FORMING MACHINE: STOCK #10773

Manufacturer

Category

Wire Machines

Type

WIRE MACHINERY, TORSION SPRING COILERS

Stock

10773

Model

CNC-502

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

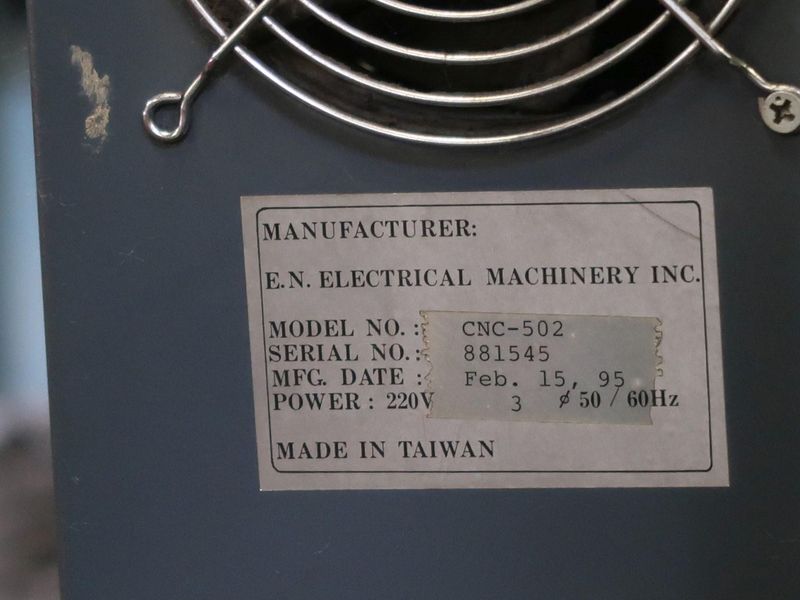

SERIAL .................... 881545
MODEL ..................... EN-CNC-502
YEAR ...................... 1995

MATERIAL CAPACITY:
WIRE DIAMETER ............. 0.2 MM TP 2.5MM
STRIP SIZE ................ 1.0 X 12
MAX O.D. .................. 40 MM
EXPANDED O.D. MAX ......... 200 MM

PRODUCT CAPACITY:
LEG LENGTH ................ 60 MM
EXPANDED LEG LENGTH MAX ... 230 MM

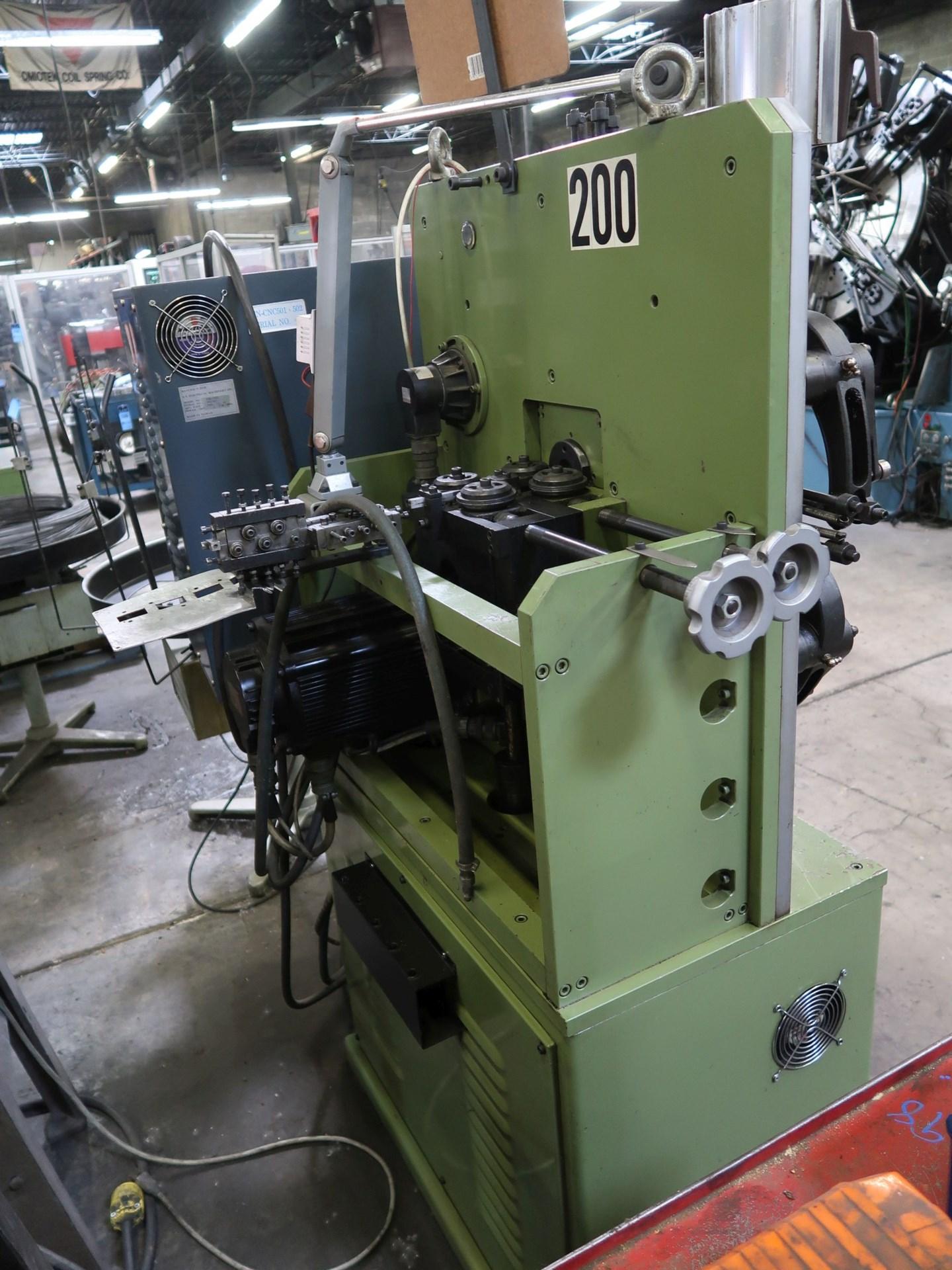

FEEDING:
MINIMAL LENGTH ............ 0.01 MM
MAXIMUM LENGTH ............ 99999.99 MM
MAXIMUM SPEED ............. 120 M/MIN

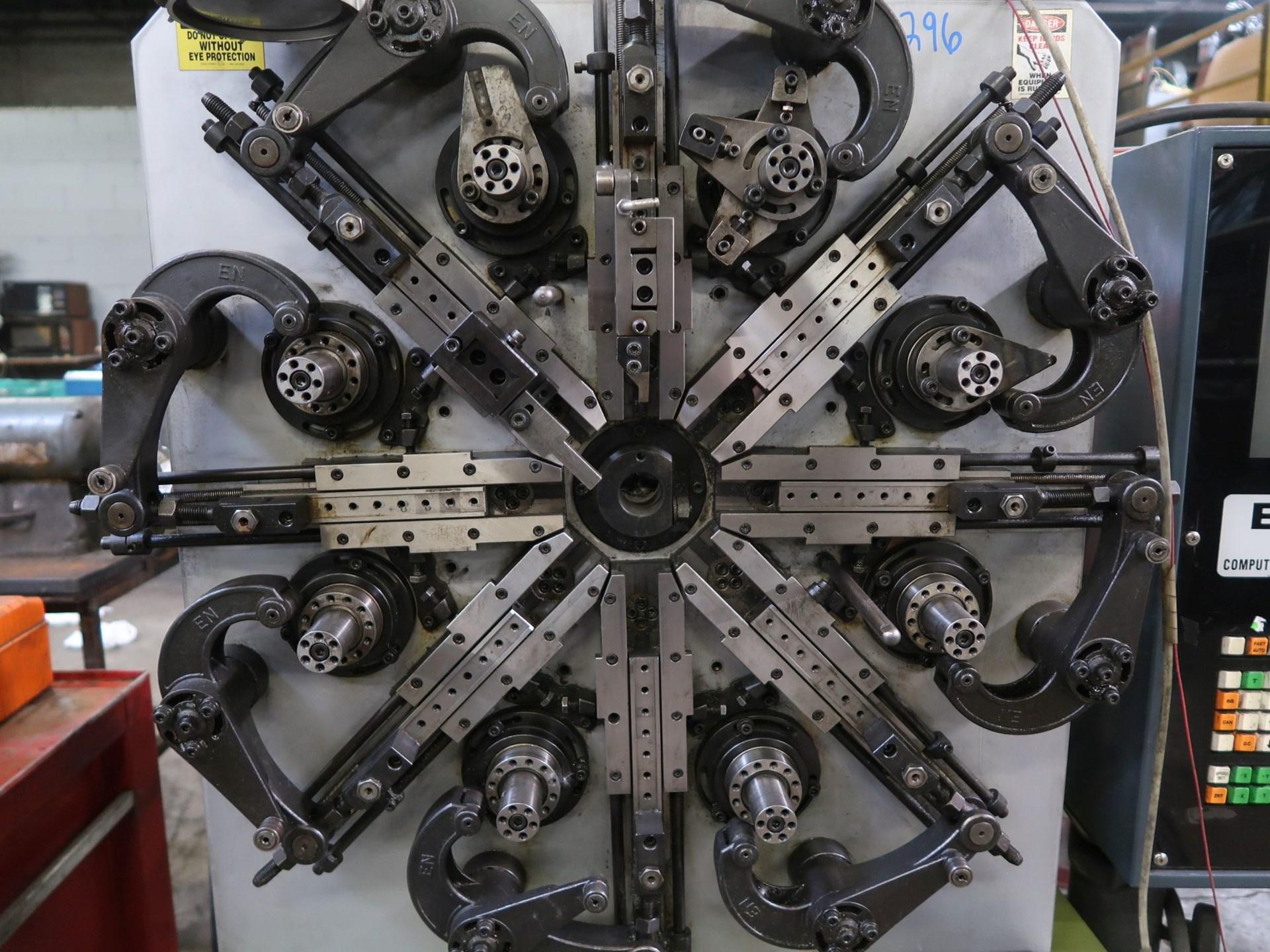

CAM BENDING:
MINIMUM ANGLE BEND ........ 0.1 DEGREES
MAXIMUM ANGLE BEND ........ 359.9 DEGREES
MAXIMUM ROTATION SPEED .... 60 / 120 RPM

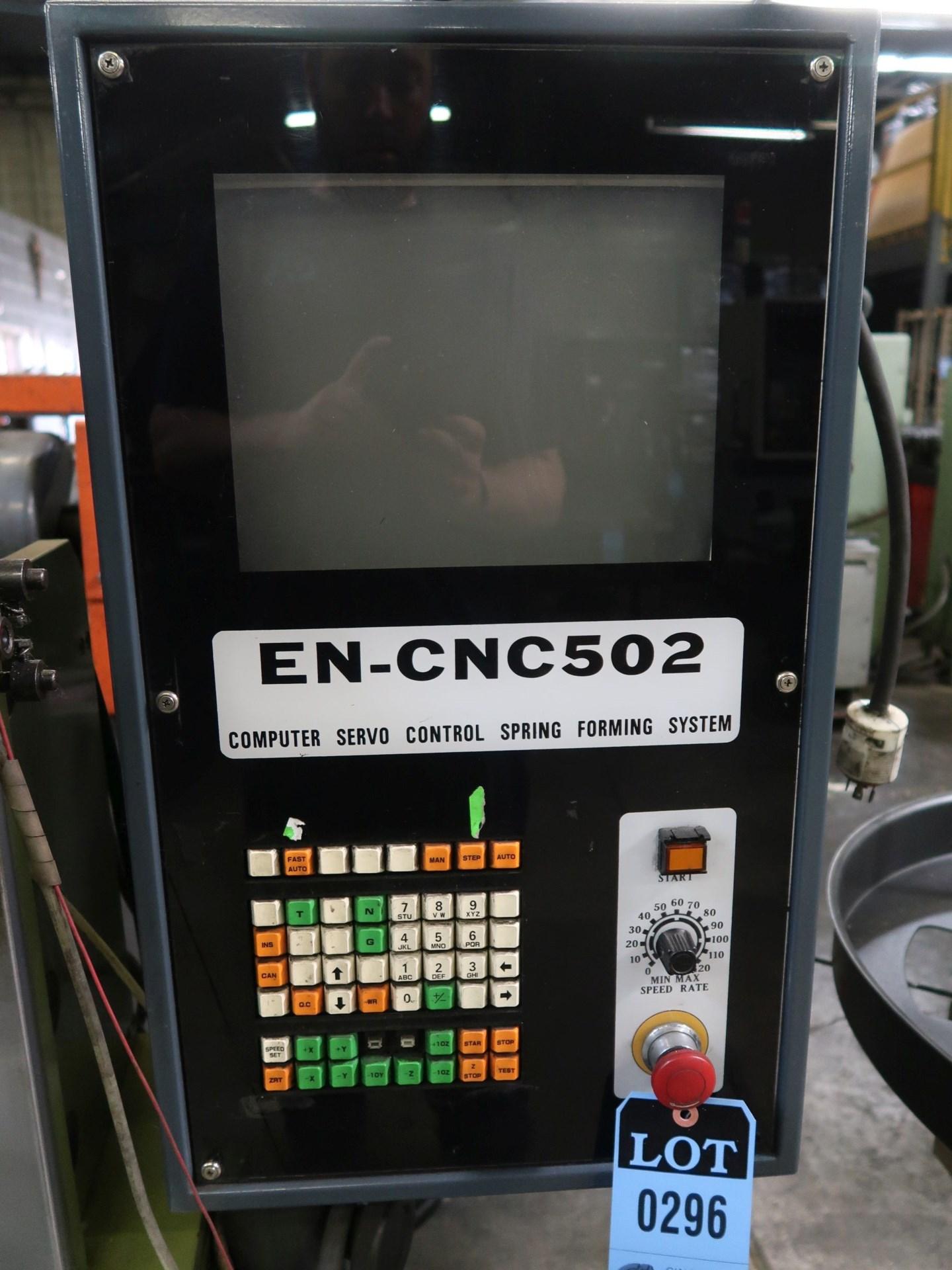

CONTROLS:
MEMORY STEPS .............. 999 STEPS
MEMORY TIME ............... 2 YEARS

MOTOR ..................... 2.2 KW X 2

DIMENSIONS ................ 1400 X 650 X 1600 MM
WEIGHT .................... 700 KGS
