20,000 LB X 72" LOOPCO BANDING LINE: STOCK #10955

Manufacturer

LOOPCO

Category

Coil Processing Equipment

Type

COIL BANDING LINES

Stock

10955

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



YEAR ..................................... 1985
HEAVY DUTY CONVEYOR CAPACITY ............. 20,000 LBS
WIDE MULT CAPACITY ....................... 26"
MAX COIL O.D. ............................ 72"

CONSISTING OF THE FOLLOWING:

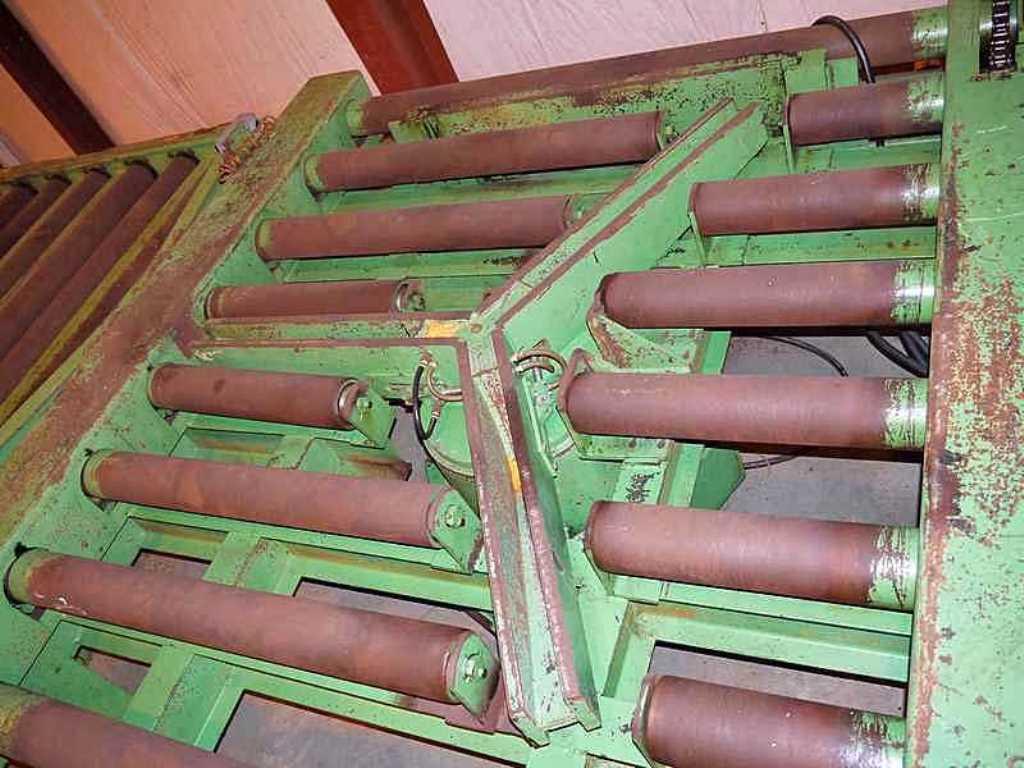

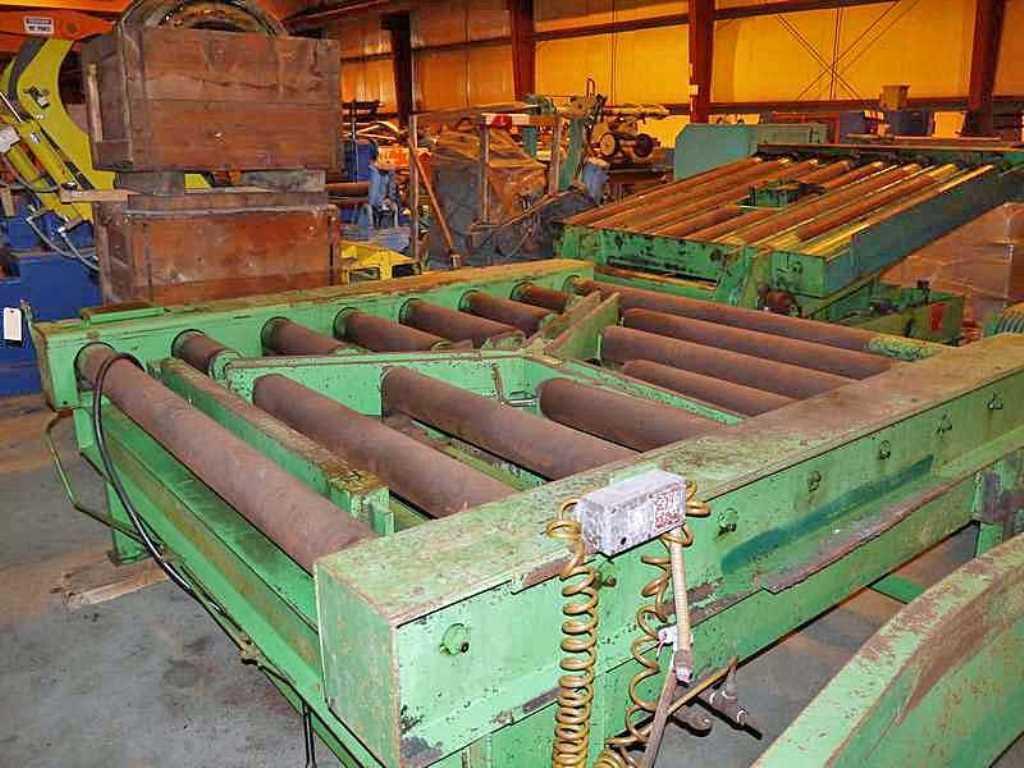

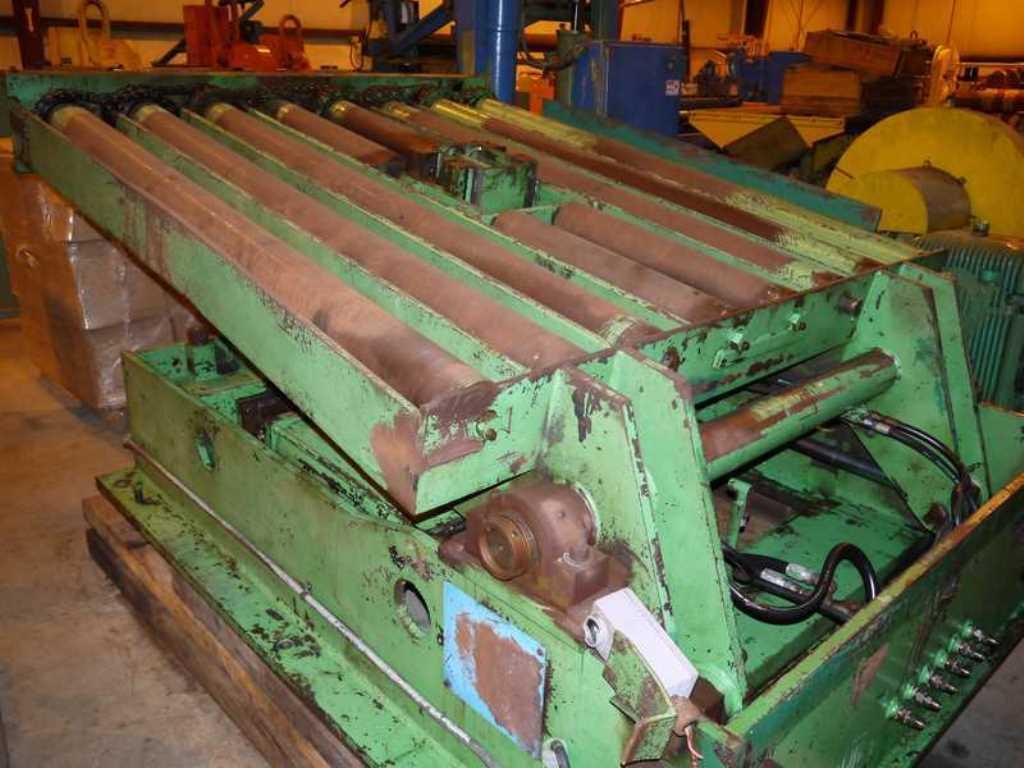

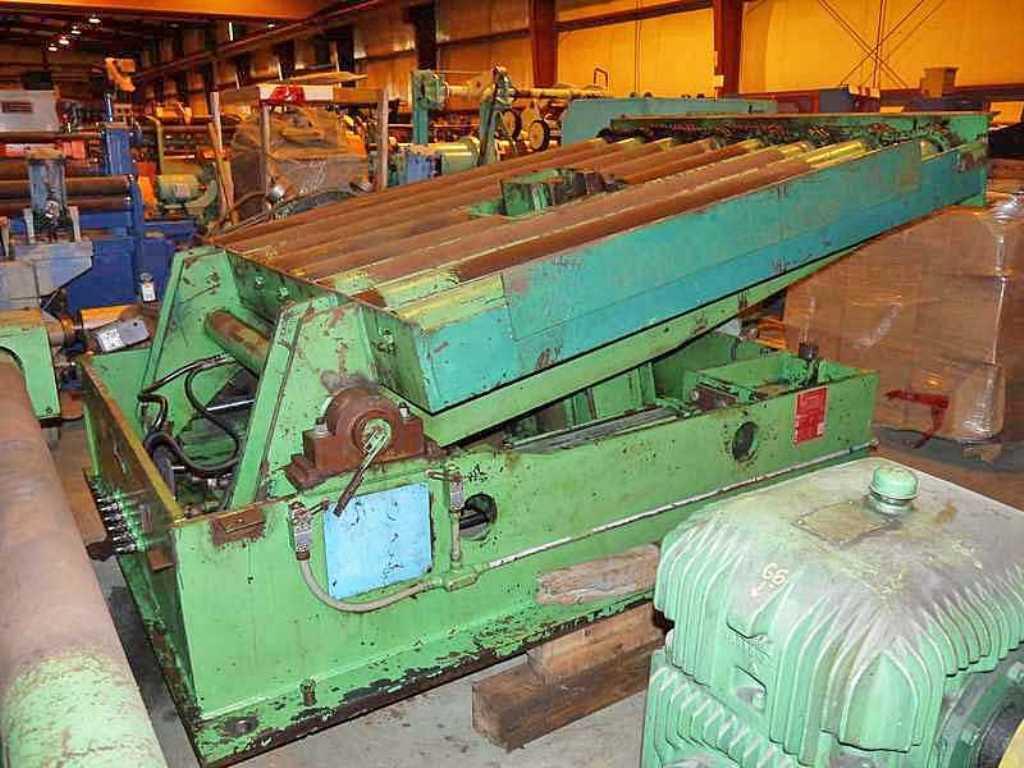

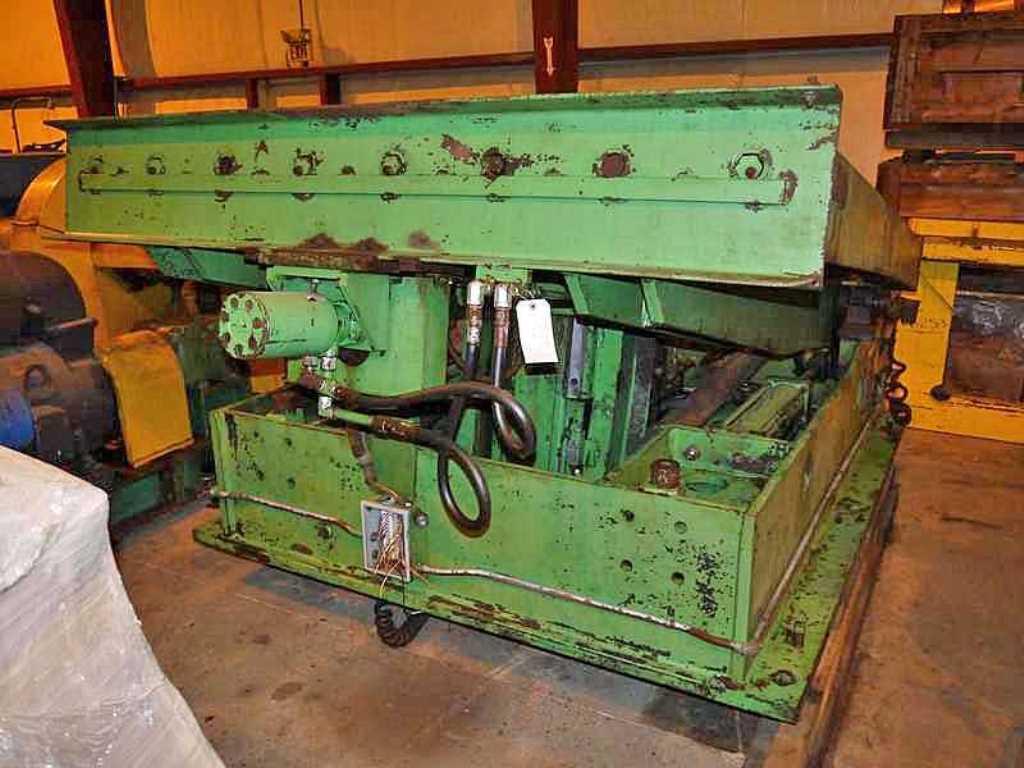

DOWNLAYER:
FACE DRIVEN ROLLS ........................ 5" DIA x 75"
HYDRAULIC MOTOR DRIVE .................... YES
RIGHT ANGLE DISCHARGE .................... YES

LONG HORN EXTENSION ...................... 25"
(1) HYDRAULIC HORN CYLINDER .............. 2.5" BORE x 26" STROKE

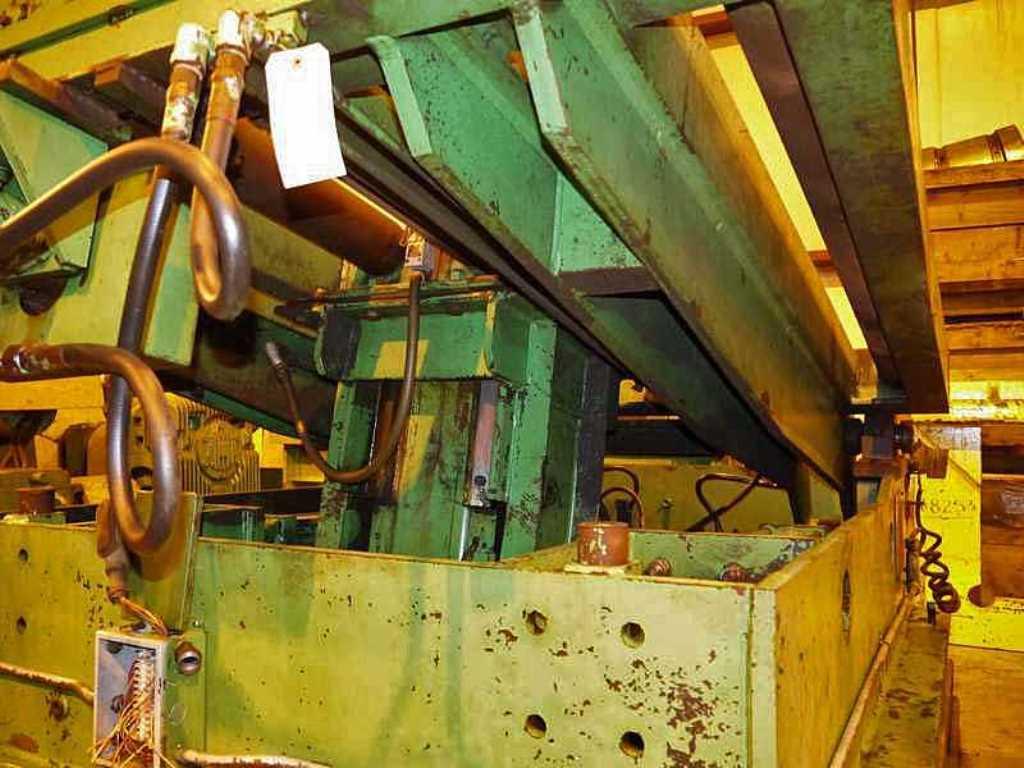

(2) HYDRAULIC TILT CYLINDERS ............. 5" BORE x 23" STROKE

FLOOR TO TOP OF HORN "TIPPED POSITION" ... 74" (APPROX)
PASS LINE HEIGHT ......................... 34.5"

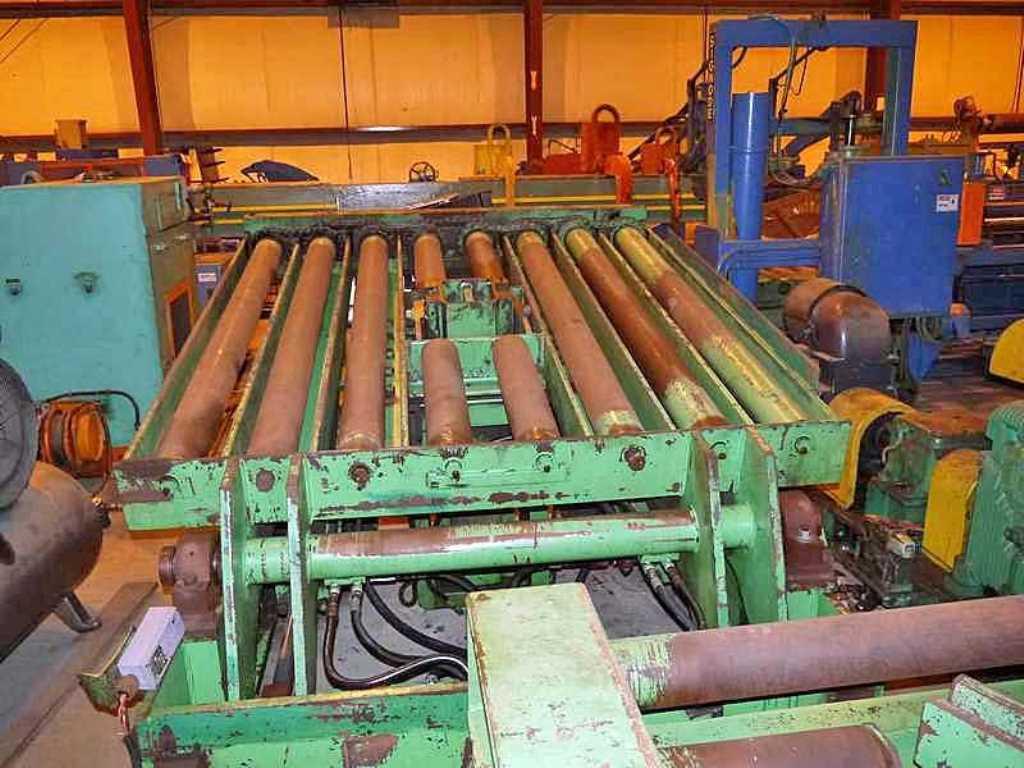

MANUAL BANDING TABLE:
DRIVEN ROLLS ............................. 5" DIAMETER
HYDRAULIC MOTOR DRIVEN ROLLS ............. YES

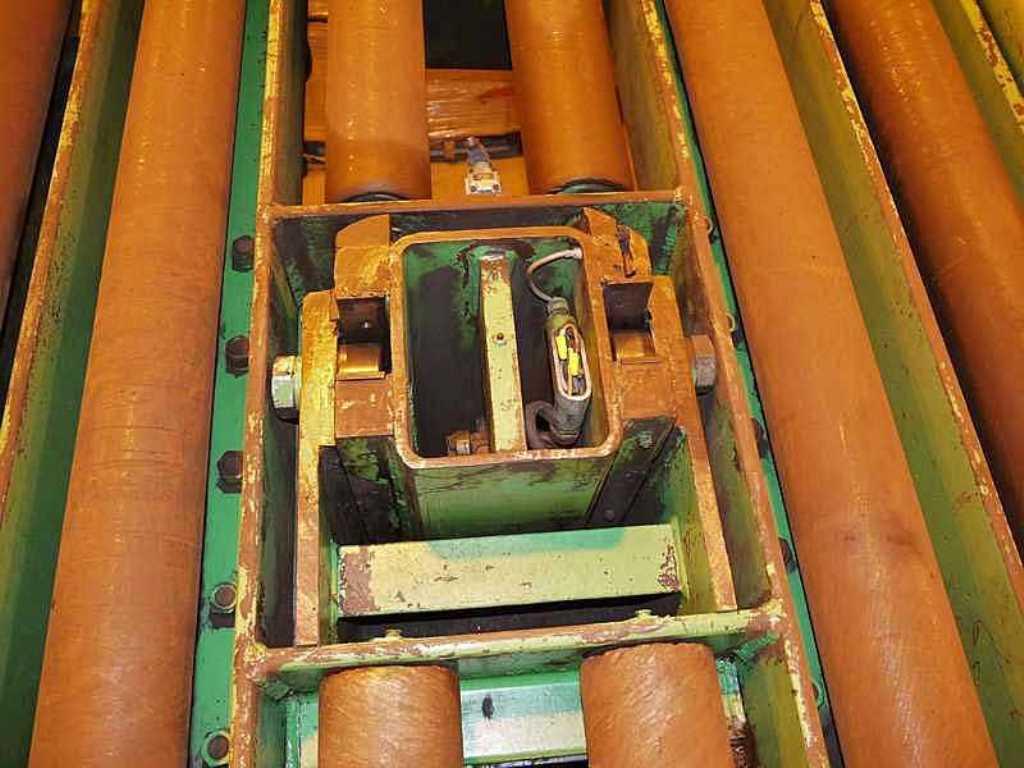

3 ARM TYPE COIL LIFT AND ROTATE .......... YES
(1) HYDRAULIC LIFT CYLINDER .............. 6" BORE x 9" STROKE

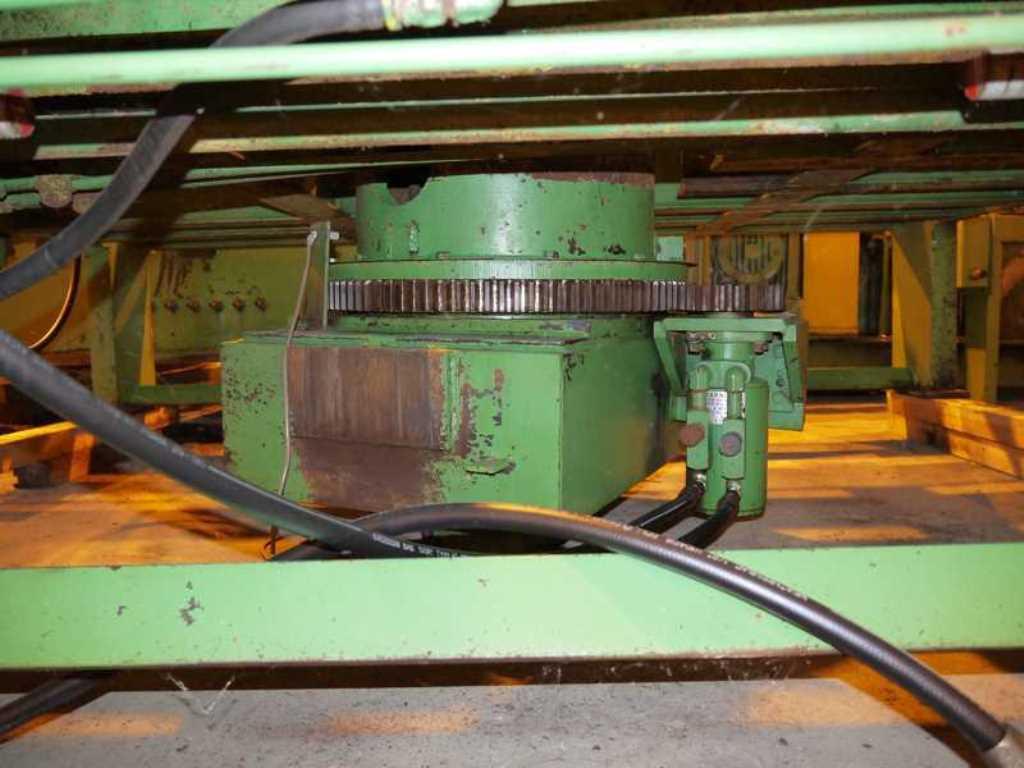

HYDRAULIC MOTOR ROTATE ................... YES
PASSLINE HEIGHT .......................... 35"

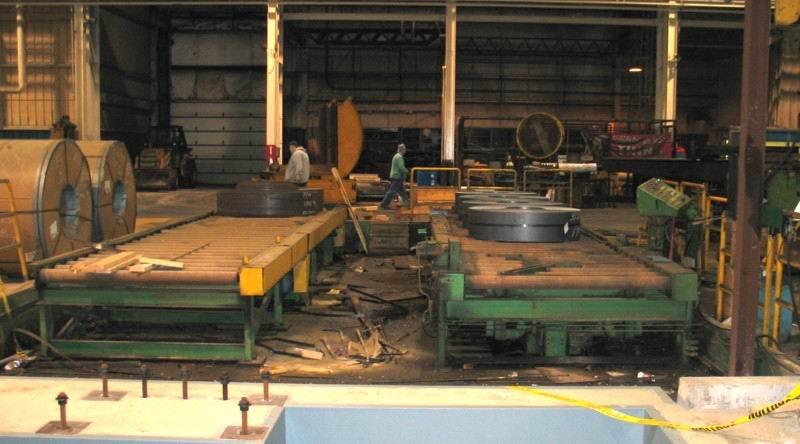

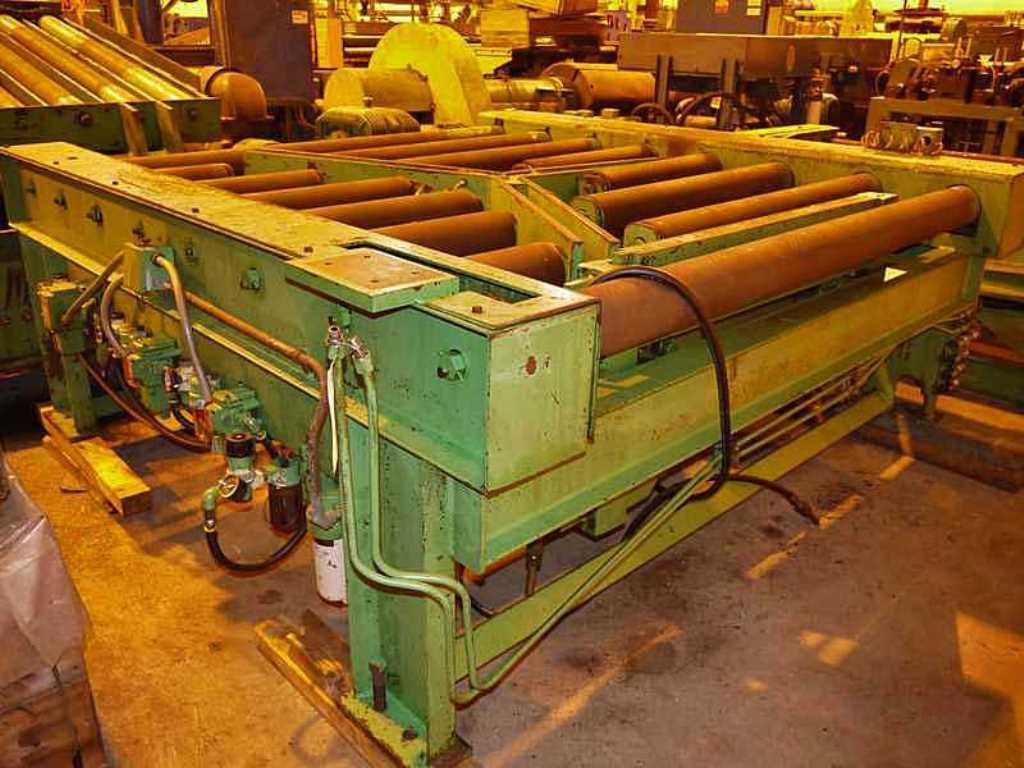

COIL STORAGE CONVEYOR:
LENGTH ................................... 25'
FACE DRIVEN ROLLS ........................ 5.25" DIA x 74"
FOOTE-JONES AC GEAR MOTOR DRIVE .......... 10 HP/230/460 V
PASSLINE HEIGHT .......................... 35" PASSLINE HEIGHT

COIL UNLOAD CONVEYOR:
FACE DRIVEN ROLLS ........................ 5.25" DIA x 74"
FOOTE-JONES AC GEAR MOTOR DRIVE .......... 3 HP/230/460 V
AIR BAGS FOR IMPACT ISOLATION ............ YES
PASSLINE HEIGHT .......................... 35"
