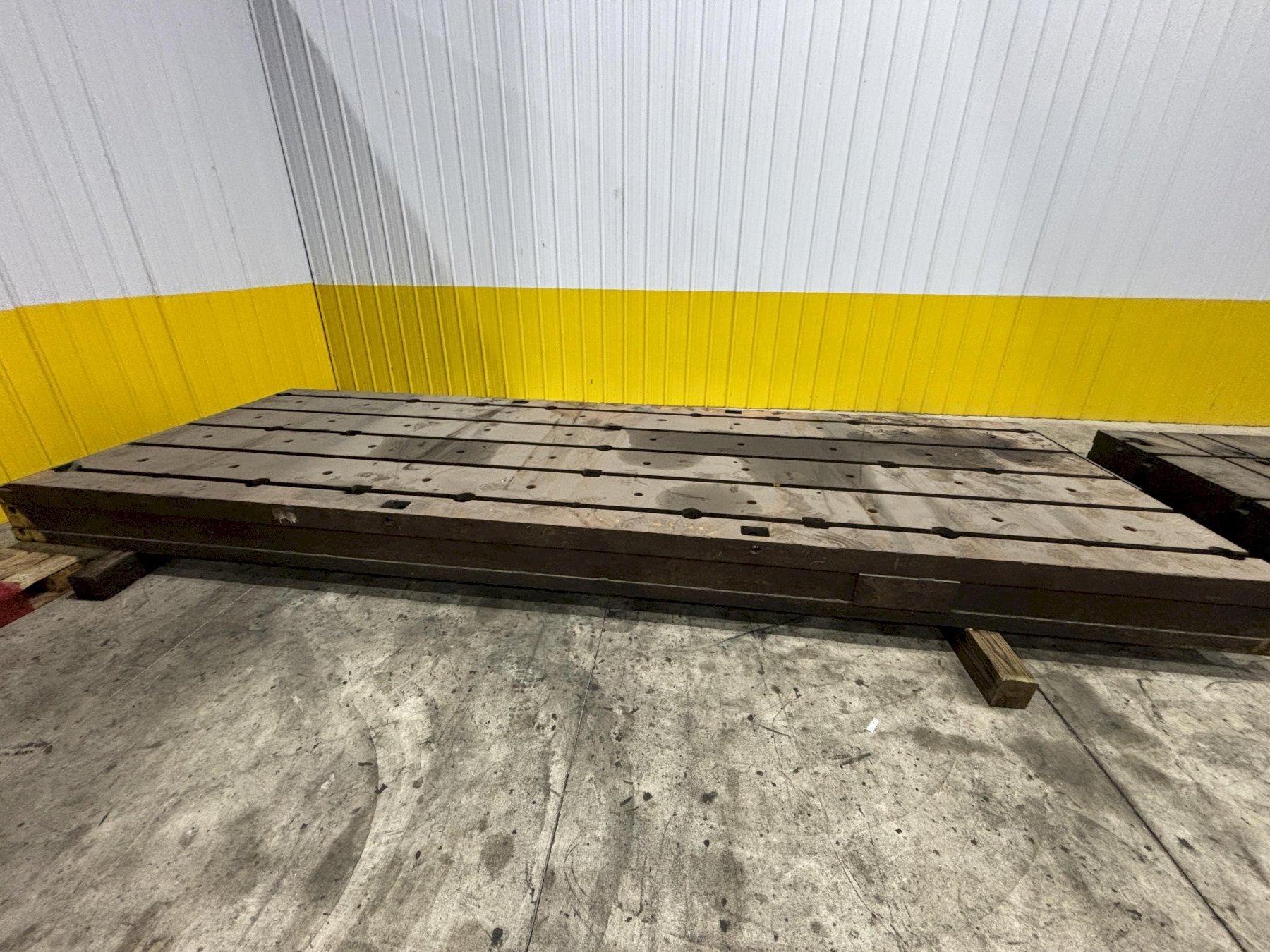

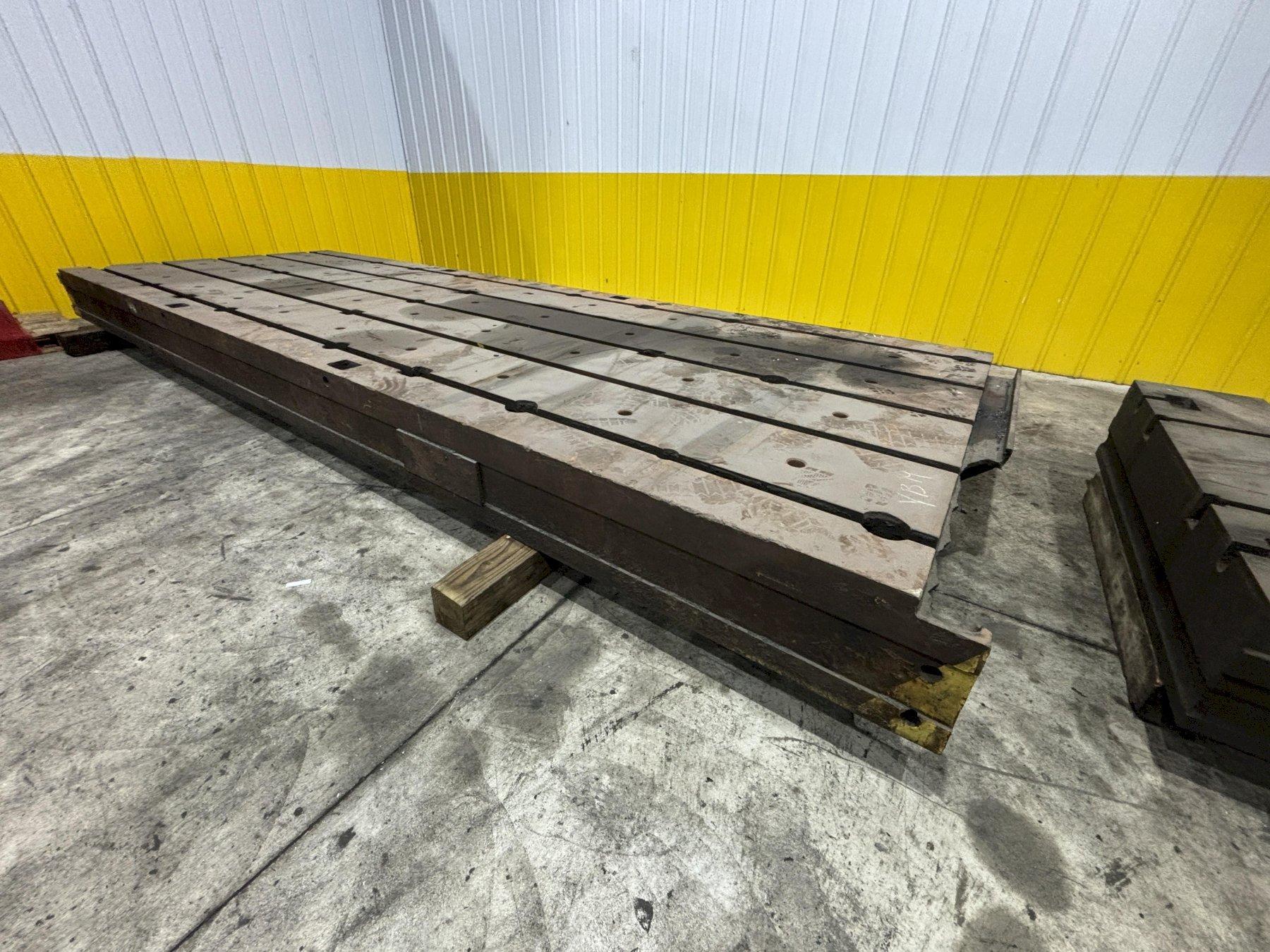

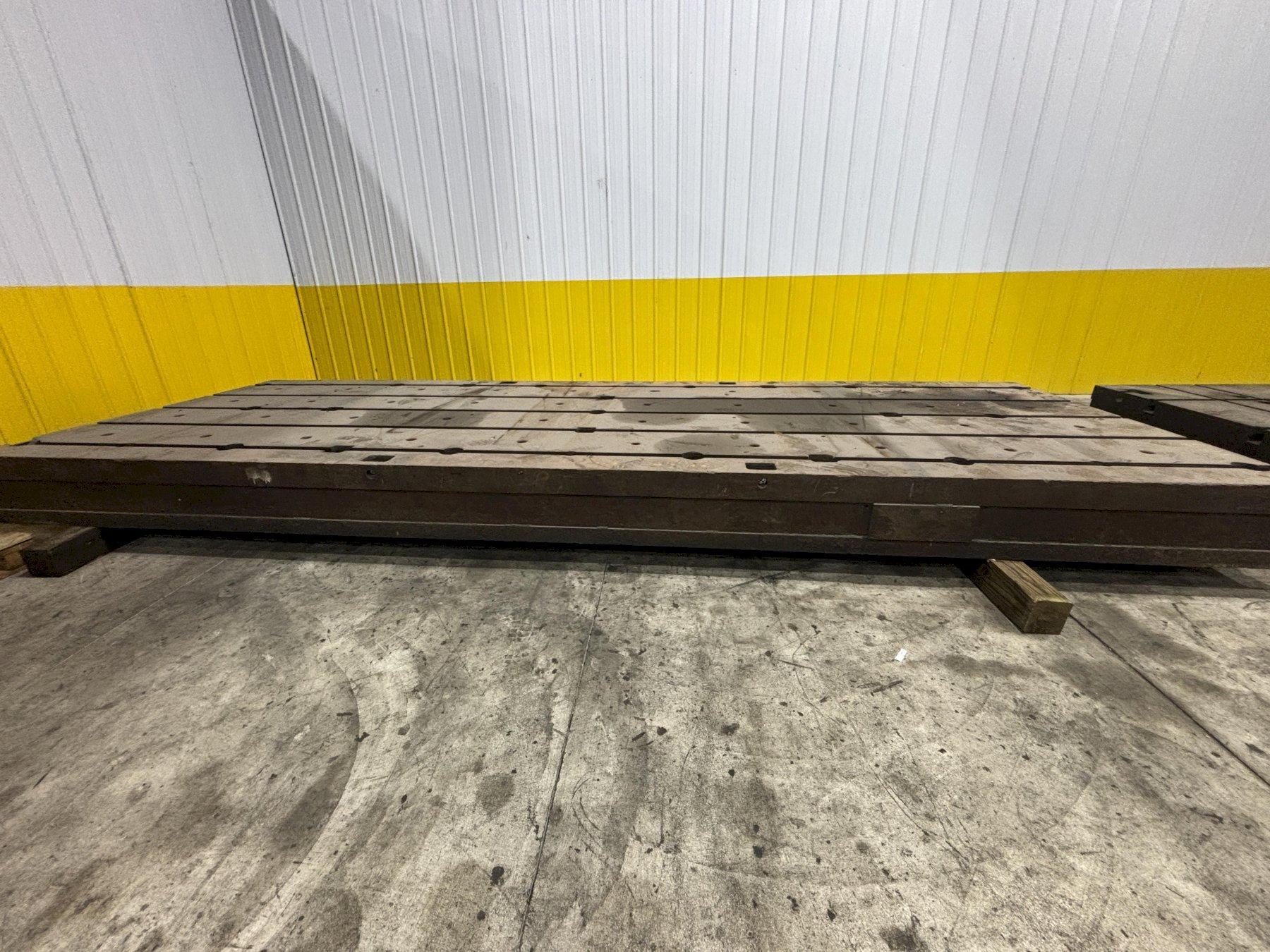

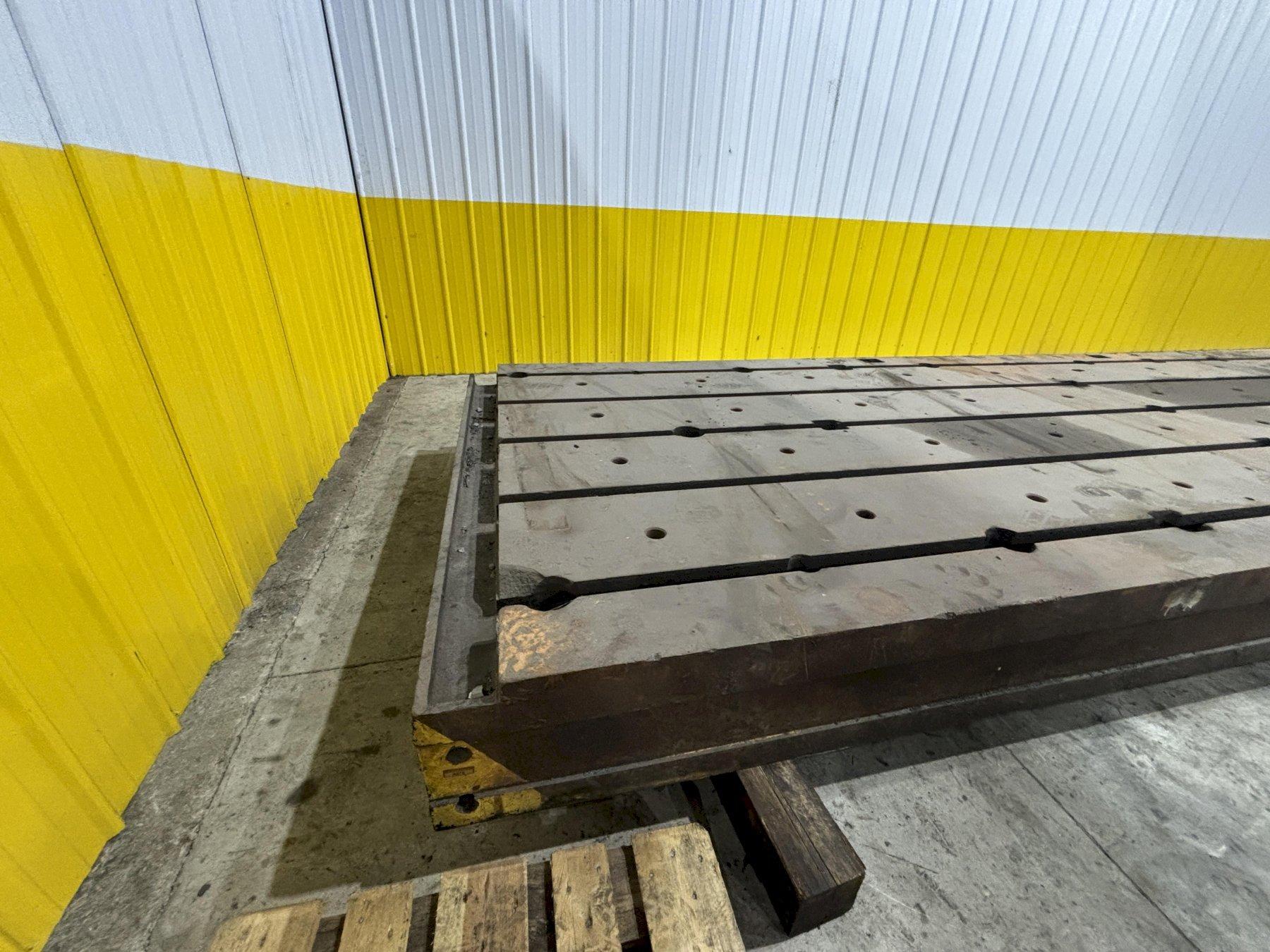

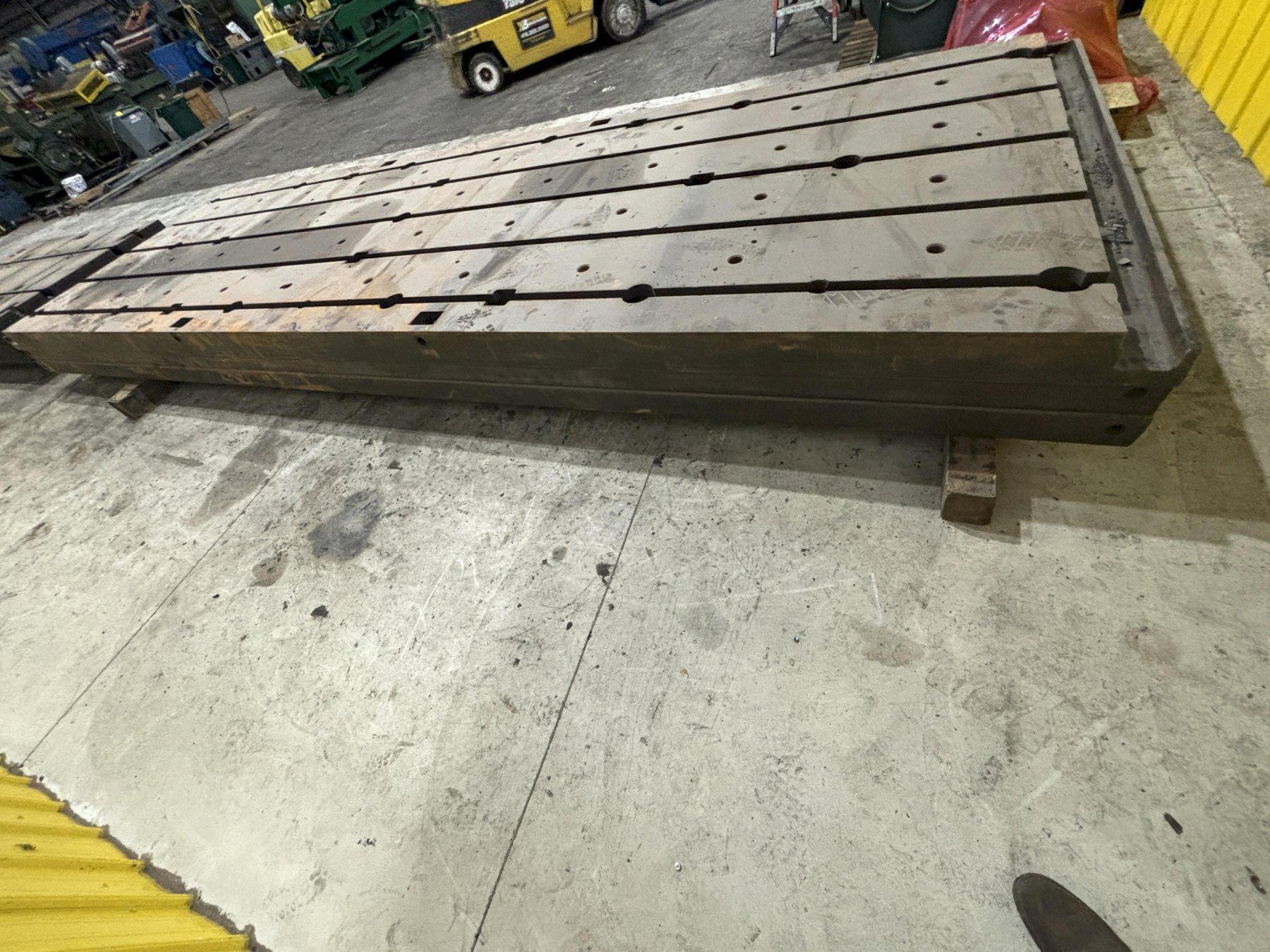

77" X 226" X 13-3/4" HIGH T-SLOTTED FLOOR LAYOUT PLATE: STOCK #11259

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

11259

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

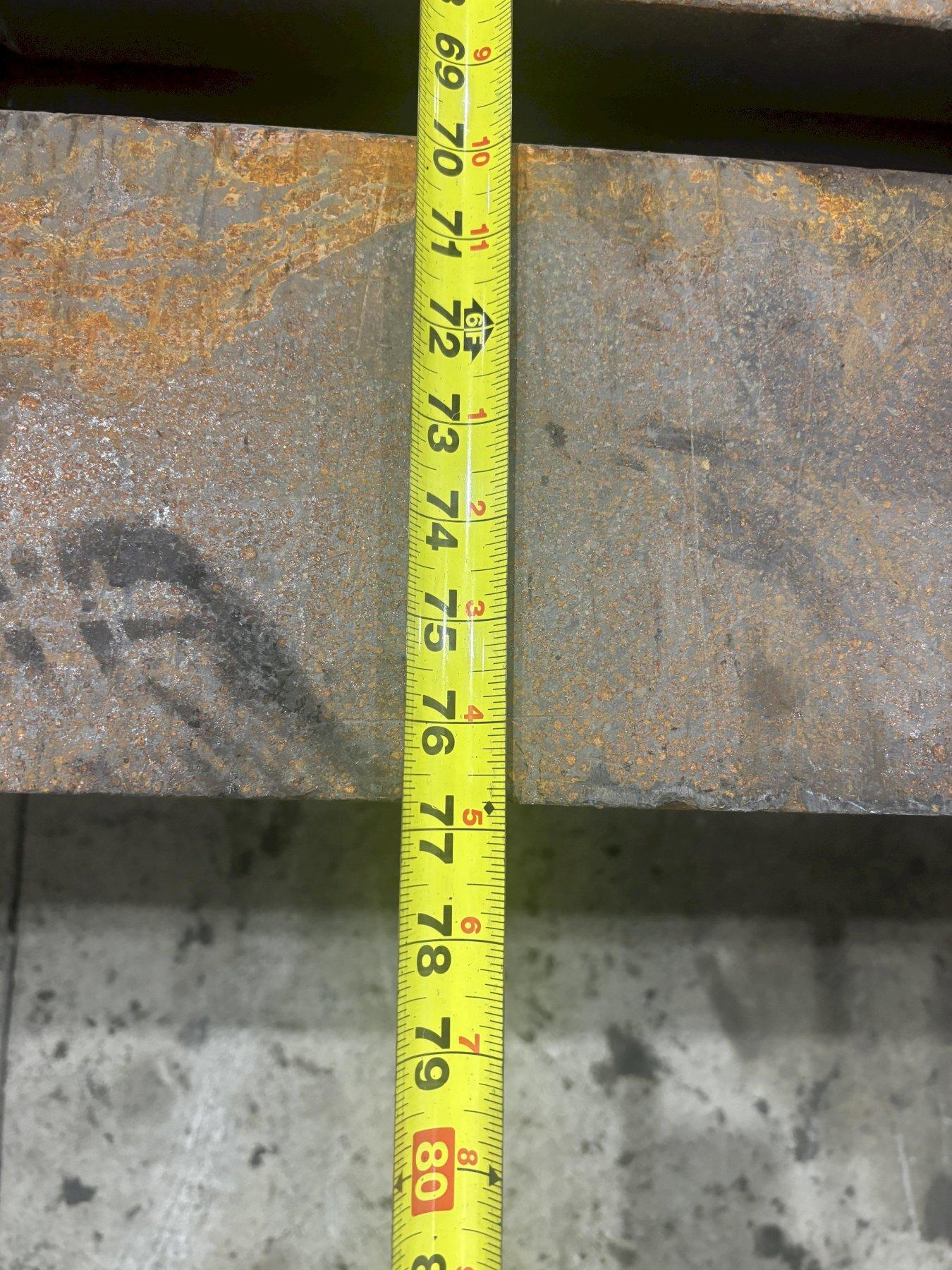

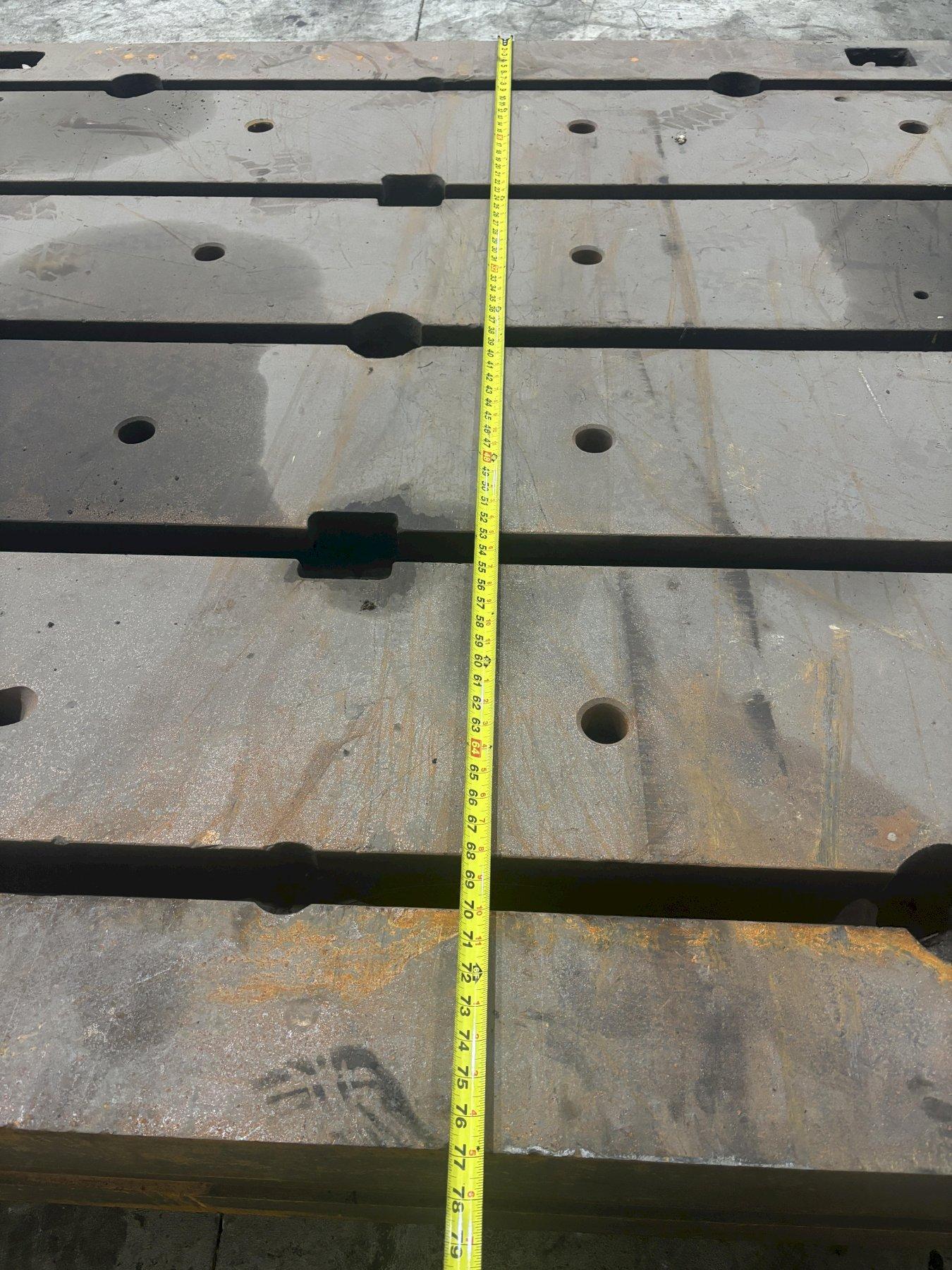

Width - 77 inches

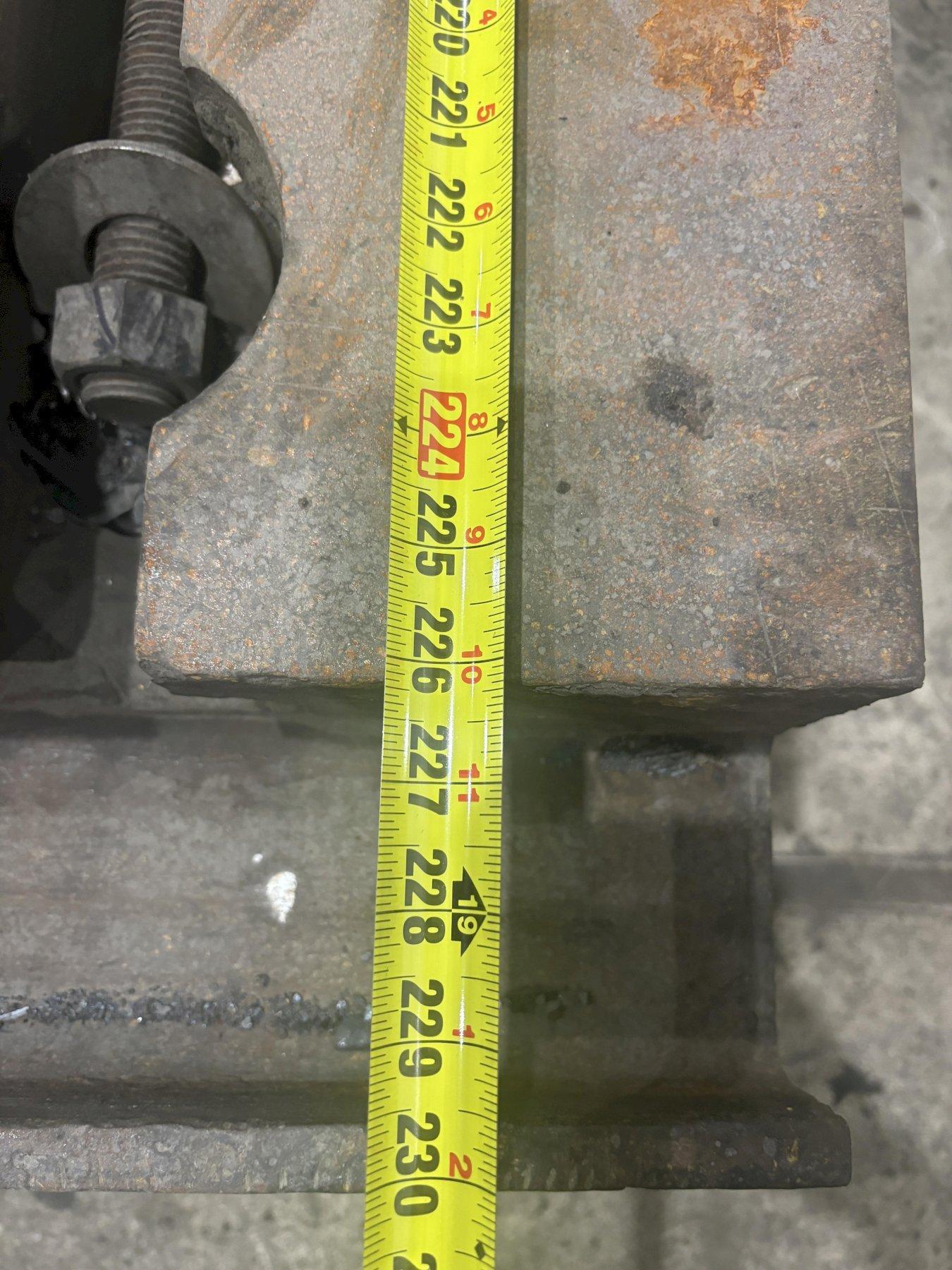

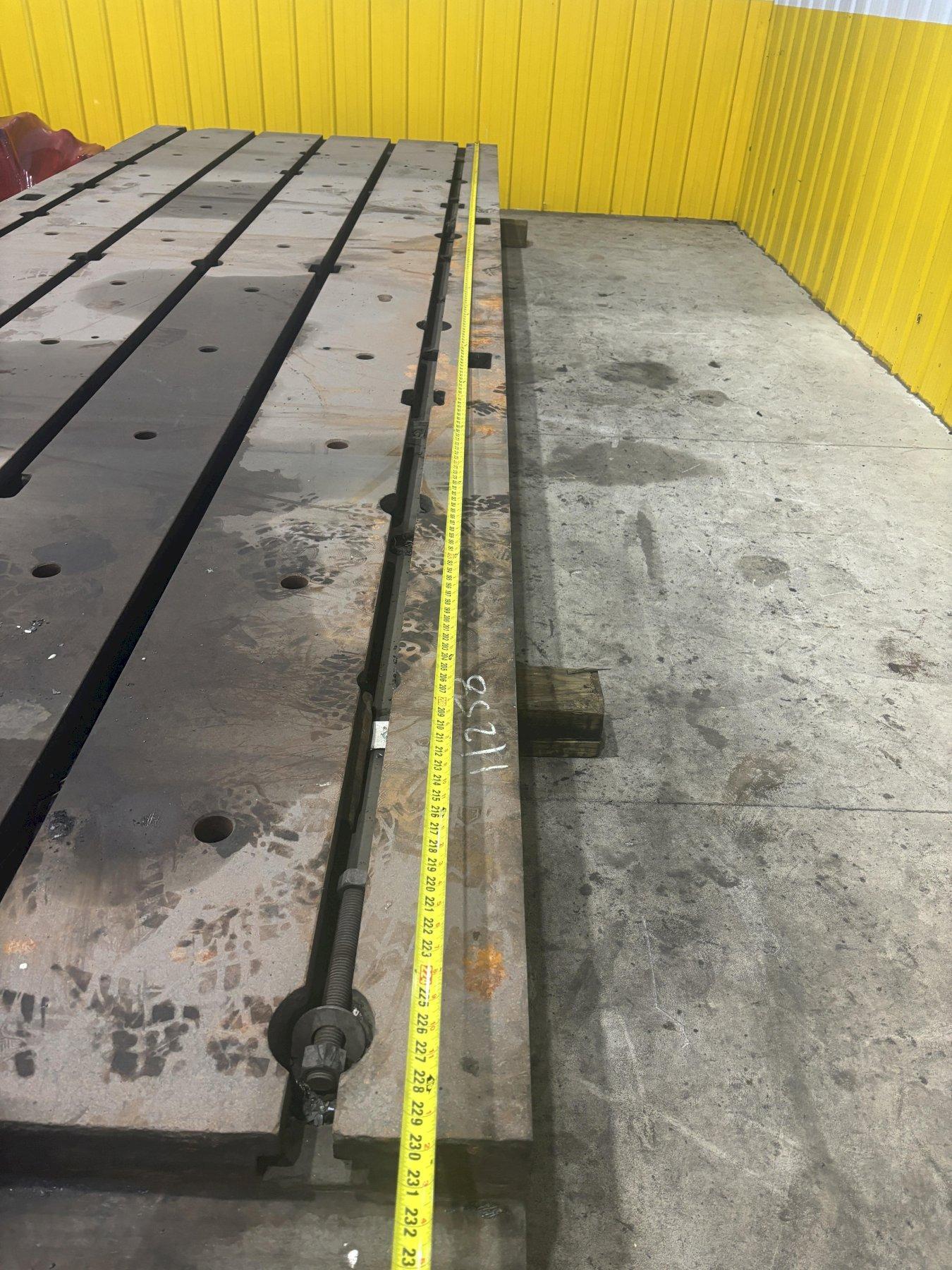

Length - 226 inches
Height - 13.75 inches
Dimensions - 226 x 77 x 13.75


LENGTH ........................ 226”
WIDTH ......................... 77”

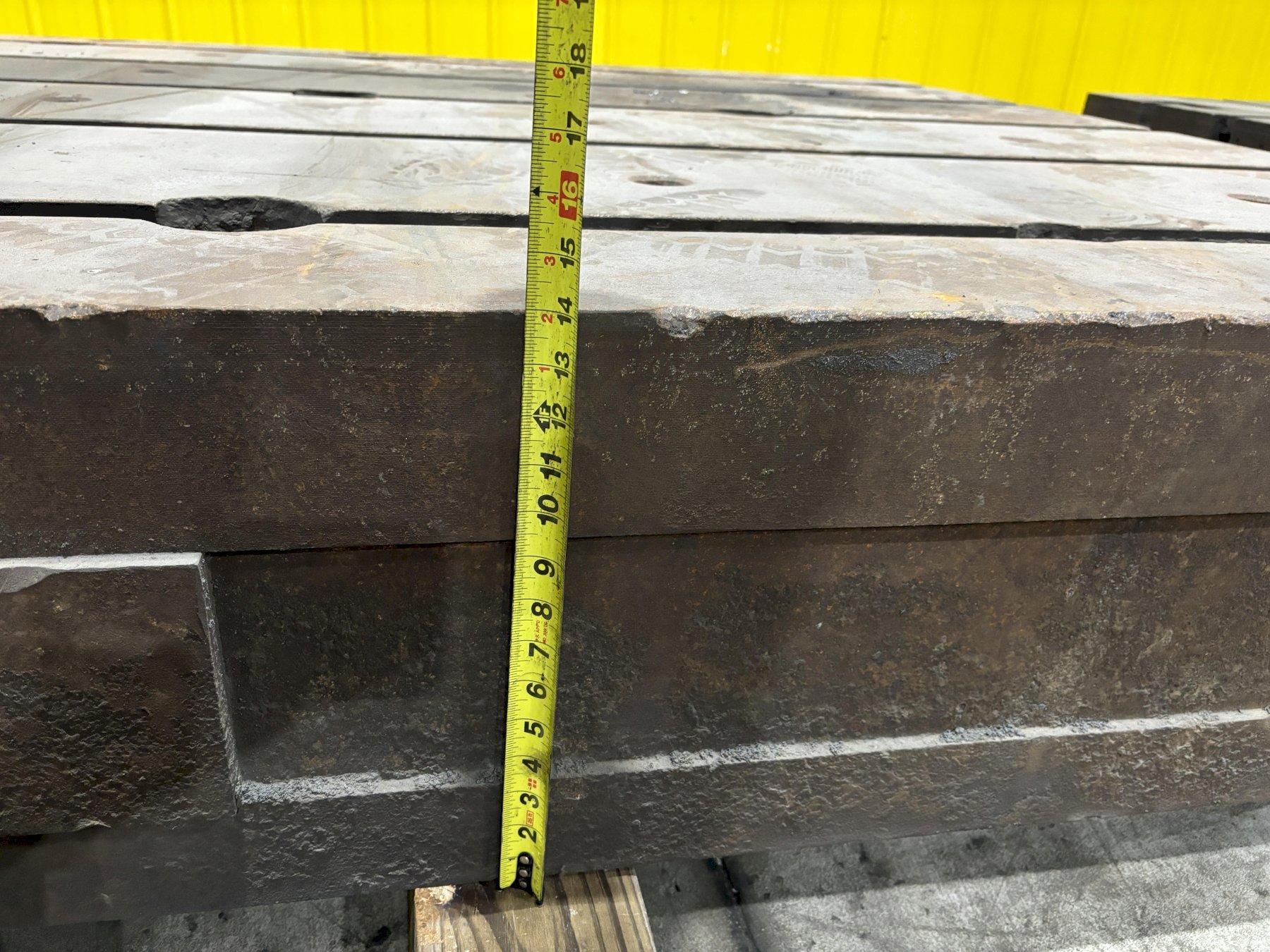

HEIGHT ........................ 13-3/4”
NUMBER OF T-SLOTS ............. 5

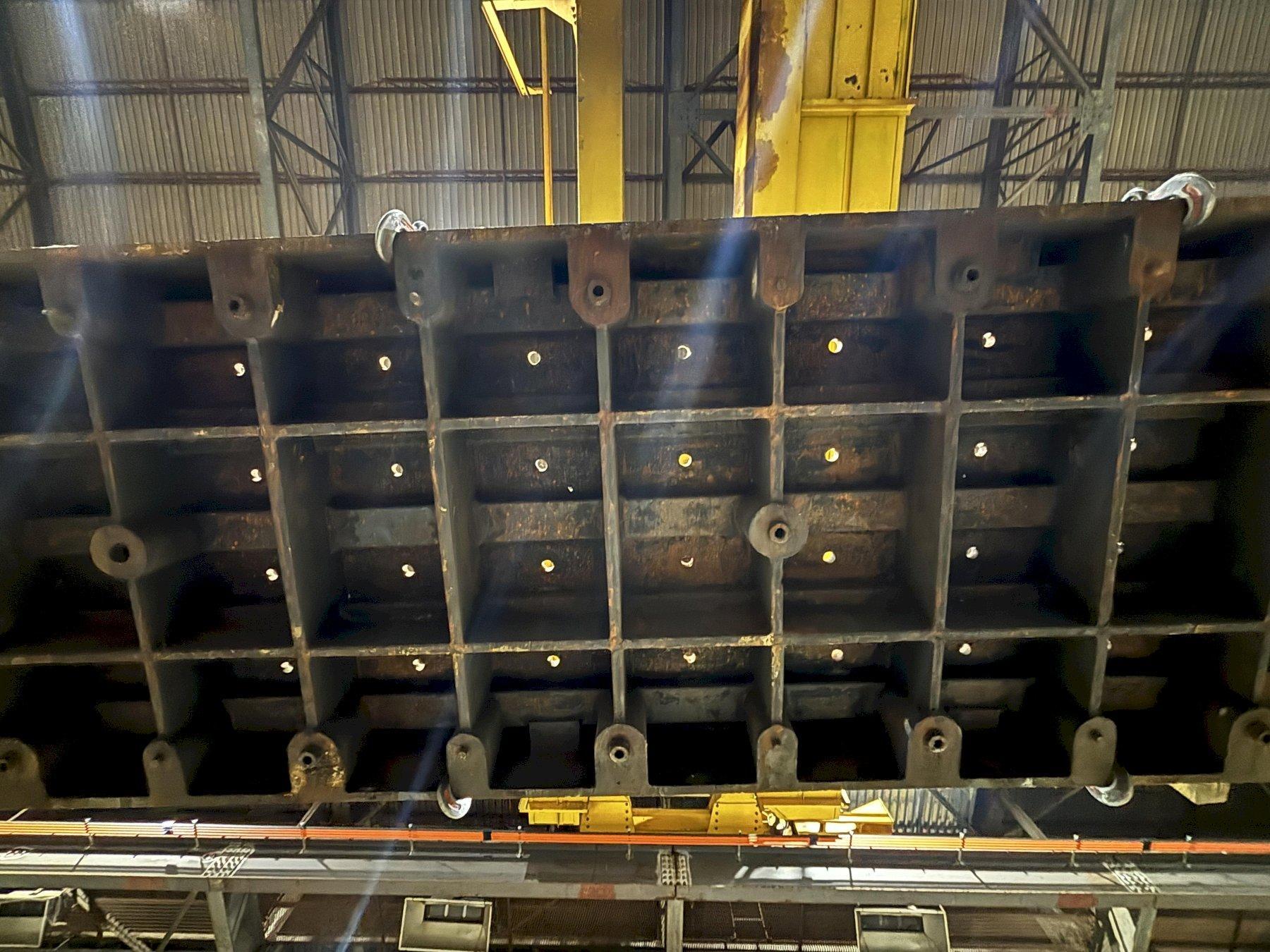

NUMBER OF LEVELING HOLES ...... 25

T-SLOT DIMENSIONS:
INNER SLOTS ................... 15"
OUTER SLOTS ................... 8"

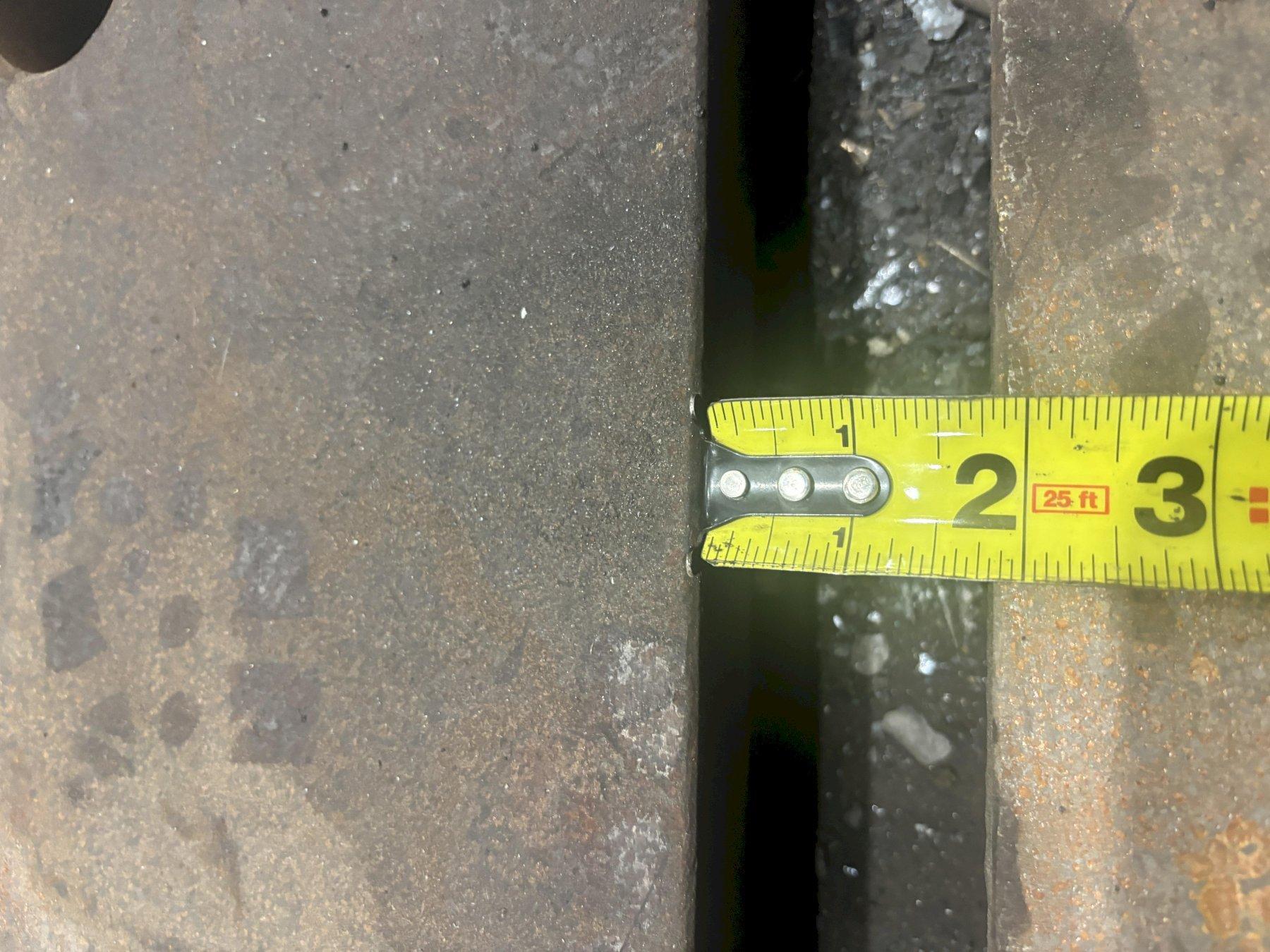

WIDTH OF SLOTS ................ 2"
DEPTH OF SLOTS ................ 3-1/4"
WIDTH OF SLOTS AT BOTTOM ...... 3-3/4"
