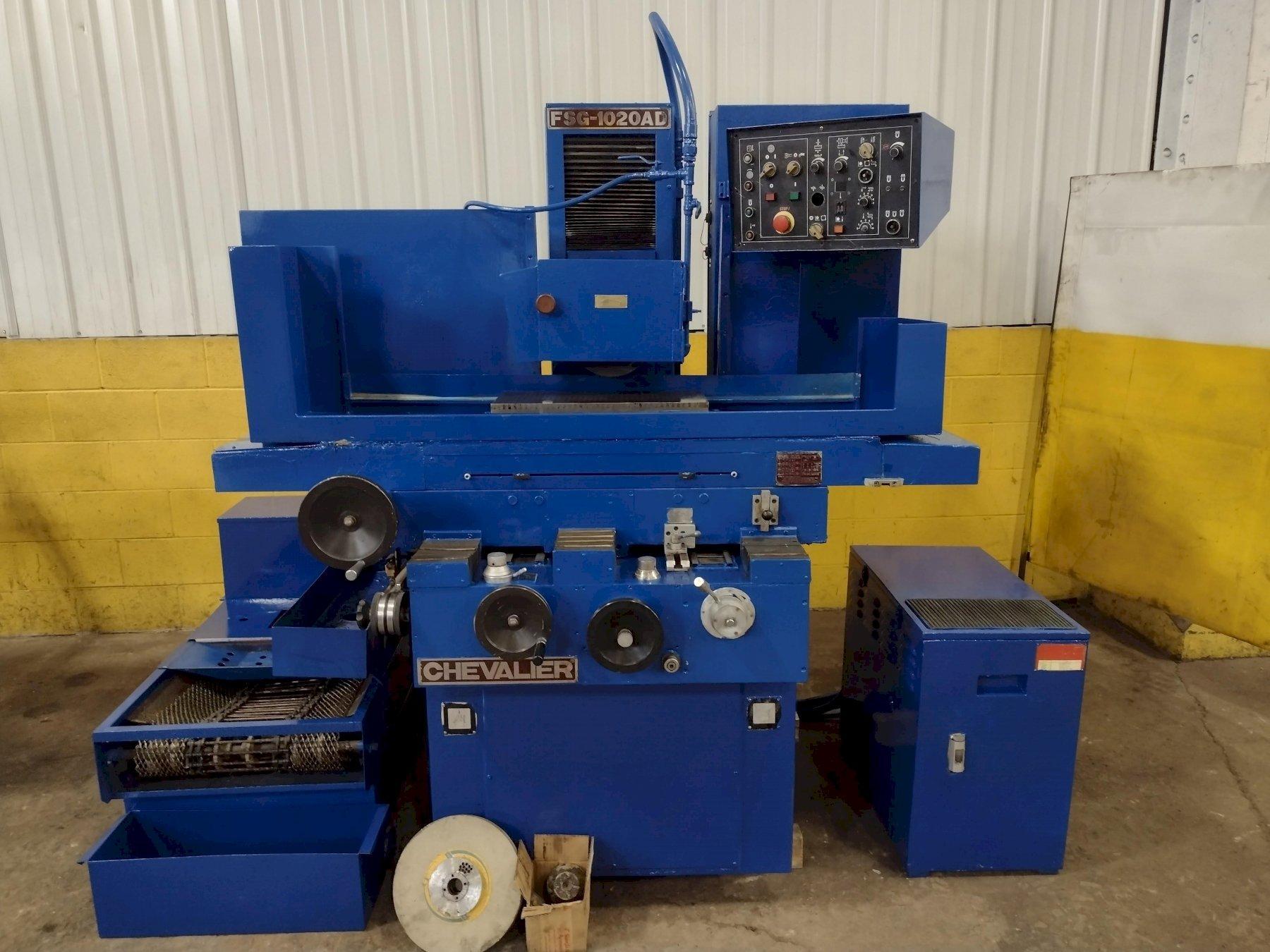

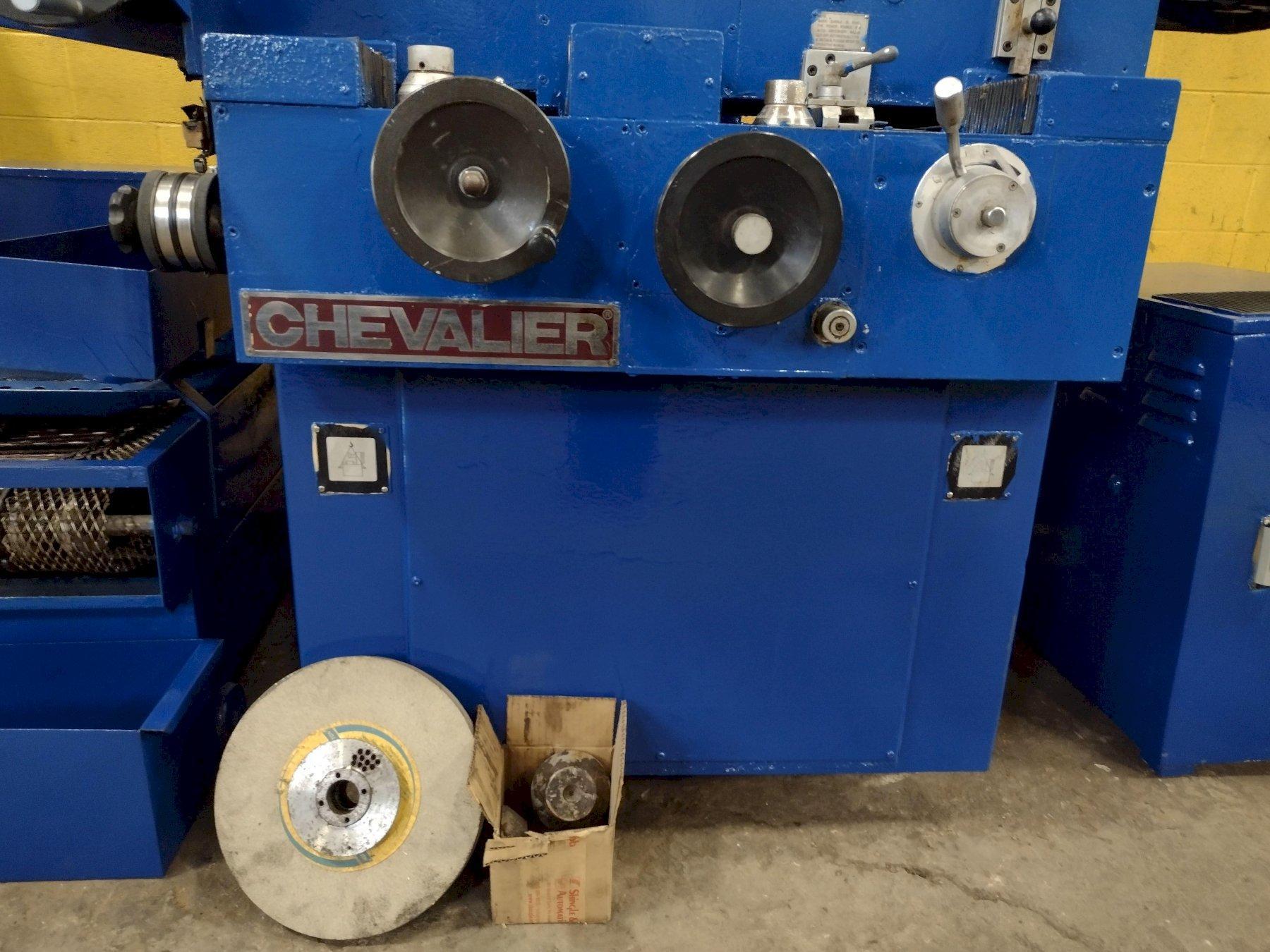

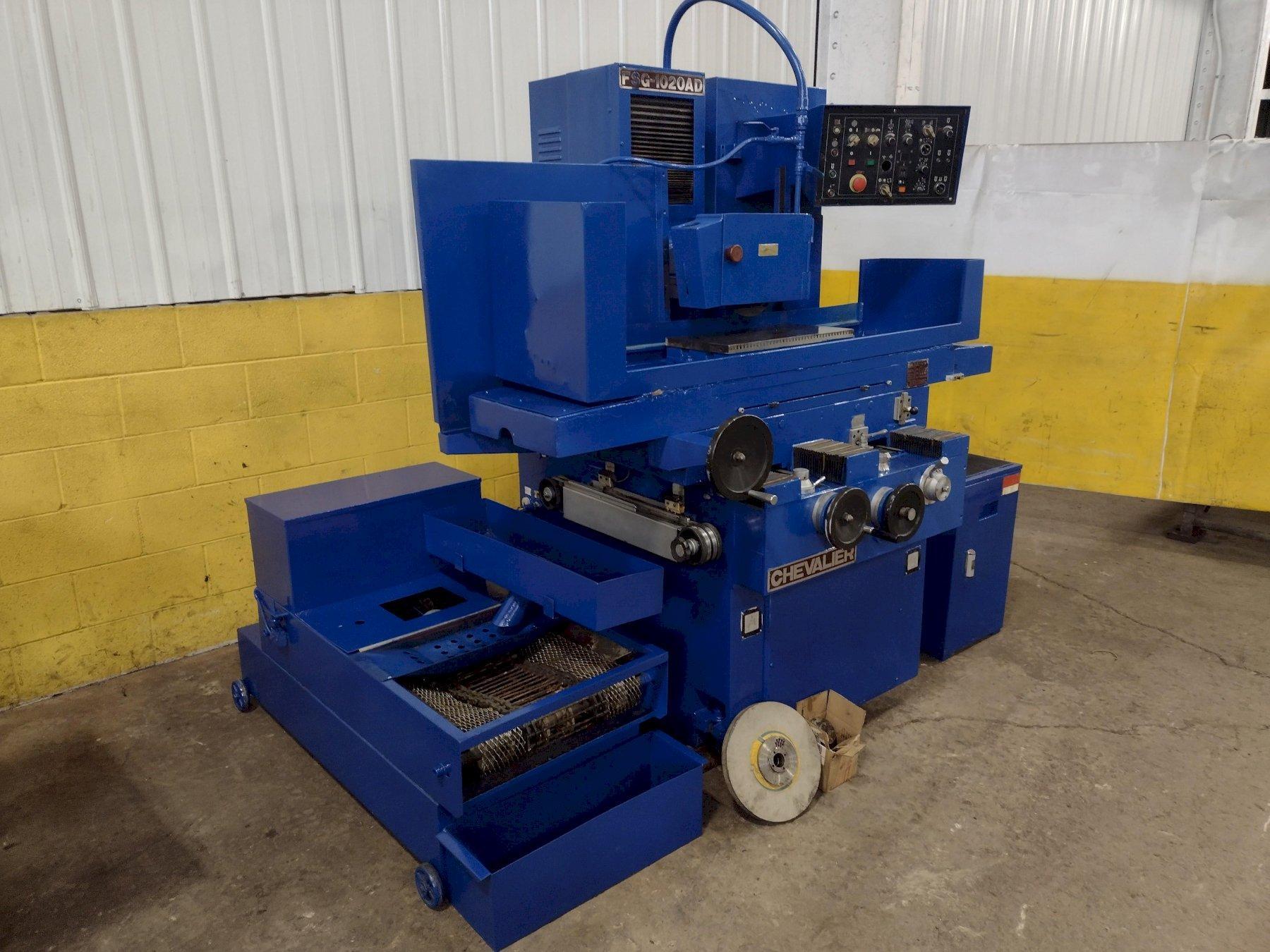

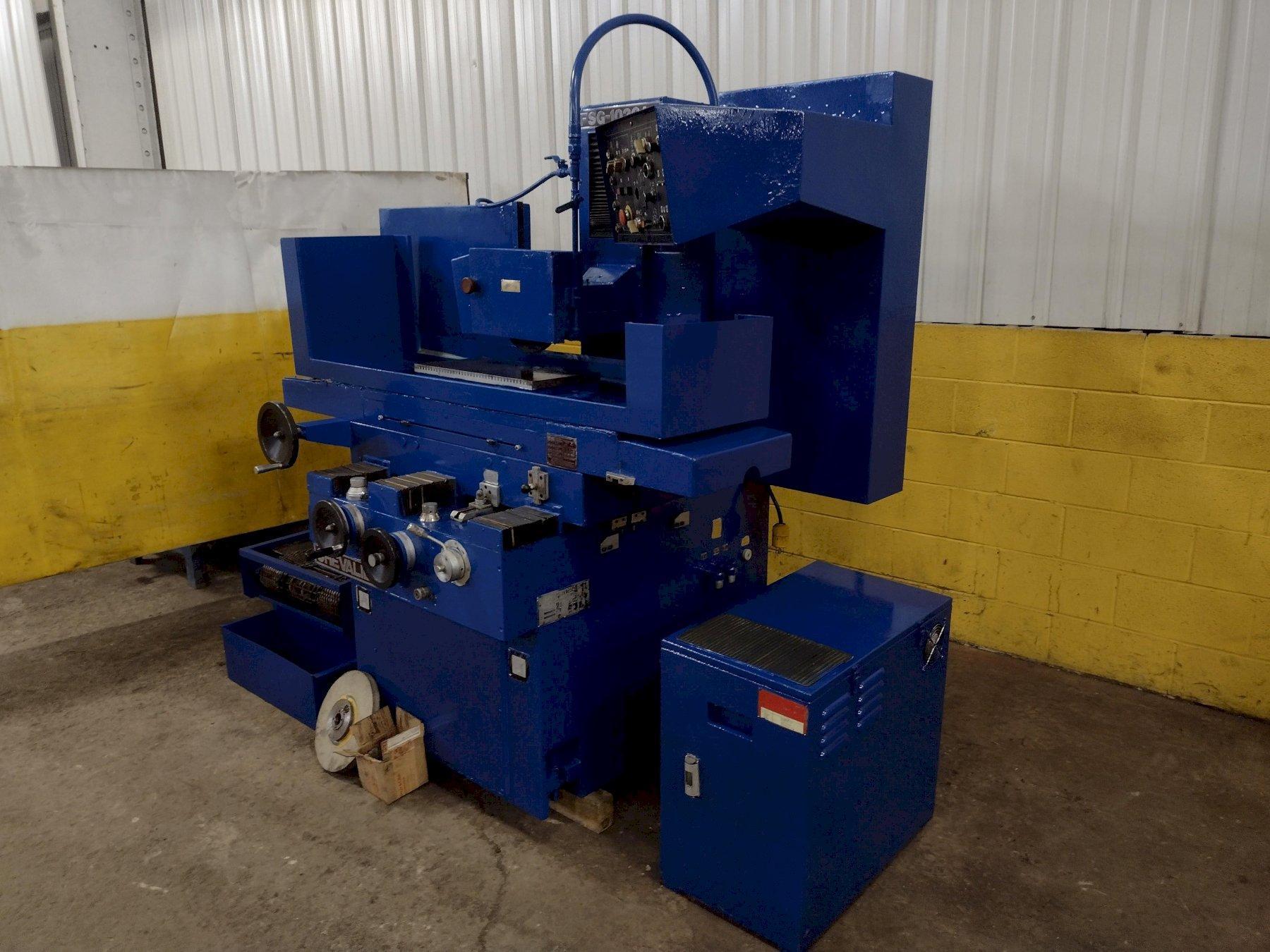

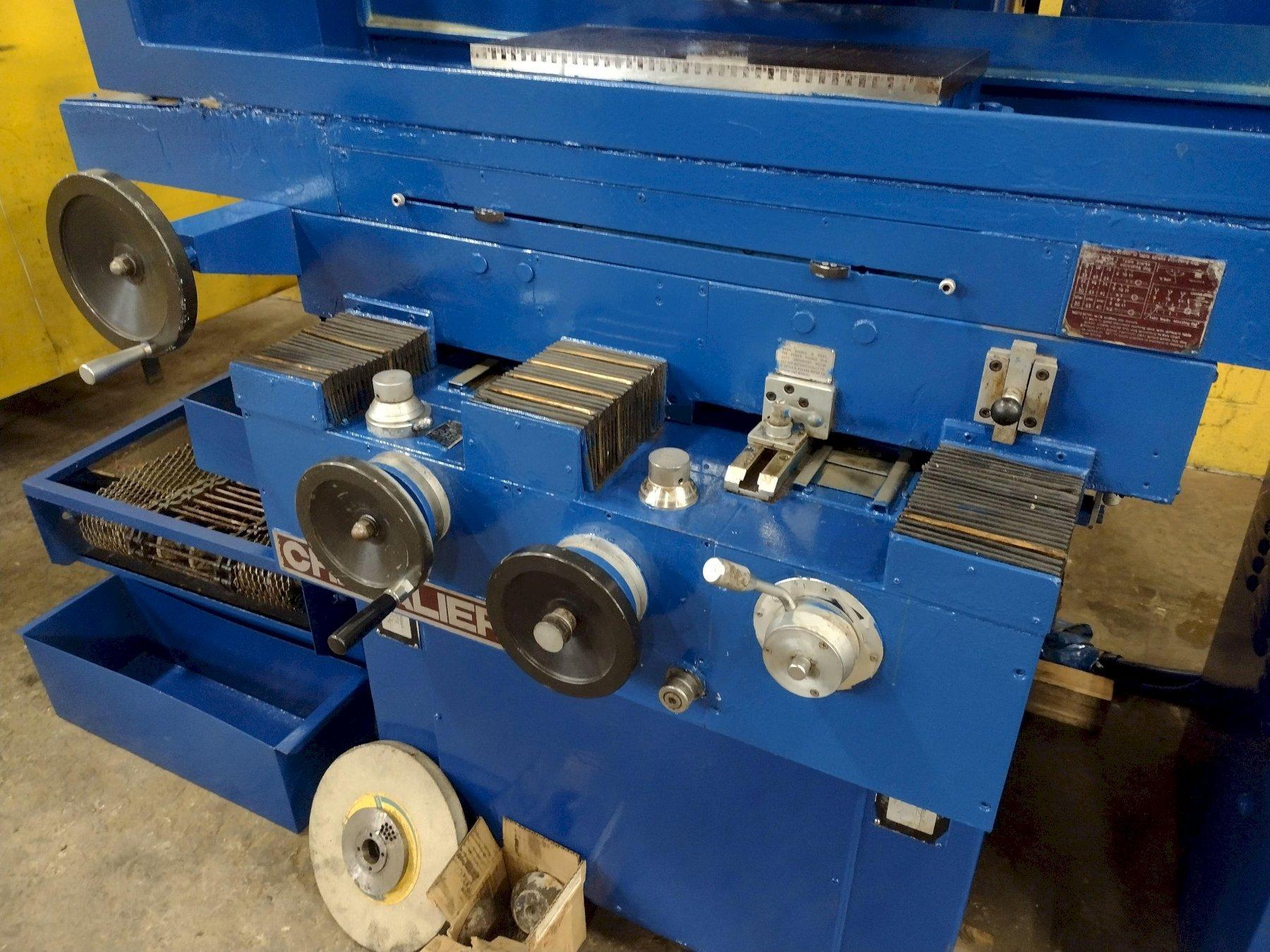

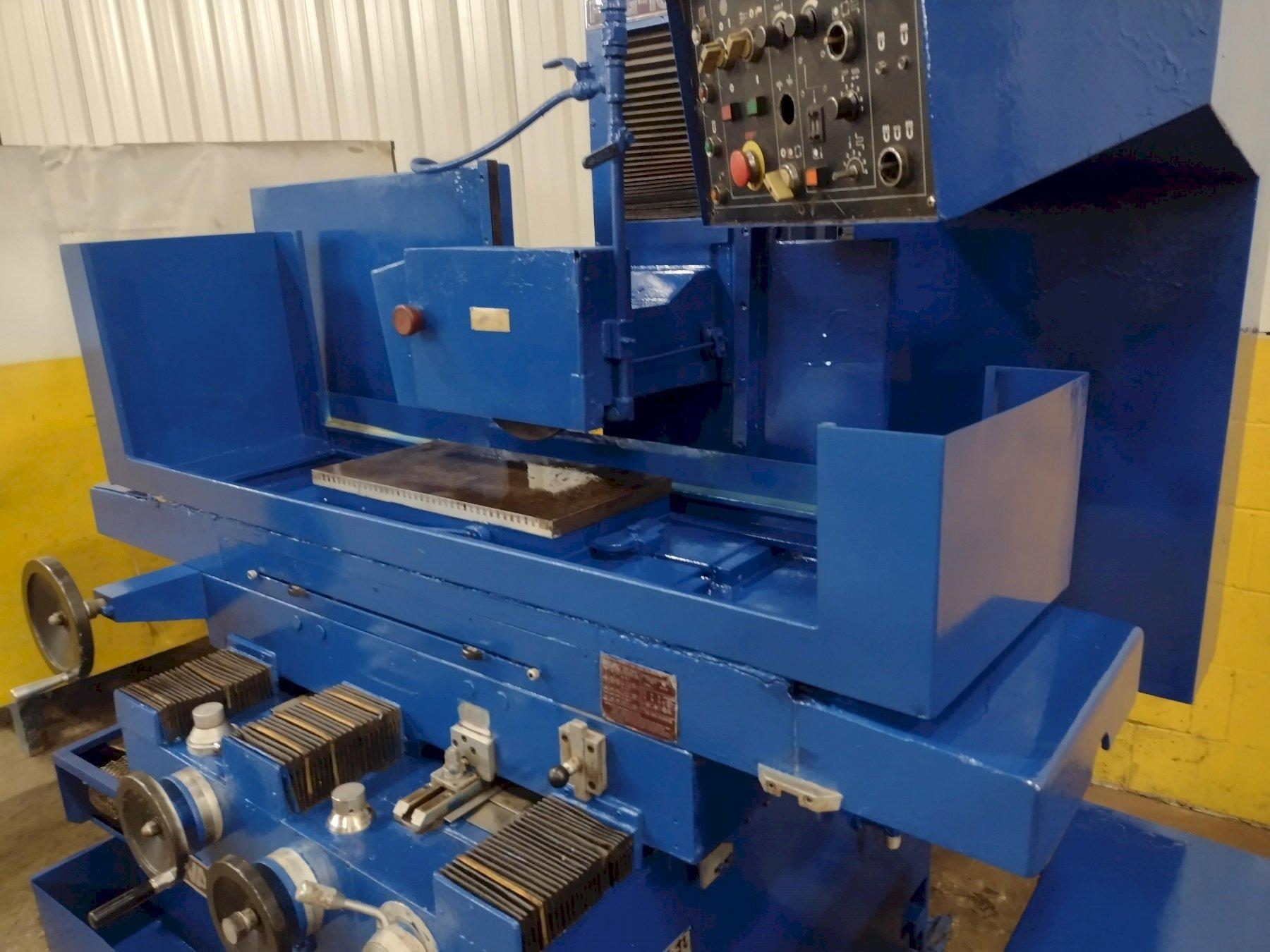

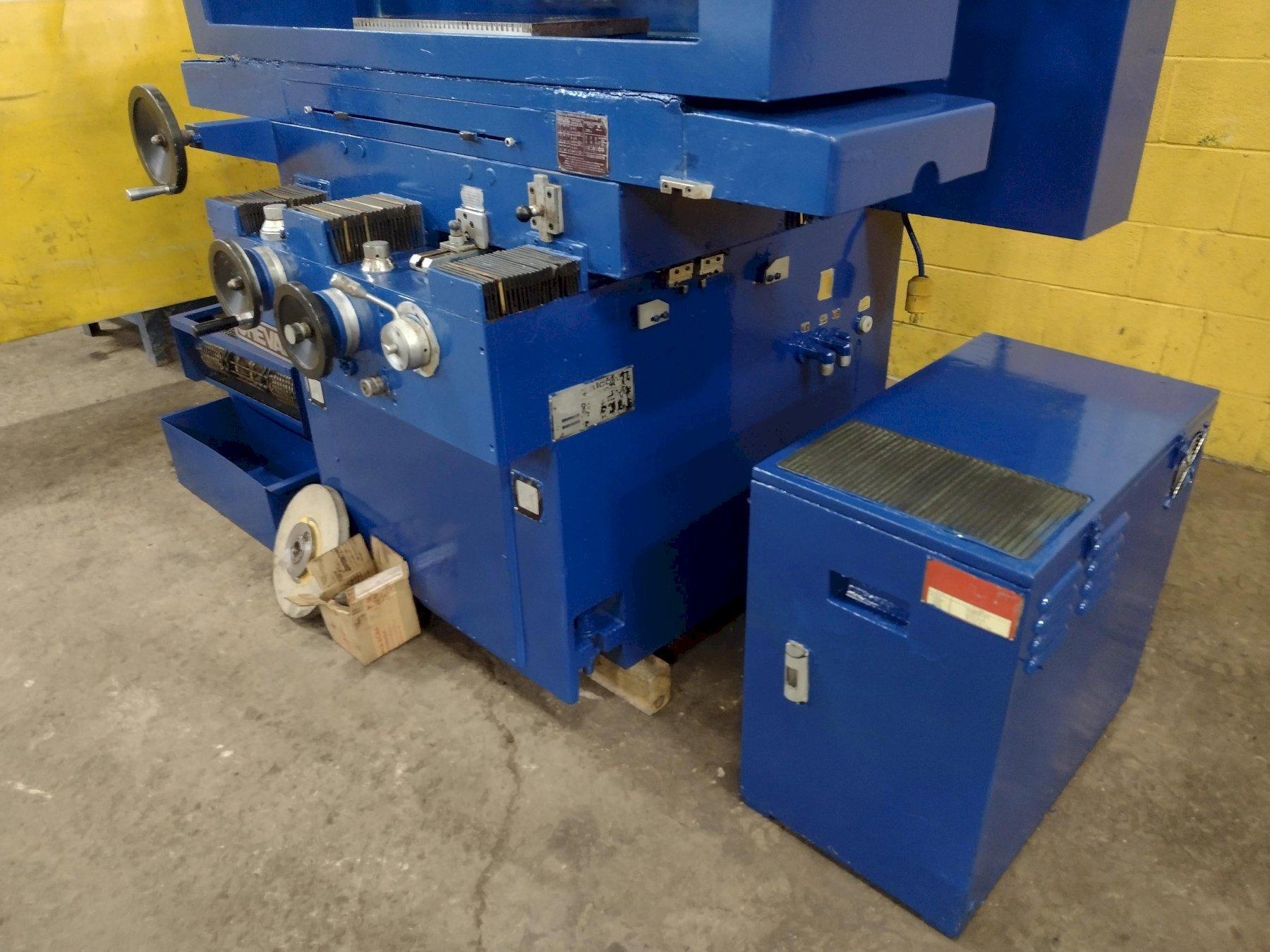

10" x 20" CHEVALIER MODEL #FSG-1020AD AUTOMATIC HORIZONTAL SURFACE GRINDER: STOCK #11959

Stock

11959

Model

10 X 020 FSG-1020AD

Dealer Location

Ohio

Spec Sheet



SERIAL ................................ 25077

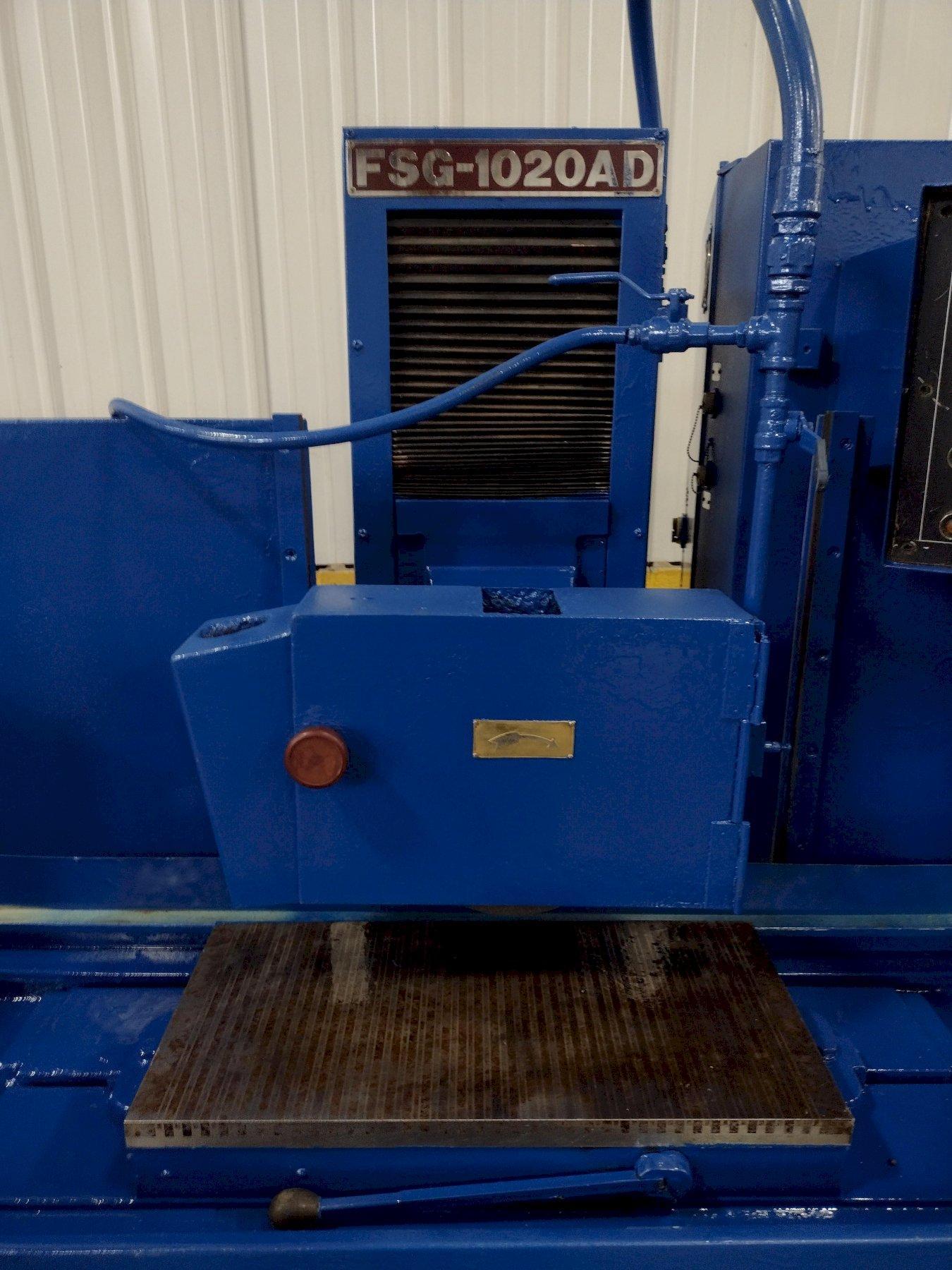

MODEL ................................. FSG-1020AD
YEAR NEW .............................. 1986
GRINDING CAPACITY ..................... 10" X 20"
SPINDLE TO TABLE (MAXIMUM) ............ 21"
LONGITUDINAL TABLE TRAVEL ............. 22-7/8"
CROSS TABLE TRAVEL .................... 10"
TABLE SPEED (VARIABLE) ................ 16 TO 82 FPM
SPINDLE SPEED ......................... 3450 RPM
GRINDING WHEEL SIZE ................... 12" X 1" X 3"

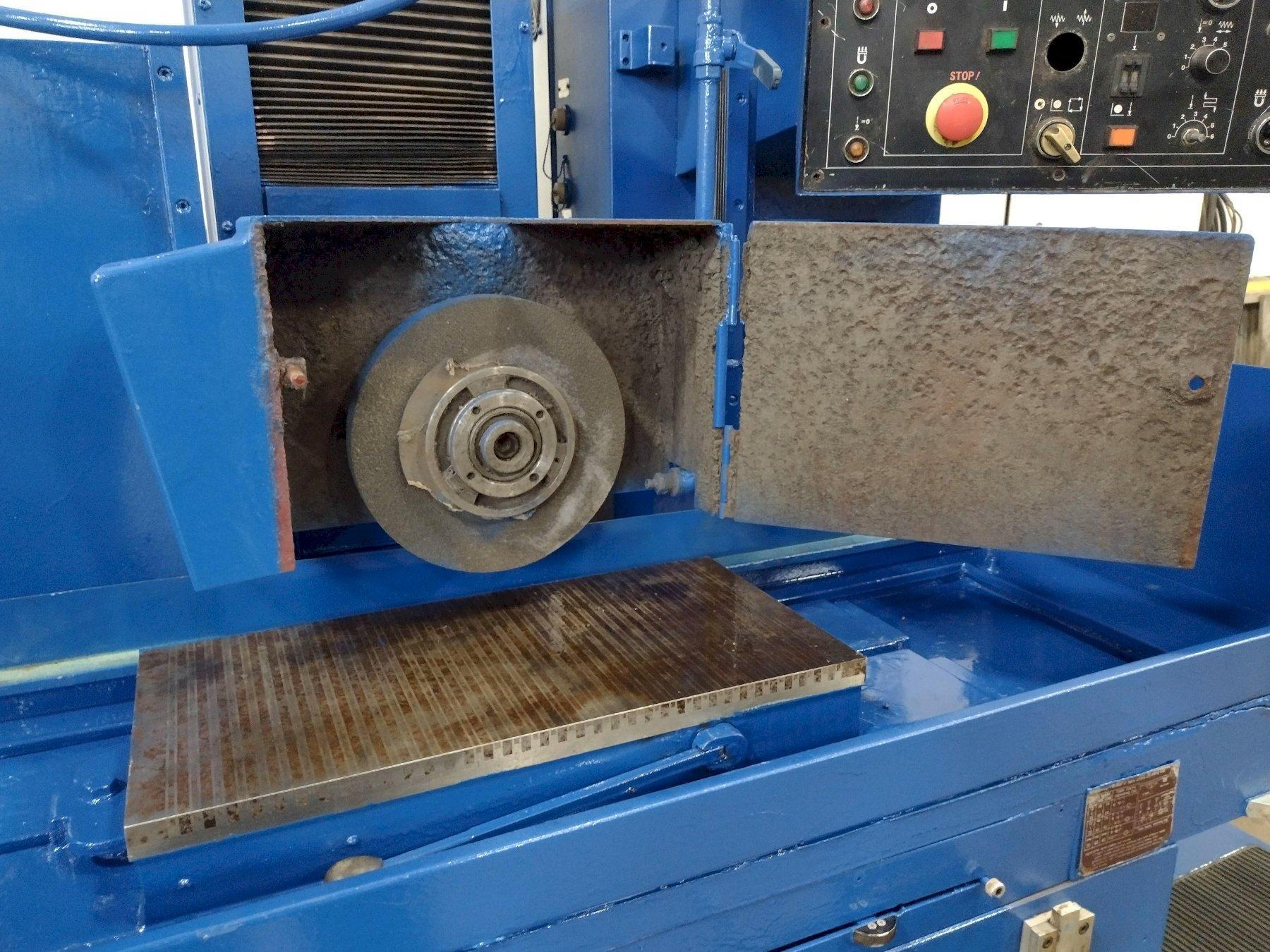

ELECTRO-MAGNETIC CHUCK SIZE ........... 19-3/4" X 9-7/8" X 2-7/8"
INCREMENTAL DOWN FEED ................. YES
AUTOMATIC CROSS FEED .................. YES
POWER ELEVATION ....................... YES

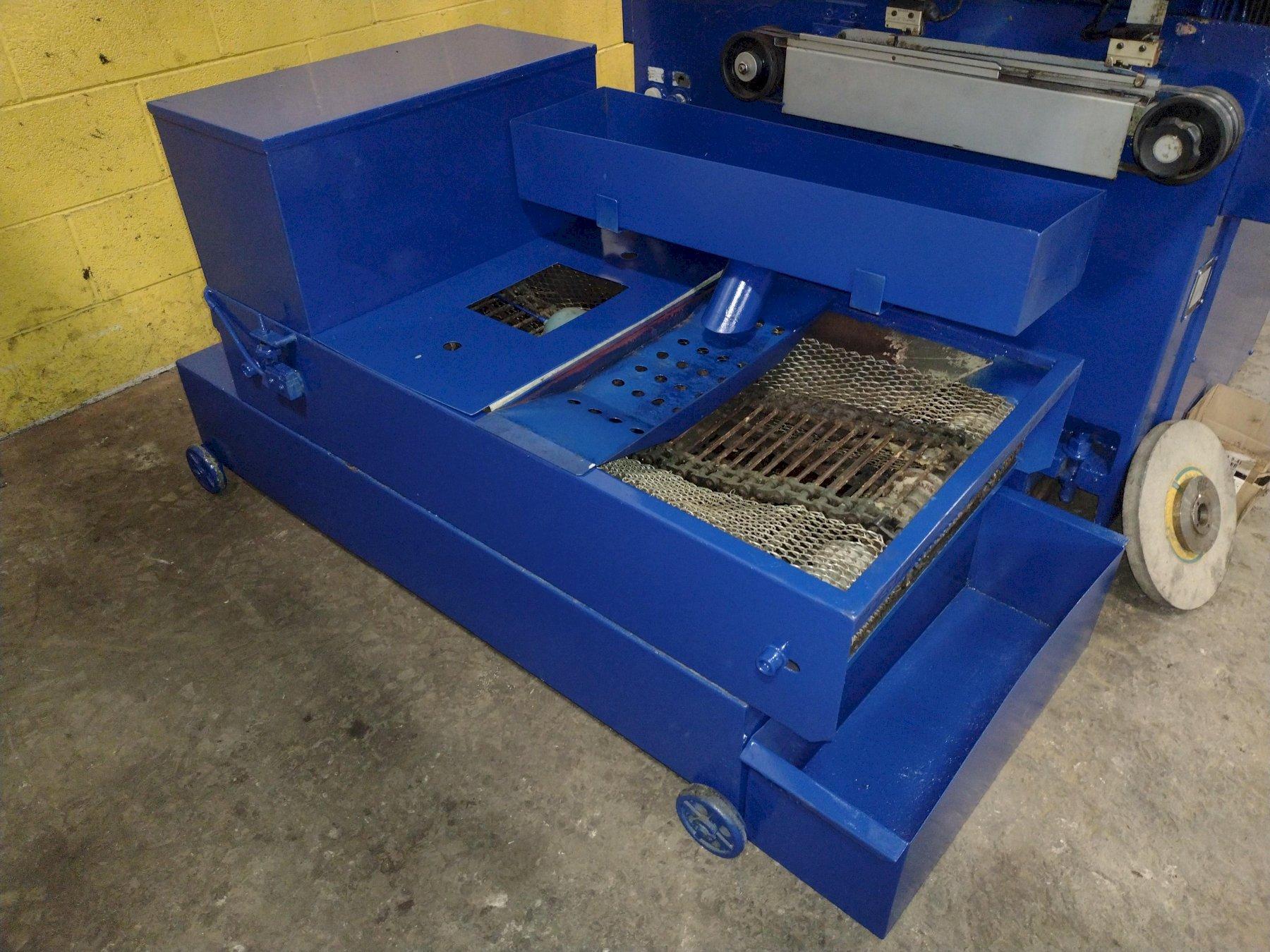

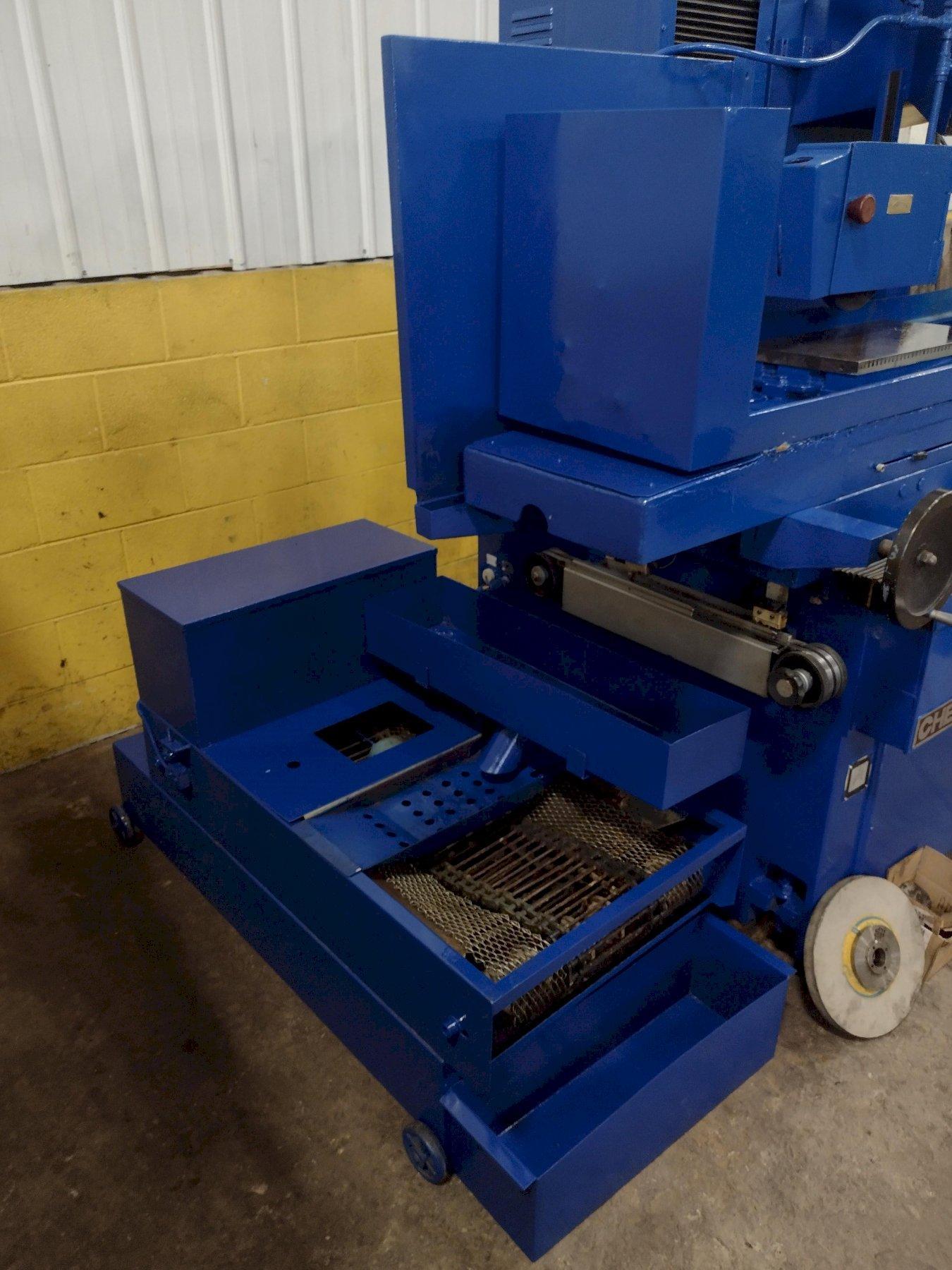

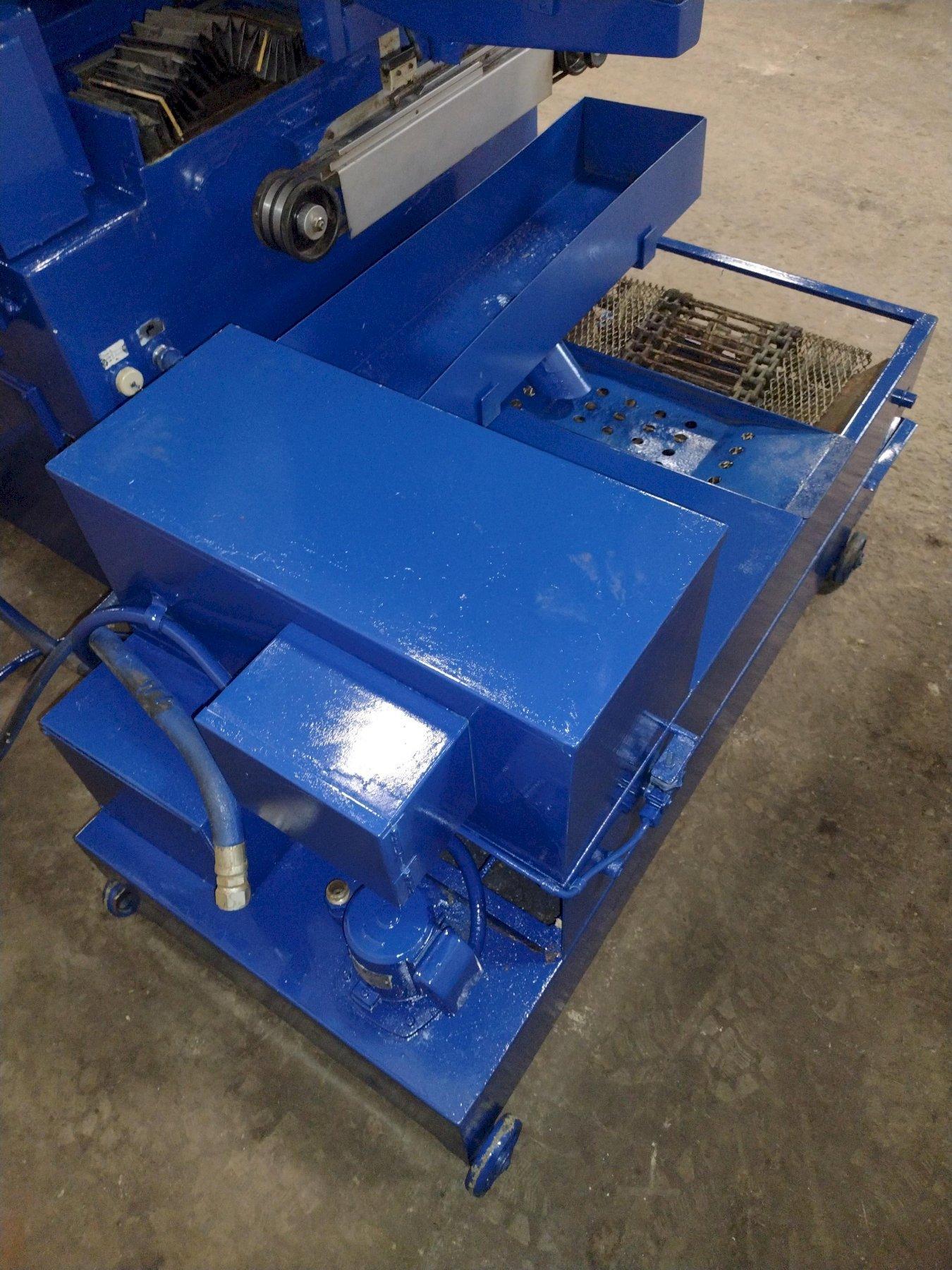

COOLANT W/PAPER FILTRATION ............ YES
OVER THE WHEEL DRESSER ................ YES

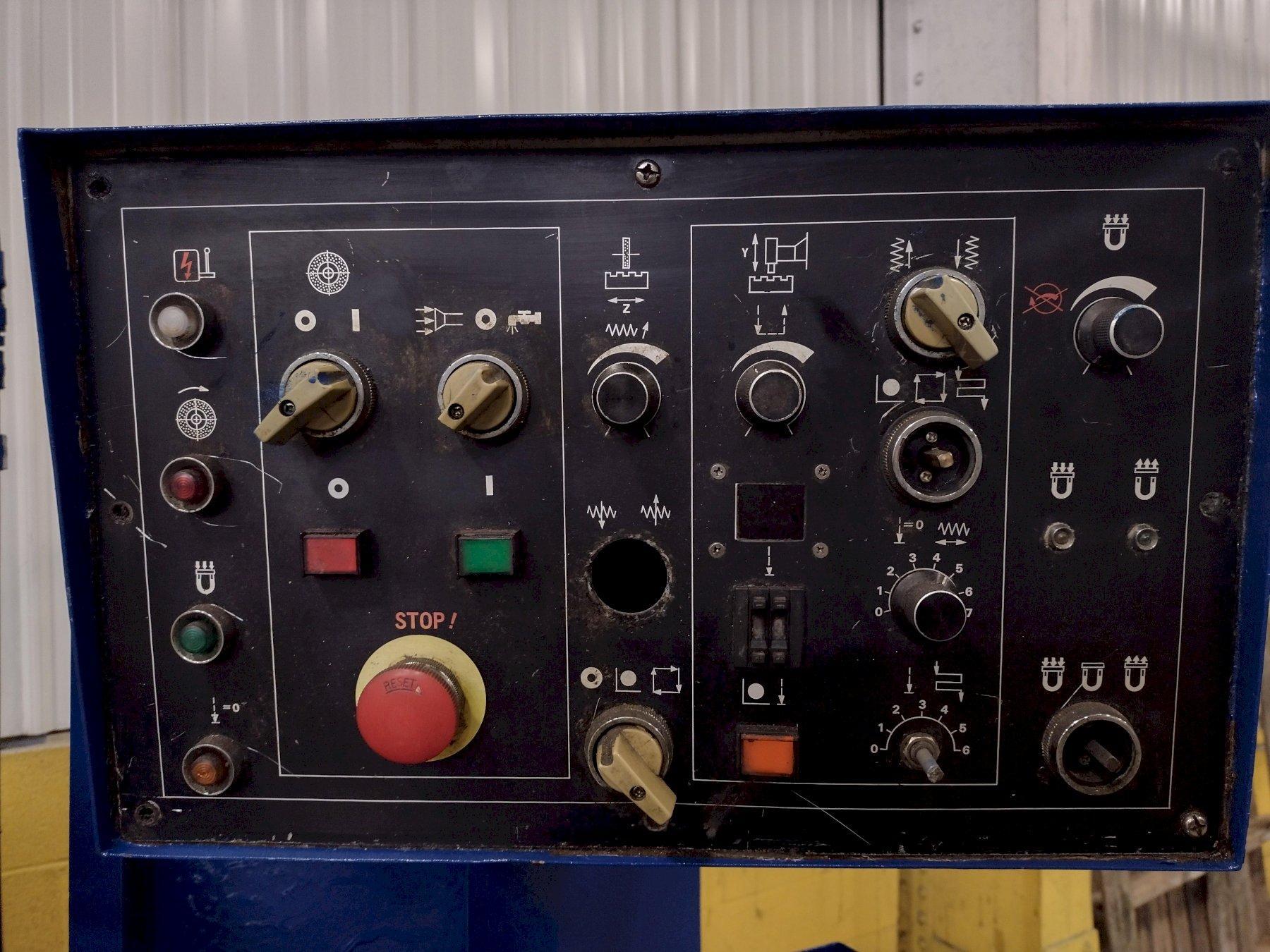

ELECTRO-MAGNETIC CHUCK W/CONTROLS ..... YES
SPINDLE MOTOR ......................... 3 HORSEPOWER

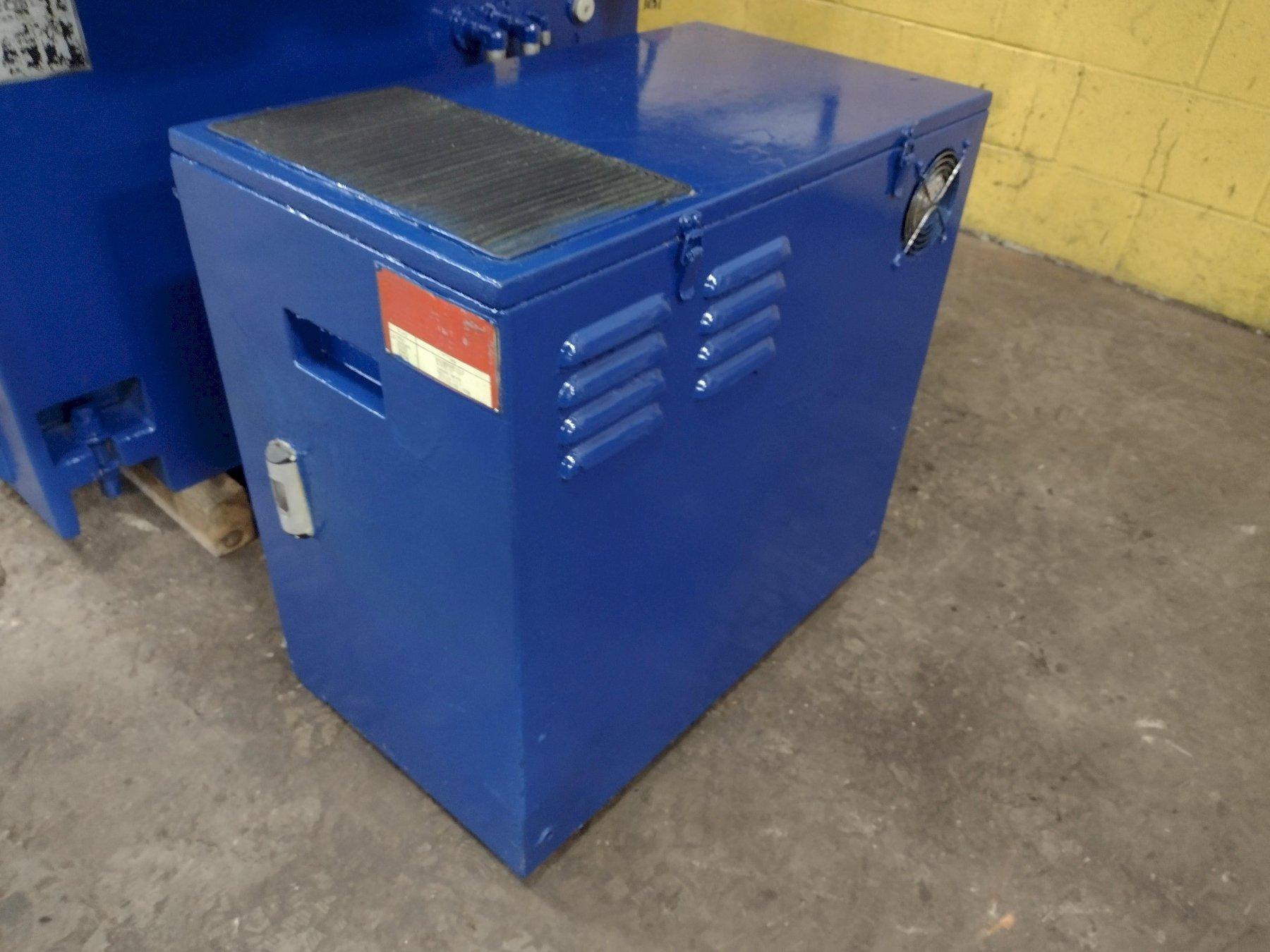

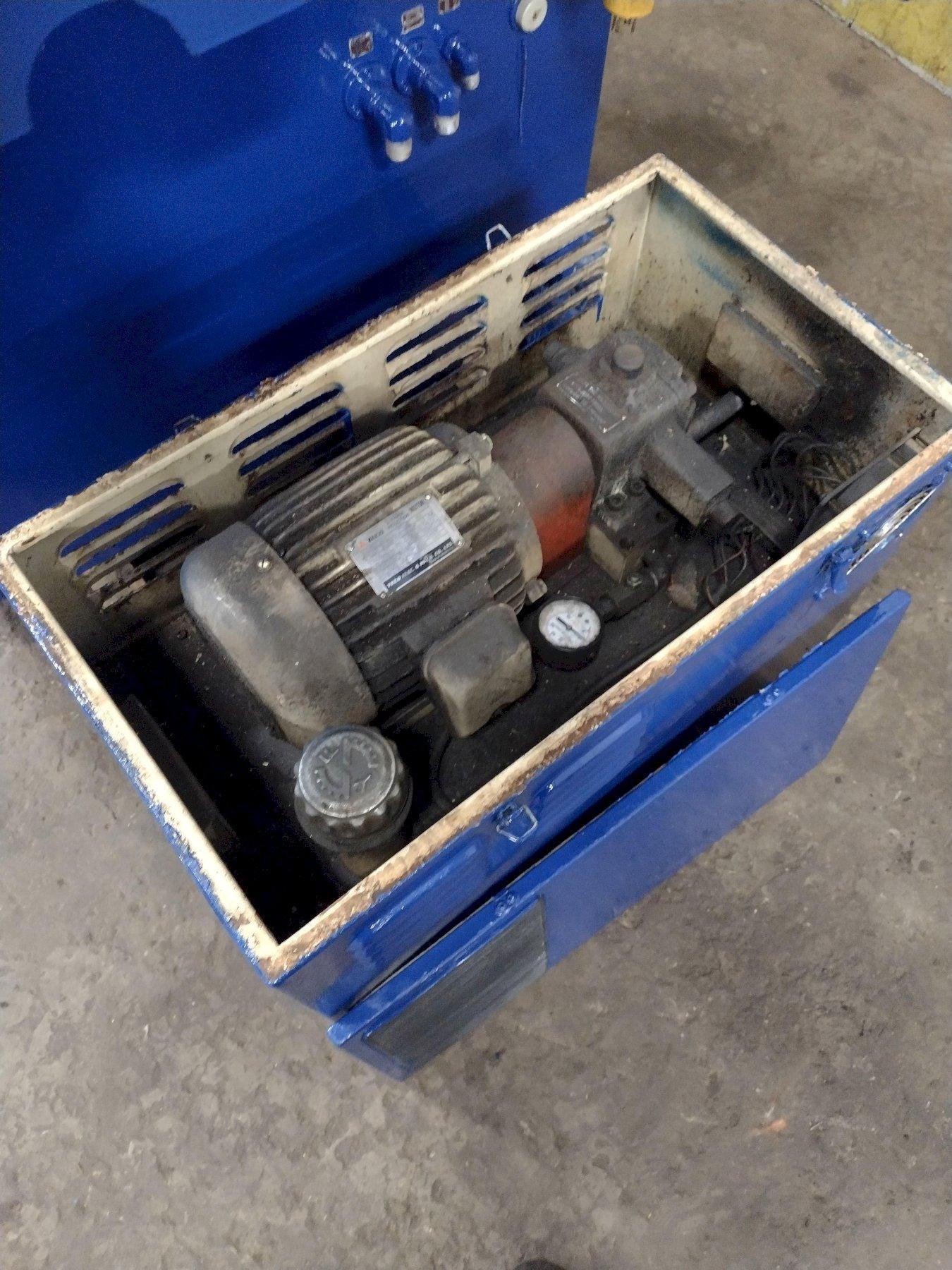

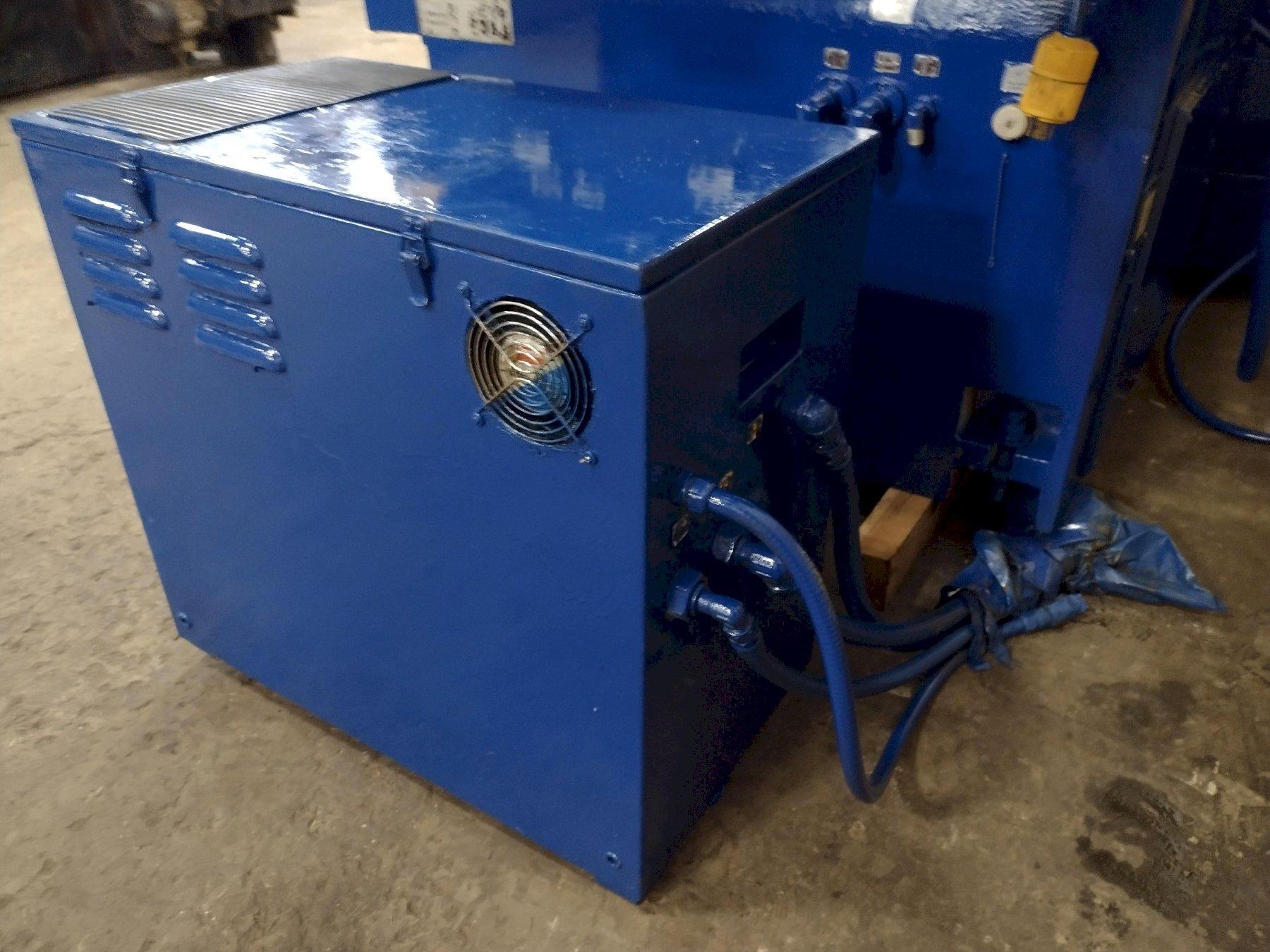

HYDRAULIC MOTOR ....................... 1 HORSEPOWER
