100/44 TON X 82' ACE CLASS E AC MILL DUTY BRIDGE CRANE: STOCK #12074

Manufacturer

ACE

Category

Cranes & Hoists

Type

CRANES, BRIDGE & OVERHEAD

Stock

12074

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 100 tons
Length of Span - 82 feet
Length of Span - 82 feet
Weight - 200000 pounds

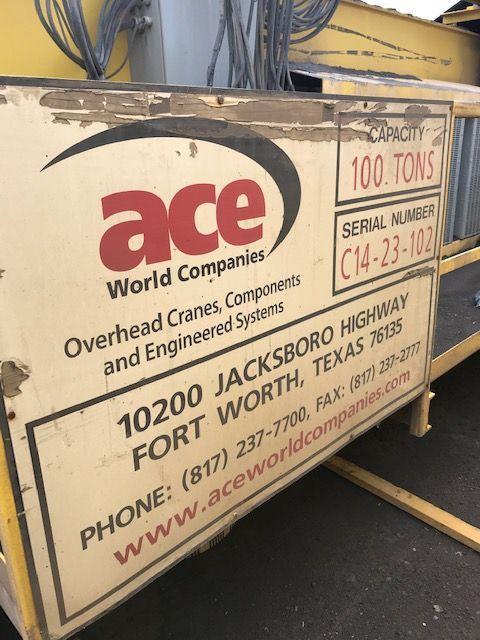

SERIAL ......................... C14-23-102
CMMA CLASS ..................... "E" INDOOR

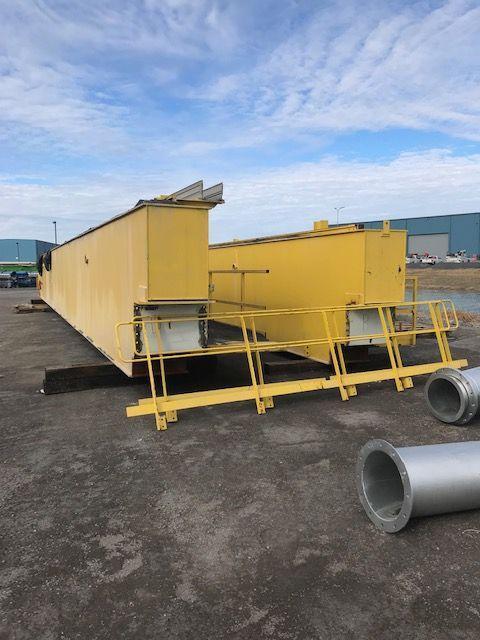

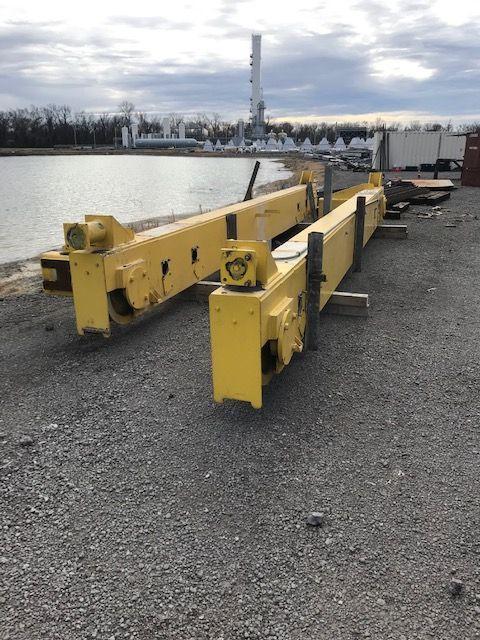

BRIDGE:
SPAN ............................ 82'
SPEED ........................... 0 TO 300 FPM (2) @40 HP

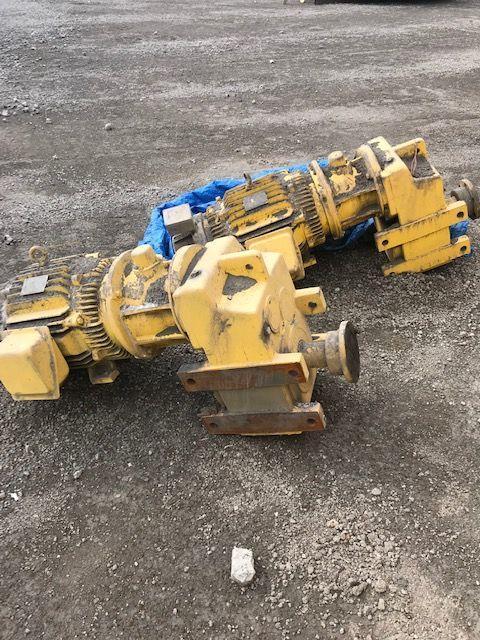

DRIVE TYPE ...................... A-4
WHEEL DIA ....................... (4) @24"
RAIL SIZE ....................... ASCE 171#

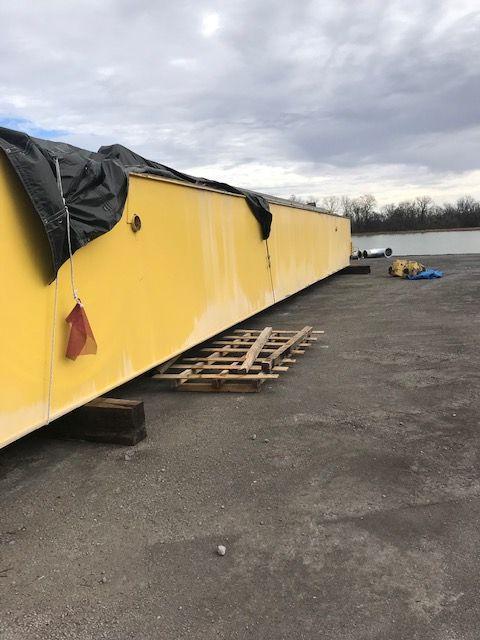

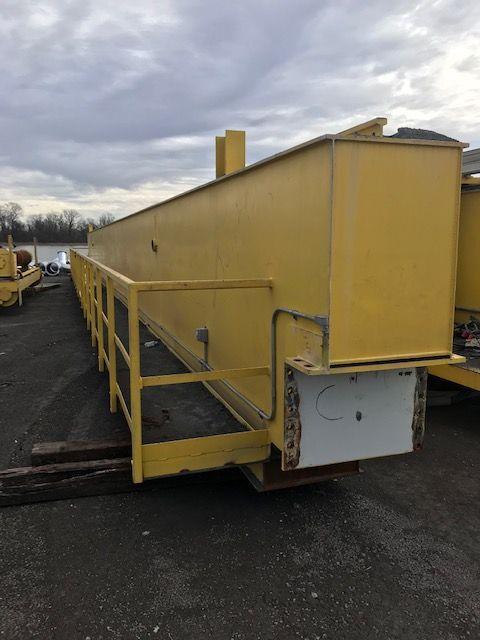

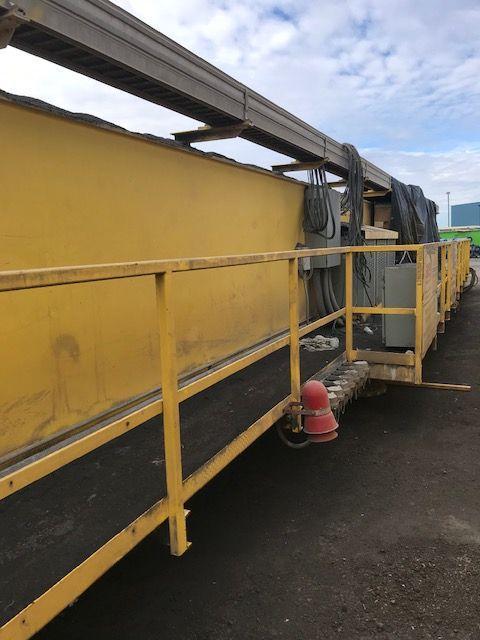

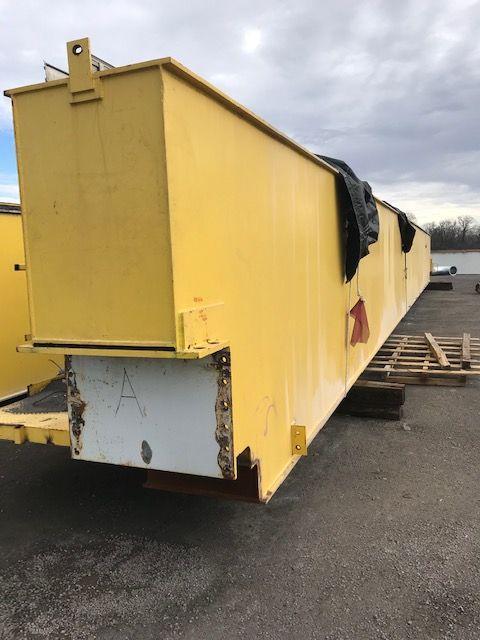

GIRDER TYPE ..................... FABRICATED BOX

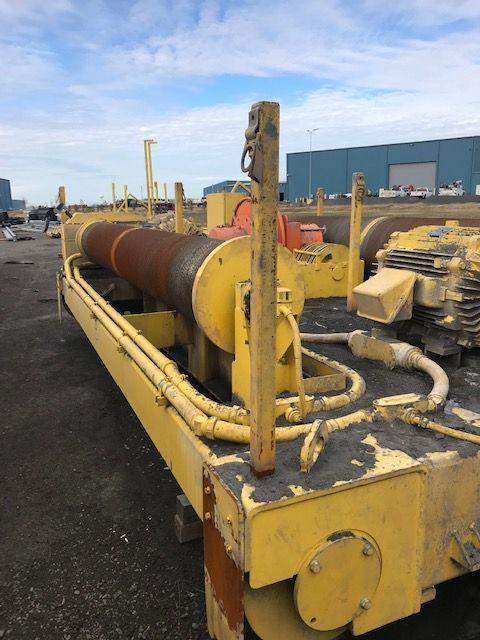

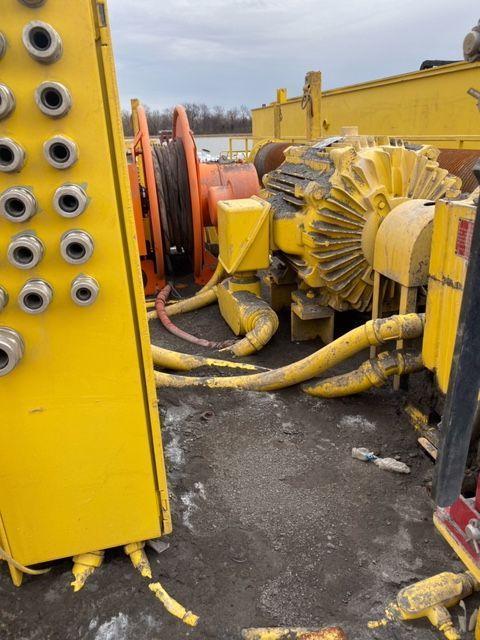

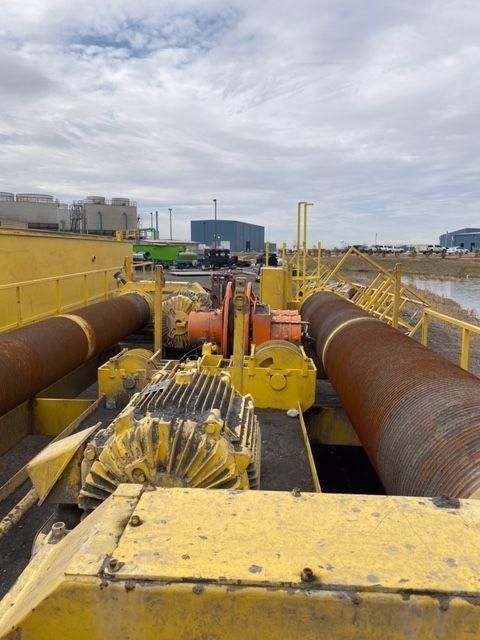

HOIST MAIN
CAPACITY ...................... 100 TON (200,000 LBS)
LIFT .......................... 115'
HOIST SPEED ................... 21/32 FPM (1) @ 150 HP

HOIST AUXILIARY
CAPACITY ...................... 44 TON (88,000 LBS)
LIFT .......................... 115'
HOIST SPEED ................... 50/75 FPM @ (1) 150 HP

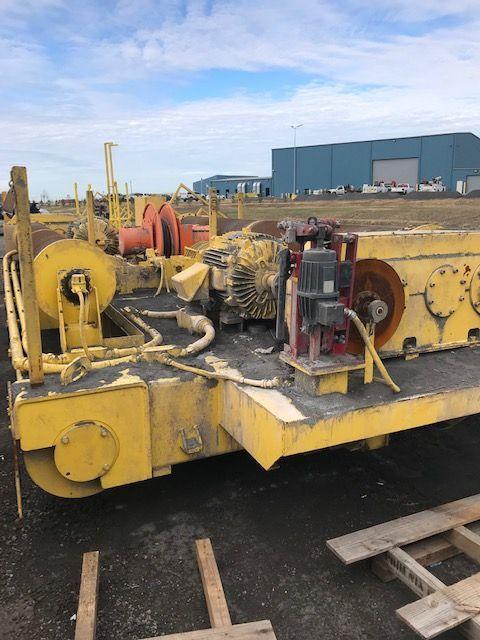

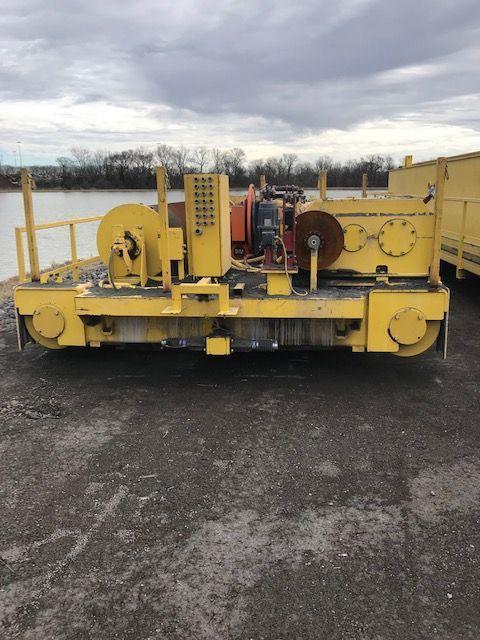

TROLLEY:
SPEED ......................... 0 TO 160 FPM (1) @40 HP
DRIVE TYPE .................... A-1
WHEEL DIA ..................... (4) @ 21"
RAIL SIZE ..................... A5CE @ 5#

INCOMING VOLTAGE .............. 460/3/60

TOTAL CRANE WEIGHT ............ 200,000 LBS
CONDITION: EXCELLENT
