2 HI 1 Stand Fenn Rolling Mill STOCK #12253

Manufacturer

FENN

Category

Rolling Mills

Type

ROLLING MILLS, 2/4-HI

Stock

12253

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Max Width Workpiece - 6.5 inches

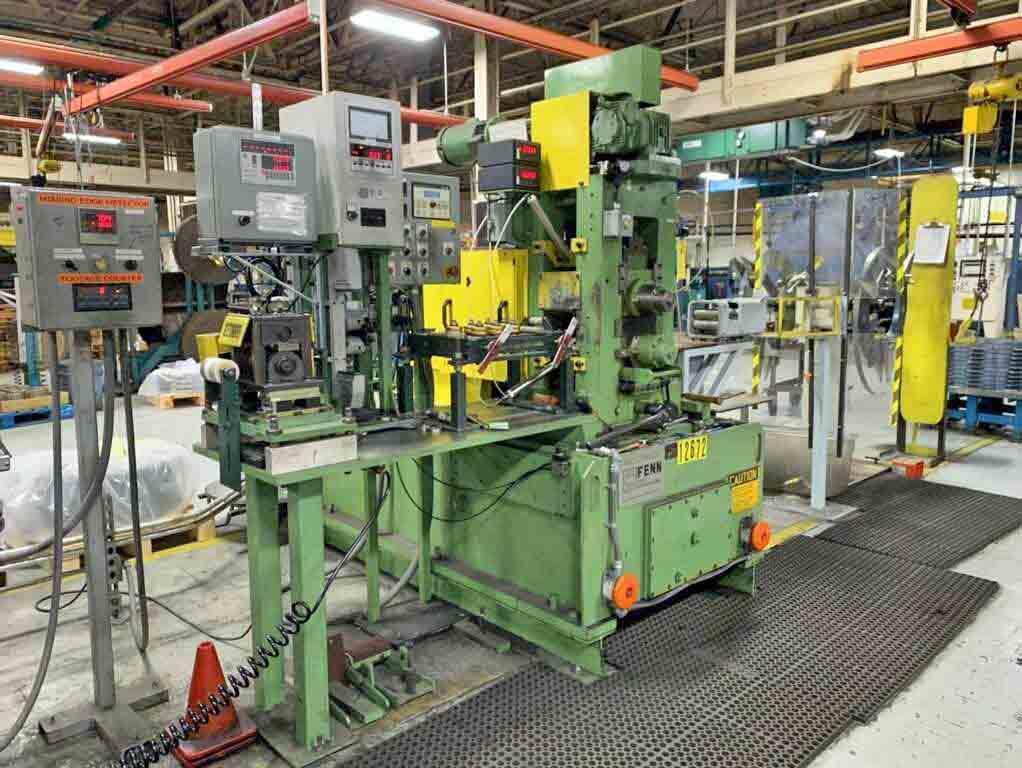

Fenn 2 HI Rolling Mill Line
Consisting of:

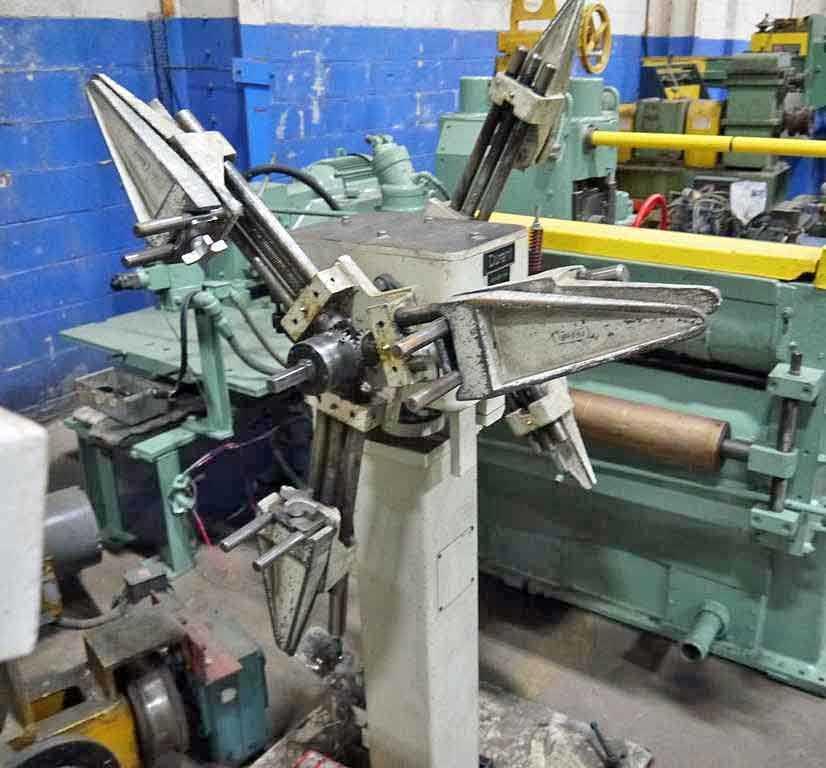

Durant Double-End Uncoiler:
  Model DDSC-1, SN:11122
  10" wide stock width max
  6" to 24" Coil I.D. Range
  Manual expansion
  600 LB. Coil Weight
  Mechanical drag brake
  Keeper arms and back plate
  44" dia. back plate

Entry pass line roll:

Keyence Roller guide box with Laser squareness gage/entry side:

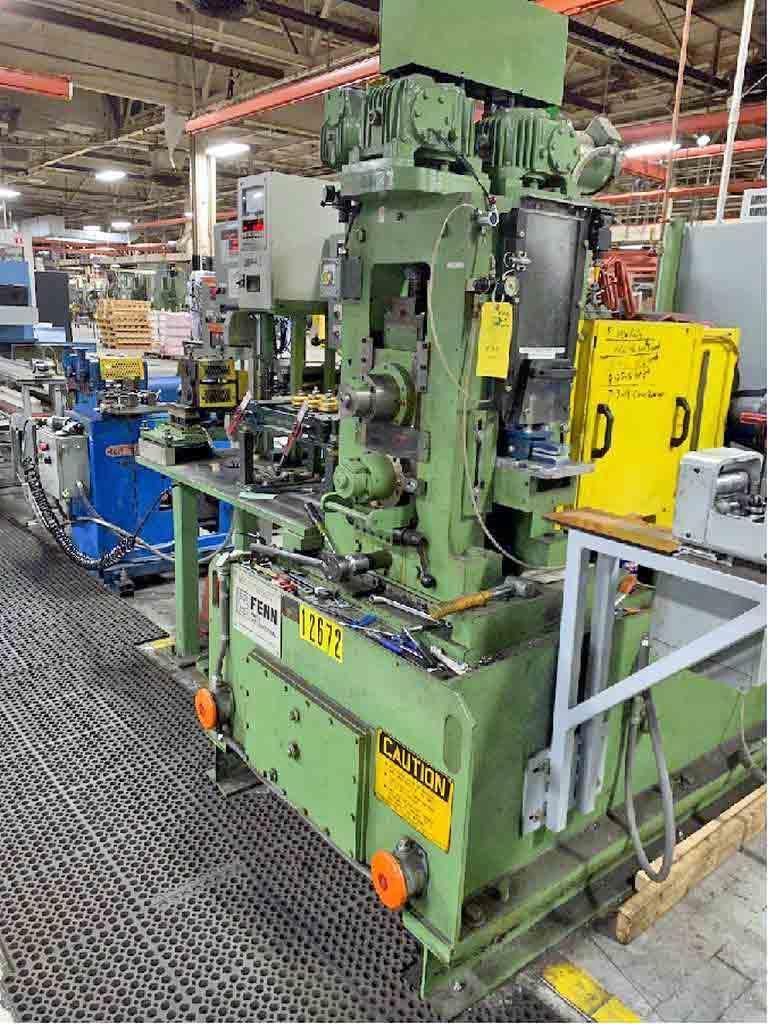

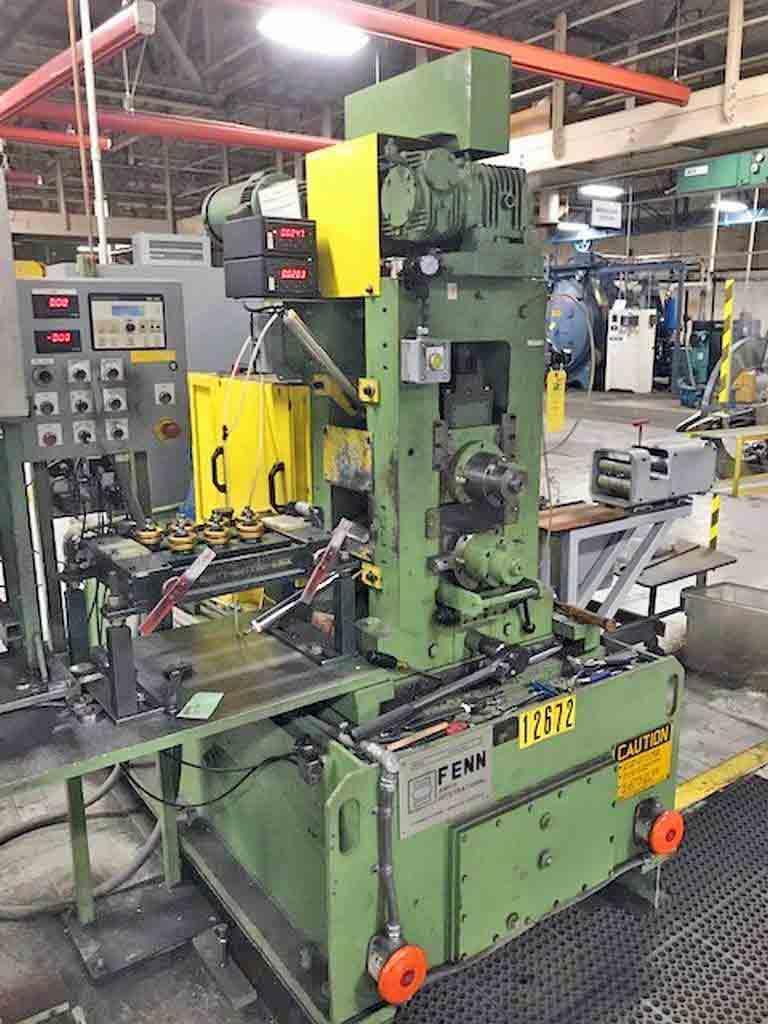

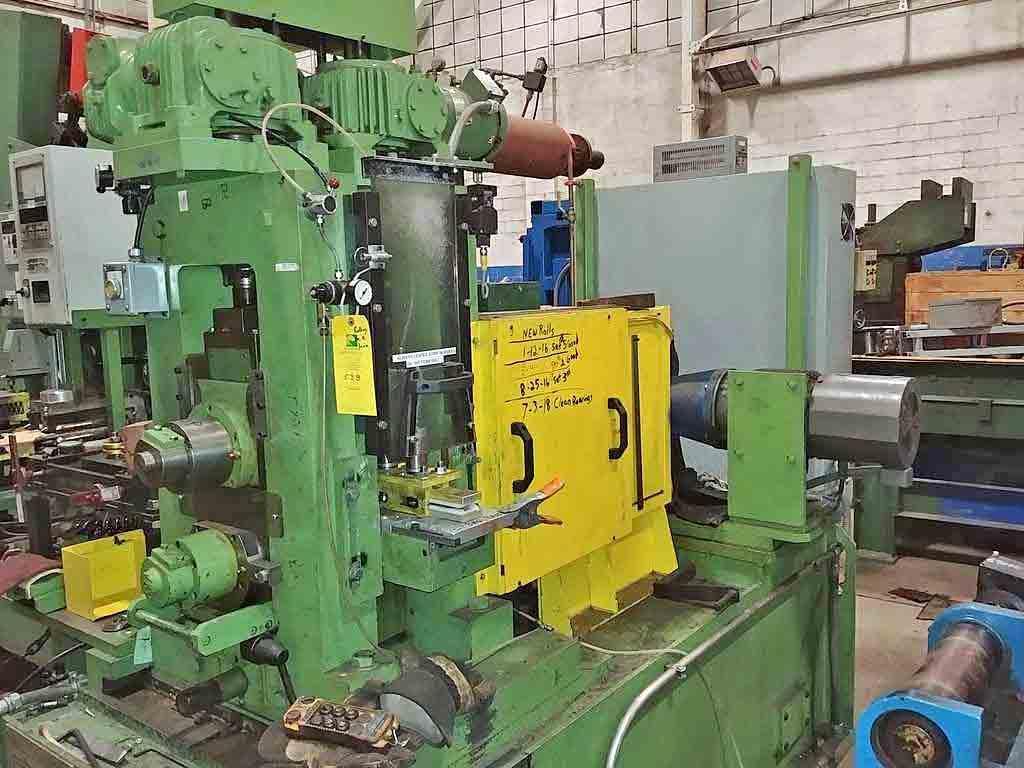

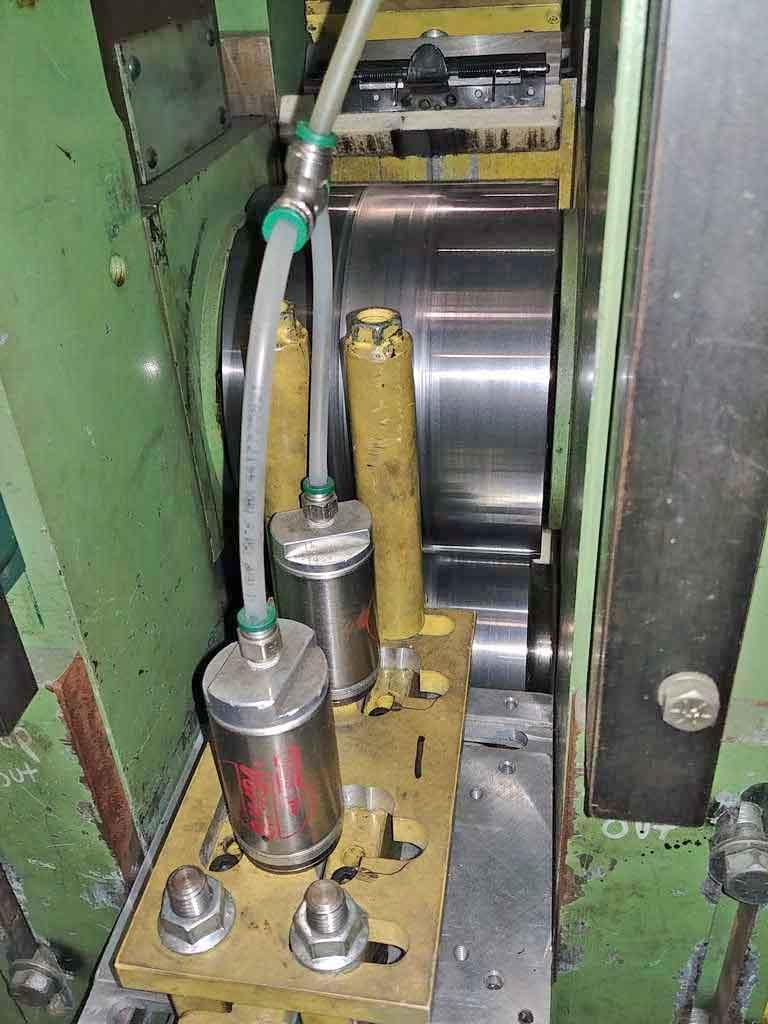

Fenn 2 Hi Wire Flattening Mill:

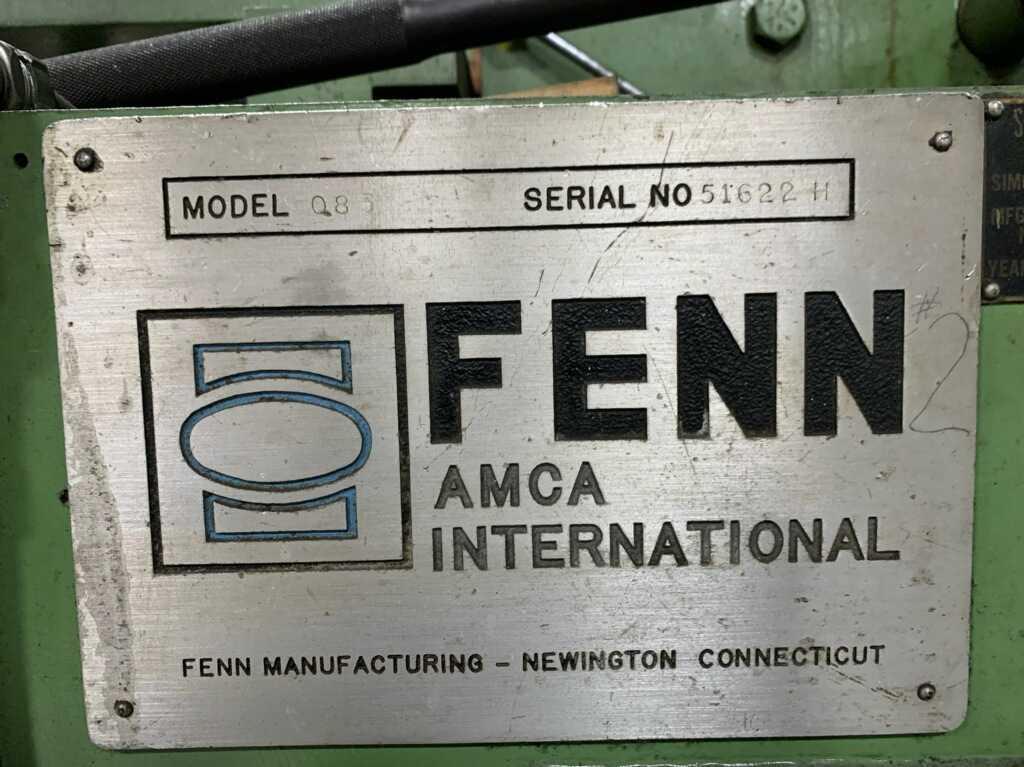

  -Model Number:        083
  -Rolls:
    Diameter:         8" (203.2mm)
    Roll Face:        6.5" (165mm)
    Type:             Carbide Rolls
  -Column Size:       4.875" x 5" (123.8mm x 127mm)
  -Window Opening:    8.5" (215.9mm)
  -Bearings:          Fenn Type Roller Bearings
  -Drive Motor:       5 HP Vector Drive Motor, 1750 RPM, 230/460 V
  -Reducer:           Pinion Stand / Reducer
                      30:1 Ratio
  -Screwdowns:        Motorized 1 HP Drive with AC Clutch

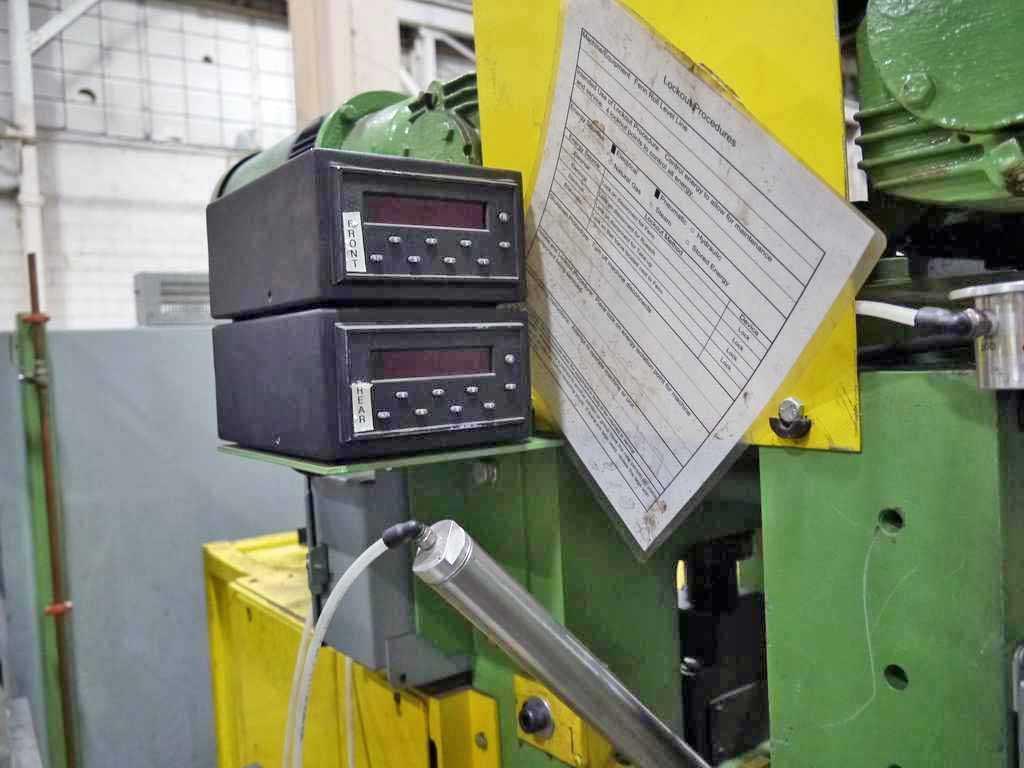

                      Digital position indicators for front and back
  -Drive Joints:      Square Type Universal Joints

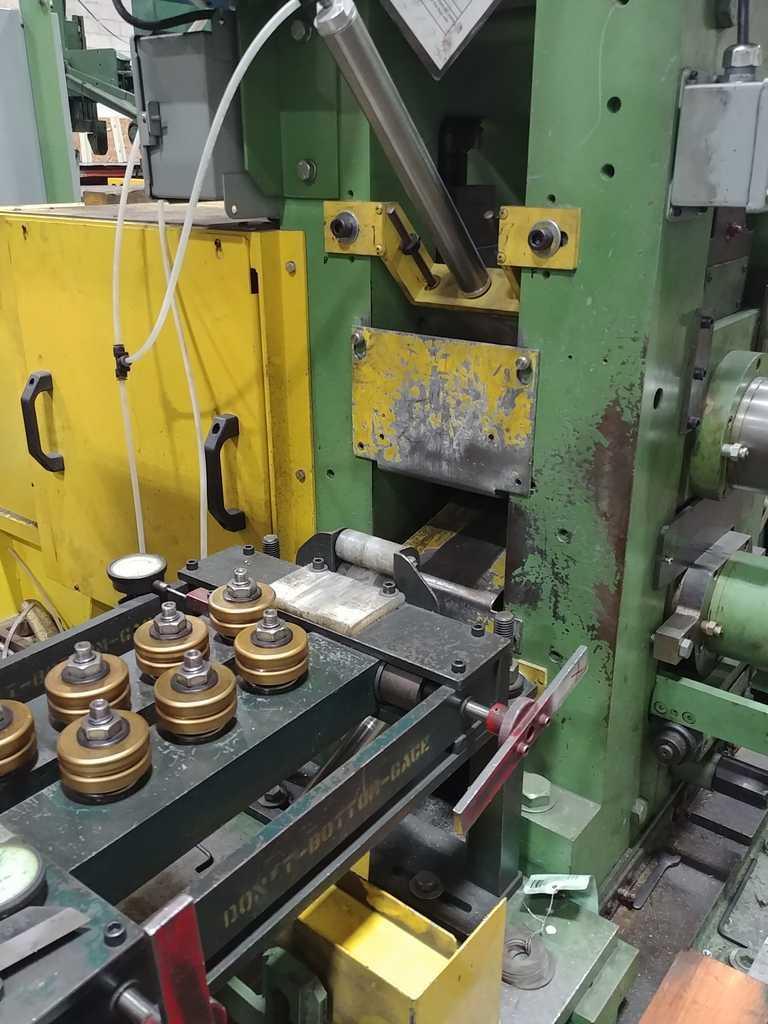

  -Entry Stand with Hold Down, adjustable Side Guides
  -Top and bottom roll pneumatically operated Roll Wipers
  -Exit stand with pneumatic hold down roll and adjustable side guides

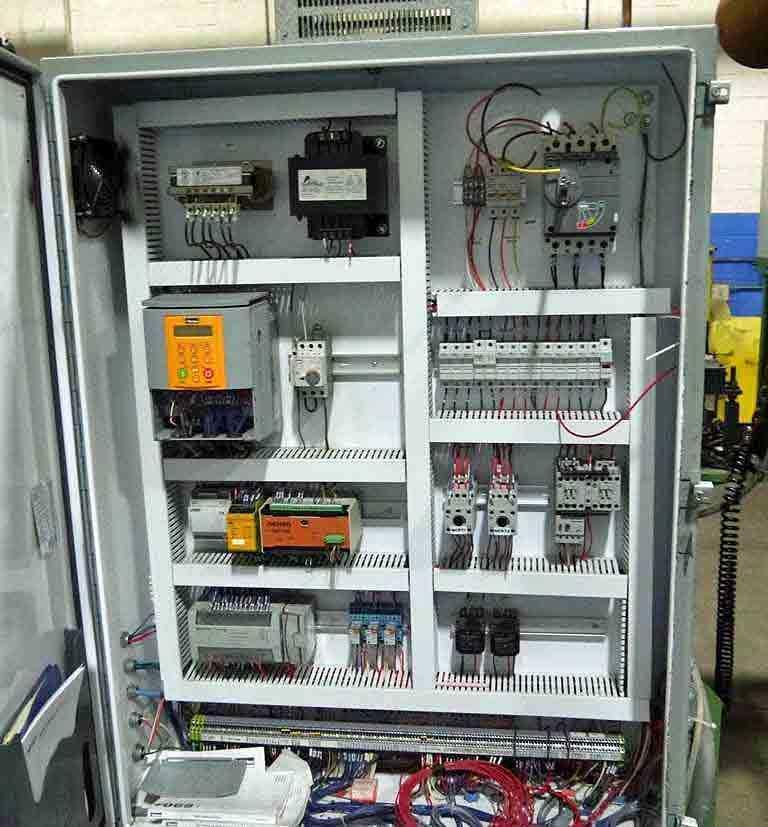

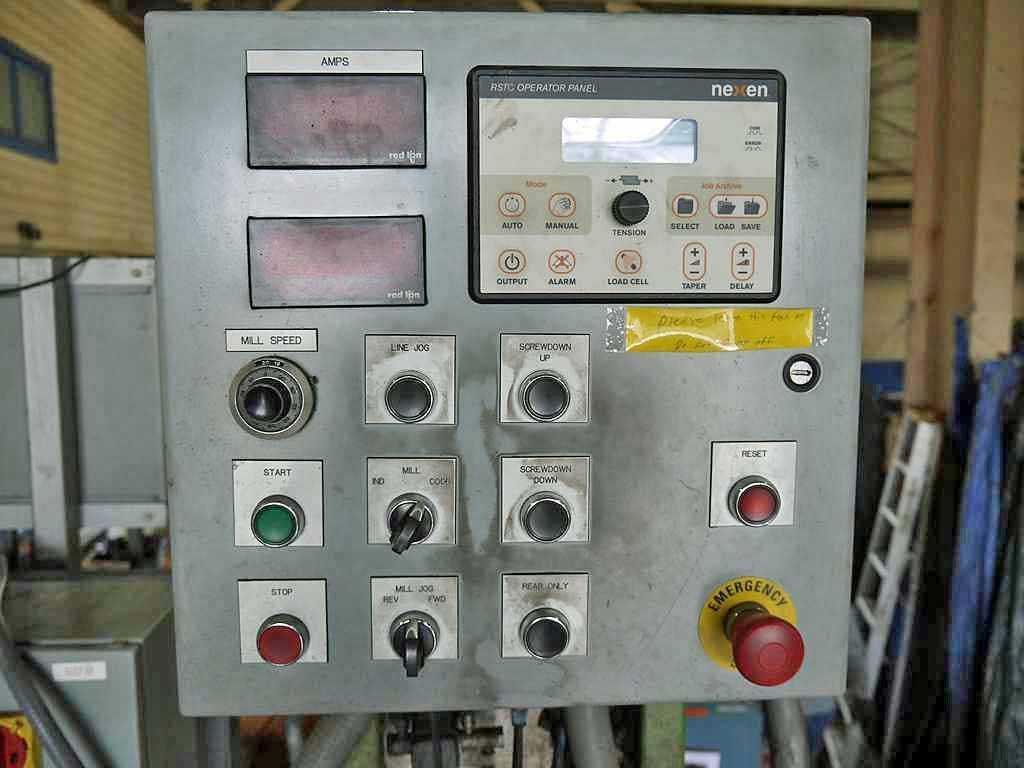

  -Mill Controls, New in Aug 2010

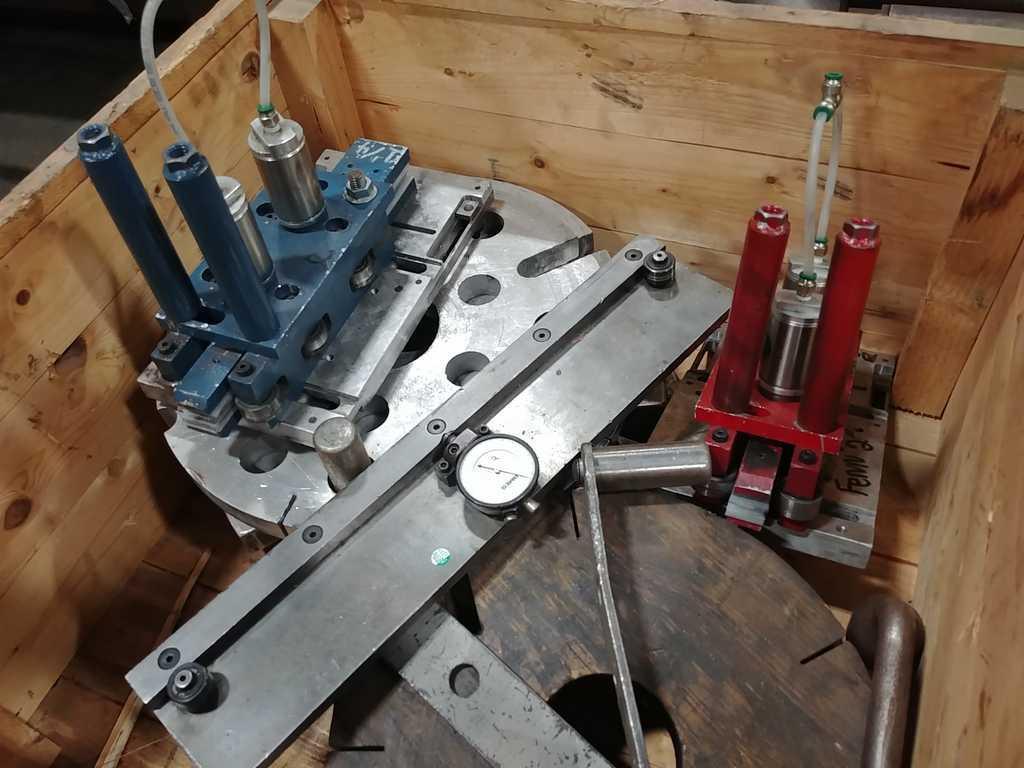

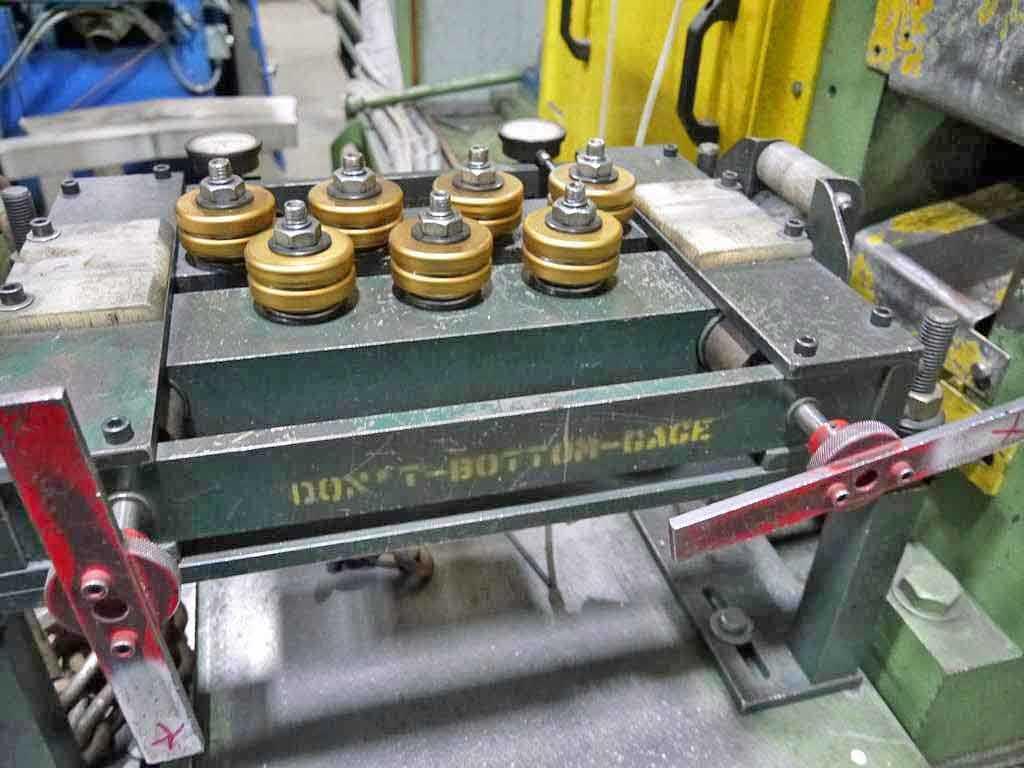

-Decambering and Edge Condition Box:
  7 adjustable Rolls (2 with dial indicators for position)

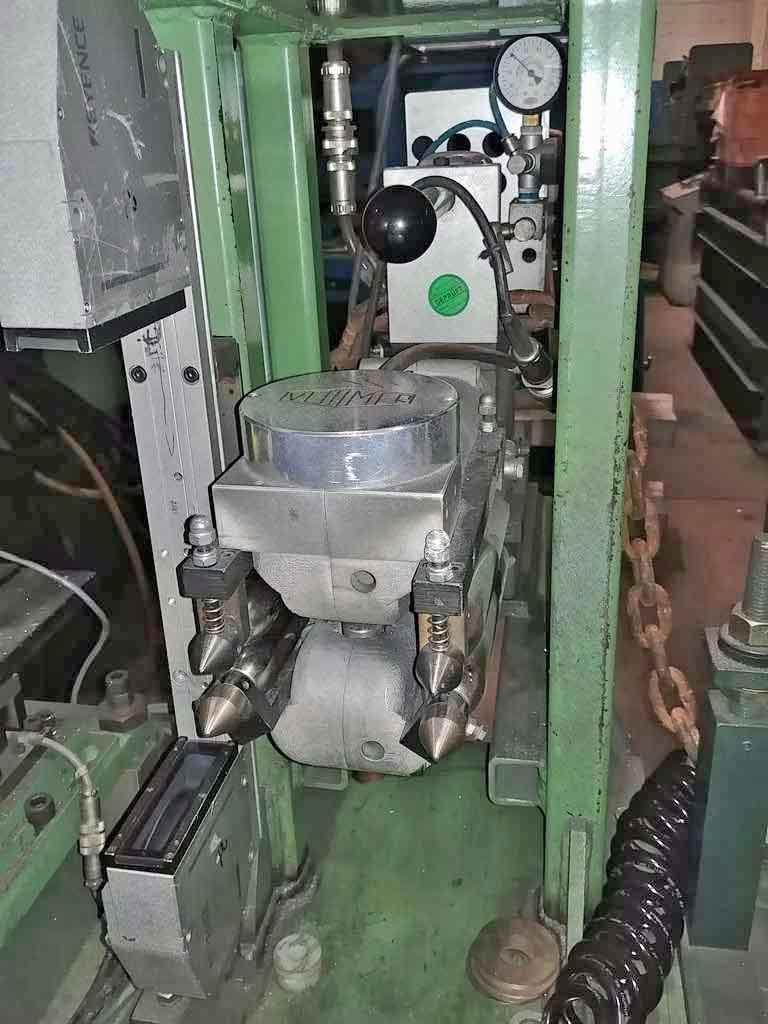

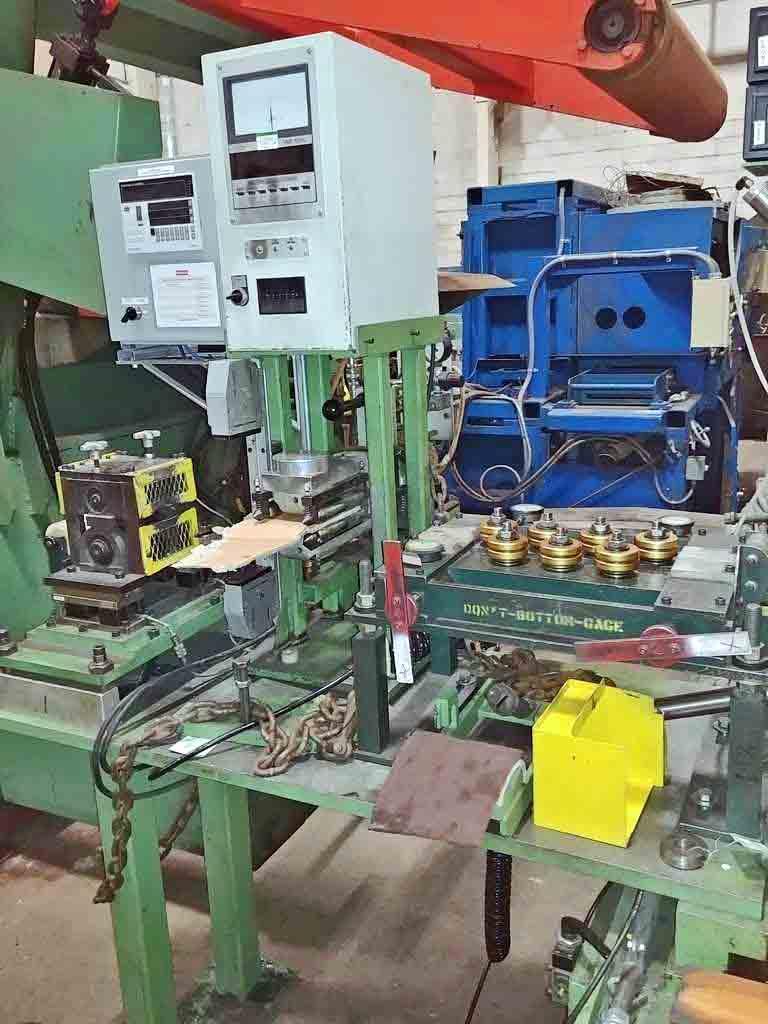

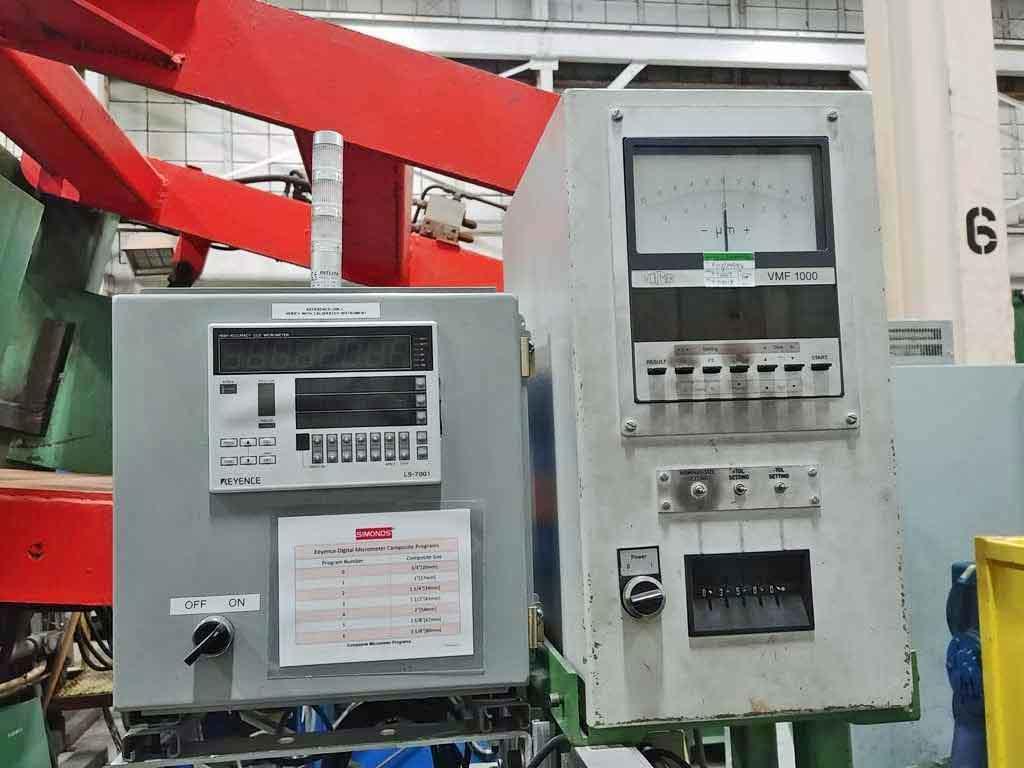

-Vollmer VMF-1000/F55-series Contact Thickness Gage:
  New in 2007
  Machine Number P07/19988
  Vollmer mounting table, 6" traverse

-Keyence Laser width micrometer:
  Keyence digital read out
  Model LS 7070R -Gage
  Model LS-7001 -Readout
  Width accuracy +/- 3 micron

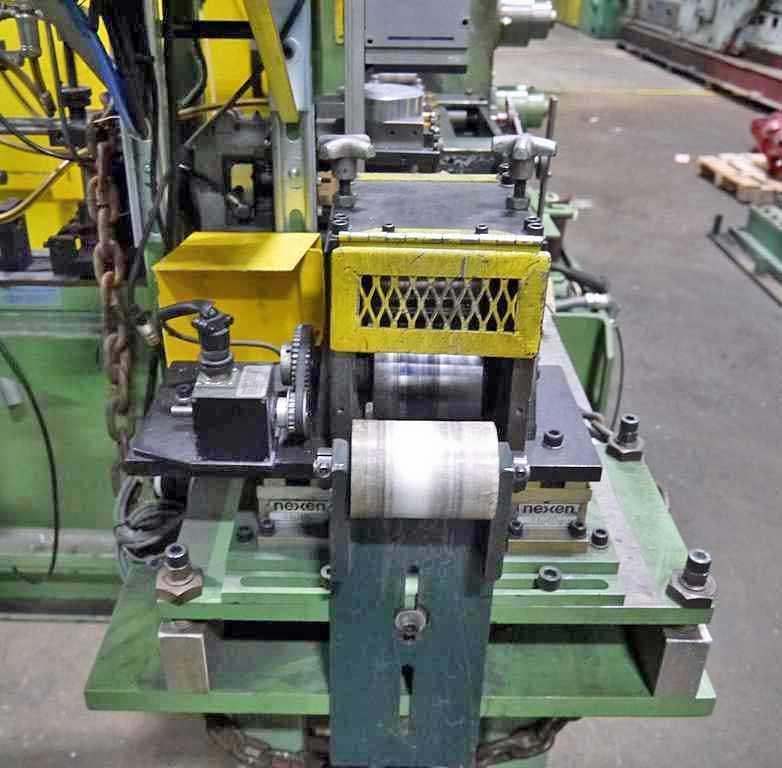

-Pinch Roll Stand:
  Nexum load cells for closed loop tension control
  Belt driven encoder for tach feed back
  Manual roll height adjustment

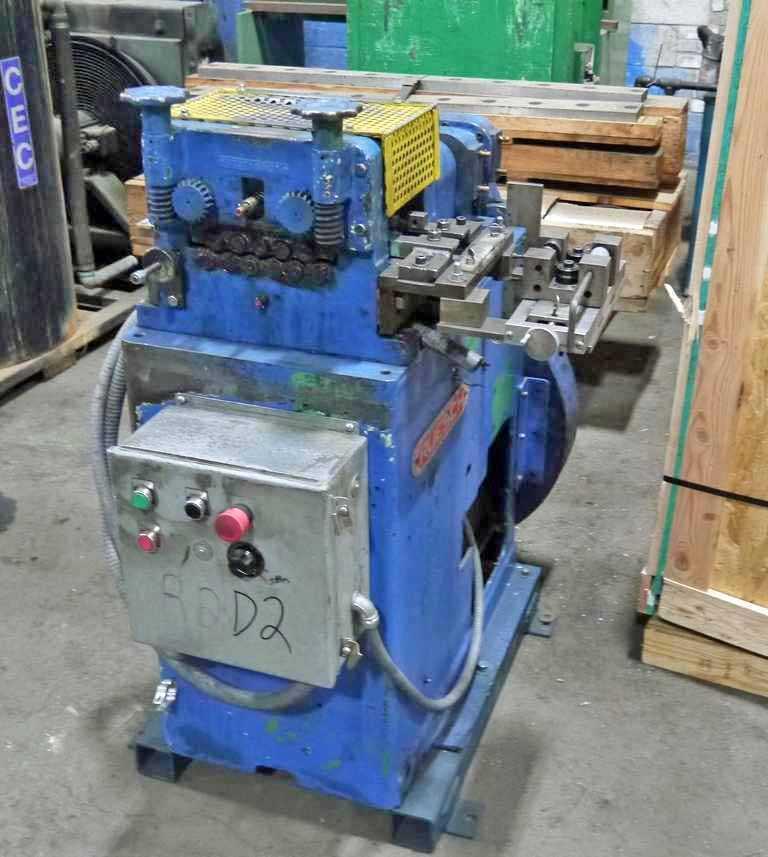

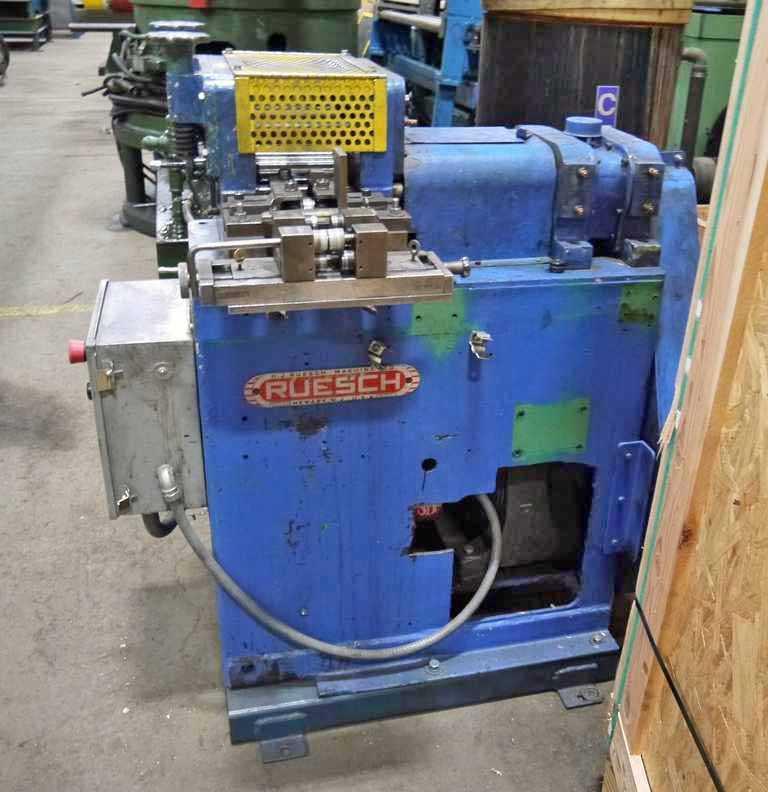

-Ruesch Straightener:
  Model 65 - 5A
  11 Rolls, 5 over 6 arrangement
  Entry squaring guides
  1" dia. x 6" face Rolls,
  AC VS Drive

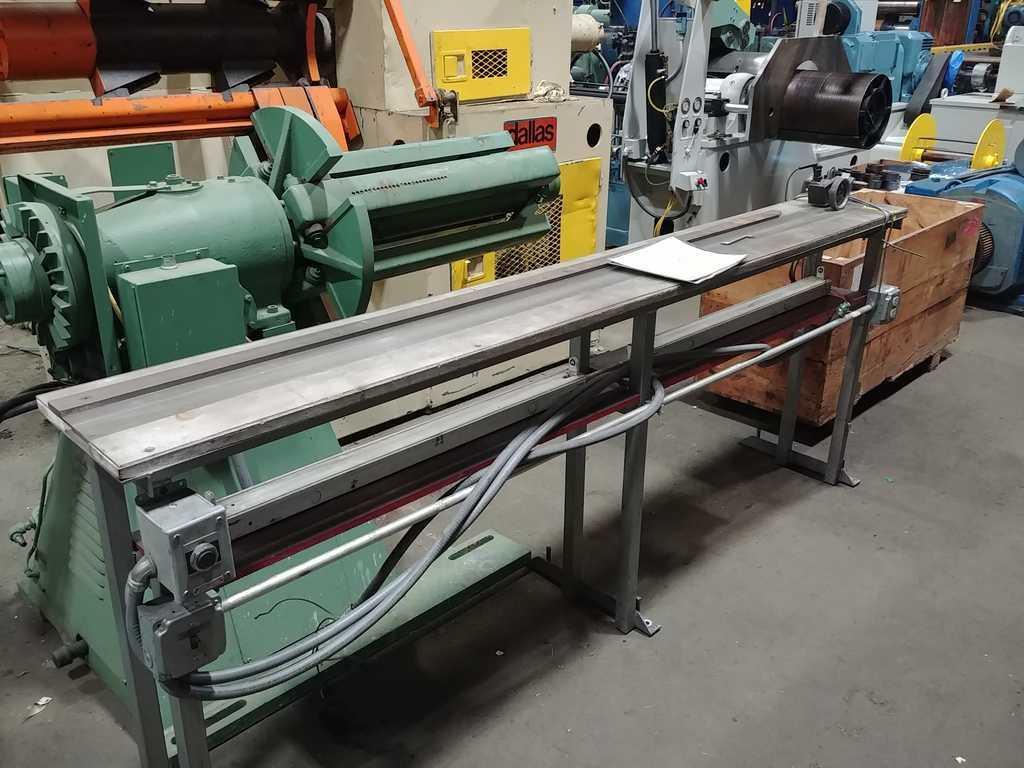

-Inspection Table:

-Keyence Laser squareness table:
  4 laser sensors
  Square edge
  Computer and software

-Length Counter:

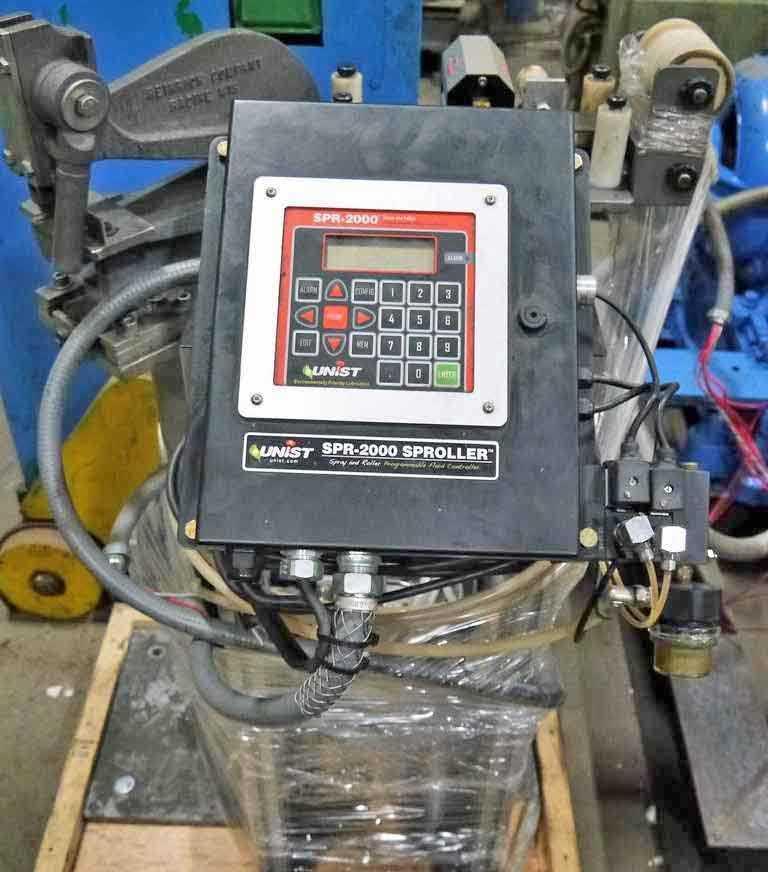

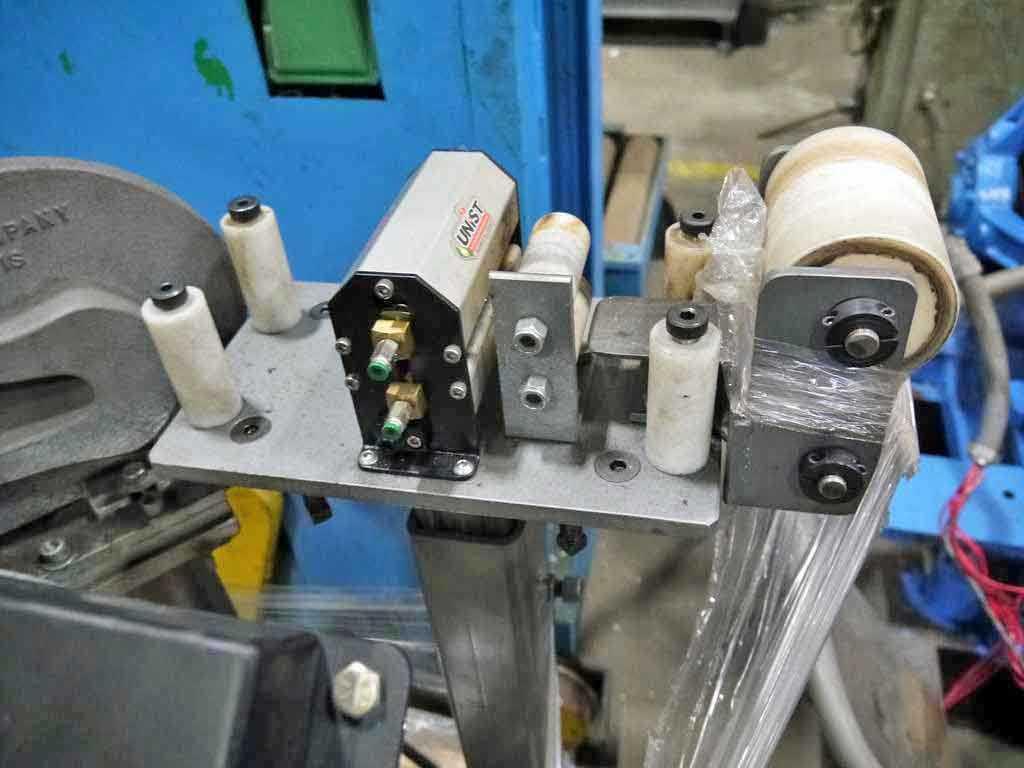

-Unist Oiler:
  Model SPR-2000 controller
  Mini Roller lube applicator
  Material thickness range .006" to .060"
   -For use with water soluble and neat lubricants.
   -Viscosity from 30 – 1000 SUS.
  4" max strip width

-Heinrich Company Hole Punch machine:
  Manual operation
  Model 6

-Durant Double End Recoiler:
  Model VS-DDM-1R
  Each reel independently driven by 0.75hp DC motor, 1750 rpm
  600 lb coil weight capacity per side
  Manual expansion range 6" to 24"
  Solid cores for attaching the metal strip to, 0.75" wide
  Core ID ranges 10" - 14" and 16"
