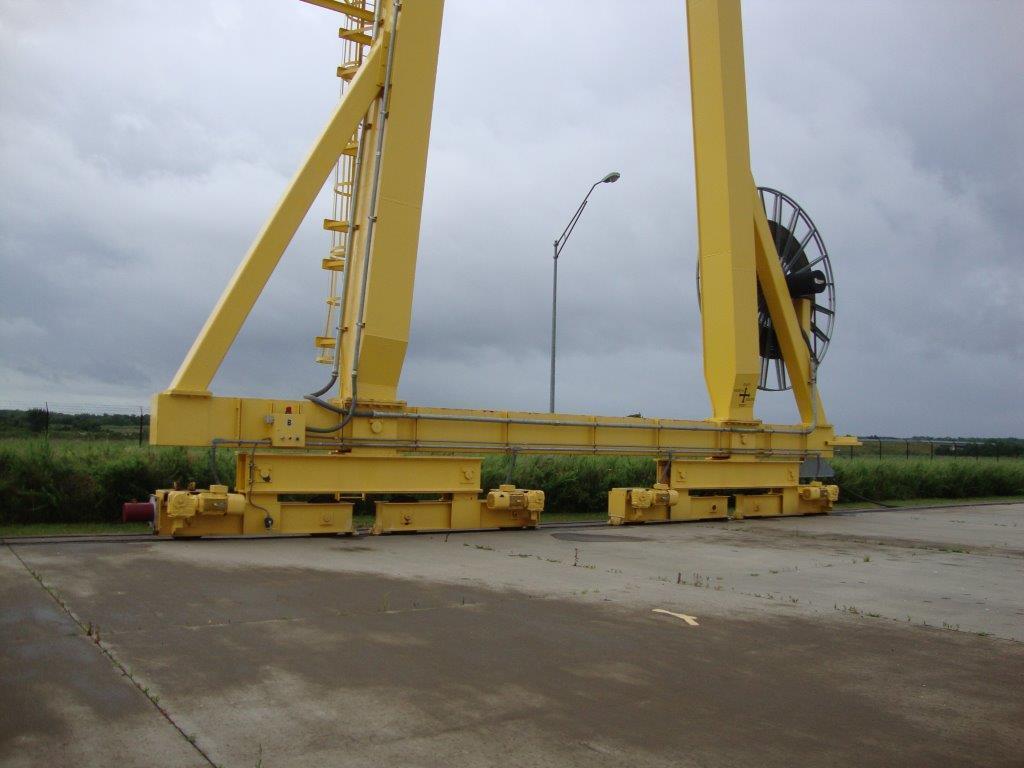

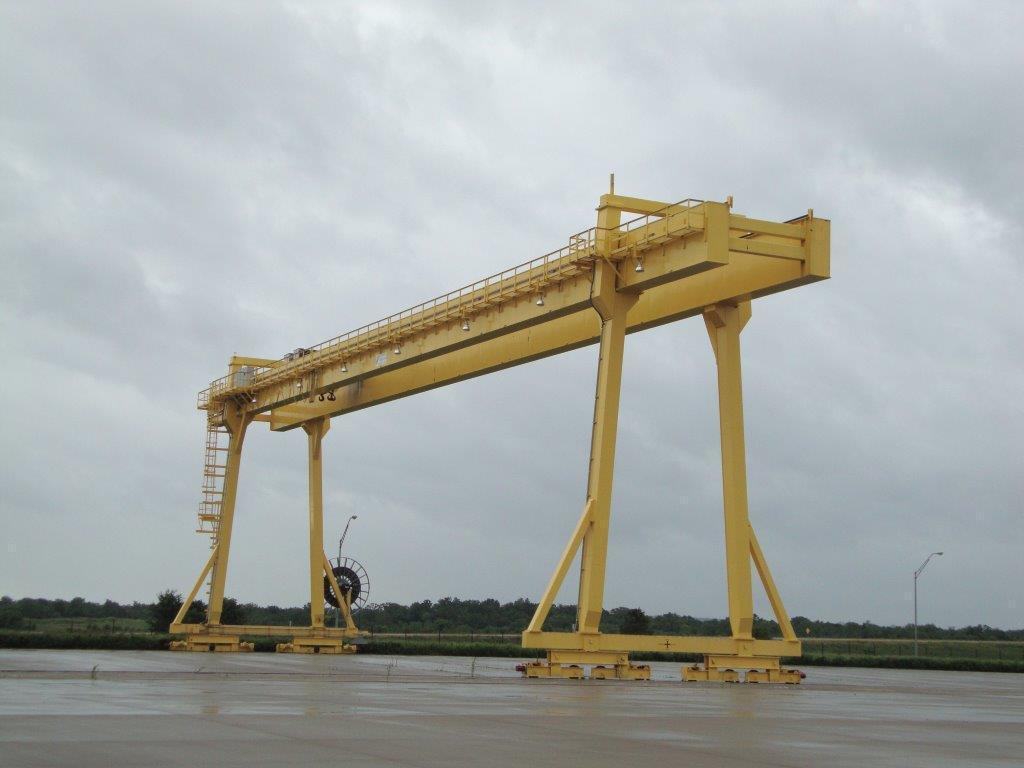

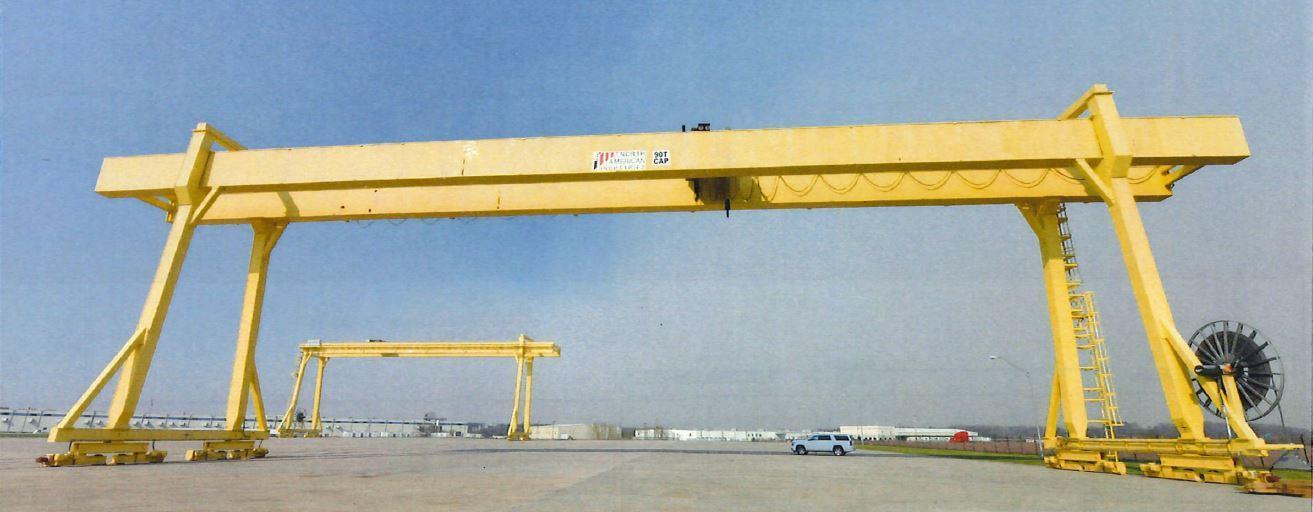

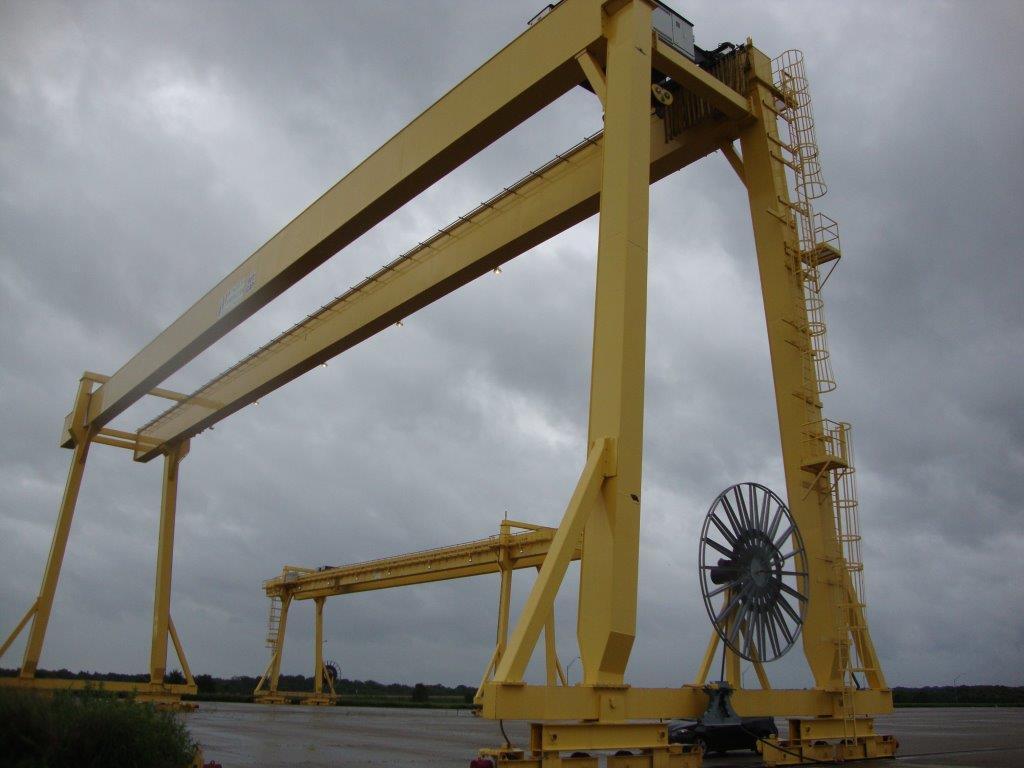

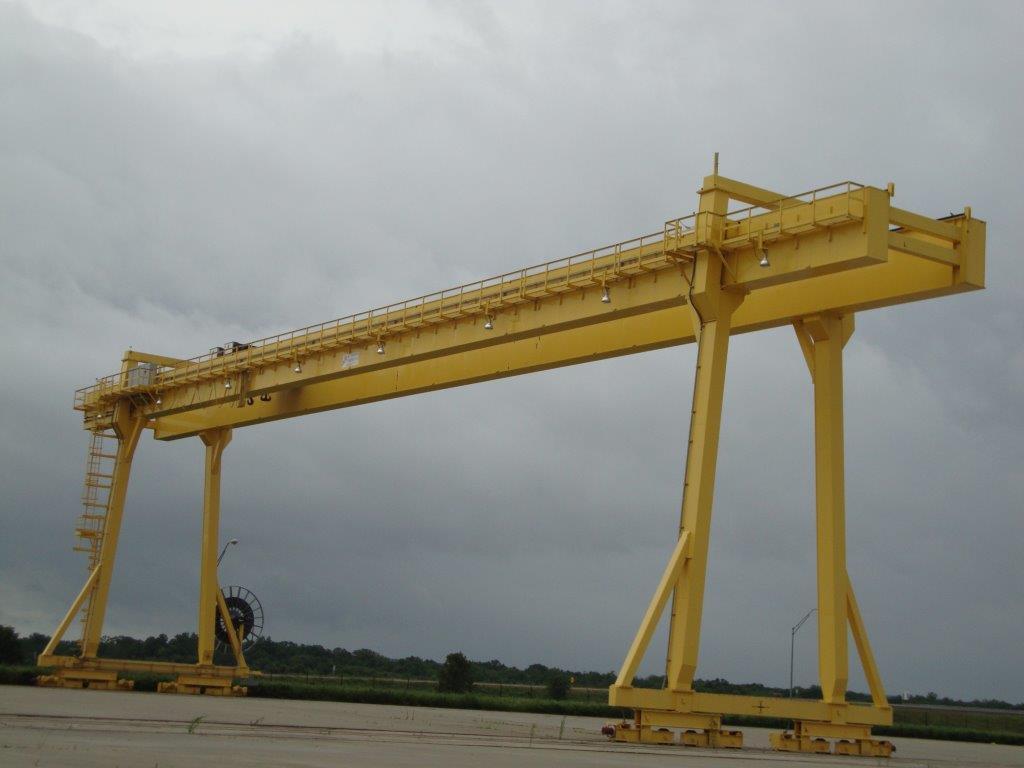

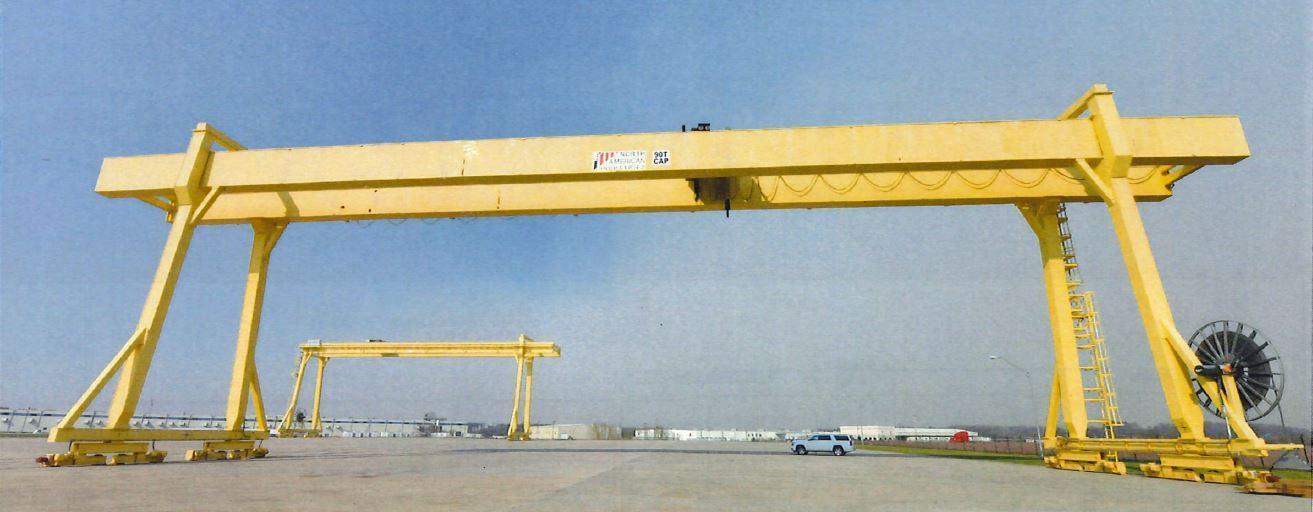

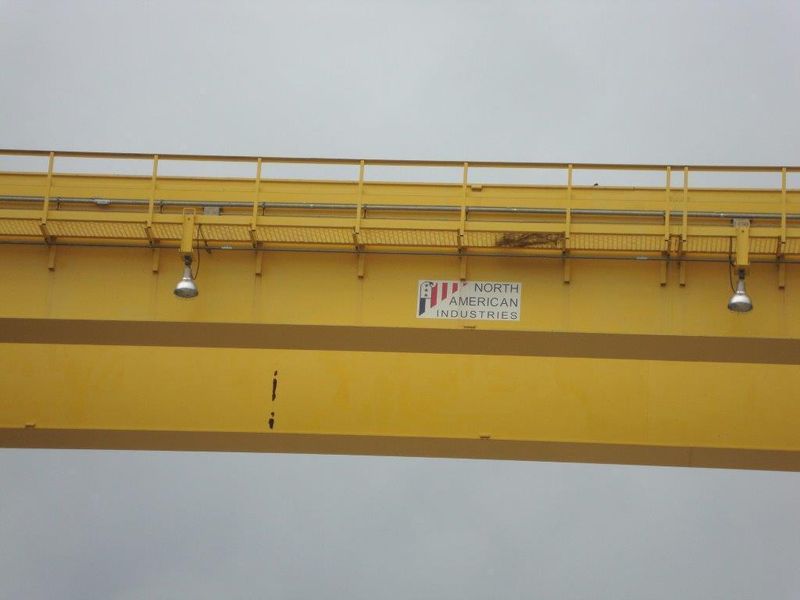

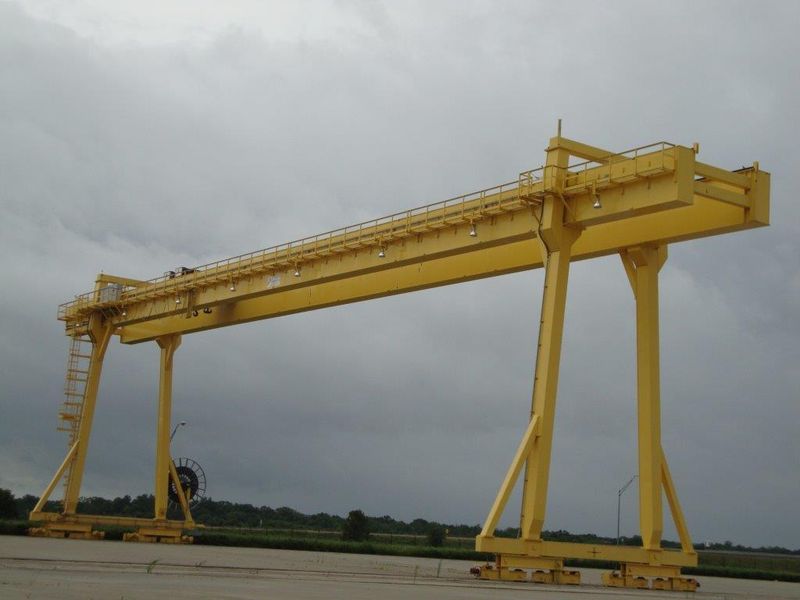

80/40 TON X 195' X 59' LIFT NORTH AMERICAN IND DOUBLE LEG ROLLING GANTRY CRANE: STOCK #12533

Manufacturer

NORTH AMERICAN

Category

Cranes & Hoists

Type

CRANES, GANTRY, BRIDGE TYPE

Stock

12533

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ C-23603
YEAR  ................................. 2011
CRANE CLASS ........................... D
CRANE SPAN ............................ 196'

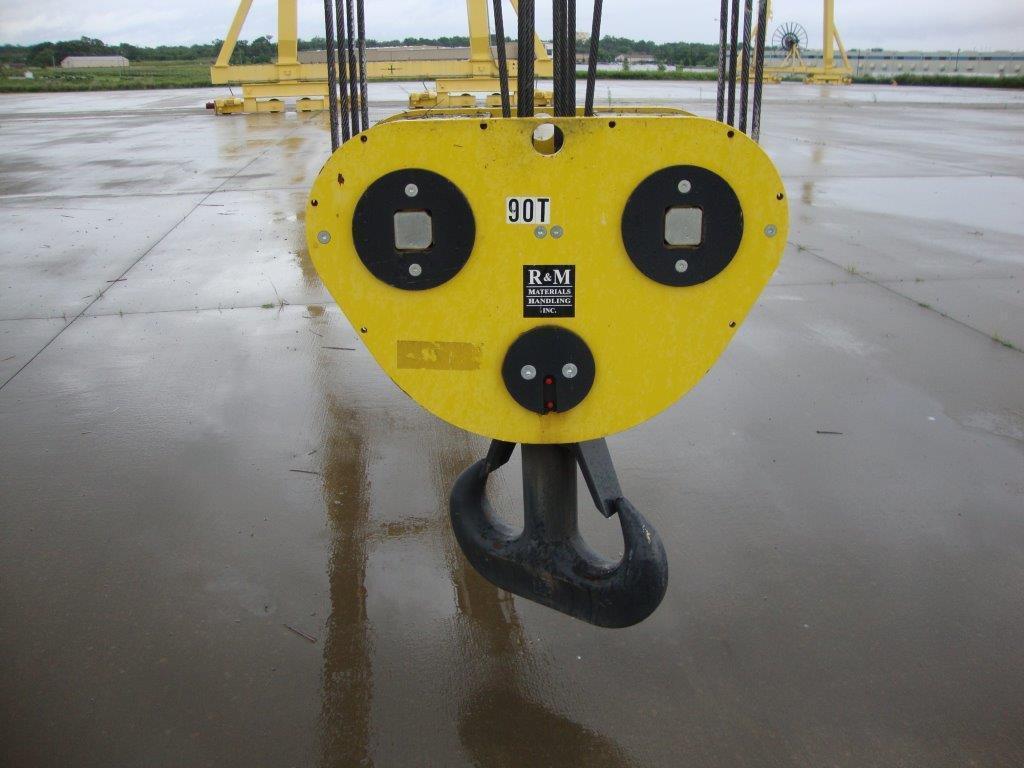

MAIN HOIST CAPACITY ................... 80 TON
AUX HOIST CAPACITY .................... 40 TON
DISTANCE BETWEEN UPRIGHTS ............. 125'
CANTILEVERS ........................... 25'
DISTANCE TO BOTTOM OF BRIDGE .......... 35'

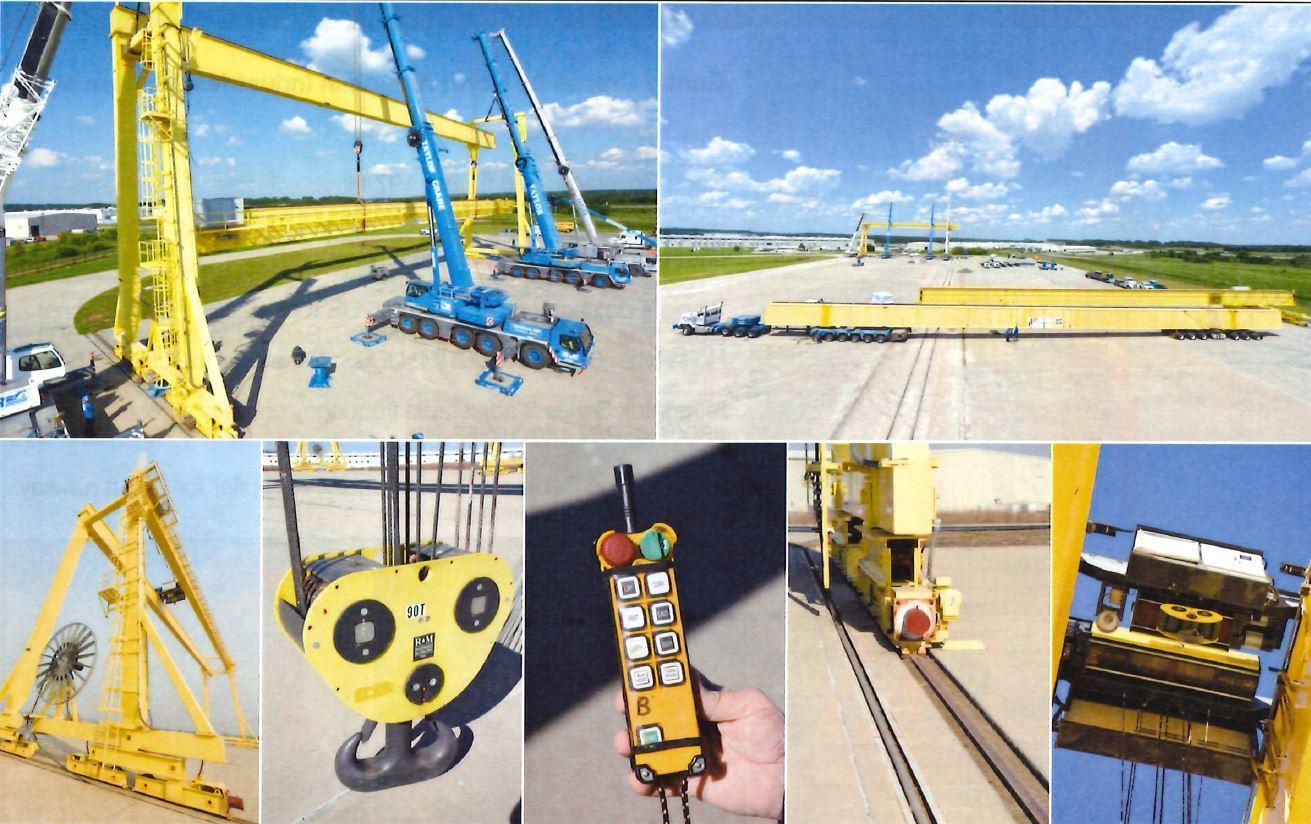

REMOTE CONTROL W/PENDANT BACKUP

TOTAL WEIGHT .......................... 703.619 LBS
TOTAL SHIPPING WEIGHT ................. 730,000 LBS
CRANE WHEEL LOAD ...................... 94,400 LBS @ 39' 3"

MAIN HOIST ............................ 7.0 FPM/100 HP
AUX HOIST ............................. 39.5 FPM/100 HP

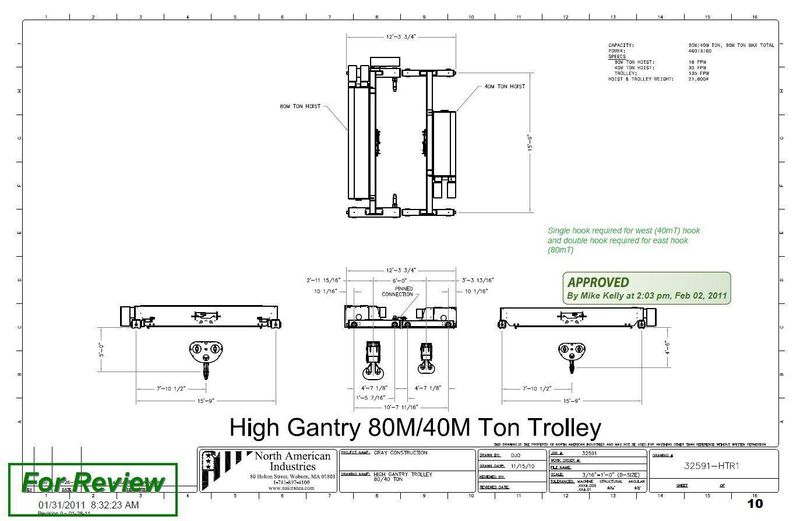

TROLLEY ............................... 60.0 FPM/15 HP

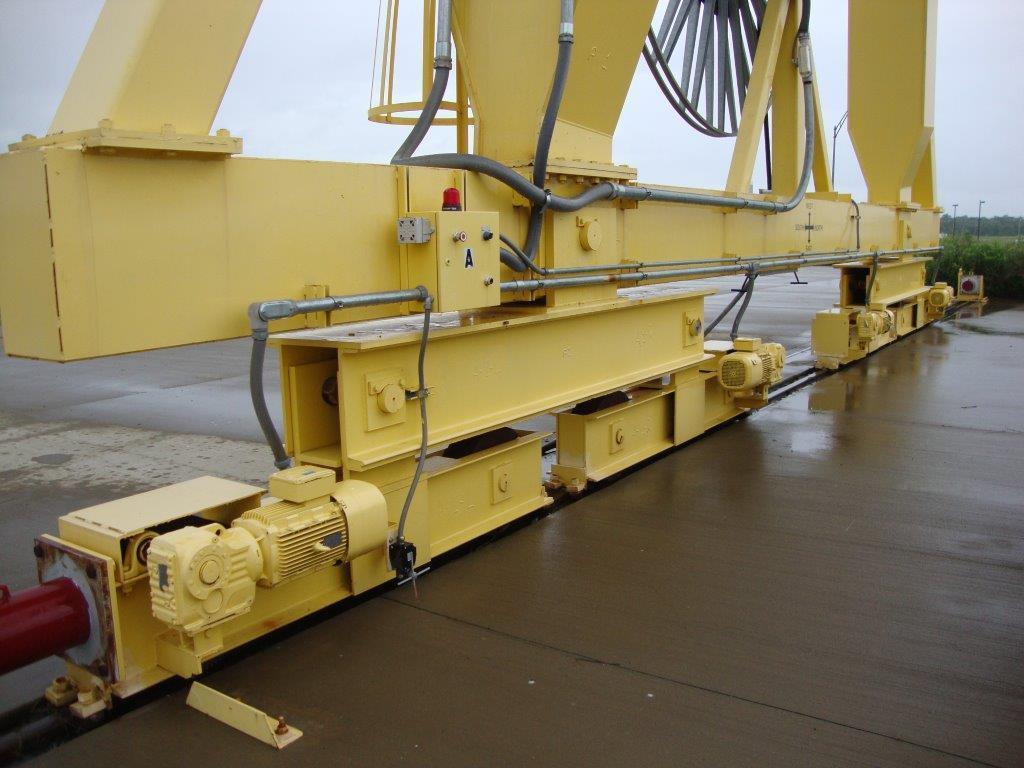

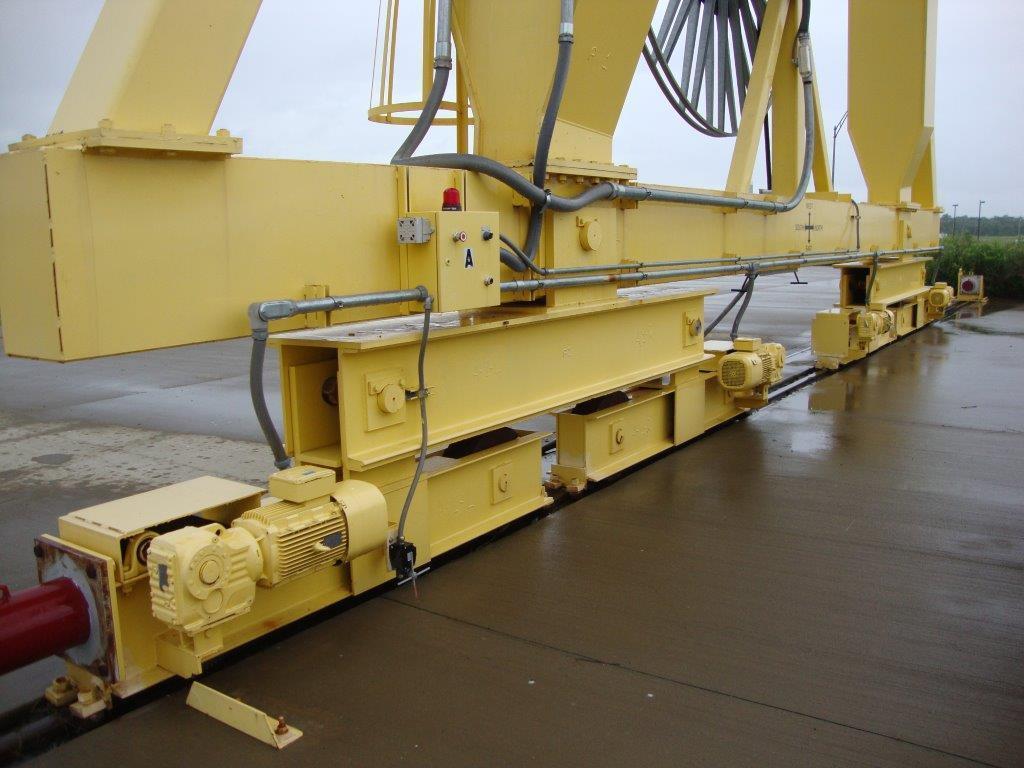

BRIDGE  ............................... 110.0 FPM/4 X 15 HP
GANTRY TRAVEL SPEED ................... 110-130 FPM
TROLLEY TRAVEL SPEED .................. 50-60 FPM
MAIN HOOK HOISTING SPEED .............. 8 FPM
AUX HOOK HOISTING SPEED ............... 30-35 FPM
