20,000 LB X 30" X .500" YODER COIL CRADLE & STRAIGHTENER FEED LINE: STOCK #13050

Manufacturer

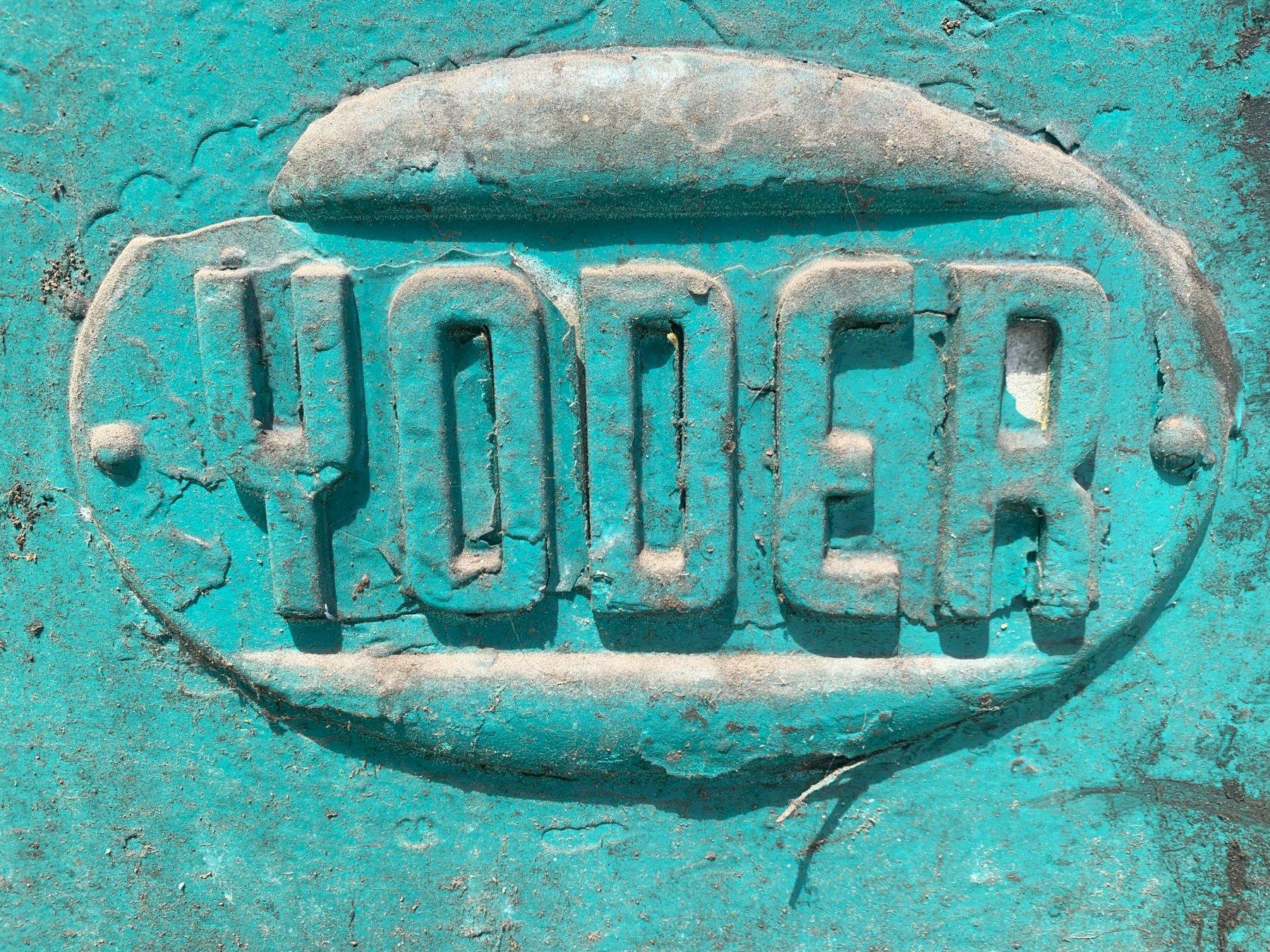

YODER

Category

Feeders & Straighteners

Type

FEEDING & STRAIGHTENING MACHINES

Stock

13050

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... DPC-132
MODEL .......................... 30/5

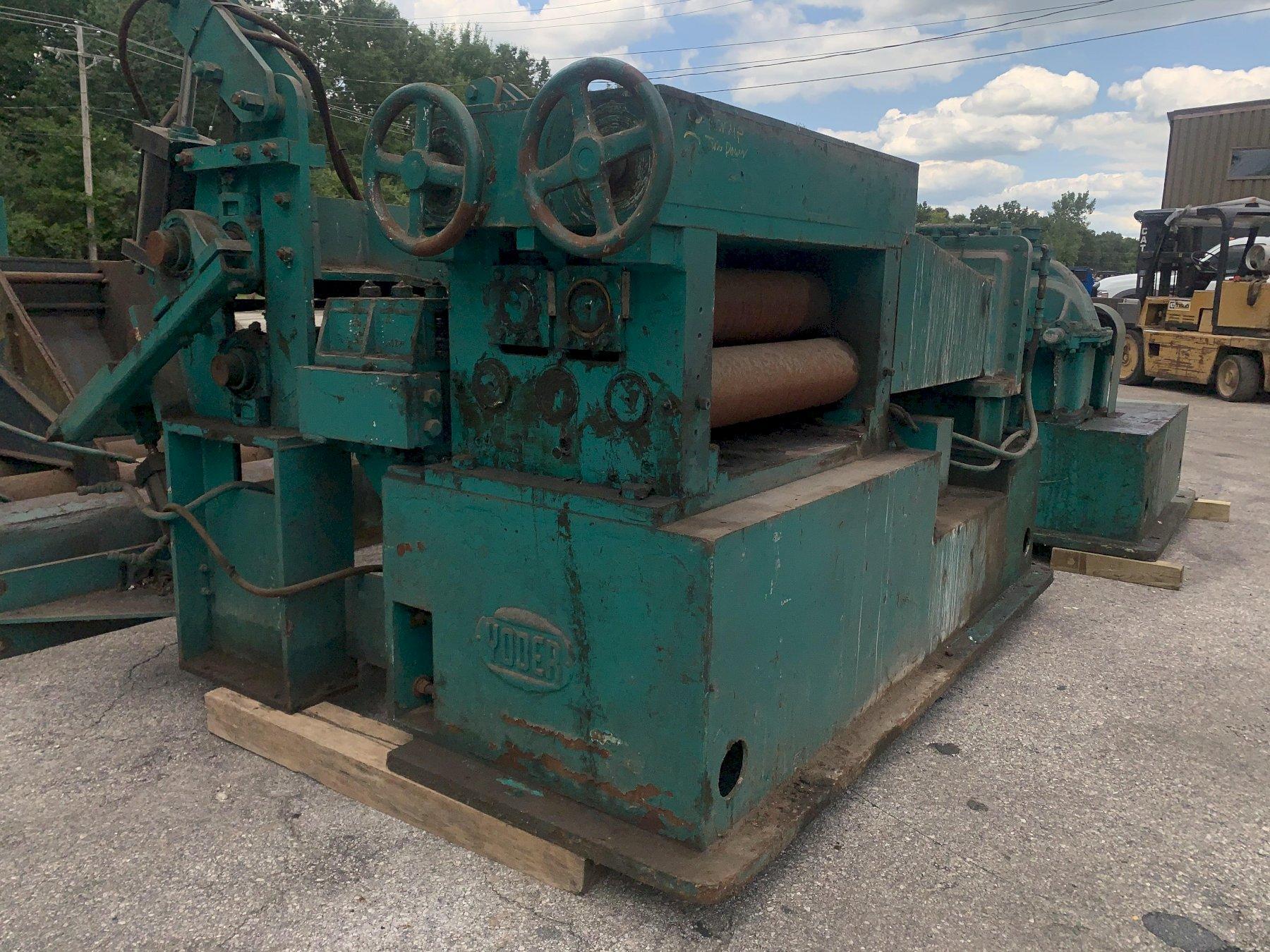

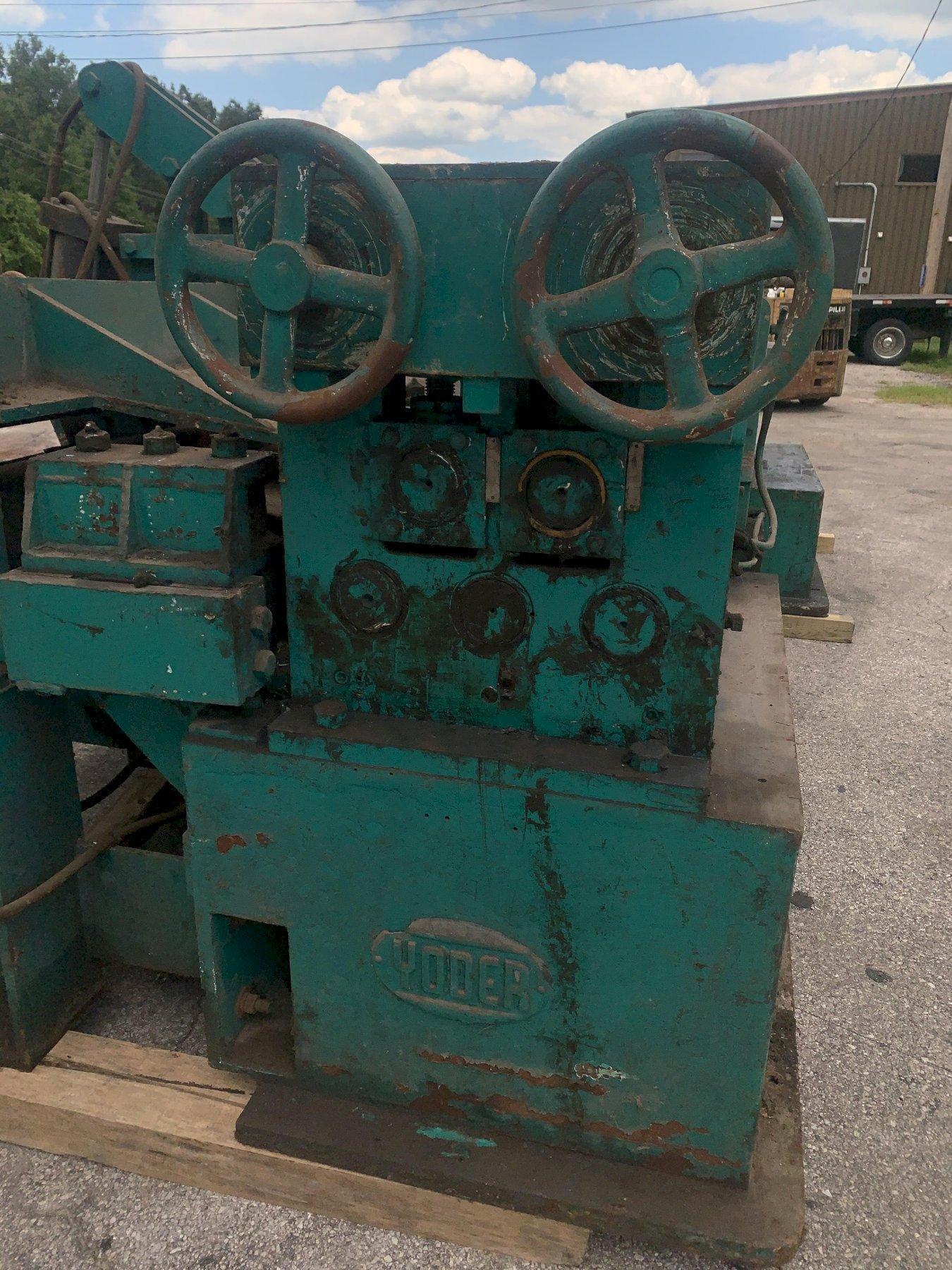

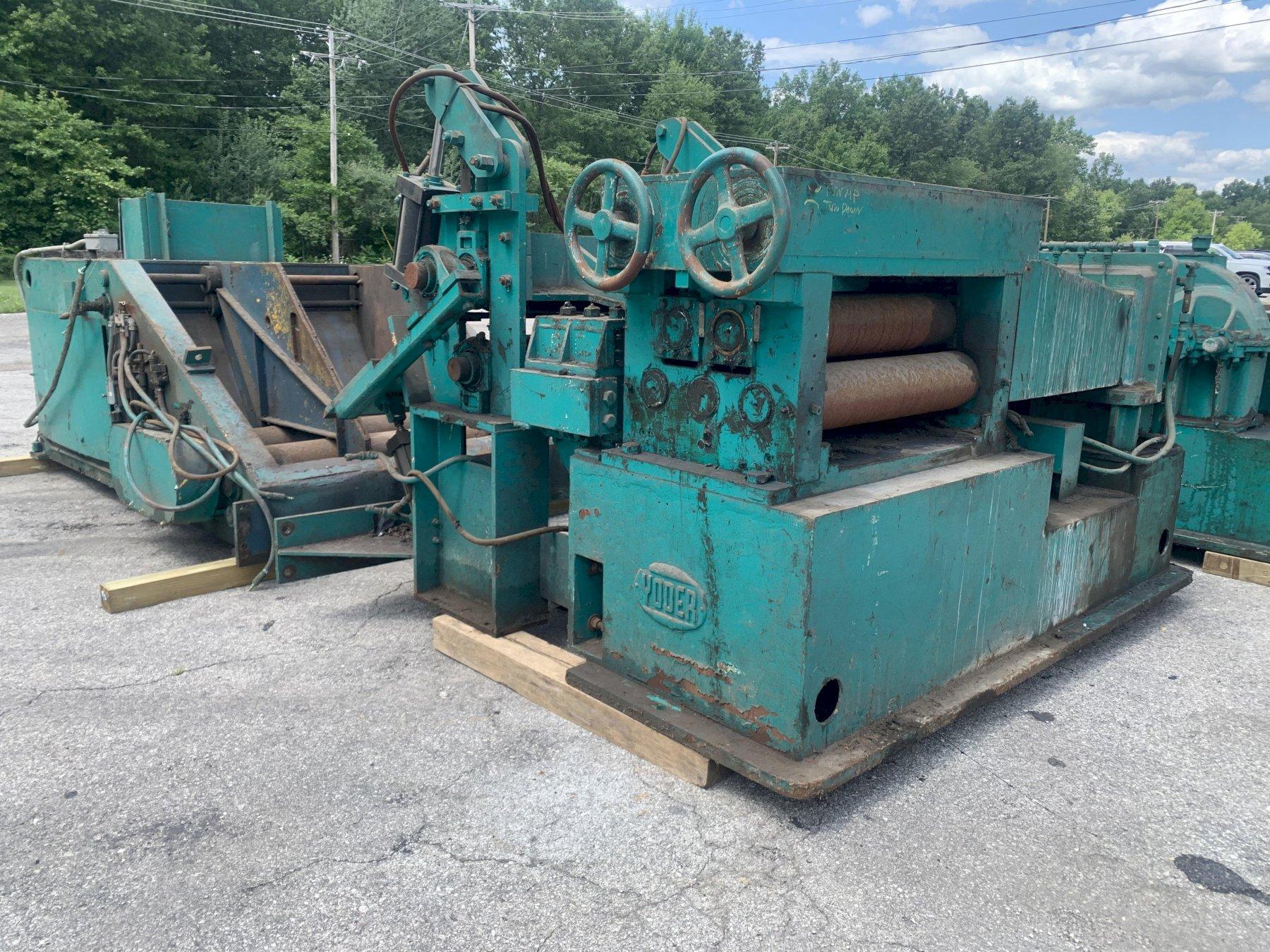

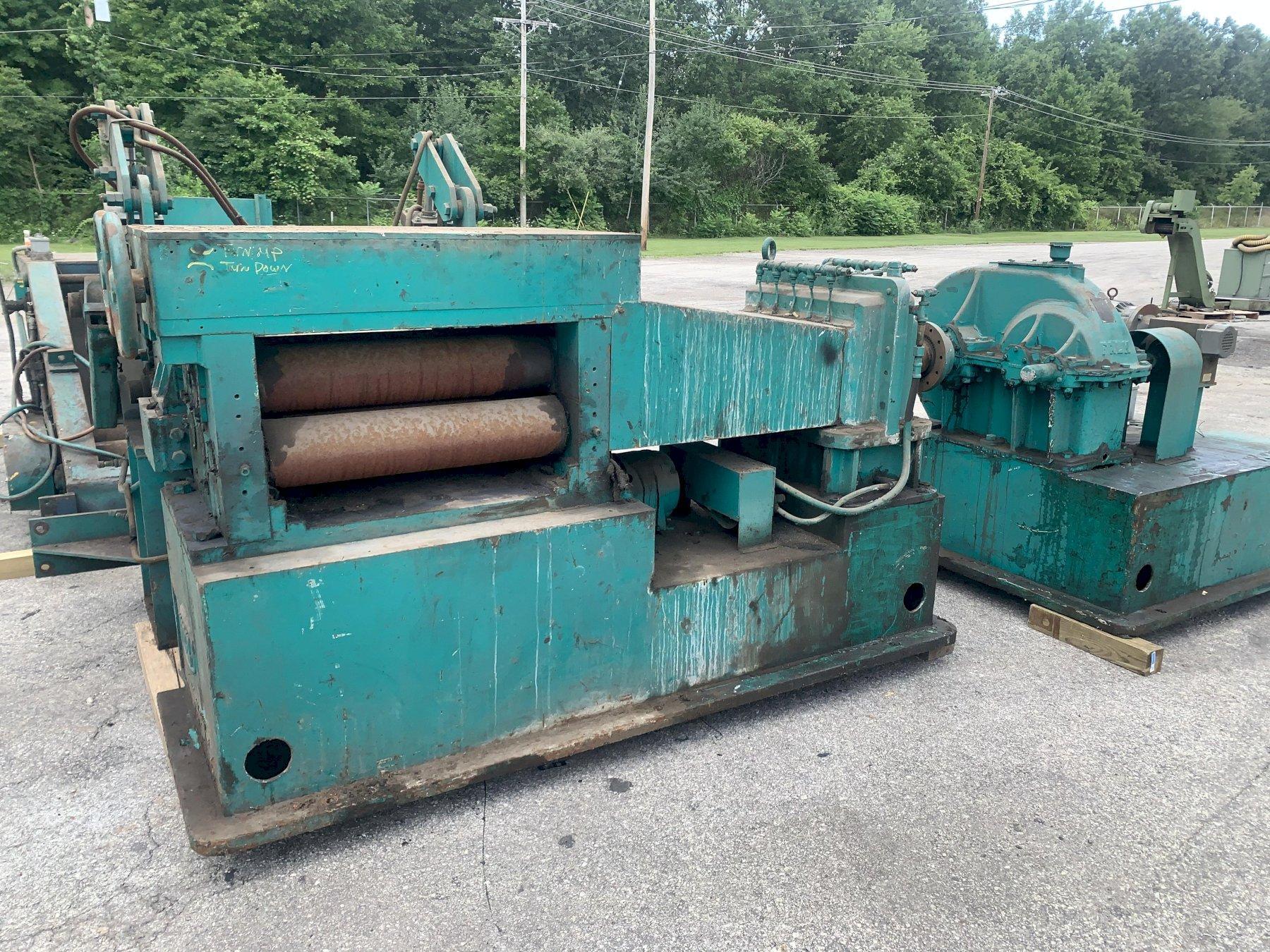

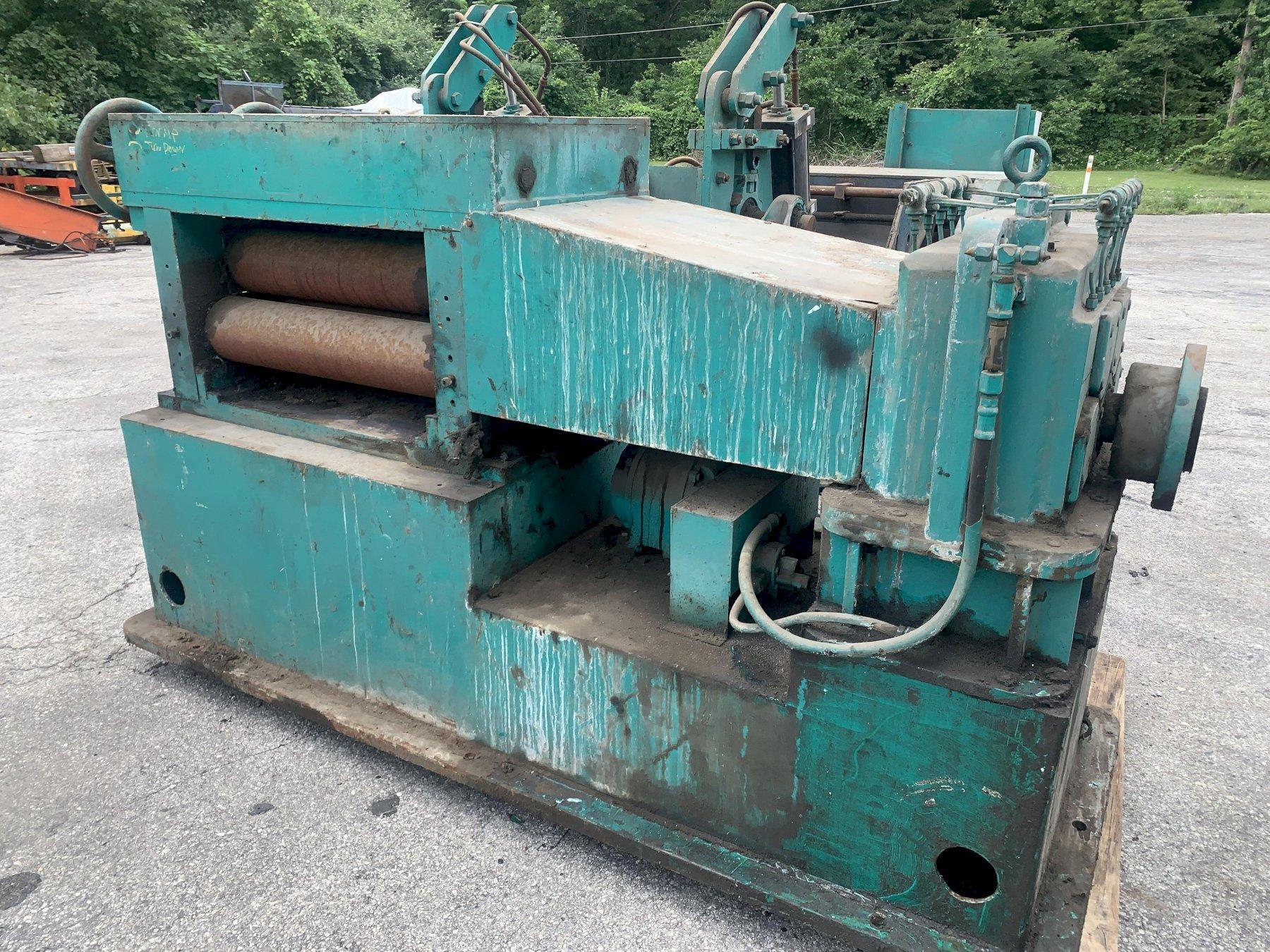

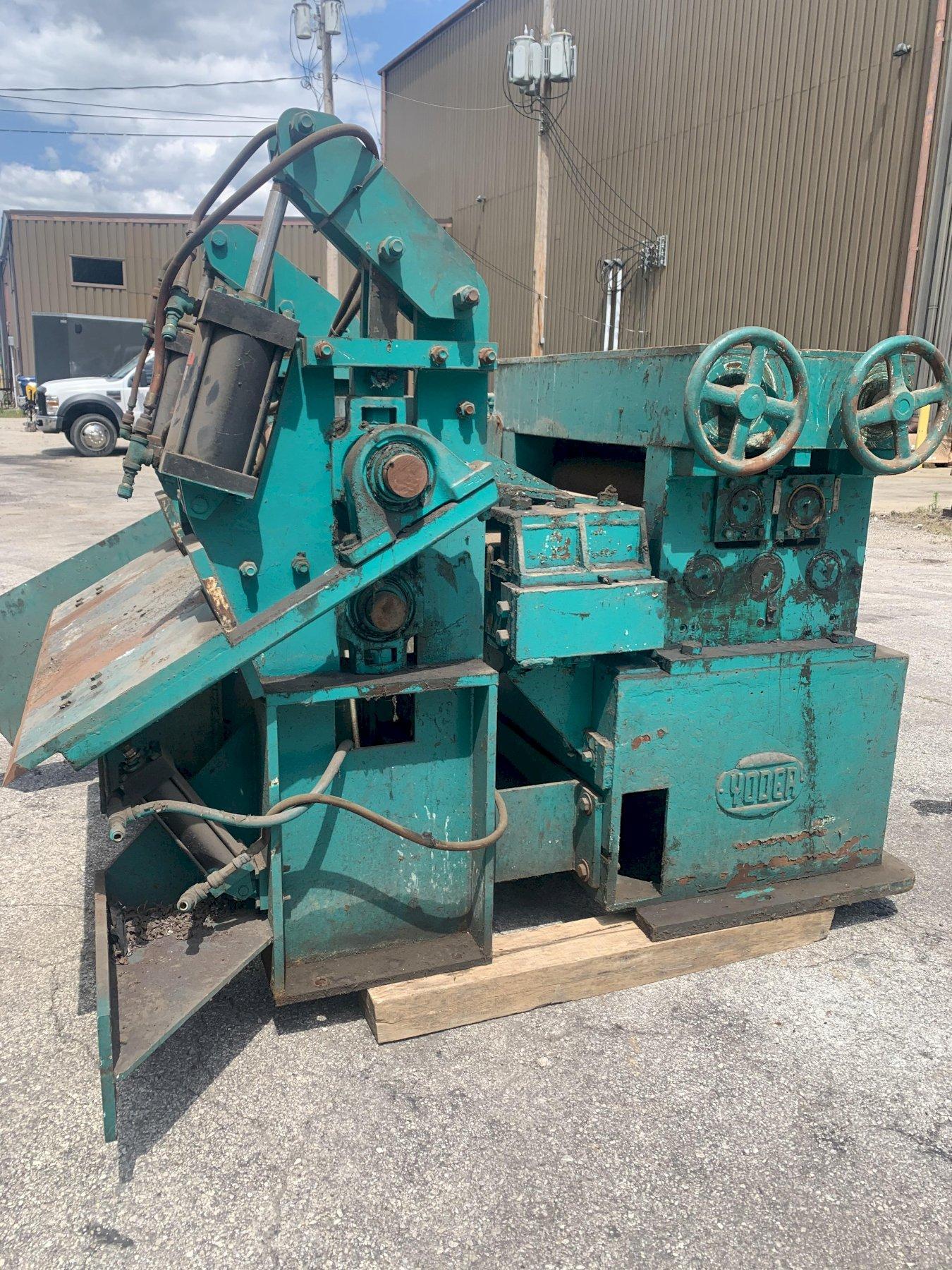

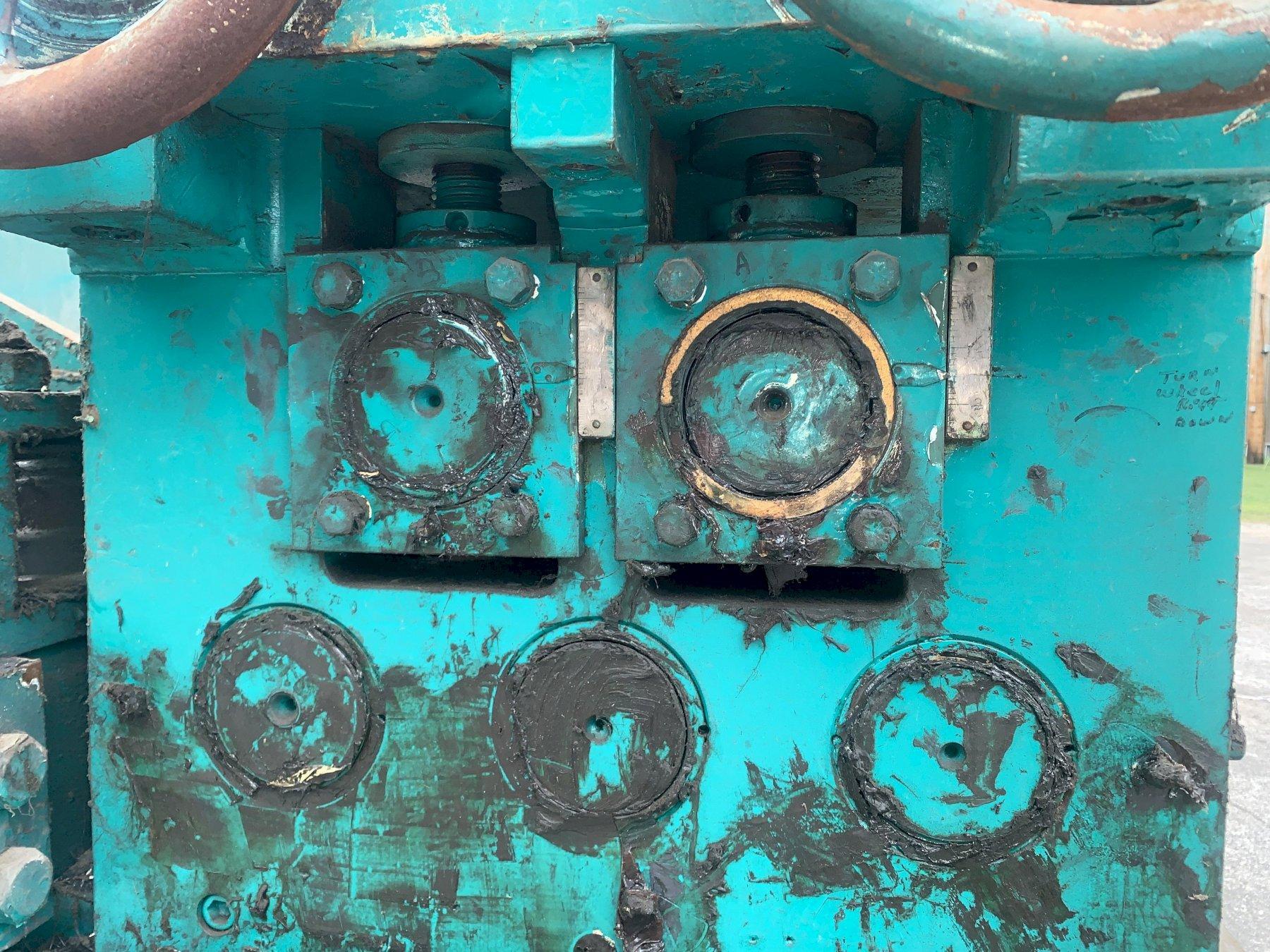

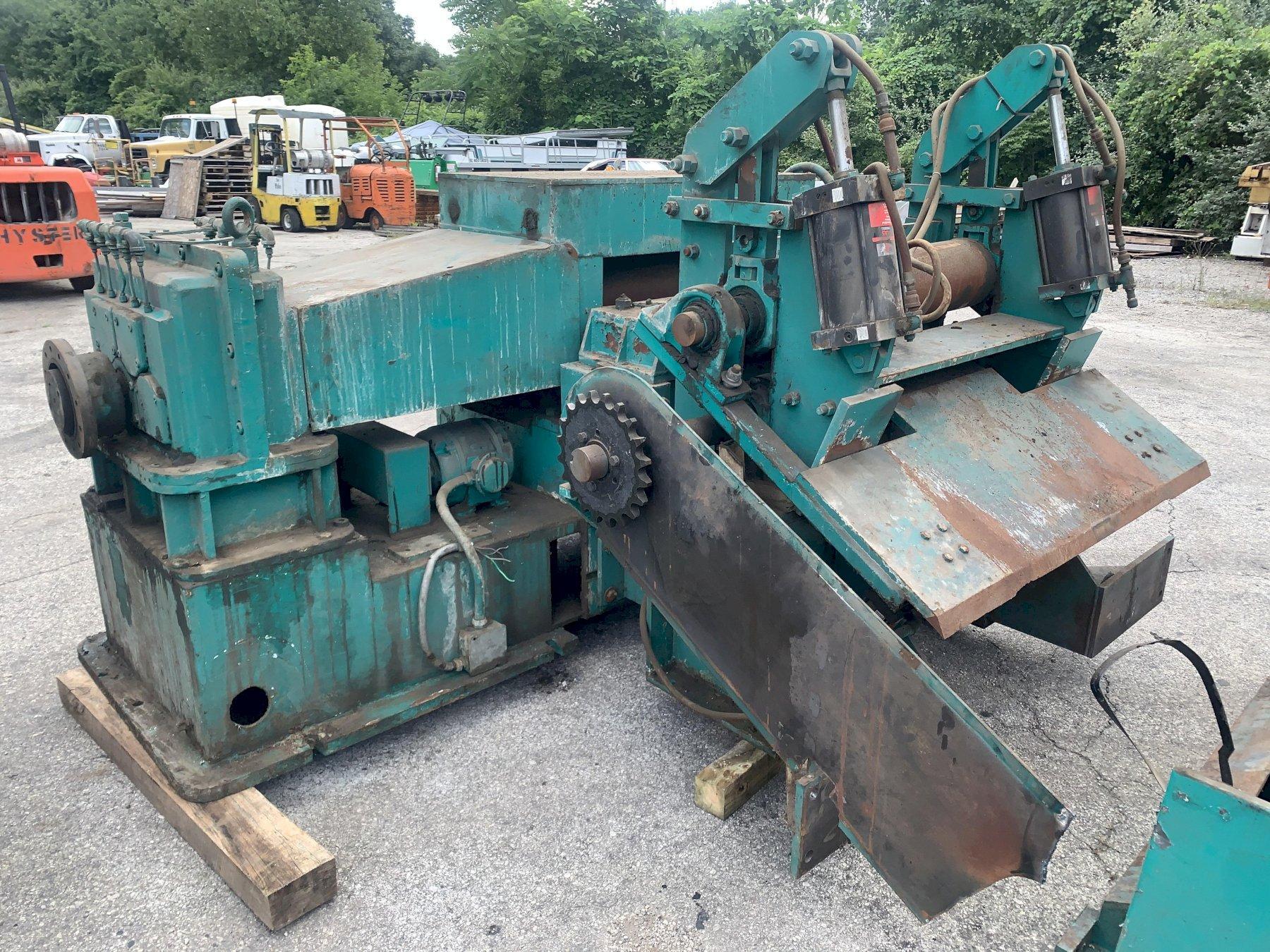

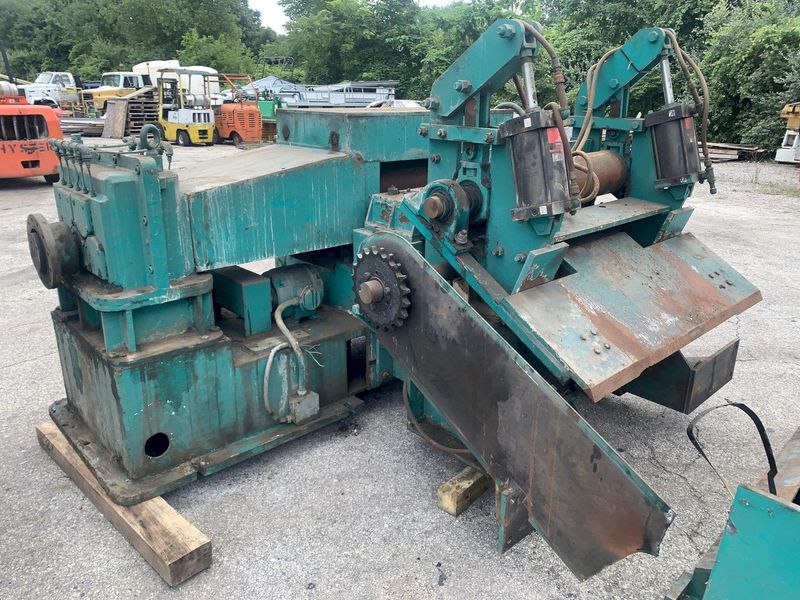

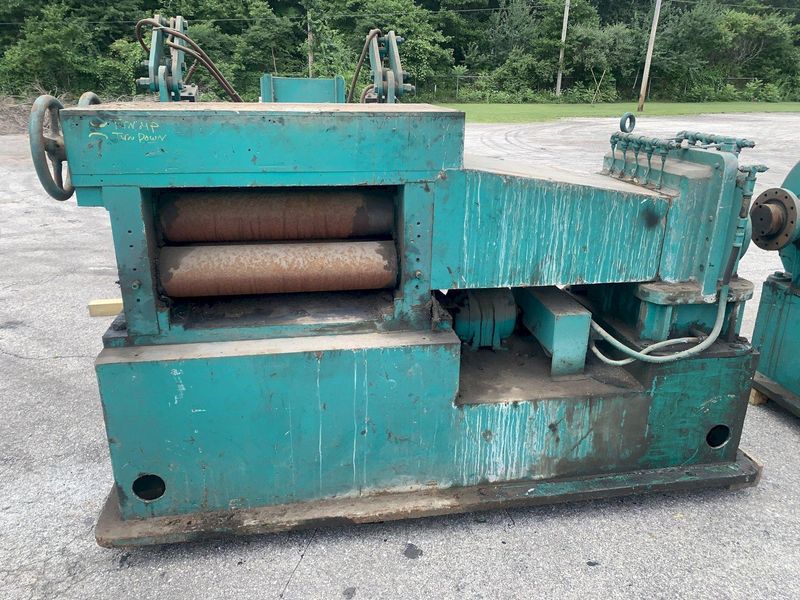

STRAIGHTENER:
MATERIAL CAPACITY .............. 1/2"

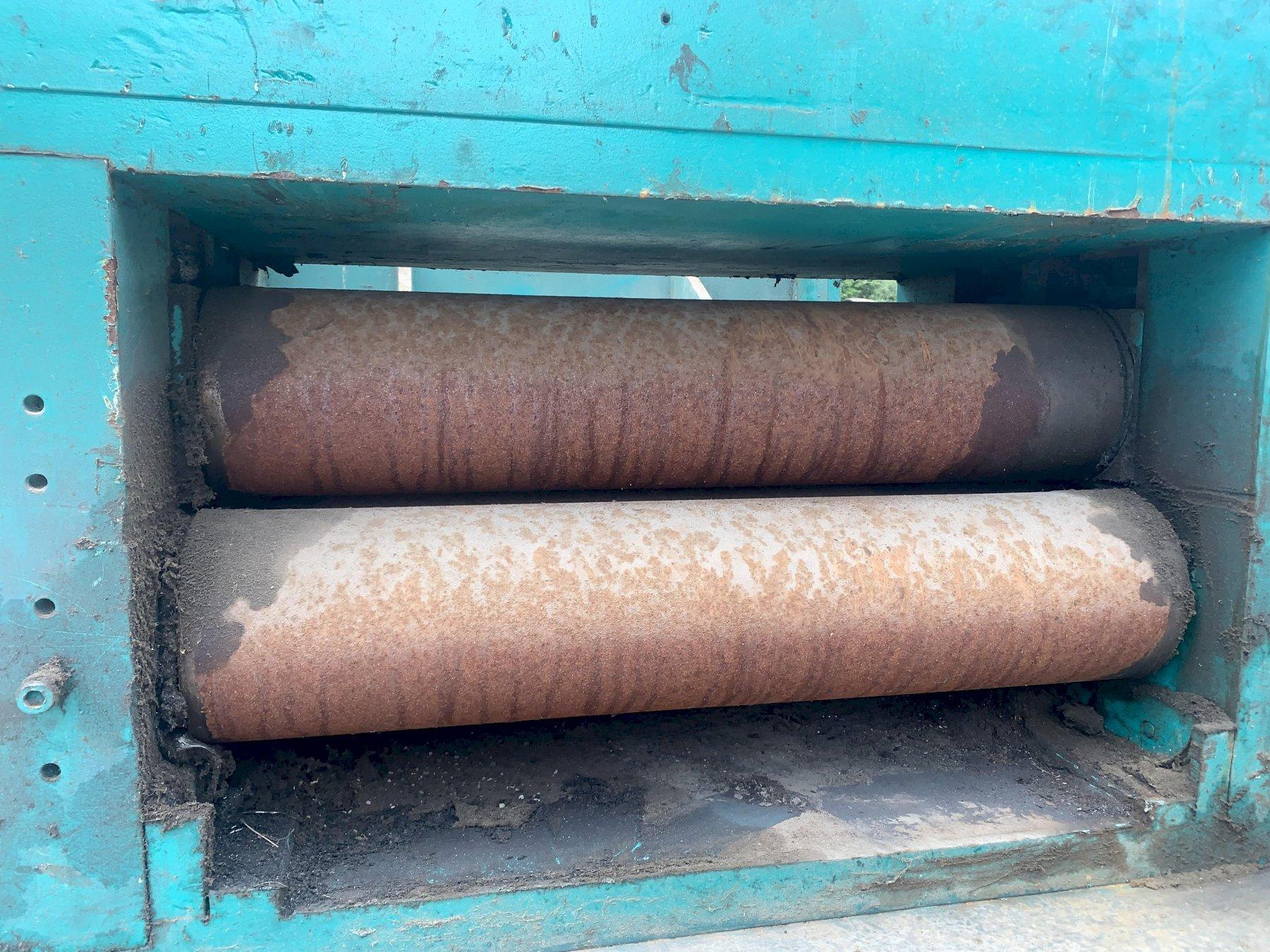

STRAIGHTENING ROLL WIDTH ....... 30" MAX
NUMBER OF STRAIGHTENING ROLLS .. 5
ROLL CONFIGURATION ............. 2 OVER 3
DIAMETER OF ROLLS .............. 6-1/2"
TOP ROLL ADJUSTMENT ............ YES, MANUAL
ROLLS DRIVEN ................... YES, INDIVIDUALLY
SPEED .......................... VARIABLE W/VFD
POWERED PINCH FEED UP ROLLS .... YES, CHAIN DRIVEN
TOP FEED ROLL PRESSURE ADJ ..... PNEUMATIC

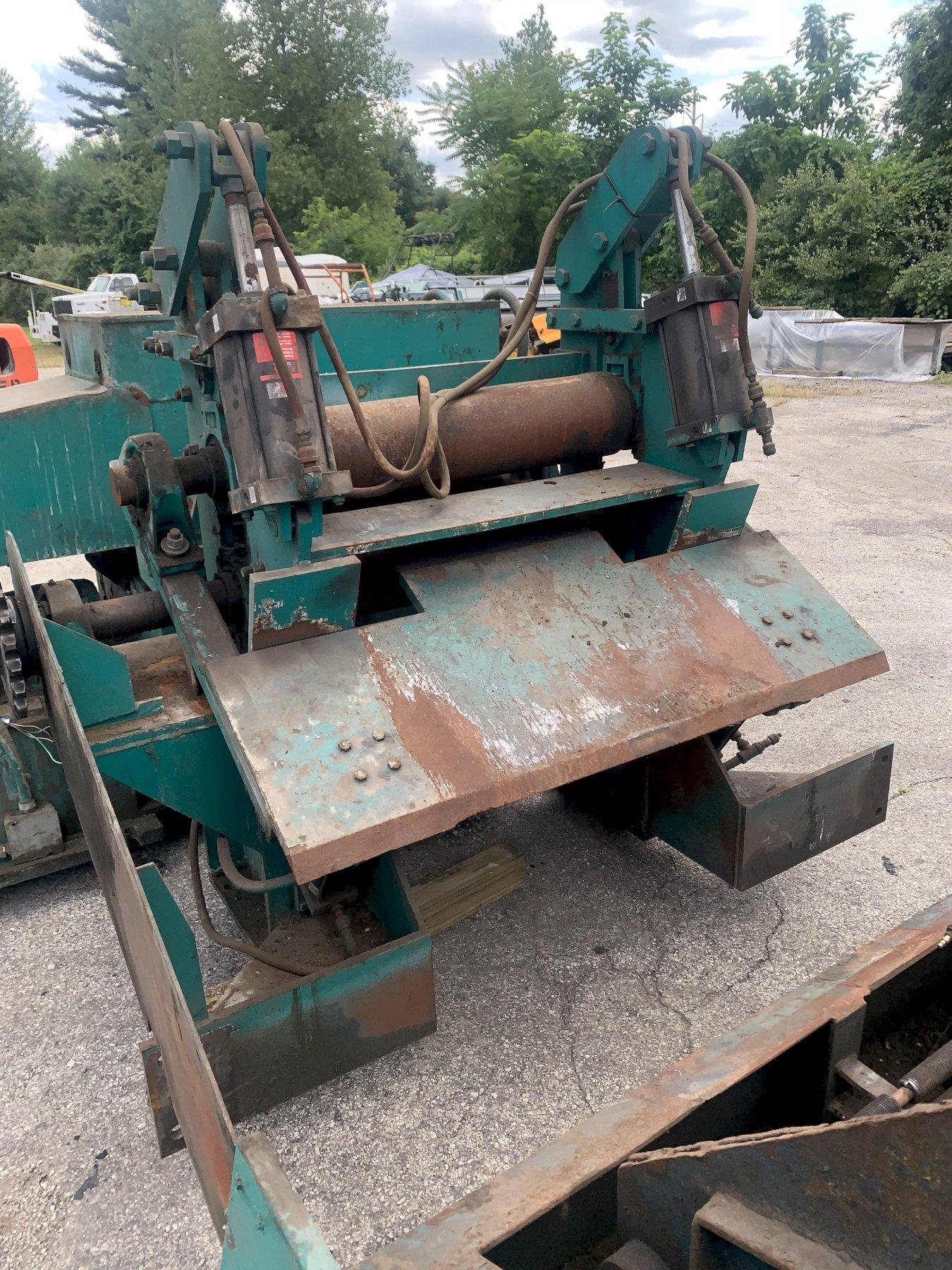

FLIP UP PEELER TABLE ........... PNEUMATIC
PASS LINE HEIGHT ............... 36"
ROLLER EDGE GUIDES ............. YES
AUTOMATIC LUBE TO GEAR BOX ..... YES

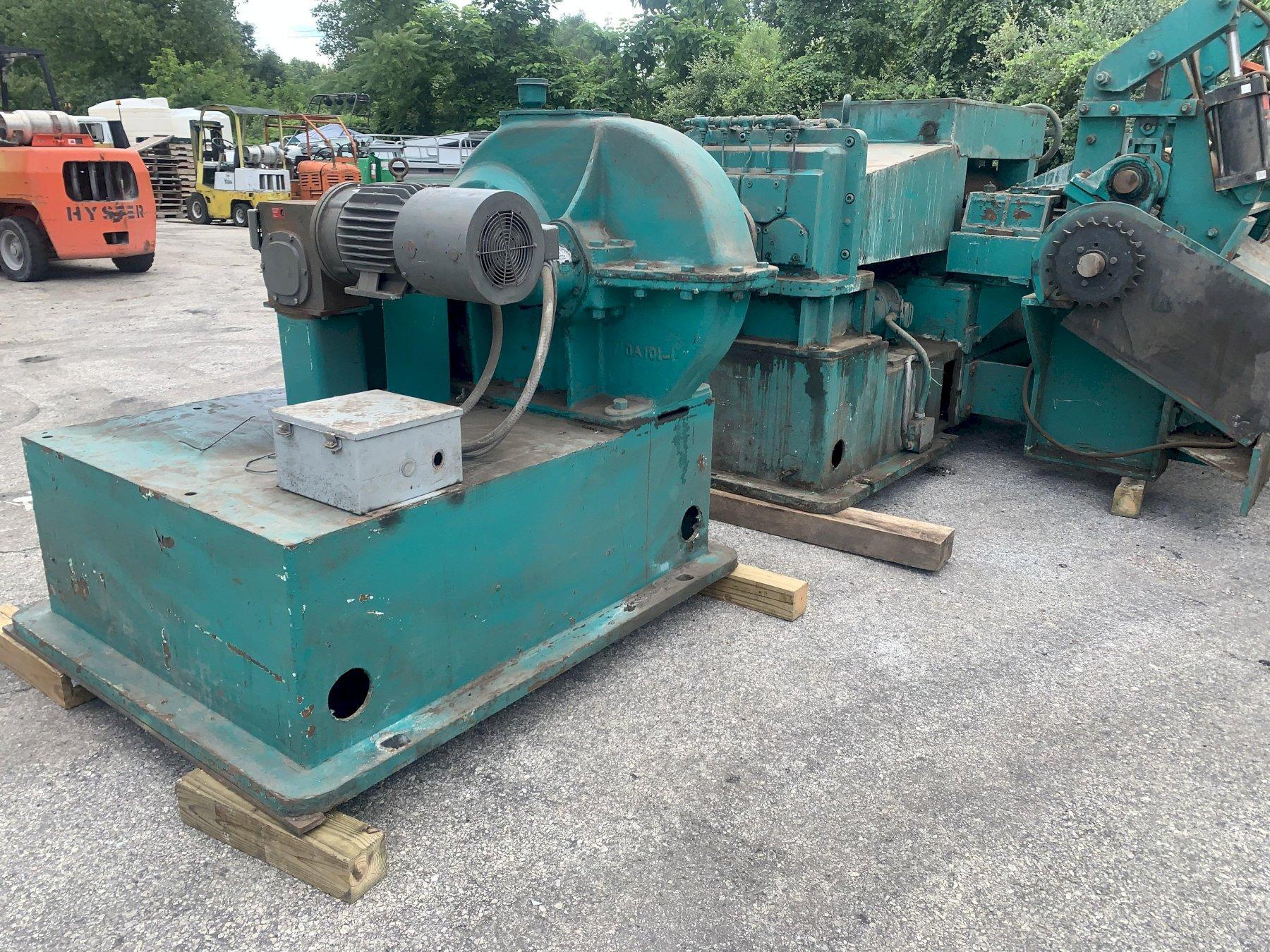

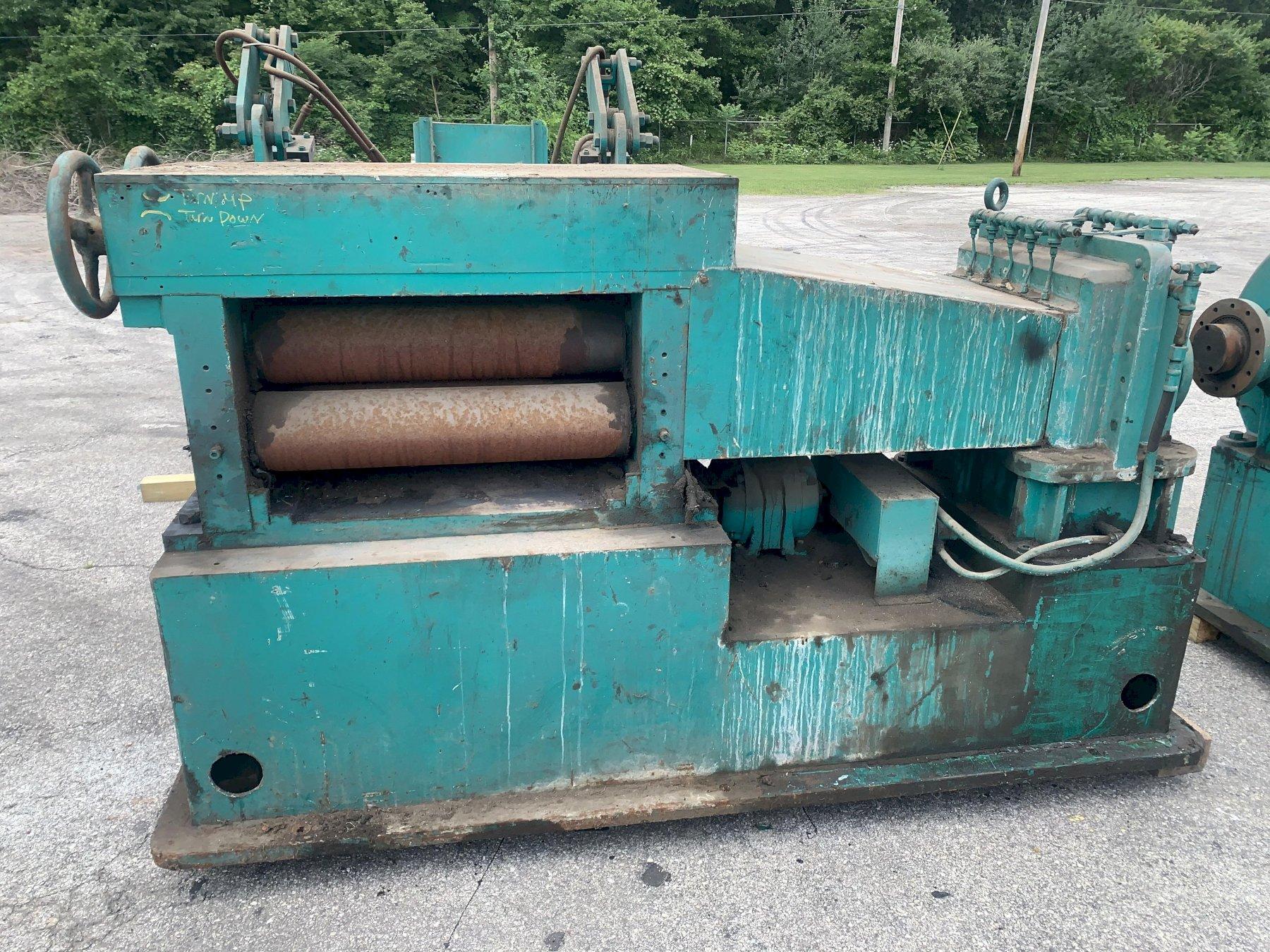

THREAD UP STAND & DRIVE:

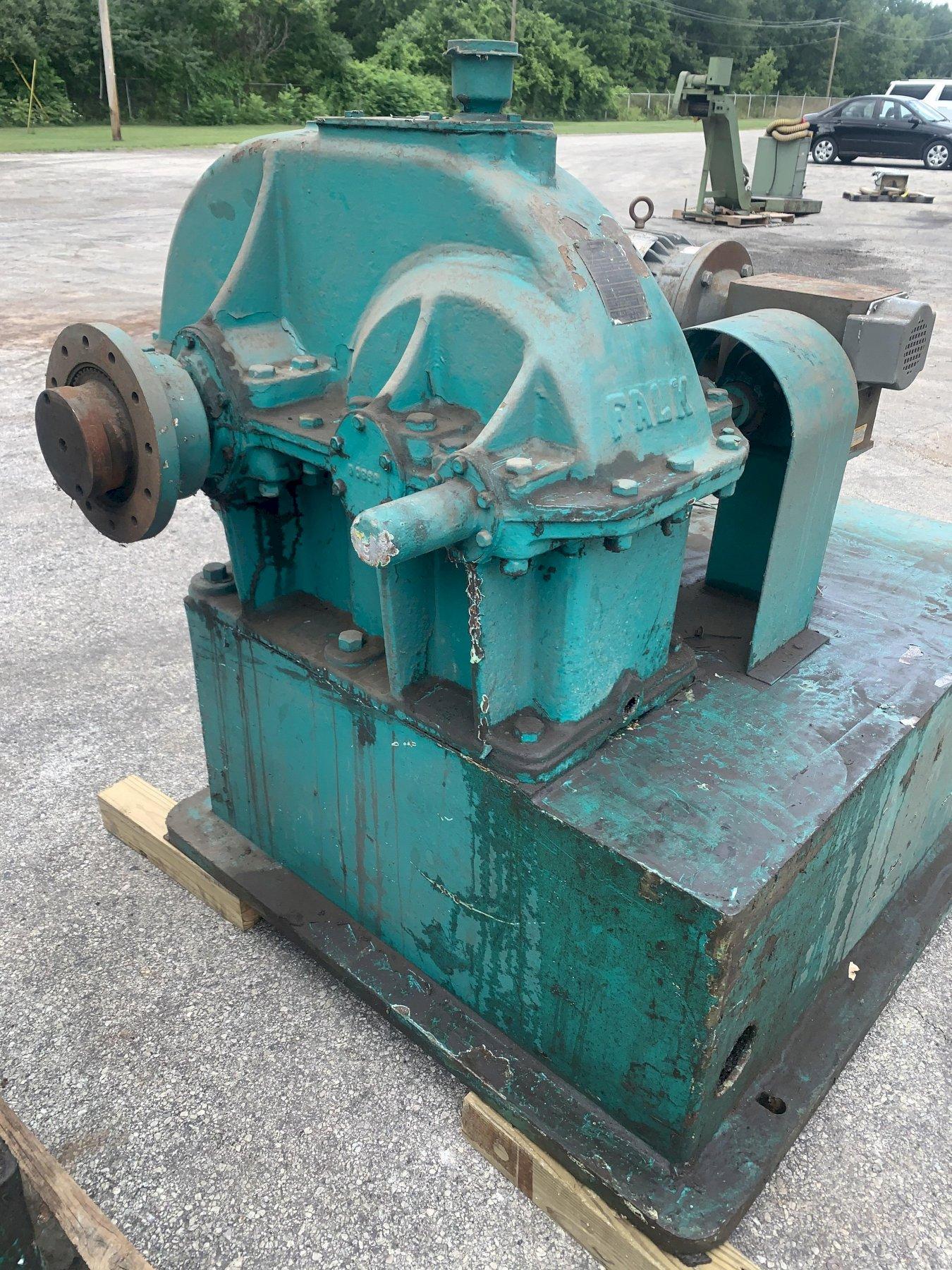

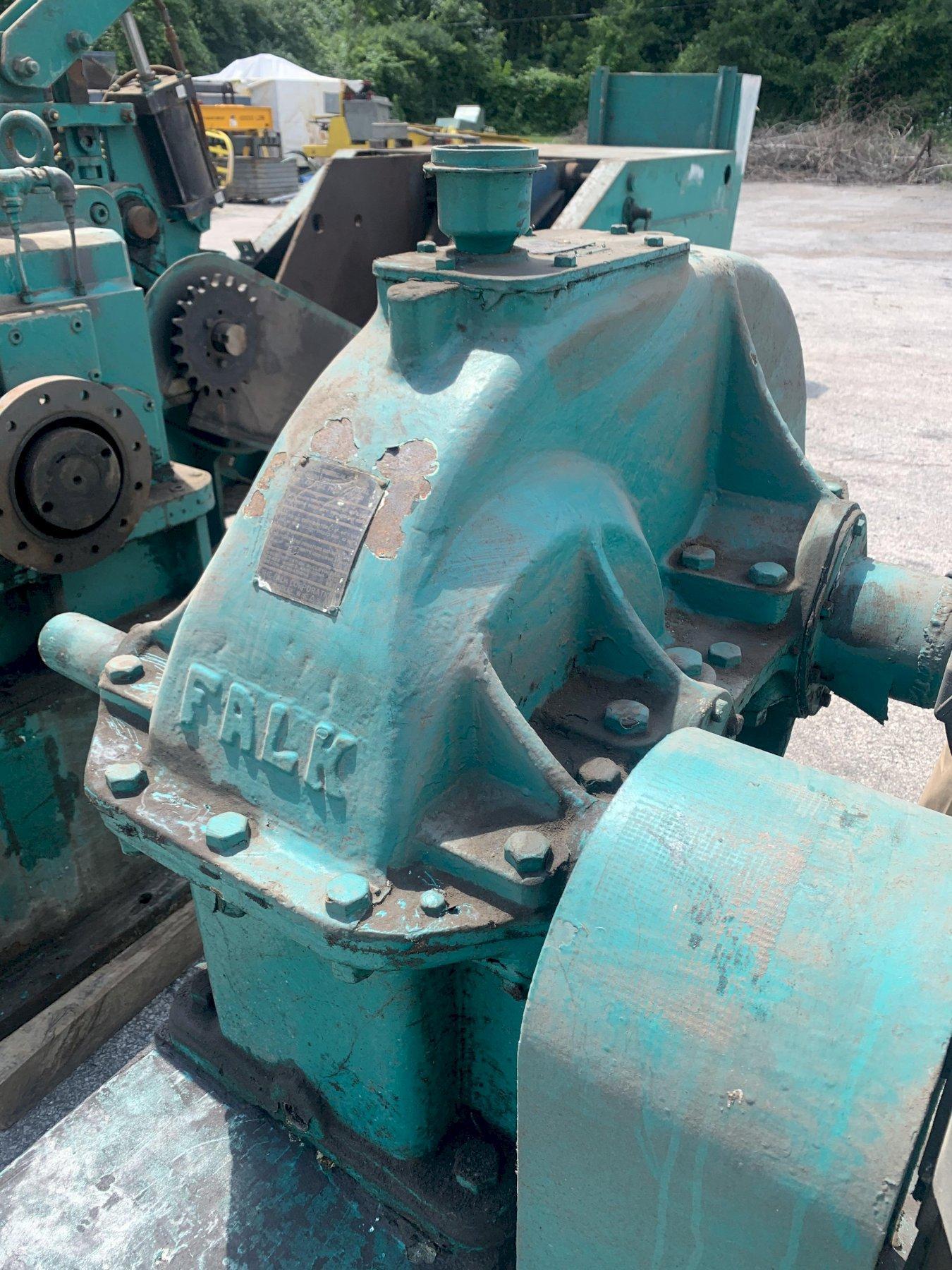

FALK SPEED REDUCER ............. 20.4:1 RATIO
SPEED .......................... VARIABLE W/VFD

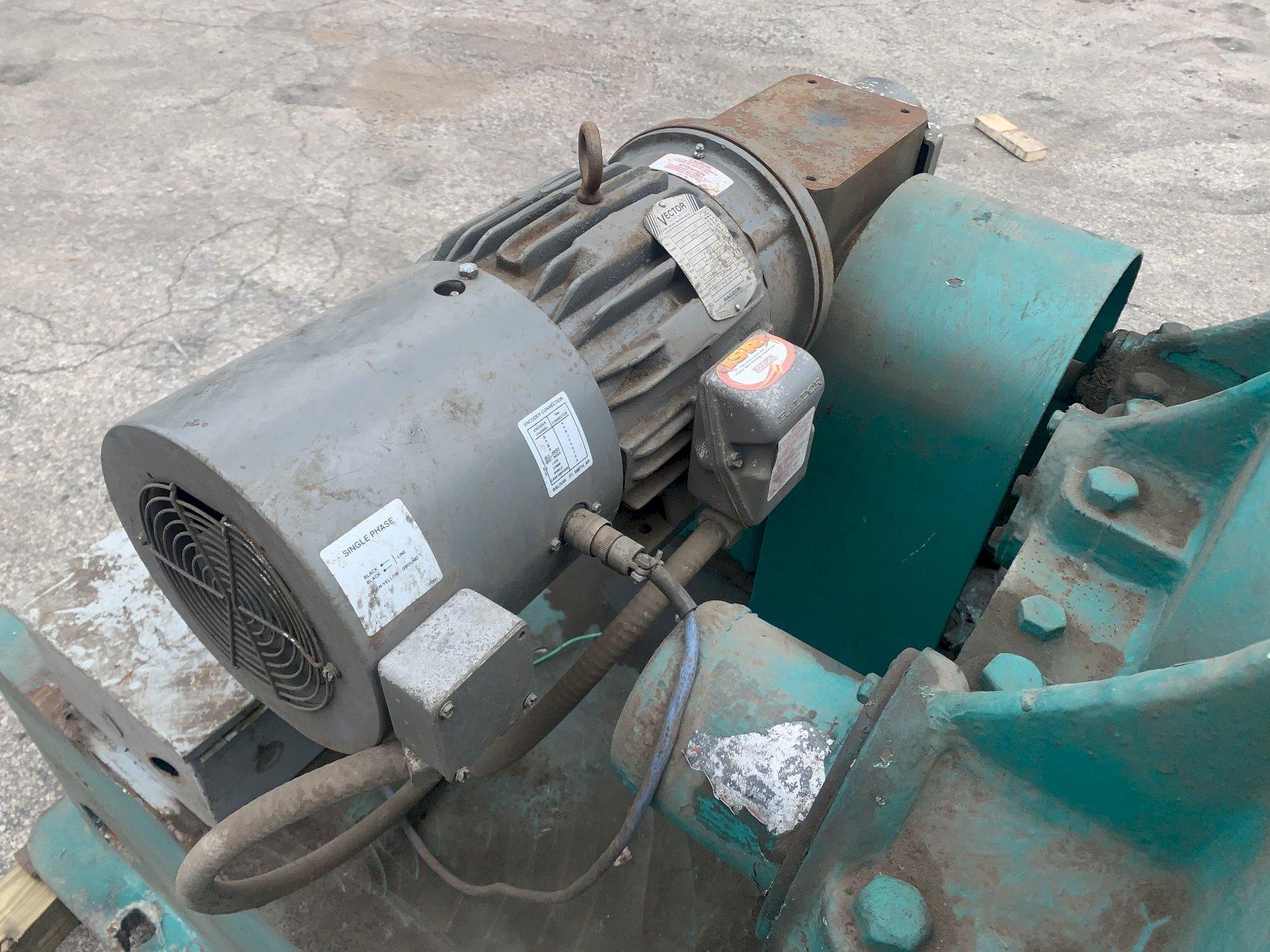

MOTOR .......................... 5 HP

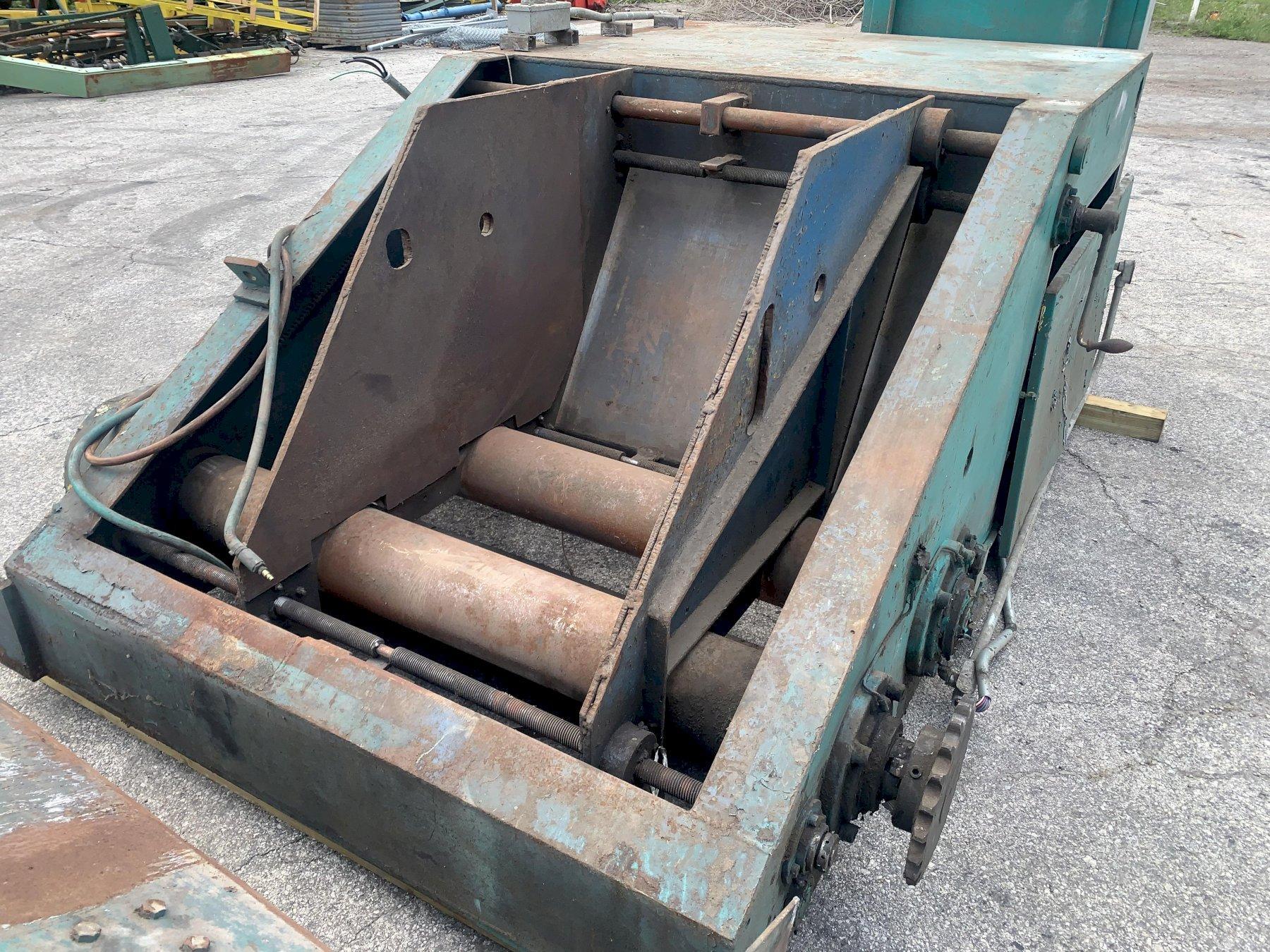

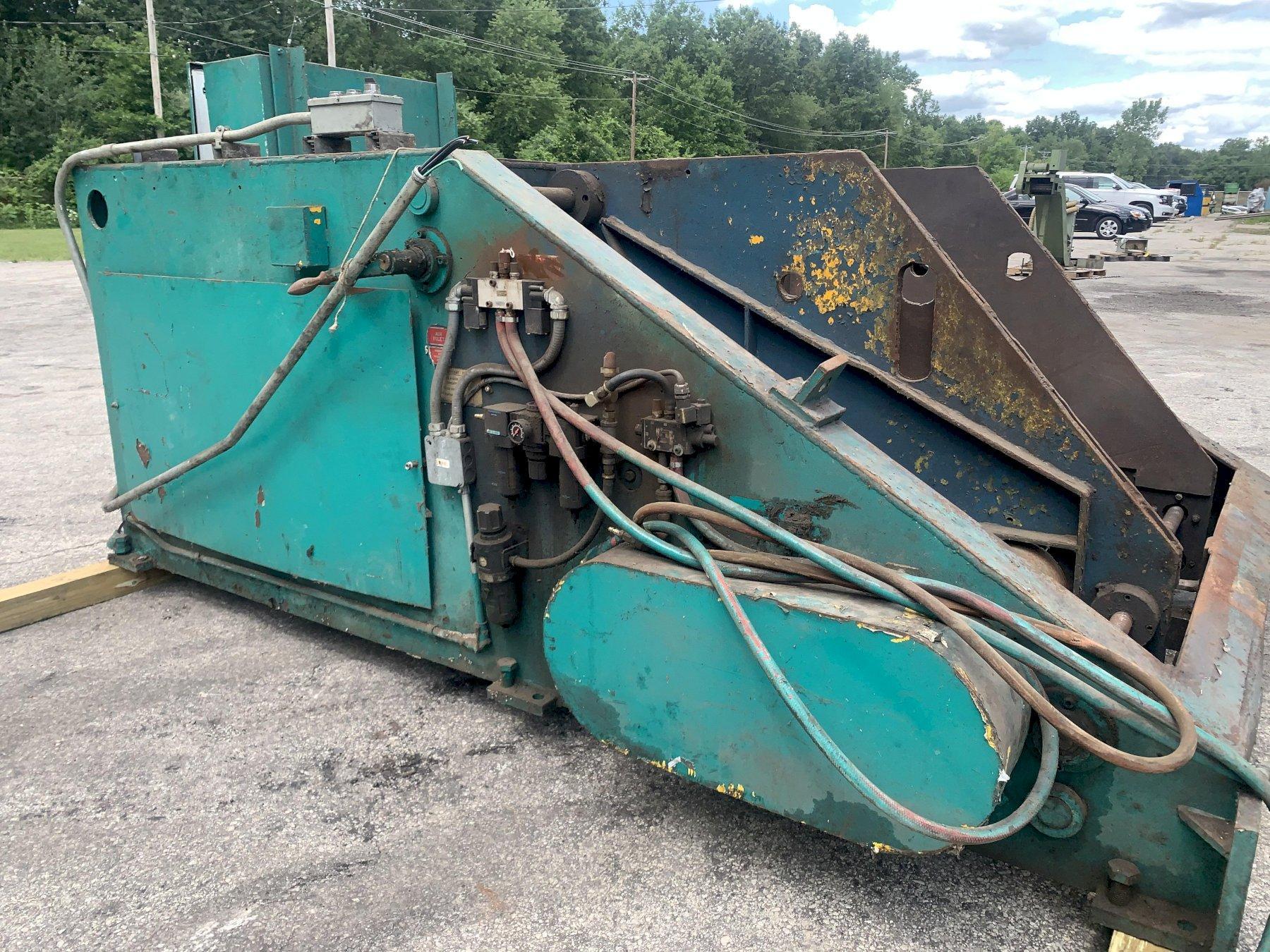

COIL CRADLE:
ADJUSTABLE COIL WIDTH .......... 6" TO 42"
MAX COIL DIAMETER .............. 60"
POWERED COIL ROTATION .......... YES, BOTH SHAFTS
SPEED .......................... VARIABLE W/VFD
CHAIN DRIVEN ................... YES

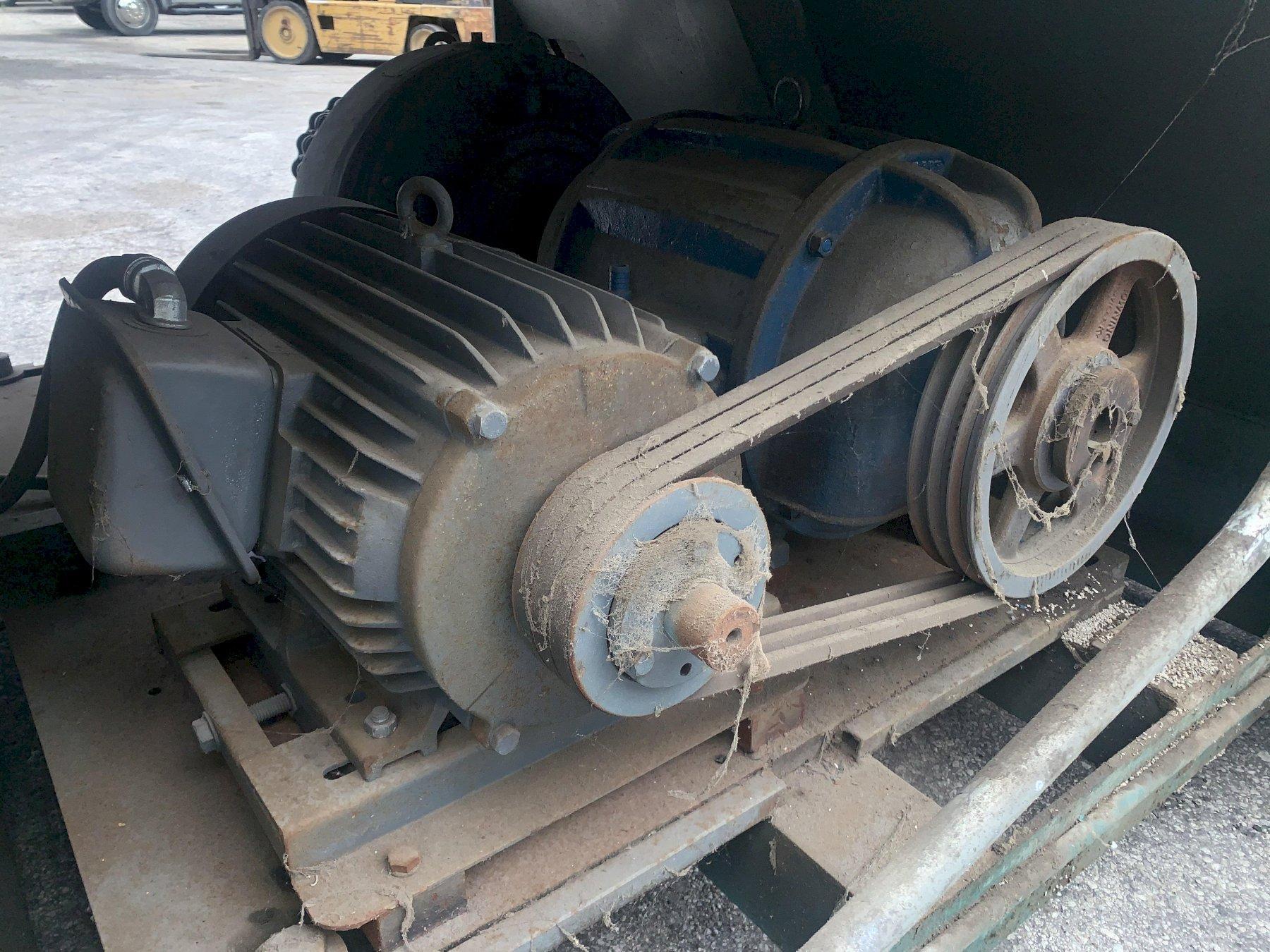

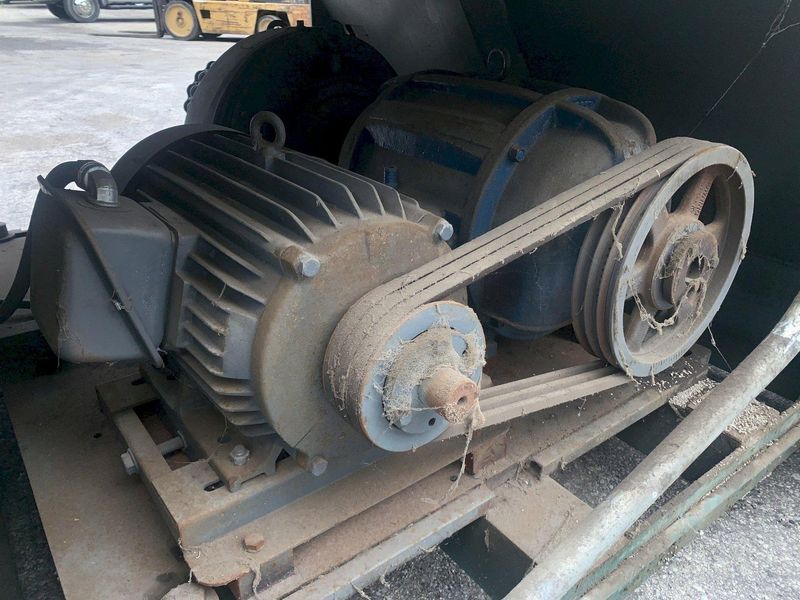

MOTOR .......................... 20 HP

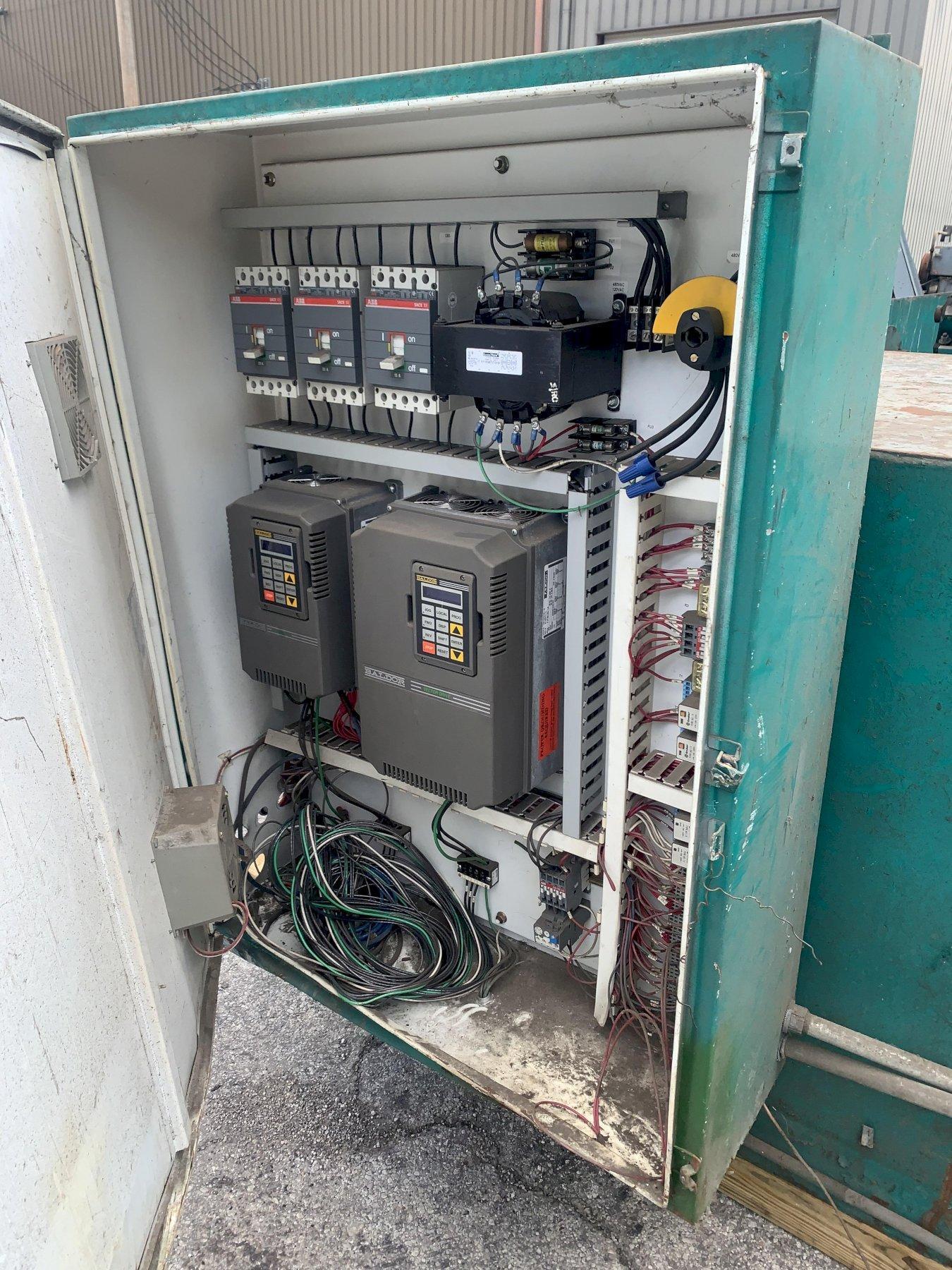

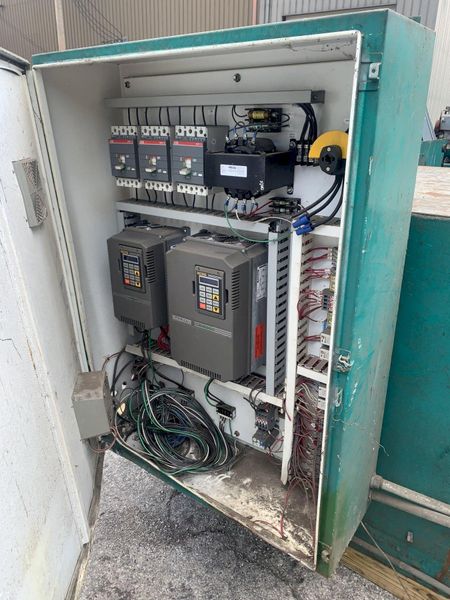

UPDATED ELECTRICS:

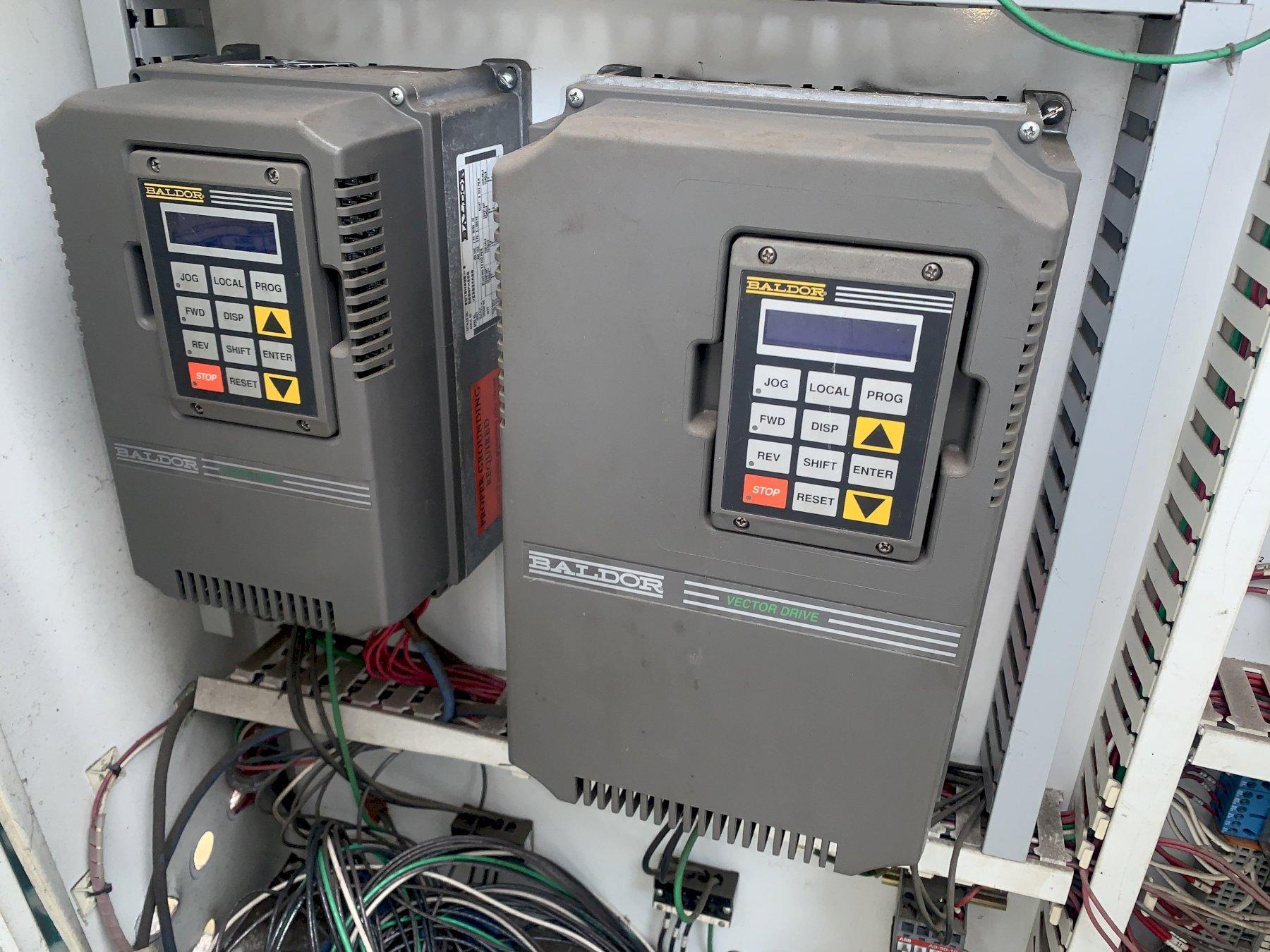

VECTOR VFD DRIVES .............. BALDOR
