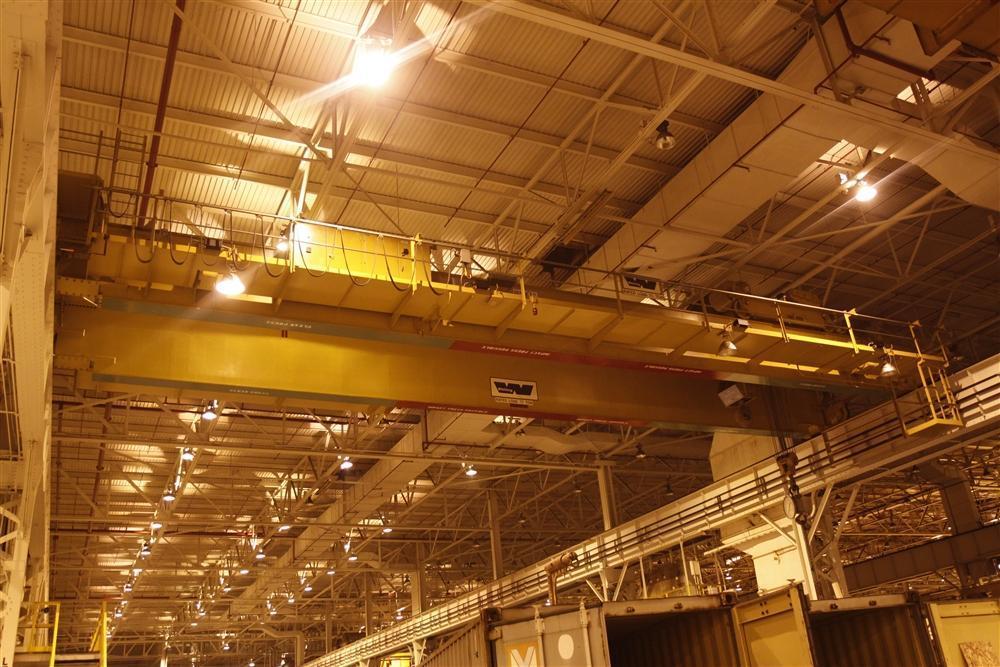

70 TON X 74'9" WHITING 8 WHEEL OVERHEAD BRIDGE CRANE WITH 35 TON AUXILIARY: STOCK 13212

Manufacturer

WHITING

Category

Cranes & Hoists

Type

CRANES, BRIDGE & OVERHEAD

Stock

13212

Model

70/35 X 74'9"

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 70 tons
Length of Span - 74 feet
Length of Span - 74 feet

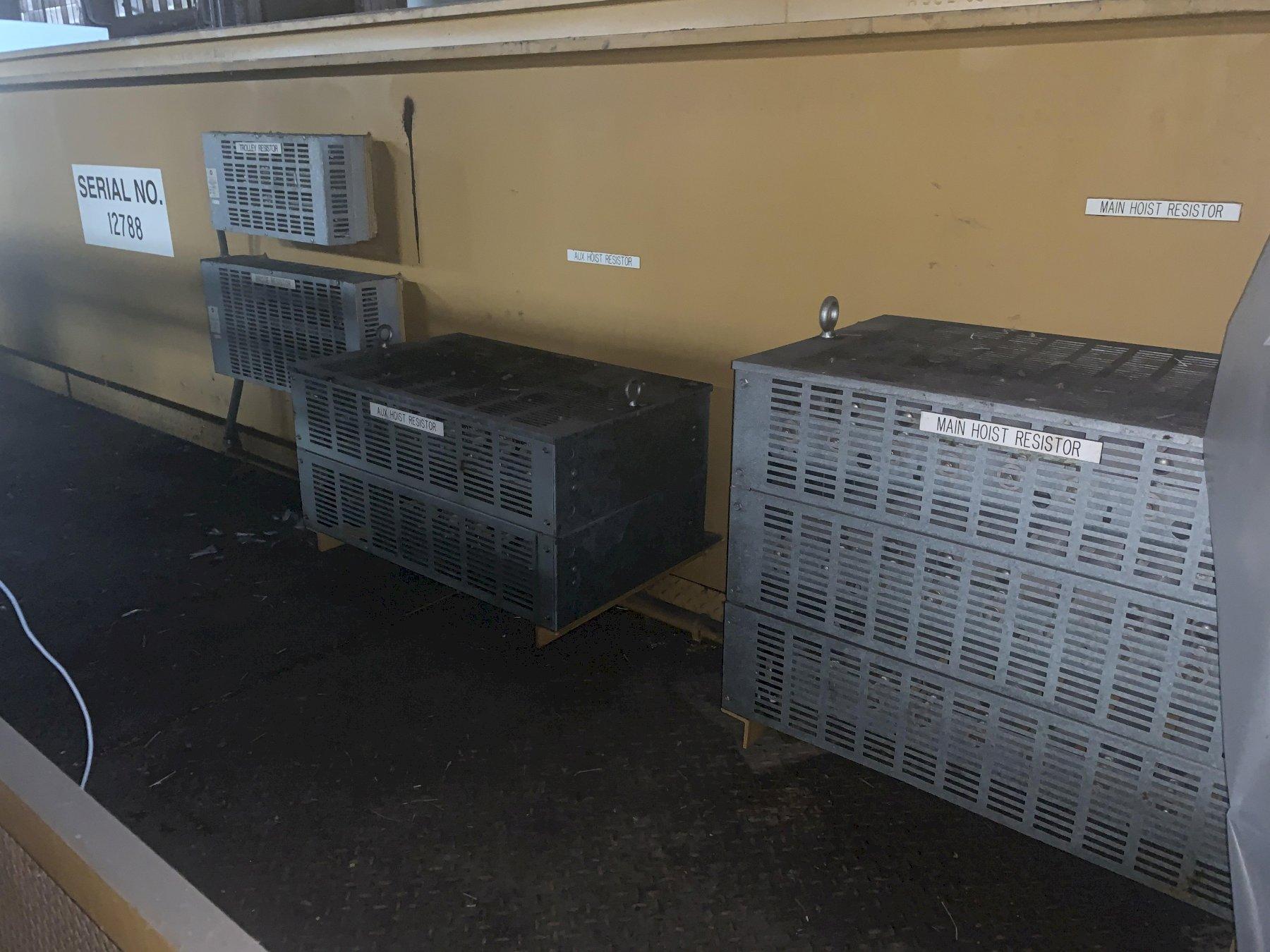

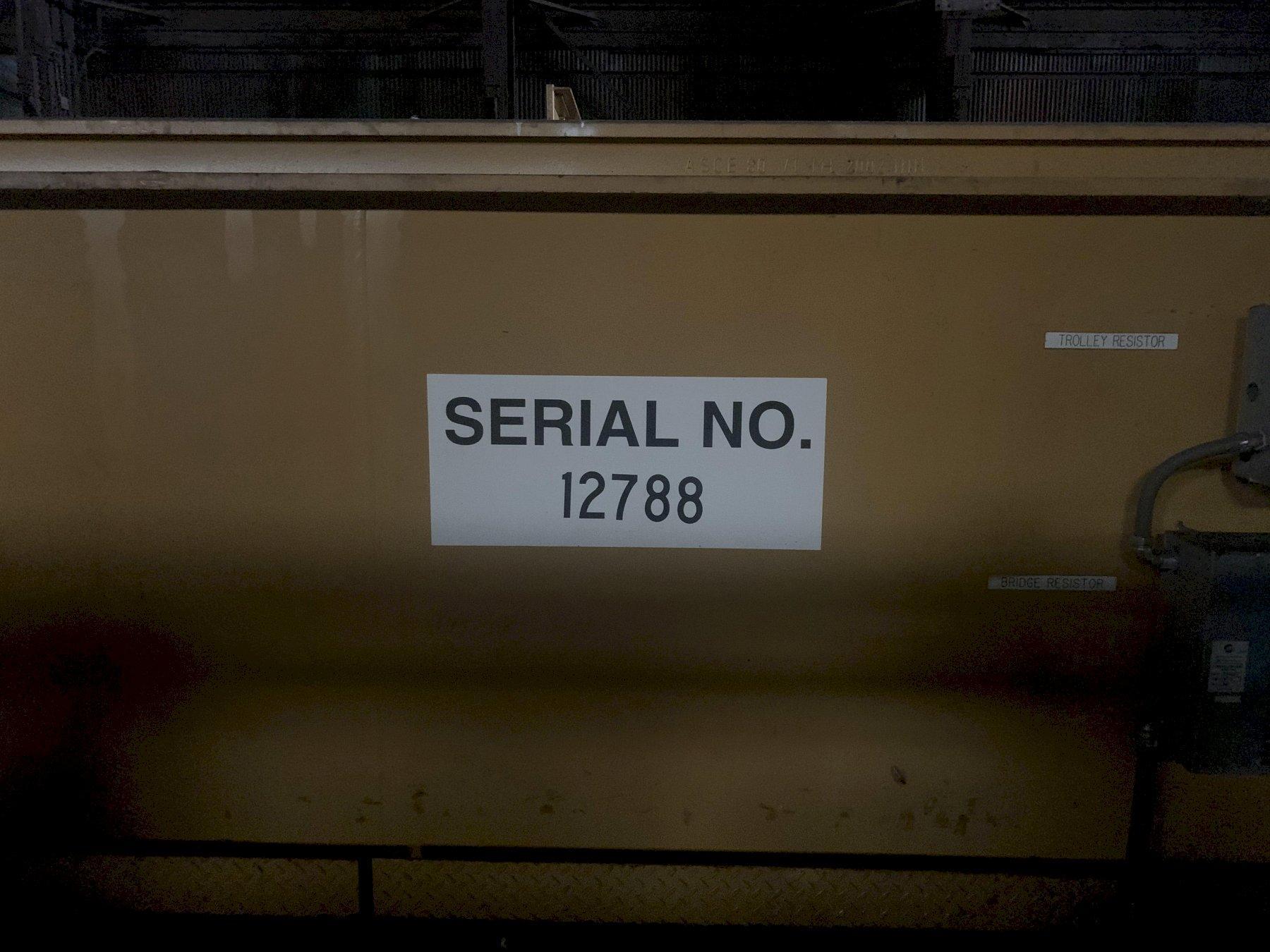

SERIAL ....................... 12788
NEW .......................... 2002

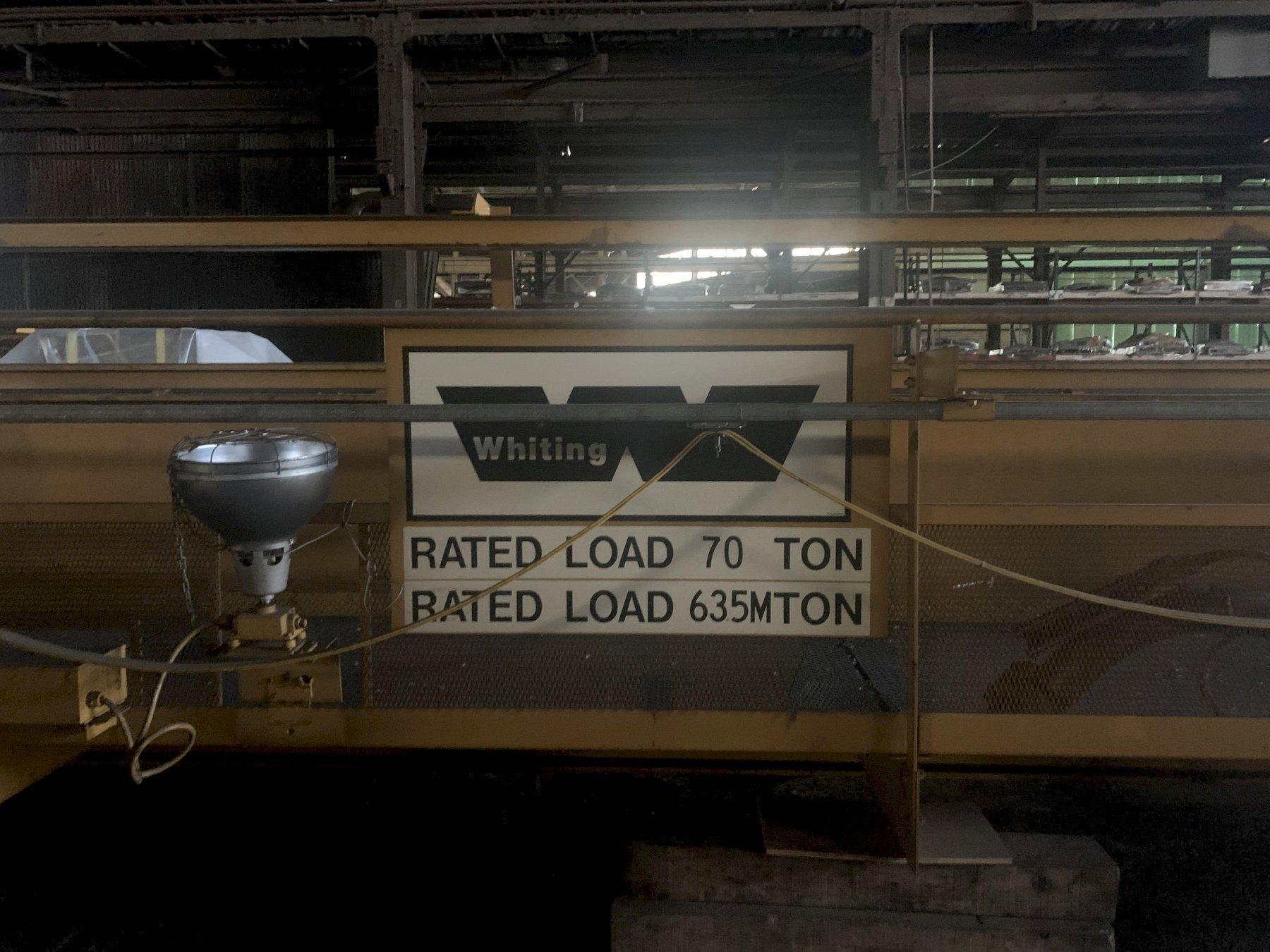

MAIN HOOK CAPACITY ........... 70 TON (63.5 METRIC TON)
AUXILIARY HOOK CAPACITY ...... 35 TON
CLASS ........................ "D"
SPAN ......................... 74'9"
MODEL ........................ TIGER 6 MOTOR
CRANE HEADROOM ............... 6'6" (WHEEL BOTTOM TO TOP OF CRANE)

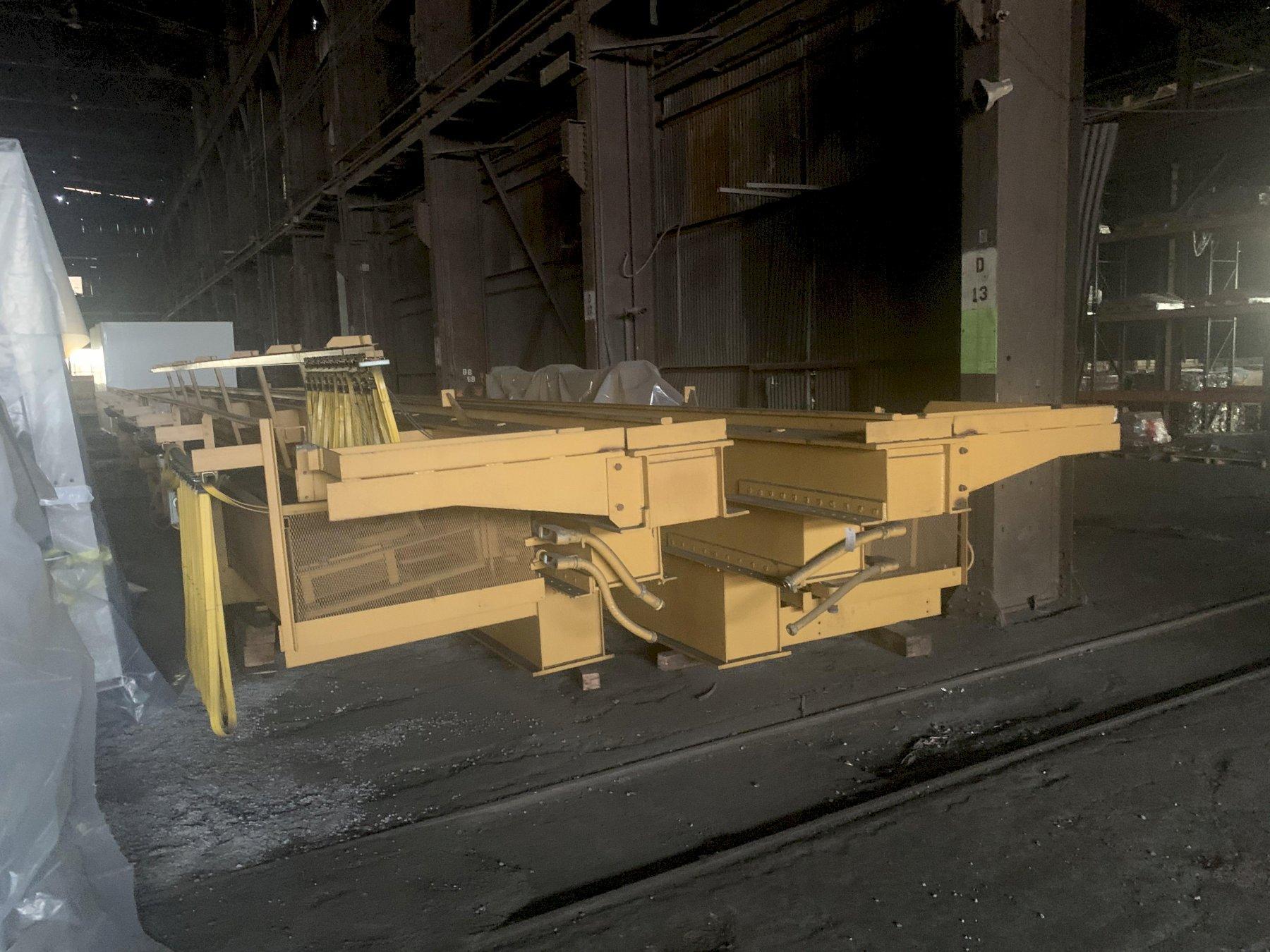

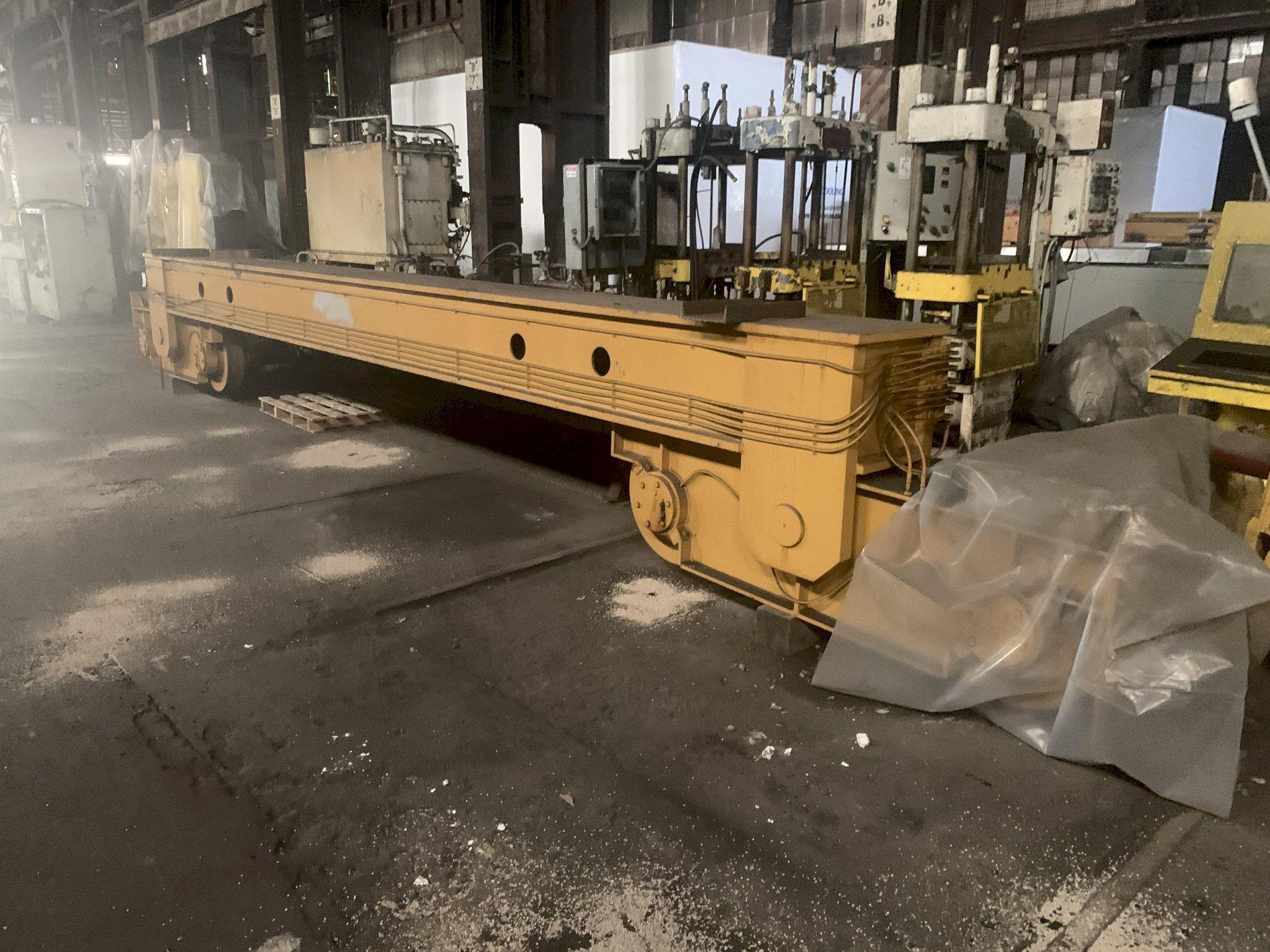

LENGTH OF 8 WHEEL END TRUCK .. 31'6"
PENDANT CONTROL .............. YES
AVAILABLE LIFT ............... 49'
BRIDGE SPEED ................. 200 FPM
TROLLEY SPEED ................ 150 FPM
MAIN HOIST SPEED ............. 18 FPM
AUXILIARY HOIST SPEED ........ 17 FPM

BRIDGE MOTORS ................ 2 @ 20 HP
TROLLEY MOTORS ............... 2 @10 HP
MAIN HOIST MOTOR ............. 100 HP
AUXILIARY HOIST MOTOR ........ 40 HP

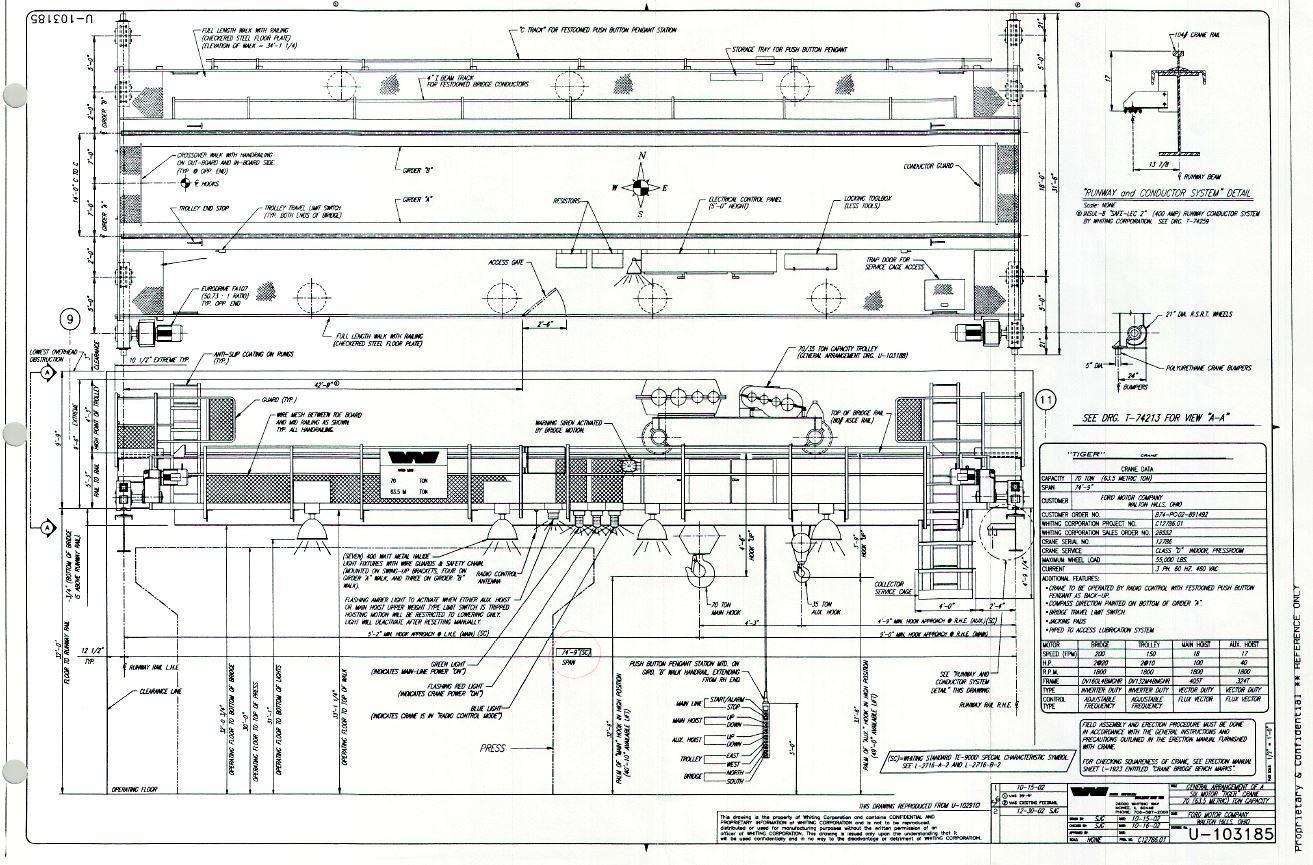

SEE PDF DRAWINGS OF CRANE
