162" WIDE X 6 WHEEL PANGBORN SHOT ROTOBLAST MODEL #ES-1923 TOP & BOTTOM PLATE BLAST CLEANING SYS

Stock

13319

Model

None listed

Dealer Location

Ohio

Spec Sheet




SYSTEM CONSISTS OF:

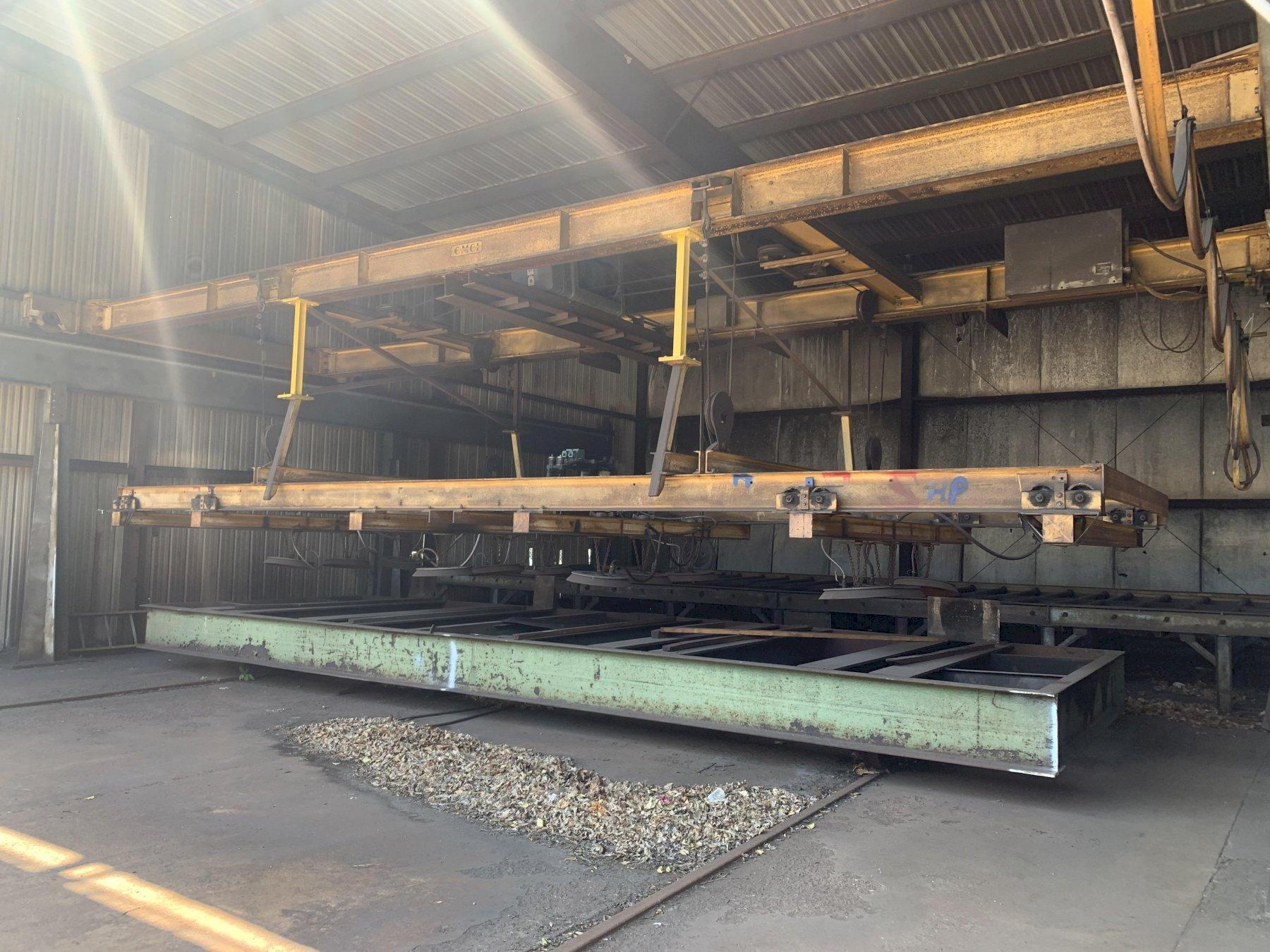

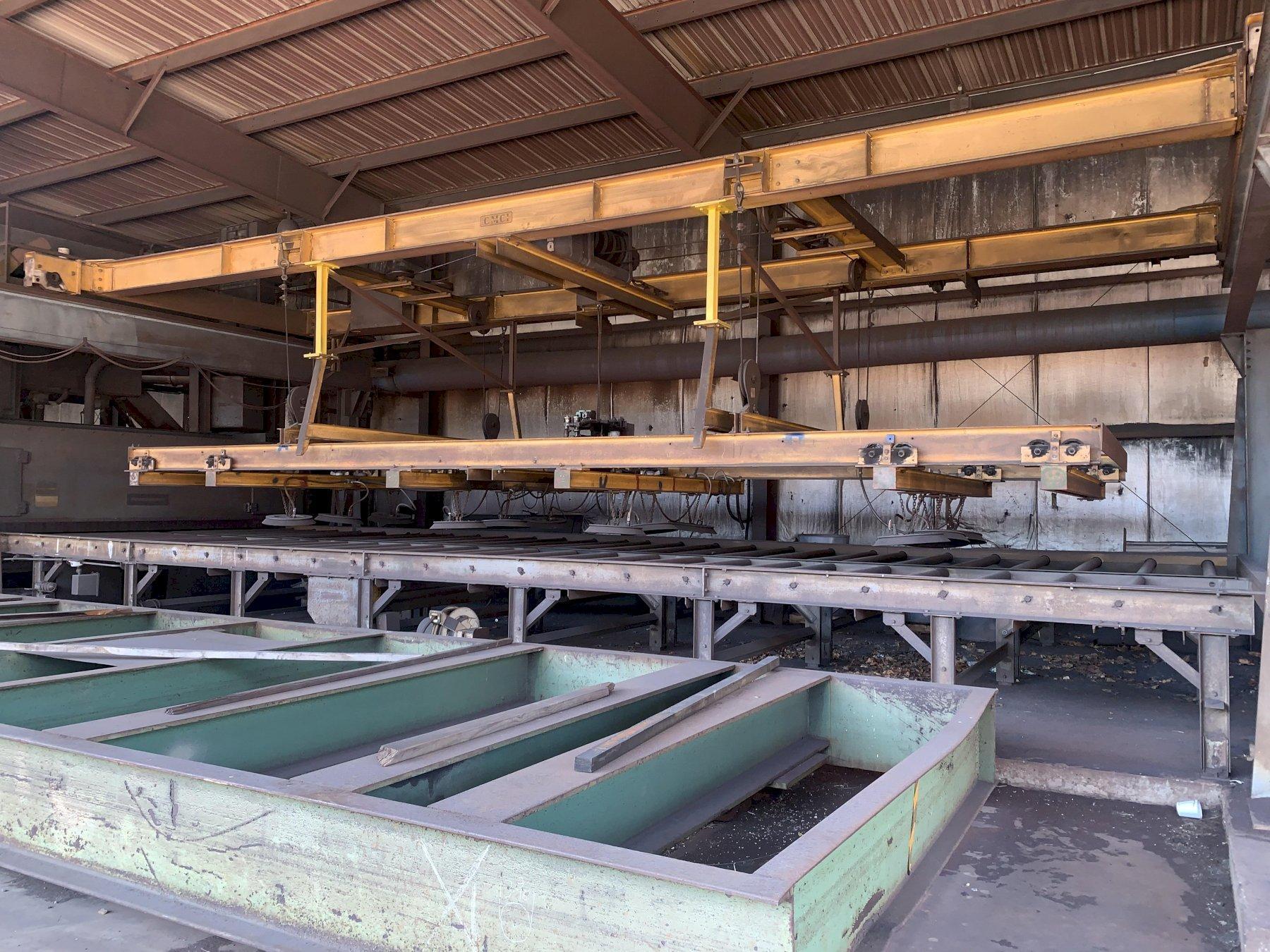

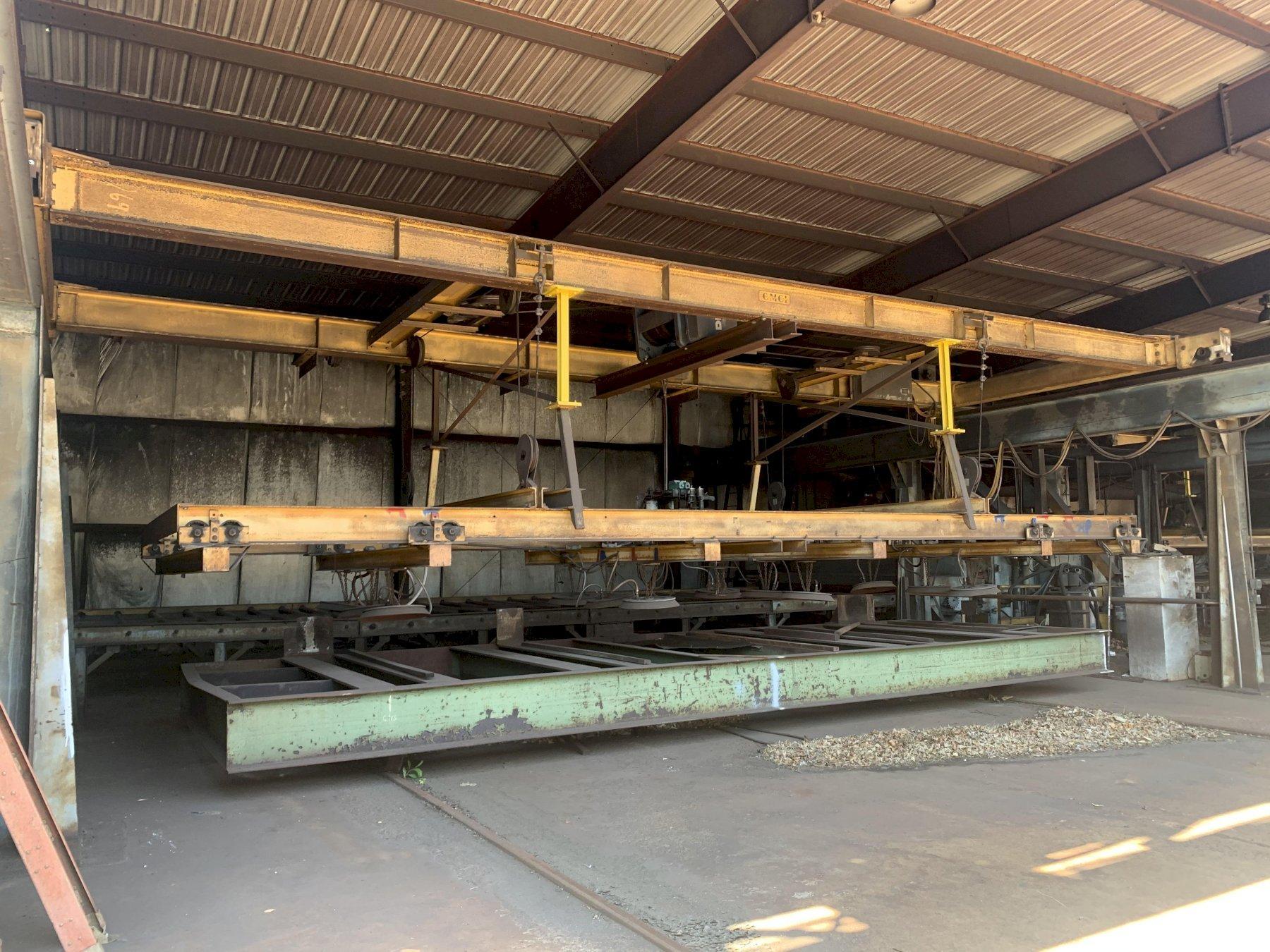

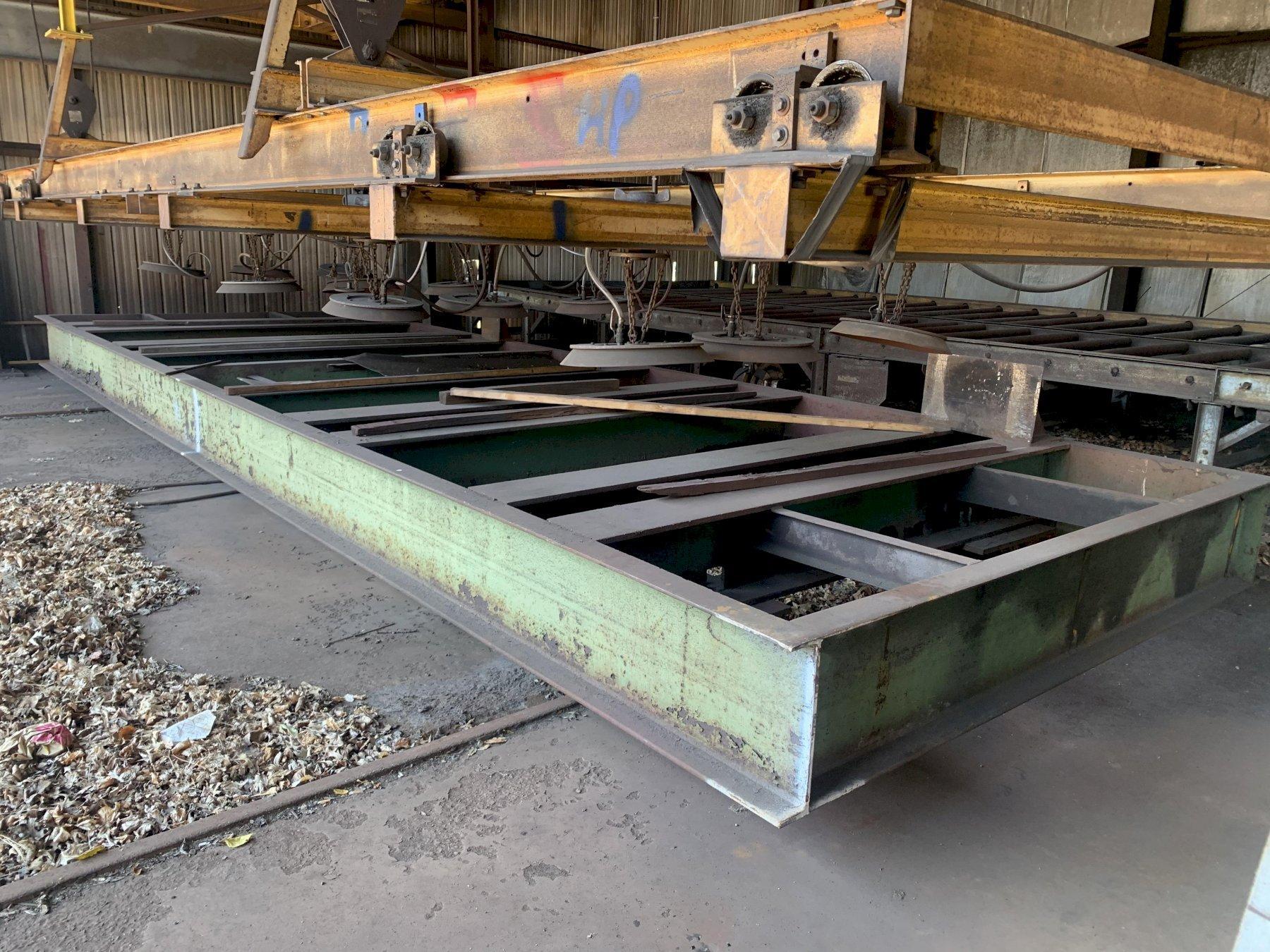

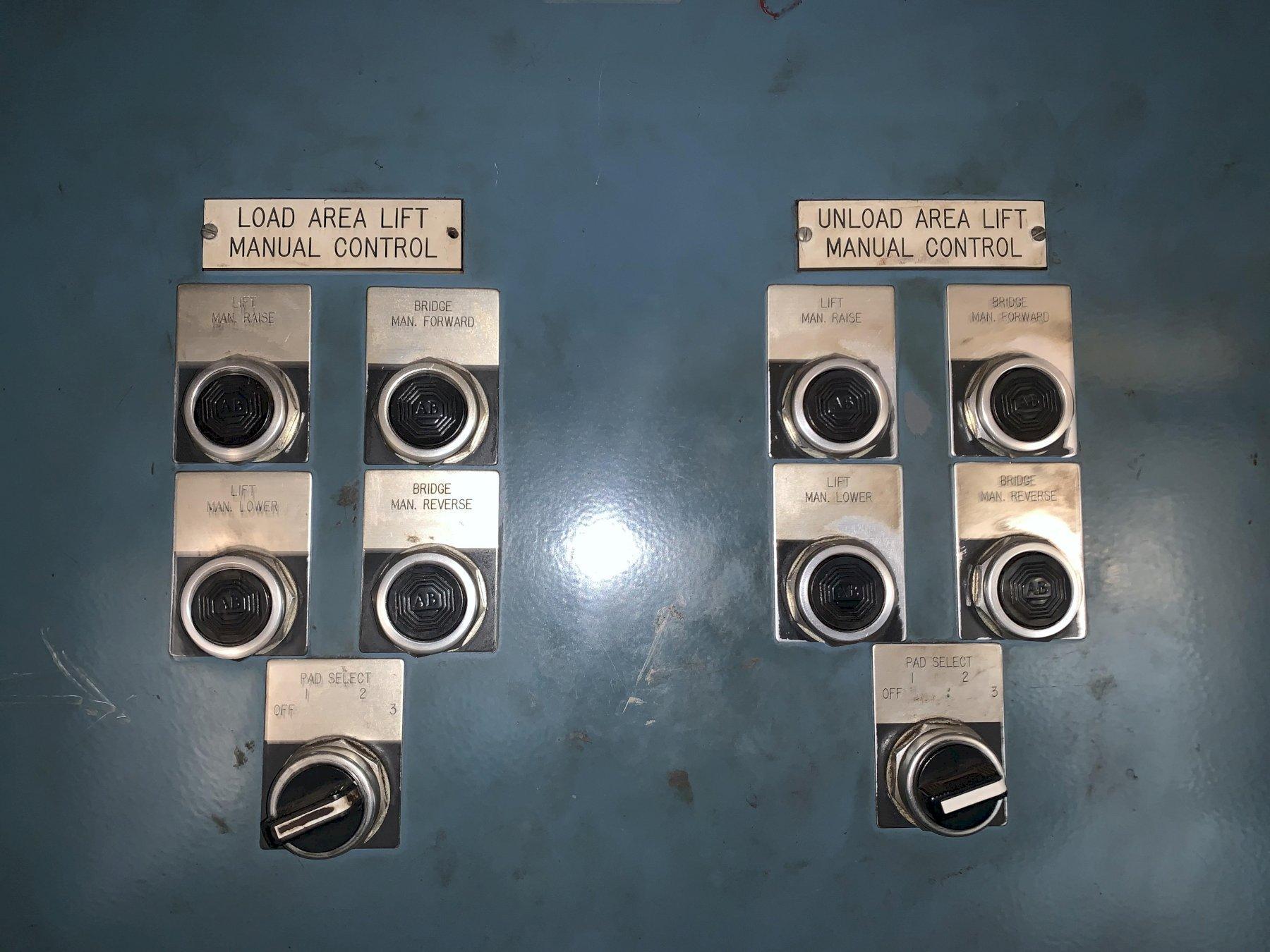

-  MATERIAL HANDLING LOADING WITH VACUUM LIFT

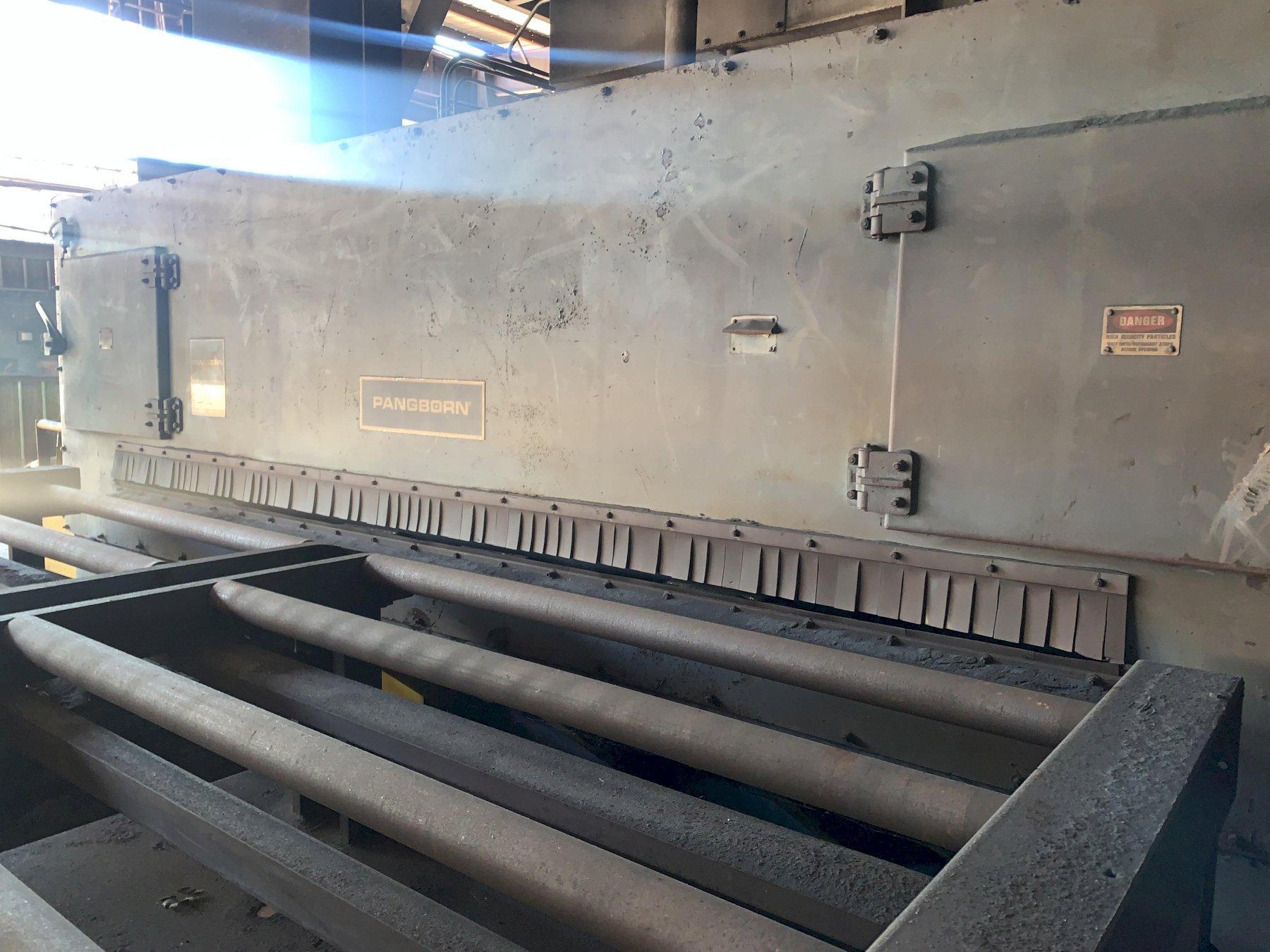

-  ENTRY ROLLER CONVEYOR

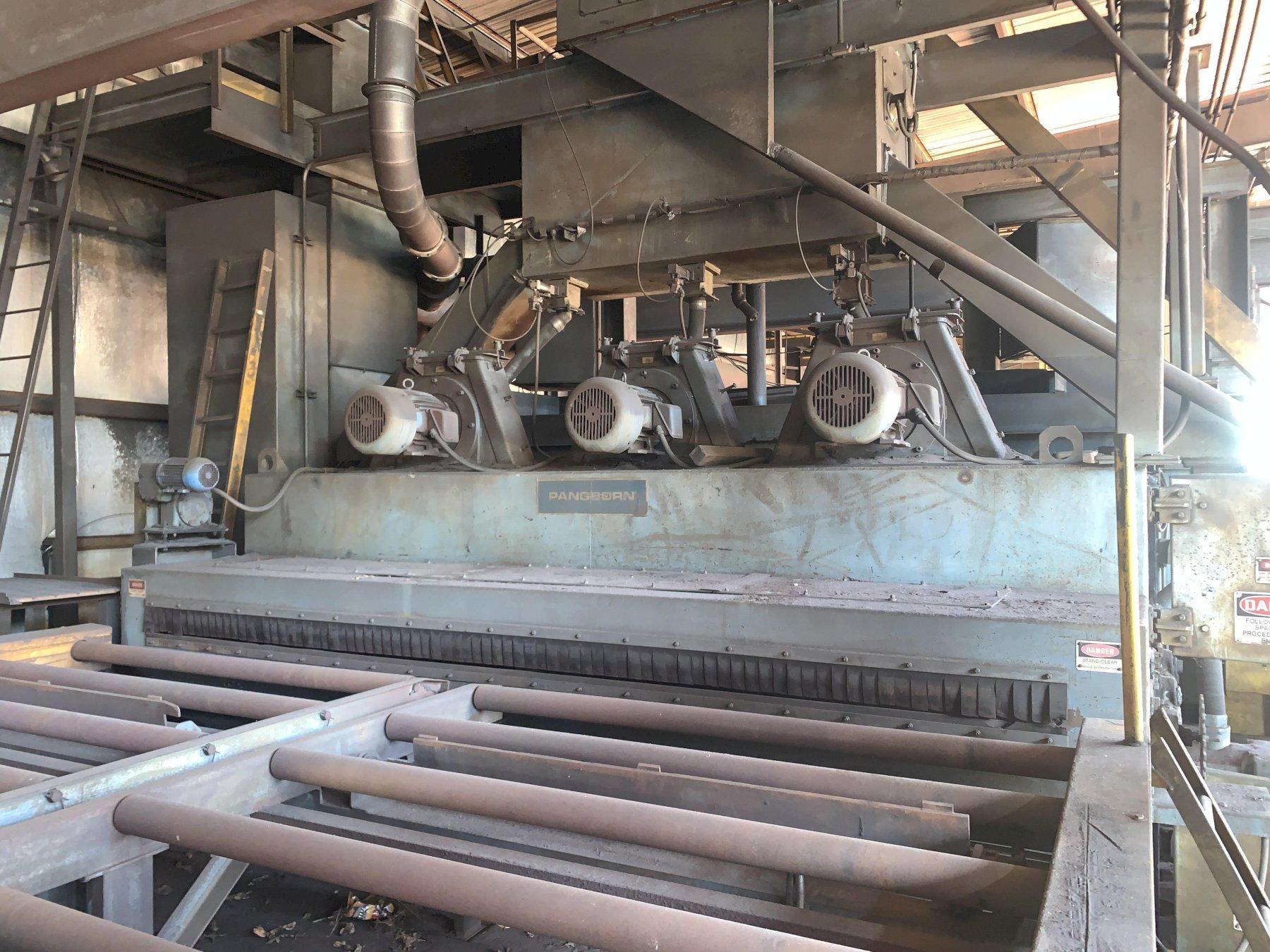

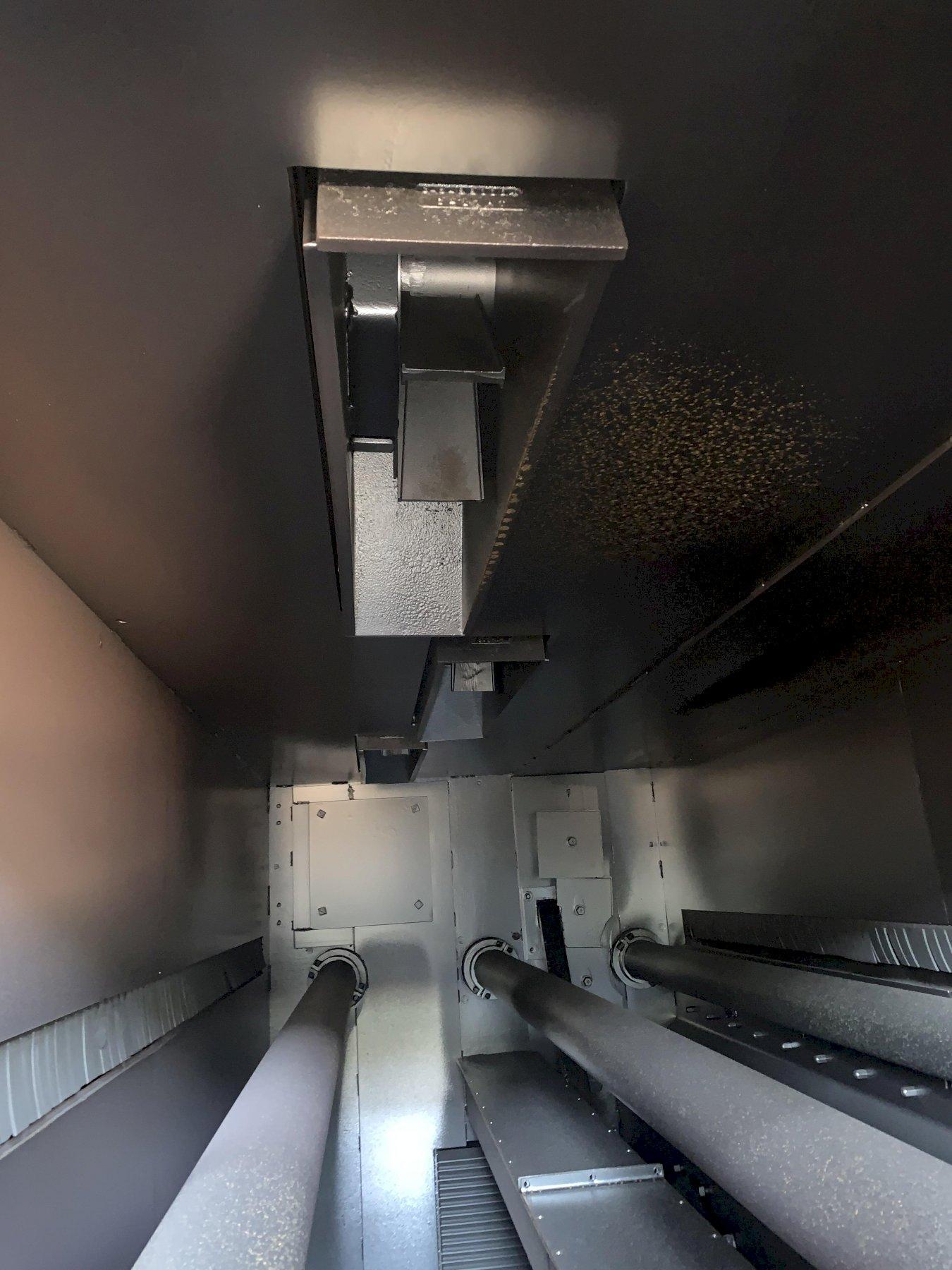

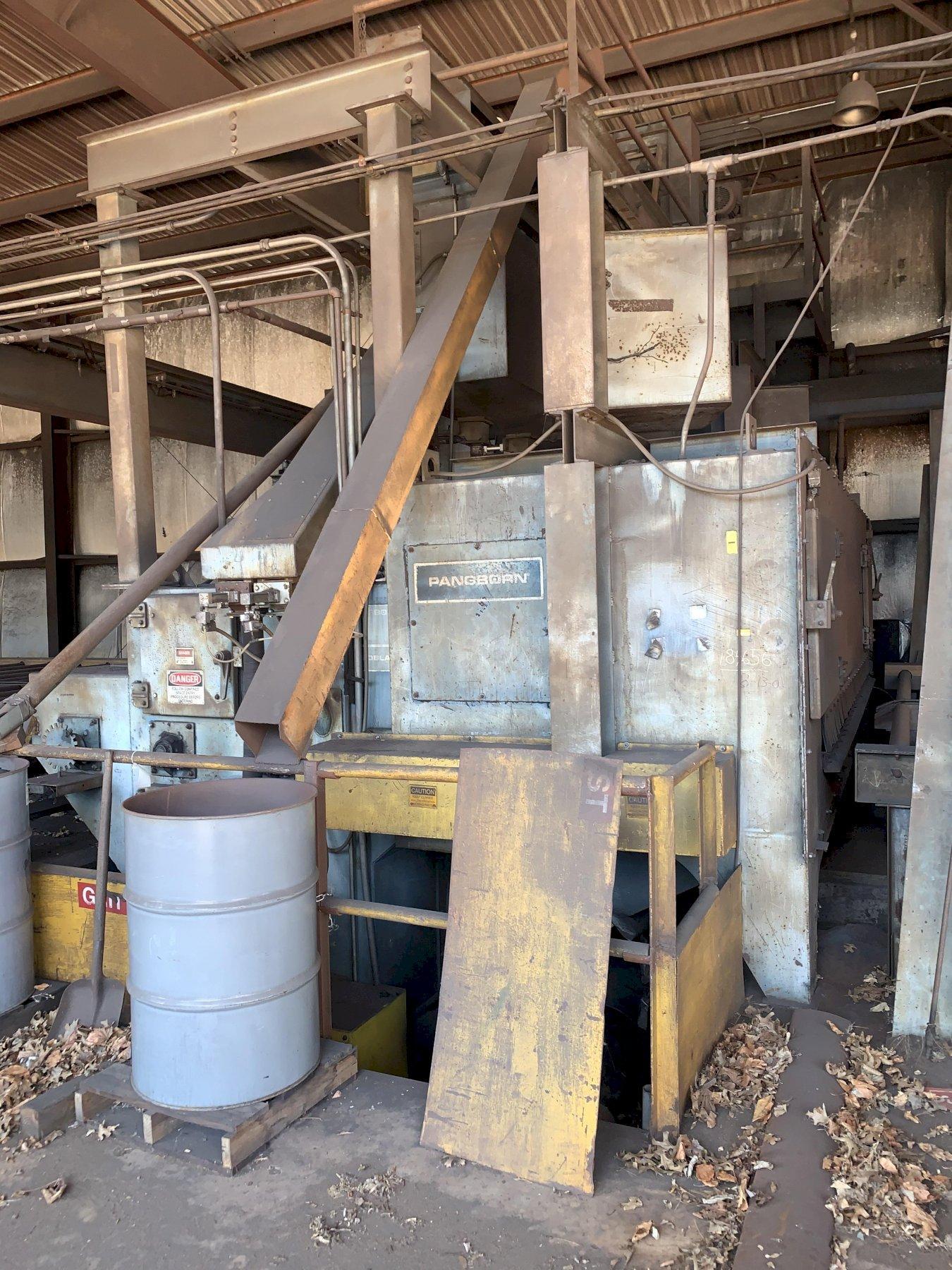

-  6 WHEEL ROTOBLAST COMPARTMENT
-  BRUSH OFF/BLOW OFF COMPARTMENT
-  EXIT ROLLER CONVEYOR

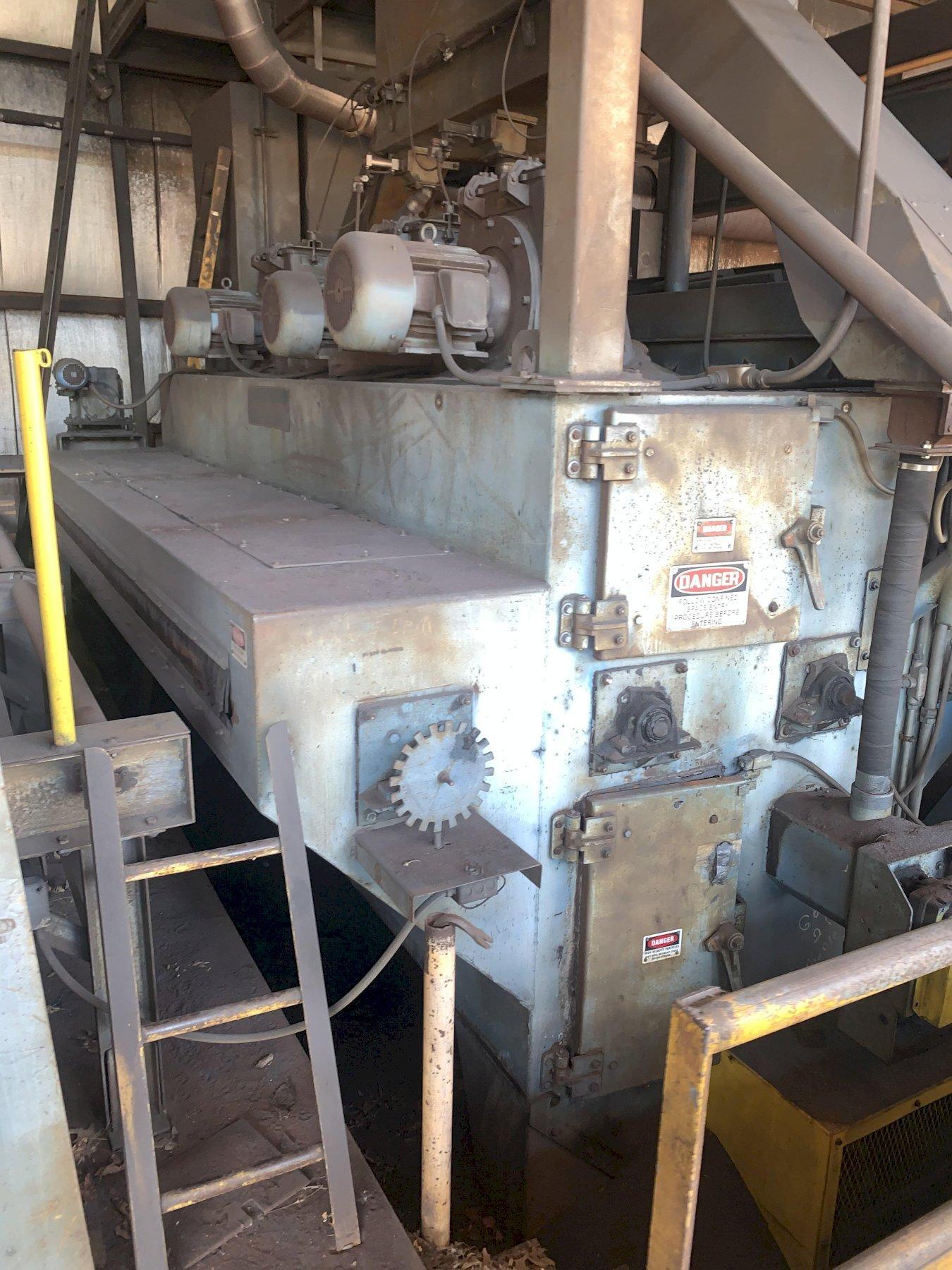

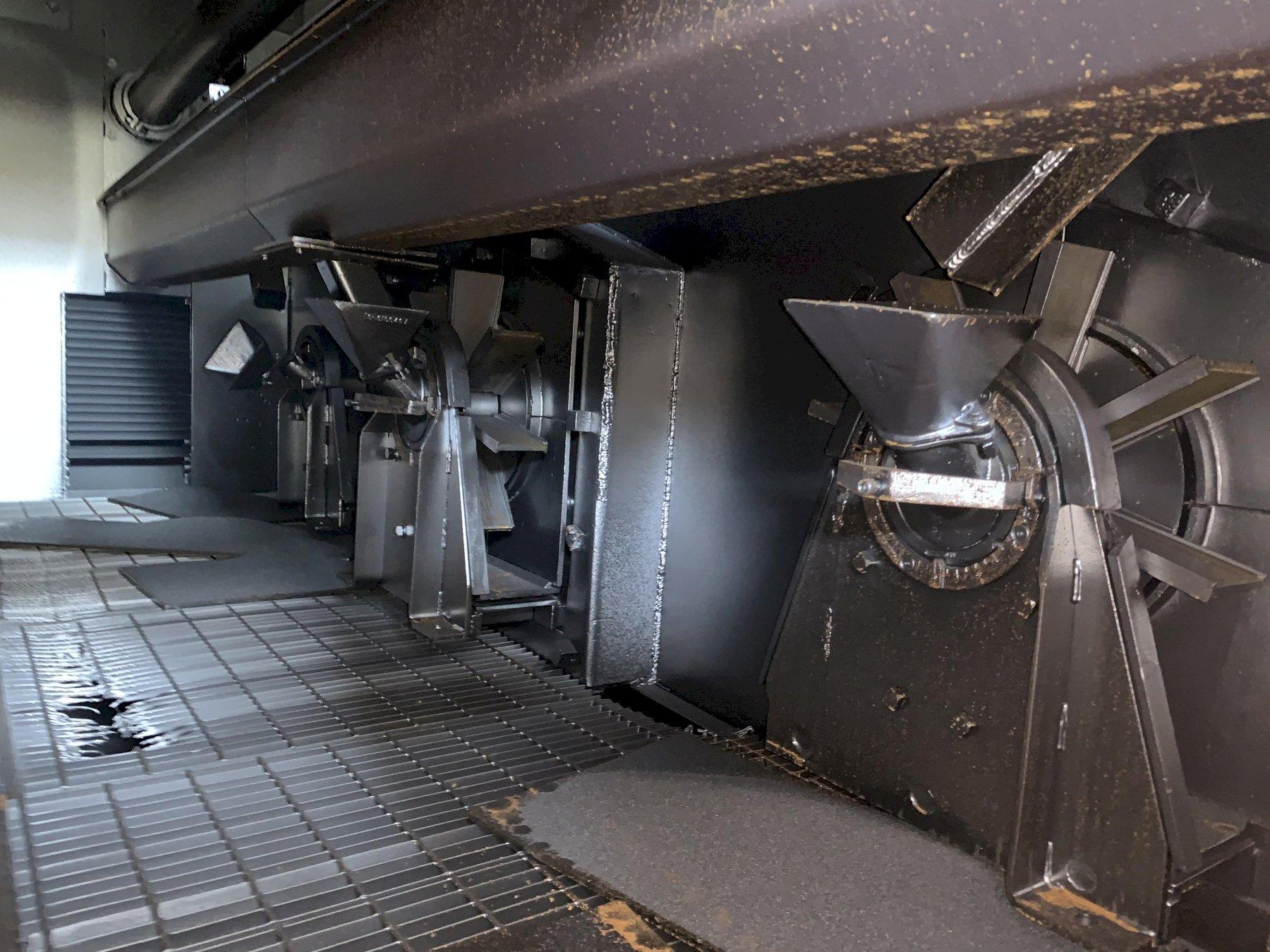

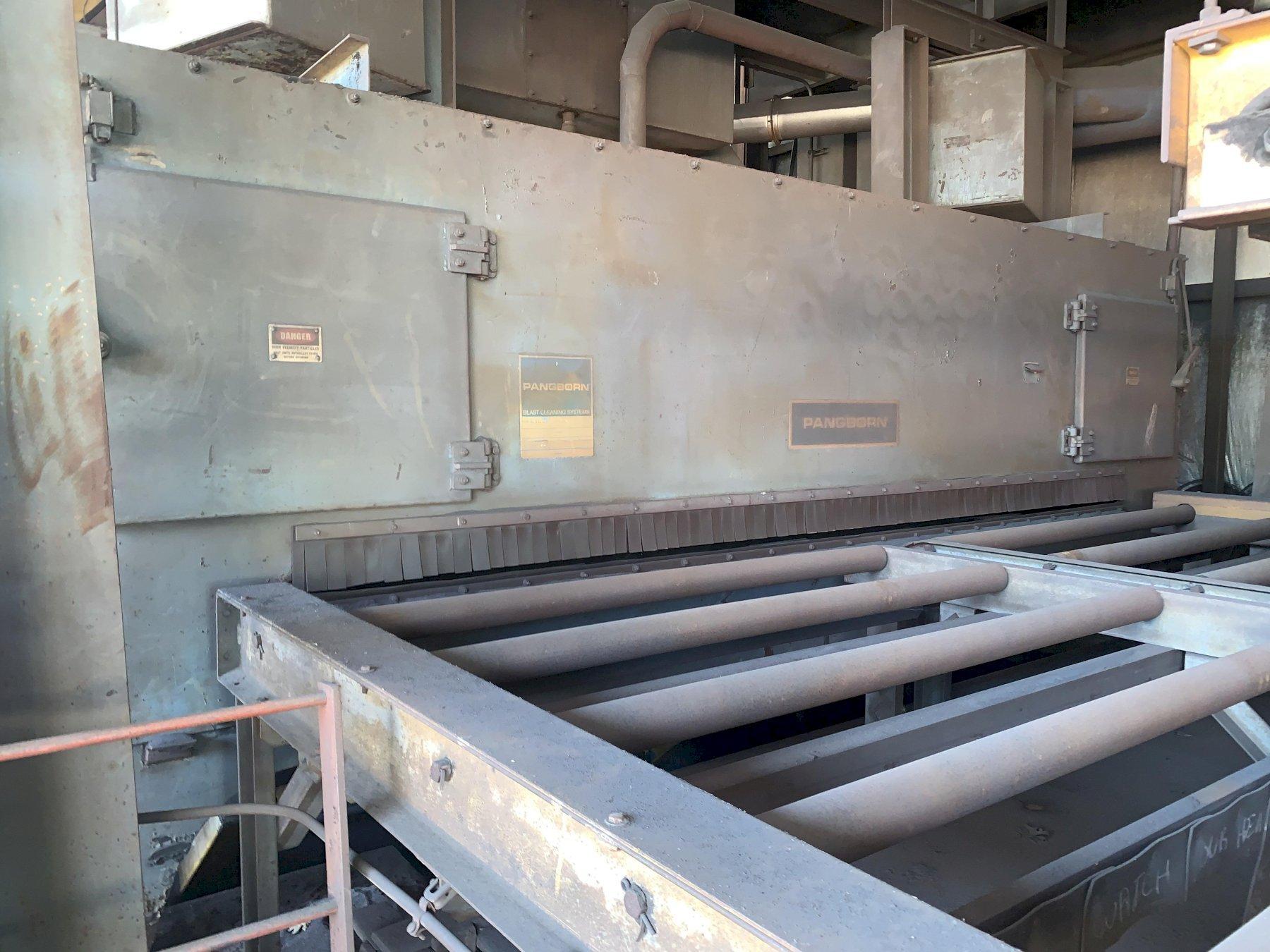

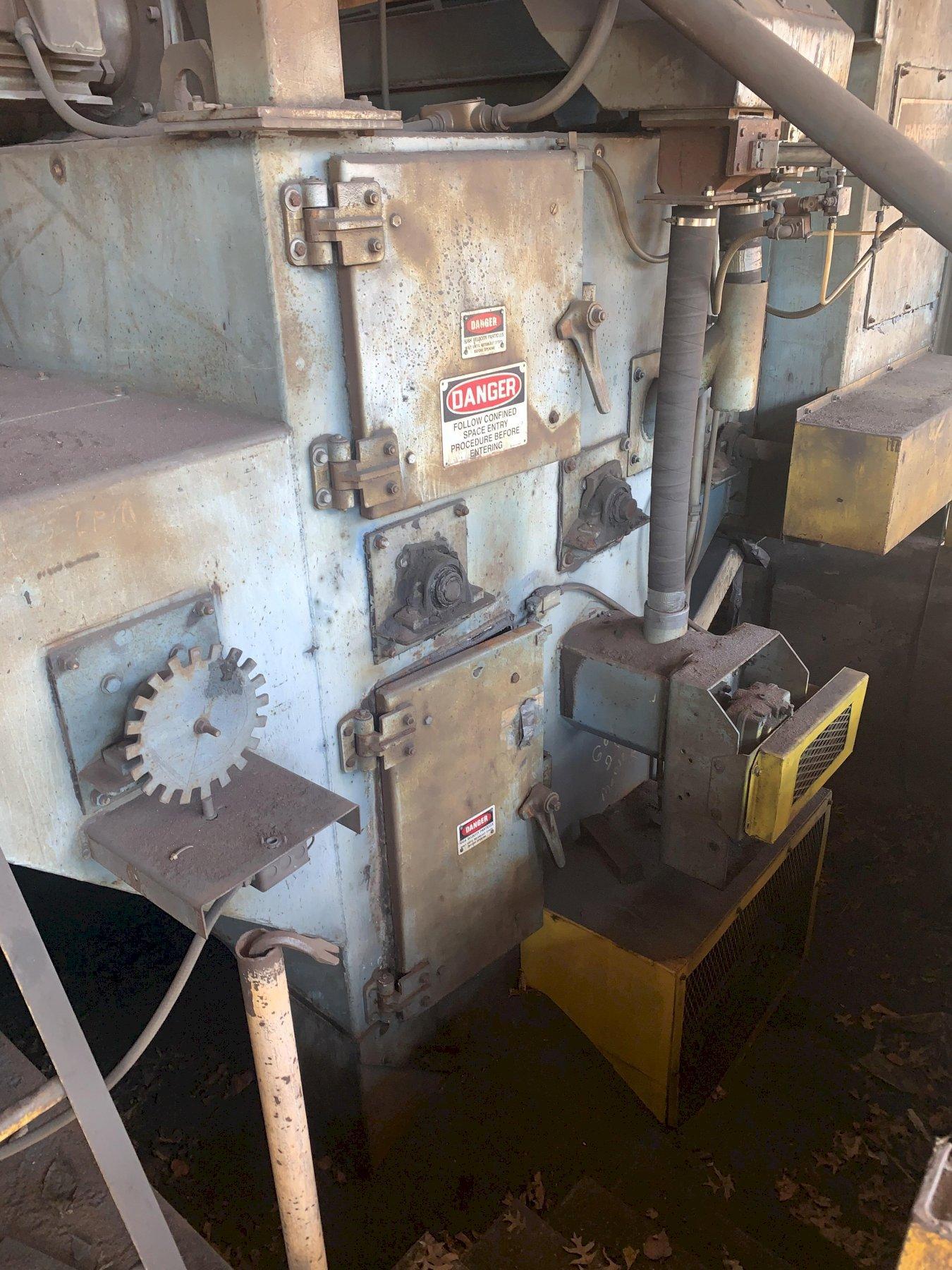

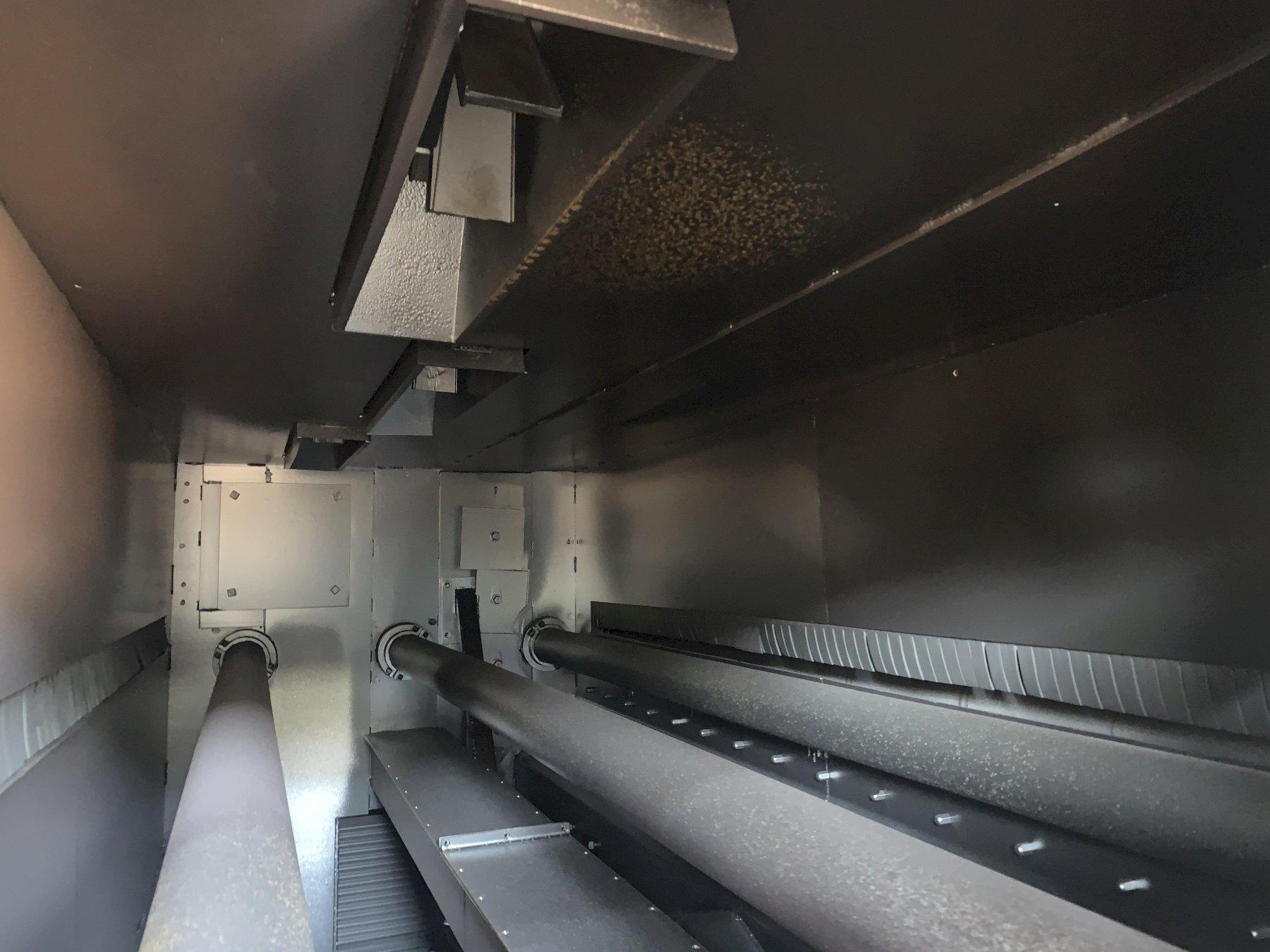

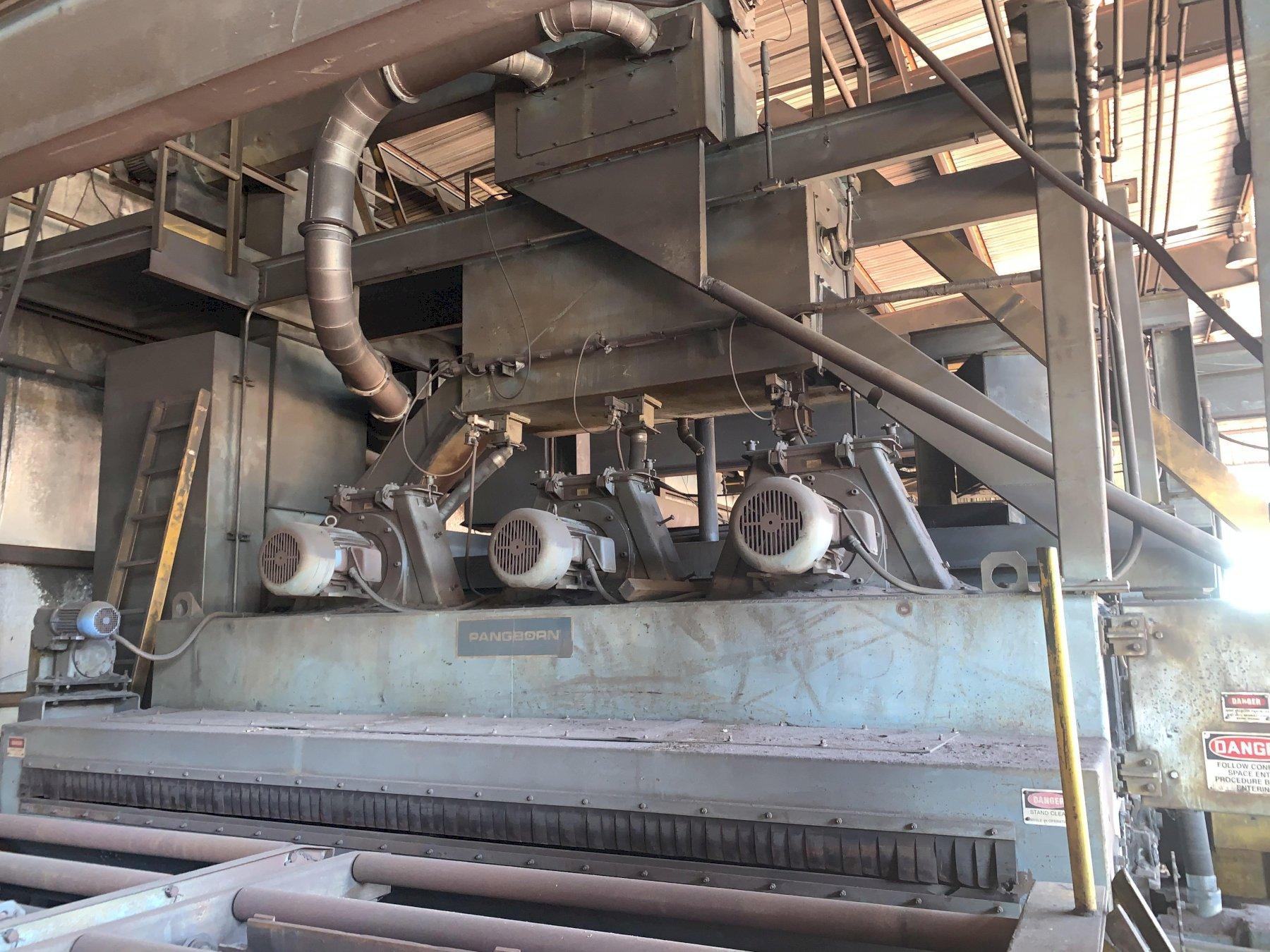

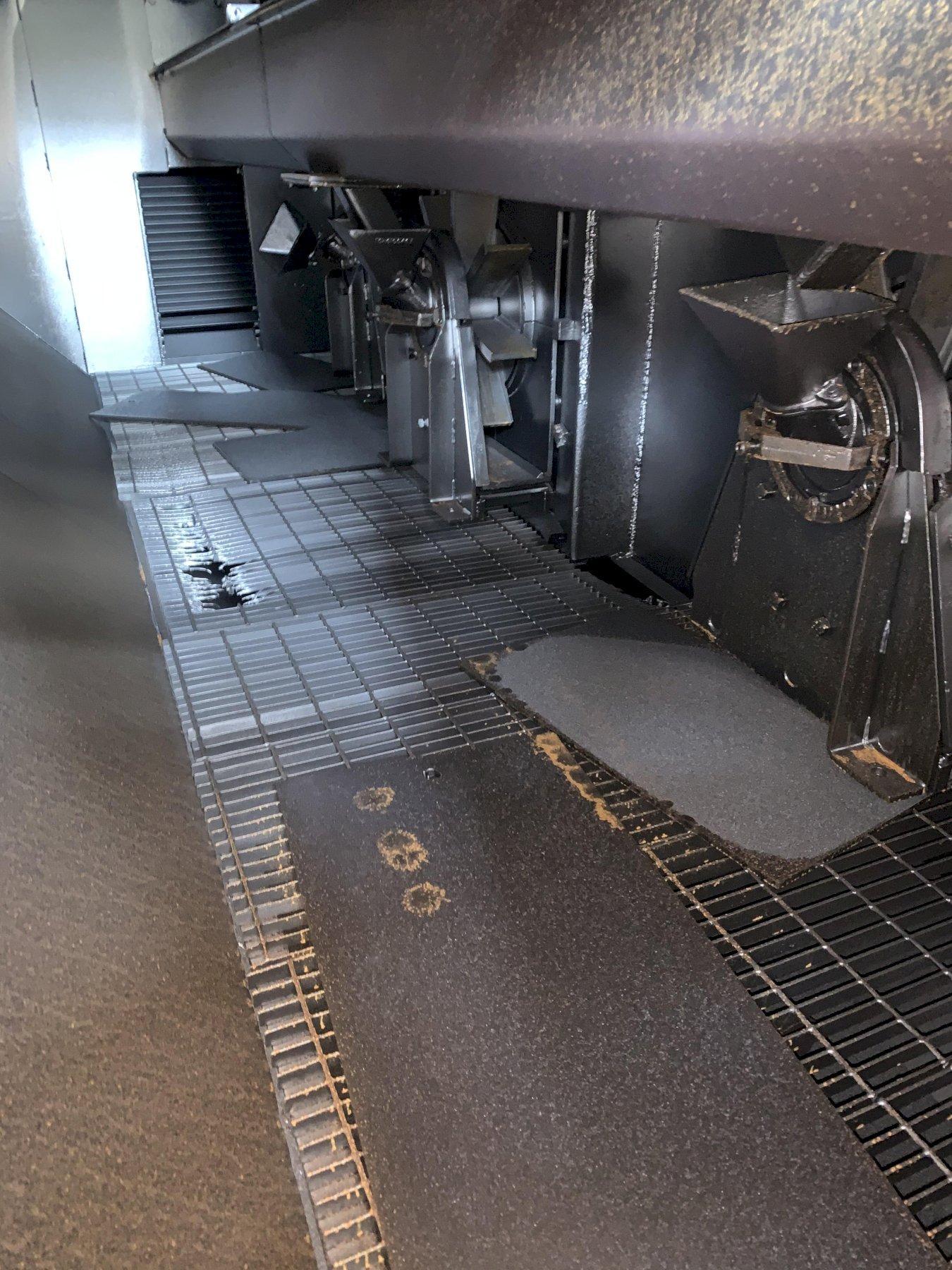

ROTOBLAST COMPARTMENT:

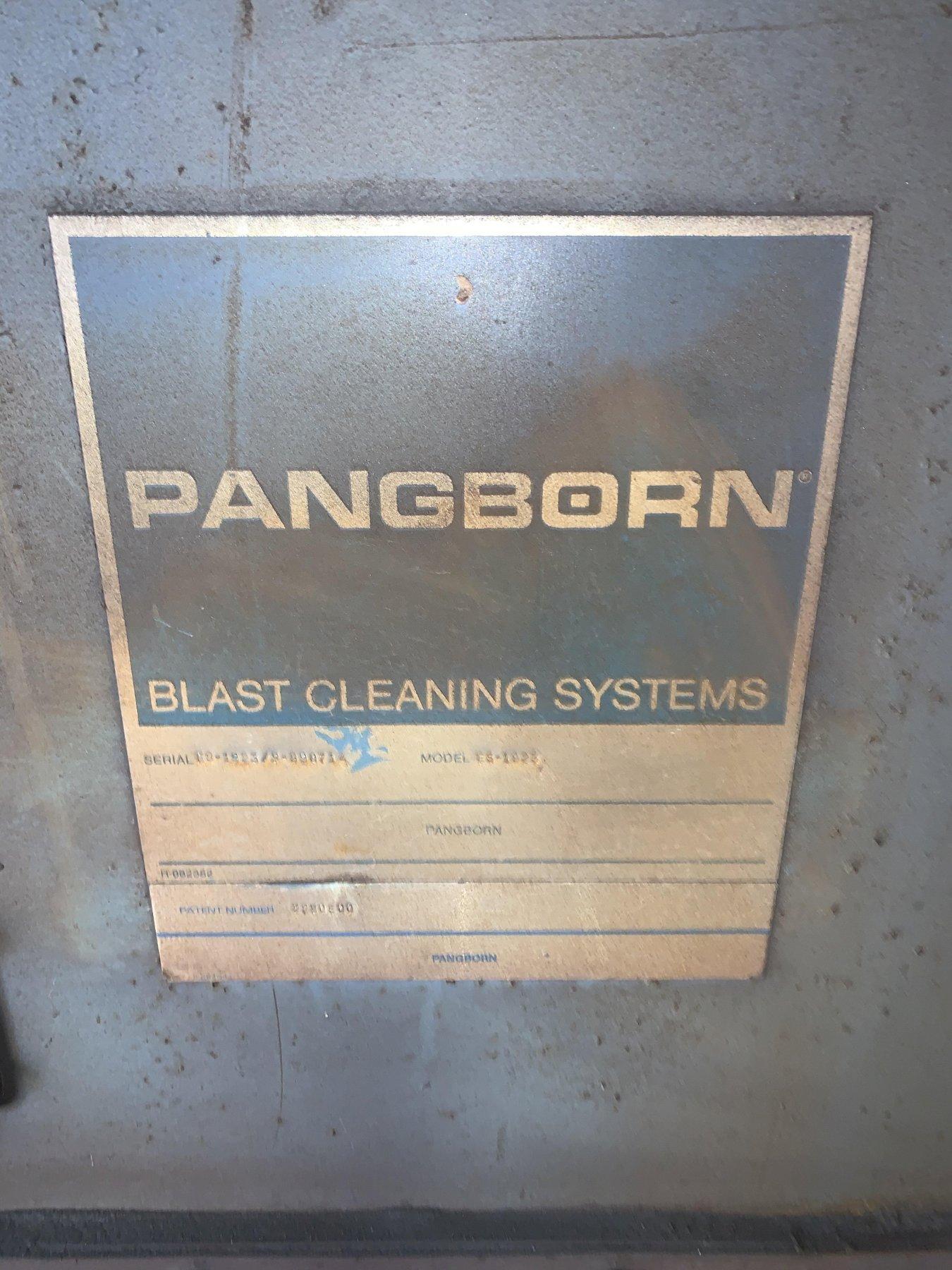

SERIAL ................... ES1923/S890714
NEW ...................... 1990
MODEL .................... ES-1923 ROTOBLAST
TOP & BOTTOM BLASTING .... YES
WIDTH OF OPENING ......... 162"
HEIGHT OF OPENING ........ 4" MAX
NUMBER OF SHOT WHEELS .... 6
WHEEL CONFIGURATION ...... 3 TOP / 3 BOTTOM

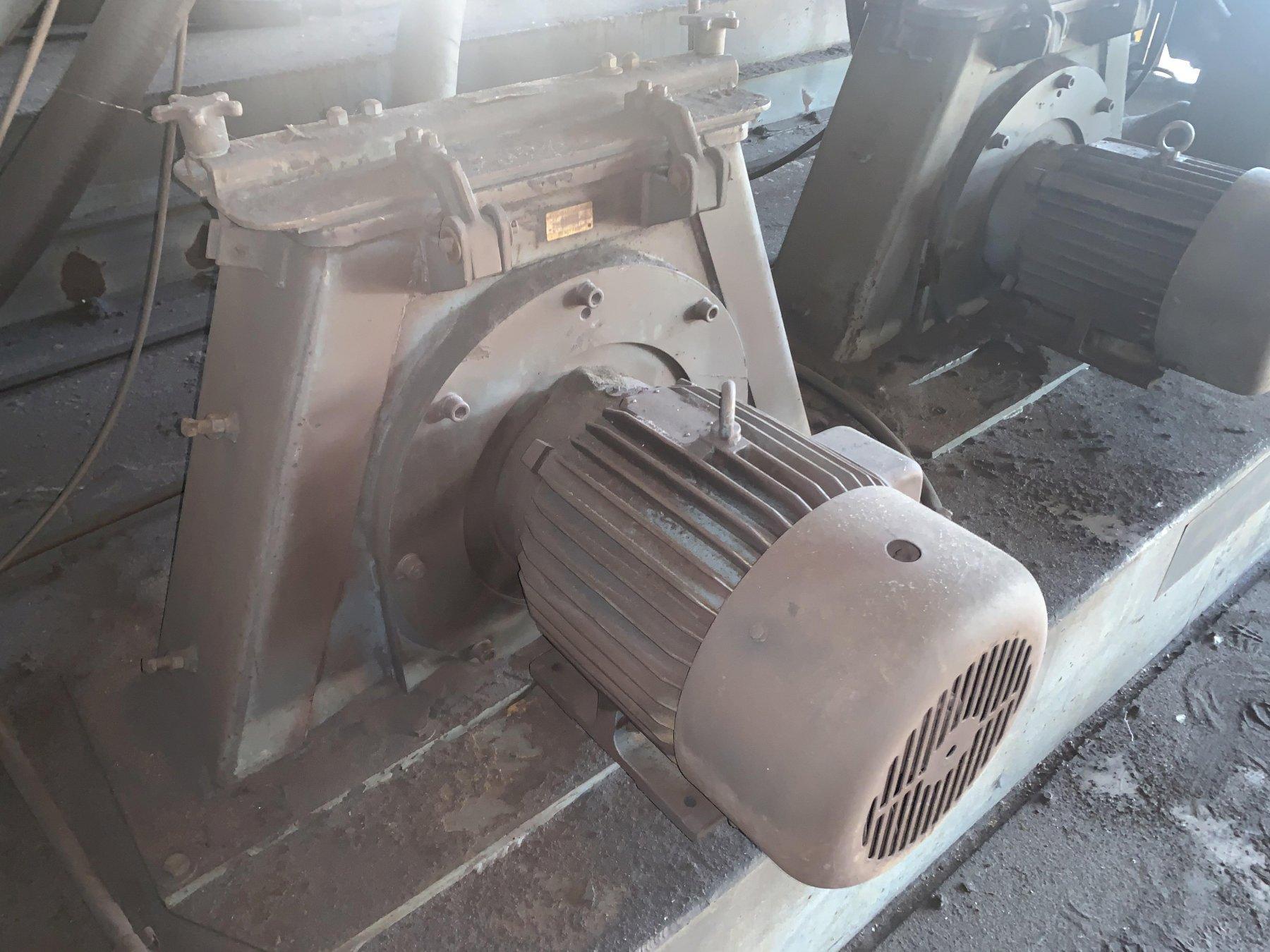

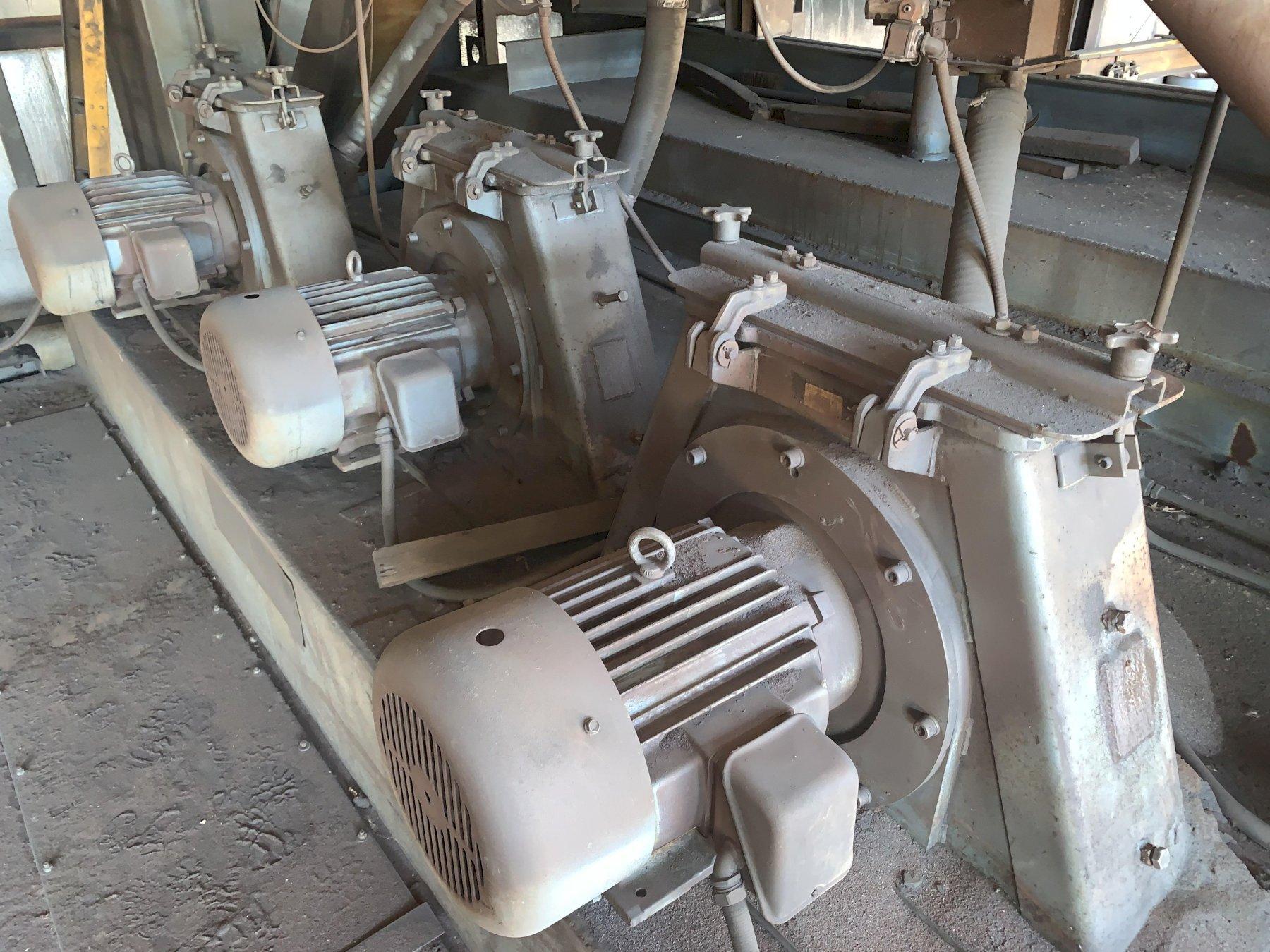

WHEEL MODEL .............. 240DD-4RI

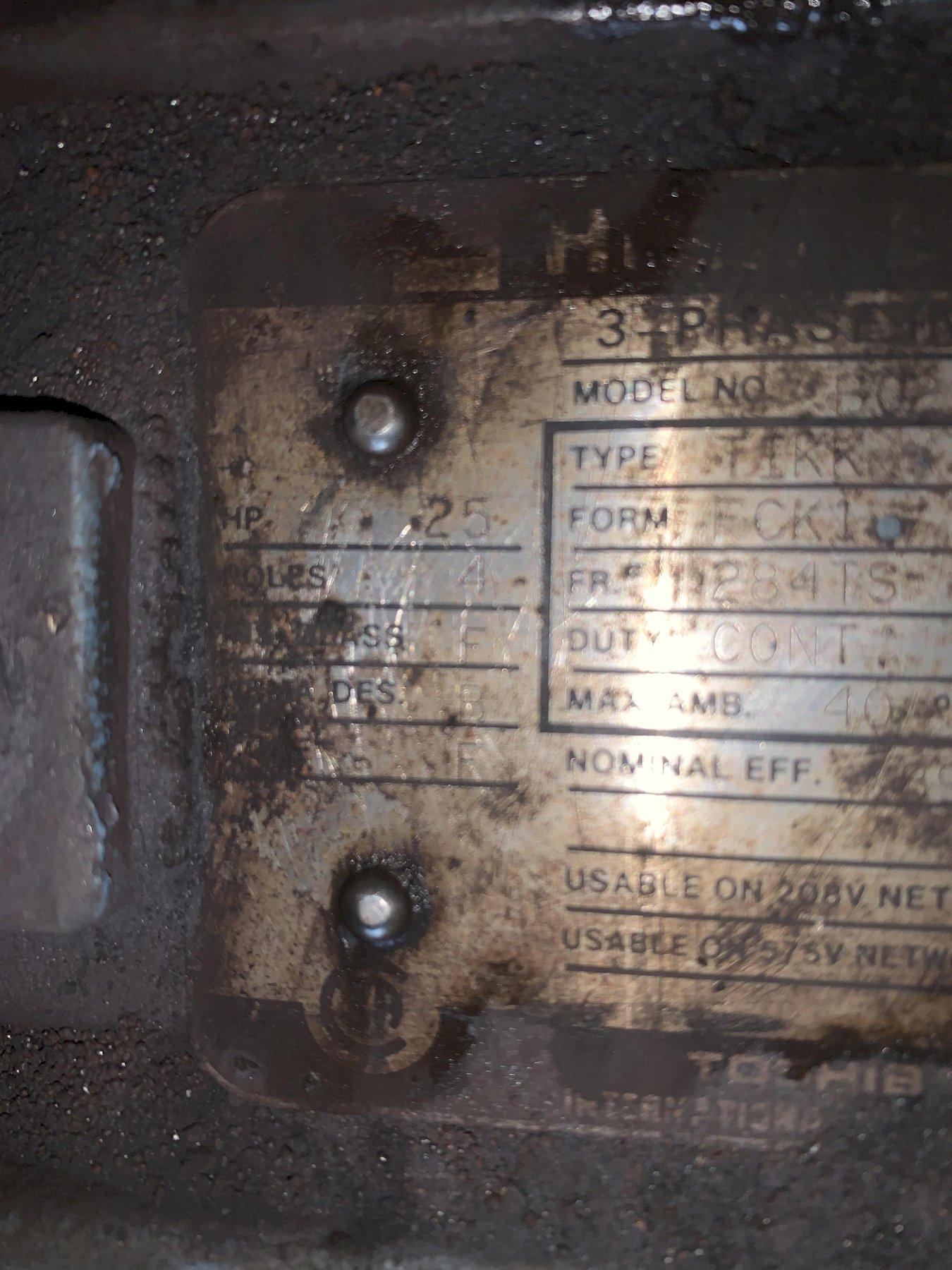

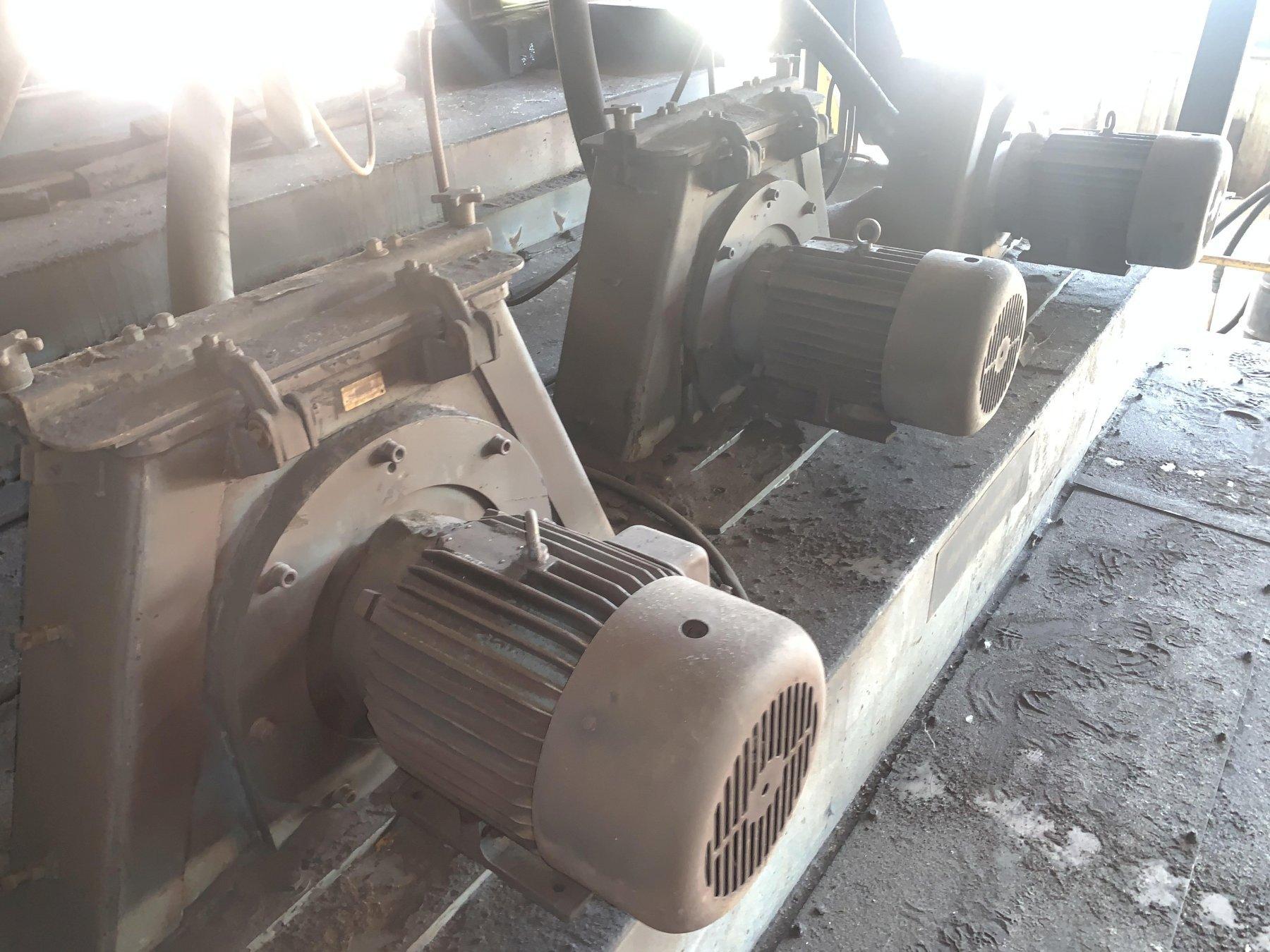

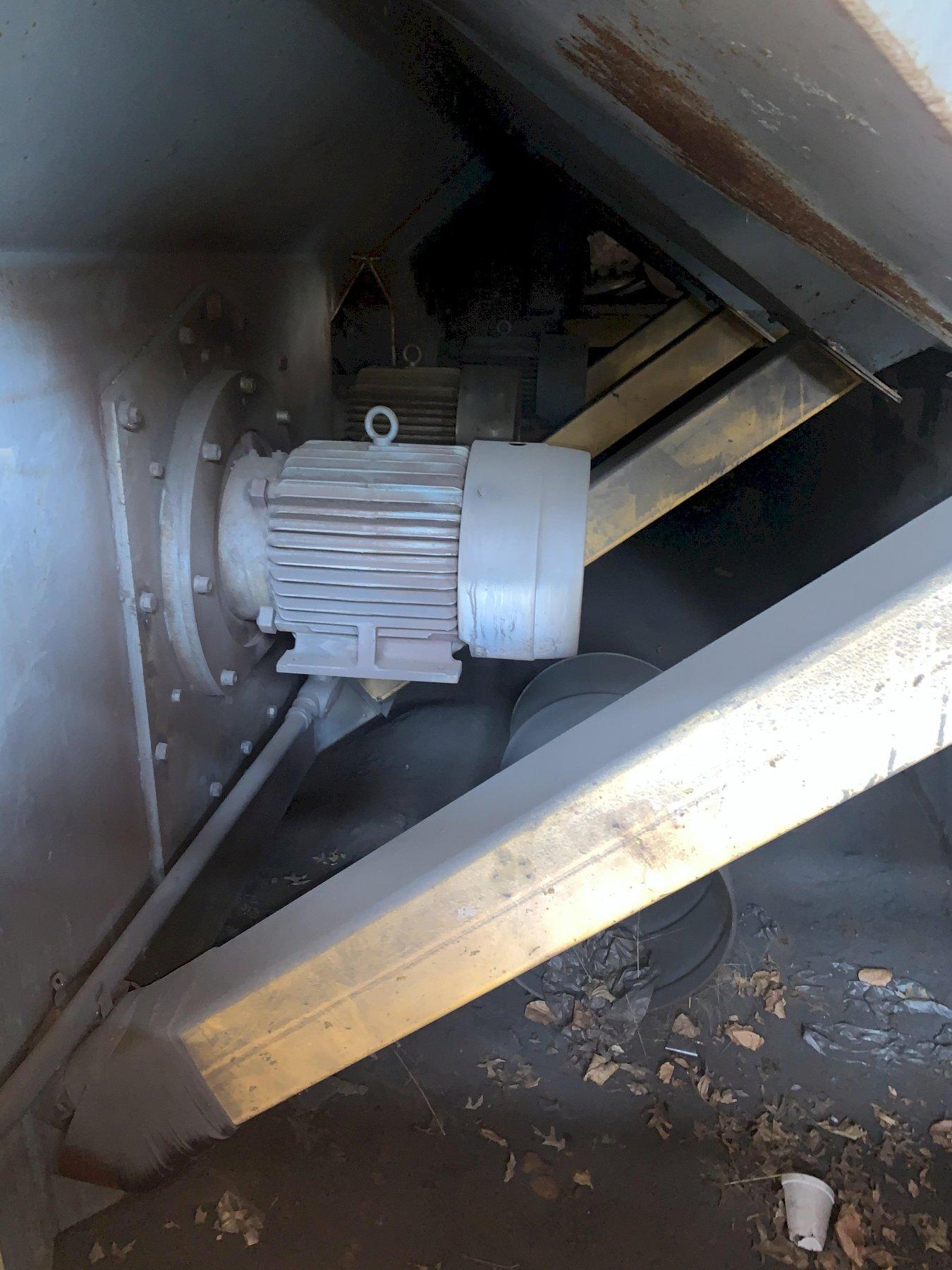

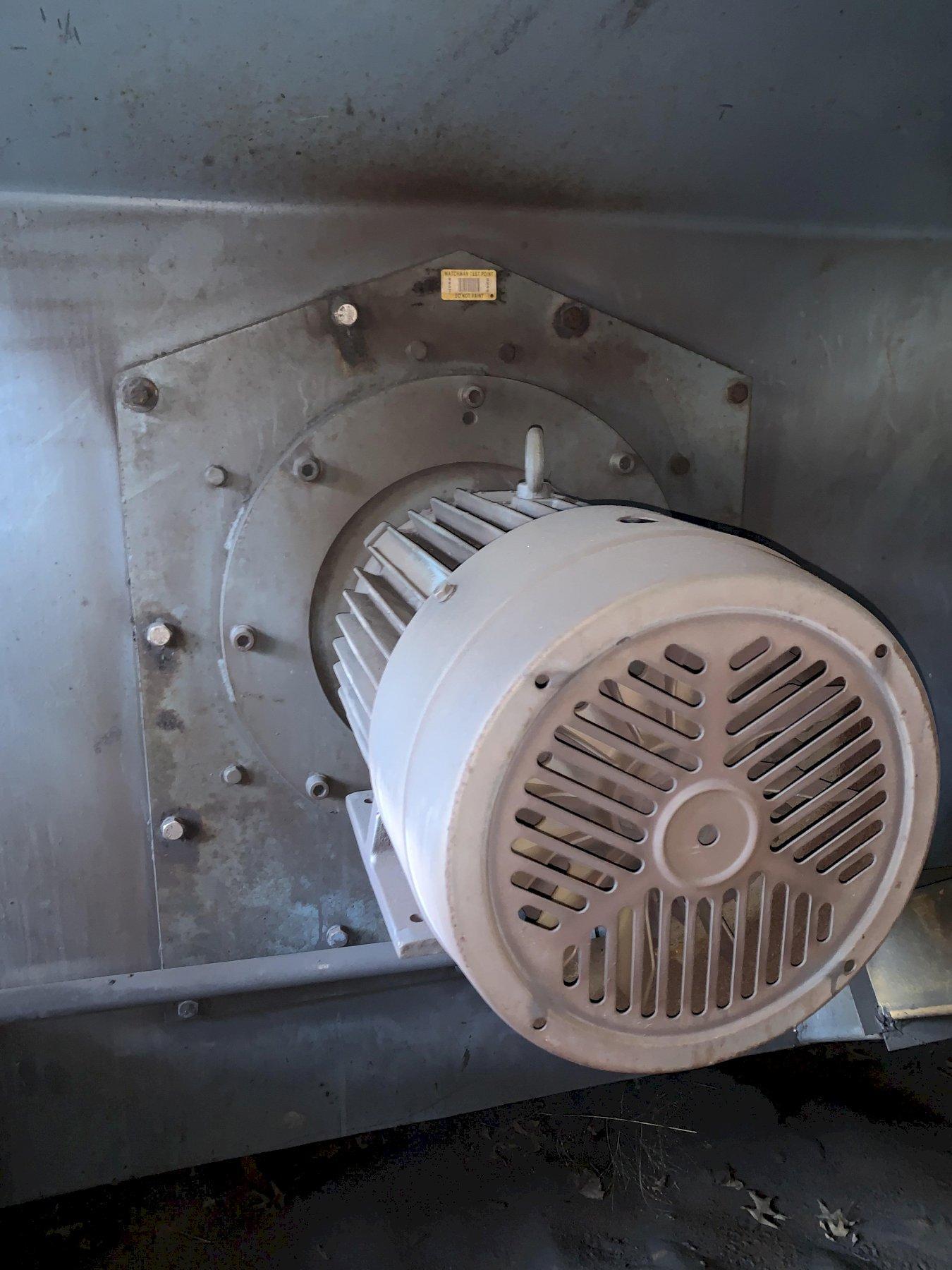

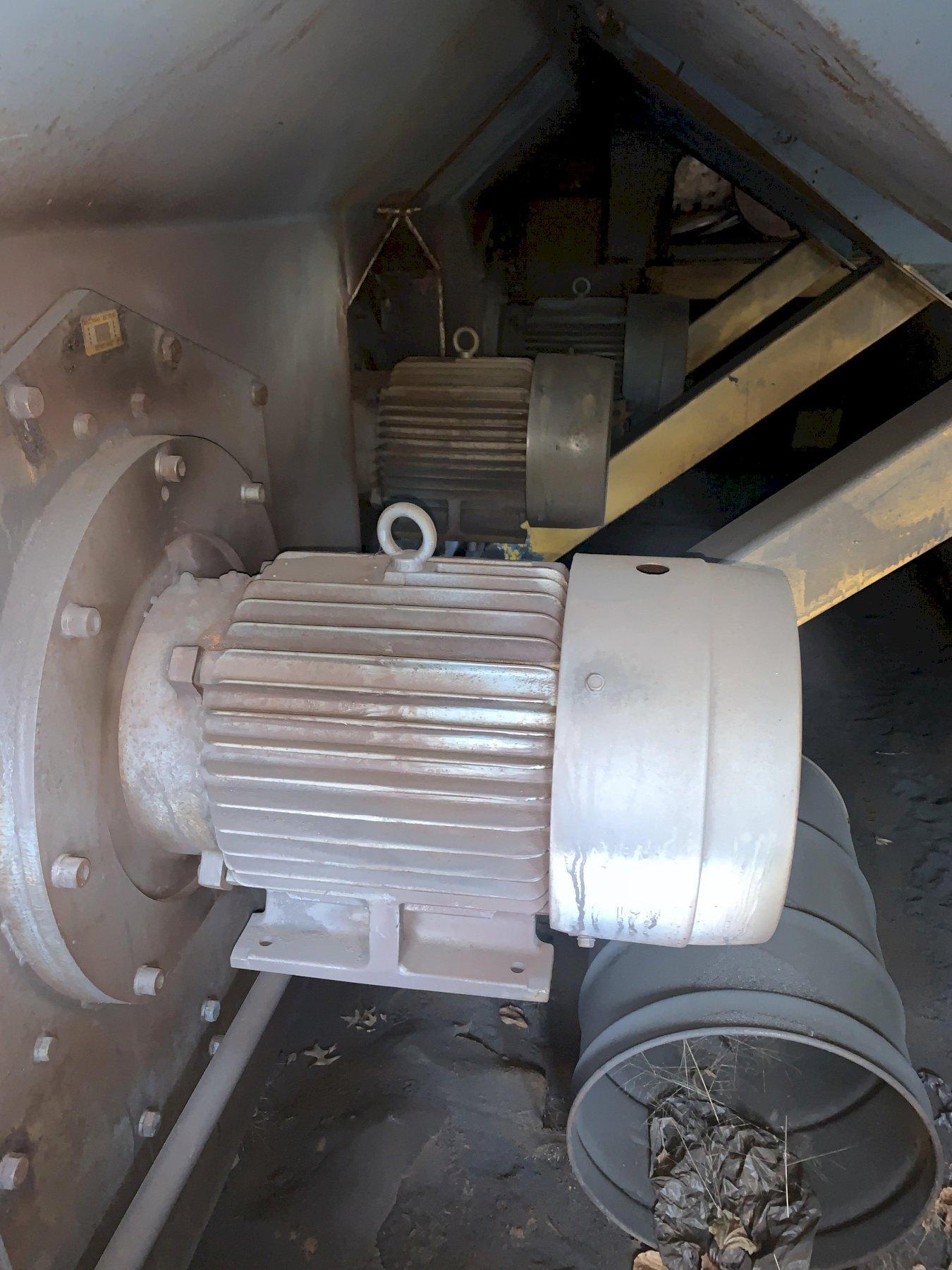

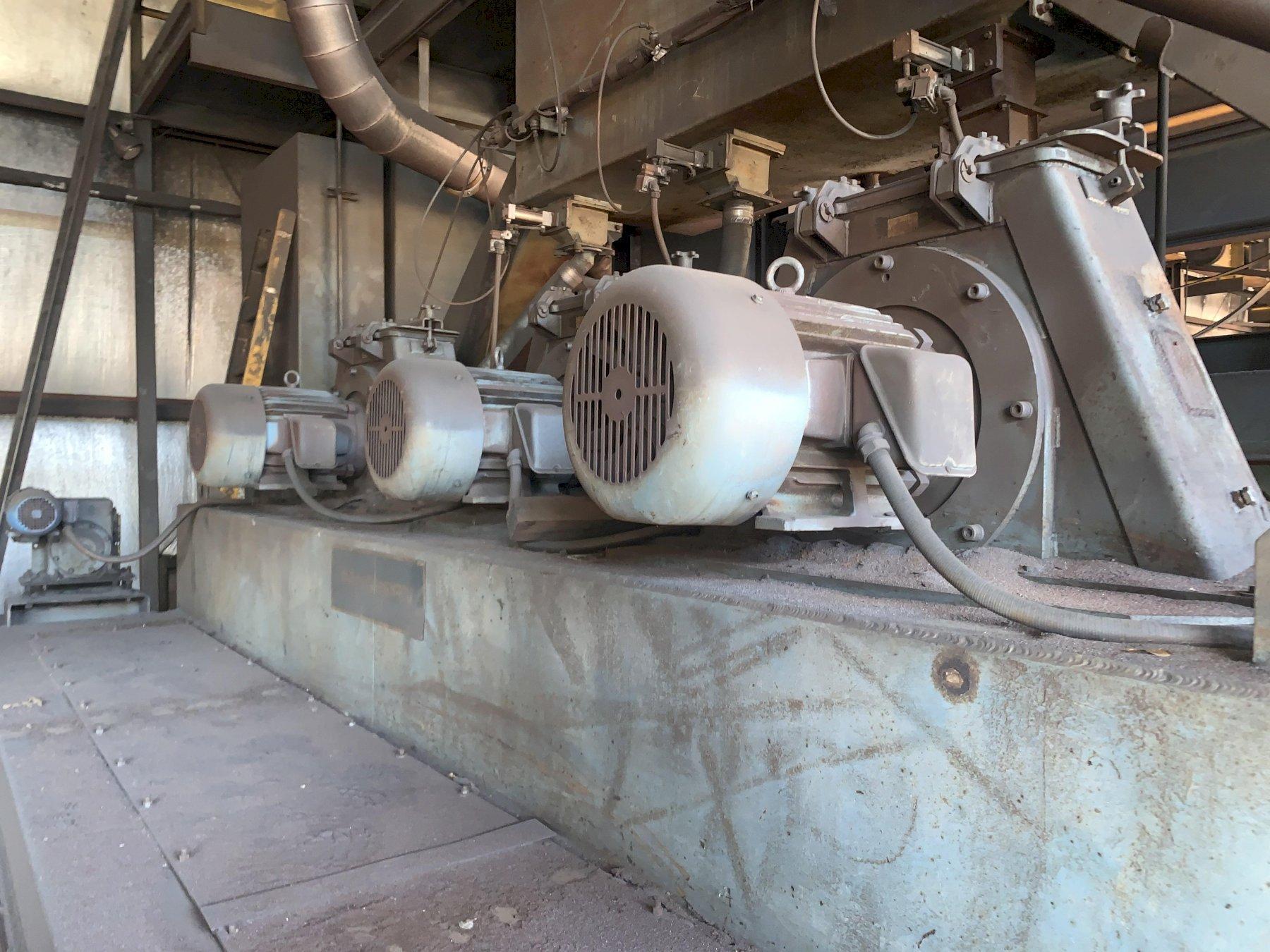

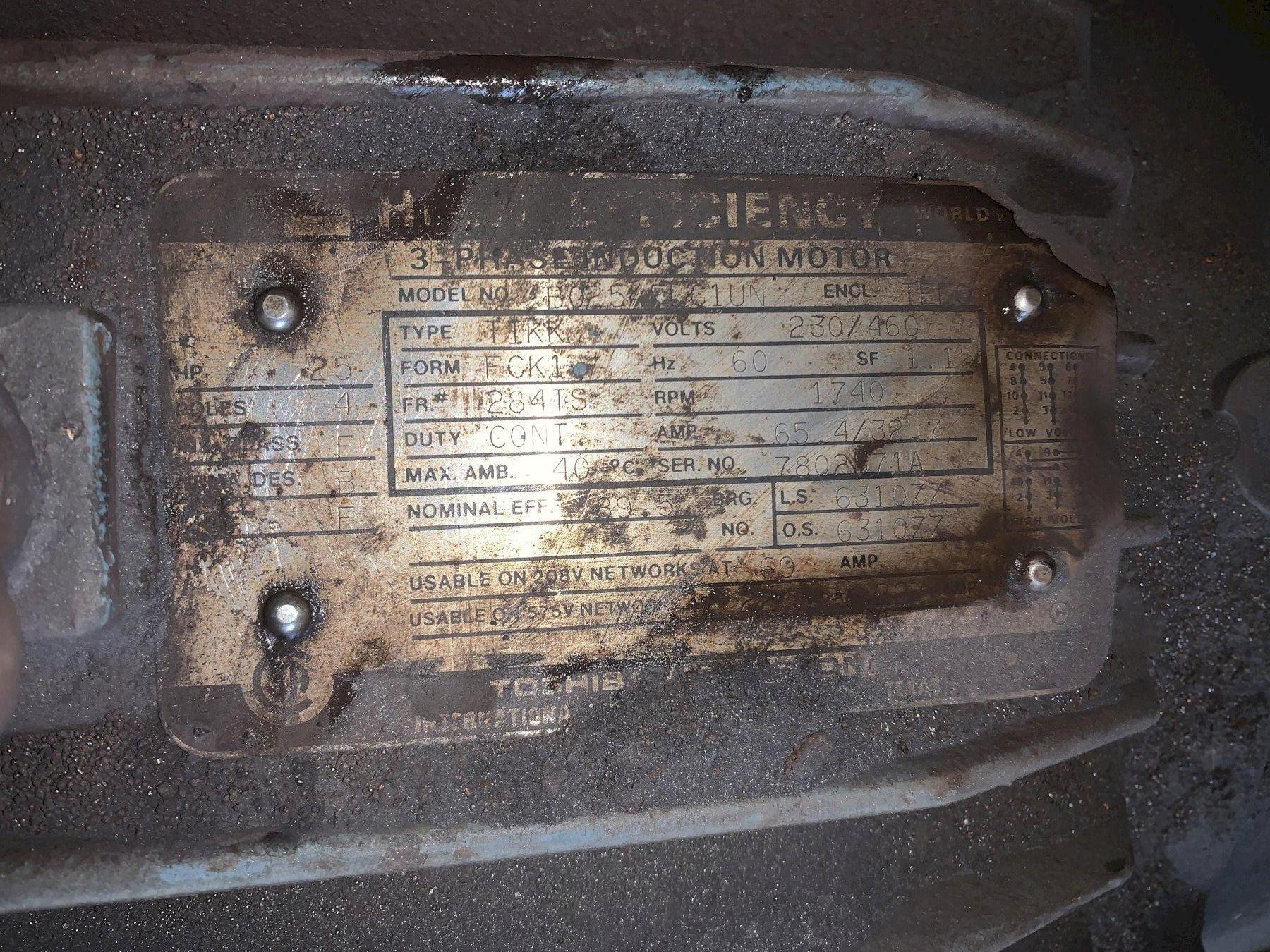

WHEEL MOTORS ............. 25 HP EACH, 1800 RPM
WHEEL DRIVES ............. DIRECT

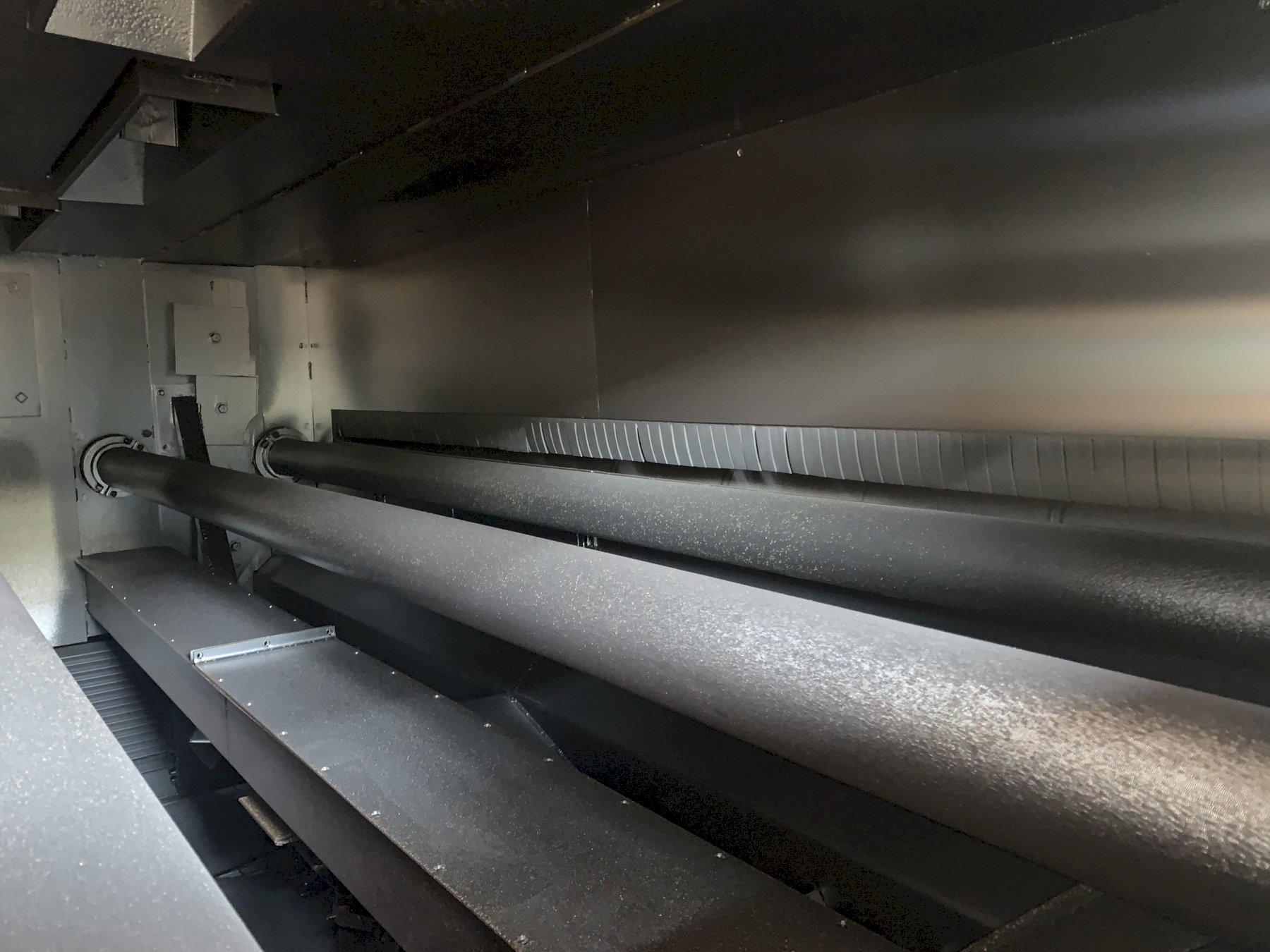

POWER ROLLERS ............ (6) X 6-5/8"
DIAMETER

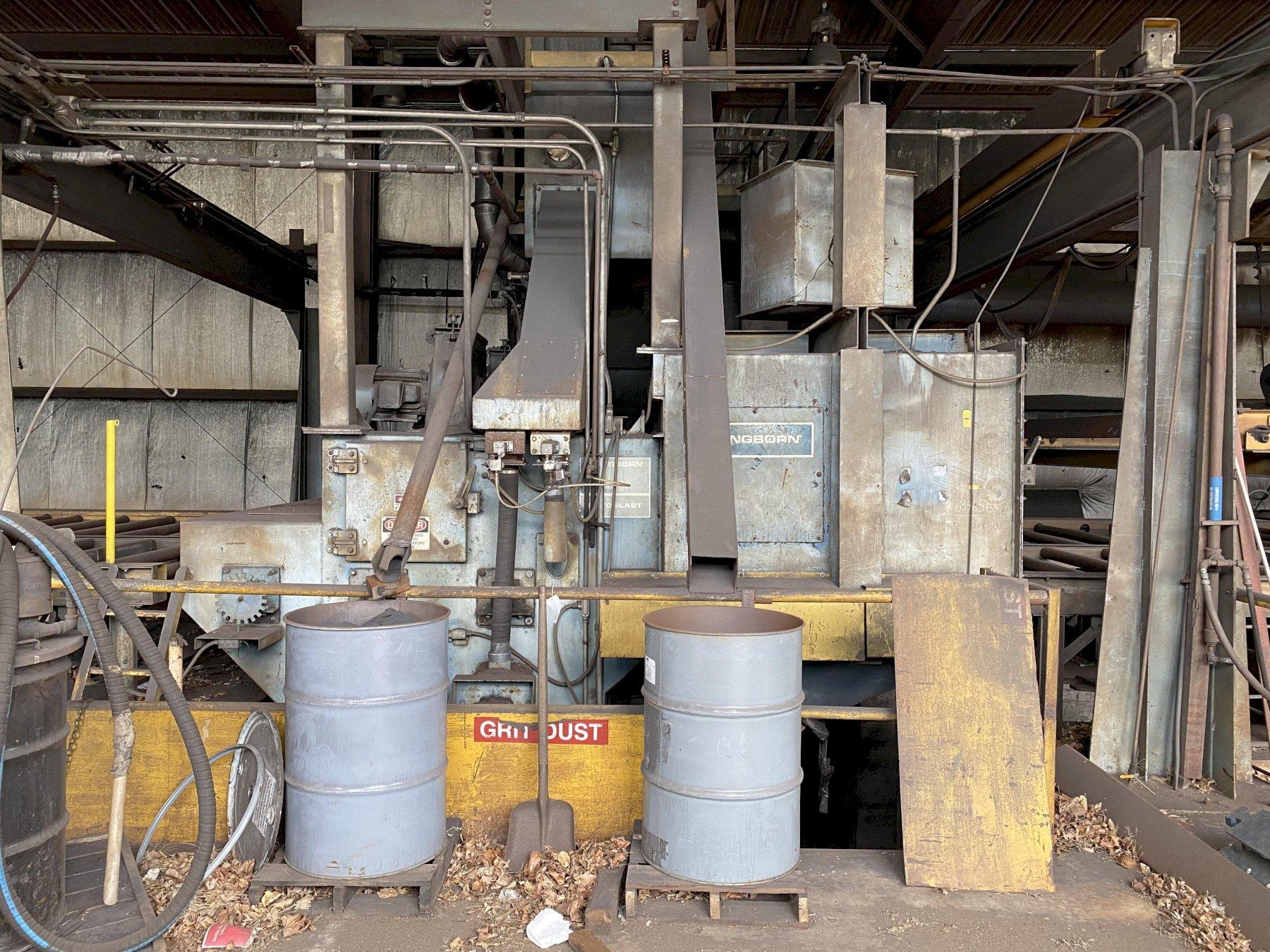

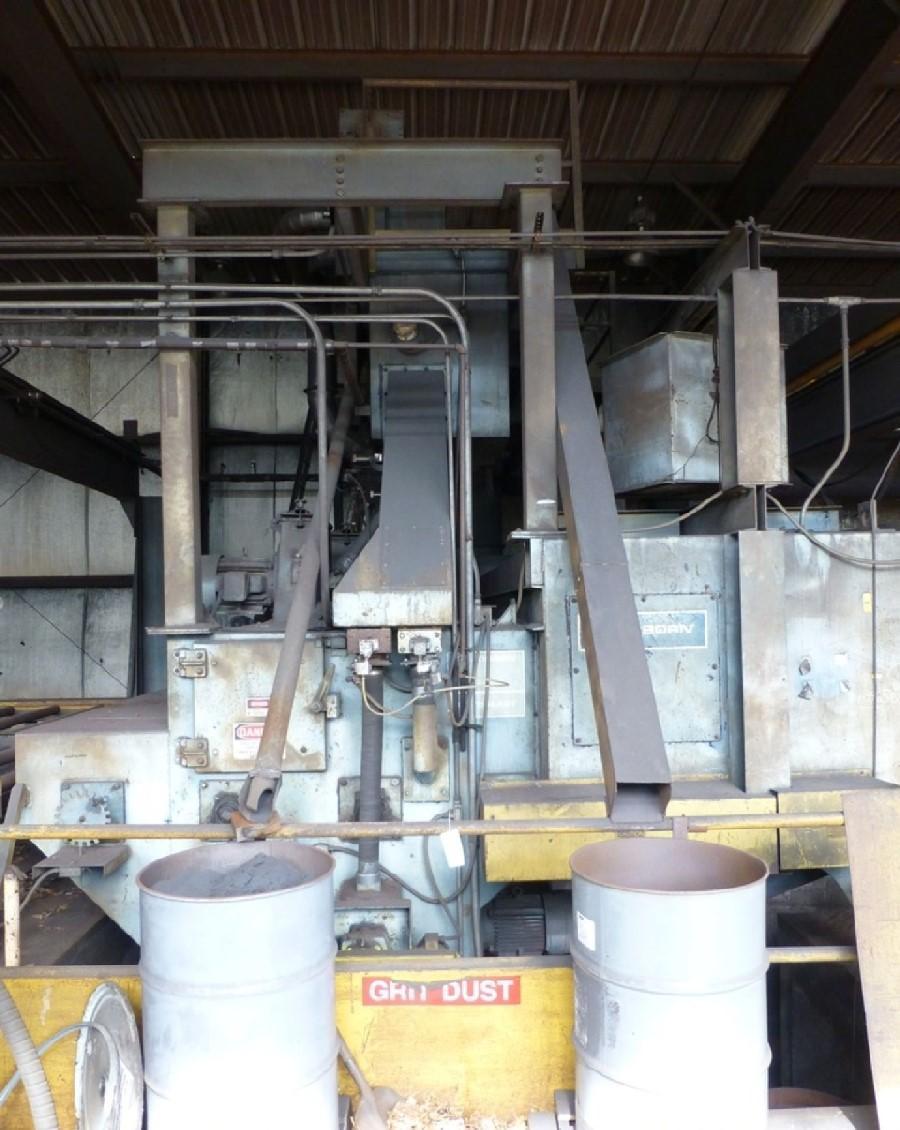

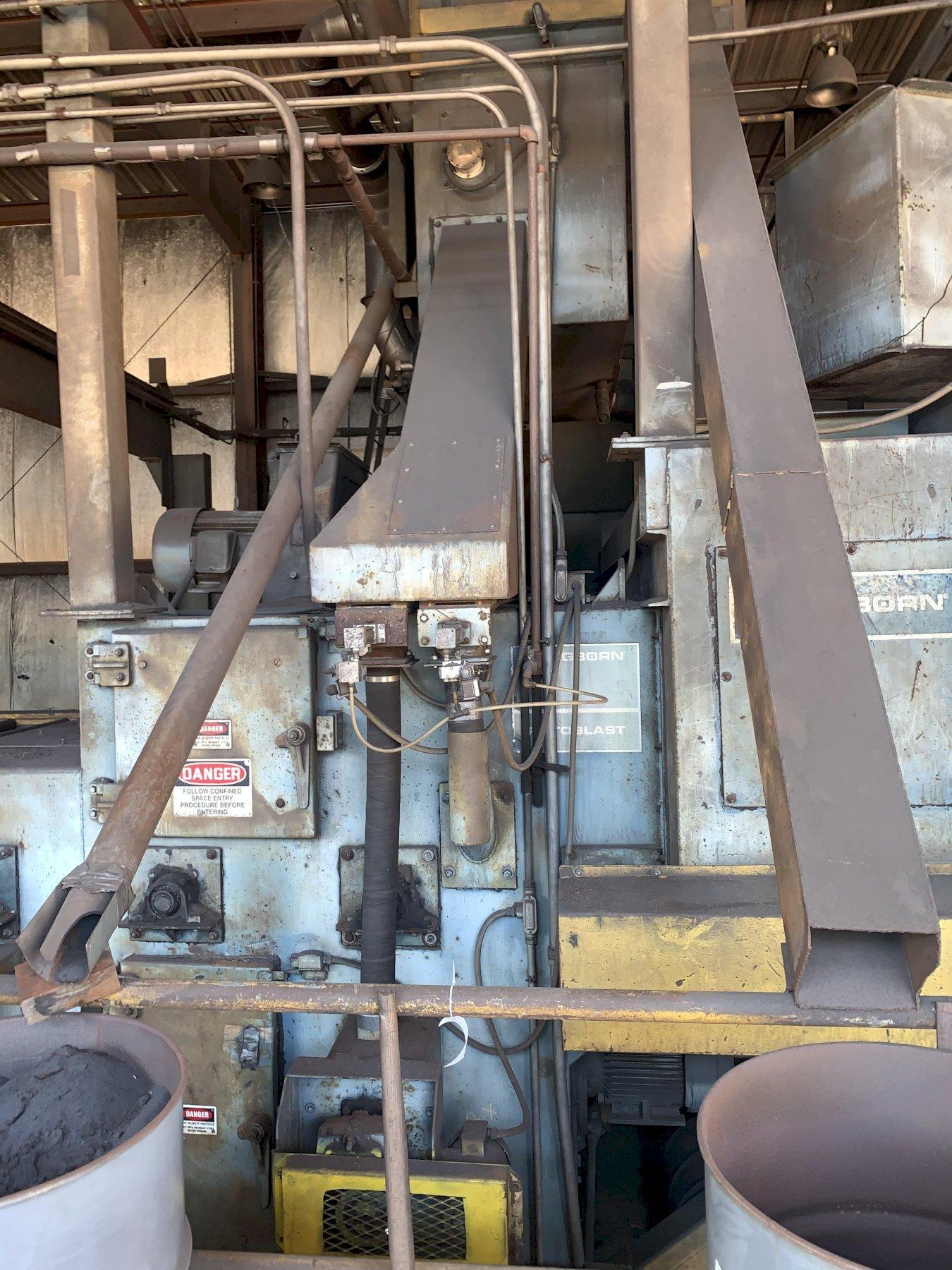

MEDIA SEPARATOR & RECLAIM SYSTEM:
AUTOMATIC REPLENISHER .... YES

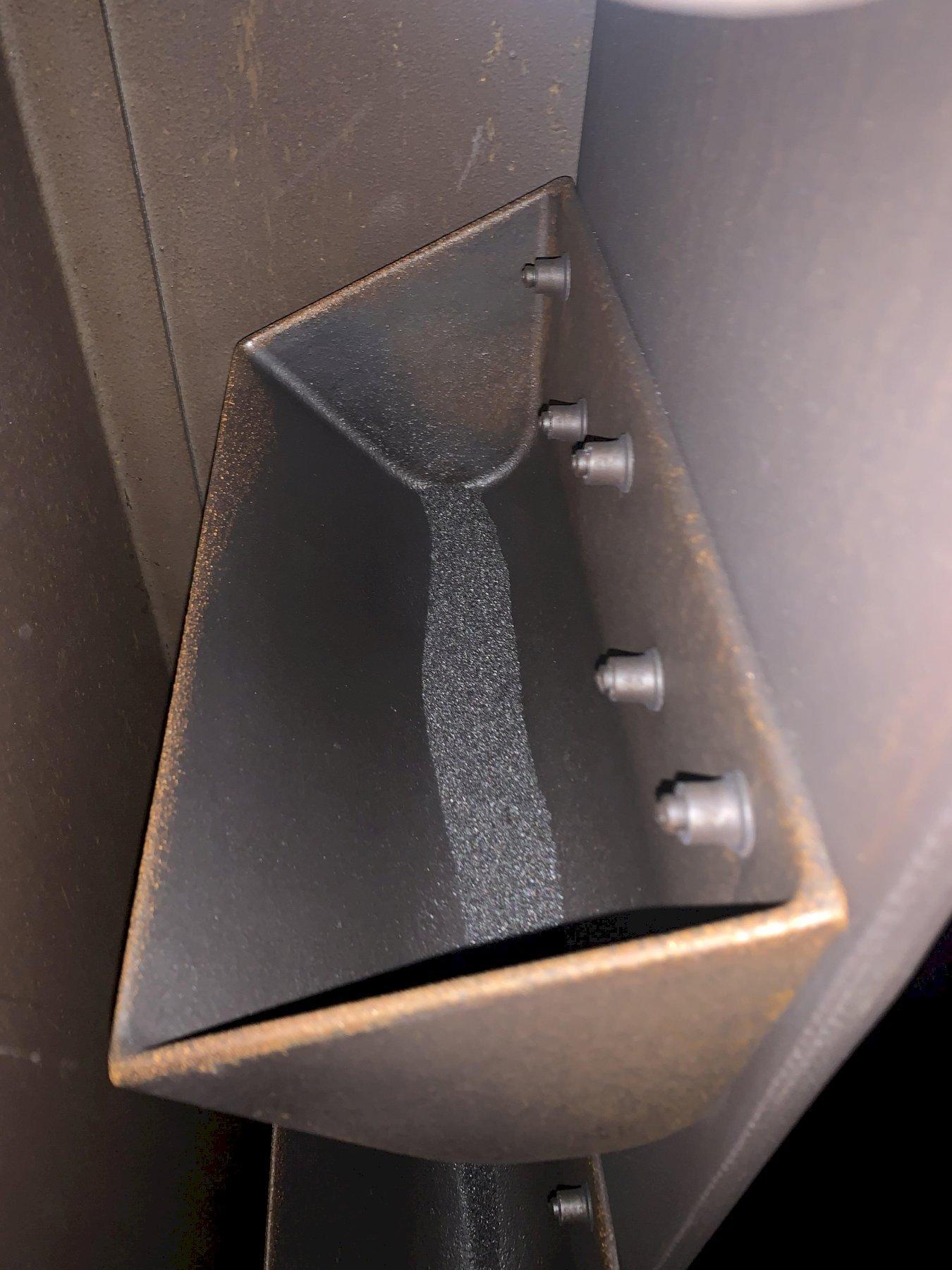

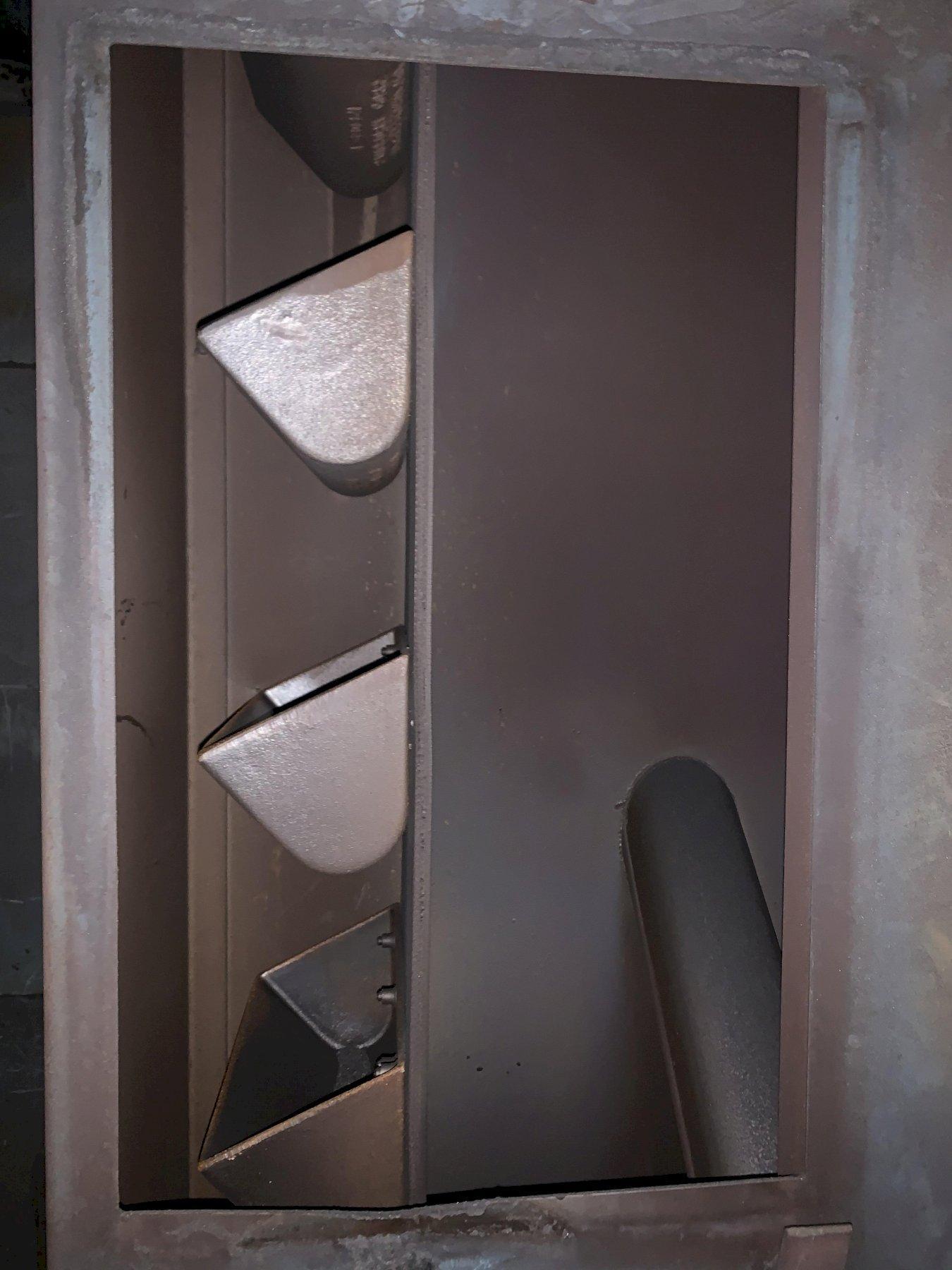

ELEVATOR ................. BUCKET TYPE
ELEVATOR MOTOR ........... 7.5 HP
SEPARATOR ................ "AIRWASH"
POWER ROLLERS ............ (2) X 6-5/8" DIAMETER

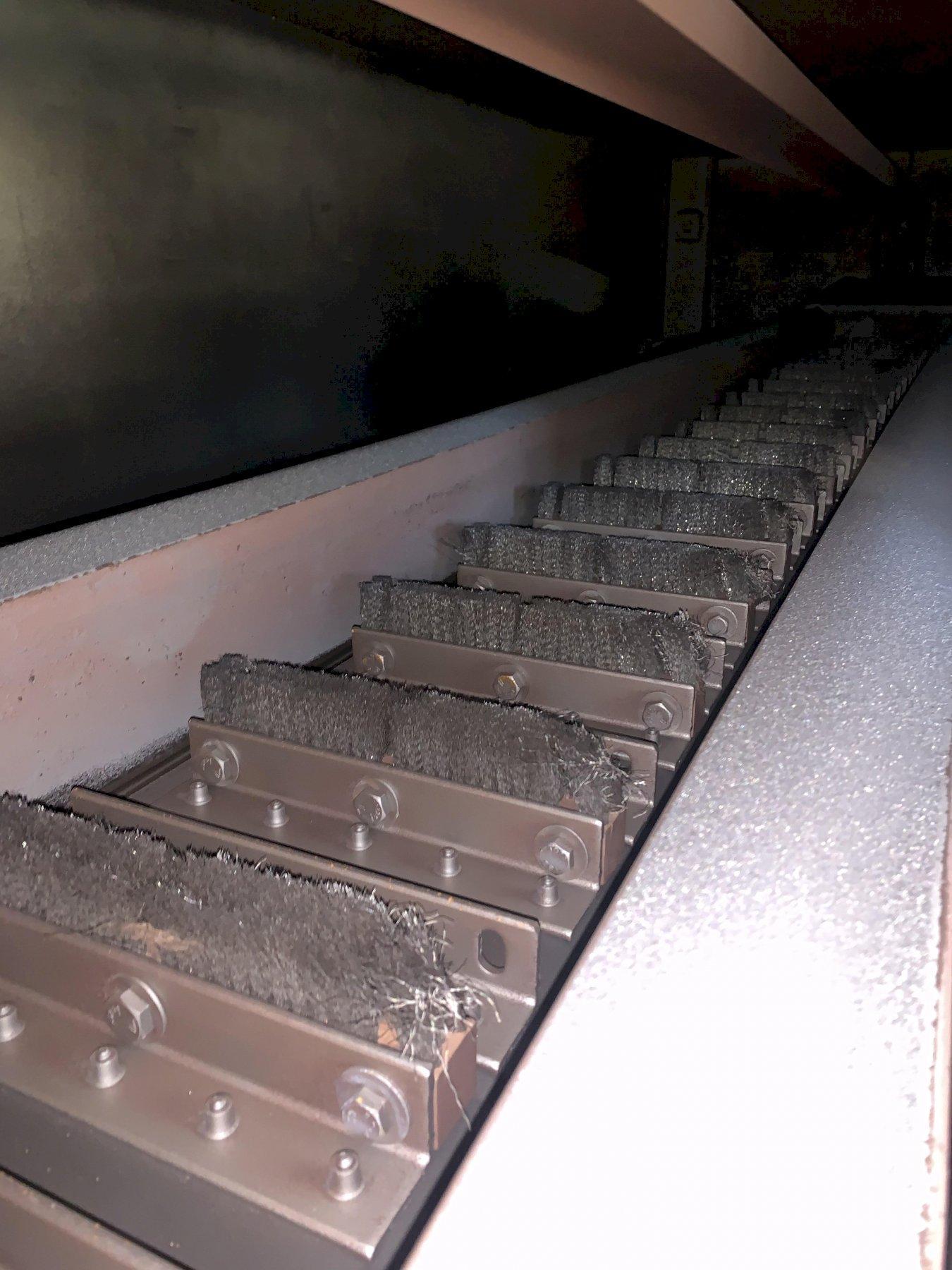

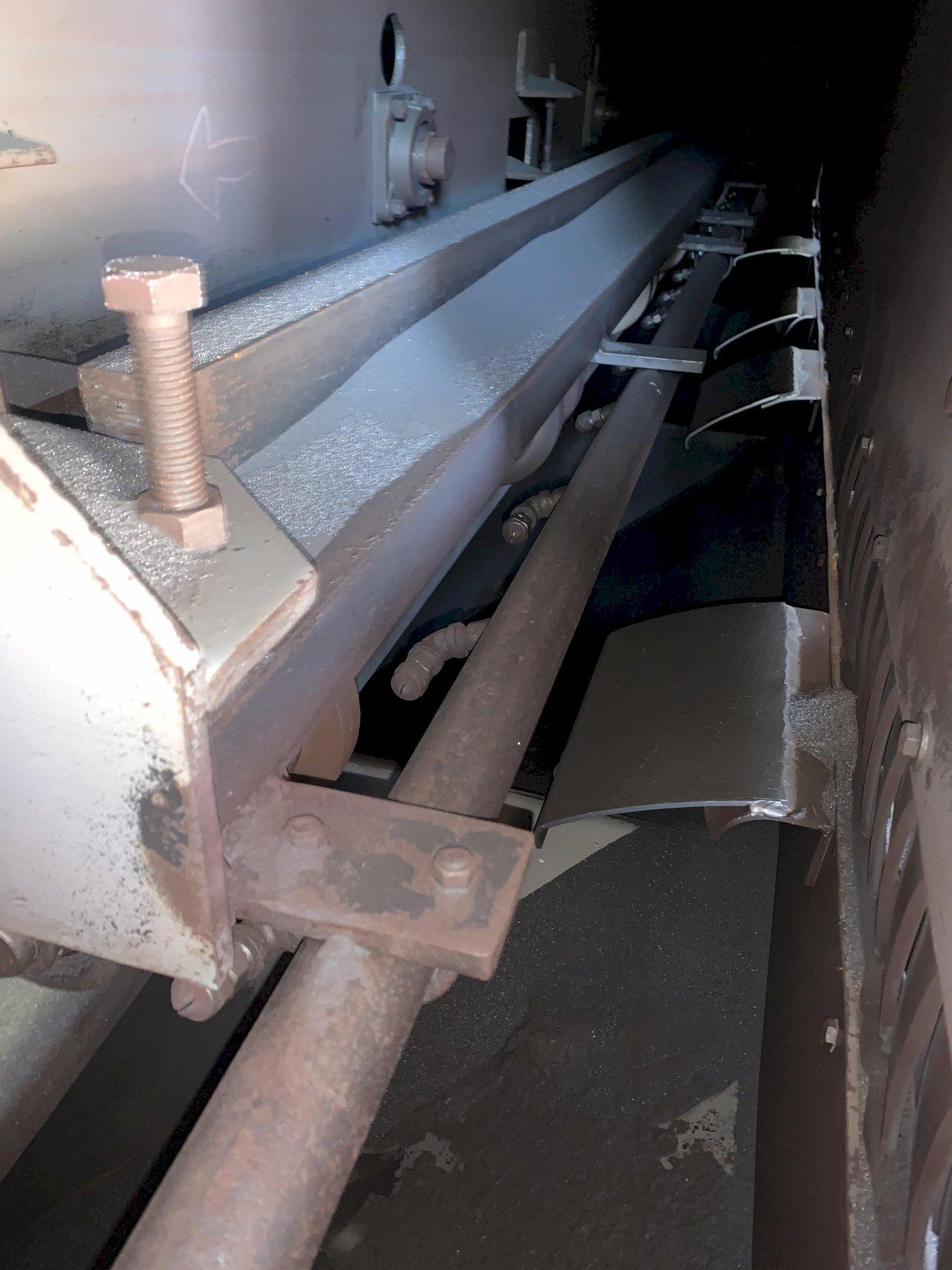

BRUSH & BLOW OFF STATION:

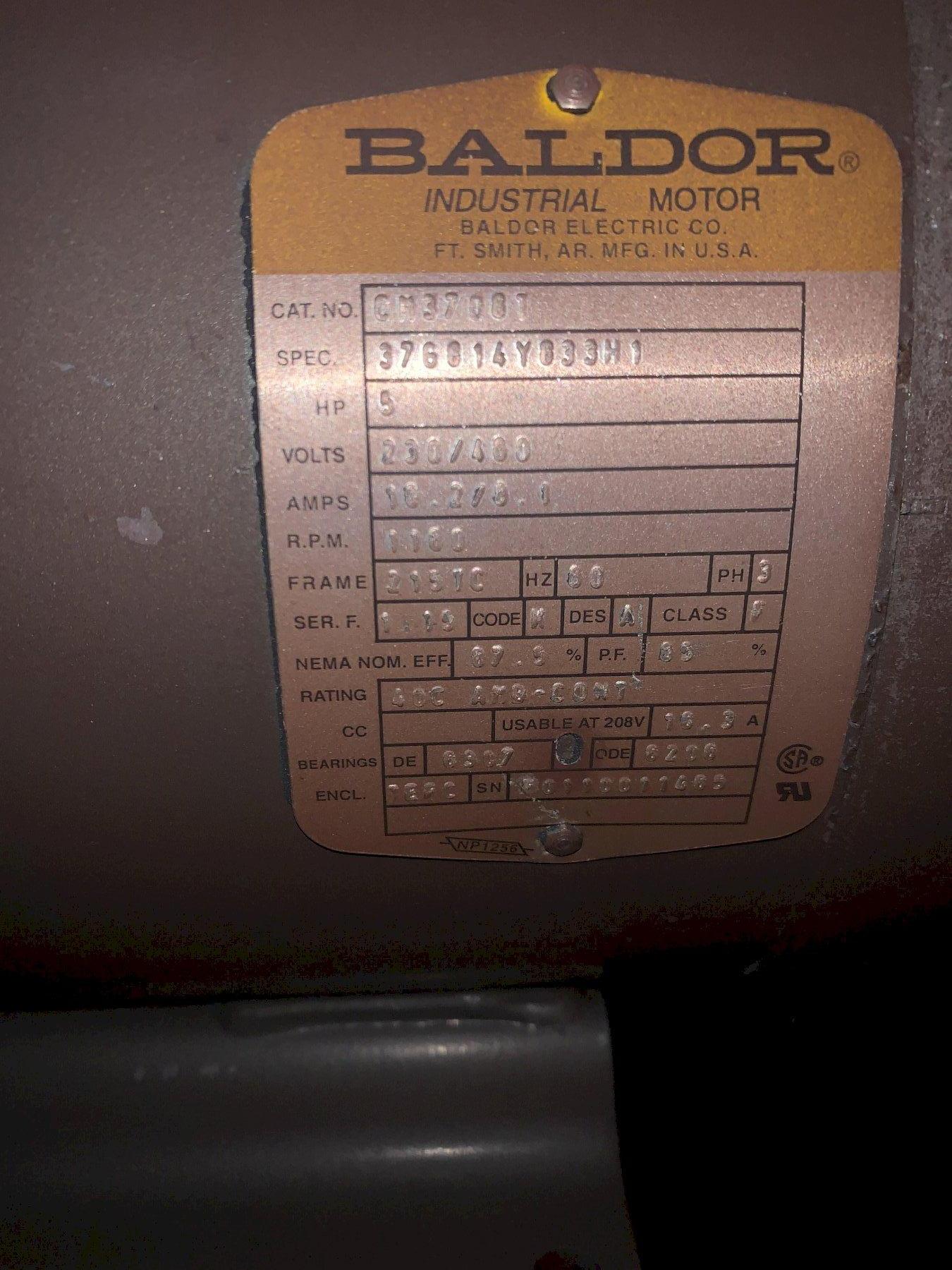

BRUSH OFF ................ 5 HP BRUSH
BLOW OFF ................. 10 AIR NOZZLES

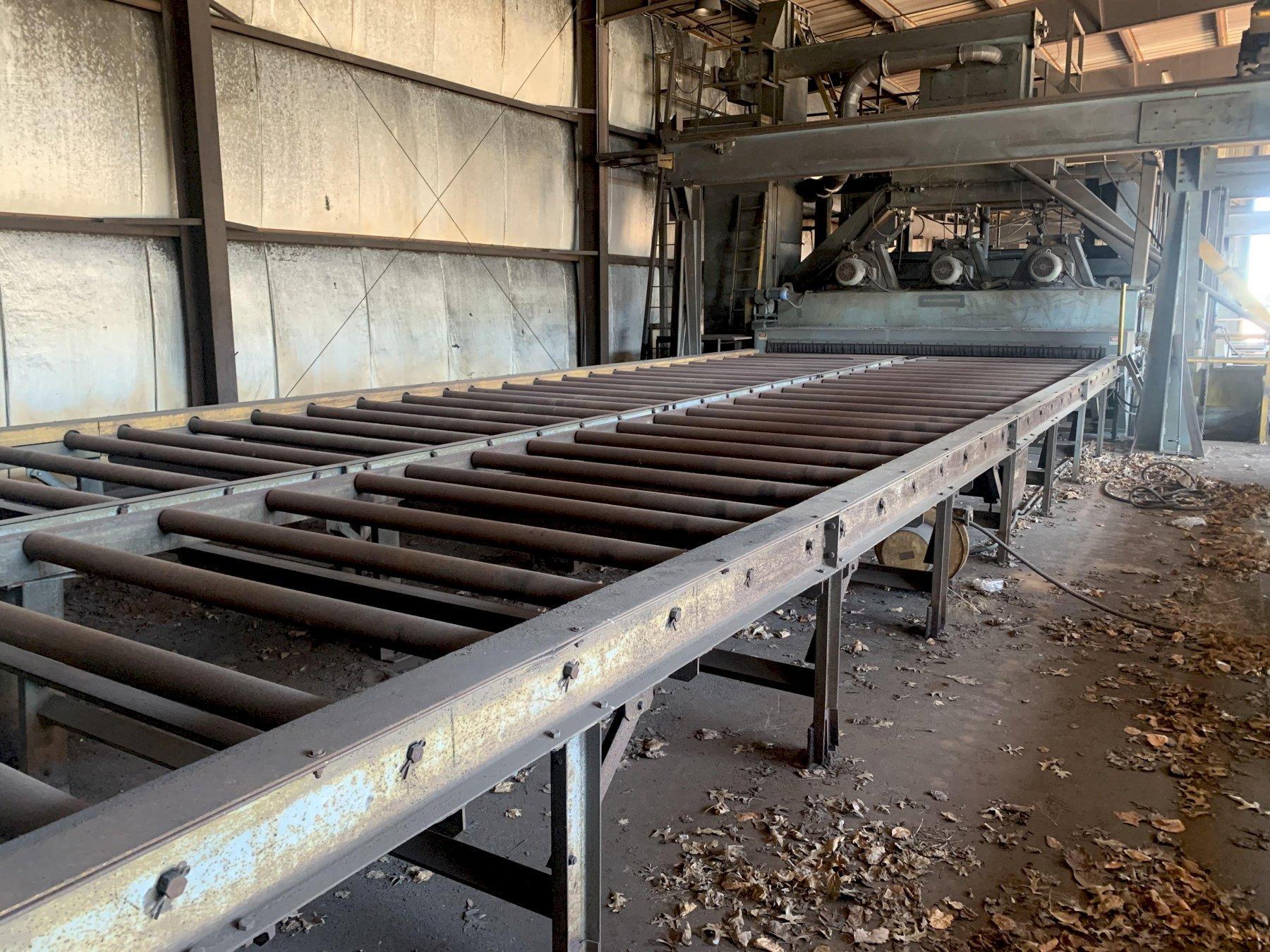

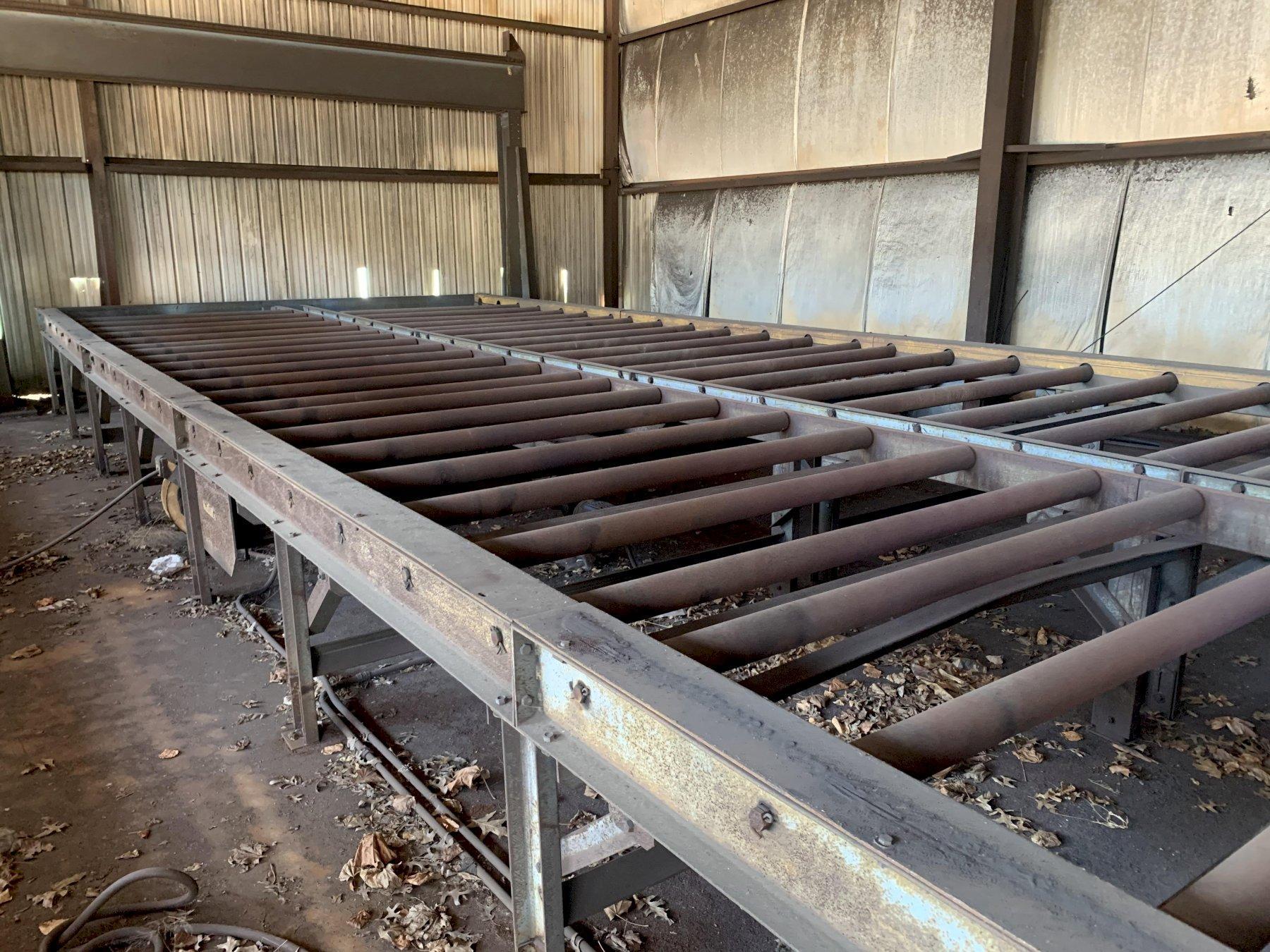

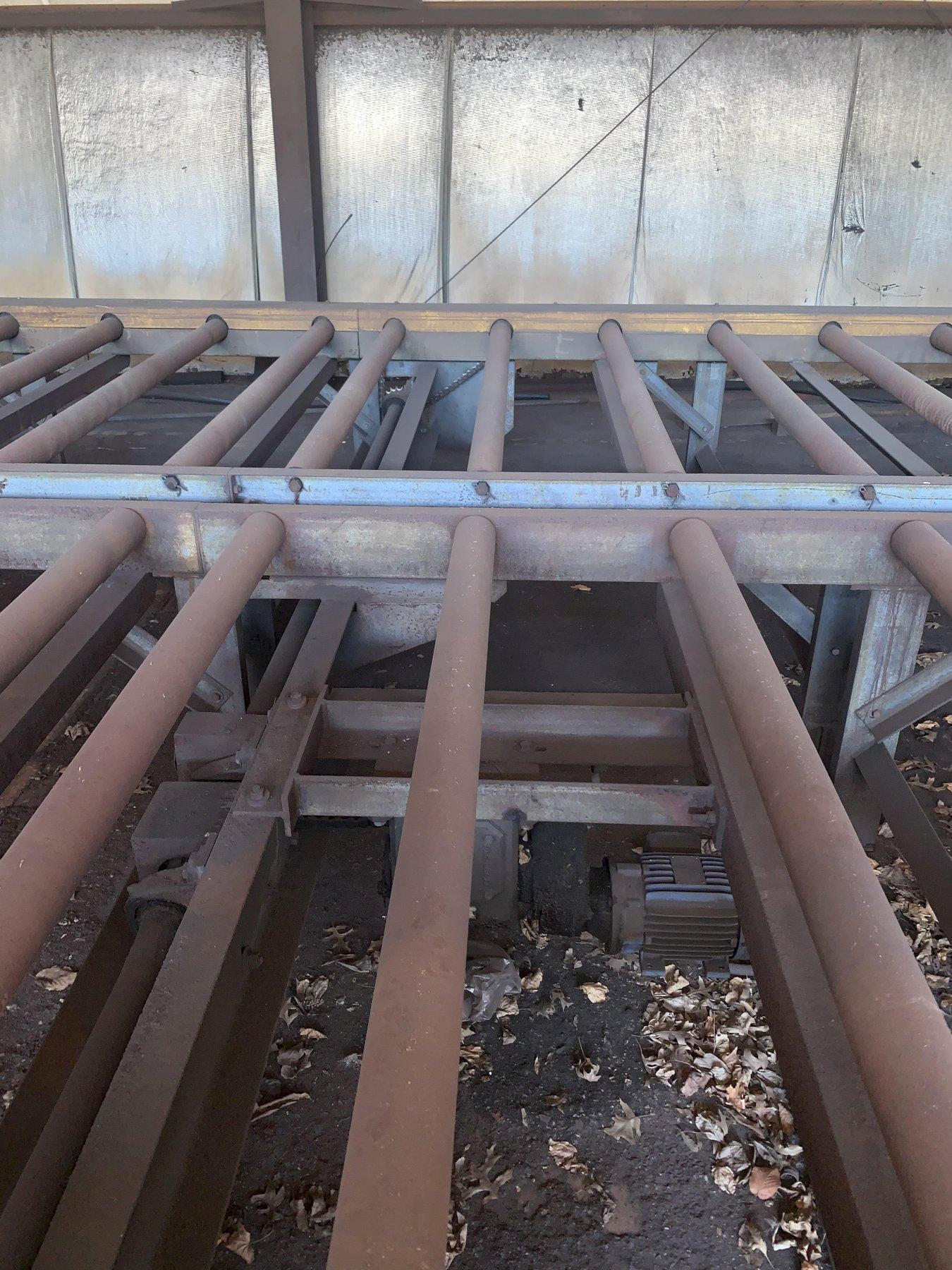

LOADING IN-FEED ROLLER CONVEYOR:
LENGTH ................... 40'
WIDTH .................... 15'
CONFIGURATION ............ (2) 80" LANES
ROLLER DIAMETER .......... 3-1/2"
ROLLER CENTERS ........... 18"
VARIABLE SPEED DRIVE ..... YES

UNLOAD OUT-FEED ROLLER CONVEYOR:
LENGTH ................... 40'
WIDTH .................... 15'
CONFIGURATION ............ (2) 80" LANES
ROLLER DIAMETER .......... 3-1/2"
ROLLER CENTERS ........... 18"
VARIABLE SPEED DRIVE ..... YES

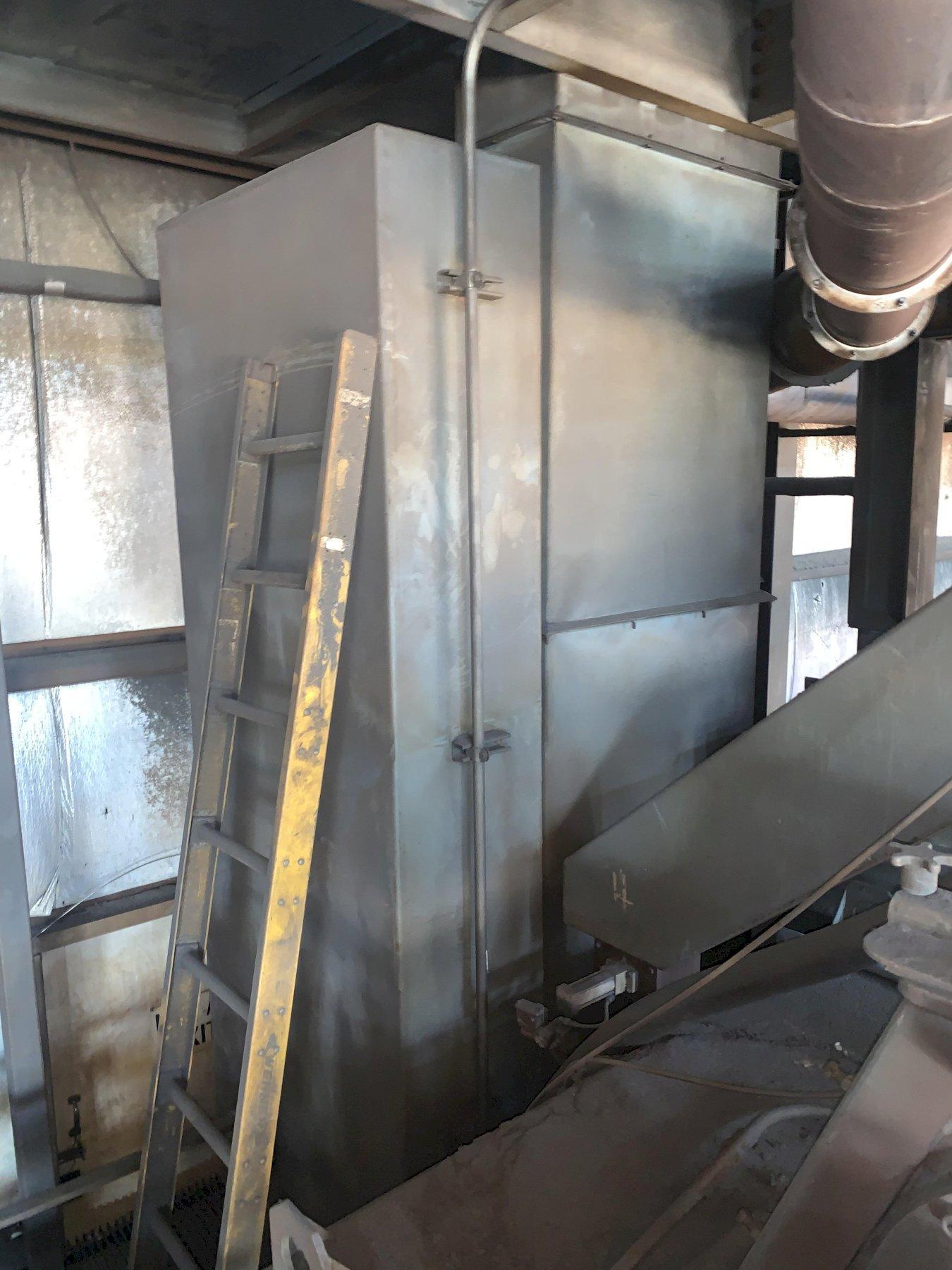

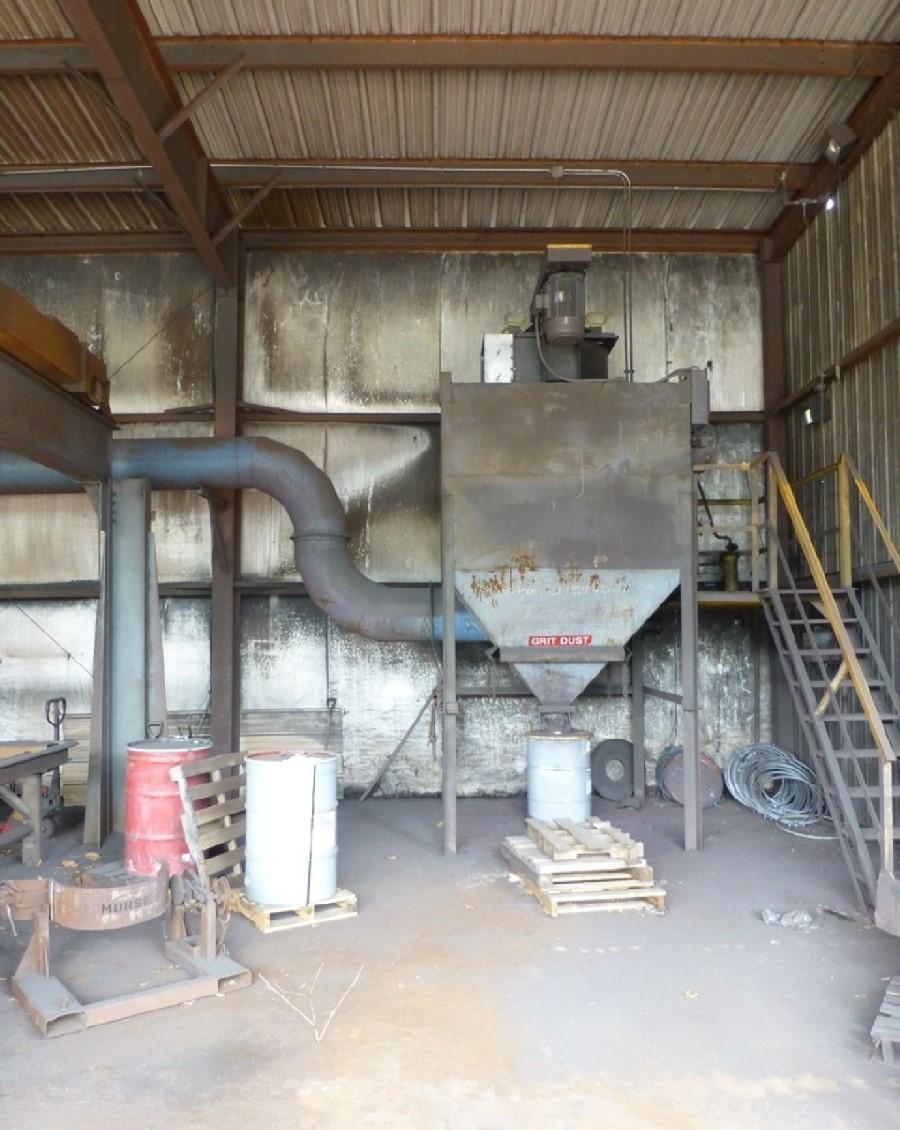

DUST COLLECTOR:
CAPACITY ................. 6700 CFM
MODEL .................... 20CP5RP

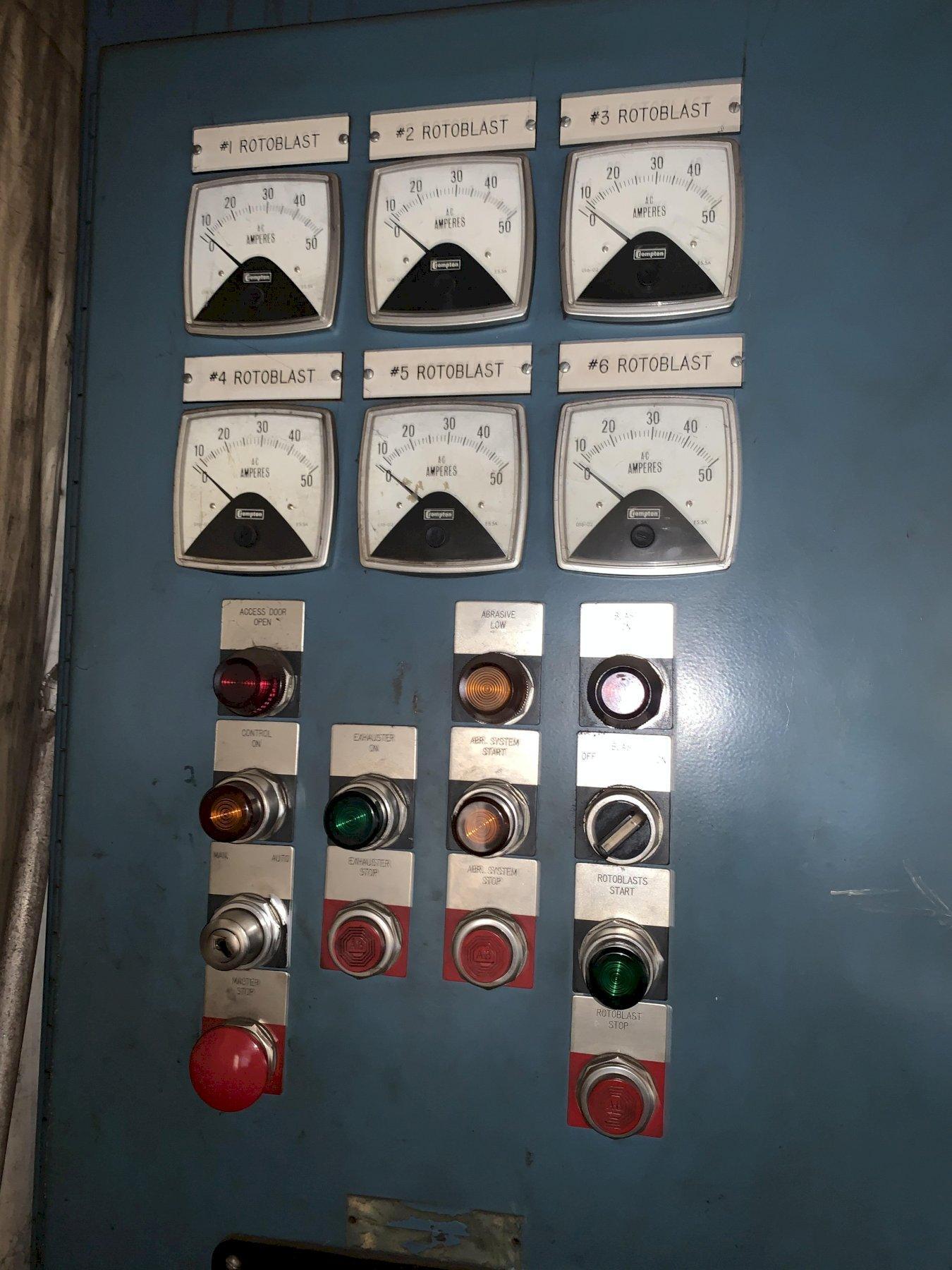

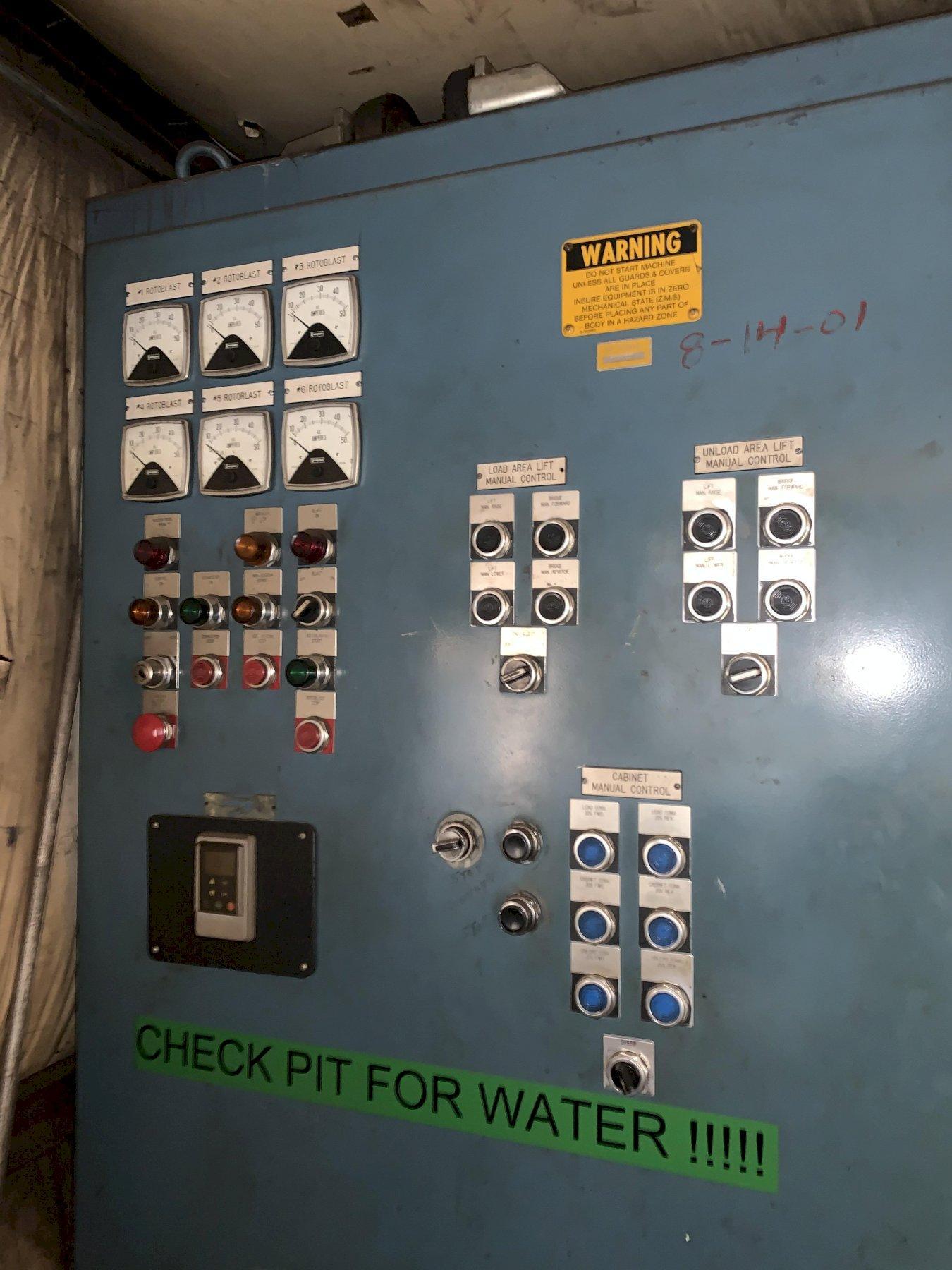

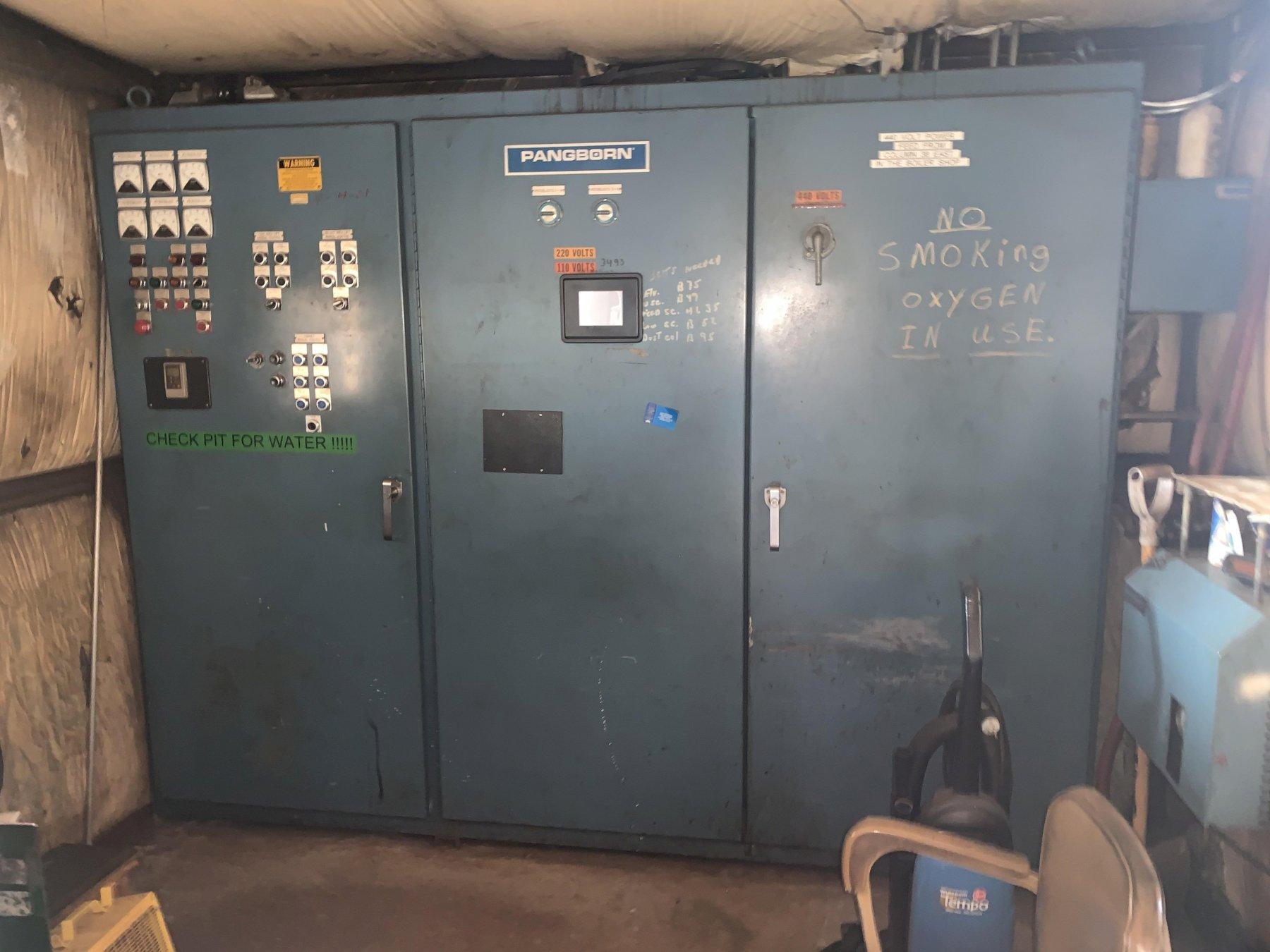

PANGBORN CONTROL PANEL:

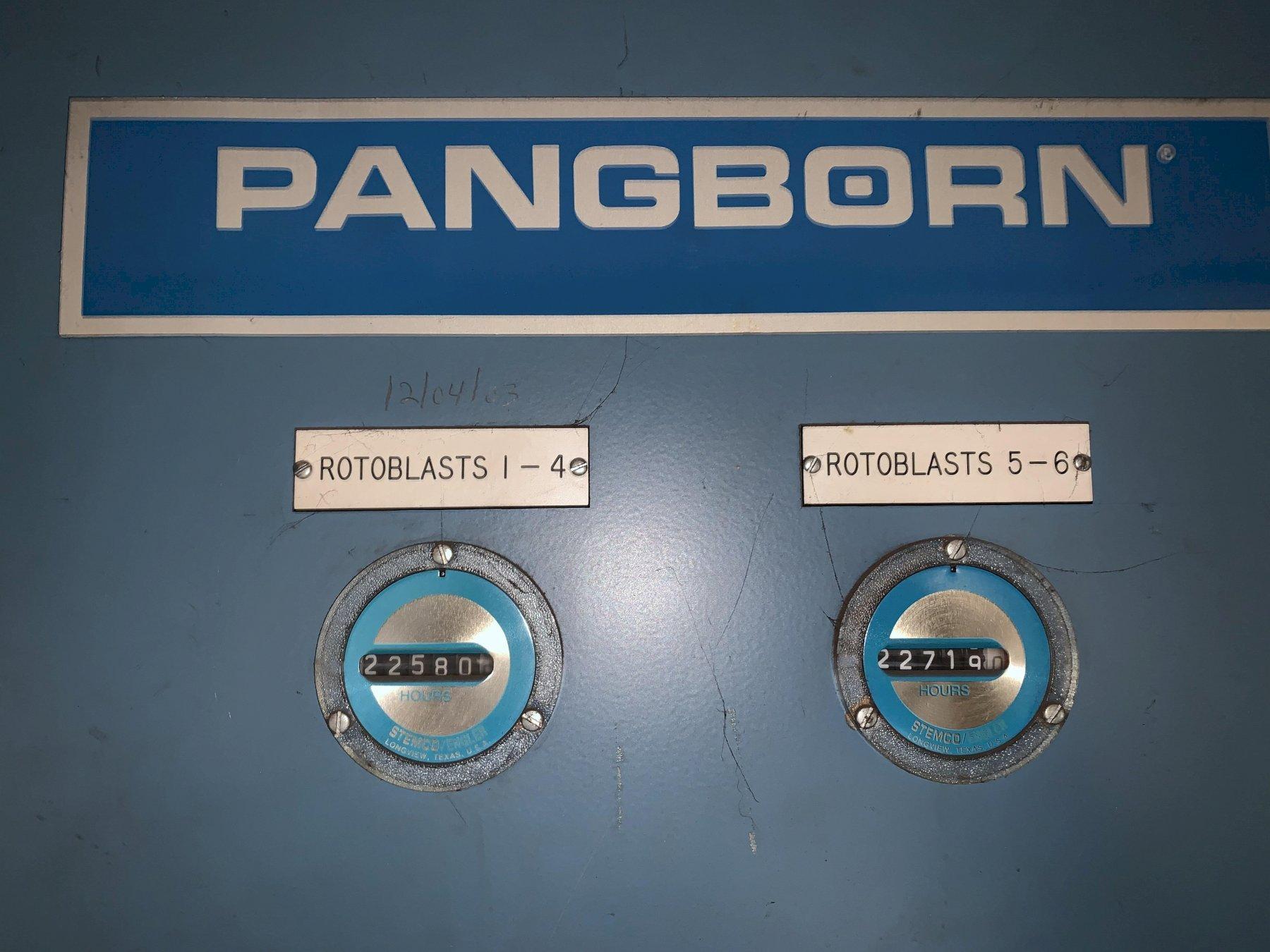

WHEEL HOUR METERS ........ YES
WHEEL LOAD INDICATOR ..... YES

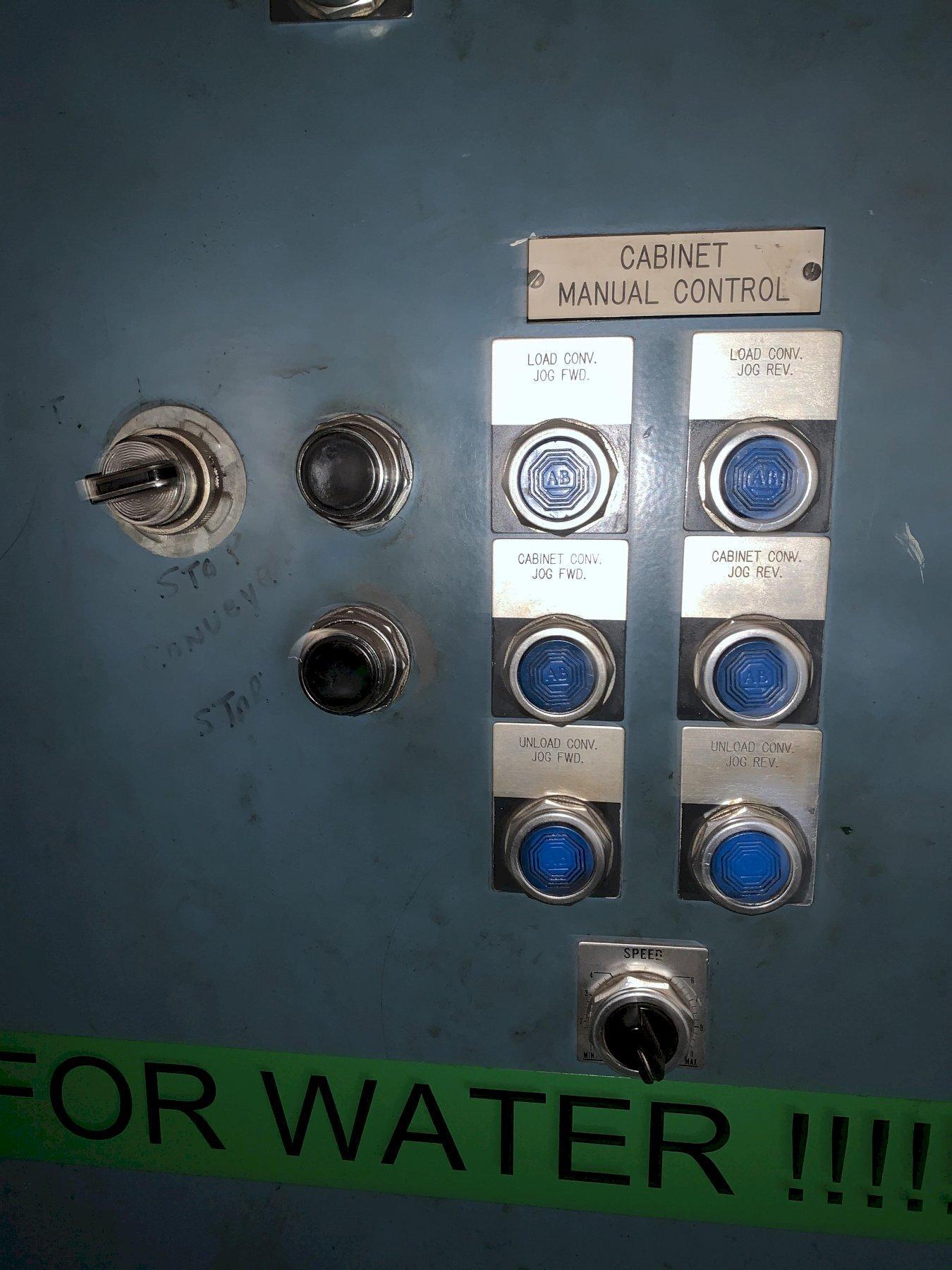

CONVEYOR CONTROLS ........ YES
EMERGENCY STOP BUTTON .... YES
