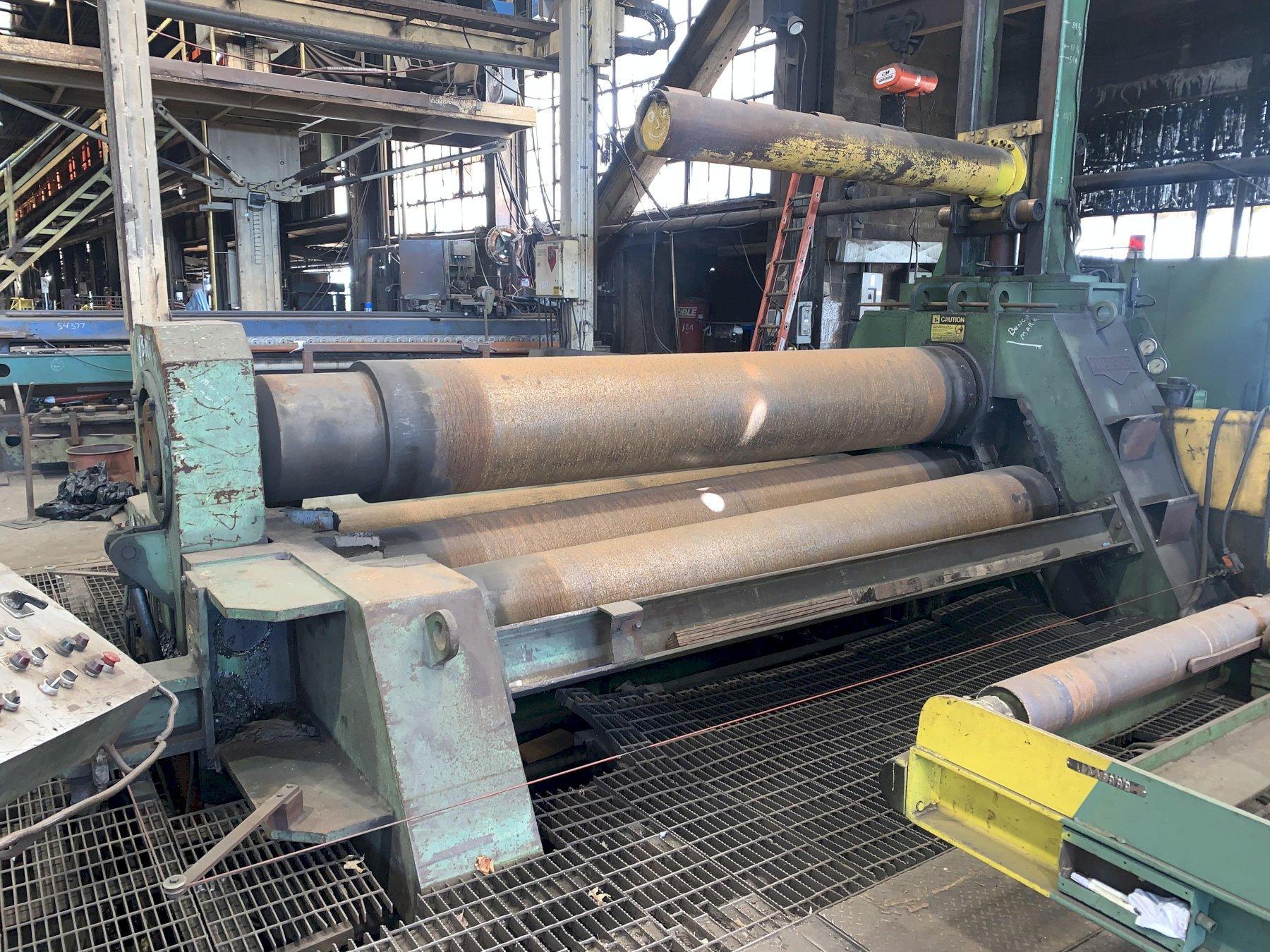

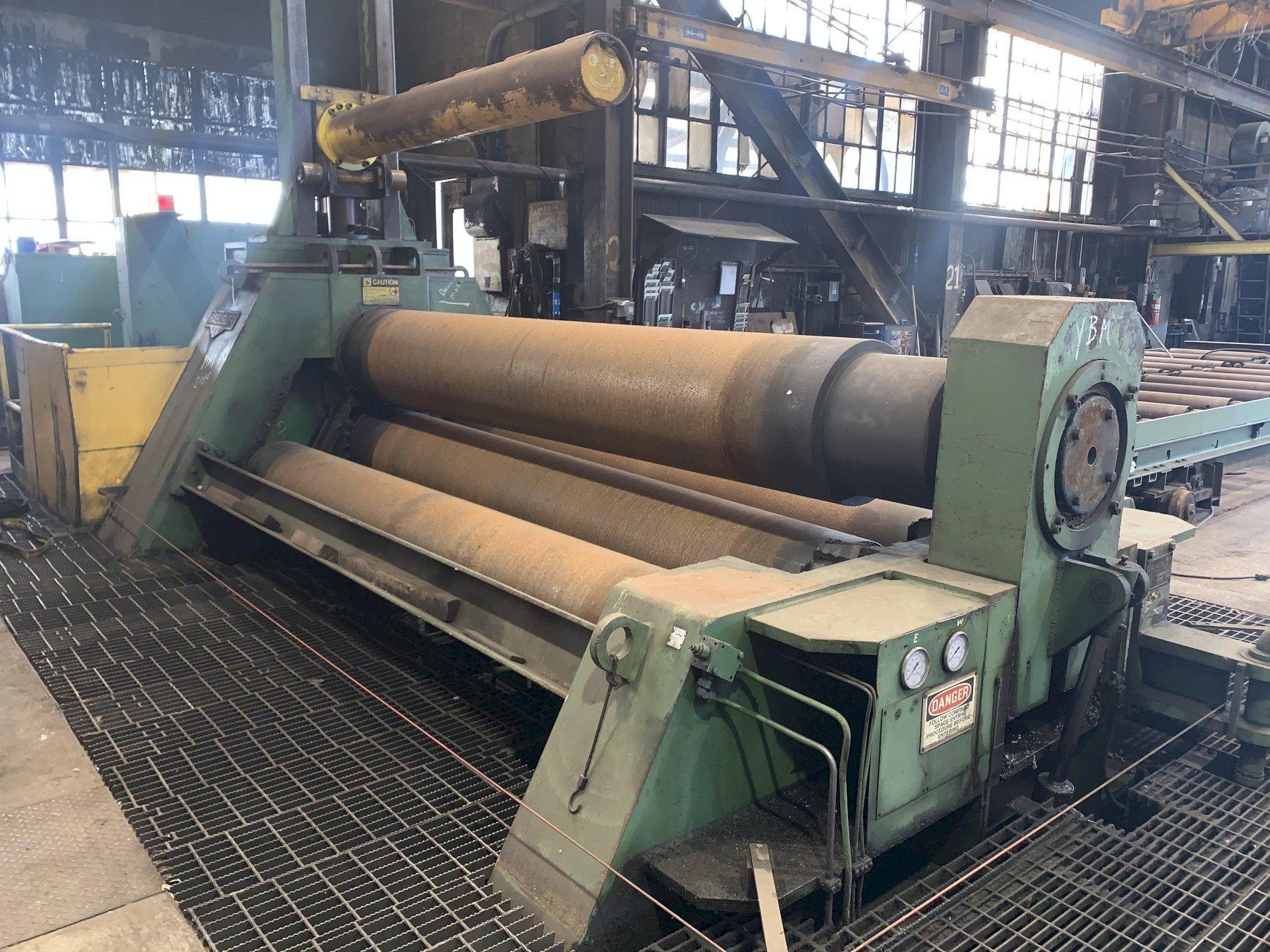

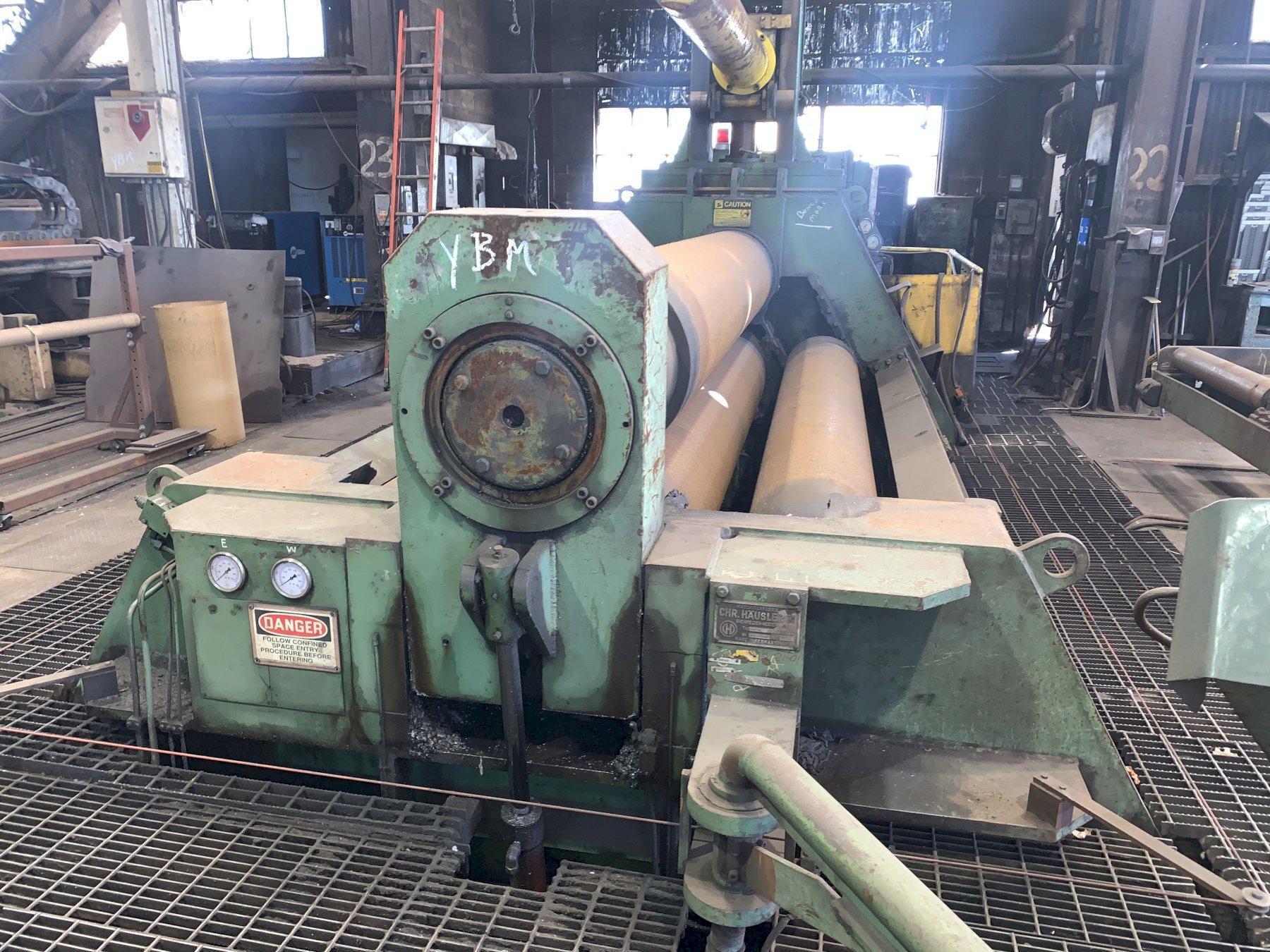

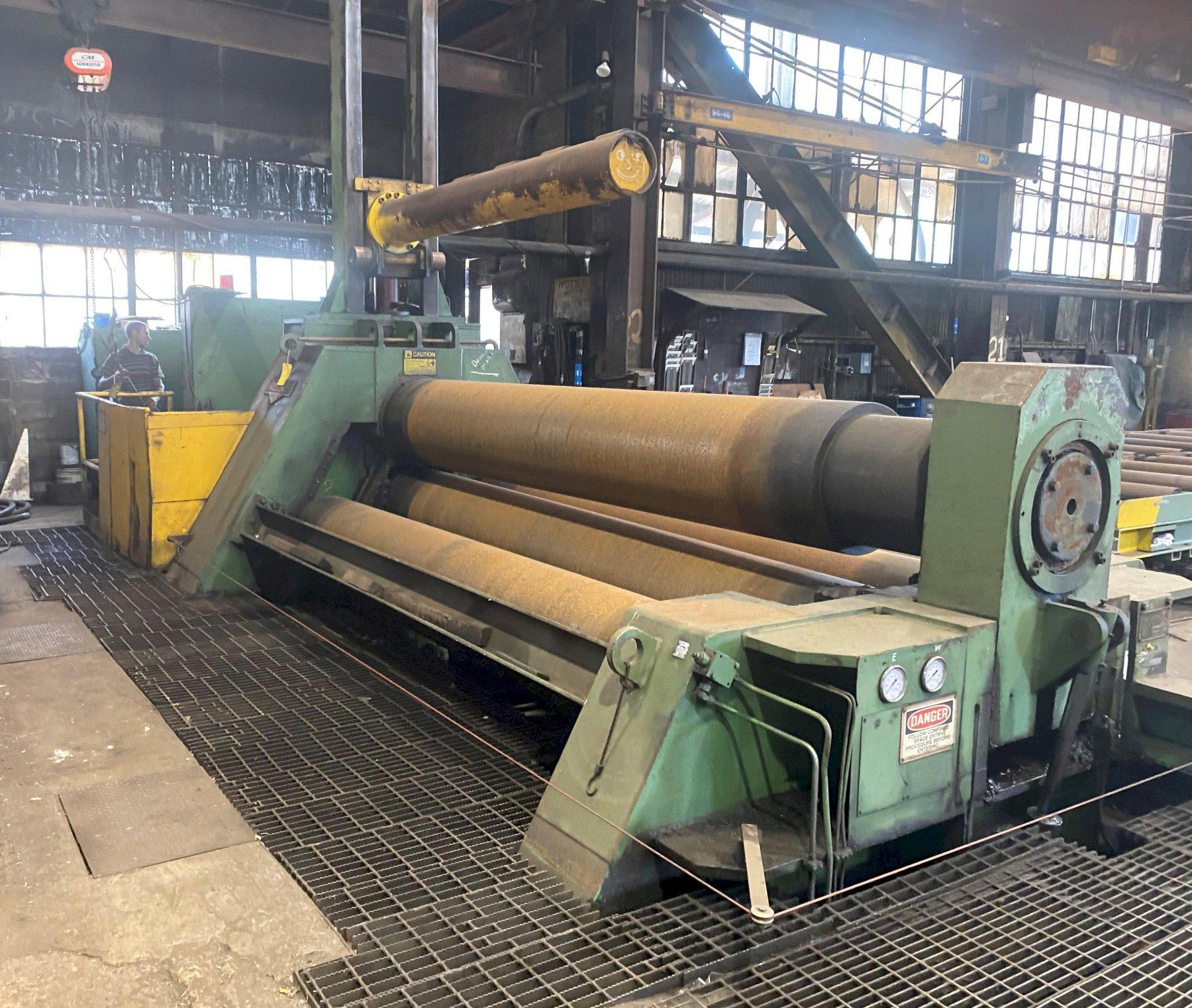

12' X 1.5" HAUSLER 4 ROLL MODEL NO. VRM12/3 HYDRAULIC PLATE BENDING ROLLS: STOCK #13390

Manufacturer

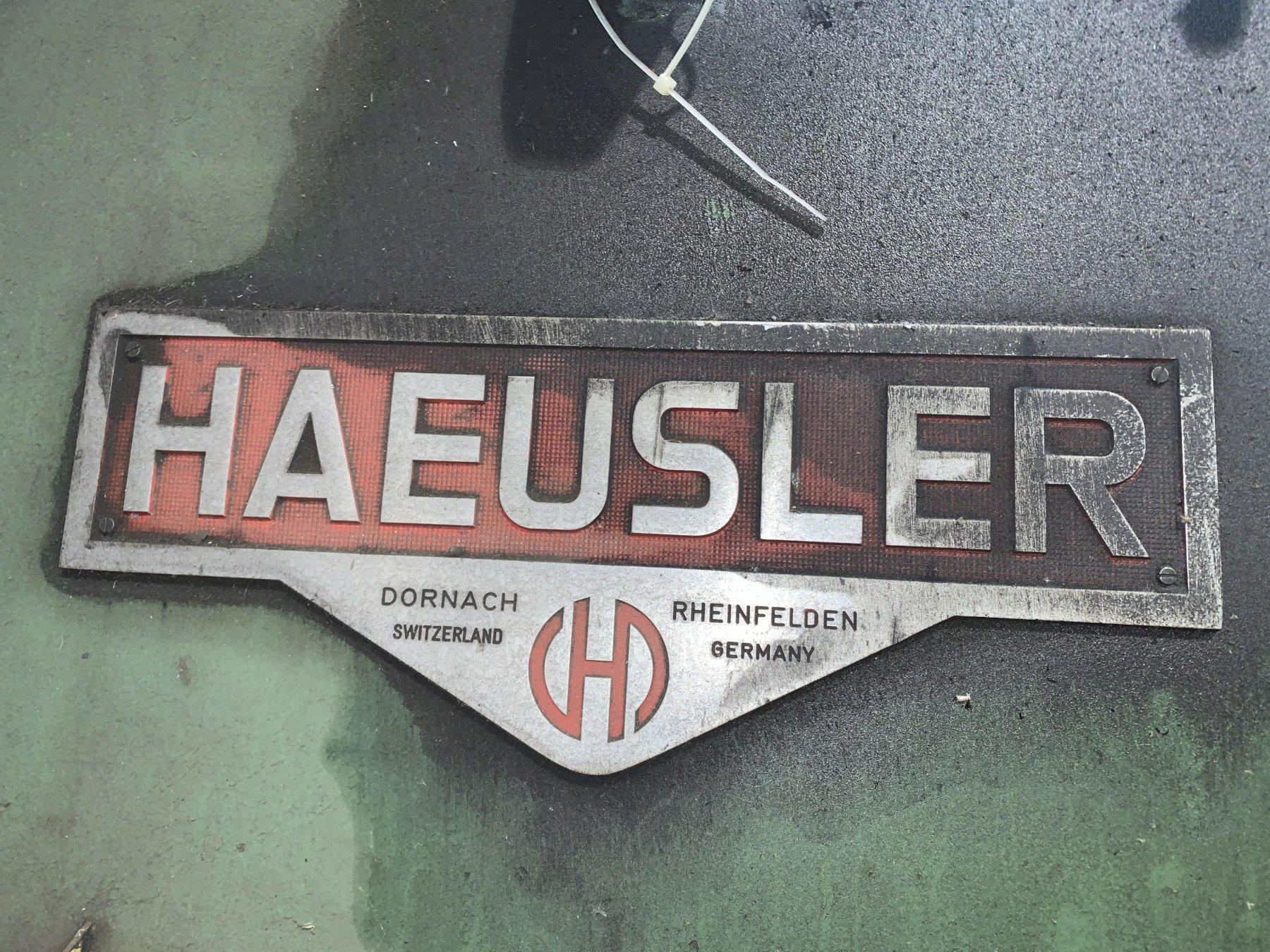

HAEUSLER

Category

Rolls

Type

ROLLS, PINCH

Stock

13390

Model

VRM12/3

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 137X287X126

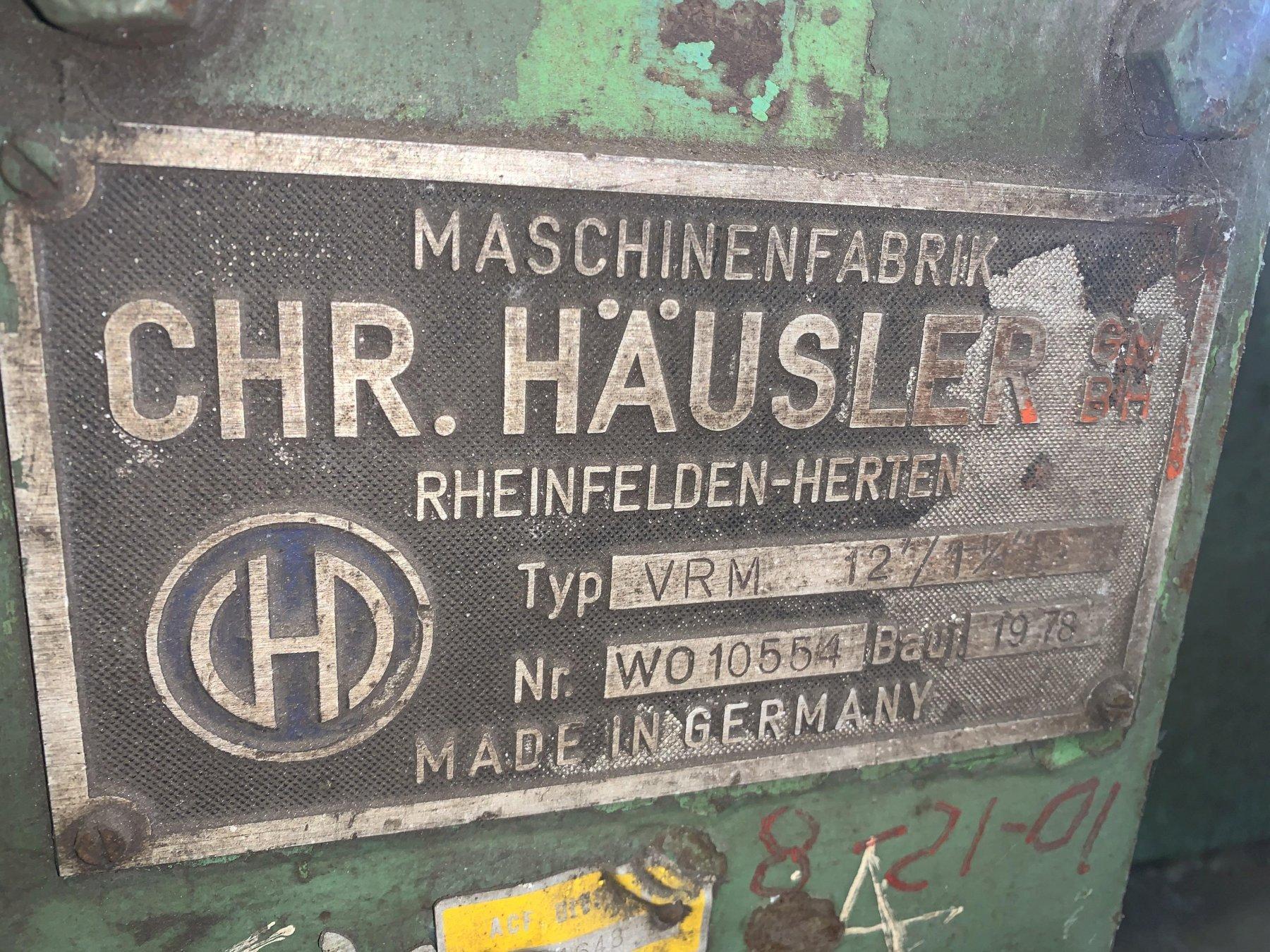

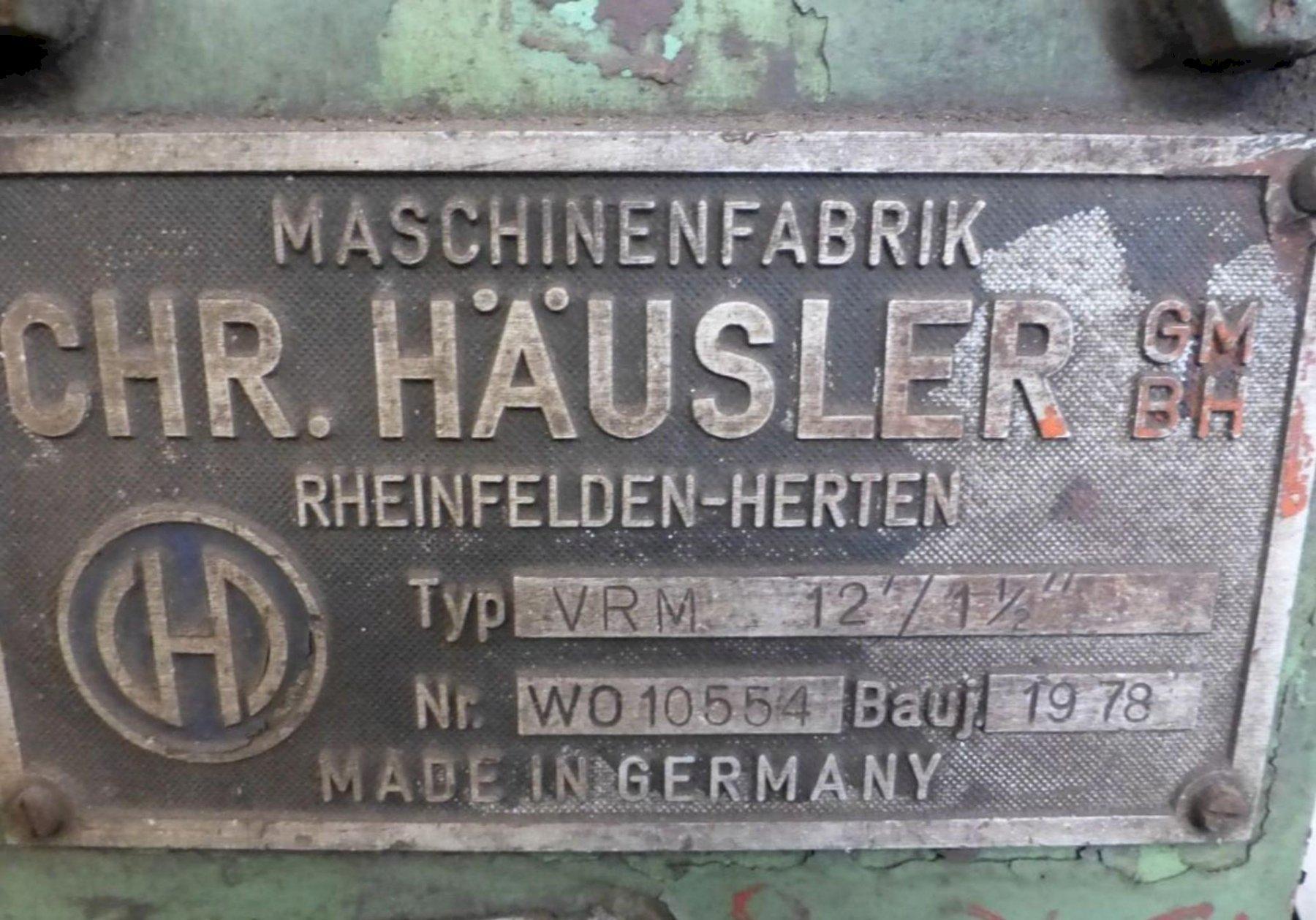

SERIAL ......................... WO10554
MODEL .......................... VRM-HY 12X1.5
NEW ............................ 1978
CAPACITY THICKNESS ............. 1.5"
LENGTH OF ROLLS ................ 144" (12')

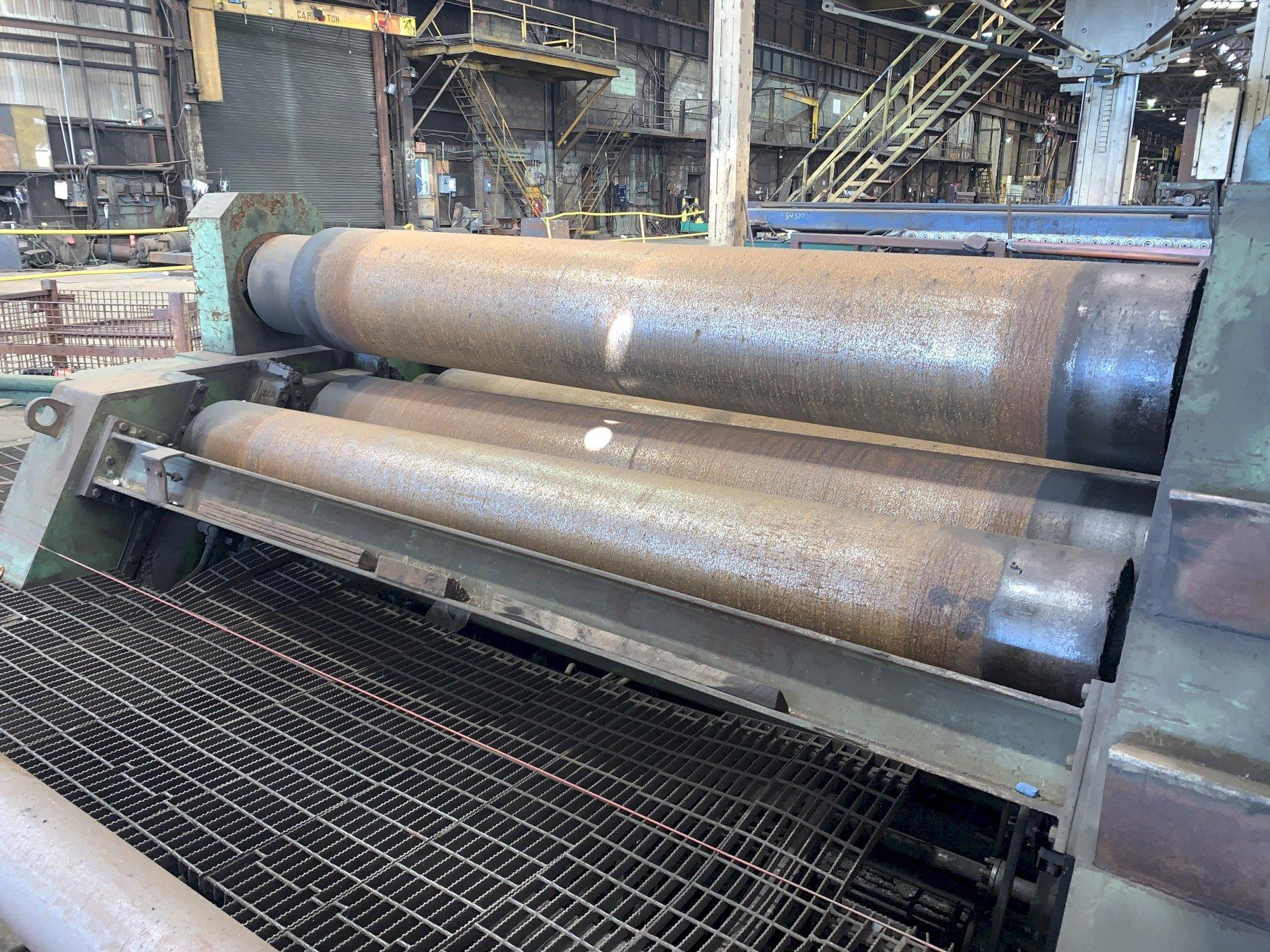

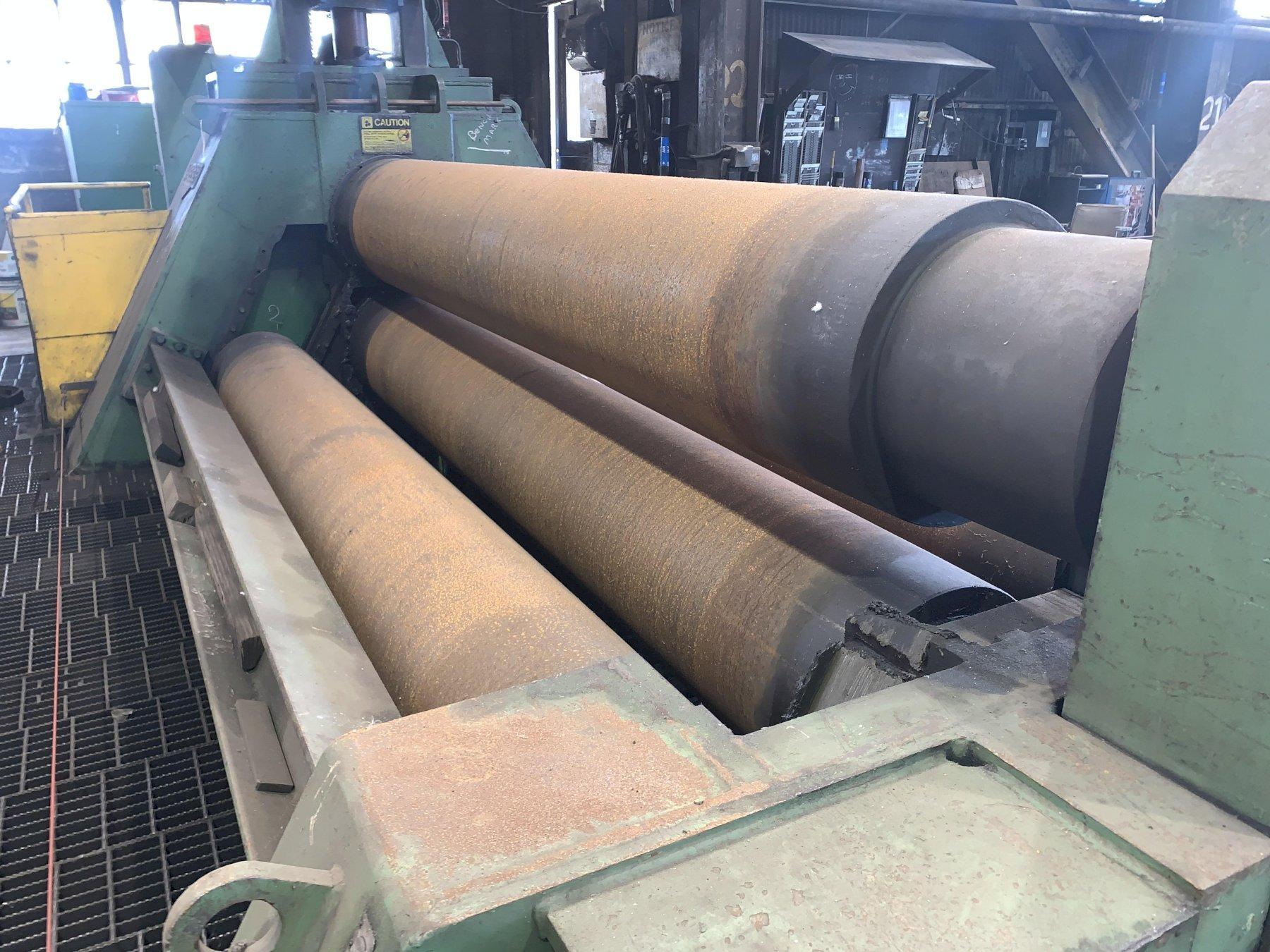

NUMBER OF ROLLS ................ 4

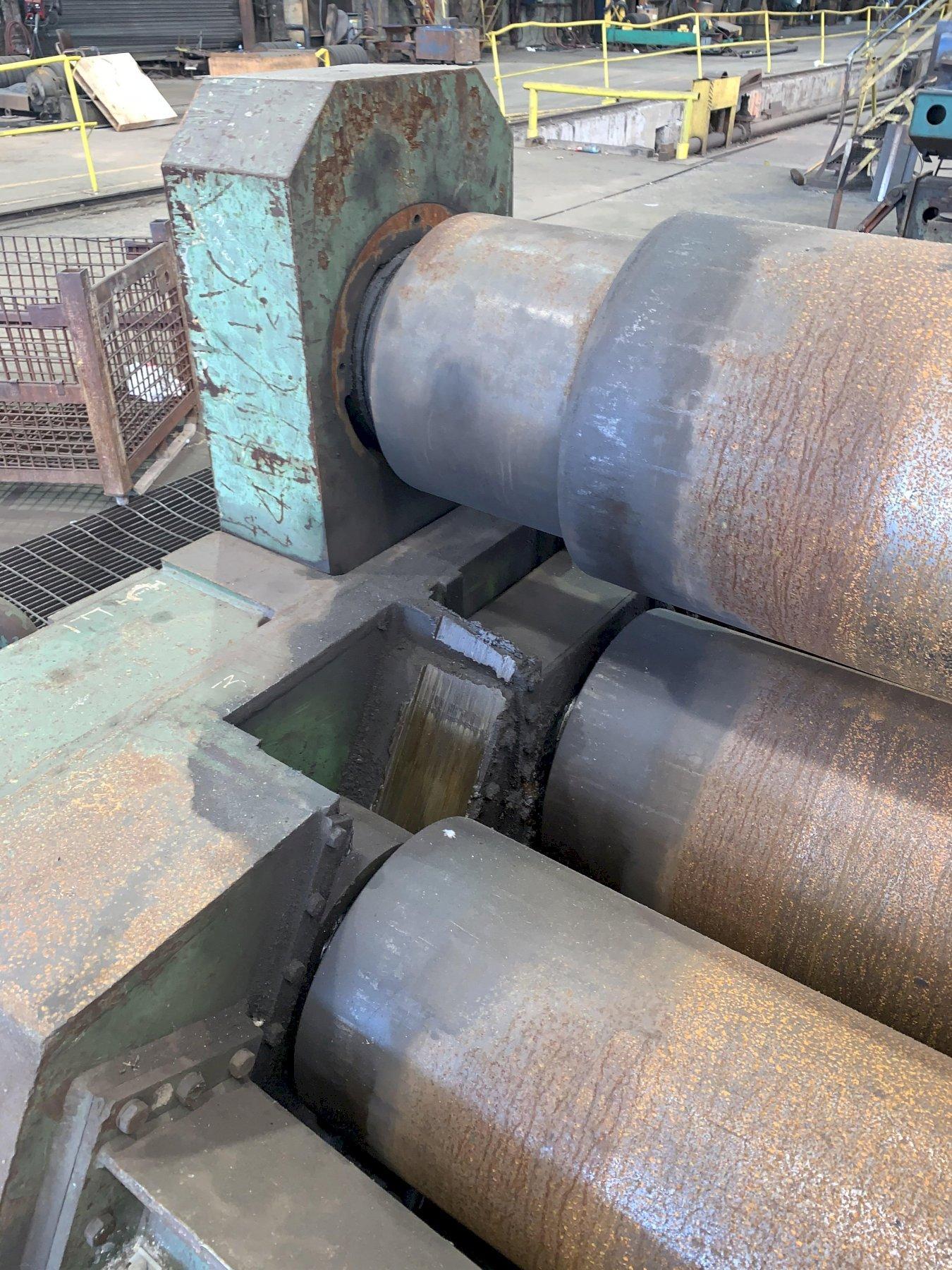

TOP & BOTTOM ROLL DIAMETER ..... 23-1/2" (595 mm)
SIDE ROLLS DIAMETER ............ 19" (480 mm)
PLATE BENDING DIAMETER ......... 28" @ 1-1/4", 36" @ 1-1/2"

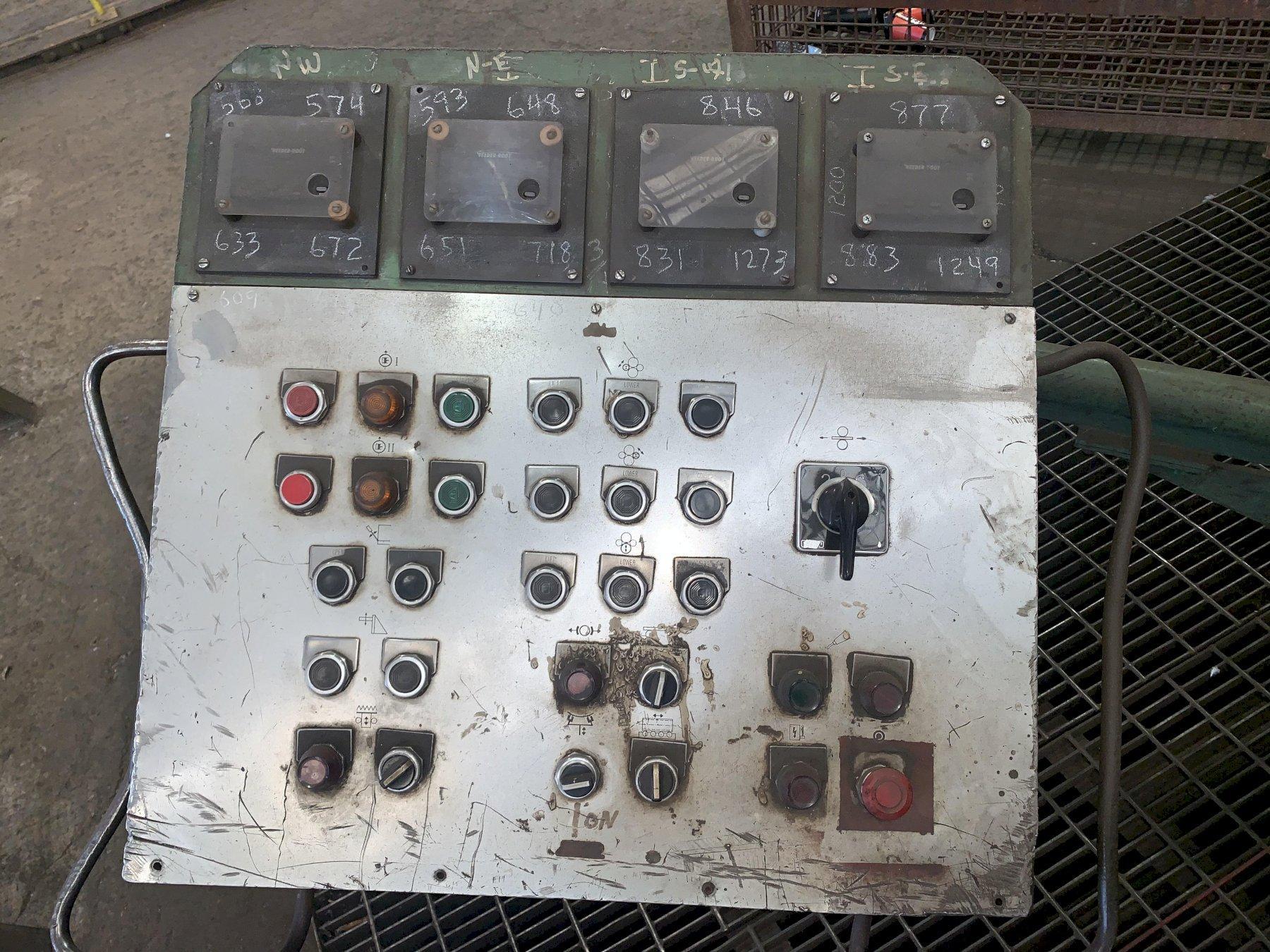

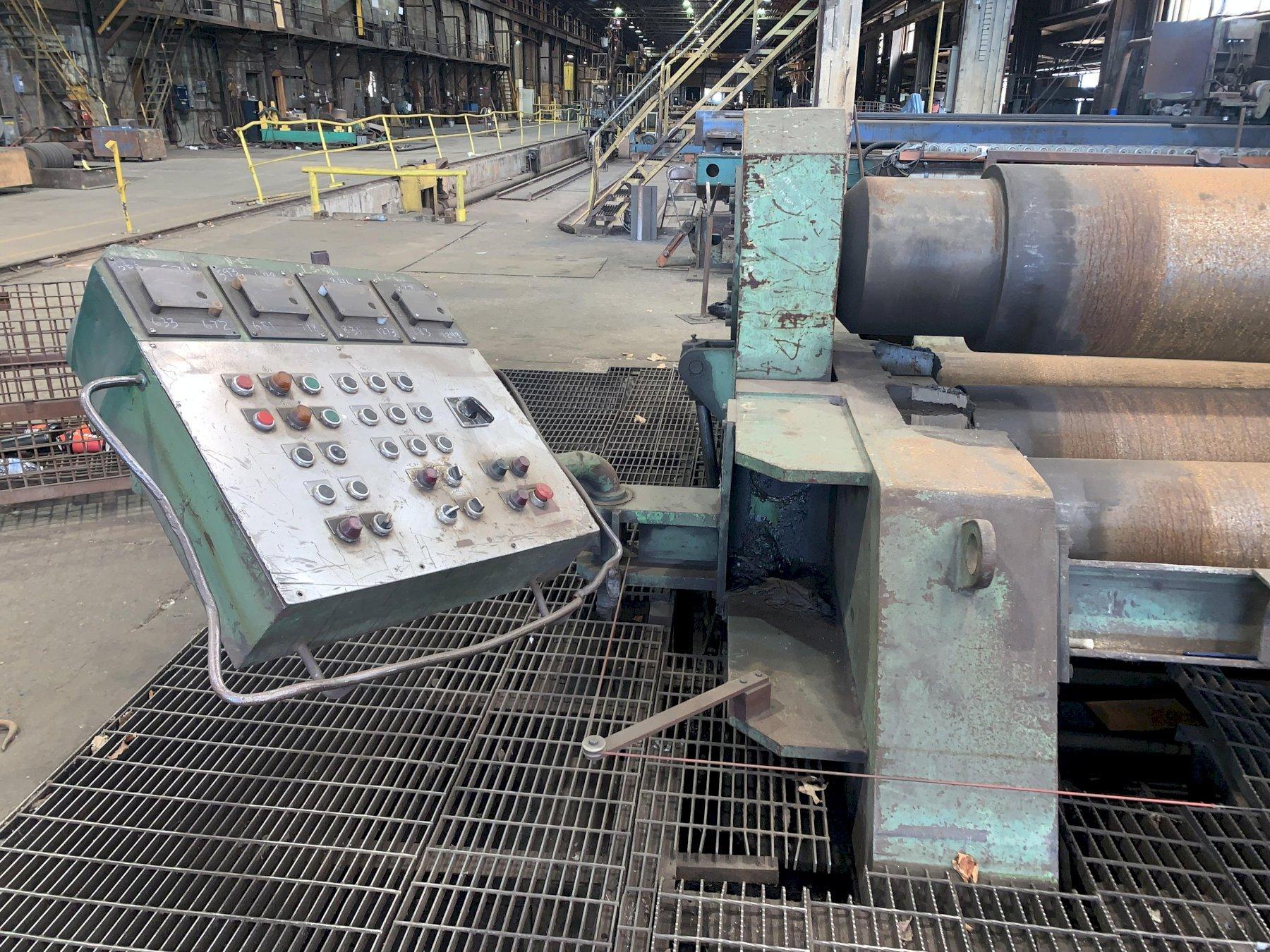

OPERATOR CONTROL STATION ....... YES
DIGITAL READOUT INDICATORS ..... YES
ROLL OPERATING SPEED ........... 158 IPM (4 M/MIN)
POWER ROLL ADJUSTMENT .......... YES, HYDRUALIC
AUTOMATIC SPEED COMPENSATION ... YES
FORWARD / REVERSE .............. YES
AIR DROP END ................... YES
CONE BENDING ATTACHMENT ........ YES
OVERARM SUPPORT DEVICE ......... YES
MOTOR .......................... 150 HP
