4” (100 MM) SUTTON TWO-PLANE MODEL #3 - 2-1/2L SHAPE STRAIGHTENER: STOCK 13896

Manufacturer

SUTTON

Category

Feeders & Straighteners

Type

STRAIGHTENERS, FLAT & SHAPE

Stock

13896

Model

4" 3 2-1/2L

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

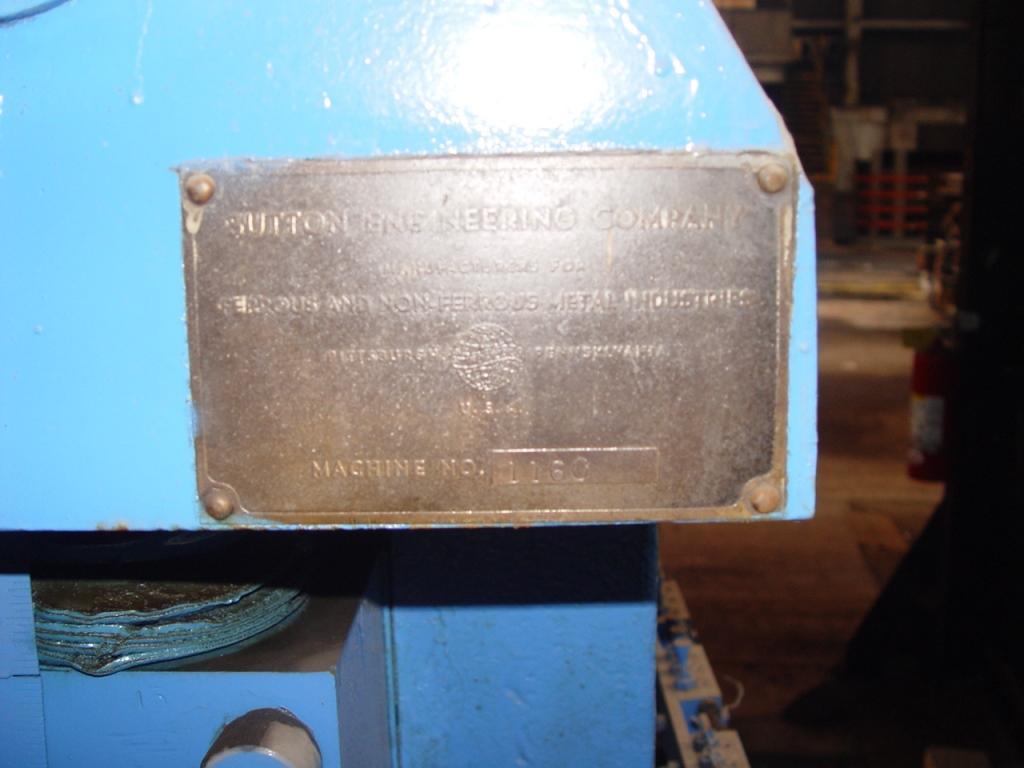

SERIAL NO.: 1160
AGE: 1963
MODEL NO.: 3 - 2-1/2 L
GENERAL SPECIFICATIONS:
TYPE: TWO PLANE
(SEPARATE HORIZONTAL & VERTICAL UNITS WITH COMMON DRIVE)
CAPACITY: ¼” X 1” TO 1-1/2” X 4” FLATS (19 MM X 25 MM TO 38 MM X 100 MM)
3/8” TO 1-1/4” HEX (9 MM TO 32 MM)
3/8” TO 1-1/2” SQUARES (9 MM TO 38 MM)
LENGTH: 12' MINIMUM

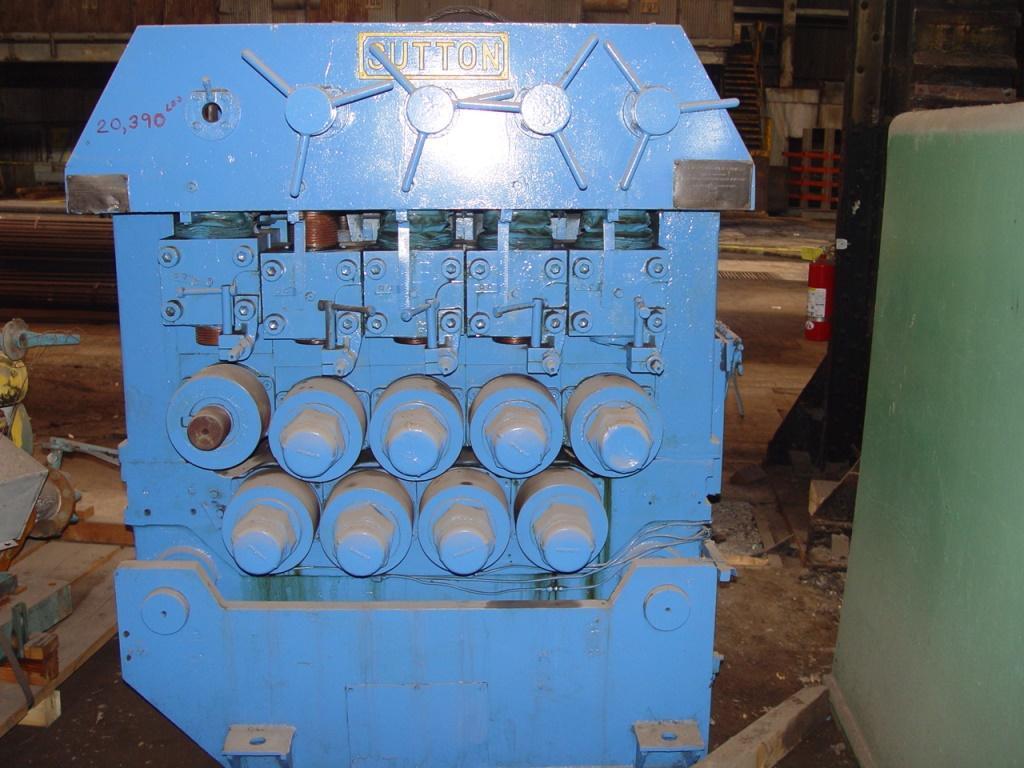

CONFIGURATION: 5 OVER 4 HORIZONTAL ROLLS

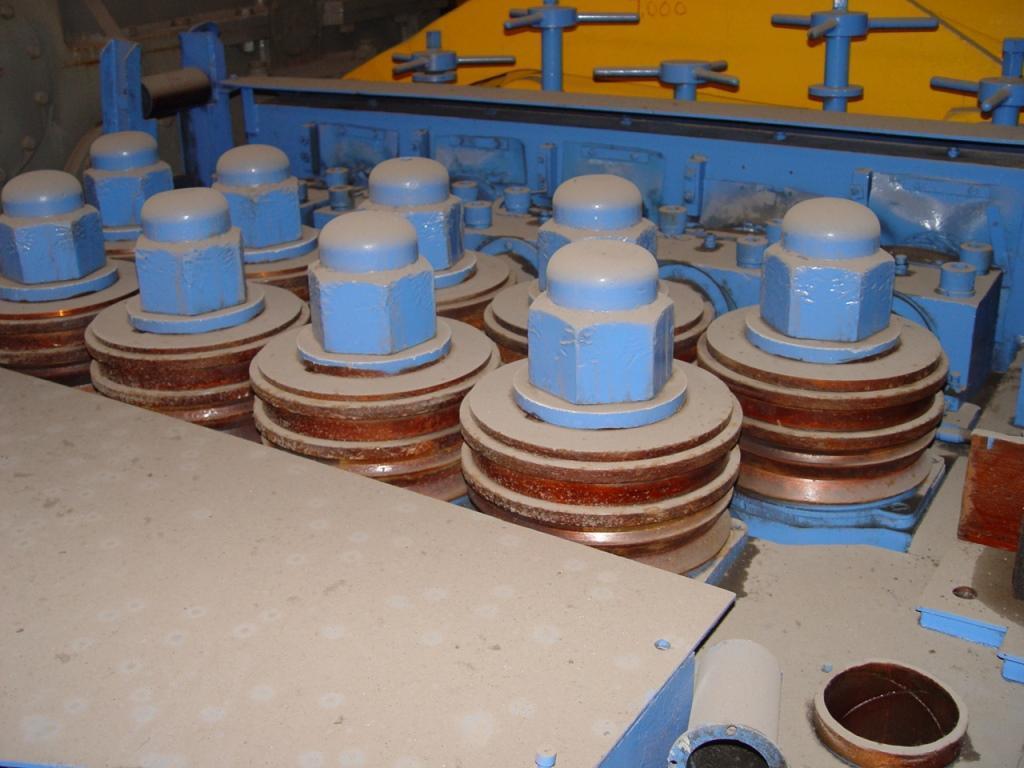

5 SIDE BY SIDE 4 VERTICAL ROLLS

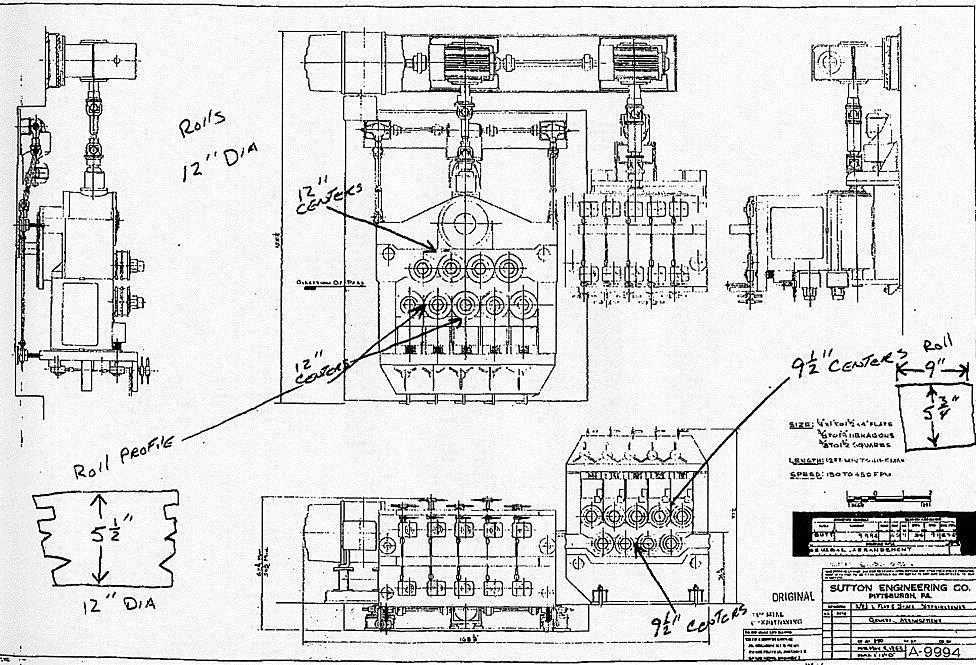

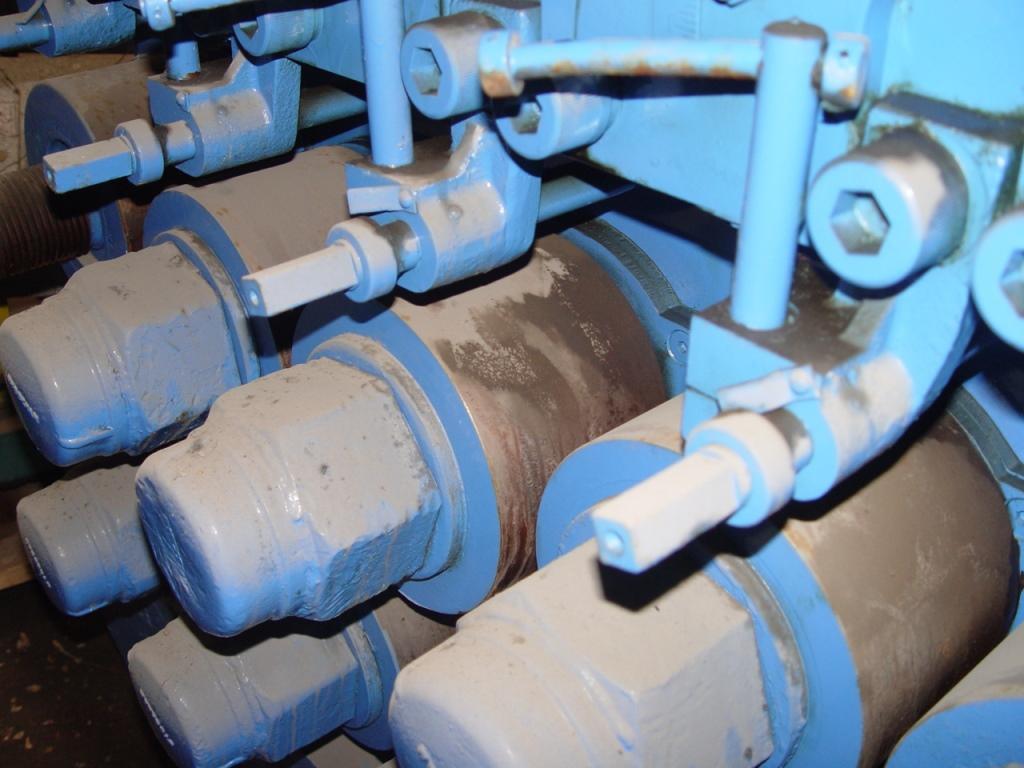

NOMINAL ROLL DATA:
HORIZONTAL: 9” DIA. X 5.75" FACE X 9.5” ROLL CENTERS (225 X 145 X 240 MM)
VERTICAL: 12” DIA. X 5.5" FACE X 12” ROLL CENTERS (300 X 140 X 300 MM)
SPEED: 150 TO 450 FPM
DIRECTION OF TRAVEL: LEFT TO RIGHT (VIEWED FROM OPERATORS SIDE)

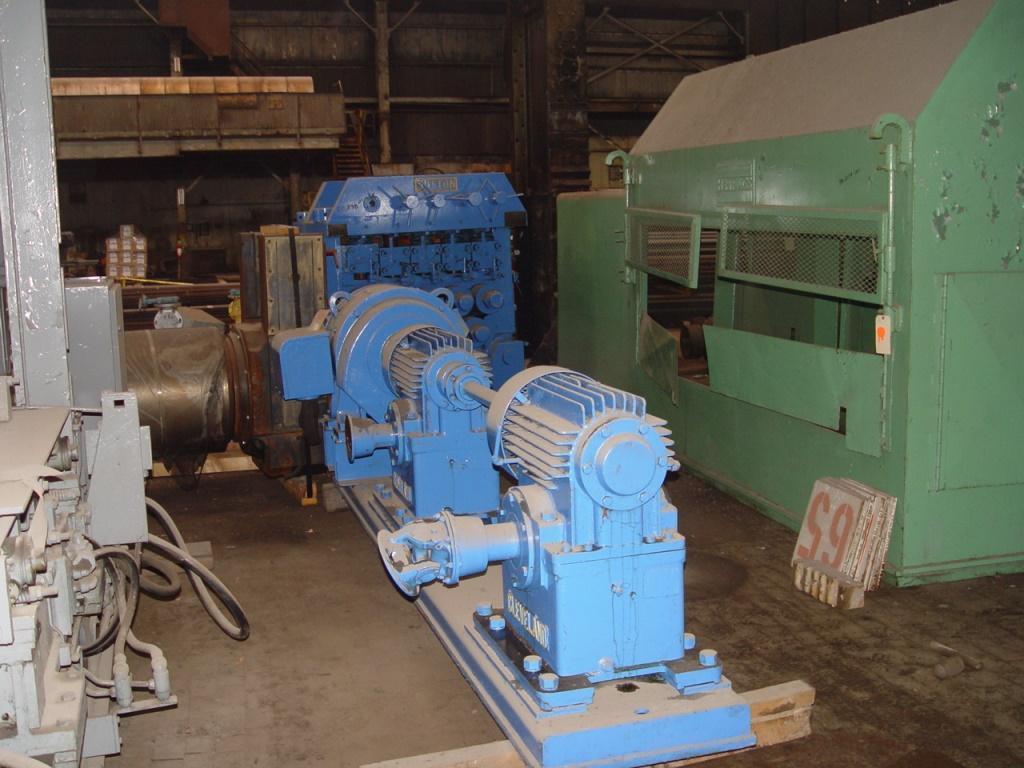

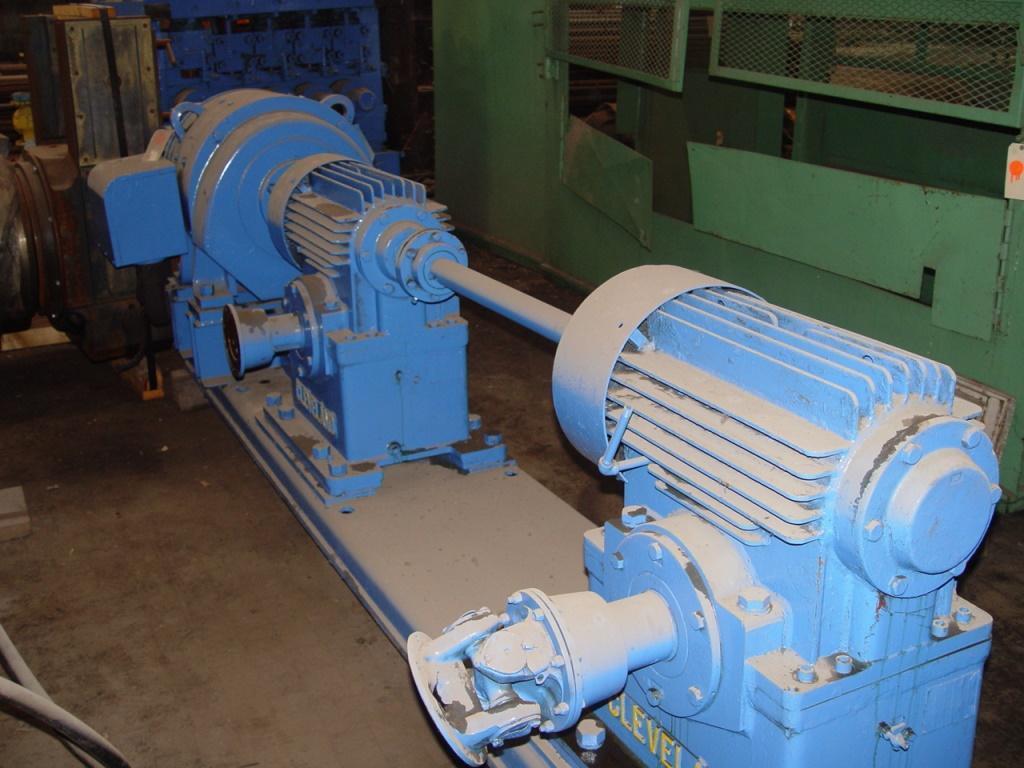

DRIVE: 60 HP, 240VOLT DC MOTOR
COMMON GEARBOX FOR HORIZONTAL AND VERTICAL MACHINES
FEATURES: 􀂷 SPARE ROLLS
ELEVATION JACKS
HYDRAULIC SYSTEM

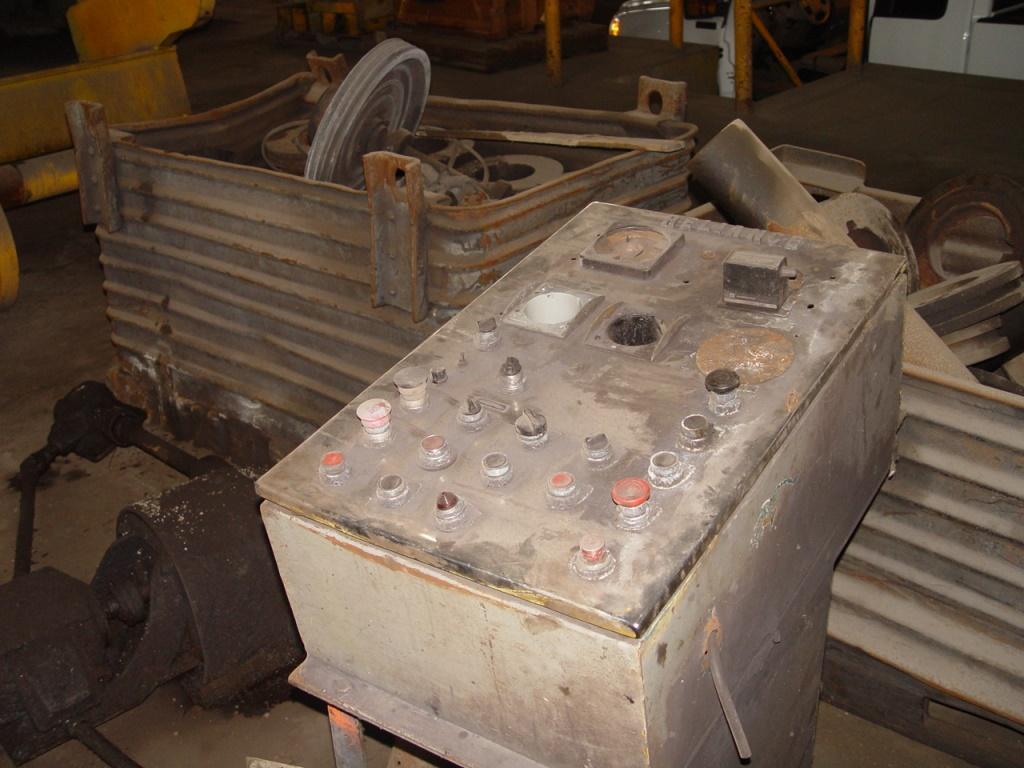

OPERATOR'S PANEL
