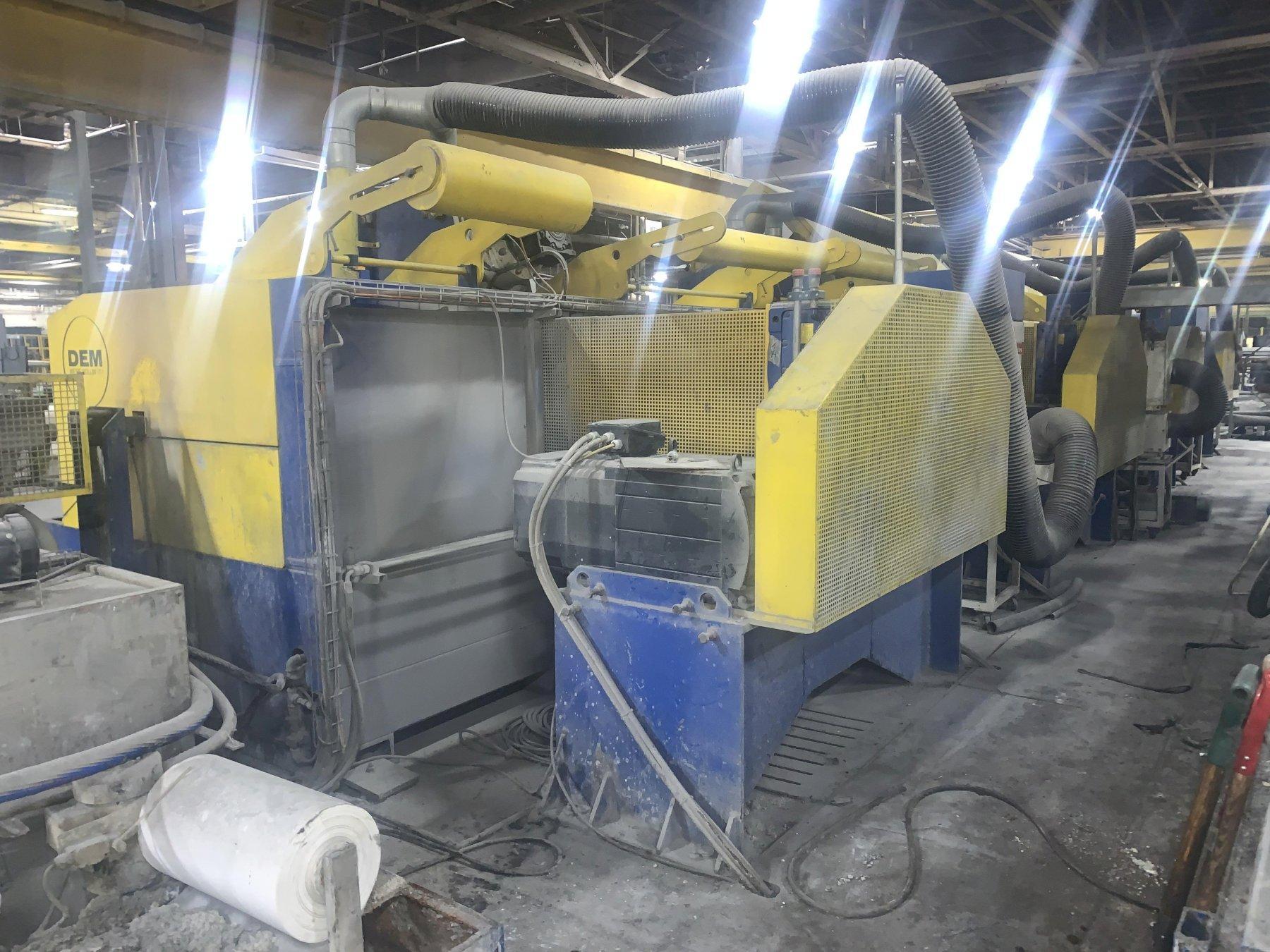

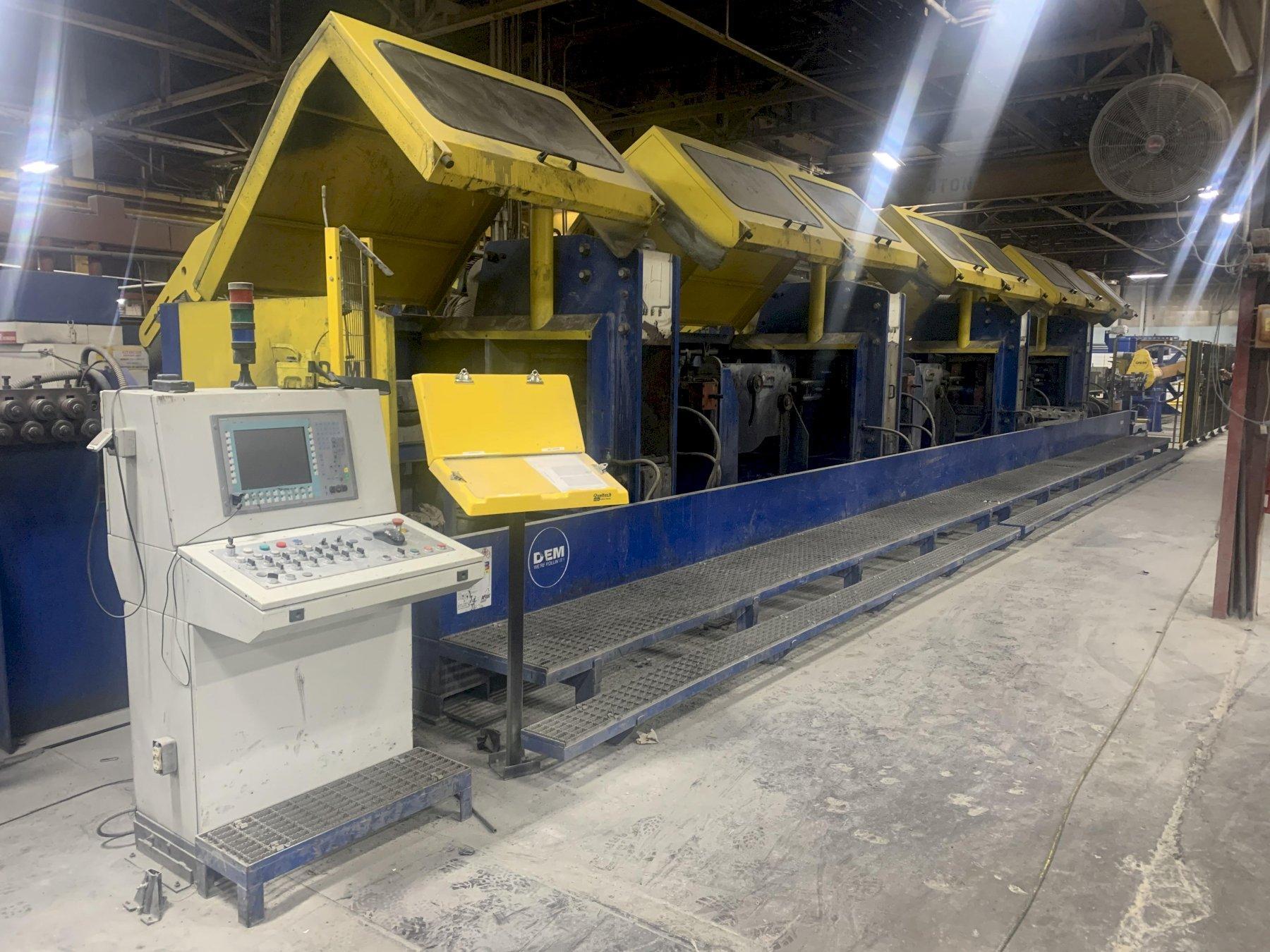

.512" X 12" X 4 STAND DEM WIRE FLATENING ROLLING MILL LINE, YEAR 2017: STOCK #13898
Stock
13898
Model
None listed
Dealer Location
Ohio
Spec Sheet
NUMBER OF ROLL STRANDS ......................... 4
WORKABLE MATERIAL DIMENSIONS ................... 0.236 TO 0.512"
WORKABLE MATERIAL .............................. SAE 1060 STEEL
FINISH PRODUCT DIMENSION ....................... 0.314 X 0.157" TO 0.708 X 0.196"
MAX WORKING SPEED .............................. 1000 FPM

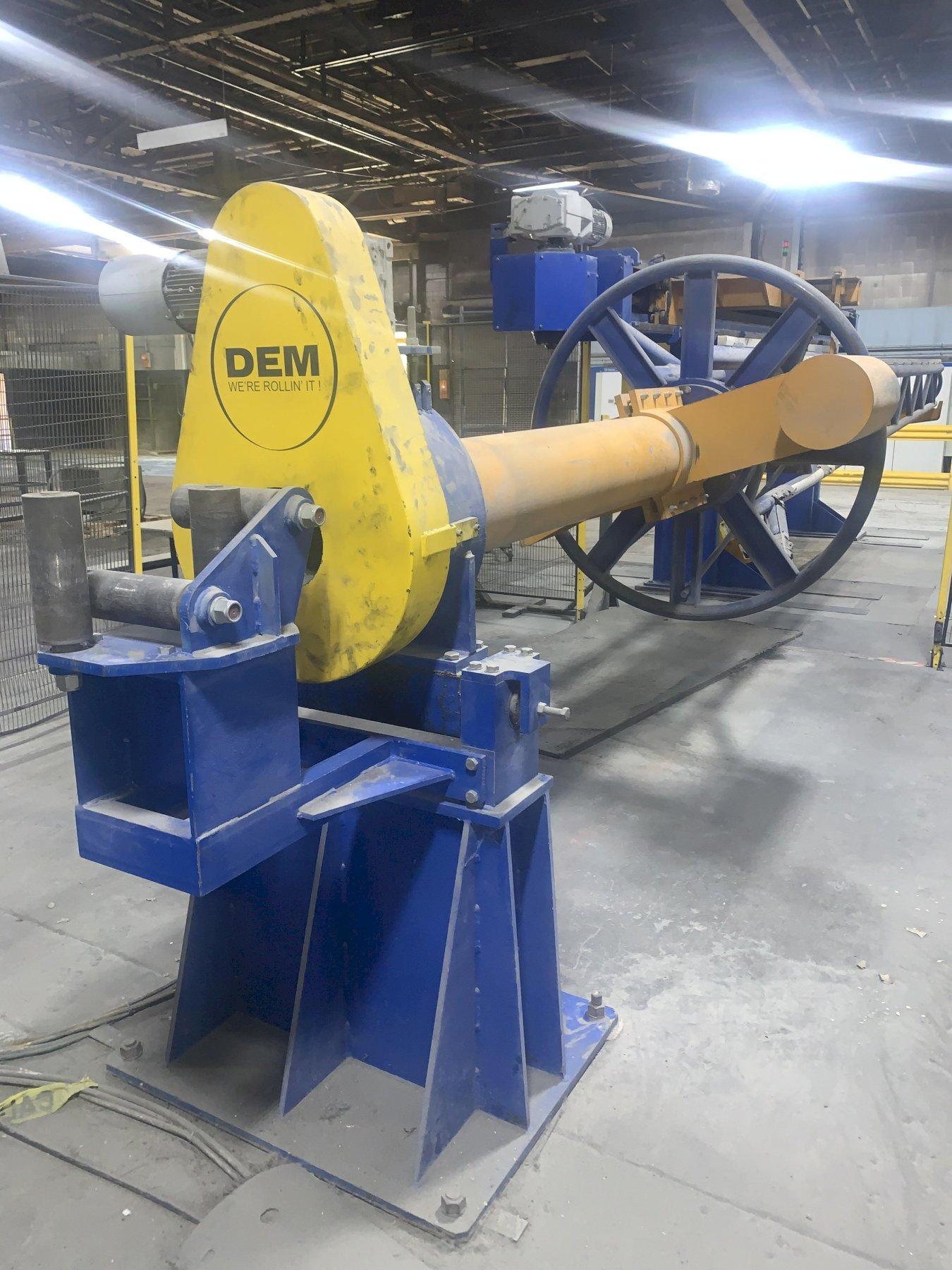

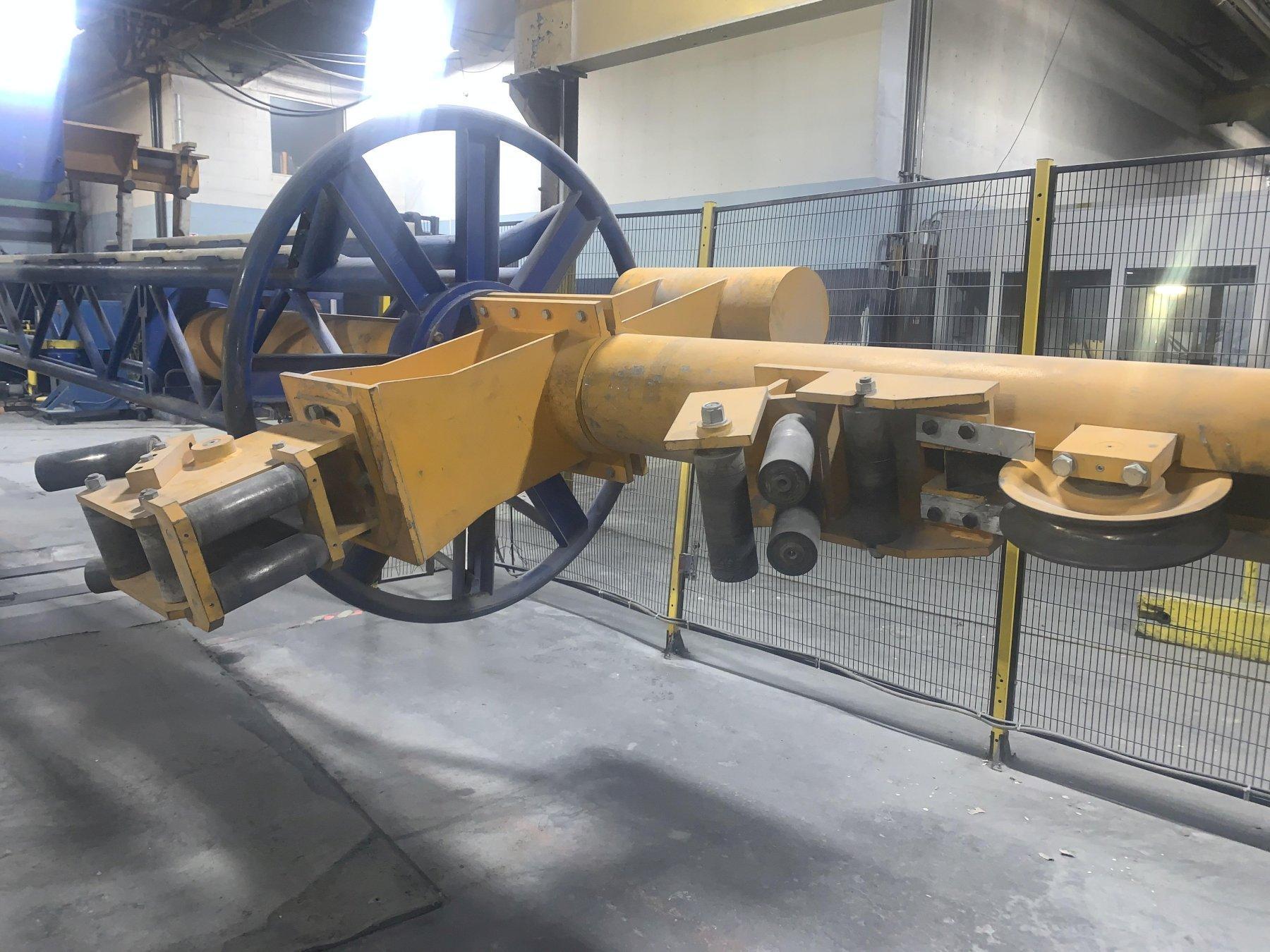

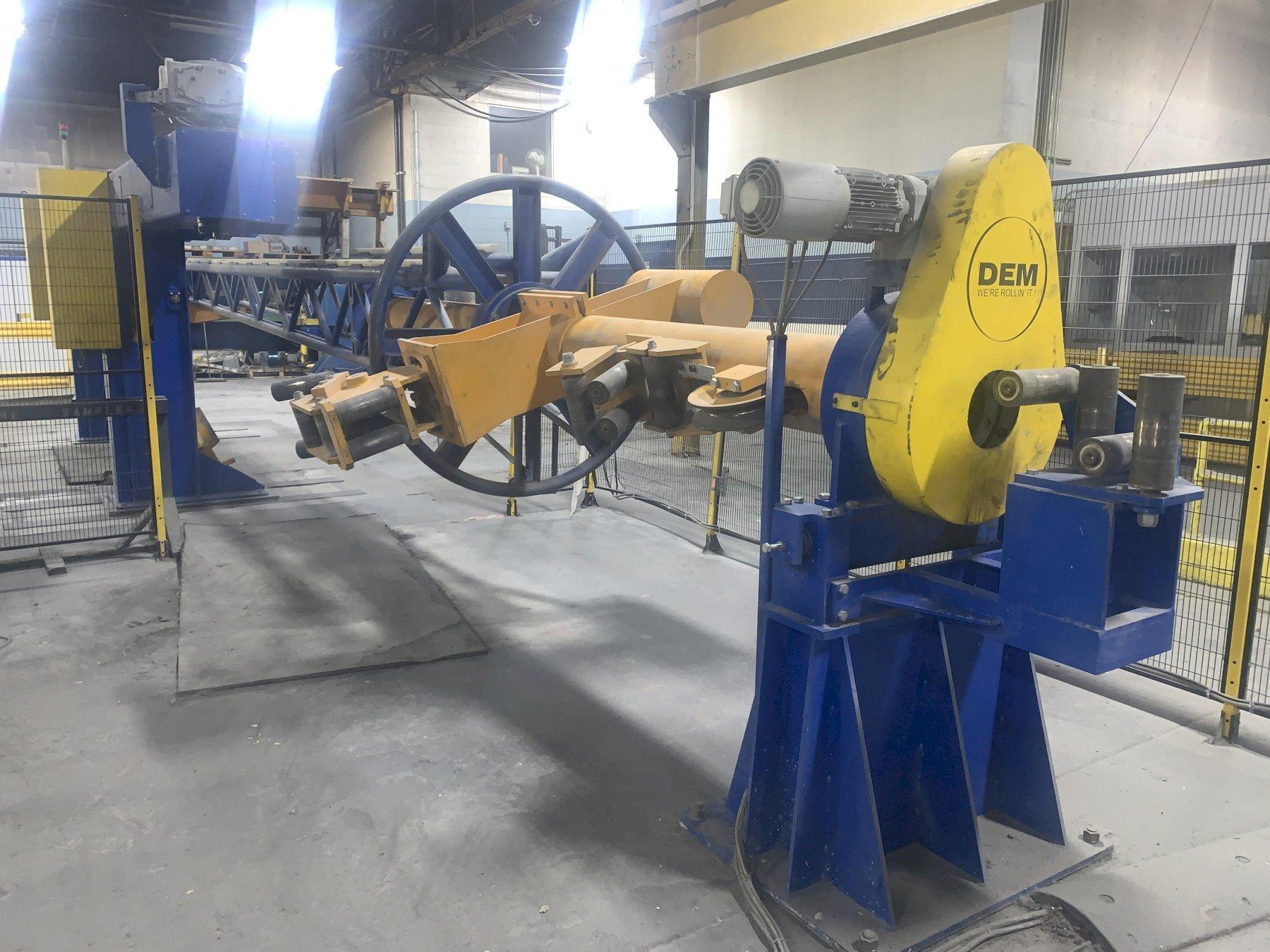

HORIZONTAL PAYOFF:
WIRE ROD COIL WEIGHT ........................... 6614 LBS
MAX LOADING CAPACITY ........................... 9921 LBS (3X3307 OR 1X6614+1X3307 LBS)
WIRE ROD DIAMETER .............................. 0.551"
MAX COIL OUTER DIAMETER ........................ 60"
MAX COIL INNER DIAMETER ........................ 32"

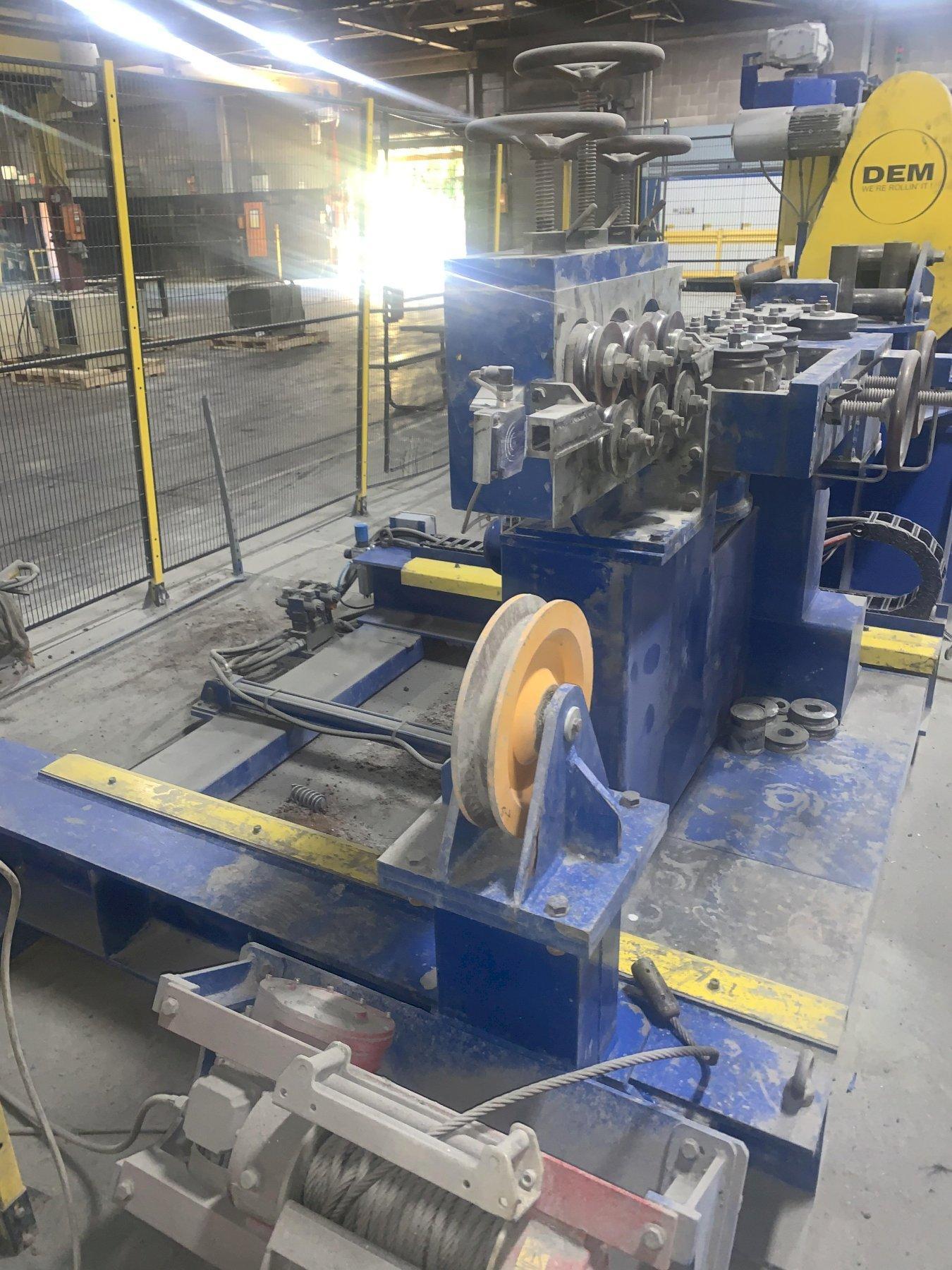

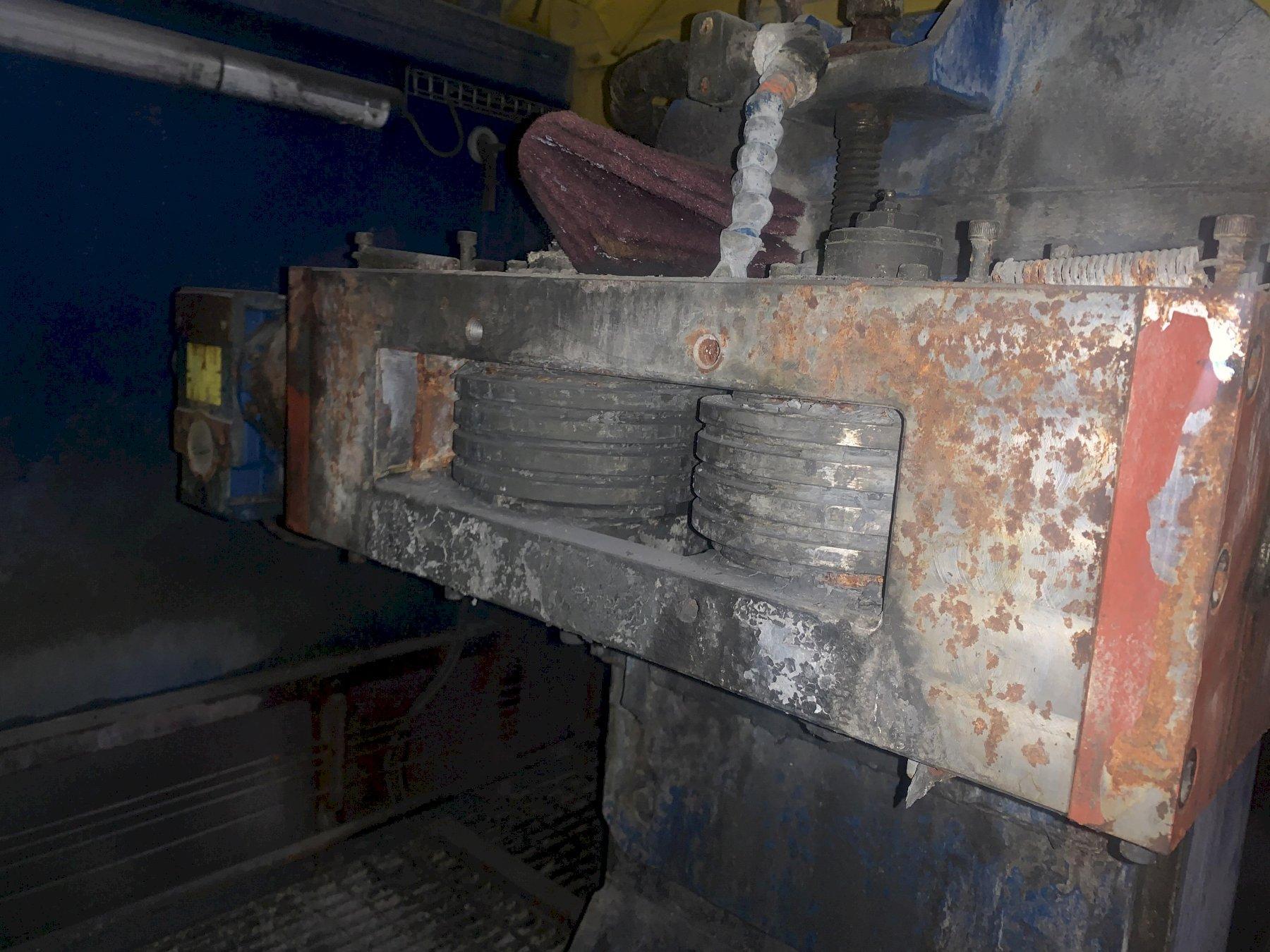

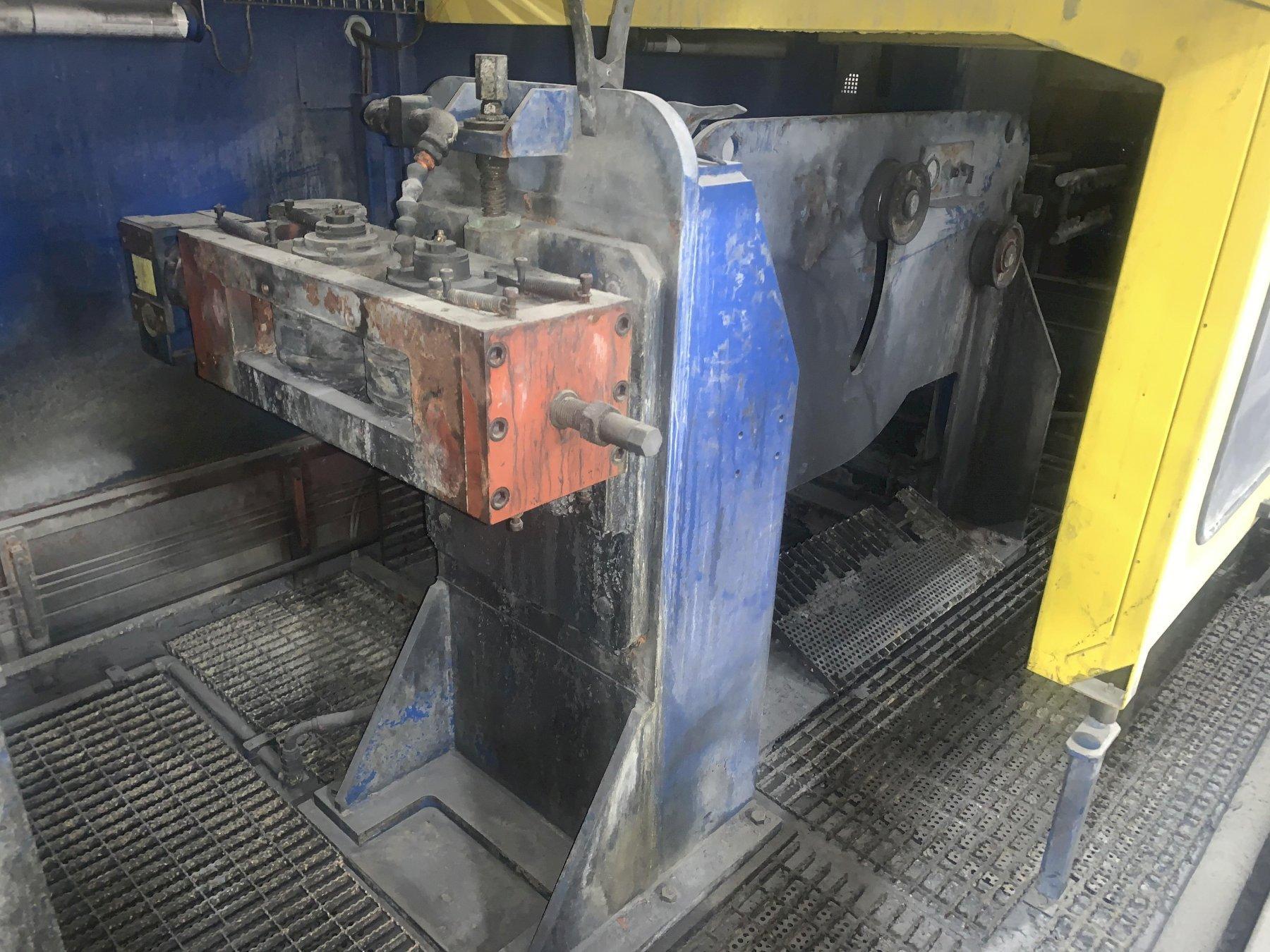

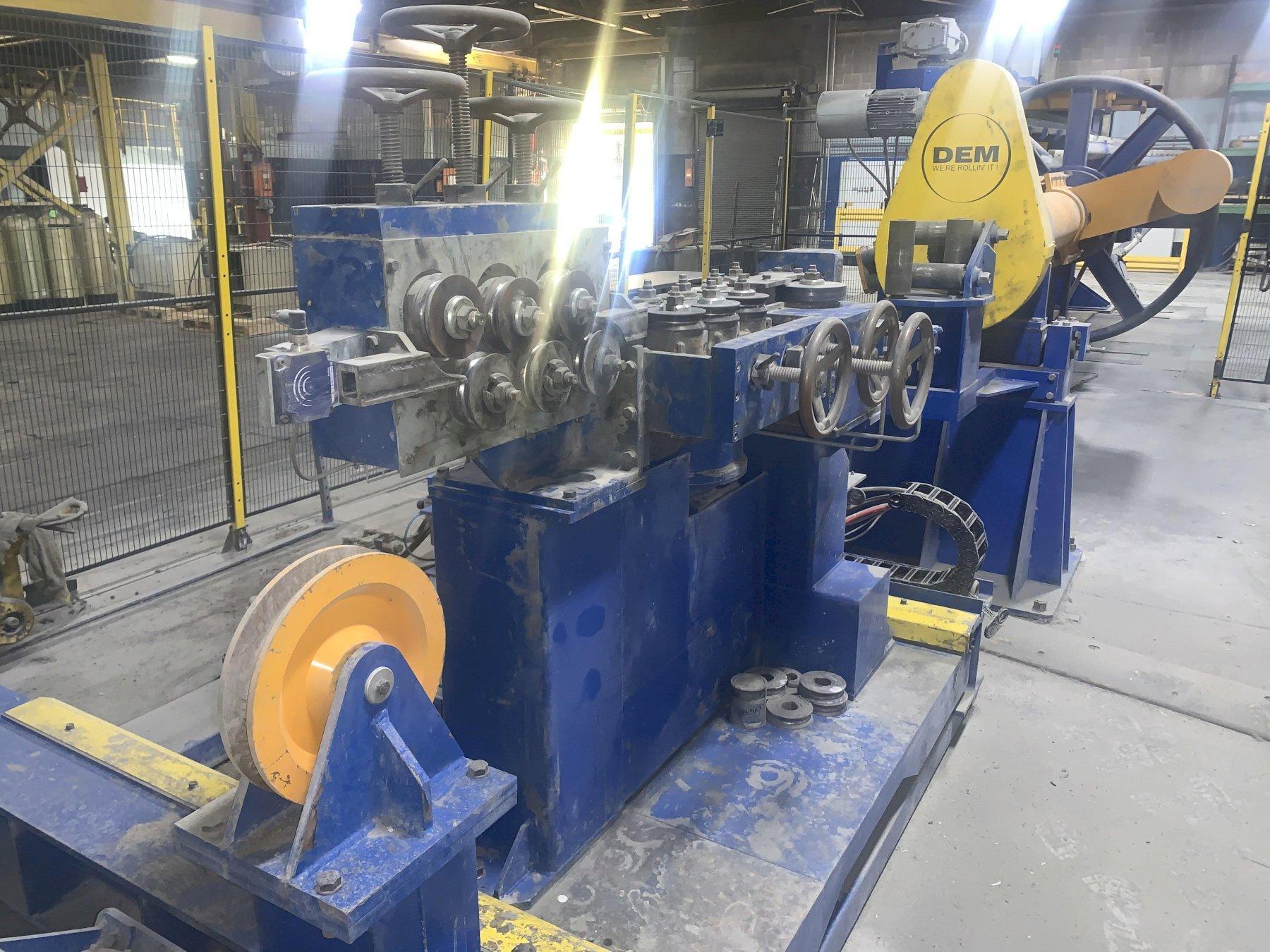

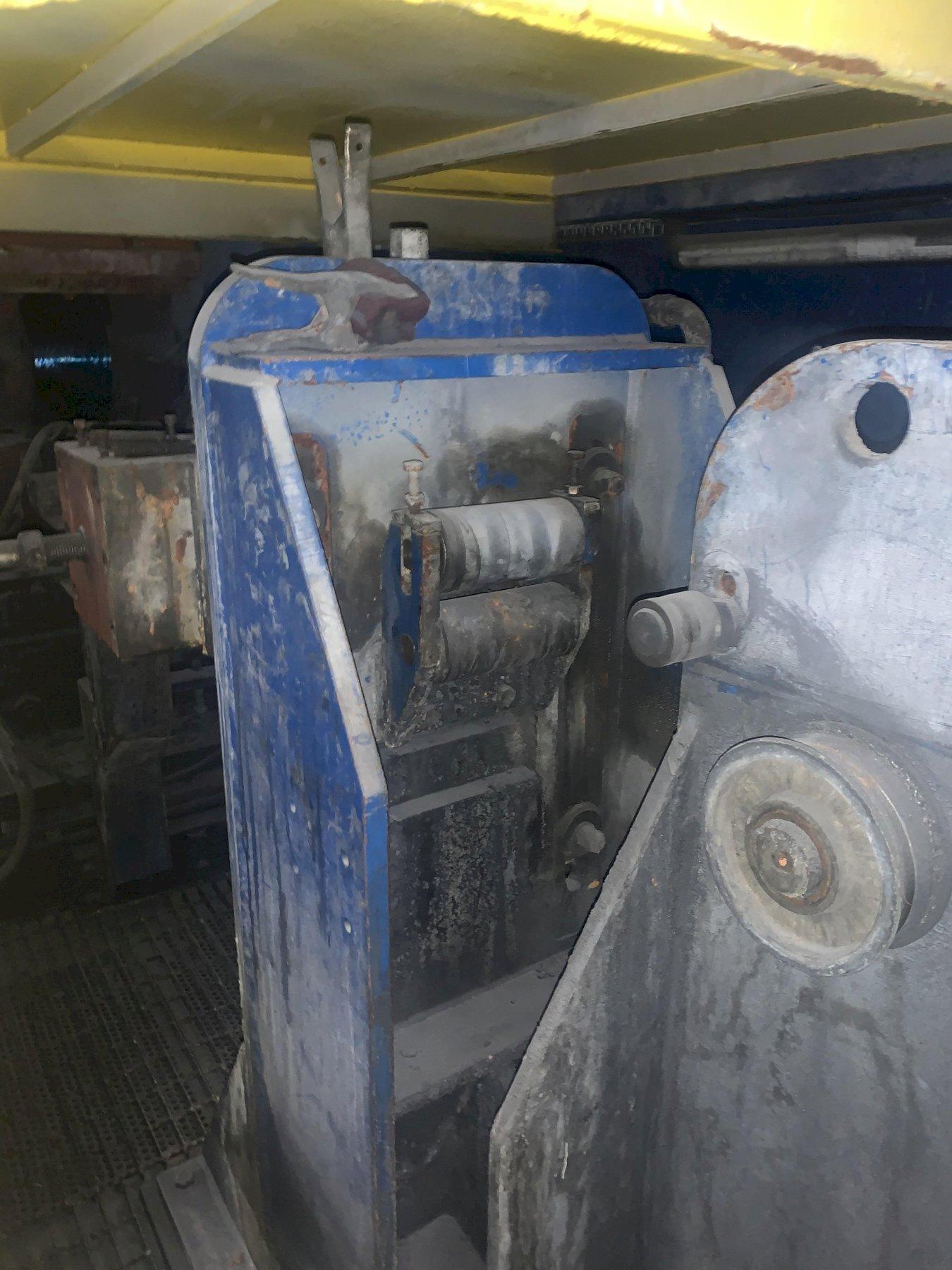

H/V PRE-STRAIGHTENER:
NUMBER OF ROLLS ................................ 2
NUMBER OF PLANES ............................... 2
NUMBER OF VERTICAL PRE-STRAIGHTENING ROLLS ..... 6
NUMBER OF HORIZONTAL PRE-STRAIGHTENING ROLLS ... 6
RE-STRAIGHTENING ROLL DIAMETER ................. 4.3"

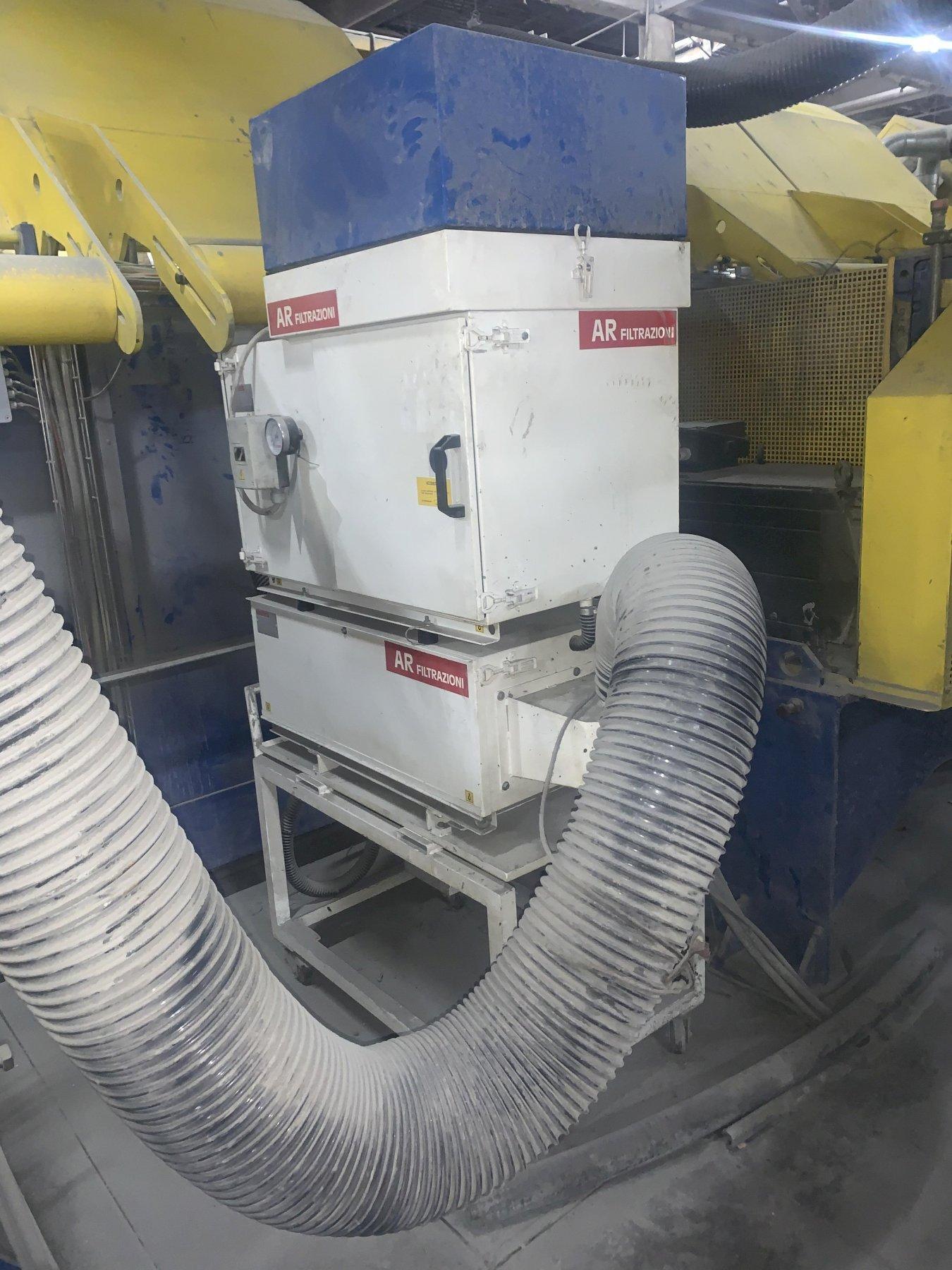

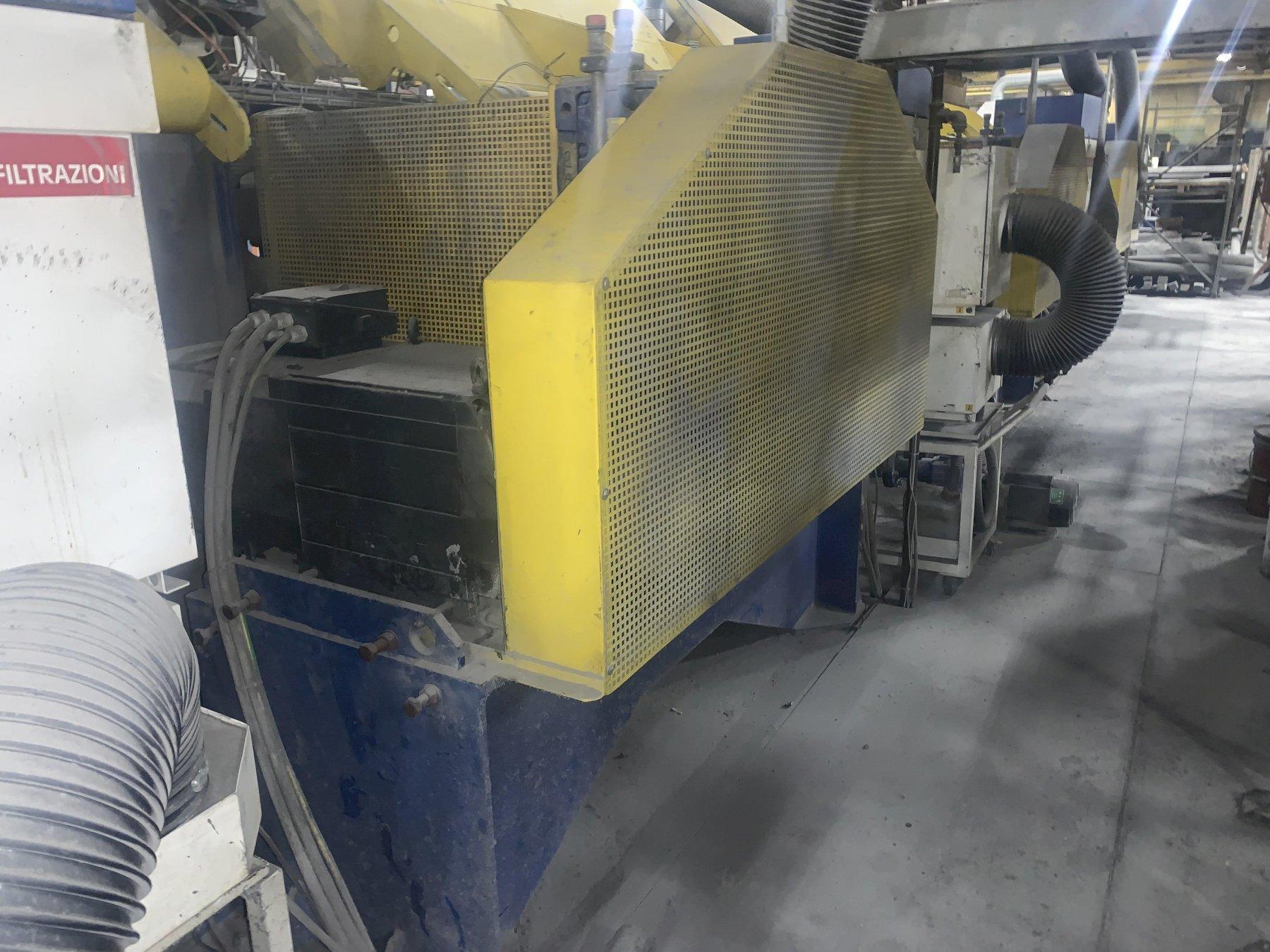

CLEANING UNIT:
WATER TEMPERATURE .............................. 140°-185°
TANK CAPACITY .................................. 1000 L
ELECTRICAL HEATERS ............................. 2 X 8 KW
PAPER FILTER ................................... W/AUTOMATIC CLOGGING DETECTION
BRUSHING UNIT .................................. 7.9" SPIRAL BRUSHES

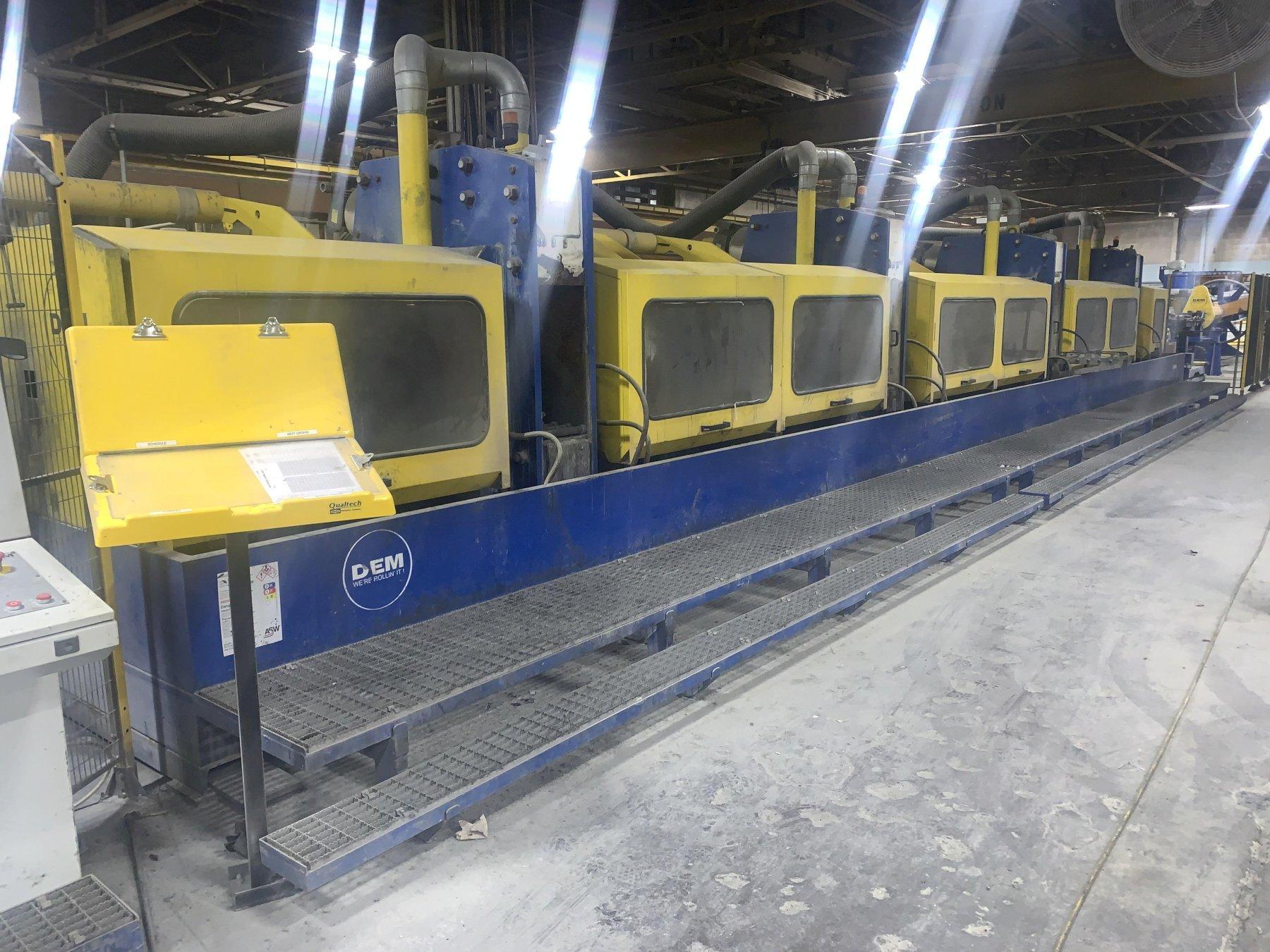

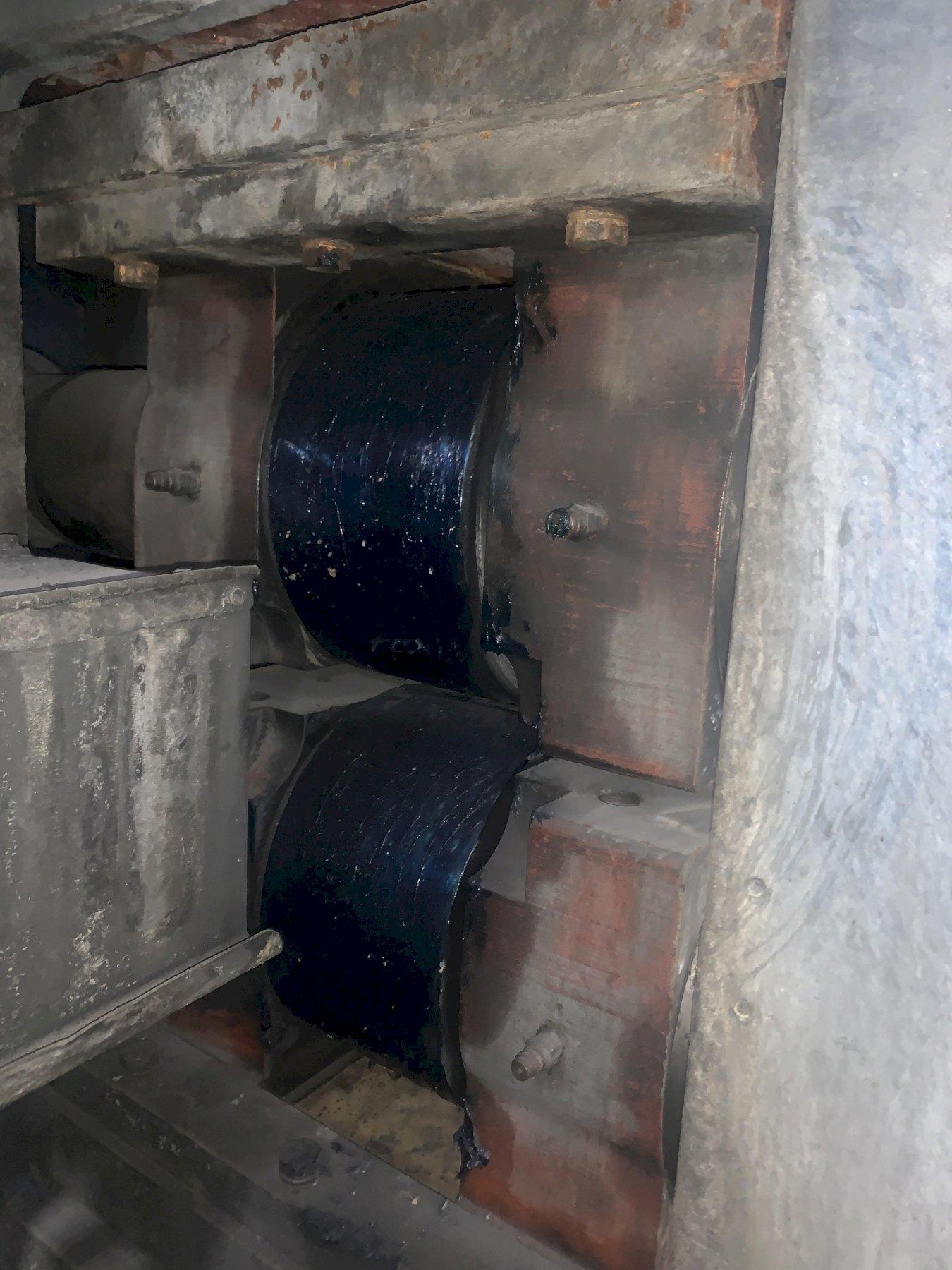

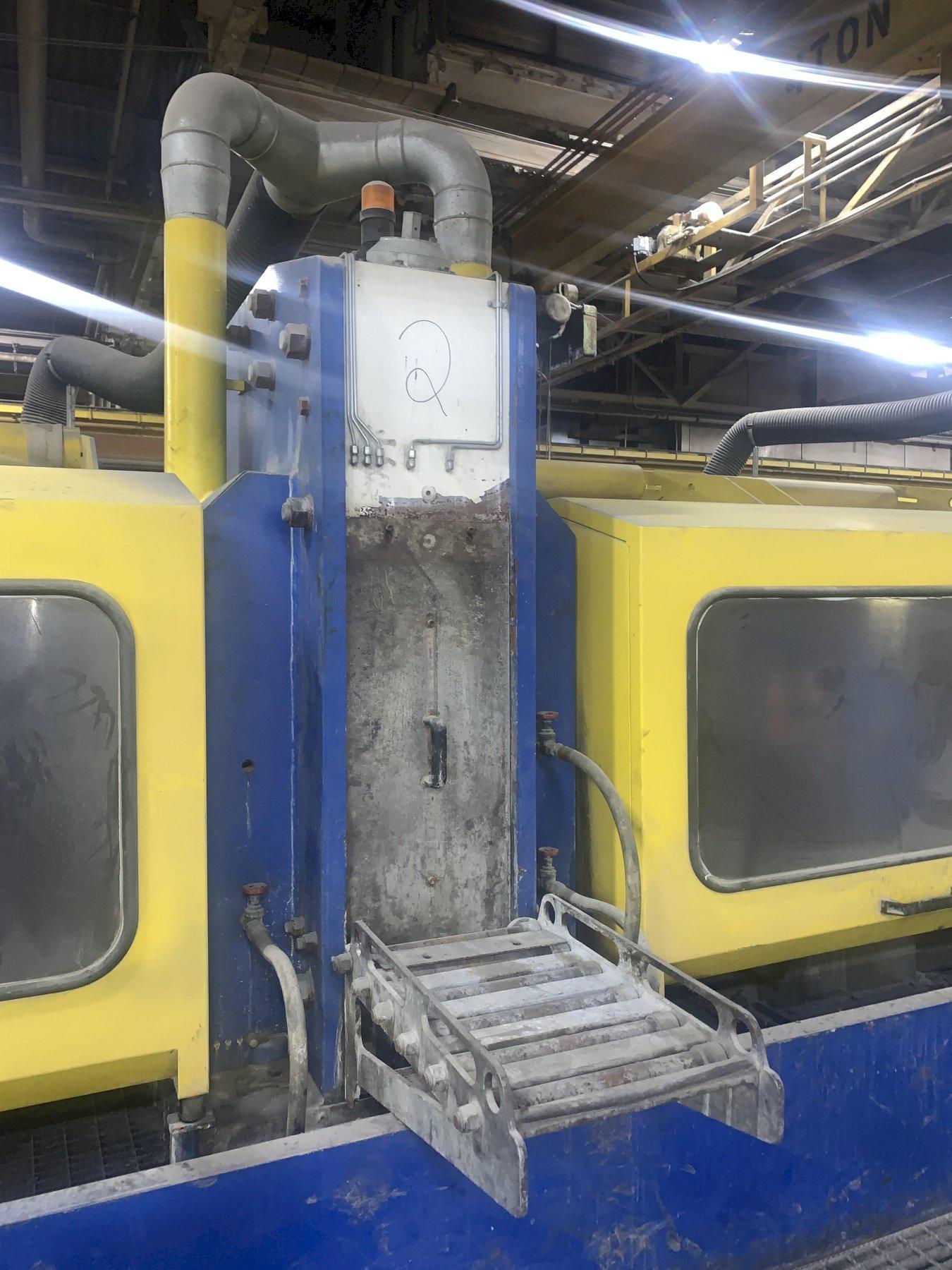

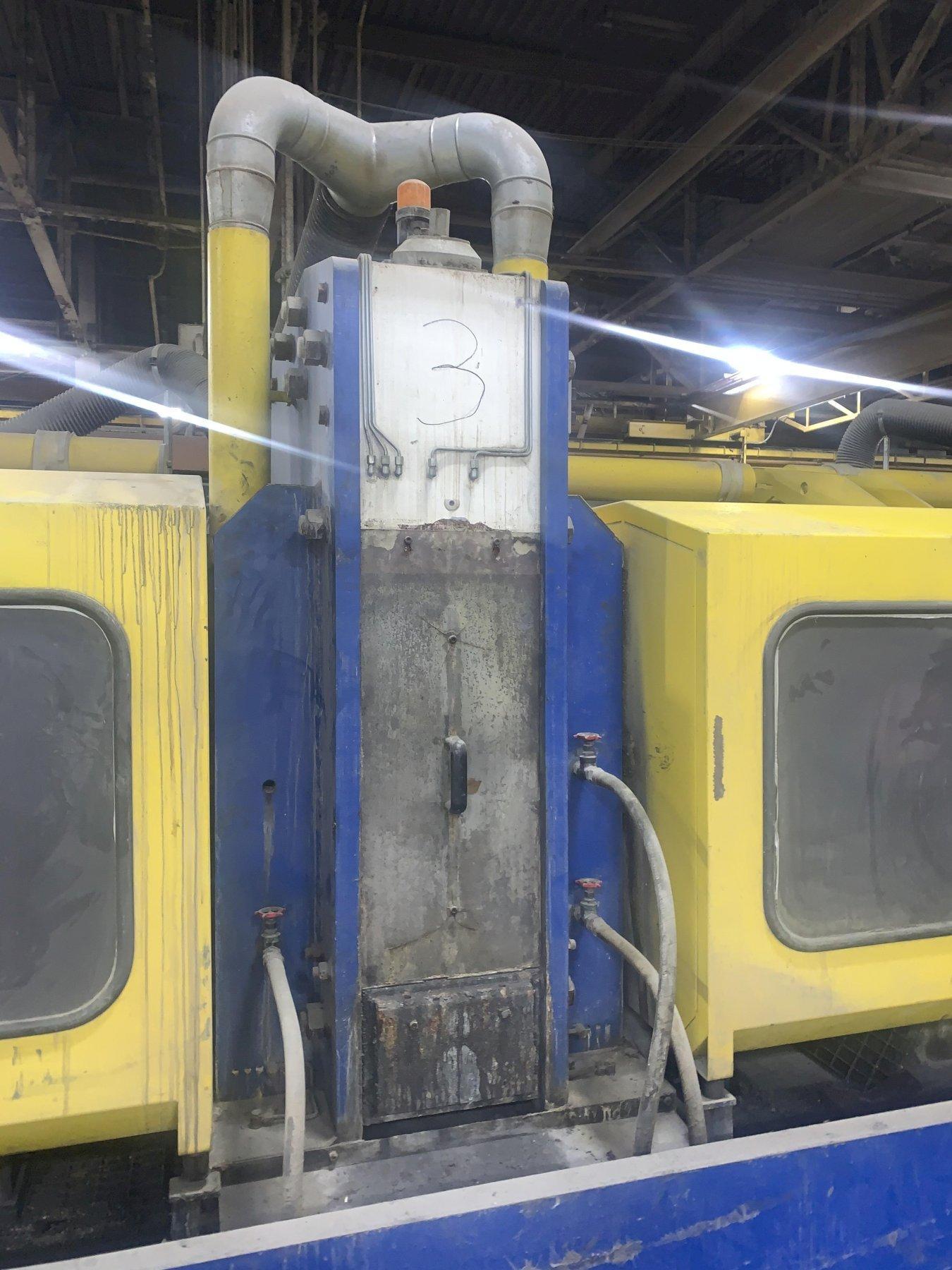

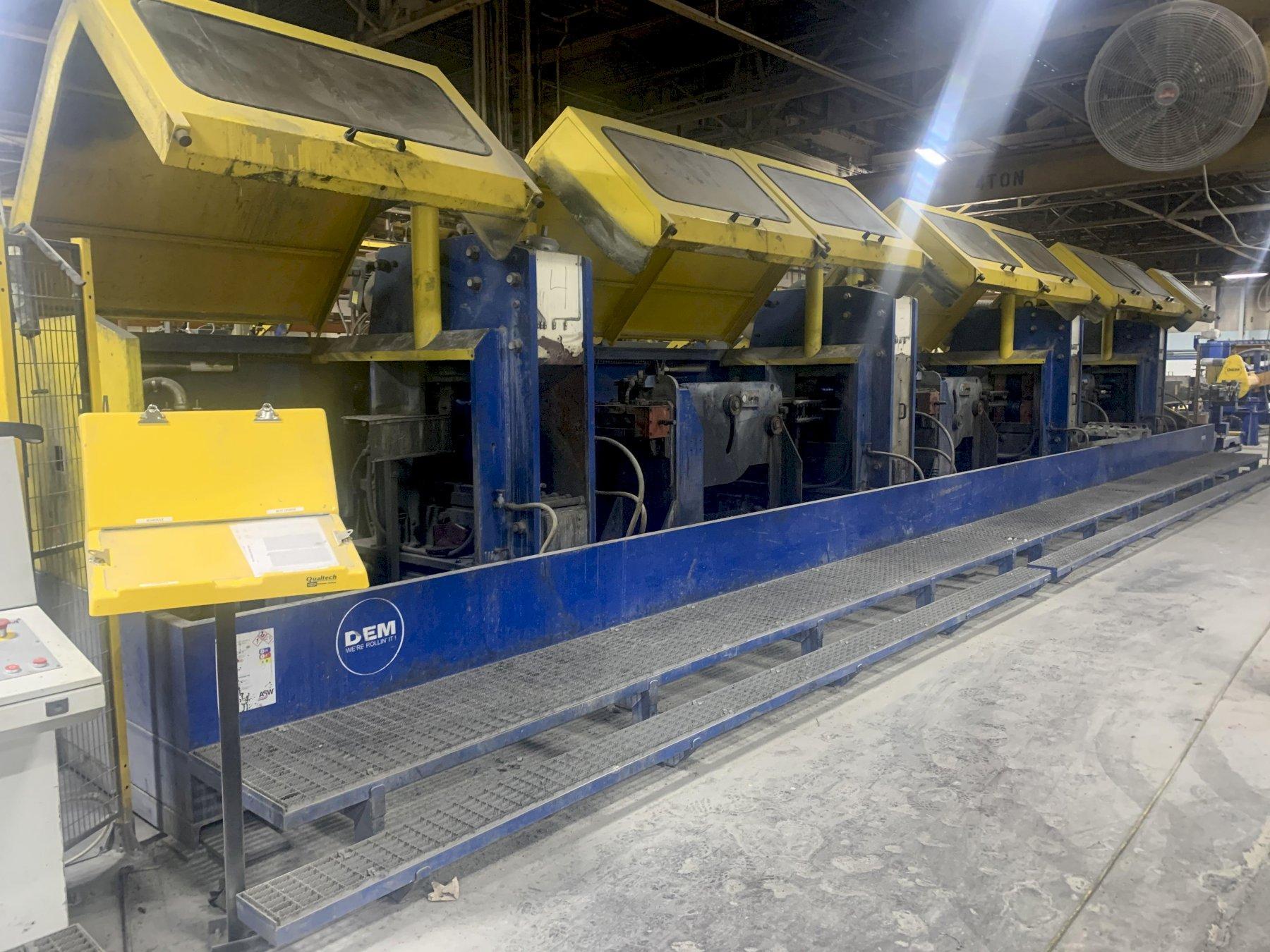

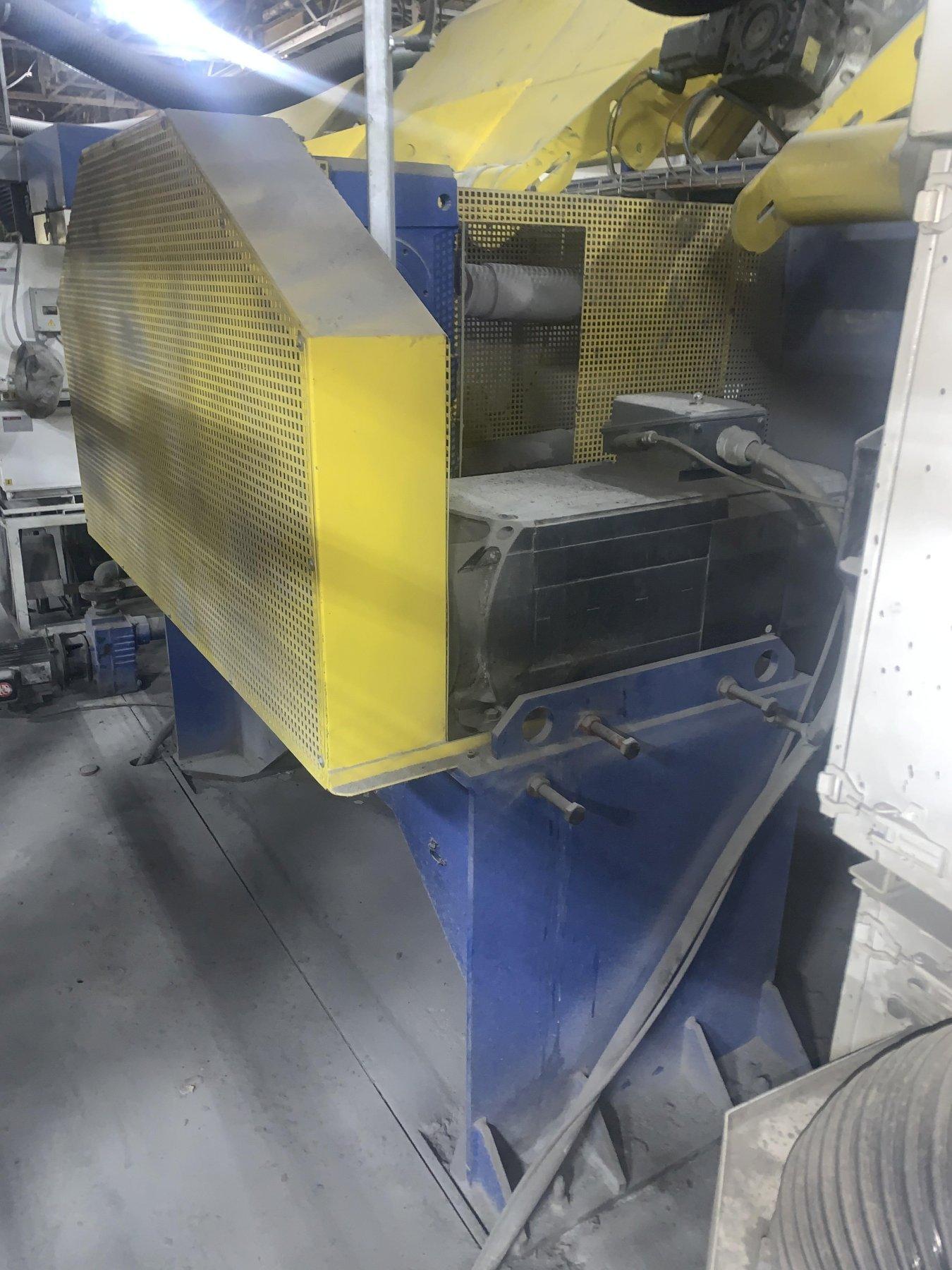

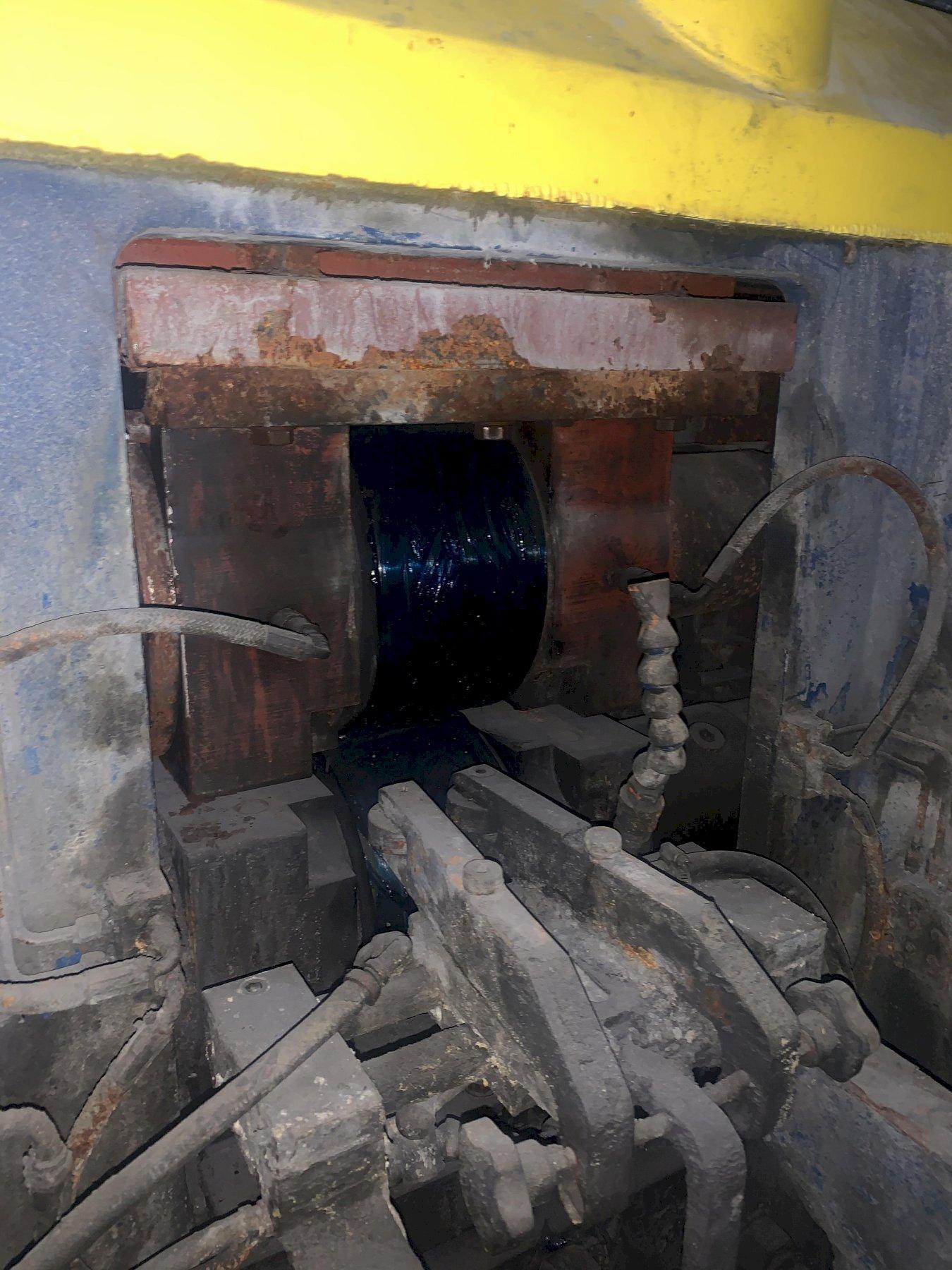

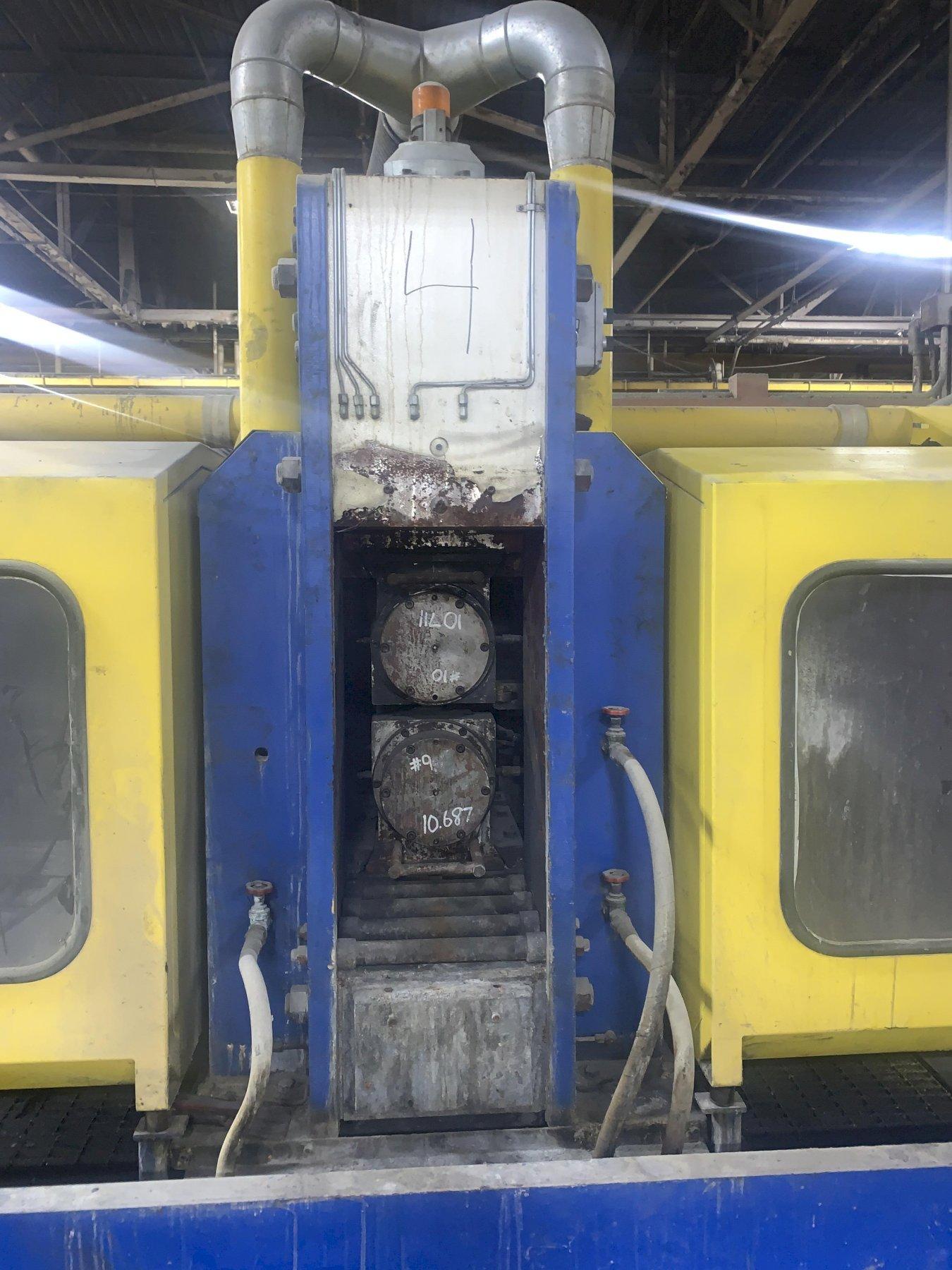

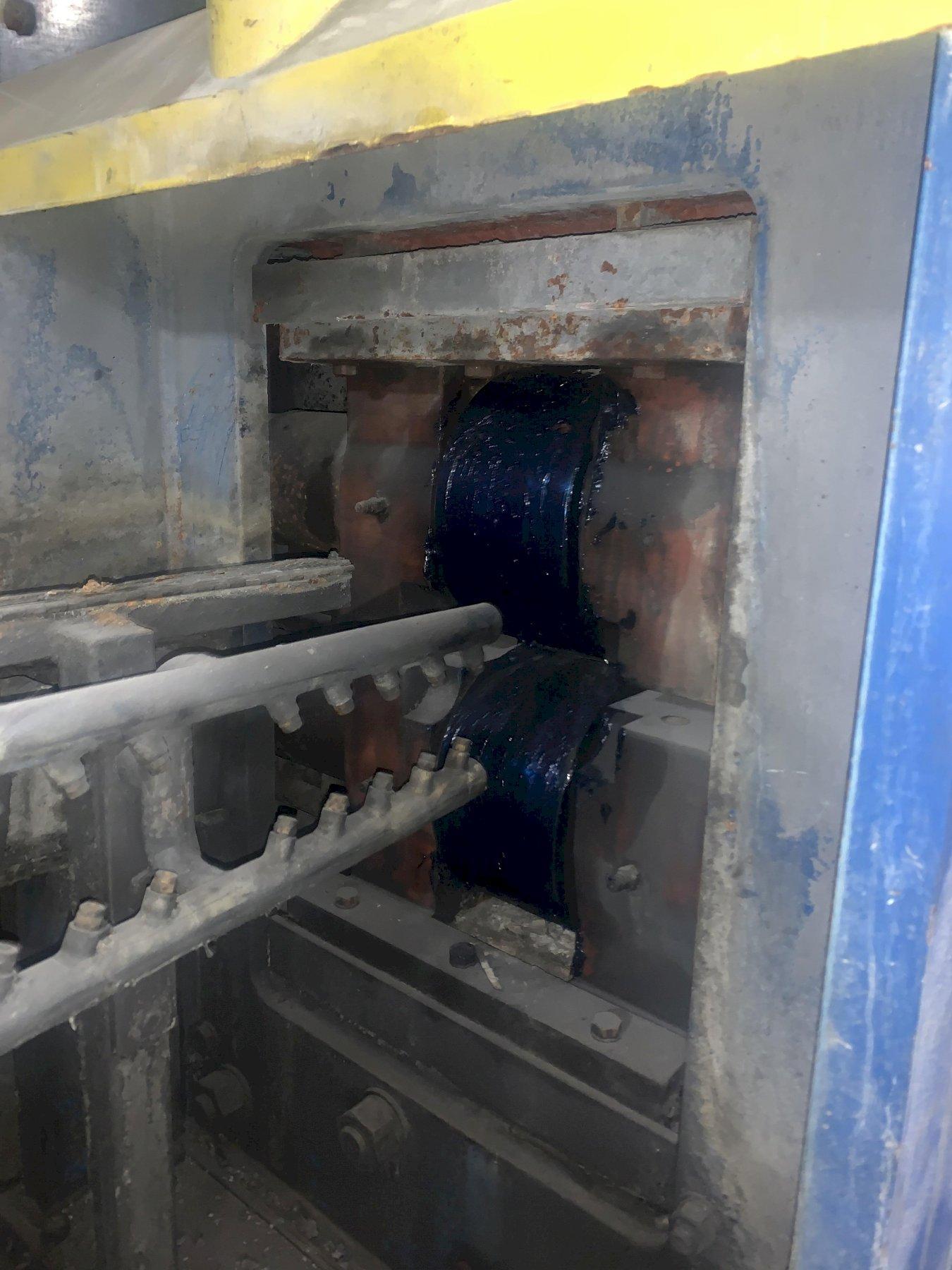

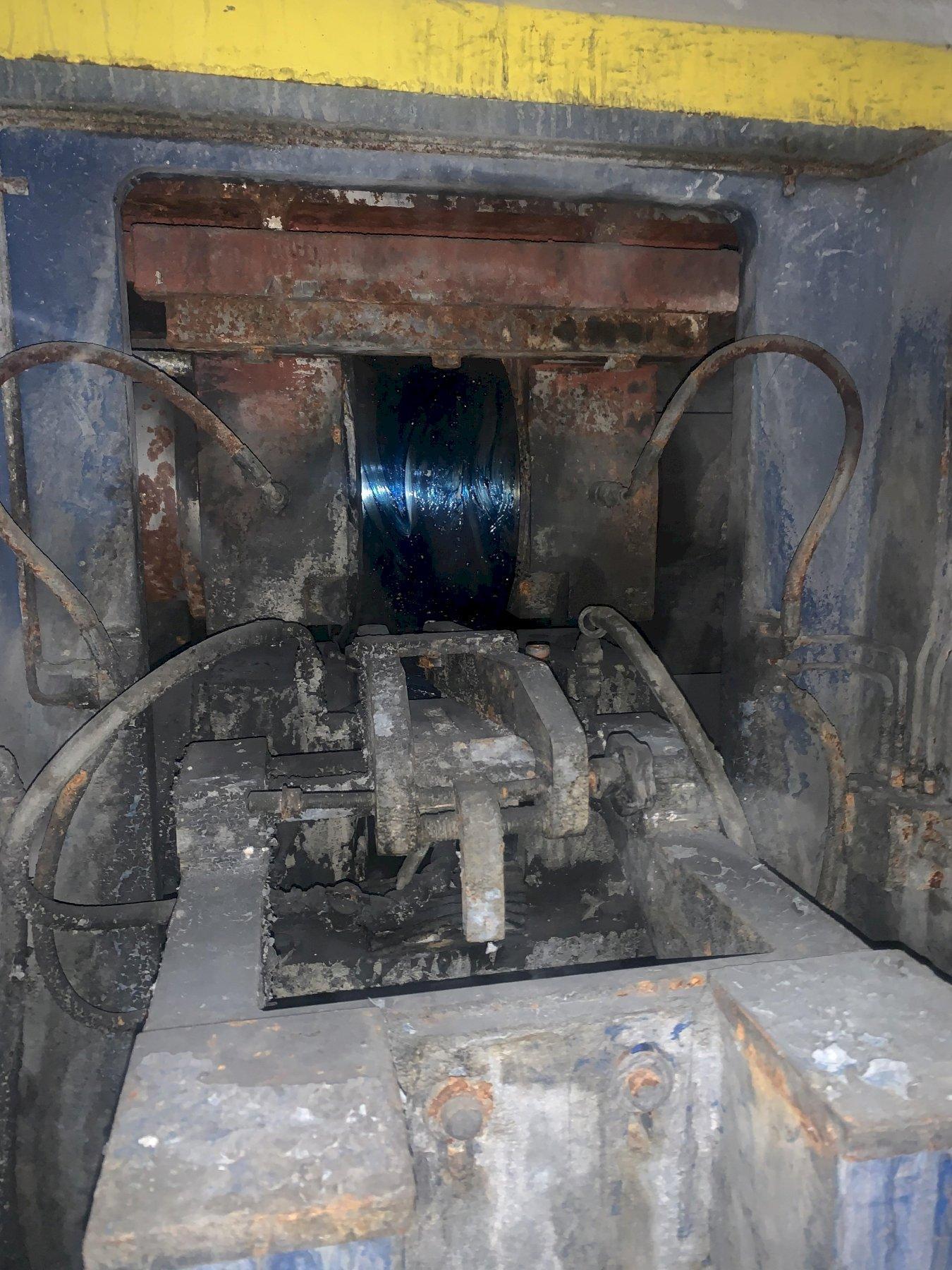

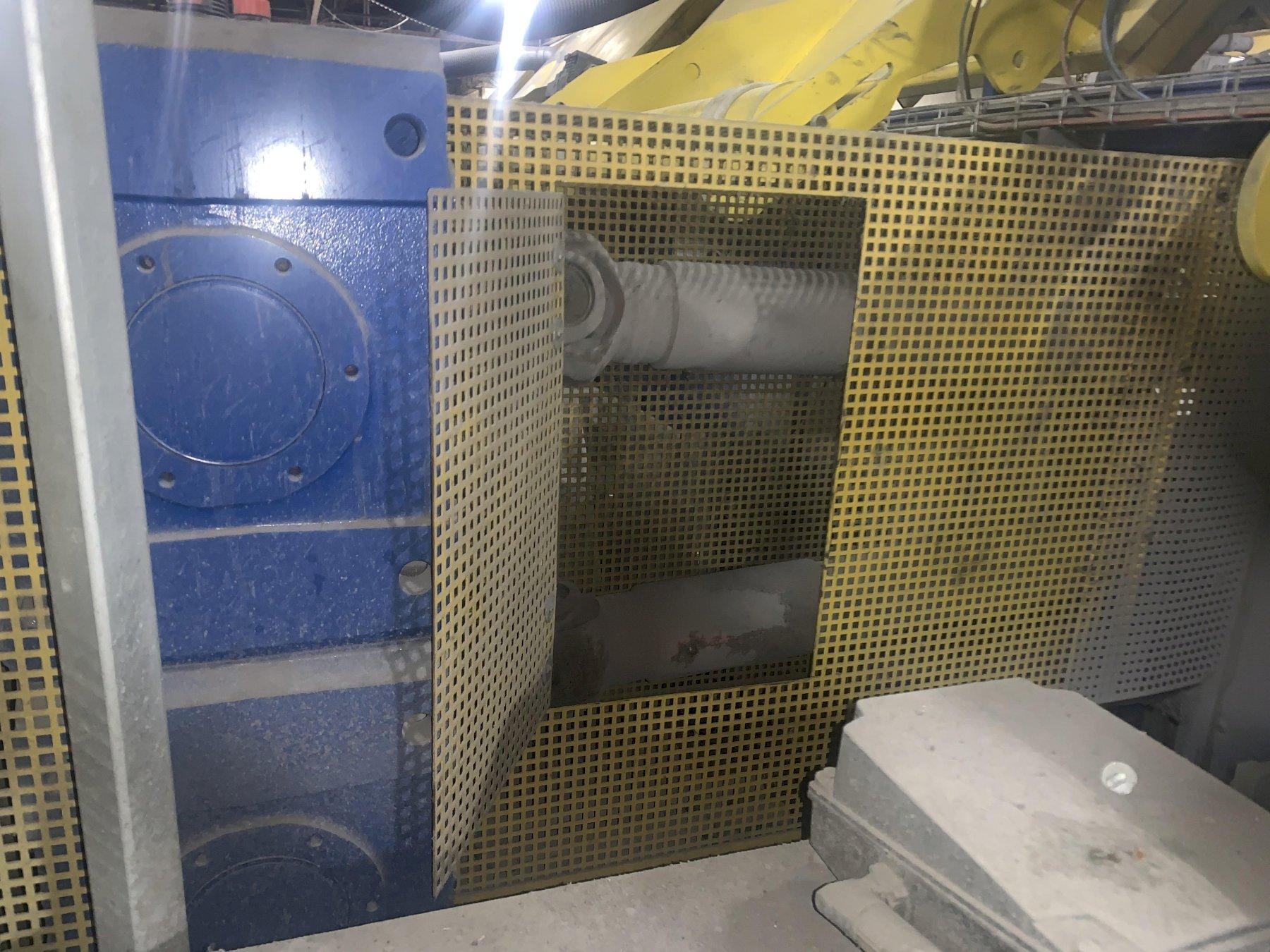

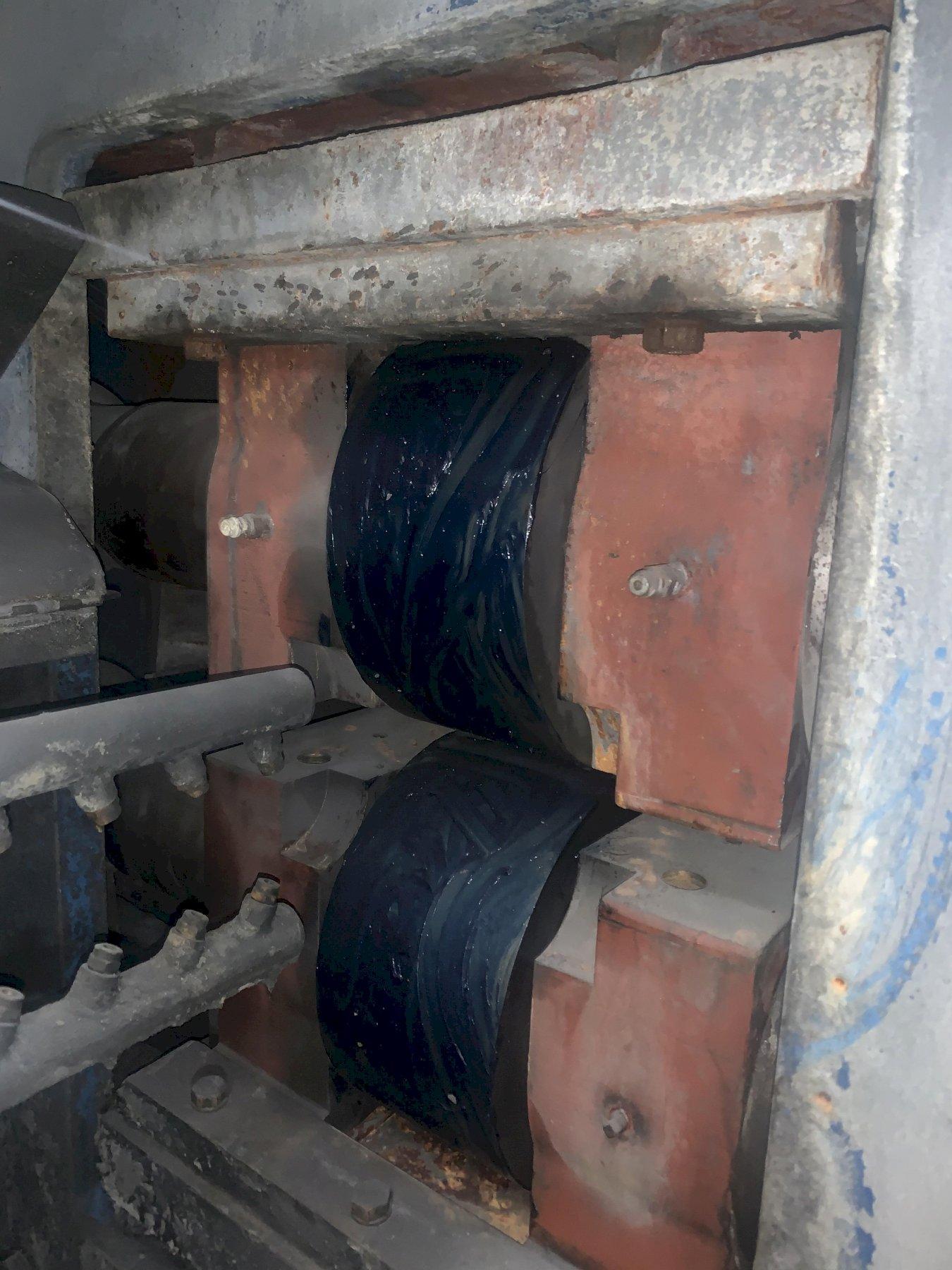

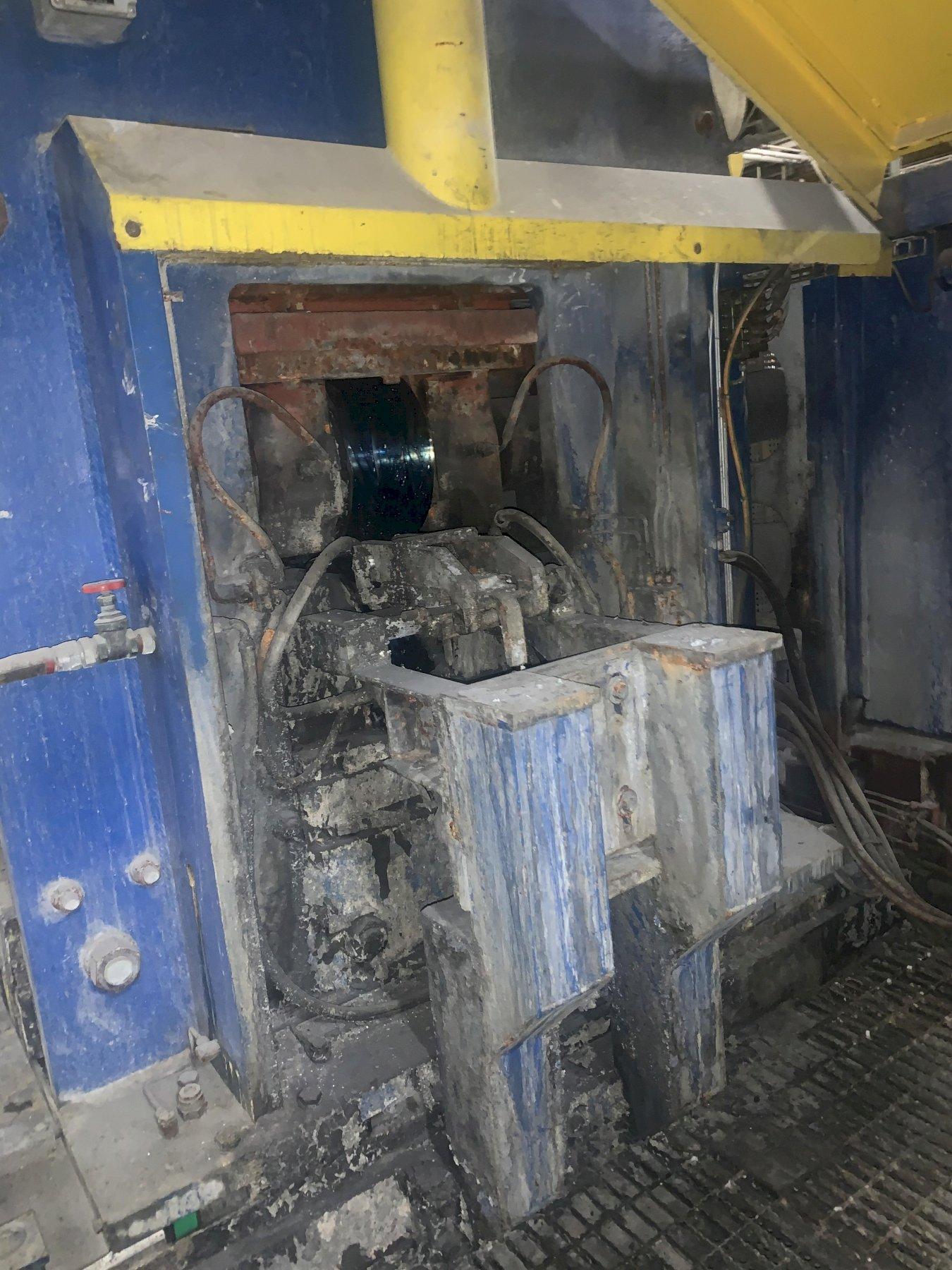

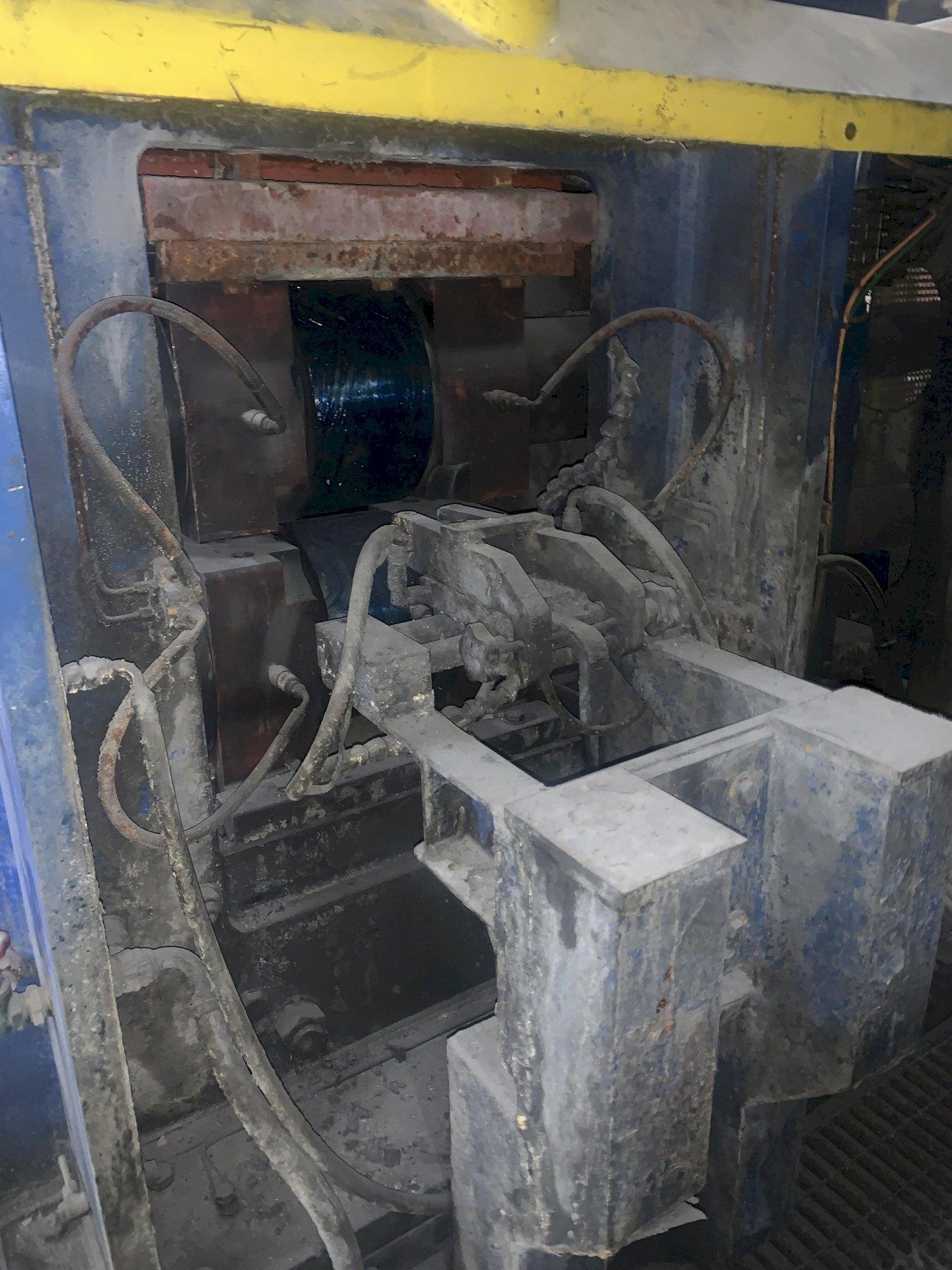

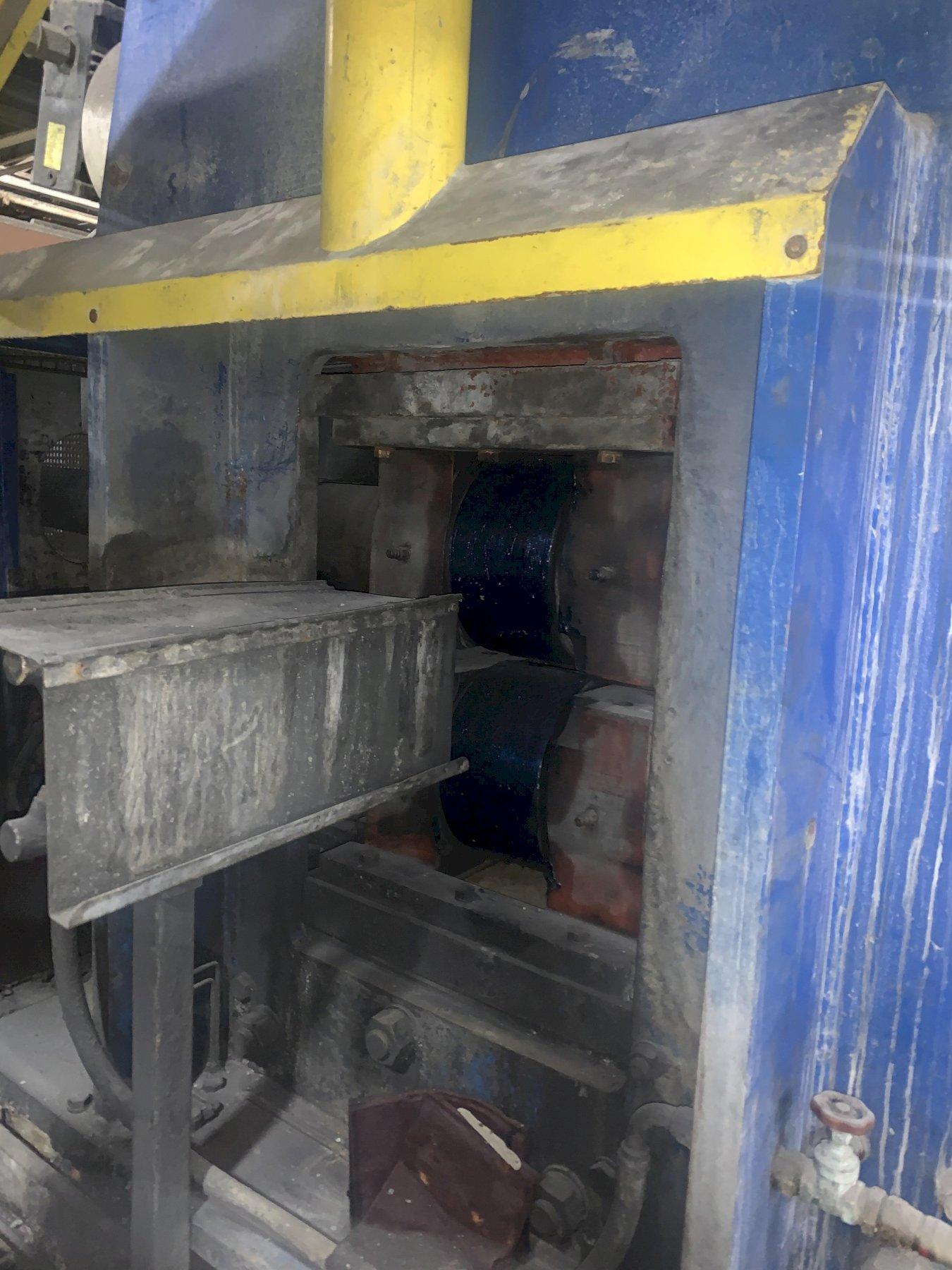

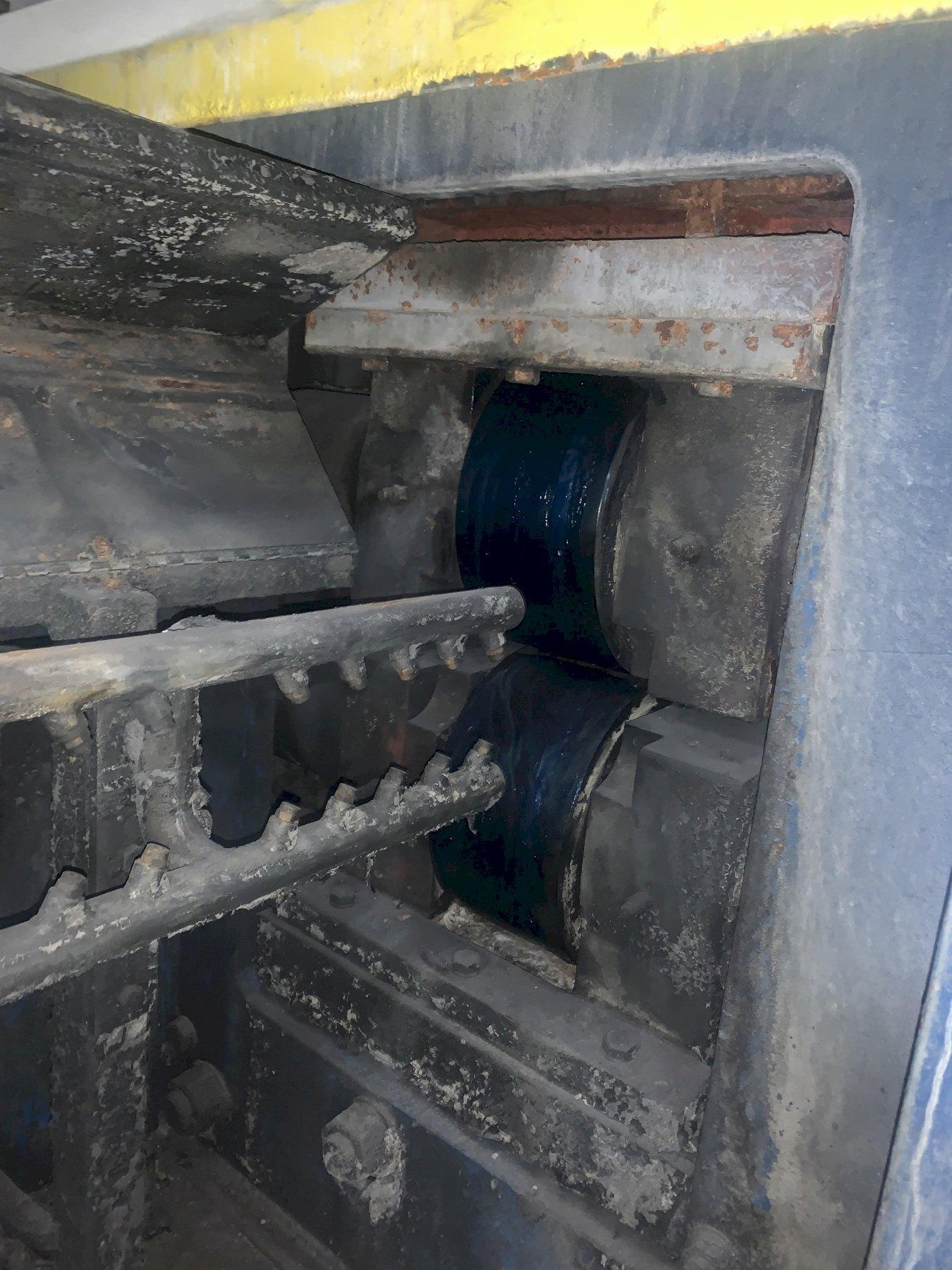

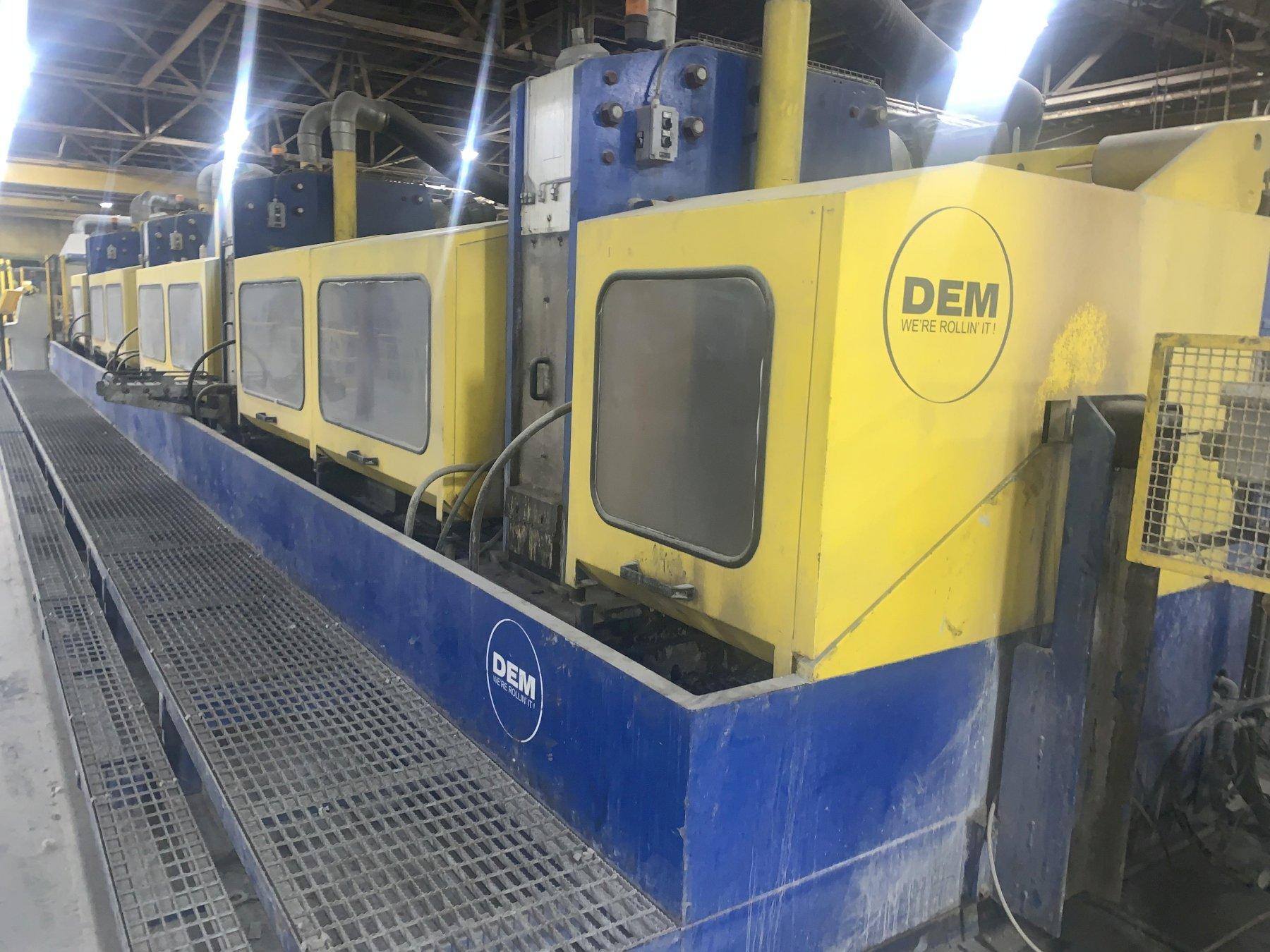

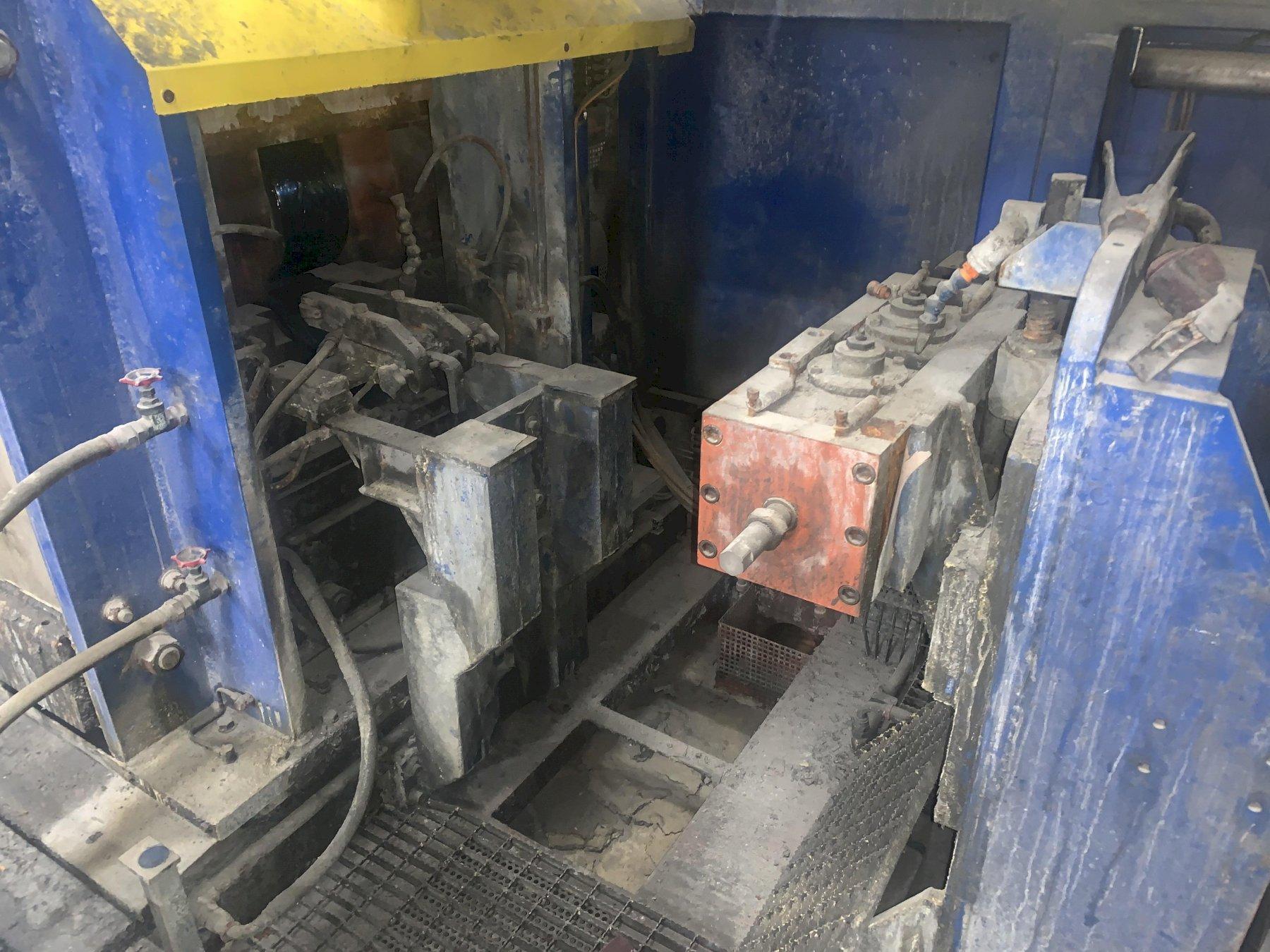

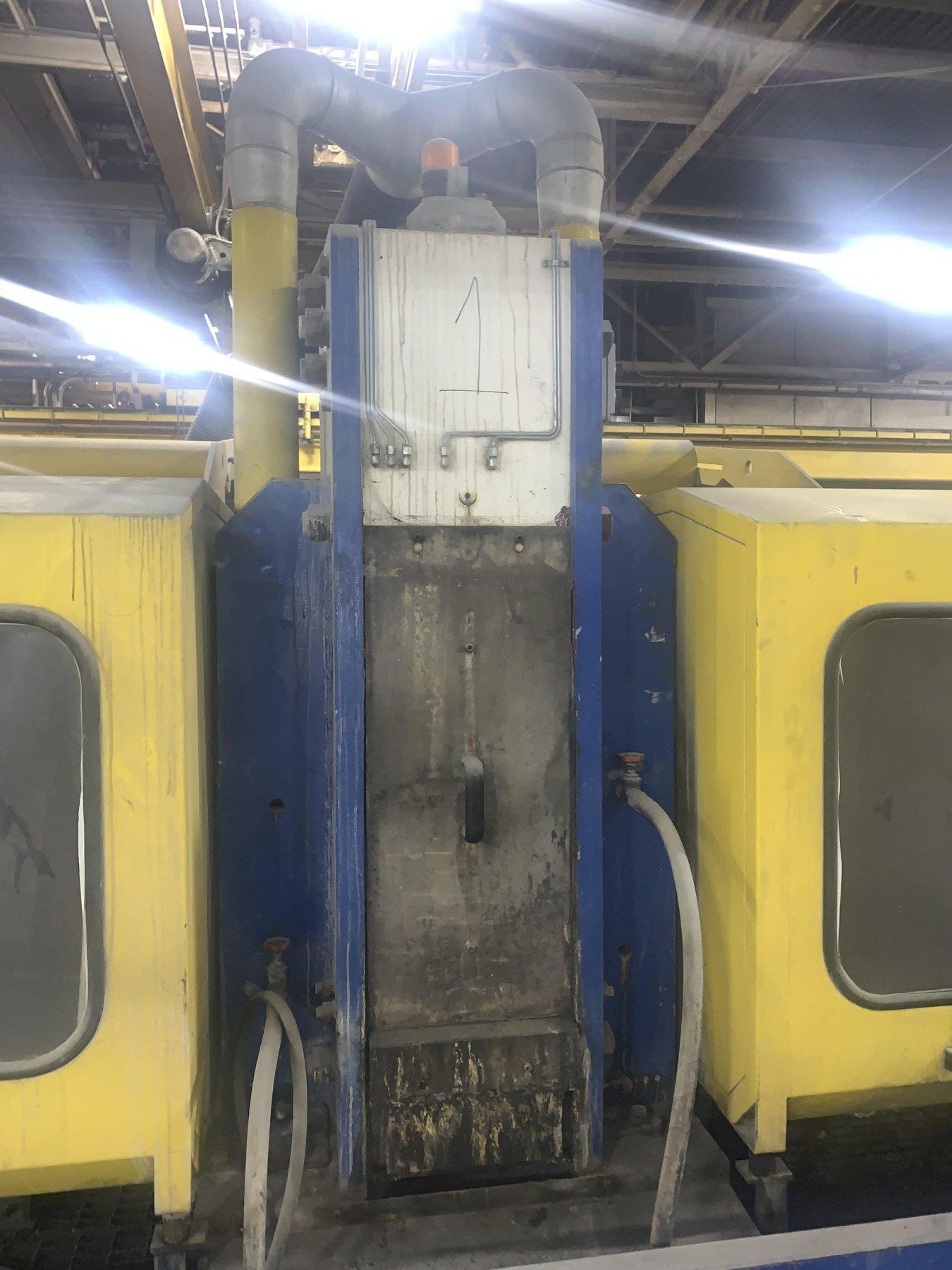

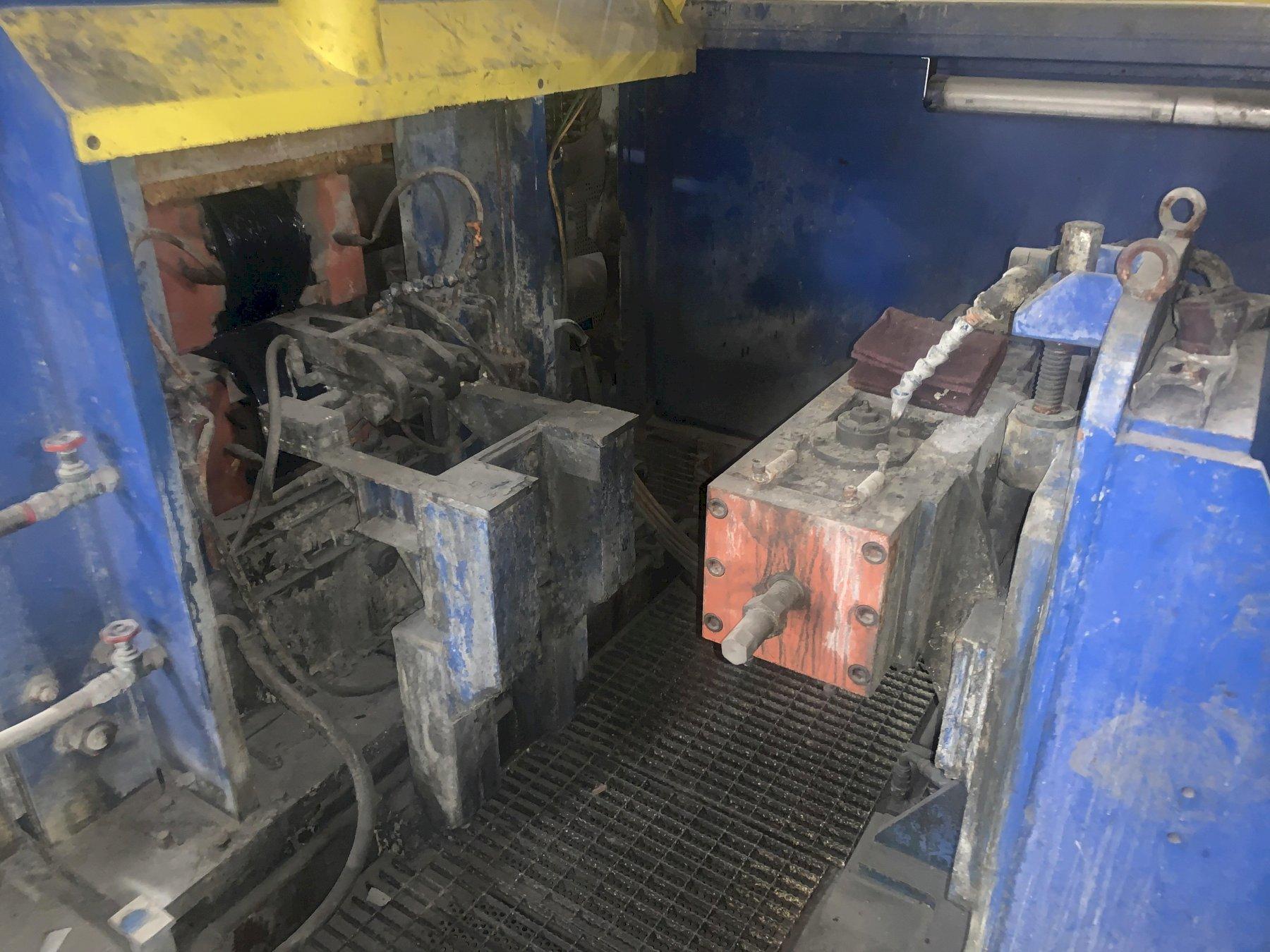

ROLL STANDS:
ROLL DIAMETER (#1) ............................. 12"
ROLL DIAMETR (#2-#3-#4) ........................ 10"

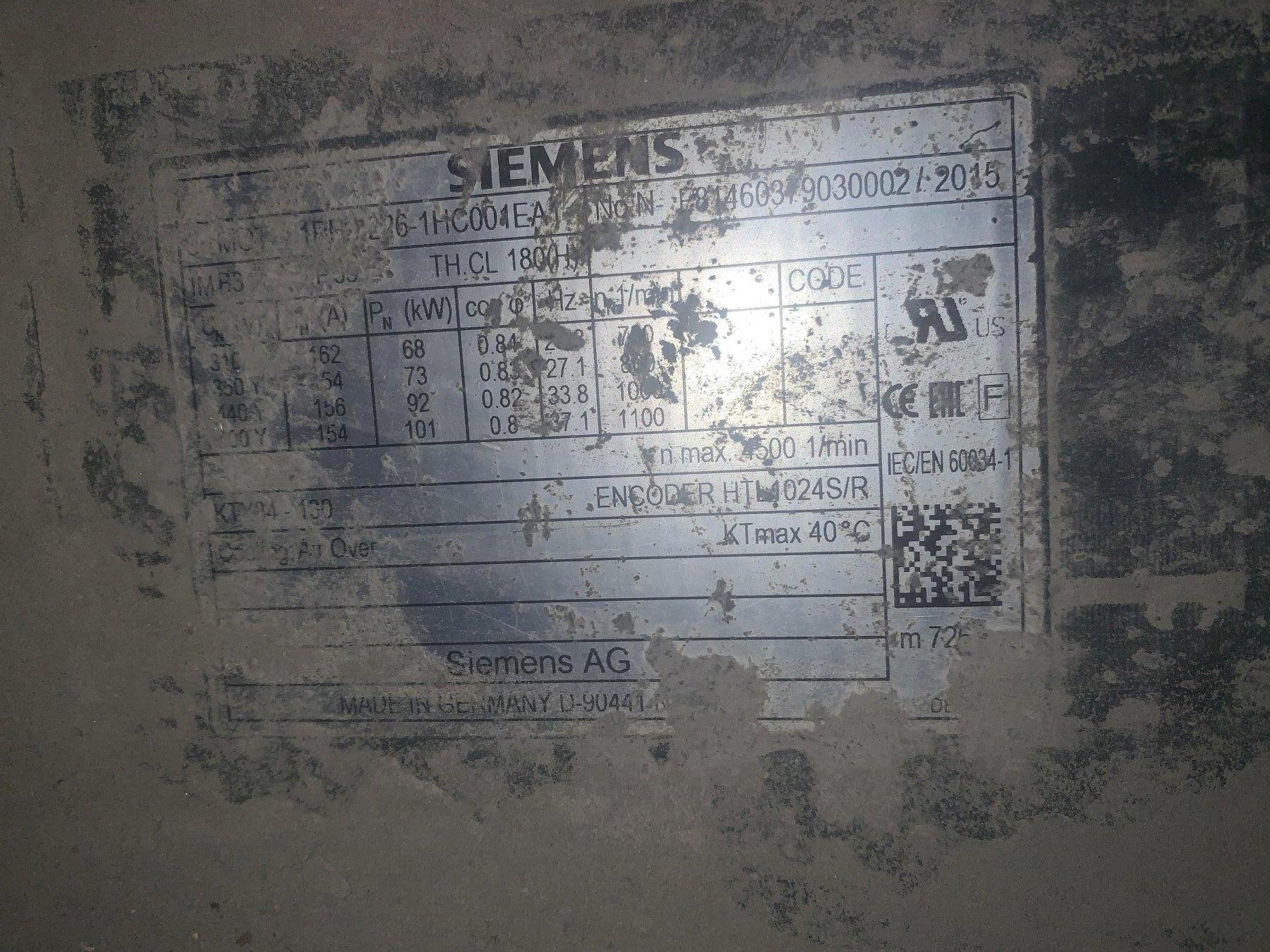

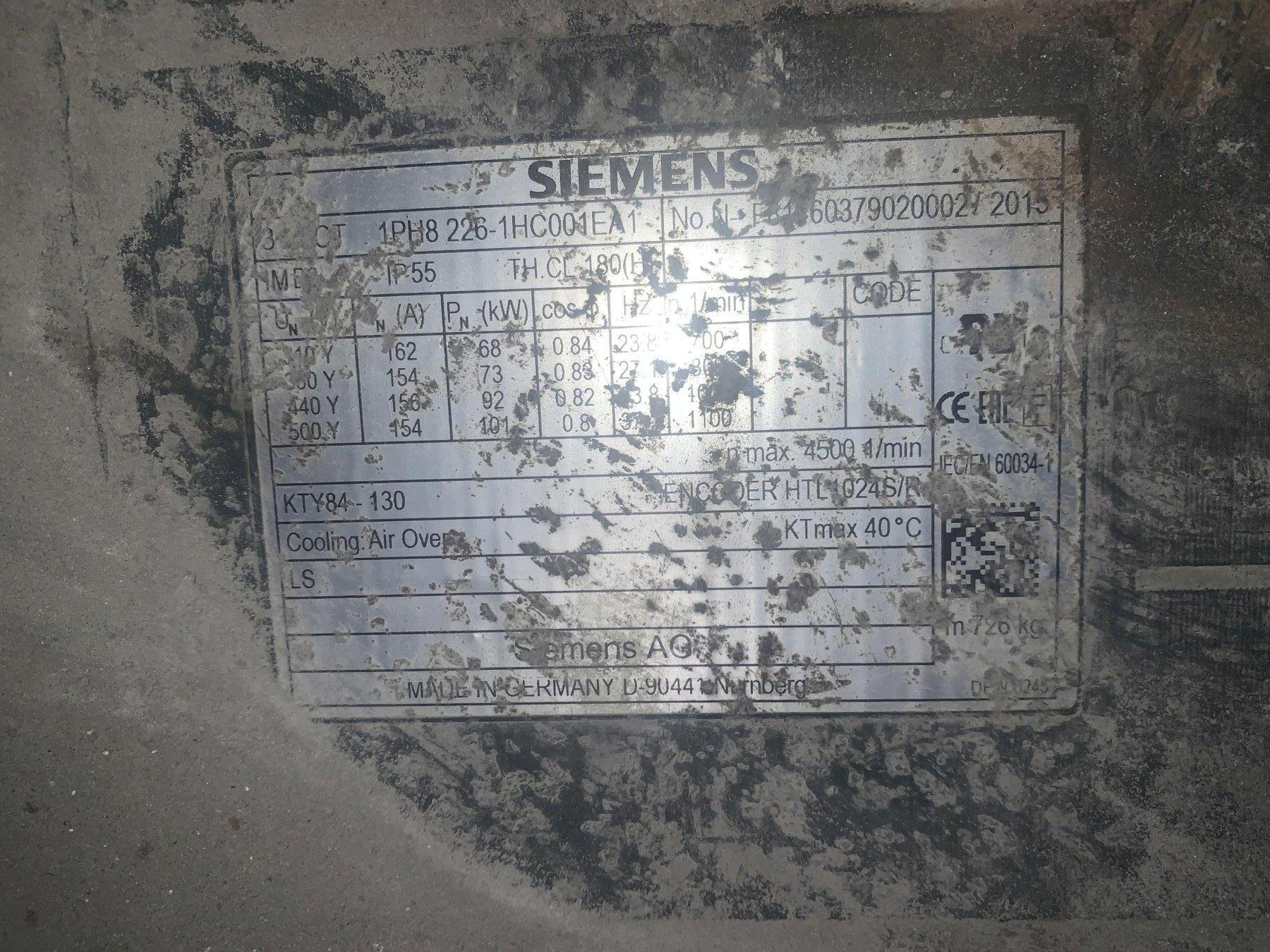

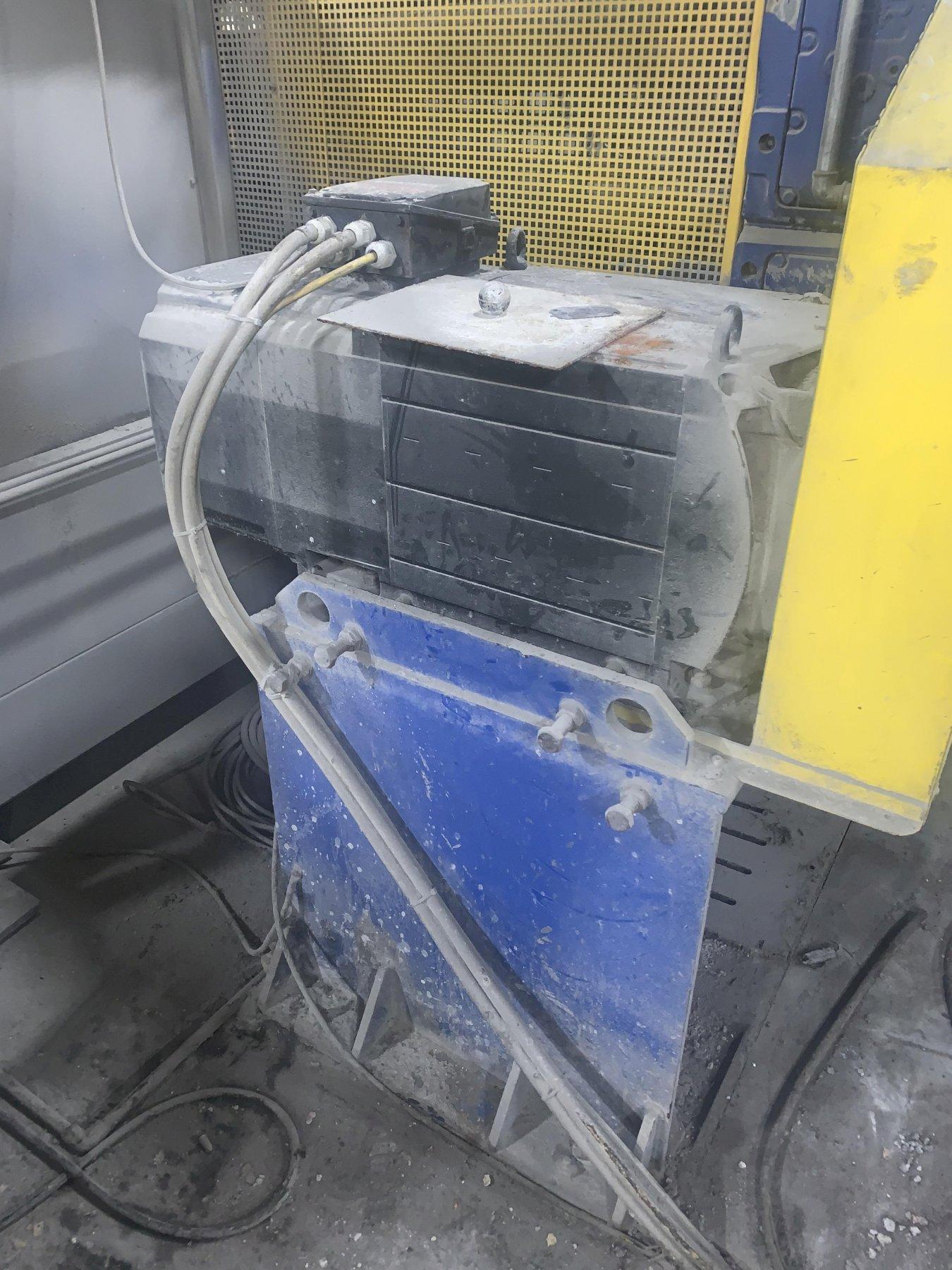

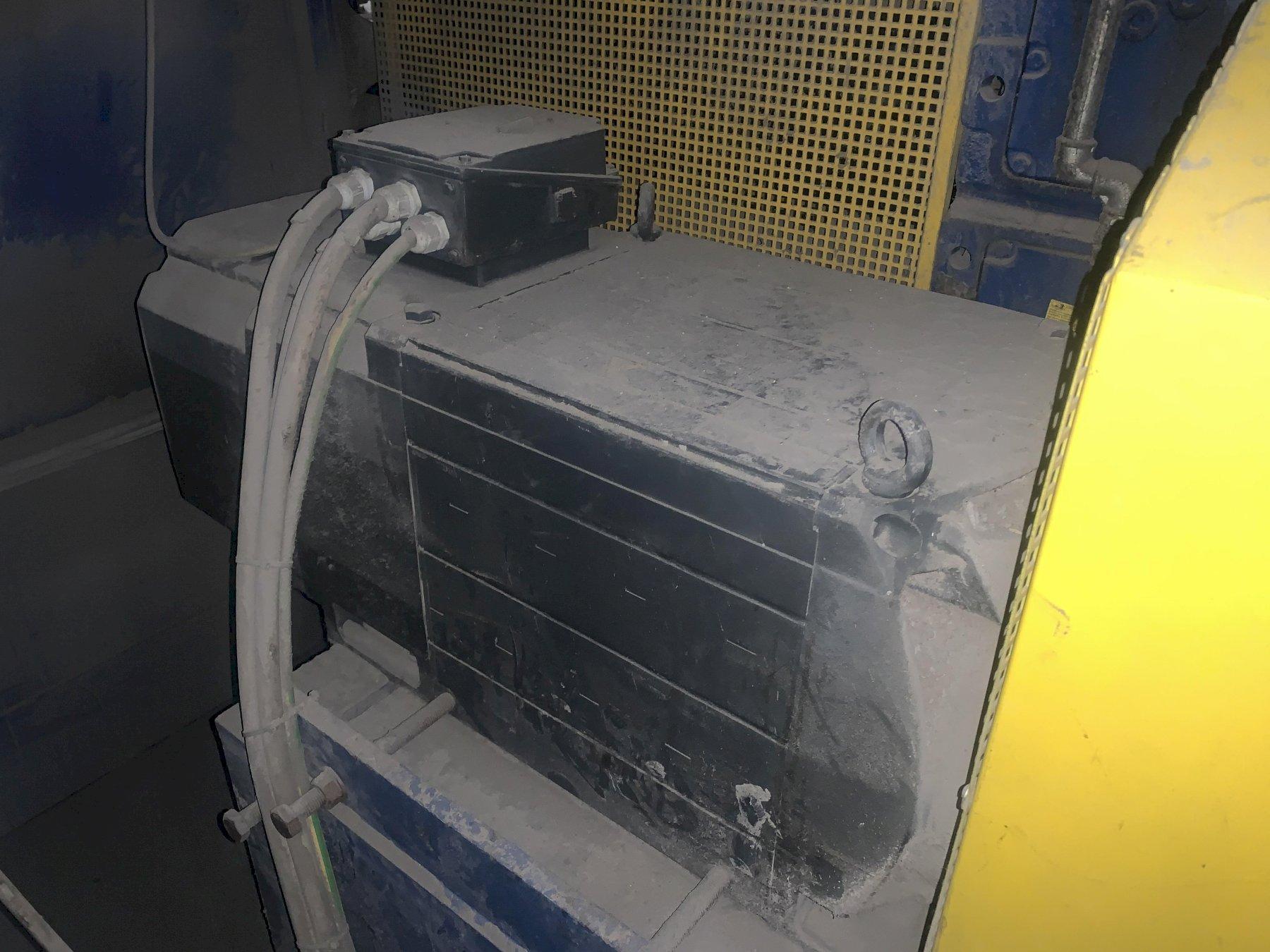

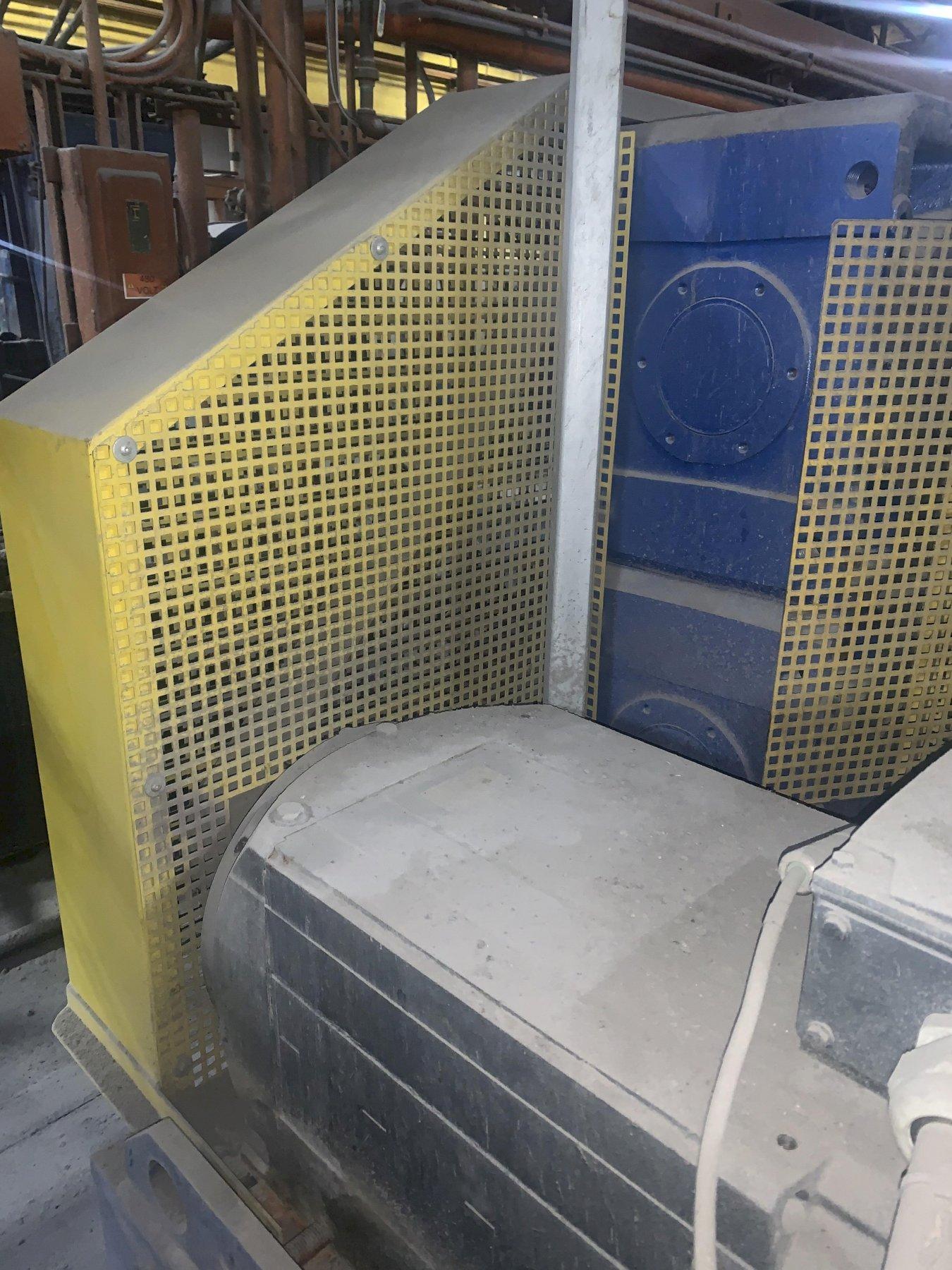

ROLL ROTATING MOTOR POWER (#1-#2) .............. 73 KW EACH
ROLL ROTATING MOTOR POWER (#3-#4) .............. 58 KW EACH
SPEED DANCER:
ROLL DIAMETER .................................. 5.9"
ROLL THICKNESS ................................. 2"
ARM MOVEMENT PNUEMATIC CYLINDER ................ 02.5 STROKE 7.9"

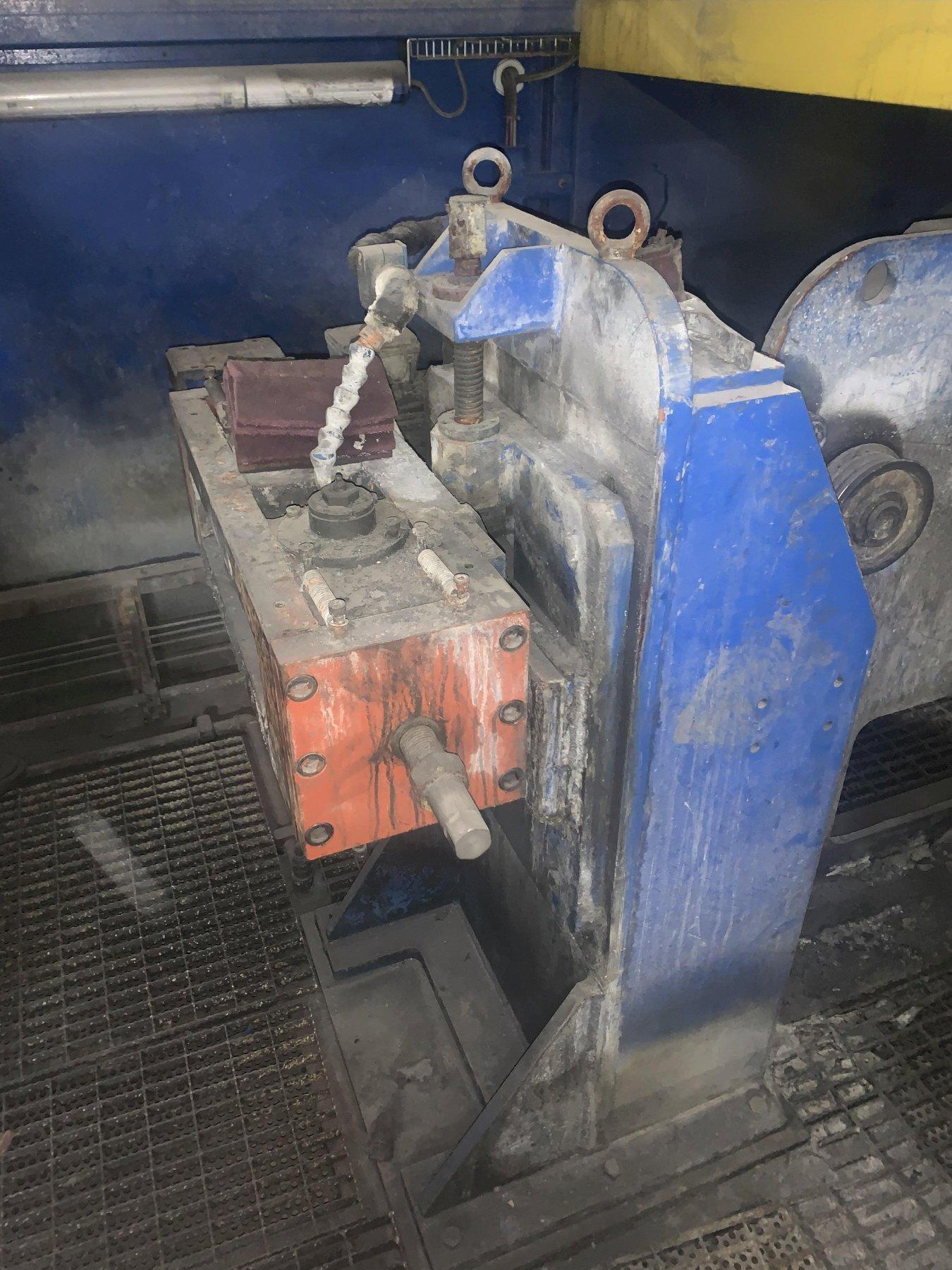

EDGER PROFILE ROLLING UNIT:
ROLLING LOAD CAPACITY .......................... 80KN
ROLL DIAMETER .................................. 7.1"
ROLL THICKNESS ................................. 2.4"

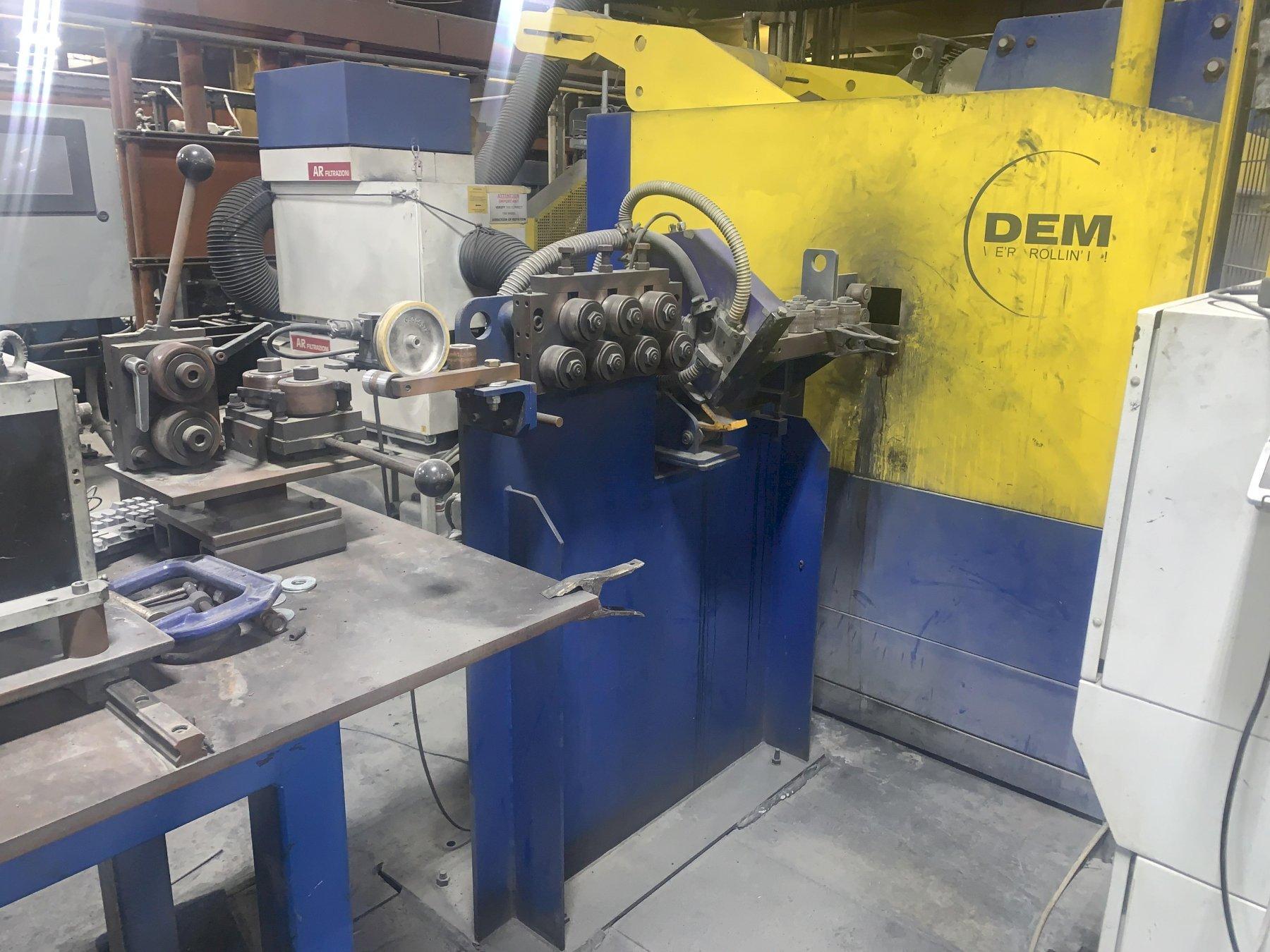

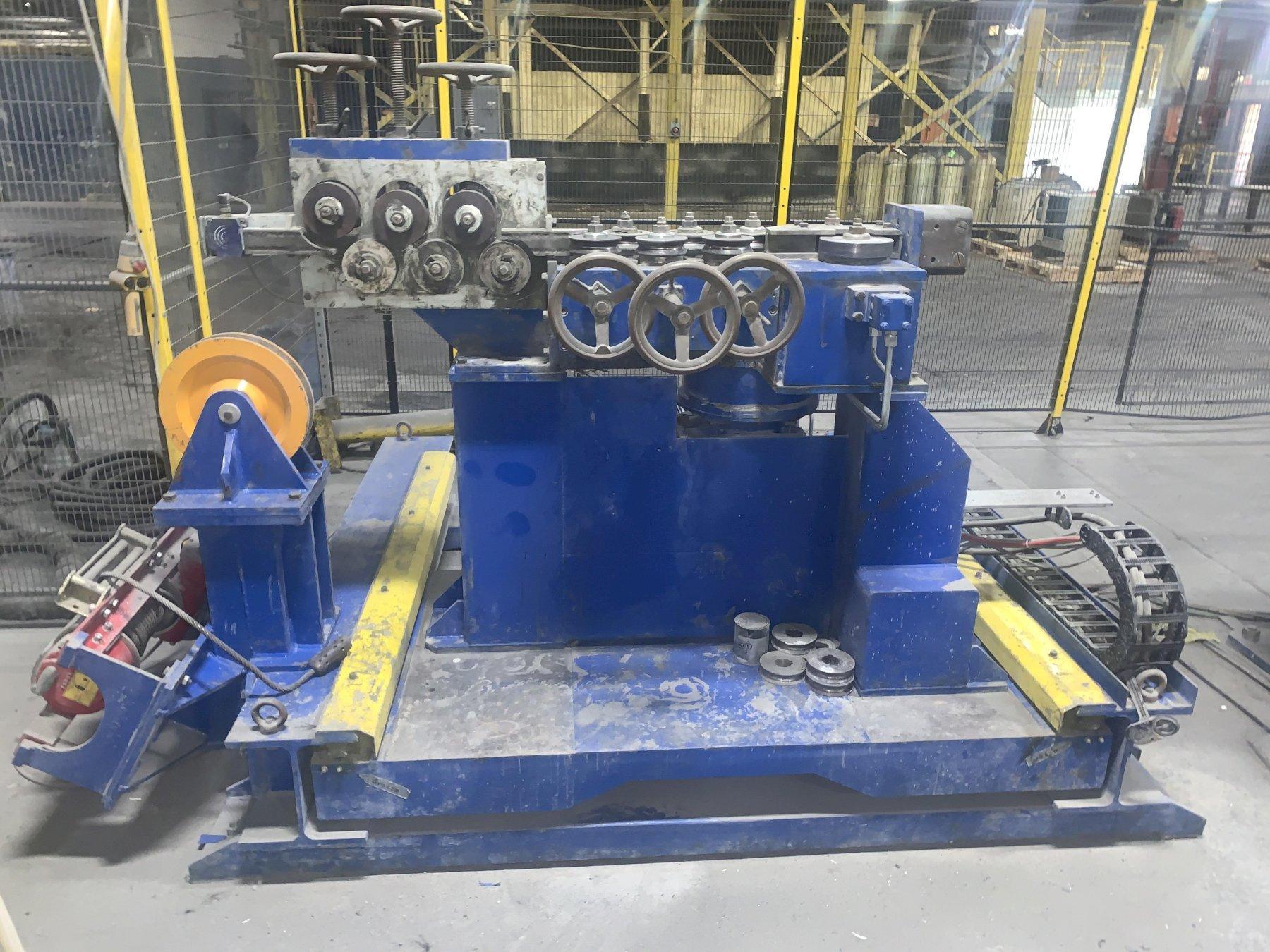

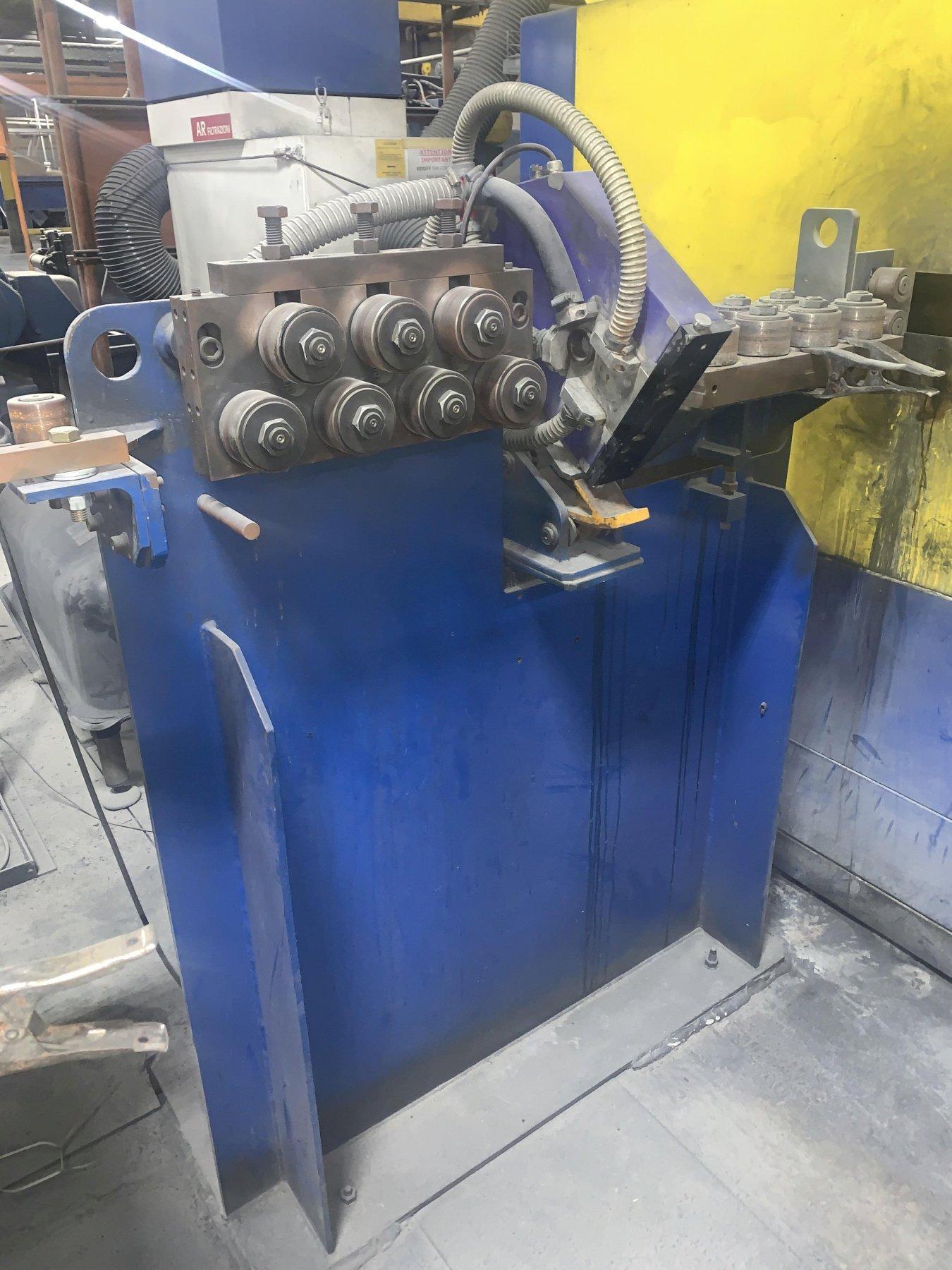

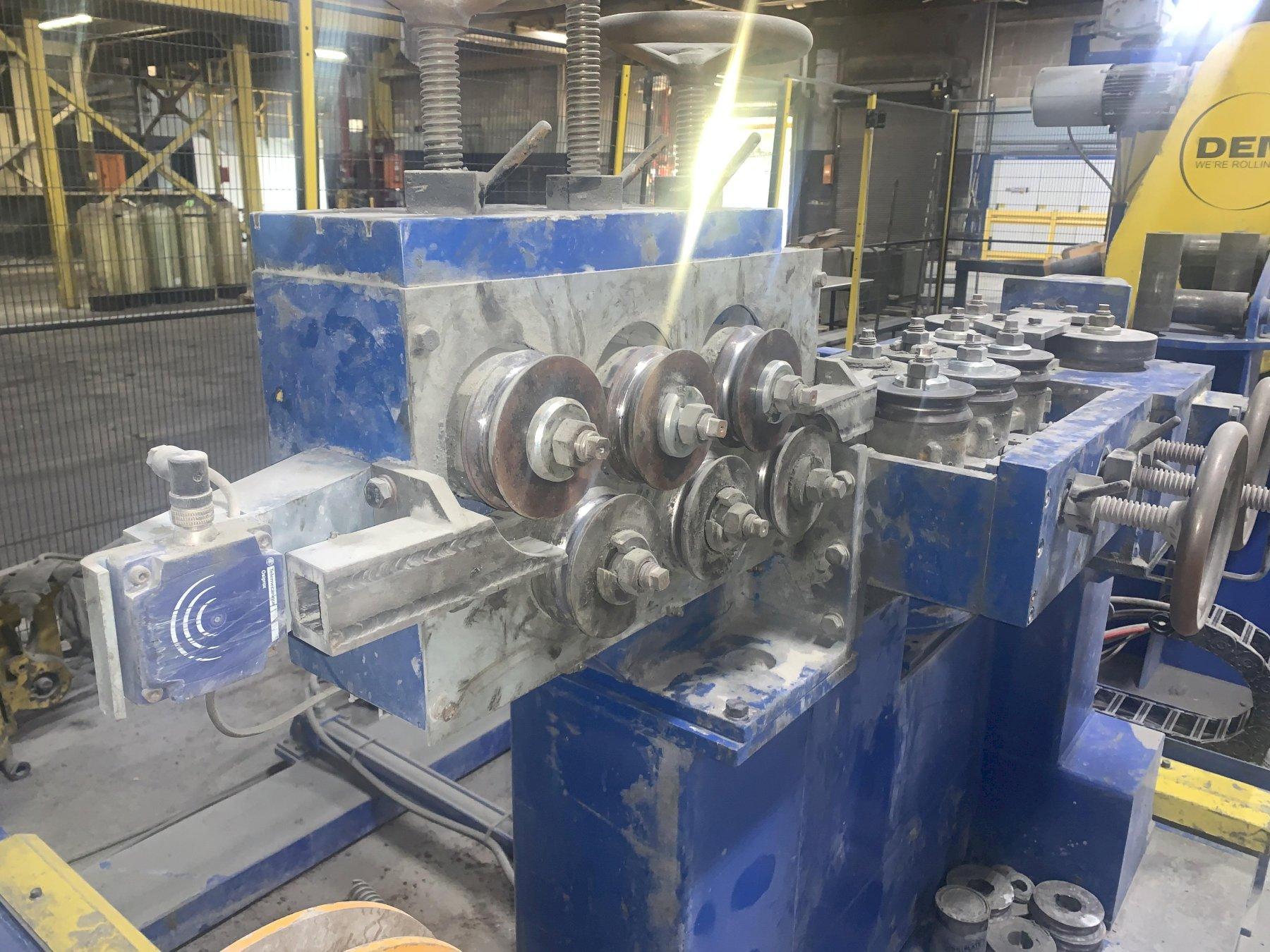

WIRE STRAIGHTENER:
ROLLS .......................................... 7 PER SECTION
ROLL DIAMETER .................................. 3.1"
ROLL THICKNESS ................................. 1.8"
LASER DIMENSIONAL UUNIT FOR ON-LINE CONTROL:
MEASUREMENT RANGE .............................. 34X34 MM
MIN SIZE MEASURED .............................. 0.15 MM
SCAN FREQUENCY ................................. 2X1200HZ=1200(X)X1200(Y)SEC
OSCILLATION PERIOD ............................. -5°+5°, 1-12 SEC (HOWEVER PRESETTABLE)
RUST PREVENTER APPLICATOR:
TANK CAPACITY .................................. LT
MOTOR PUMP POWER ............................... 0.18KW
NOMINAL FLOW RATE .............................. 350 CM3/MIN

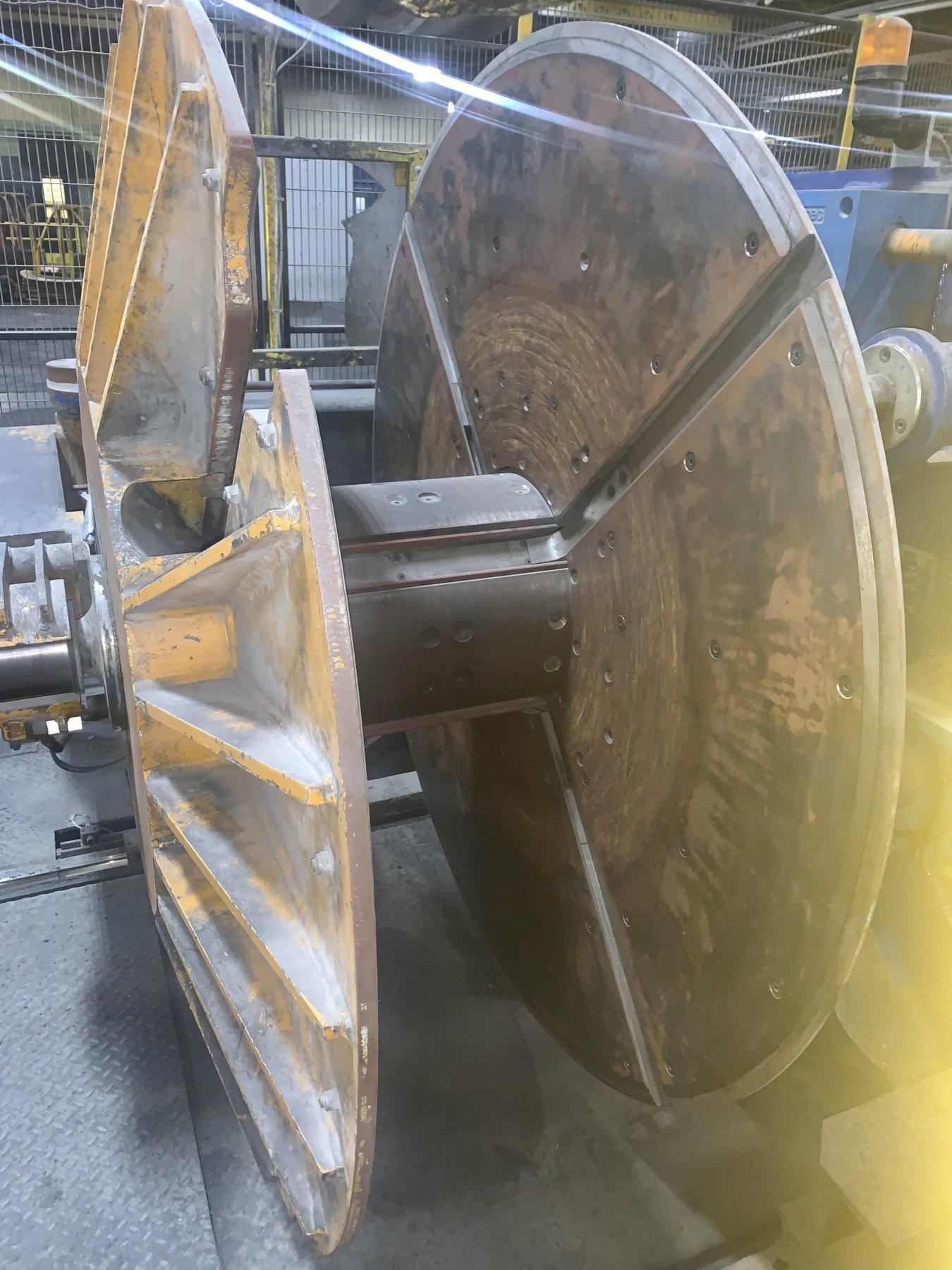

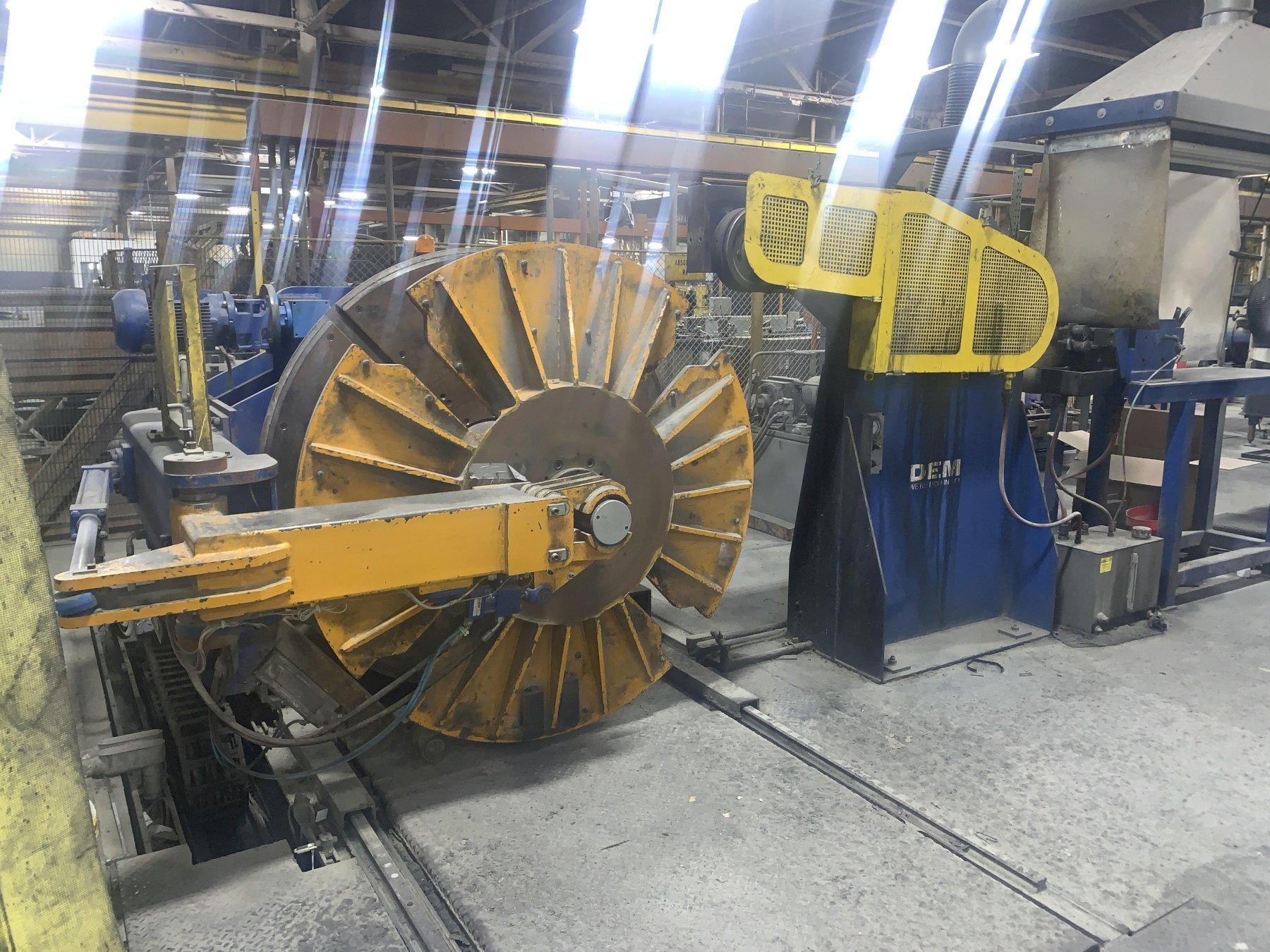

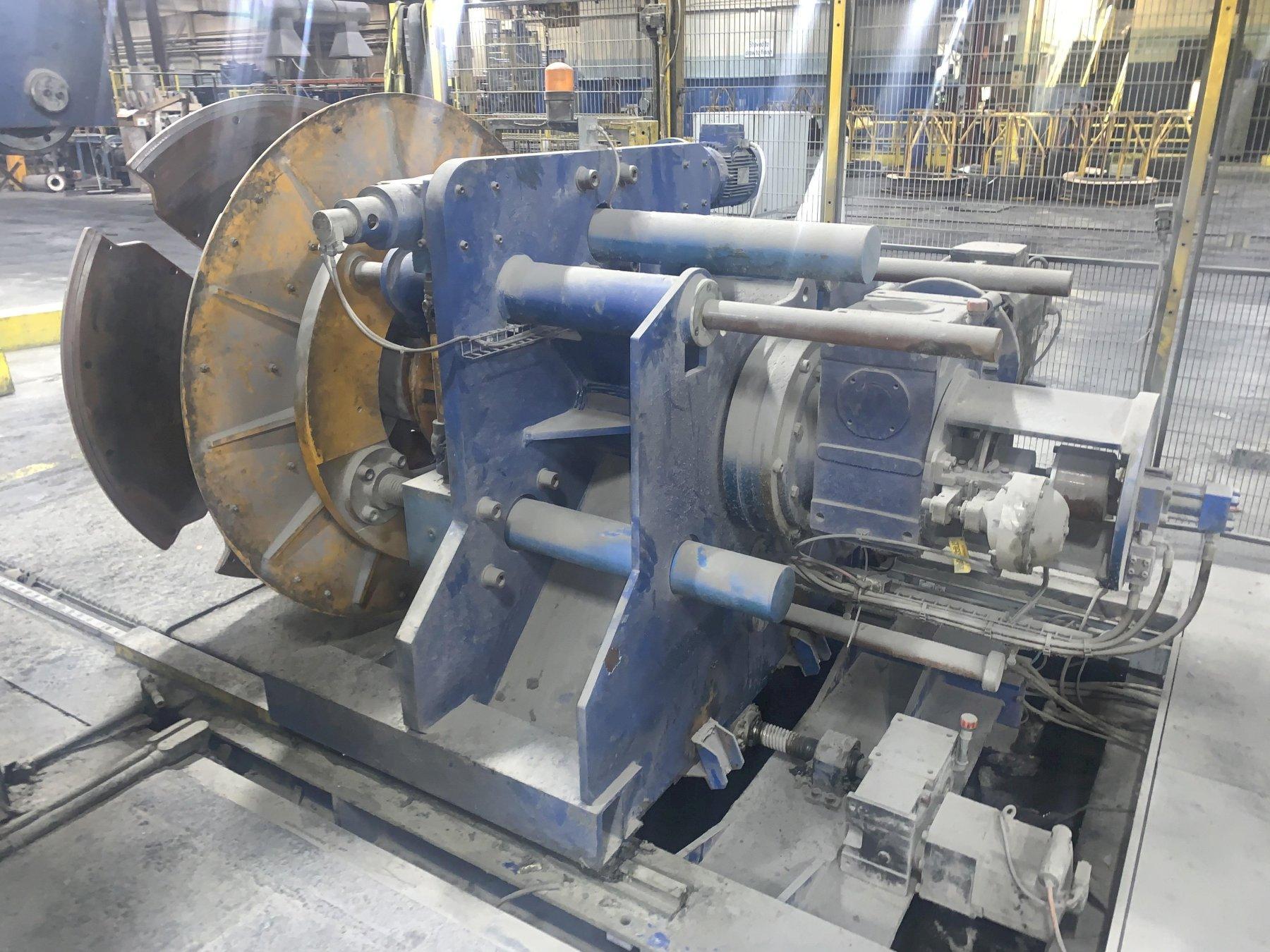

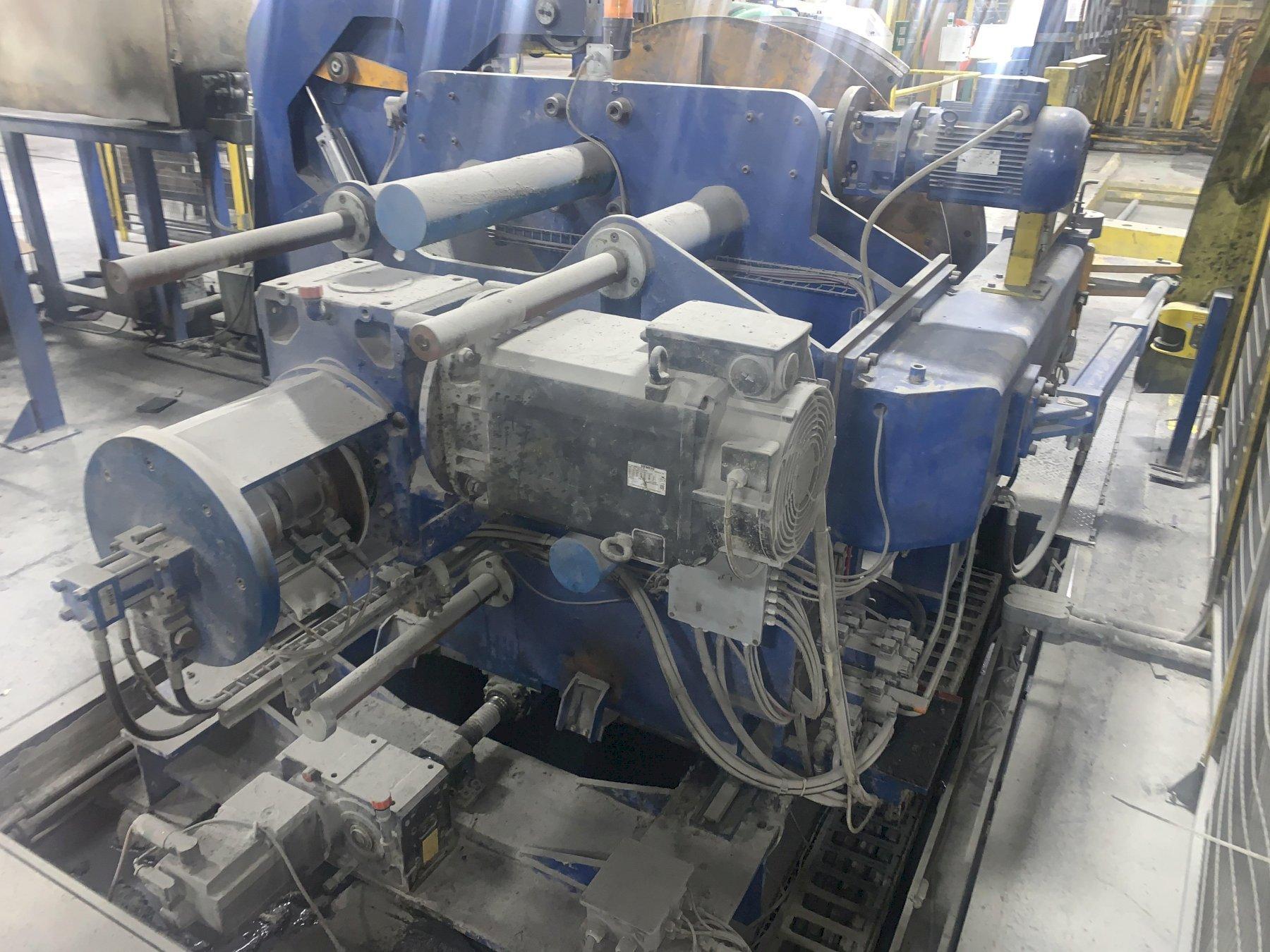

HORIZONTAL SPOOLER:
COIL INNER DIAMETER ............................ 16/20/24/25.5"
COIL SIDE O.D. ................................. 60"
COIL MAX WEIGHT ................................ 6614 LBS
SPOOLER ROTATING MOTOR POWER ................... 34 KW
SIDEWAY SPOOLER MOTOR POWER .................... 5.5 KW
MACHINE IN RUNNING CONDITION
