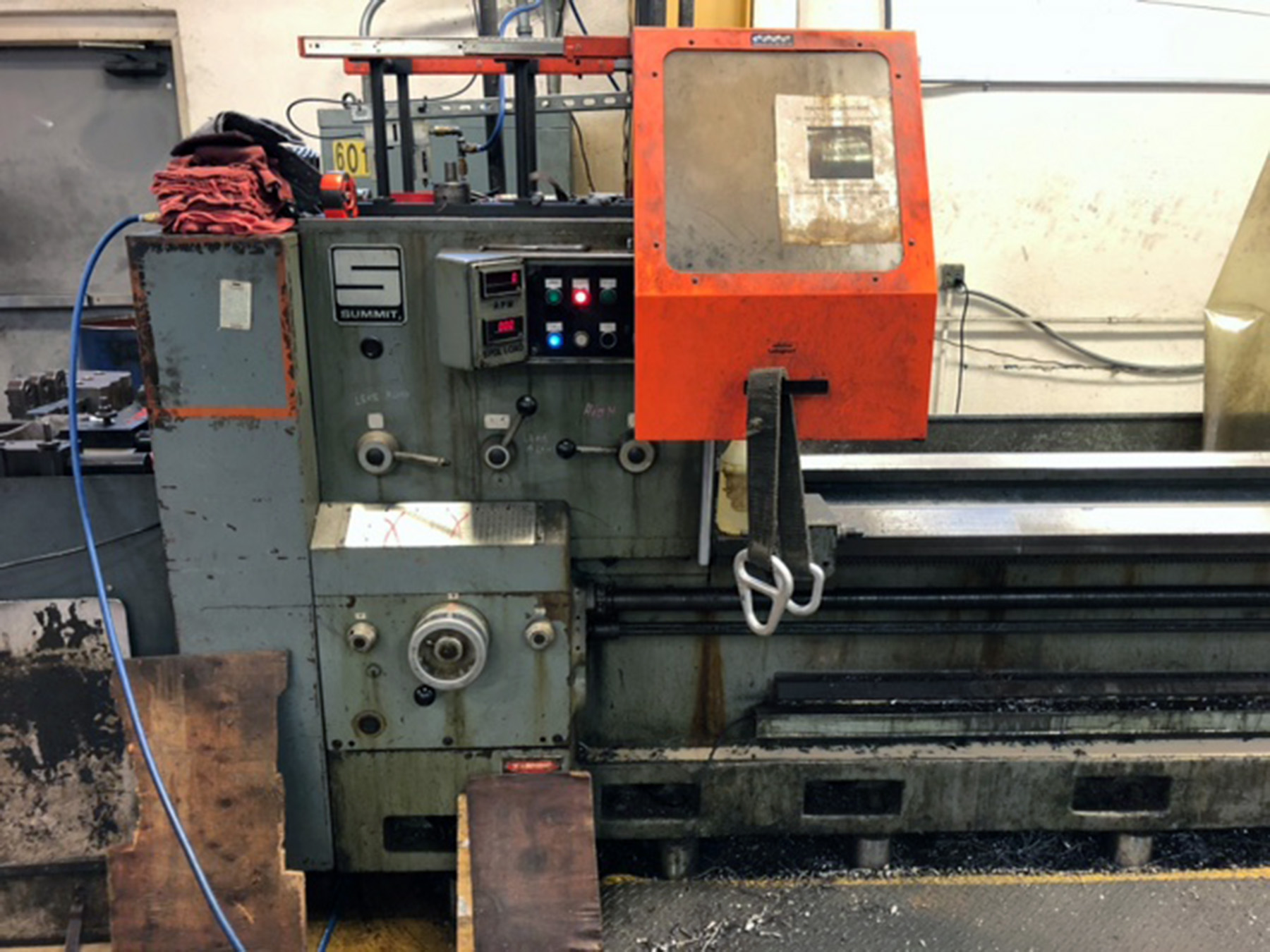

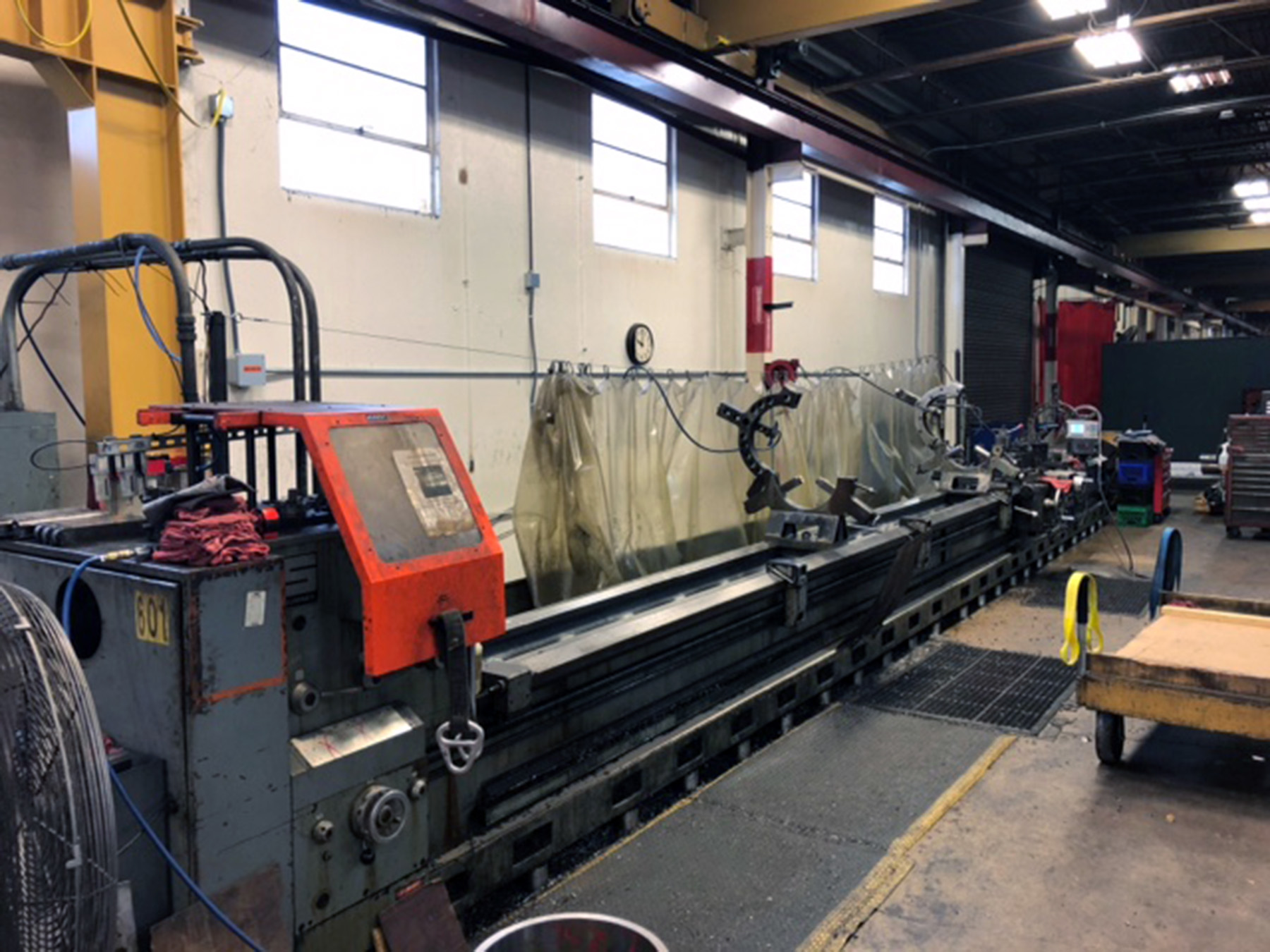

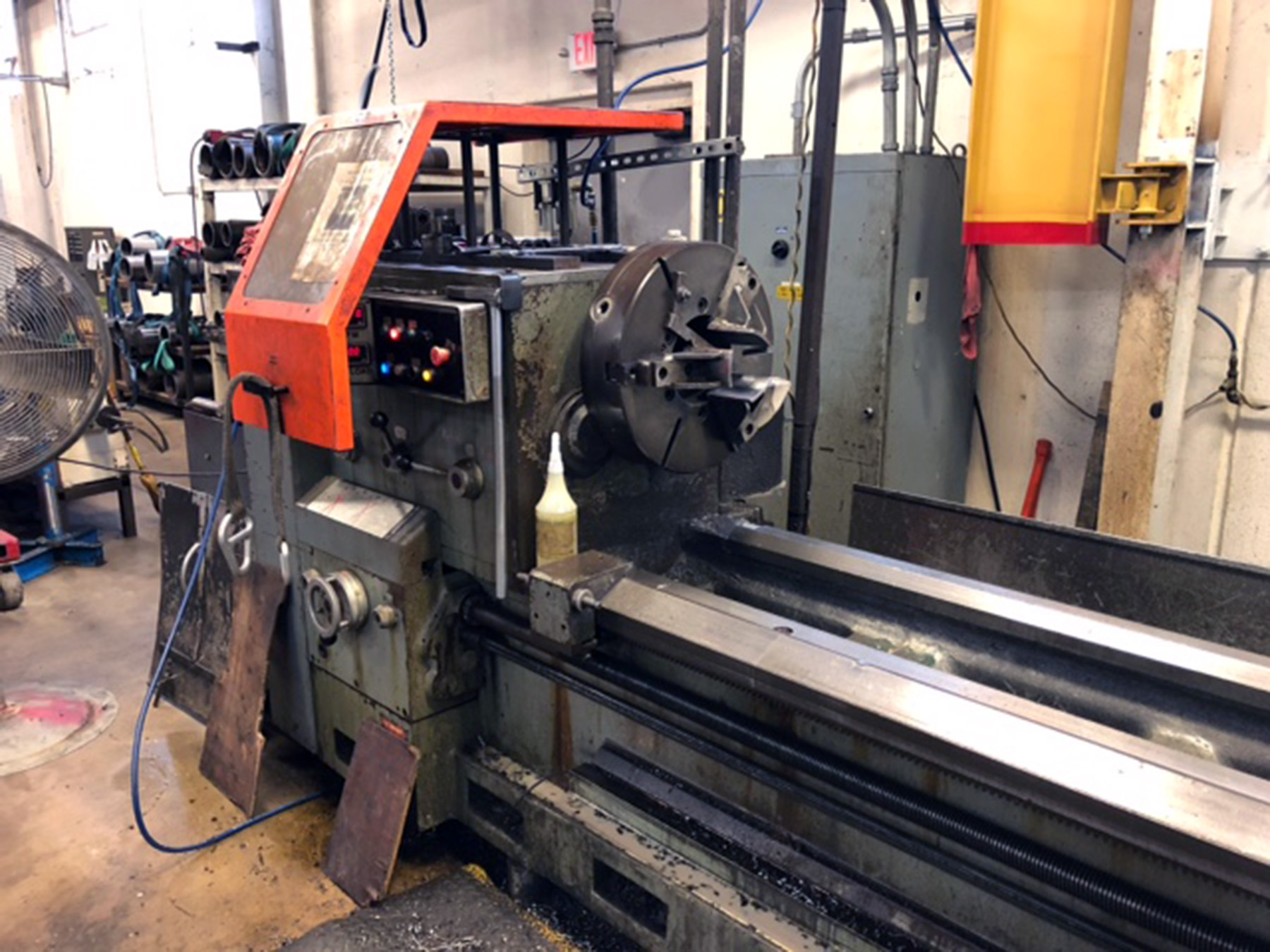

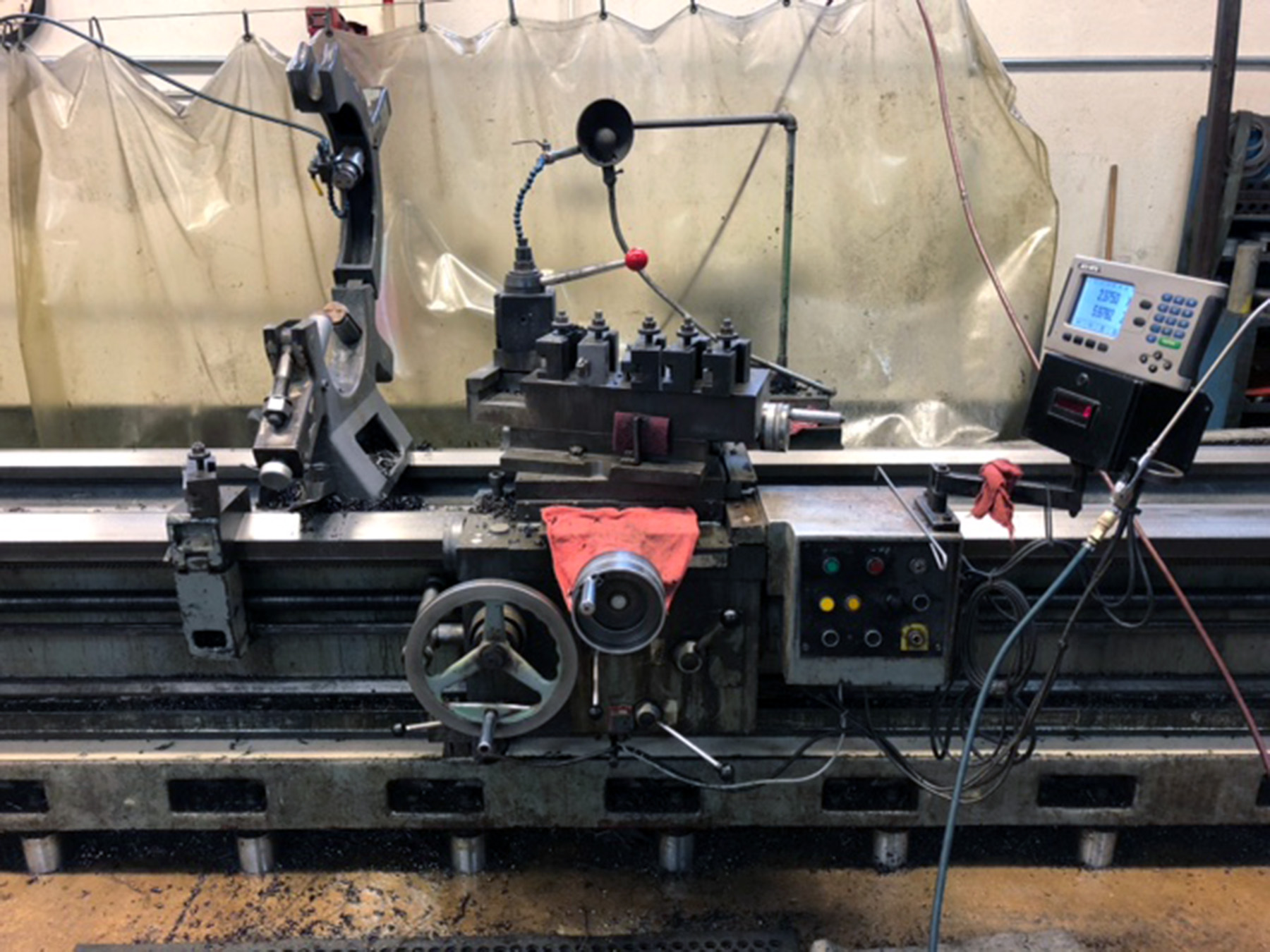

USED, 36" X 400" SUMMIT ENGINE LATHE

Manufacturer

SUMMIT

Category

Lathes

Type

LATHES, ENGINE

Stock

18815

Model

None listed

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet



SWING OVER BED: 36"
SWING OVER CROSS SLIDE: 23.75"
DISTANCE BETWEEN CENTERS: 400"
SPINDLE SPEEDS: 6.3 - 800 RPM
SPINDLE MOTOR: 30 HP
SPINDLE BORE: 5.75"
SPINDLE NOSE: A2-11
FEEDS: (120) 0.0021 - 0.205 IPR
METRIC THREADS: 1 - 36 MM
INCH THREADS: (80) 2 - 120 TPI

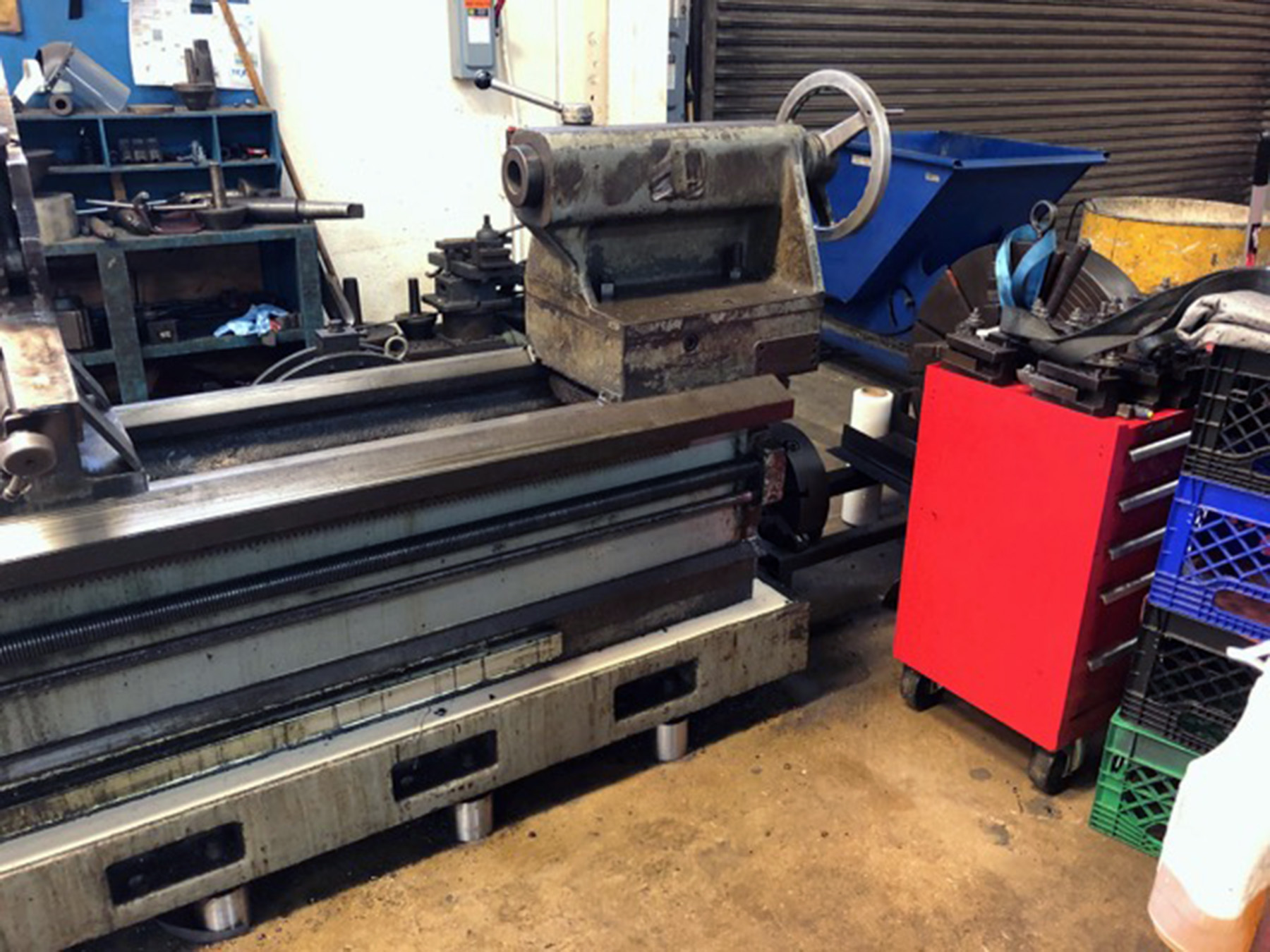

TAILSTOCK QUILL DIAMETER: 4.2"
TAILSTOCK QUILL TRAVEL: 10.5"
TAILSTOCK QUILL TAPER: MT6

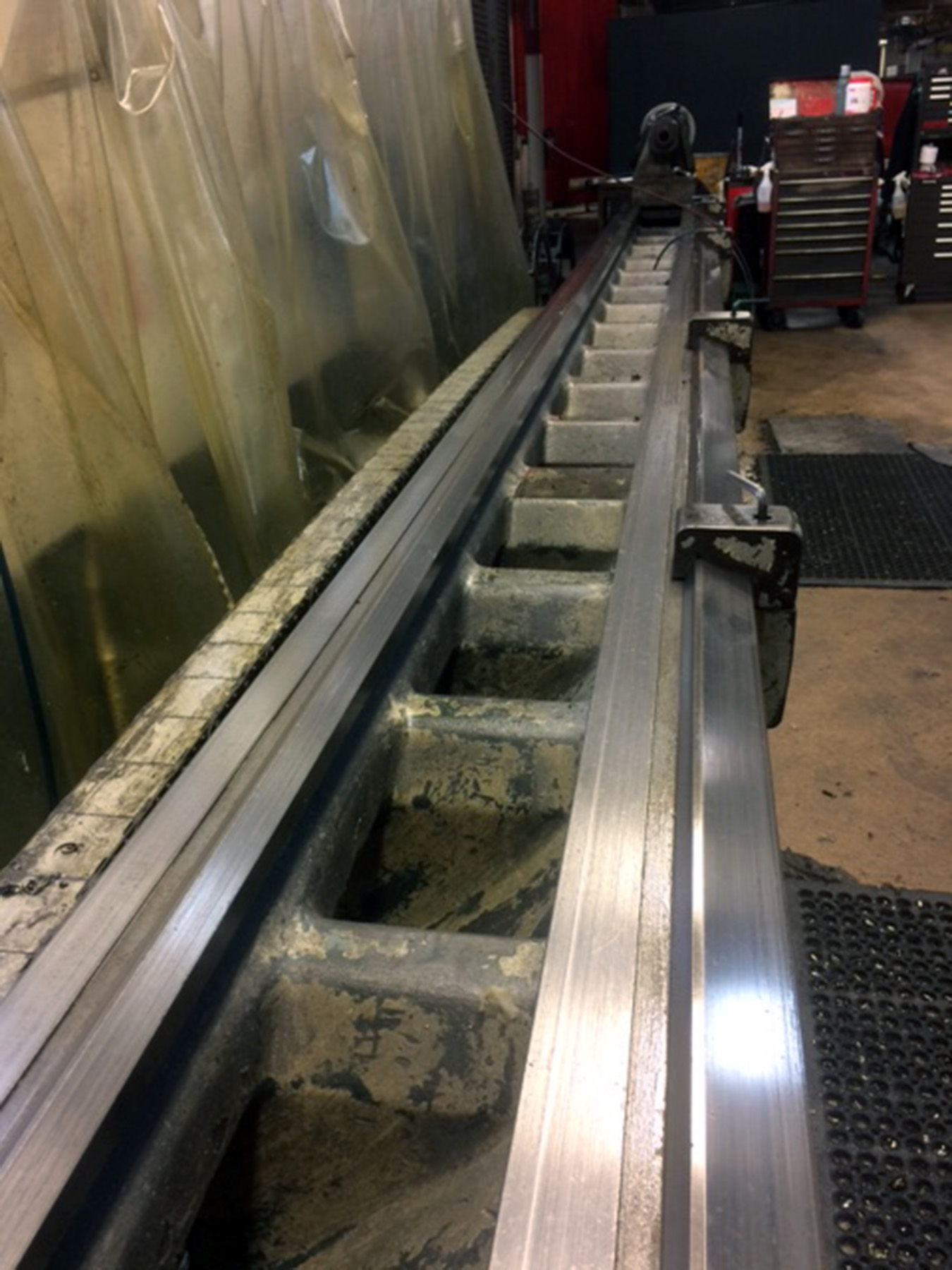

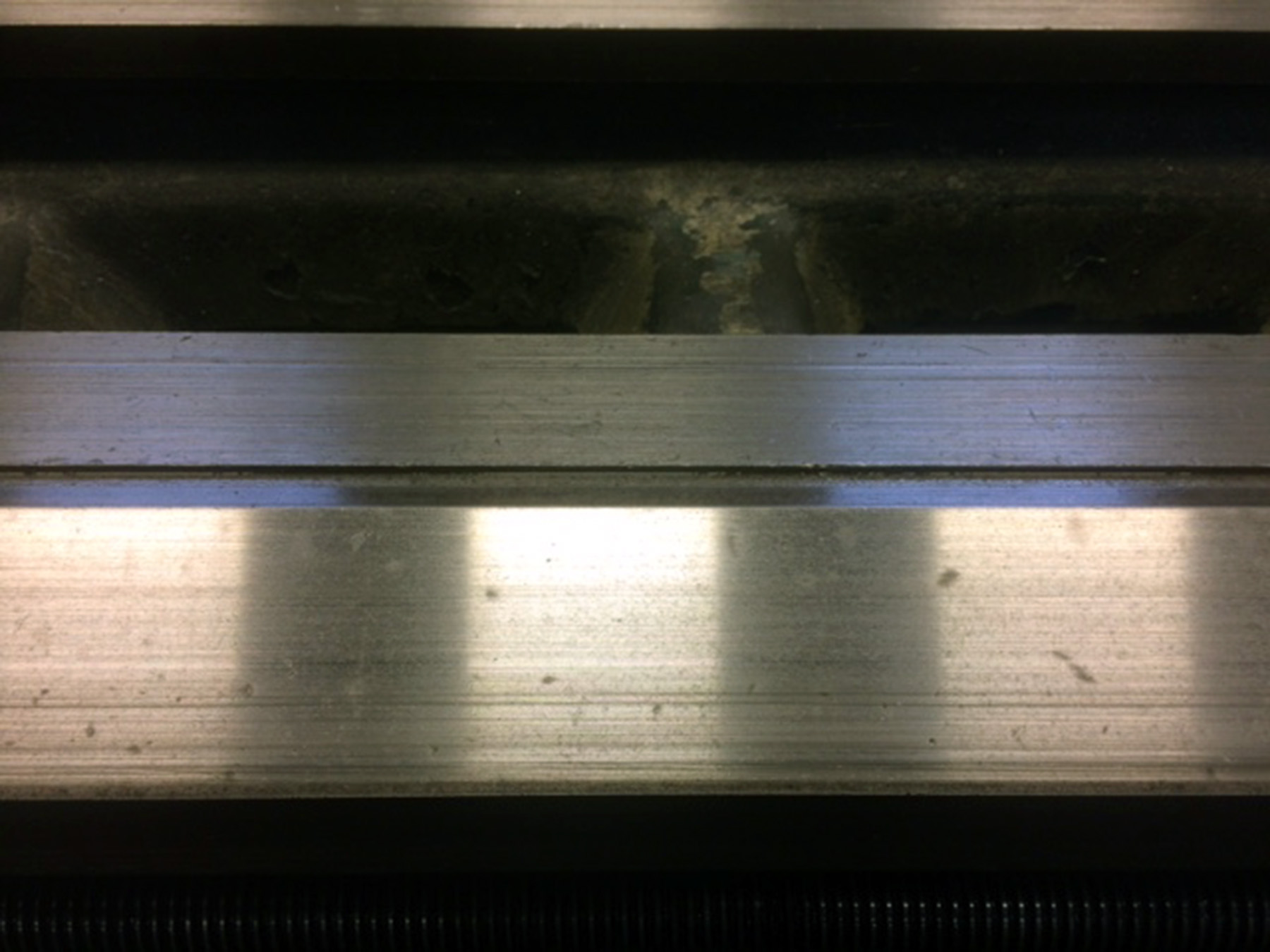

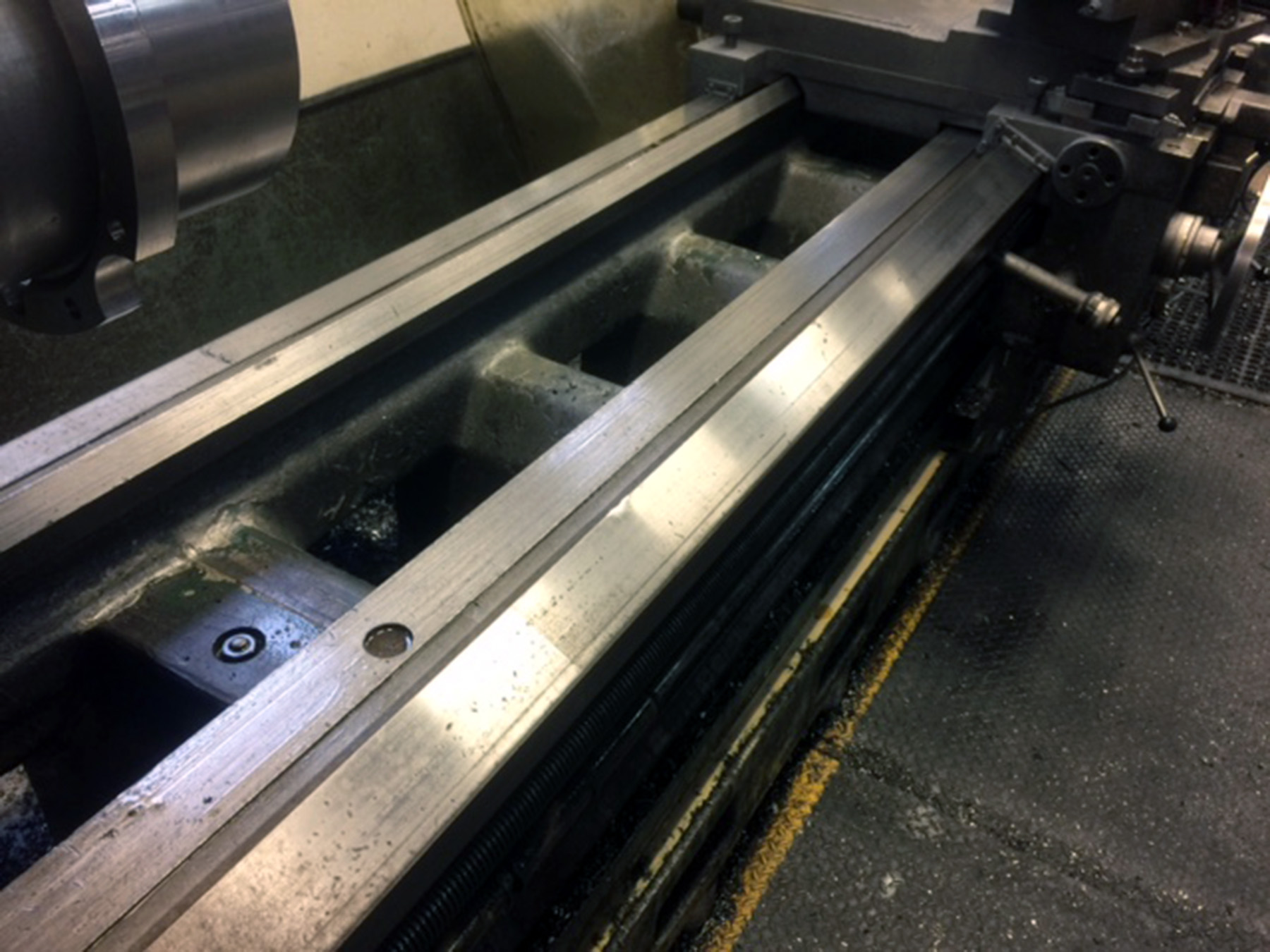

BED WIDTH: 27.5"
OAD (APPROXIMATE): 440" X 63" X 65" HIGH
WEIGHT (APPROXIMATE): 42,000 LBS.
EQUIPPED WITH:

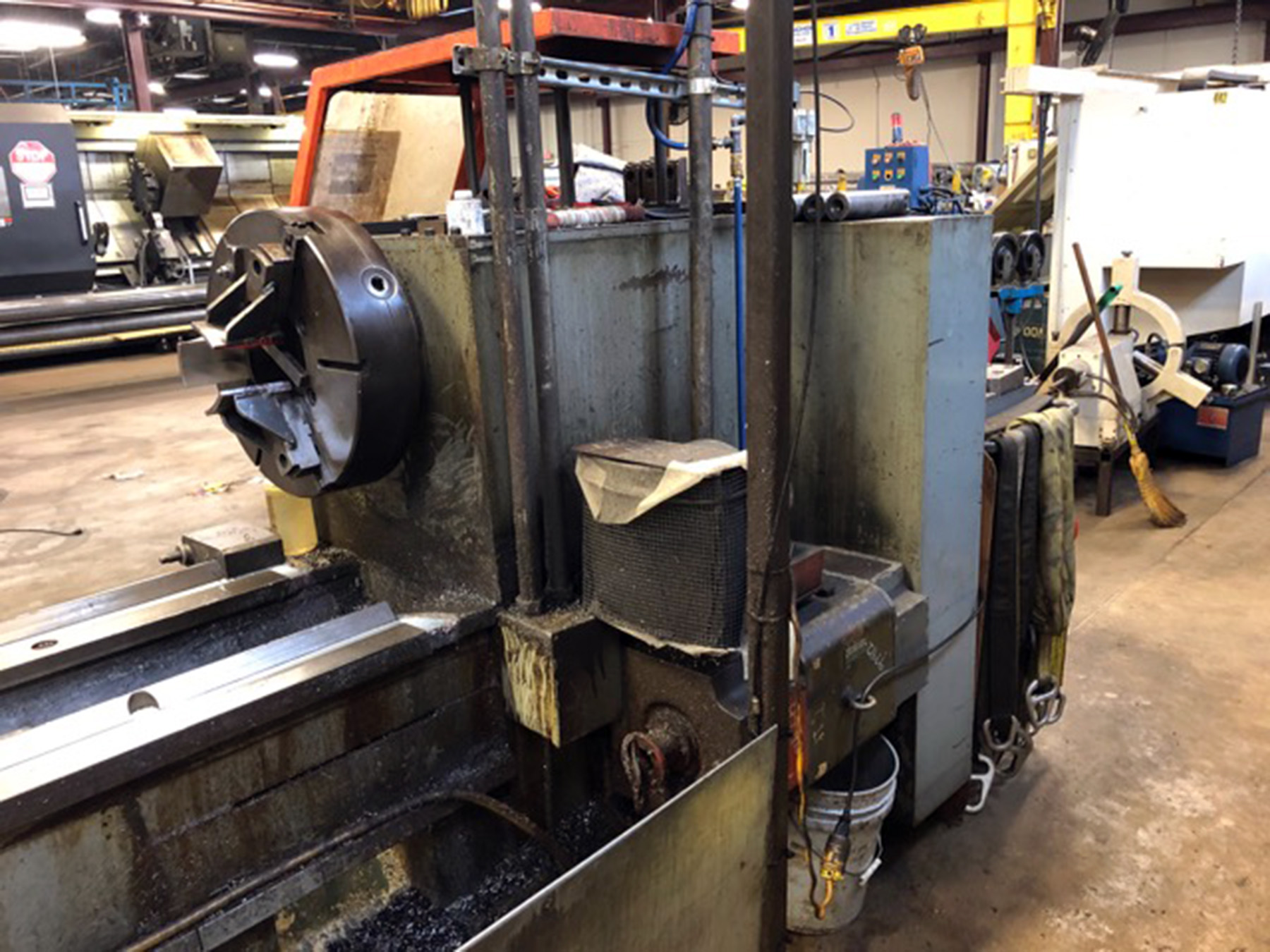

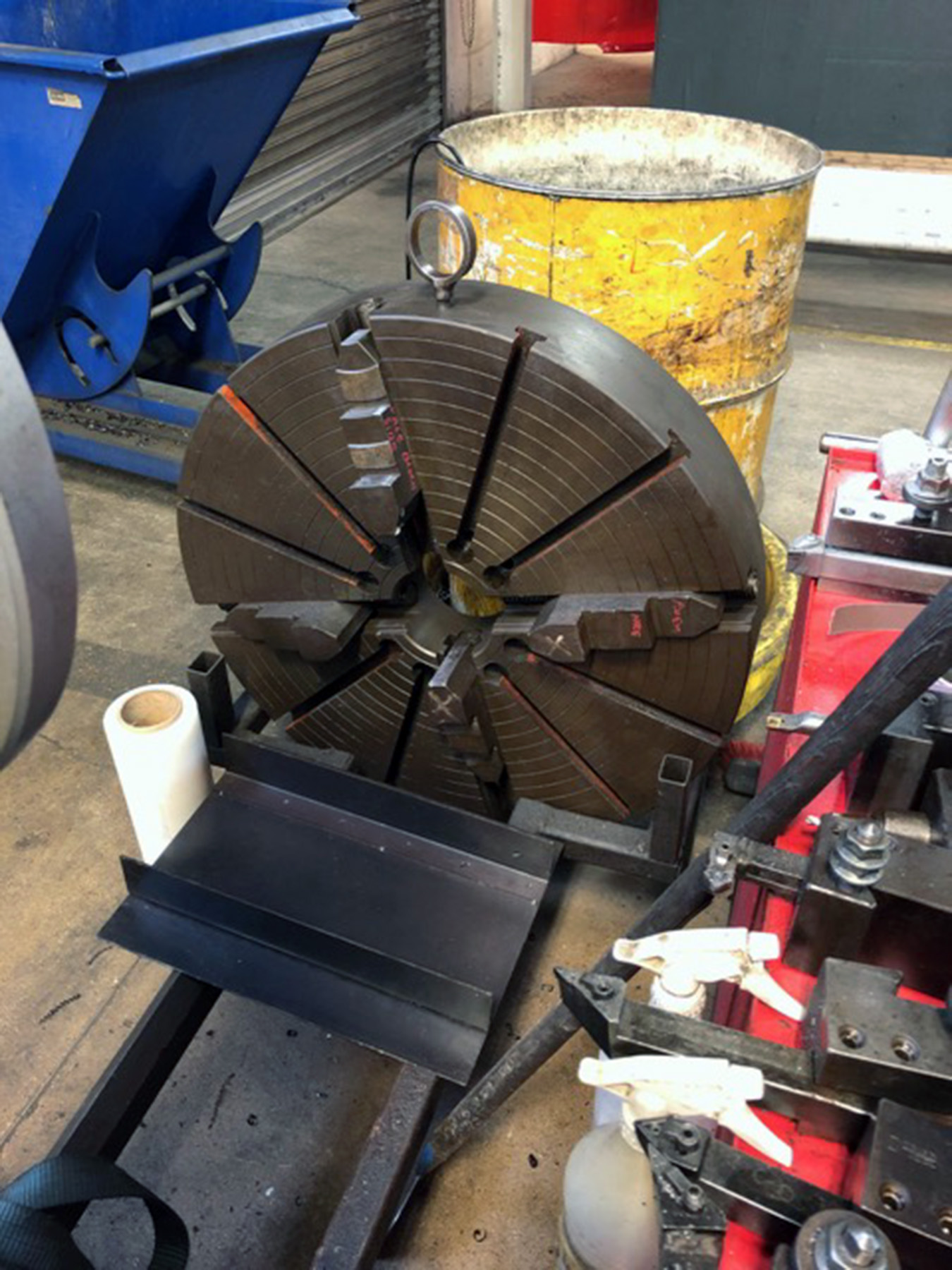

32" 4-JAW CHUCK

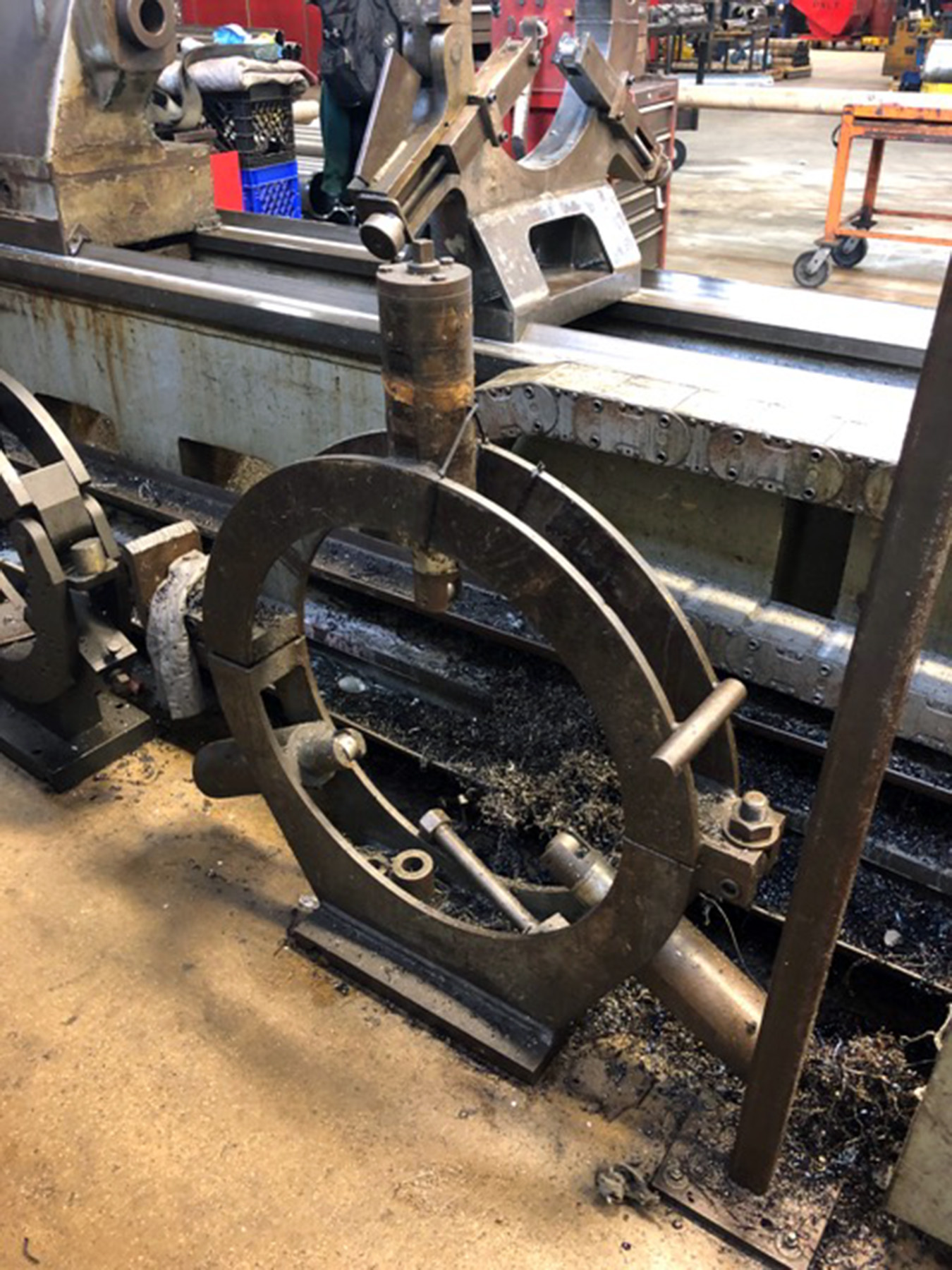

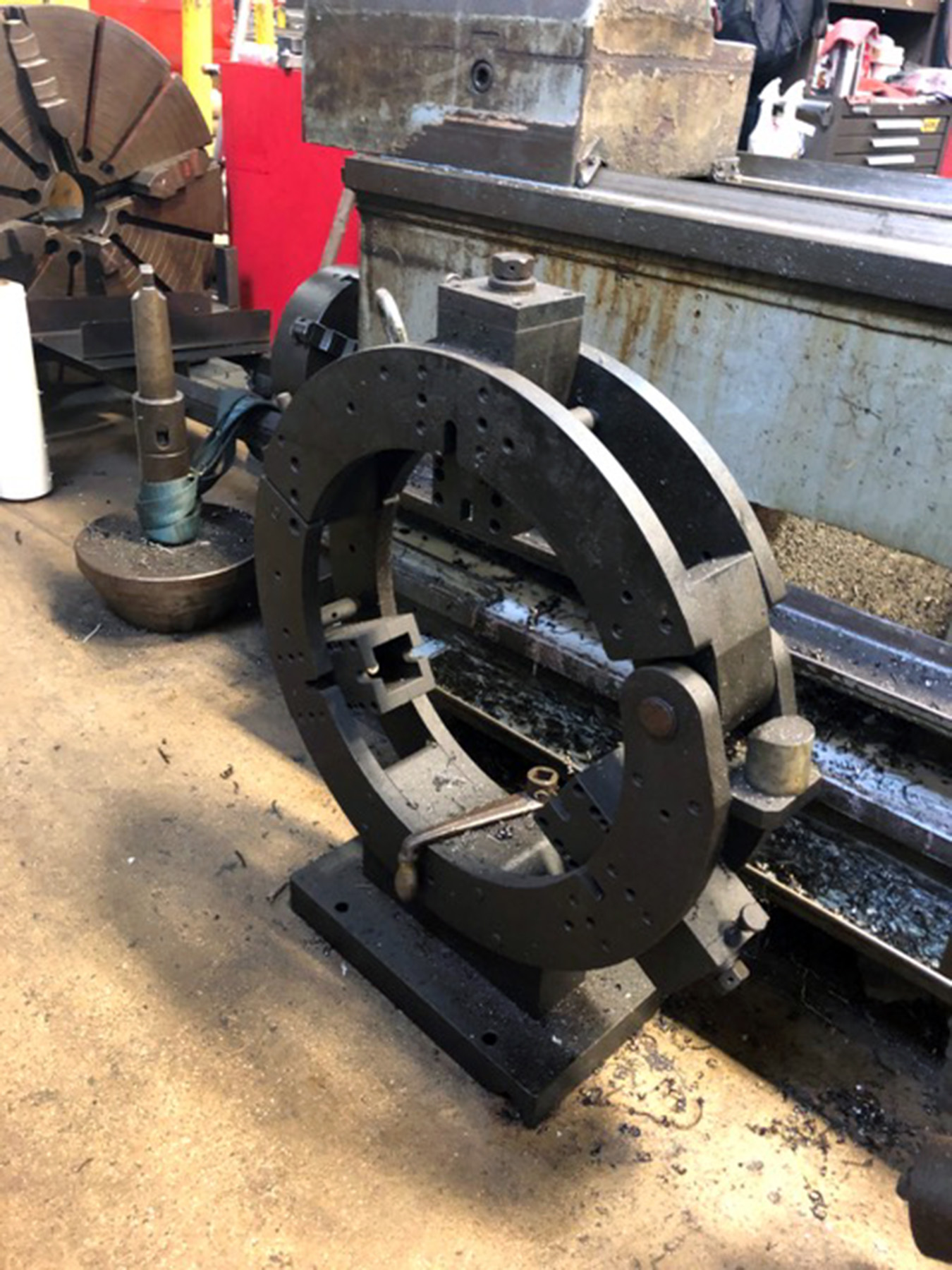

(3) STEADY RESTS (1" - 14" CAPACITY)

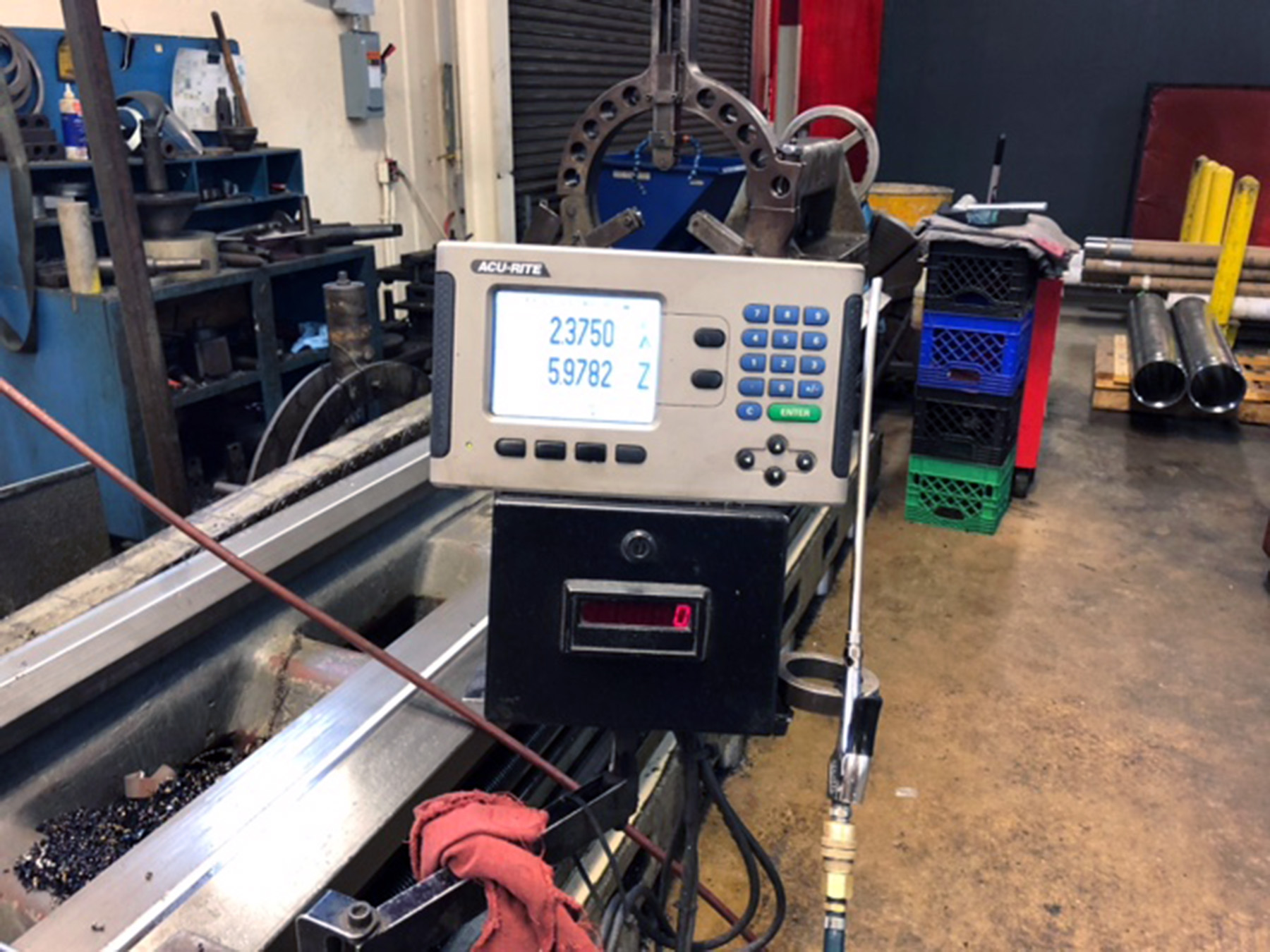

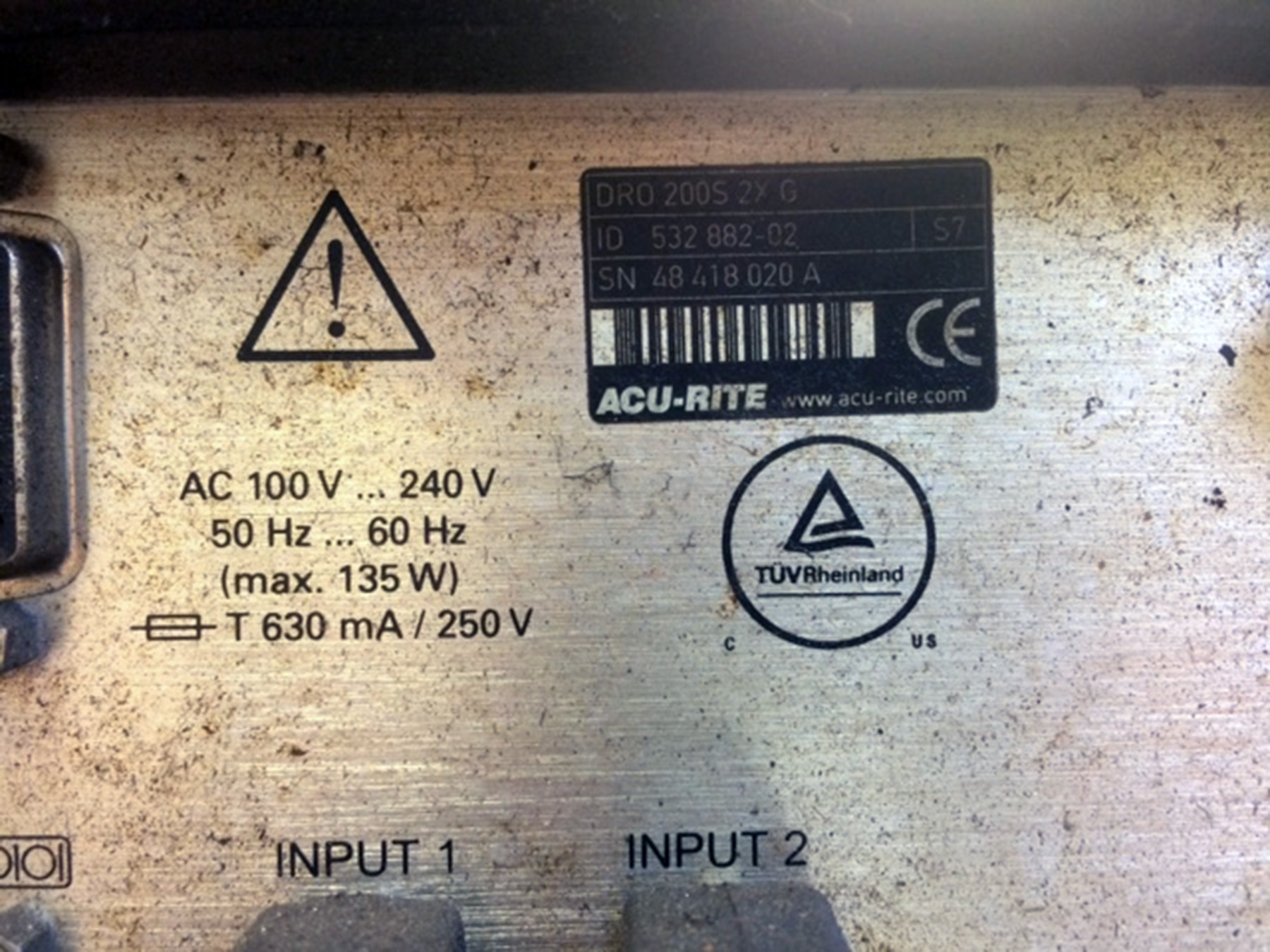

ACU-RITE 200S 2XG DRO WITH 16 TOOL PRE-SETS
COOLANT
TOOL POST
