500 ton Niagara SC2-500-96-48P Straight Side Mechanical Metal Stamping Press For Sale - Full Reb

Manufacturer

NIAGARA

Category

Presses

Type

PRESSES, STRAIGHT SIDE, DOUBLE CRANK, (Single Action)

Stock

2604

Model

SC2-500-96-48P

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tonnage - 500
Stroke - 8 inches
Shut Height - 32 inches
Adjustment - 8 inches
Bed Size - 96 x 48
Ram Area - 96 x 48
SPM - 30-60


Standard Specifications

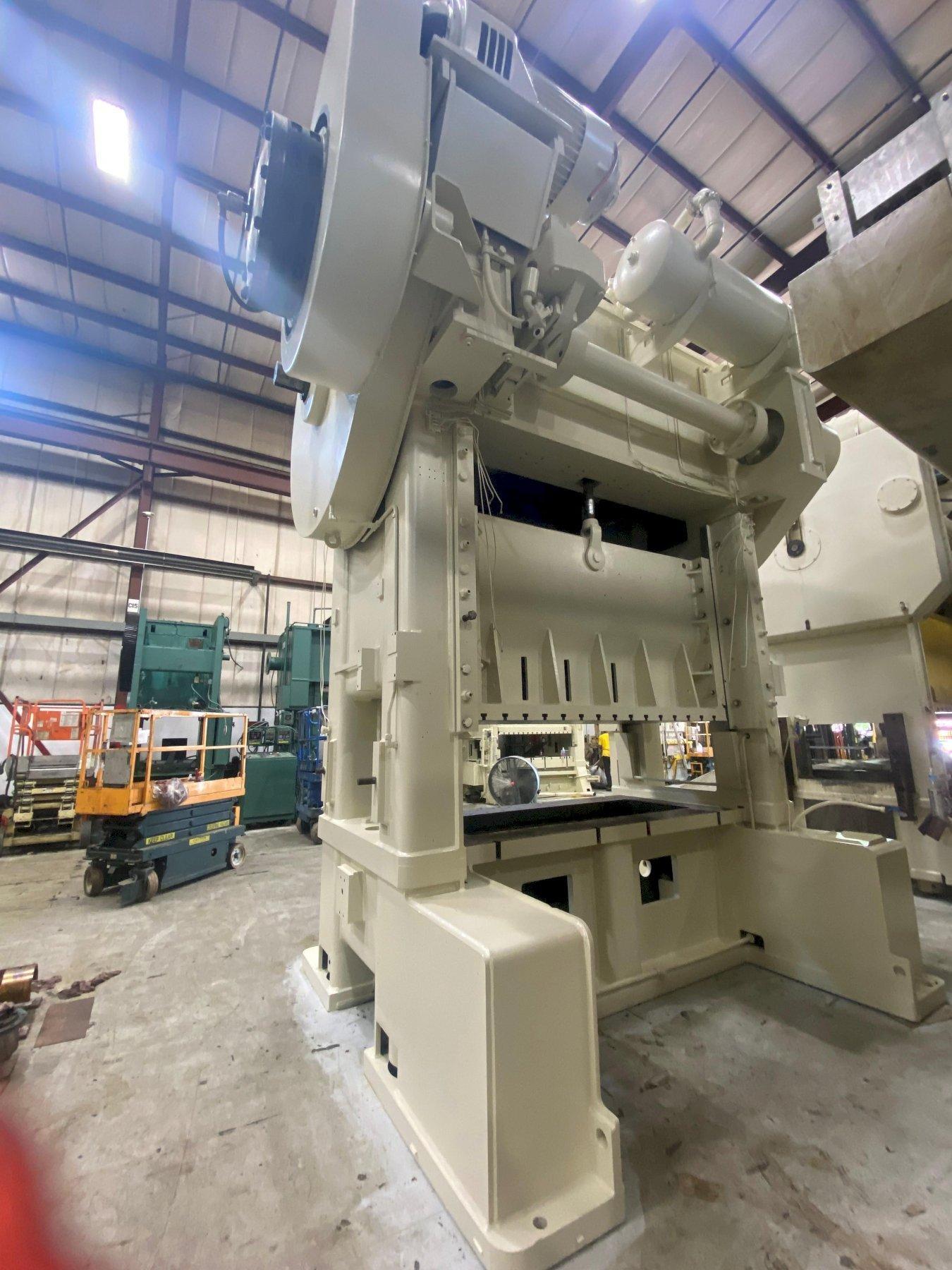

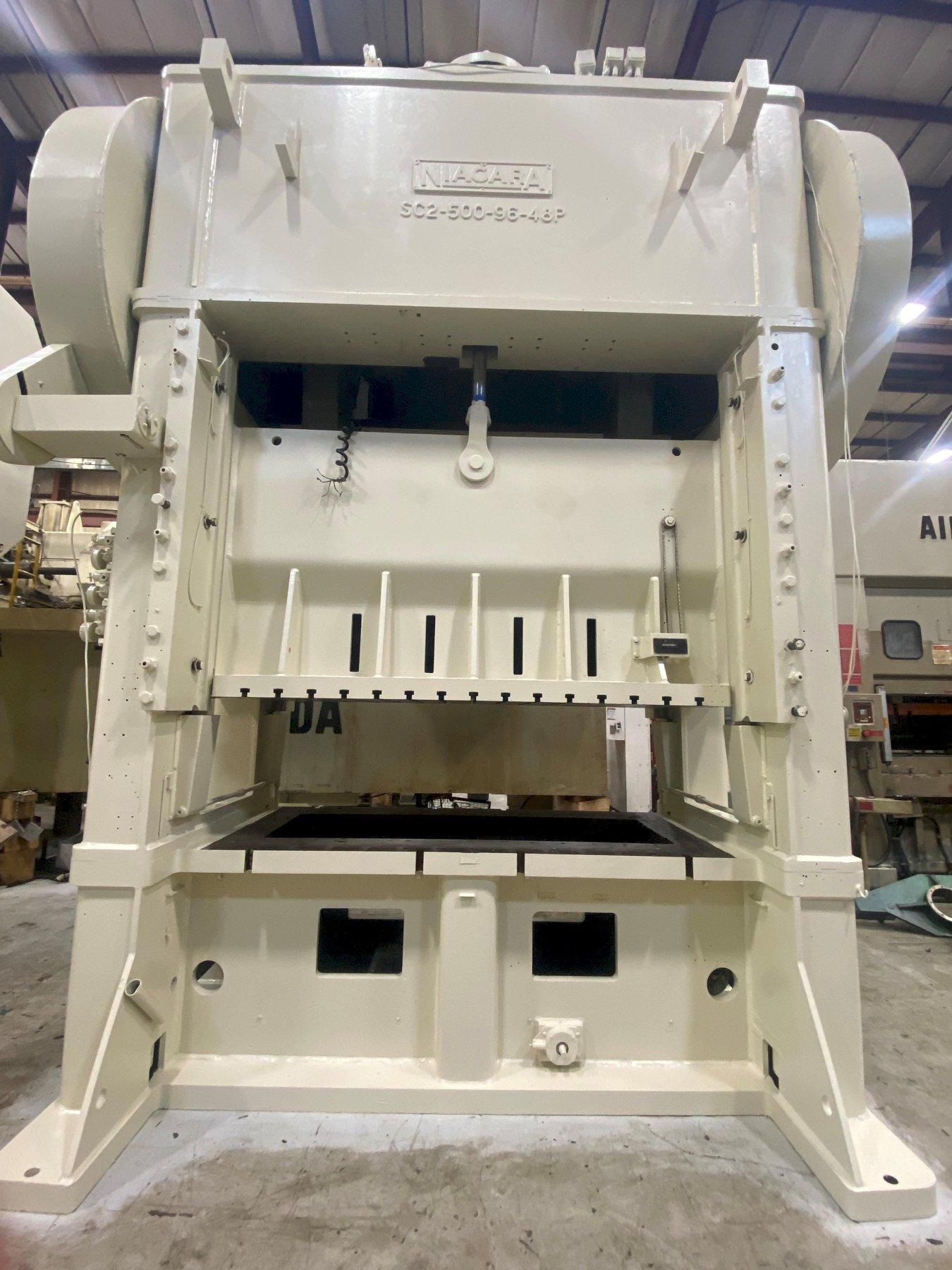

Niagara Straight Side Mechanical Stamping Press
Rebuilt -  Mechanical, Air, Lubrication
Press Model SC2-500-96-48
500 ton Capacity
8" Stroke
32" Shut Height
8" Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ran and Bolster

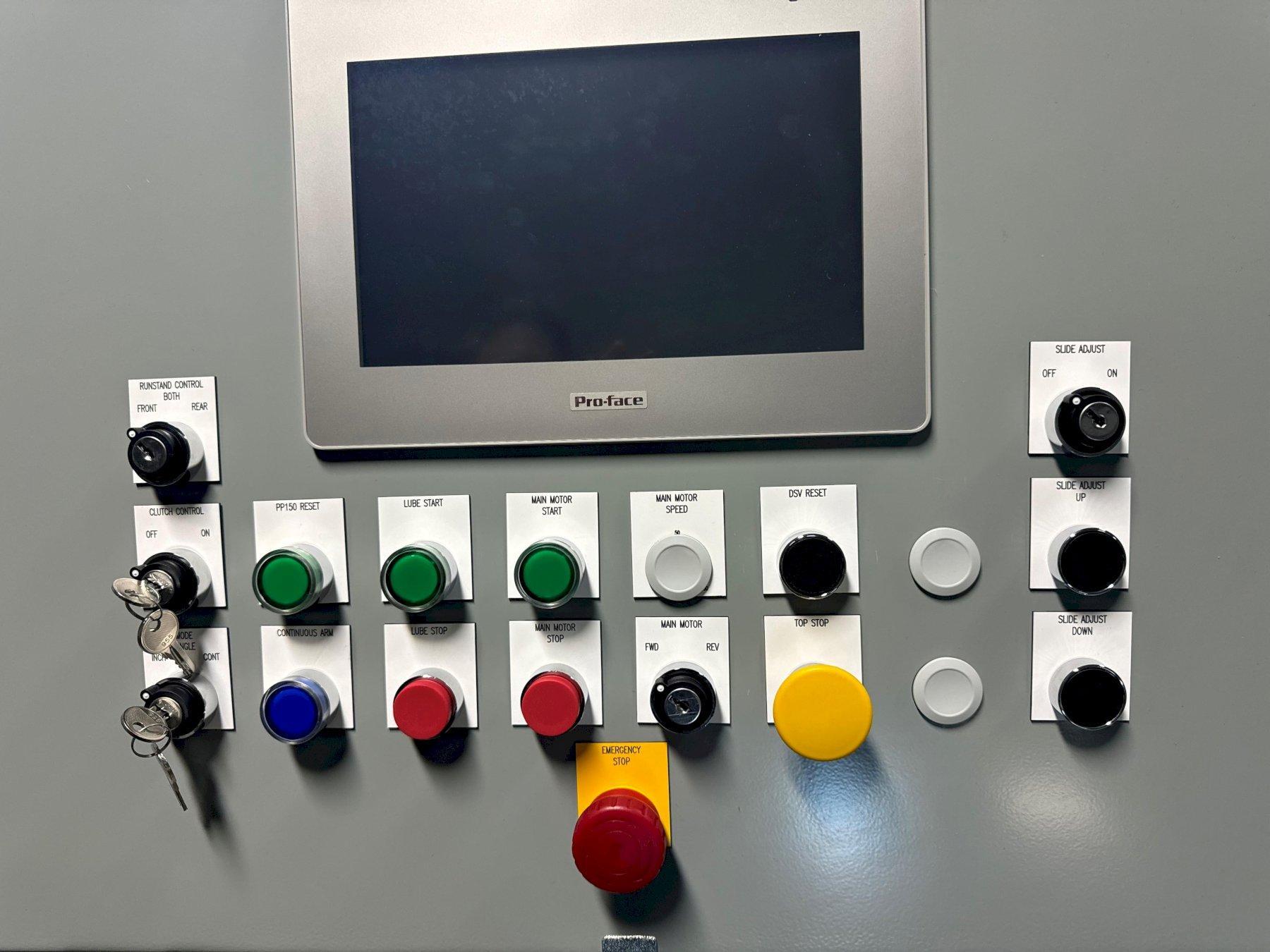

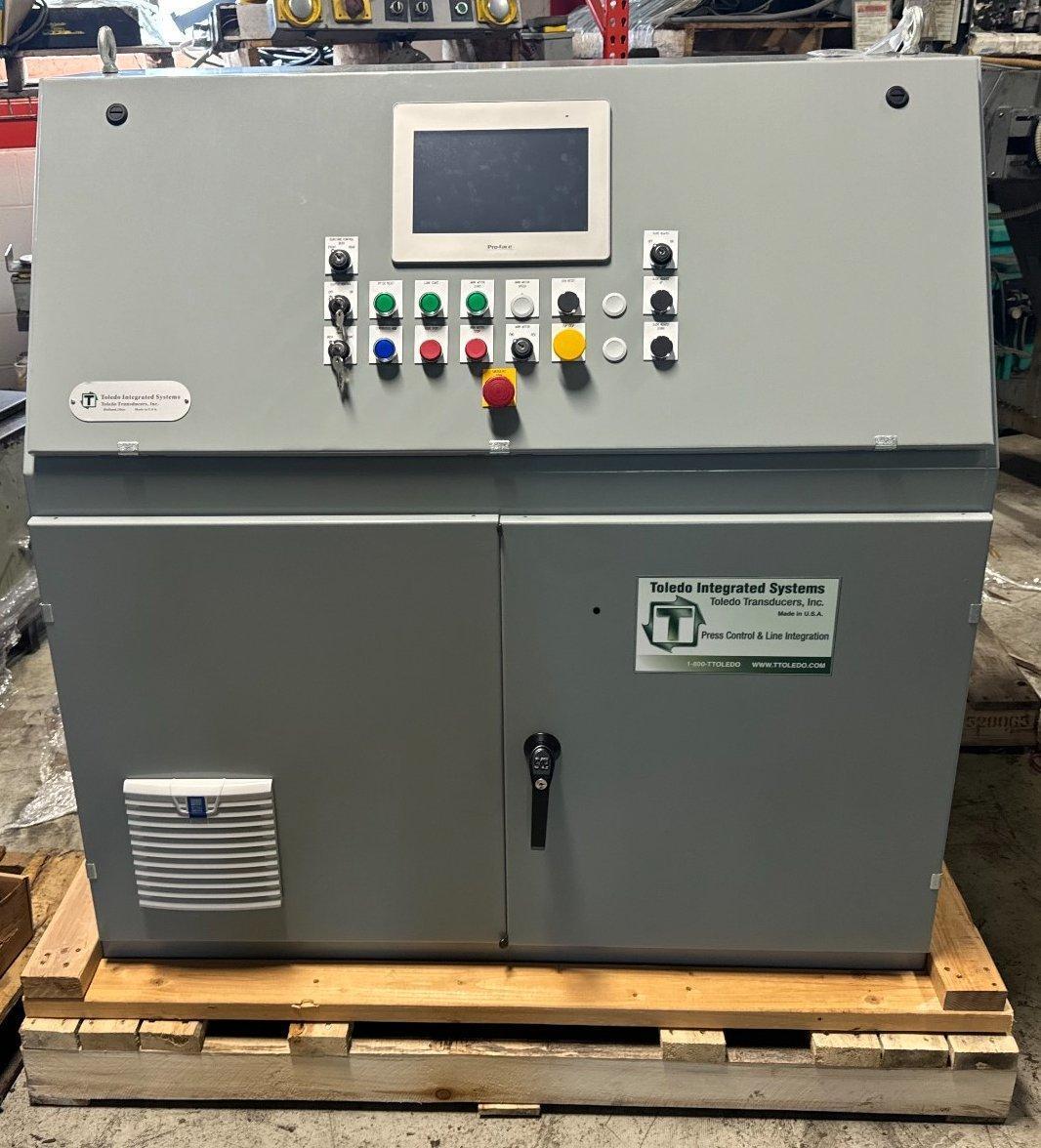

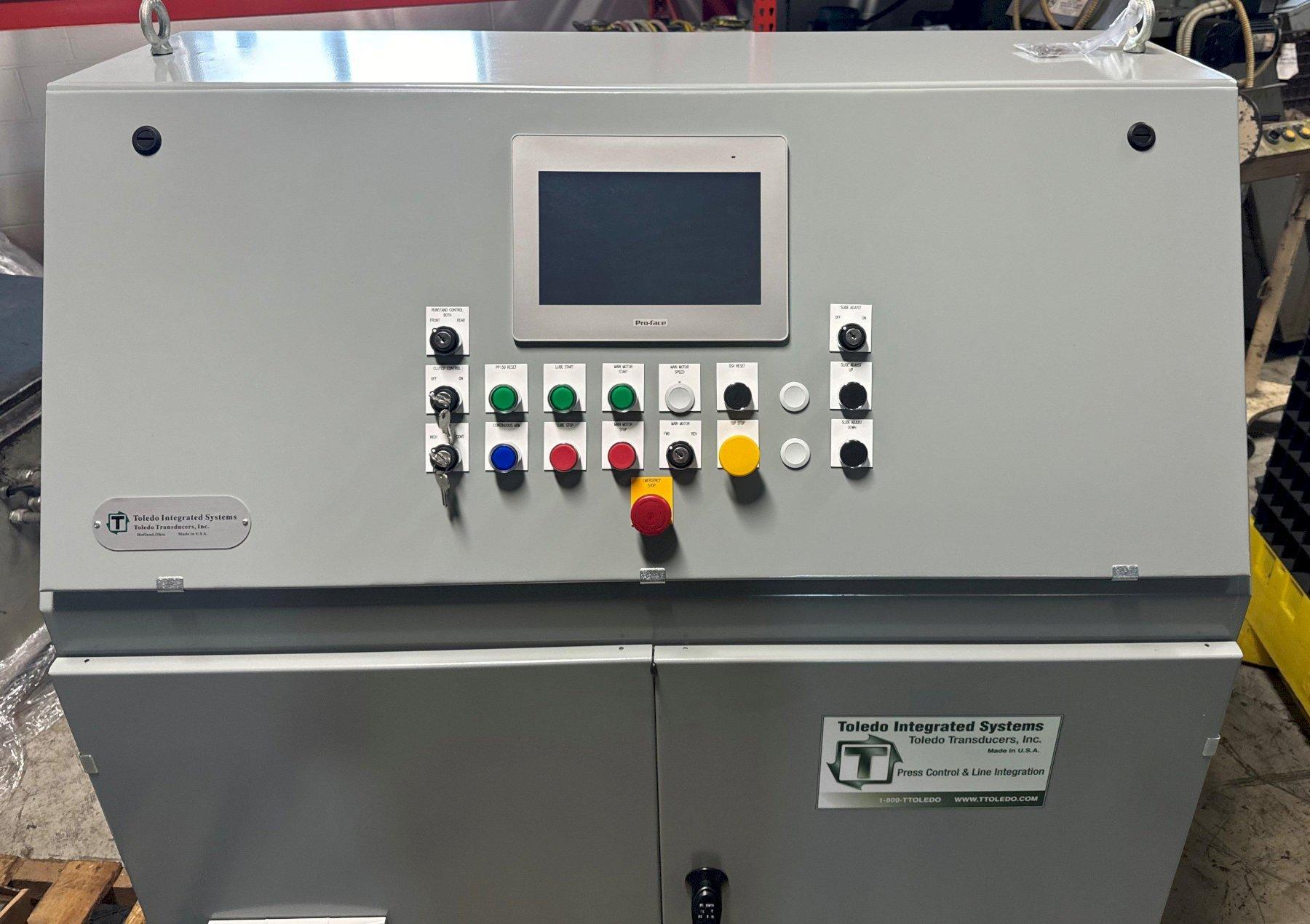

Free Standing Press Control
29" Wide Windows
Floor Standing

Overall Height:  17' 3" Tall

Rebuild Work in Process 2024 - Expected Completion date August 2024

Complete Scope of Work Available Upon Request -
Rebuilt Clutch and Brake / New Bushings / Rebuilt Counterbalances / New Lube Components and Air Components
Resurface Ram / Gibs / Bolster Plate

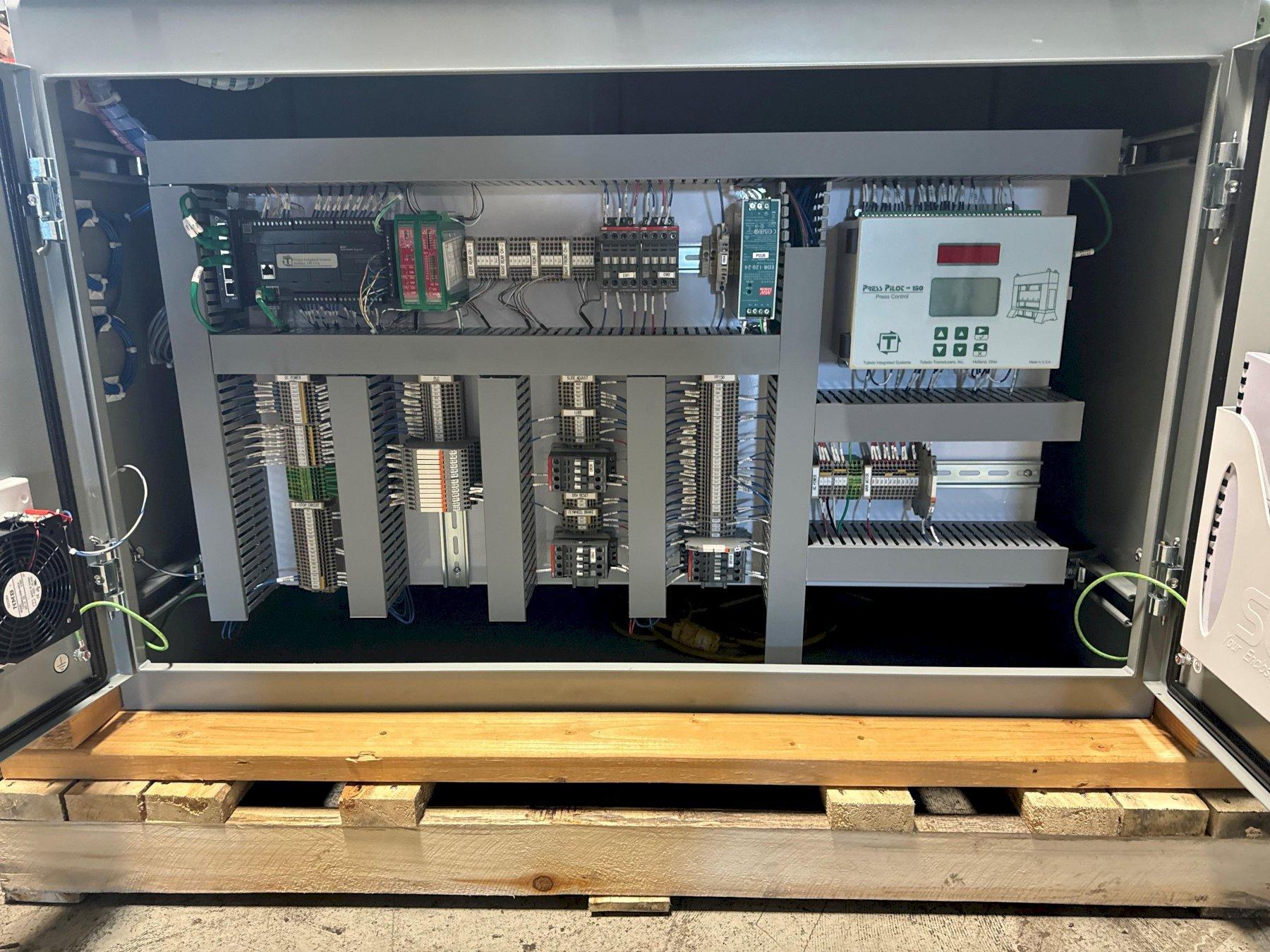

S&G Press can quote optional new Wintriss / Toledo / Cieco press control electrical packages upon request.

Price Includes:  Full Mechanical, air and lubrication Rebuild.  All work is performed by professionals and includes an extended Warranty!

This Rebuilt 500 ton Niagara Press can be seen under power in the S & G Press Livonia Mi Warehouse upon completion of rebuild!

500 ton Straight Side Mechanical Metal Stamping Press For Sale
