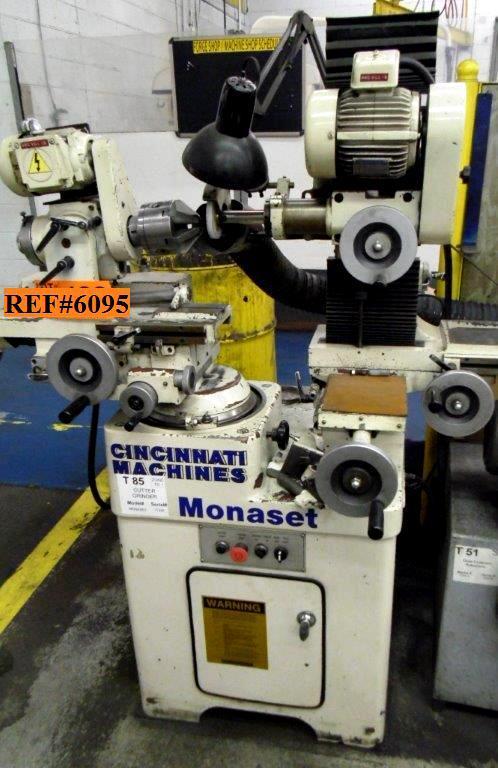

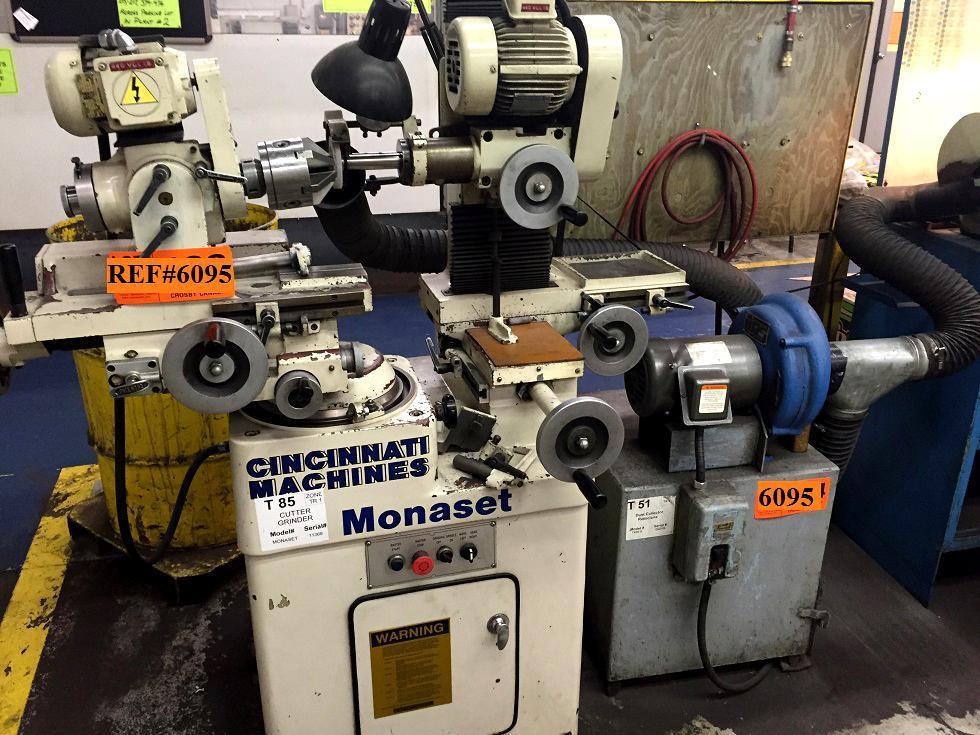

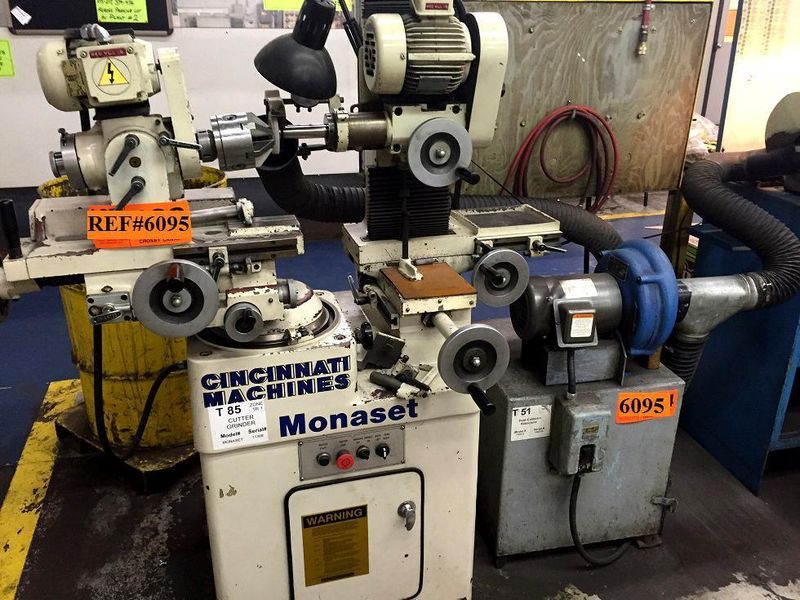

Monaset CM-2 Tool & Cutter Grinder

Stock

6095

Model

CM-2

Dealer Location

Pennsylvania

Spec Sheet

Maximum Swing Diameter - 12"
Maximum Collet Work Diameter - 1.25"
Minimum Collet Work Diameter - 5mm
Maximum Spiral Angle - 60 Degrees
Maximum Grinding Diameter - 4"
Slide Travel - 5"
Offset Slide Travel - 4"
Front of Center - 2"
Rear of Center - 2"
Grinding Wheelhead Longitudinal Slide Travel - 4"
Grinding Wheelhead Vertical Slide Travel - 9"
Grinding Wheelhead Cross Slide Travel - 6.5"
Grinding Wheelhead Speed - 4000, 6000, 8000 RPM
Workhead Motor - 1/4 HP

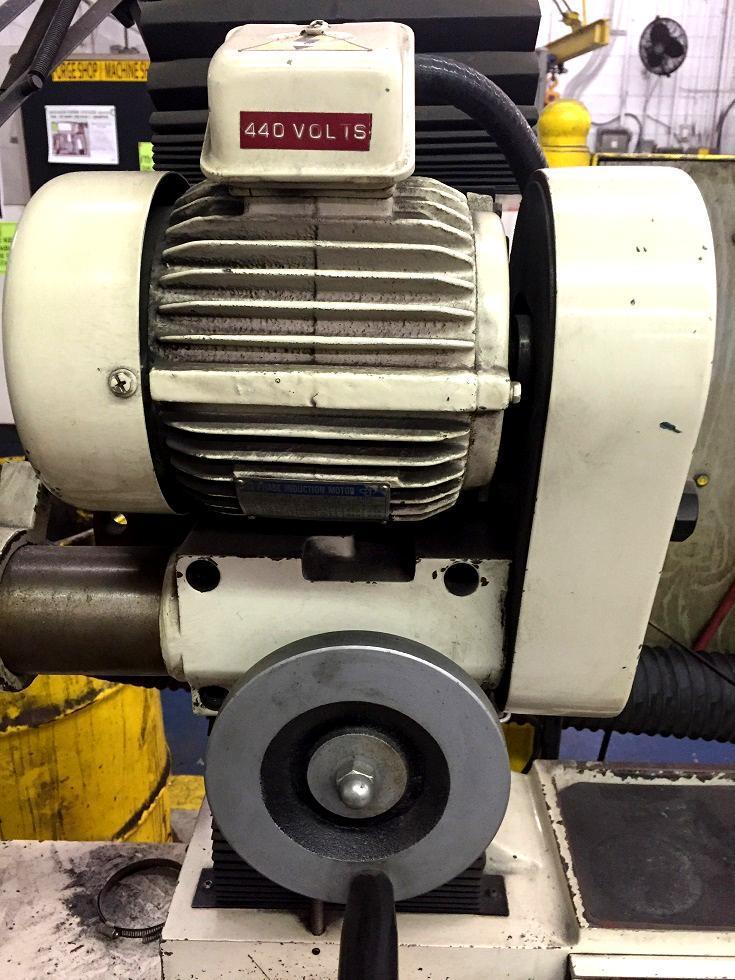

Grinding Wheelhead Motor - 1/2 HP
Approximate Weight - 1,900 lbs
