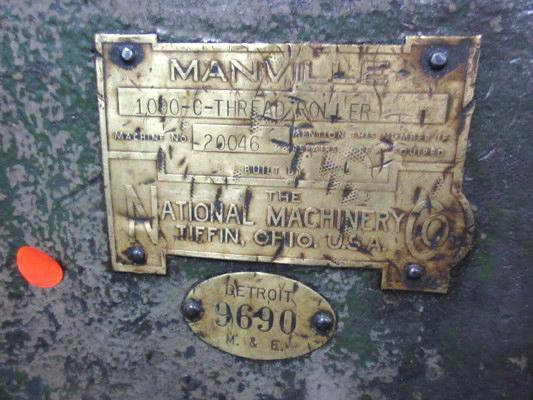

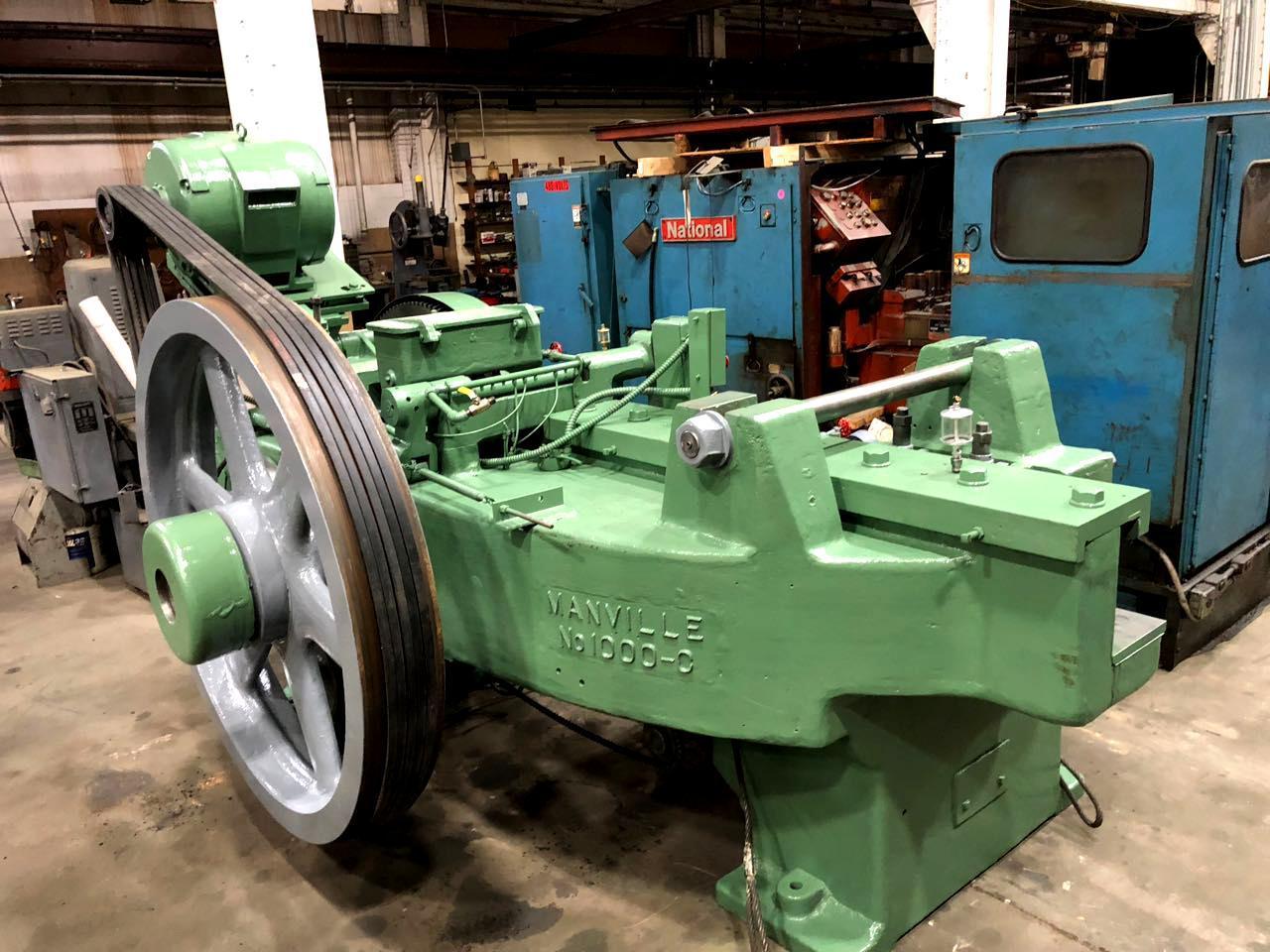

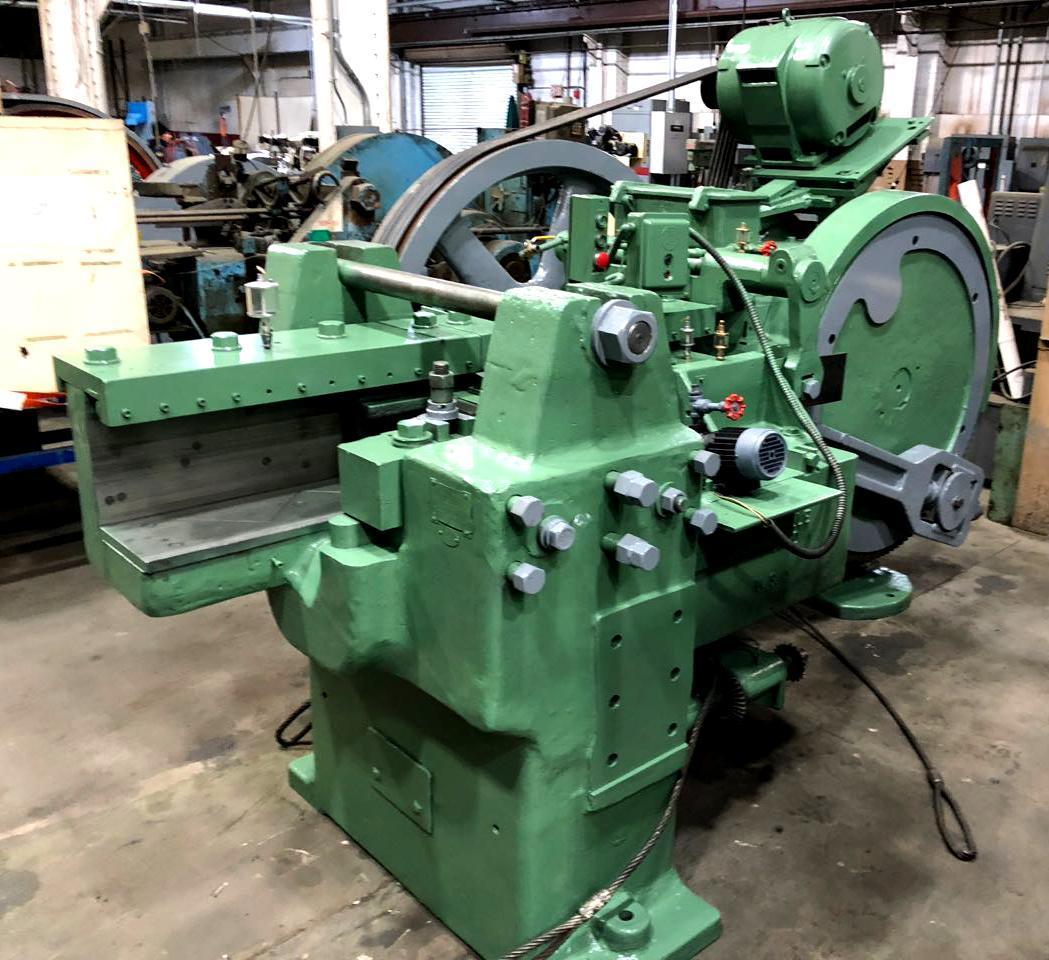

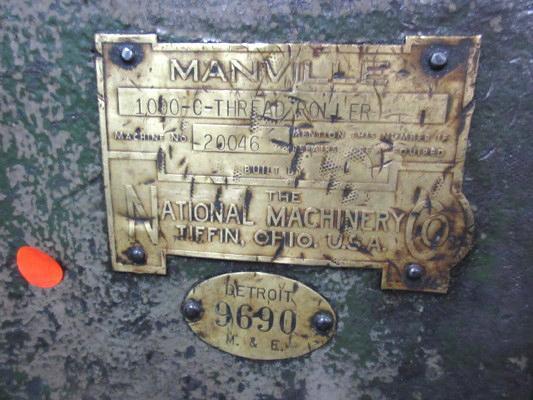

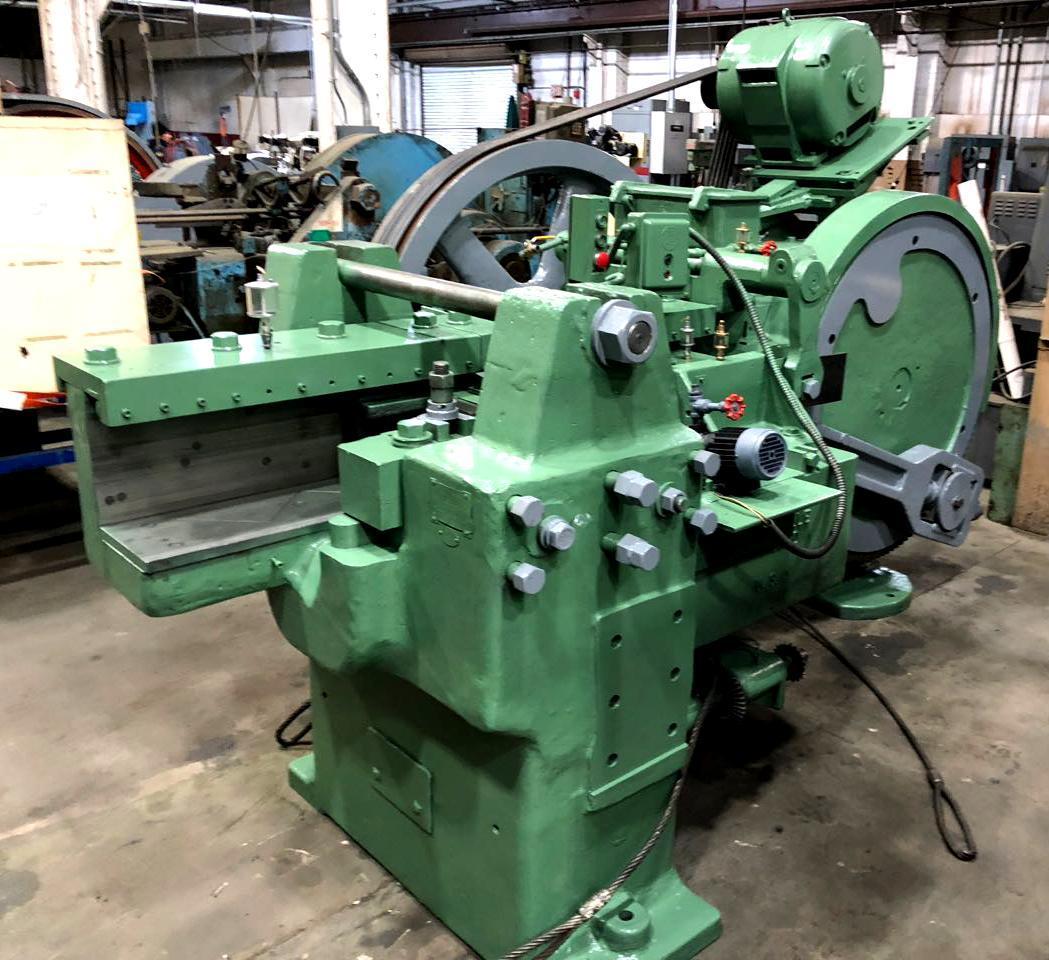

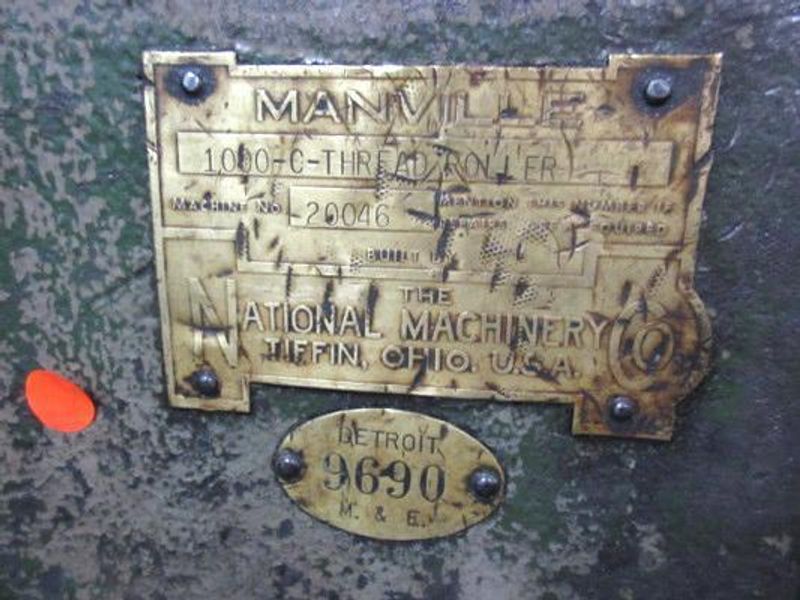

1-1/4" Manville Flat Die Model 1000-C Hand Feed Thread Roller

Manufacturer

MANVILLE

Stock

6394

Model

#70 1000-C

Dealer Location

Pennsylvania

Spec Sheet

Maximum Thread Diameter - 1-1/4"
Depth of Die Pockets - 6-1/8"
Strokes Per Minute - Approx. 40

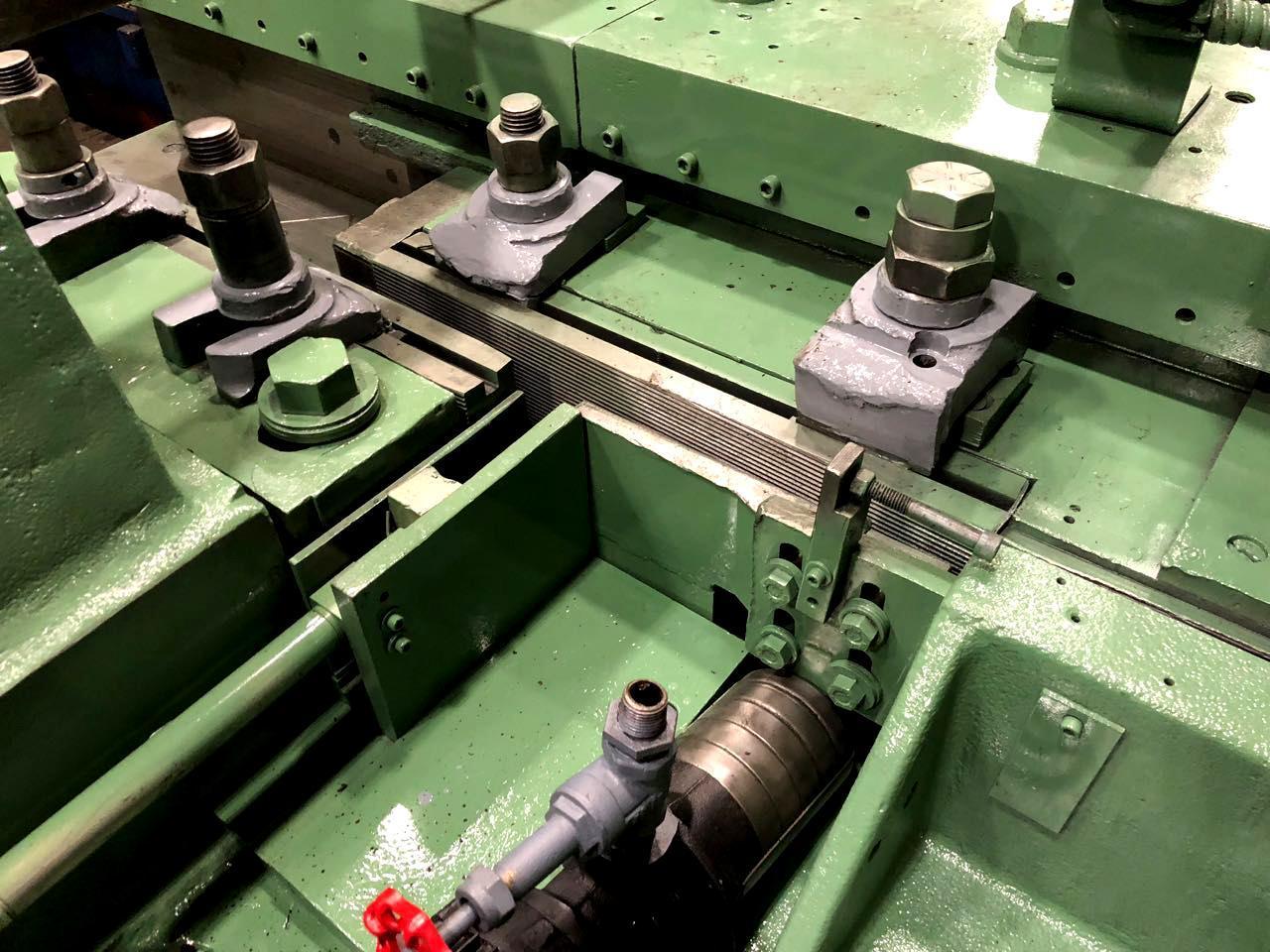

Length of Moving Die - 20"
Length of Stationary Die - 19"
Distance Between Top of Die Block & Bottom of Tie Rod - 8-1/2"
Maximum Length of Work Piece if End of Shank is at the Bottom of Die Pocket - 14-1/2"
Electrics - 30 HP, 890 RPM, 230/460V, 3 Phase
Approx. Weight - 24,000 lbs

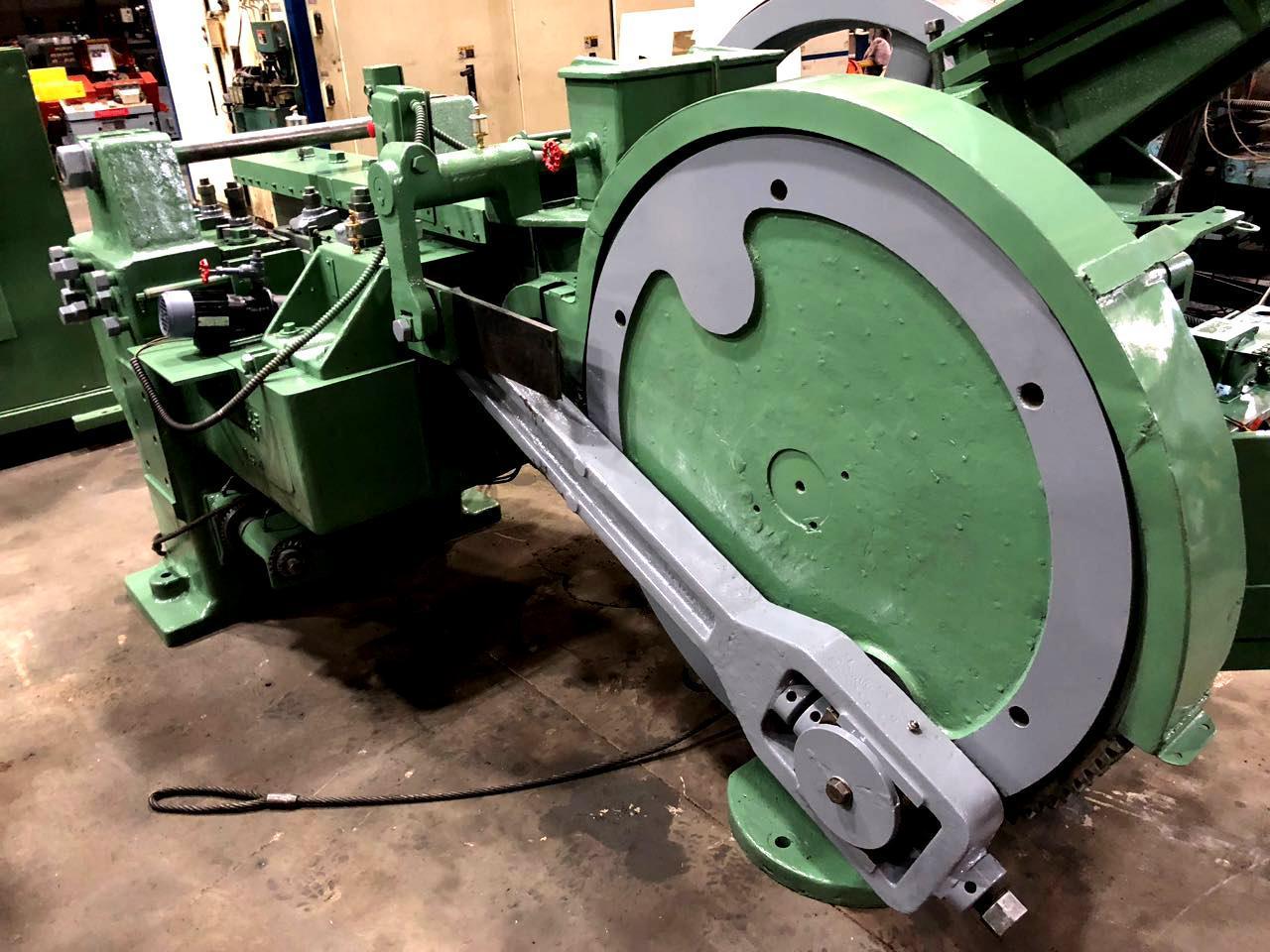

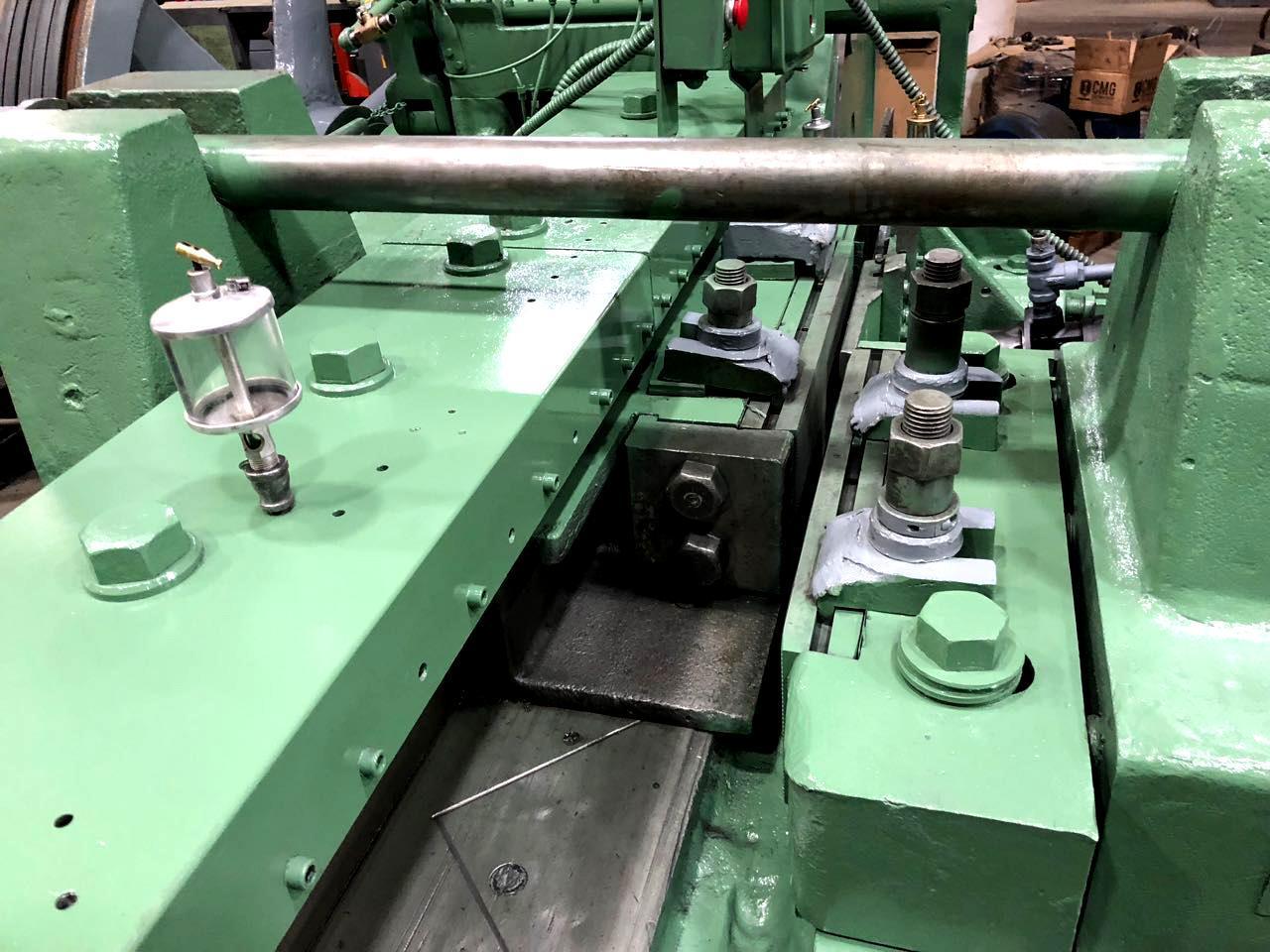

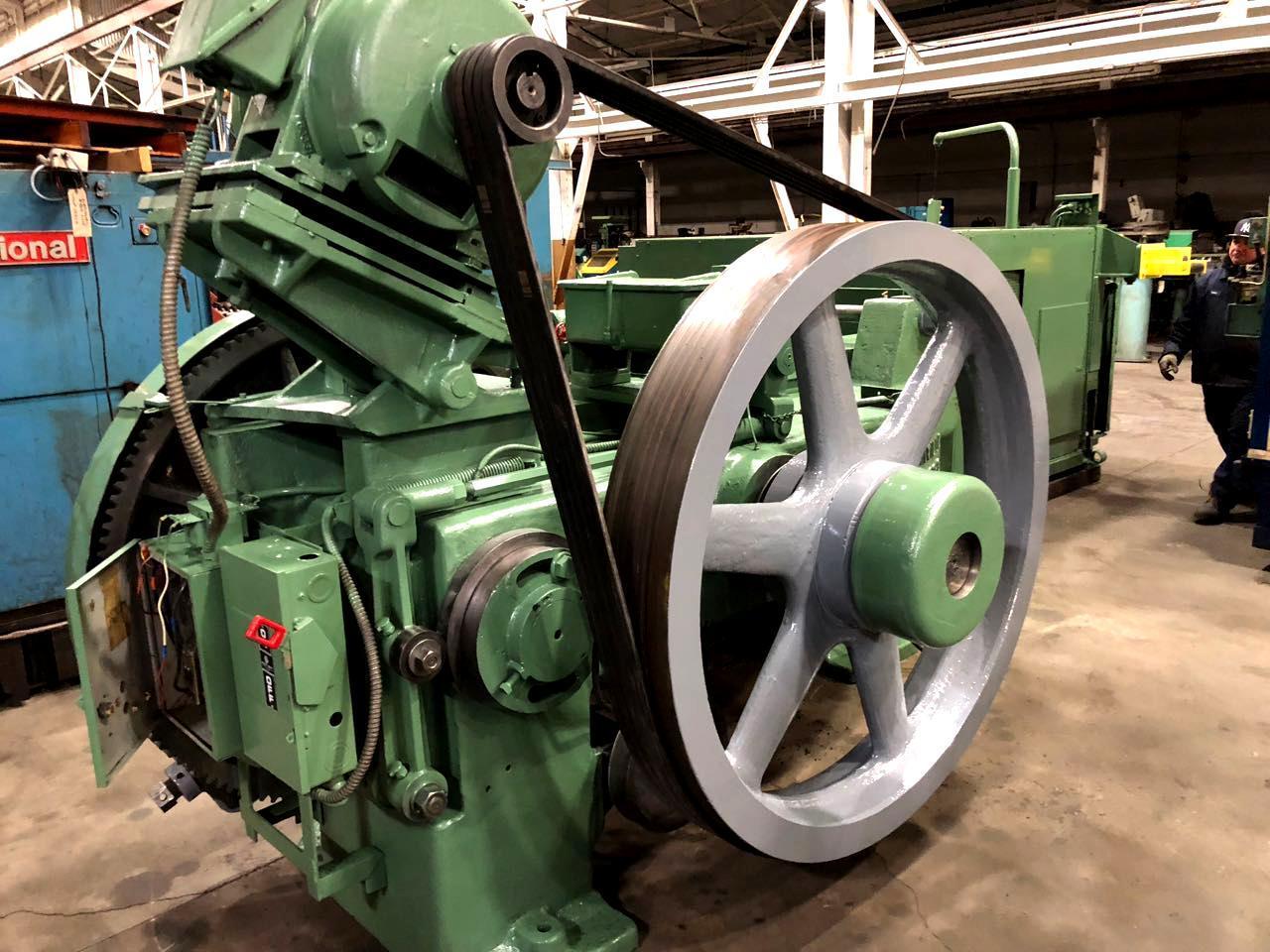

With Adjustable Pitman, Gravity Lubrication, V-Grooved Flywheel, 6-Pusher Bolts and 2 Pull Back Bolts on Die Block, Recirculating Coolant (Requires Reservoir)
