(1) USED 337,500 lbf (1,500kN) Instron Industrial KPX Series Model 1500kN-J3D, Two-Column Material Testing Load Frame.

Manufacturer

Instron

Category

Testing Equipment

Type

TESTERS, TENSILE

Stock

12633-08

Model

Model 1500kN-J3D

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

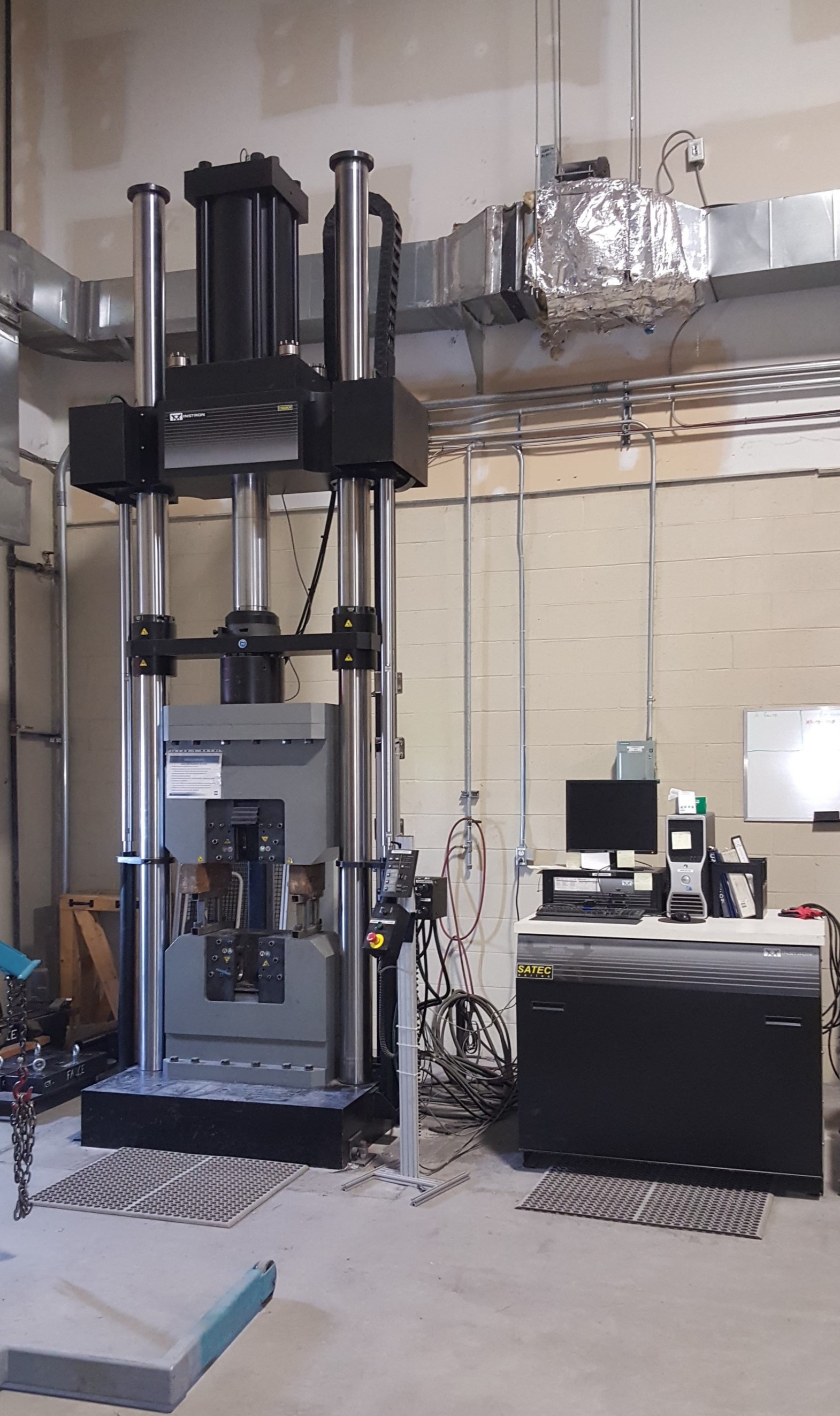

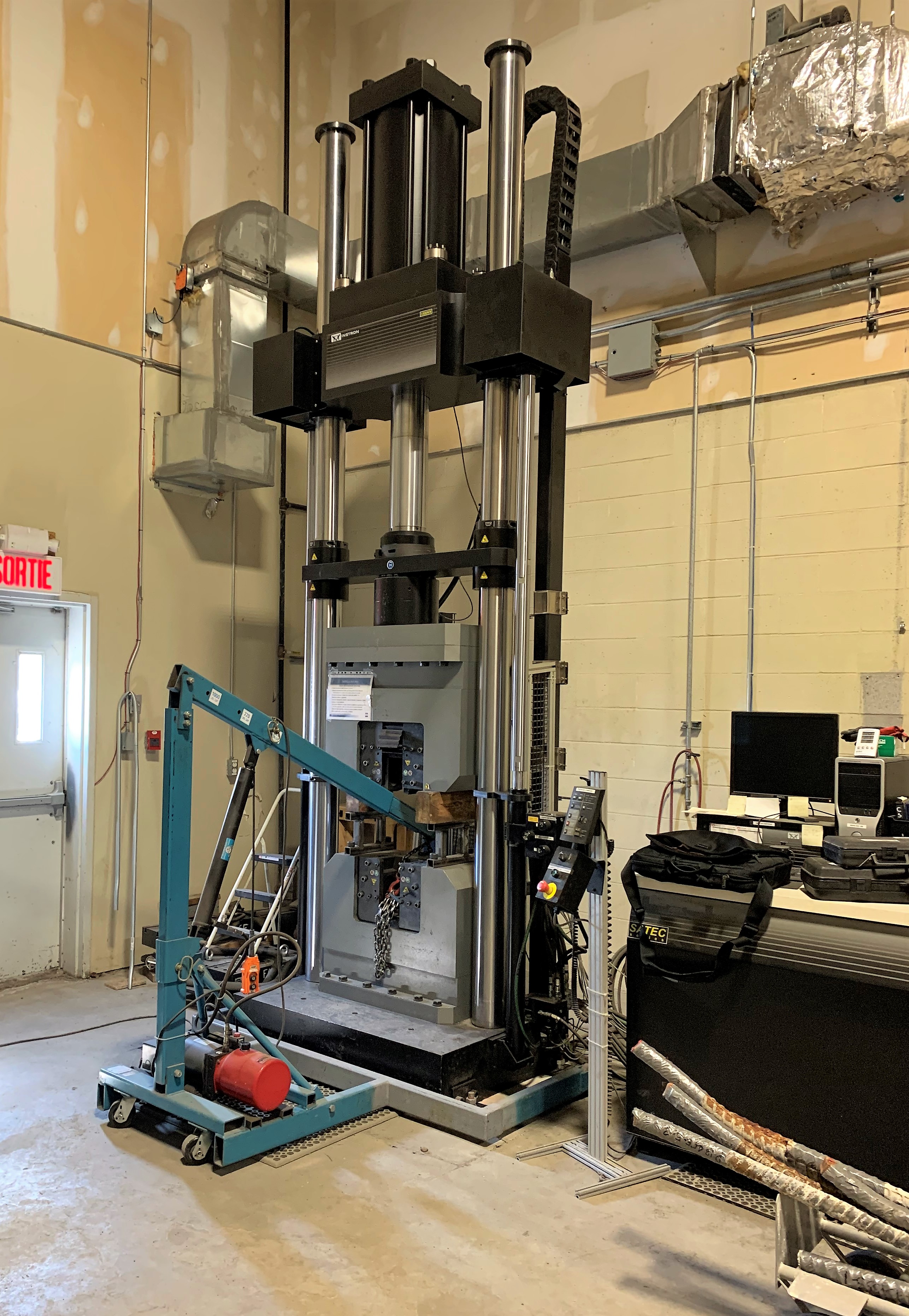

(1) USED 337,500 lbf (1,500kN) Instron Industrial KPX Series Model 1500kN-J3D, Two-Column Material Testing Load Frame.

Instron Model 1500kN-J3D
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 127"
Compression Testing Opening (Less Tooling): 127"
Distance Between Columns/Screws: 34.5"
Testing Stroke: 24"
Table Size (W x D): 34.5" x 37"
Testing Speed (IPM): .004 - 8
Crosshead Adjusting Speed (IPM): 8

Approximate Overall Dimensions:
Hydraulic Console (W x D x H): 48" x 37" x 41"
Load Frame (W x D x H): 67.5" x 37" x 180"
Weight (lbs.): 23,000
Electrical Requirements (V,Hz,PH): 460, 60, 3

EQUIPPED WITH:
Instron Servo-Hydraulic Power Supply Model # 1500KN-D7

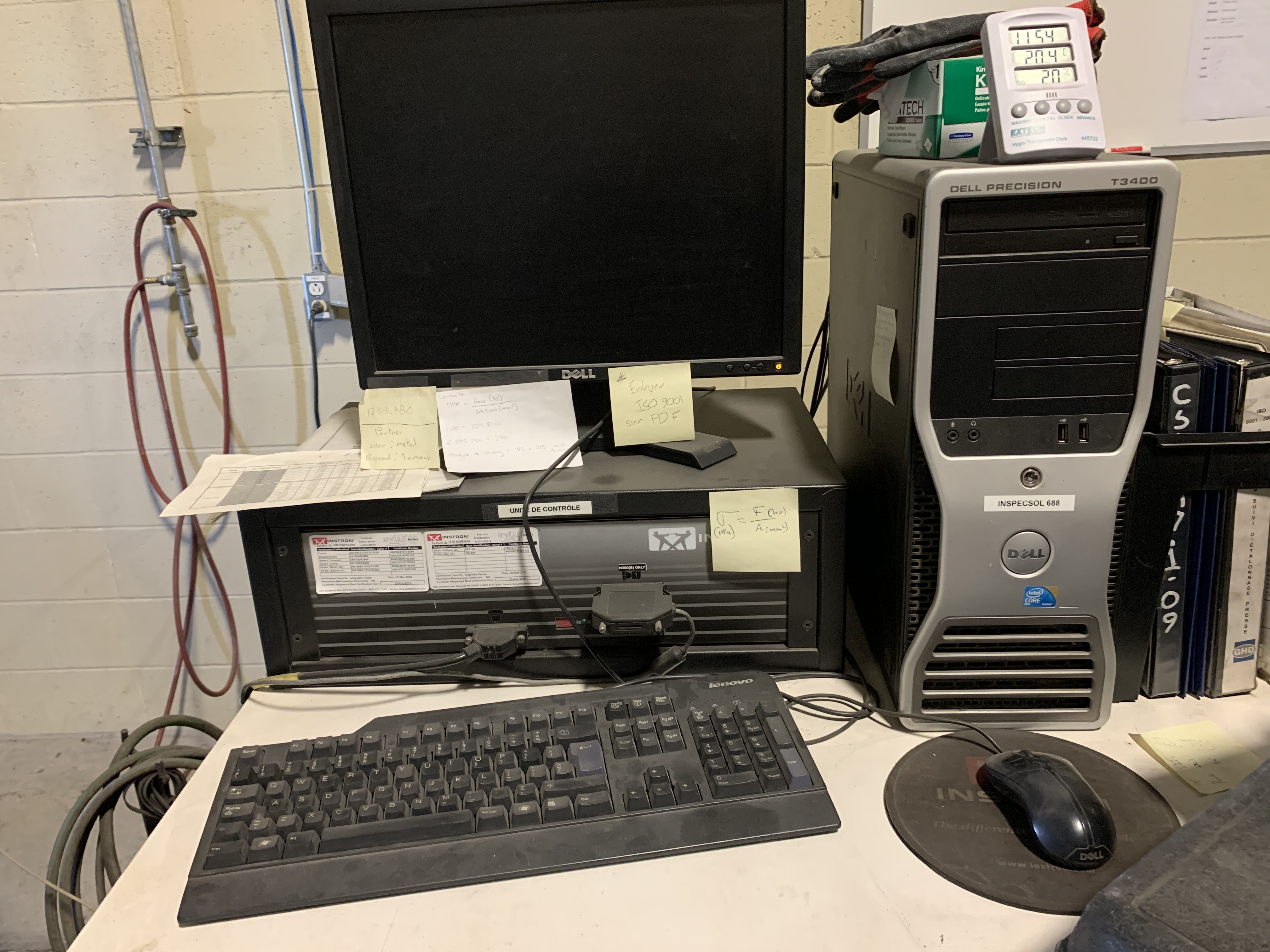

Ethernet Frame Interface with I-Series Controller
Instron PARTNER Material Testing Software Version 8.4D
Installation/Users Manuals and Software Discs for System and Accessories
Hydraulic Crosshead Lifts and Locks with Controls

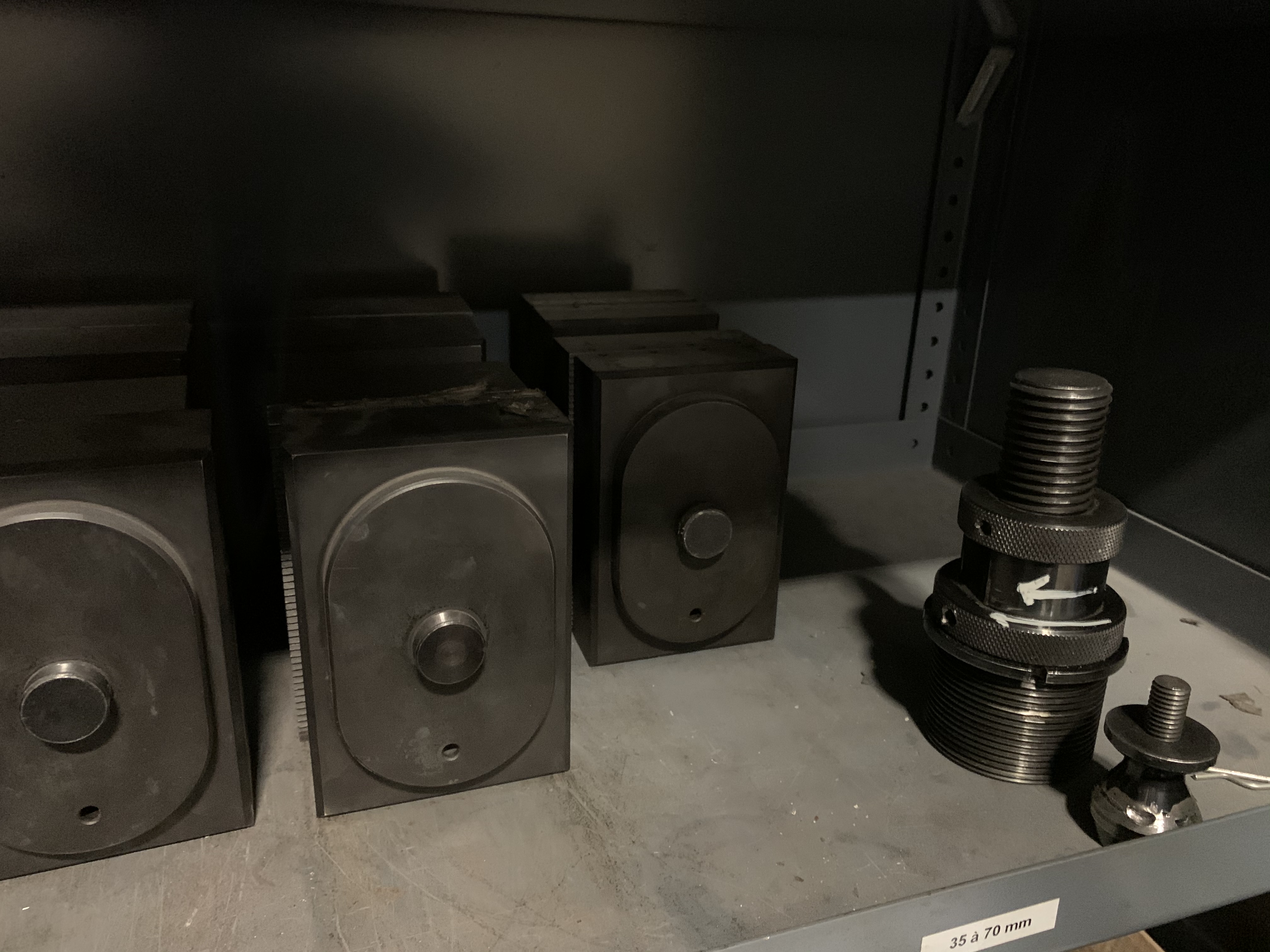

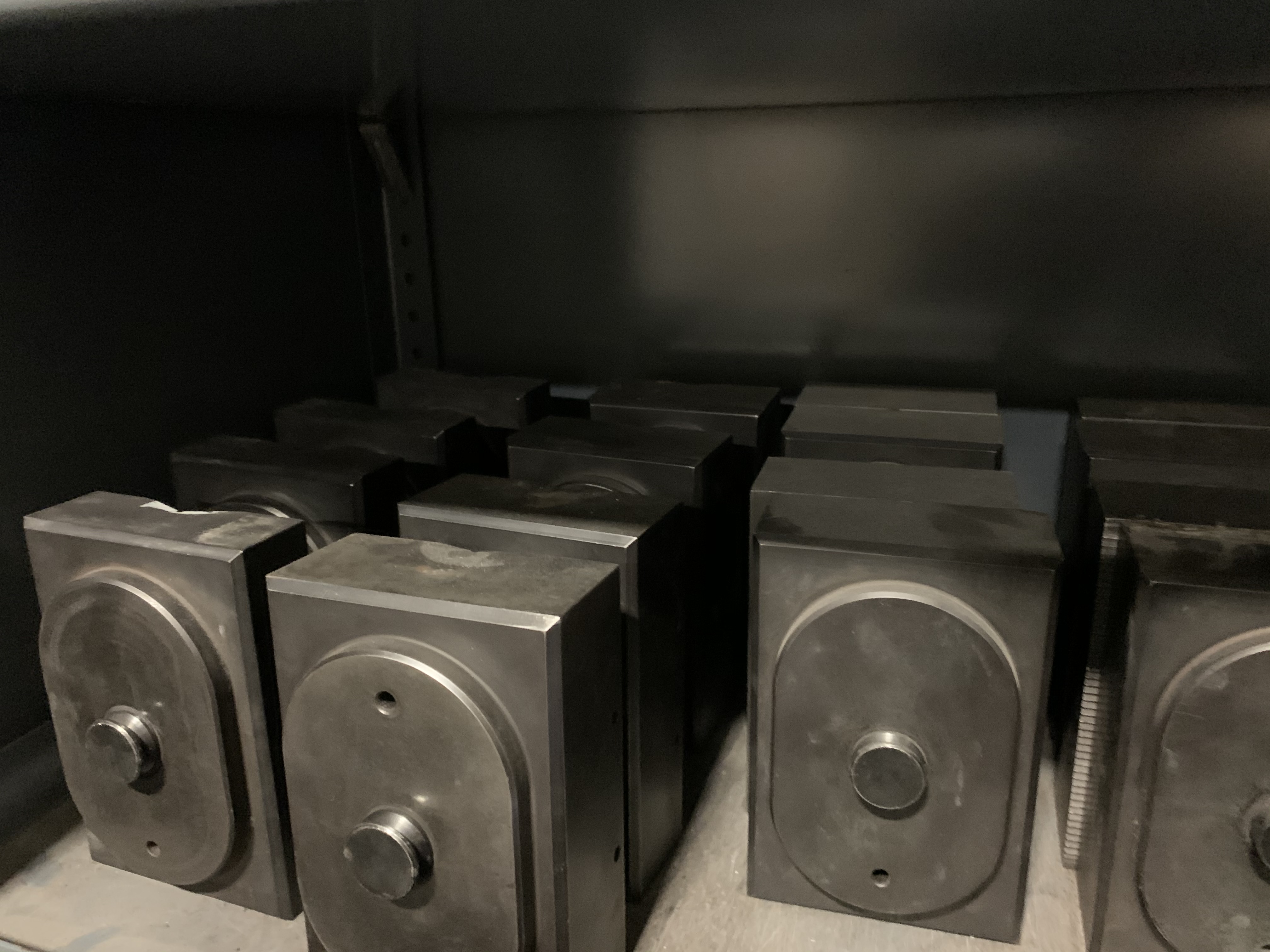

Hydraulic Wedge Action Grips Model #W-5330, 1500kN Capacity with Controller. Multiple Sets of Faces and Holders
(3) Axial Long Gauge Length Extensometers with Gauge Lengths Ranging from 6"- 24"
Various Bend Test Fixtures with ranges from 1mm - 12mm
Bolt Holders and Tooling up to 1000kN Capacity
Various Lower Capacity Mechanical Wedge Grips


FOB Warren MI
Cleaned, Serviced, Cycled
30 Day Satisfaction Guaranteed Return Privilege
*Actual Images Prior to Cleaning and Servicing
