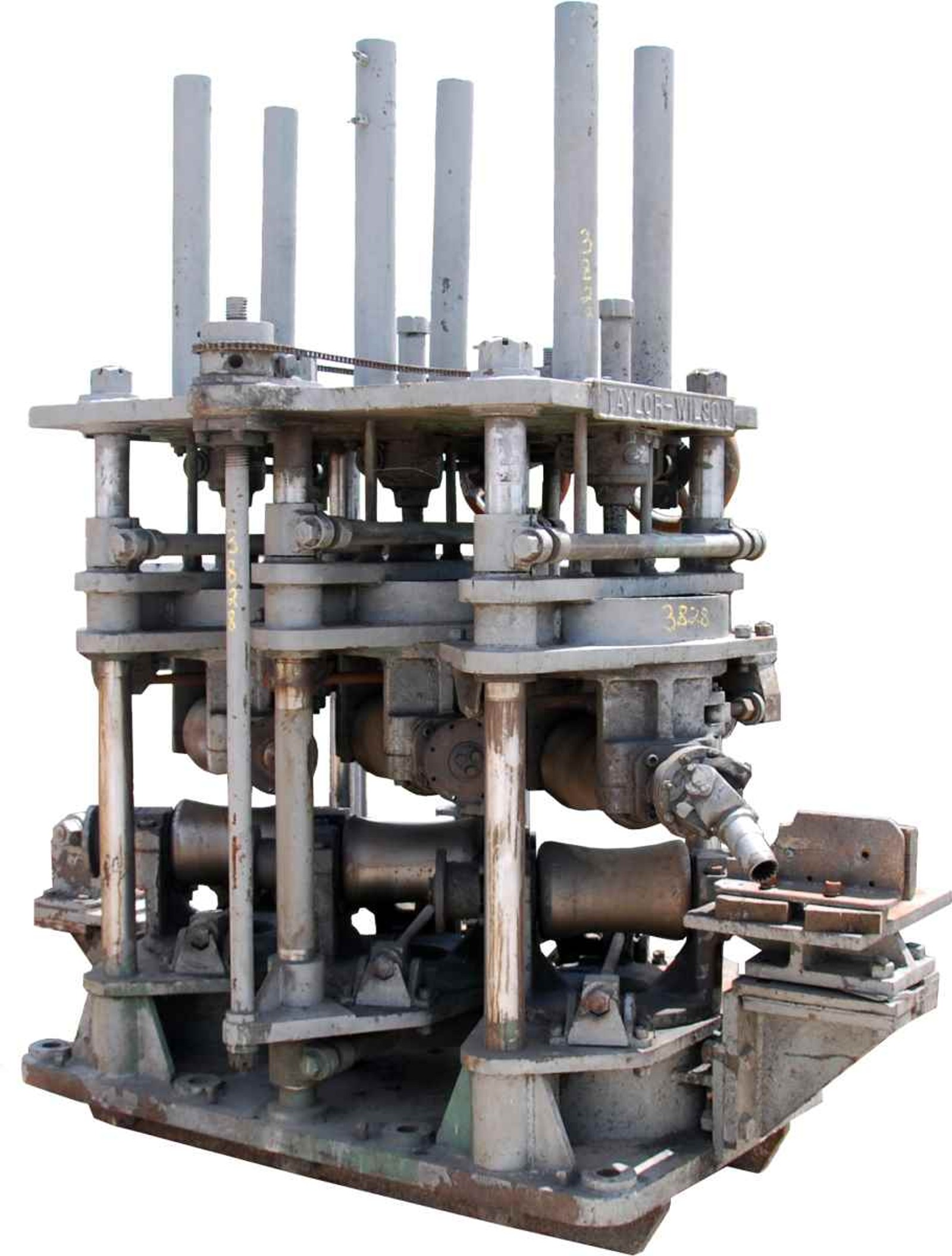

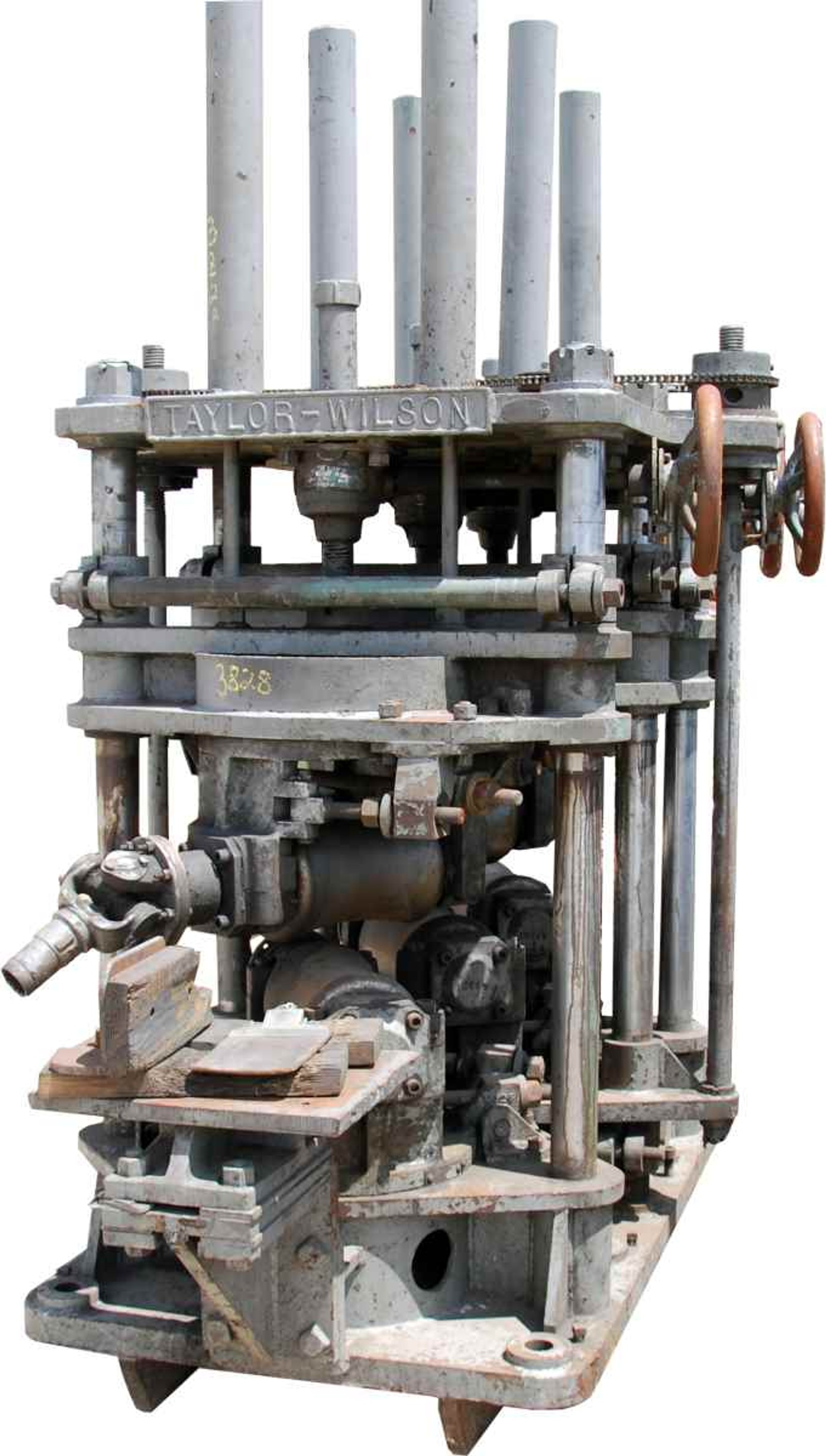

5" TAYLOR WILSON Tube Straightener

Stock

3828

Model

None listed

Dealer Location

Ohio

Spec Sheet

Stock #3828
Serial #E5544-23
OD Range: 3"-5" (76.2 - 127mm)
Speed: Up to 80 FPM
Roll Size: Center Diameter: 6-1/2" (165.1 mm)
Length: 12" (304.8 mm)

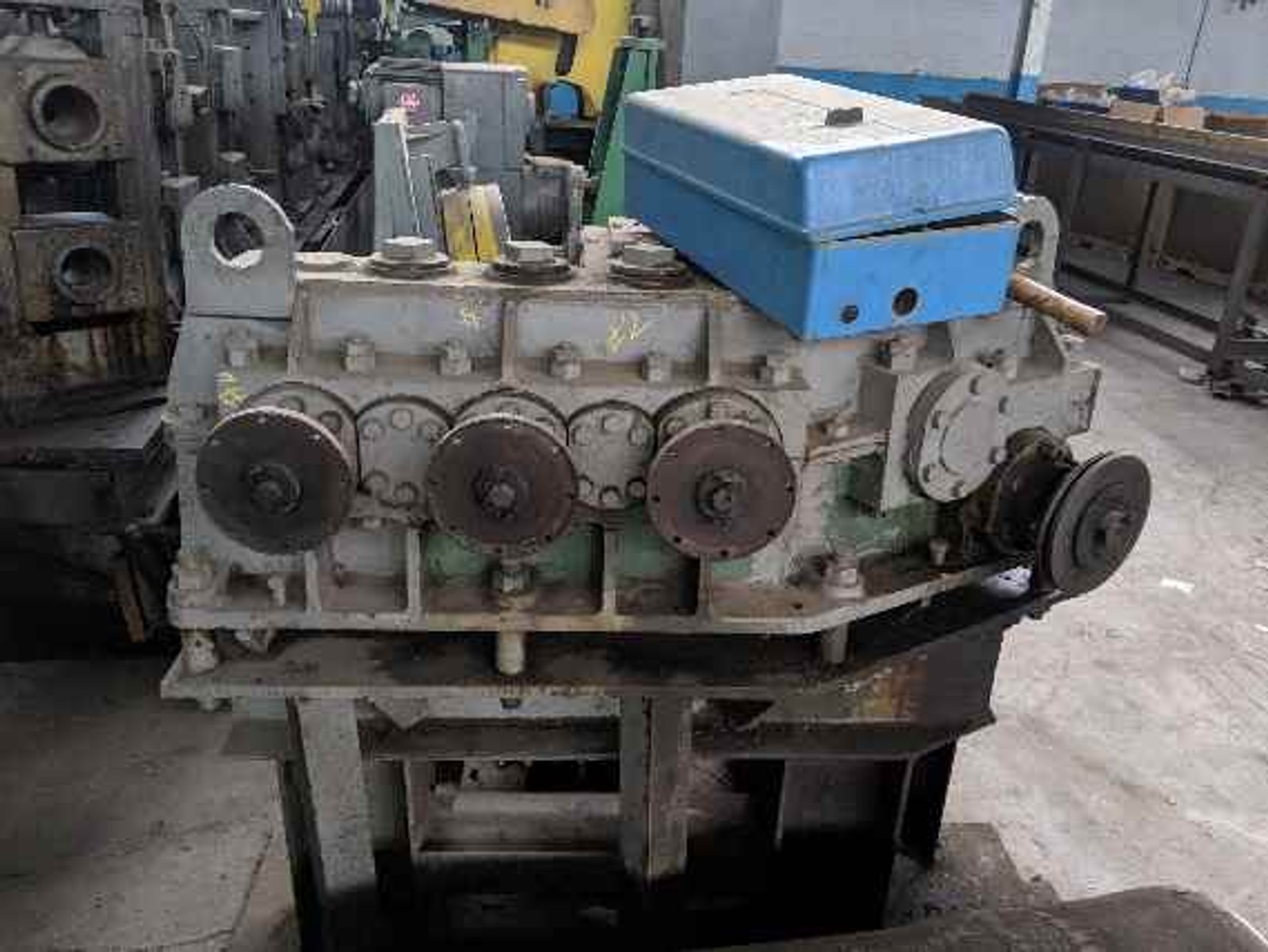

Equipped with: Top (3) Rolls Have Vertical Adjustment, All (6) Rolls Have Controls for Offset Arrangement of Rolls and Splitter Box Driving Individual Roll Through Universal Shafts
Dimensions: 54" x 96" x 90"
Approx Weight: 5500 Lbs
Location: Universal Warehouse, Perrysburg, Ohio
