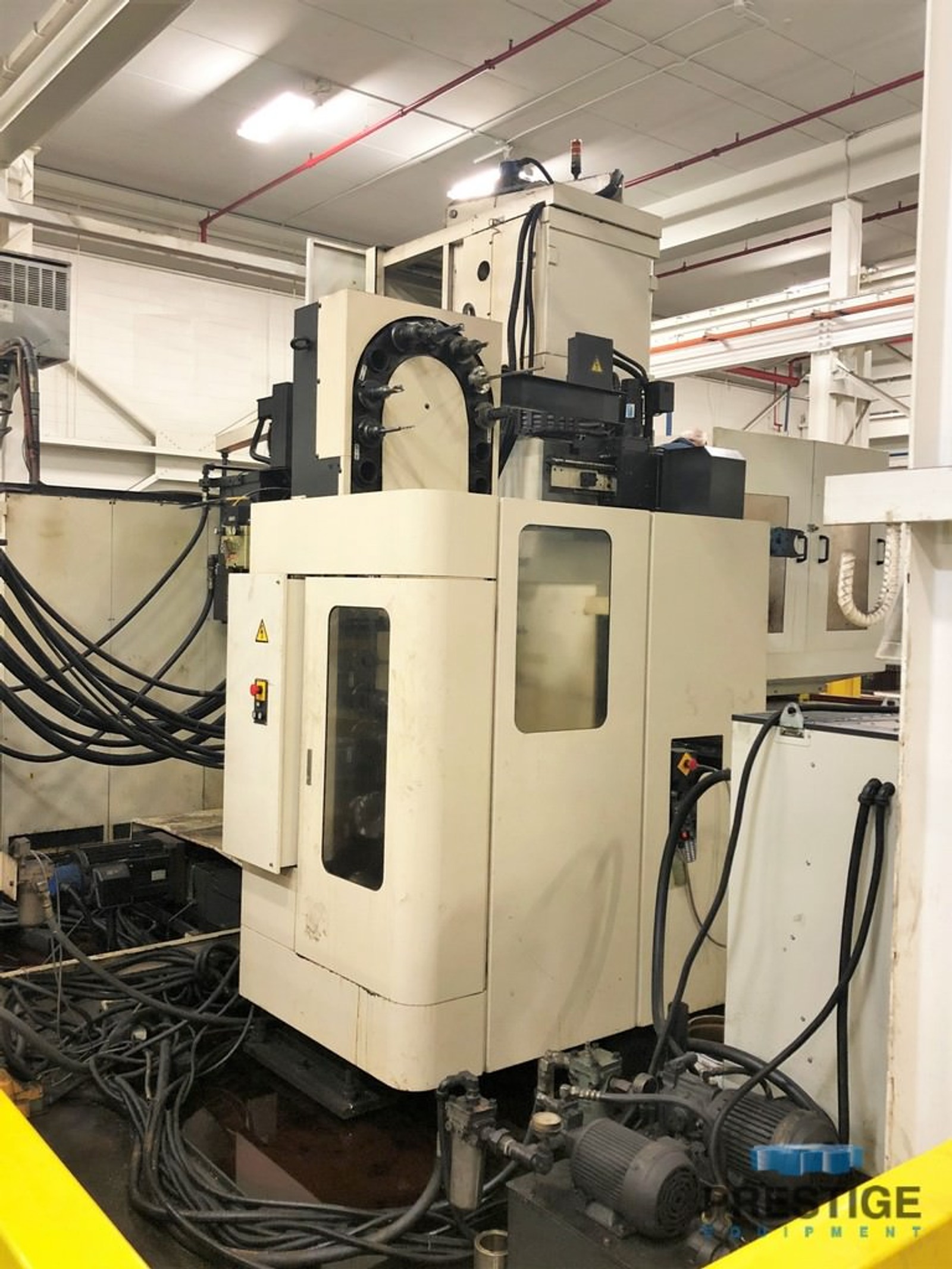

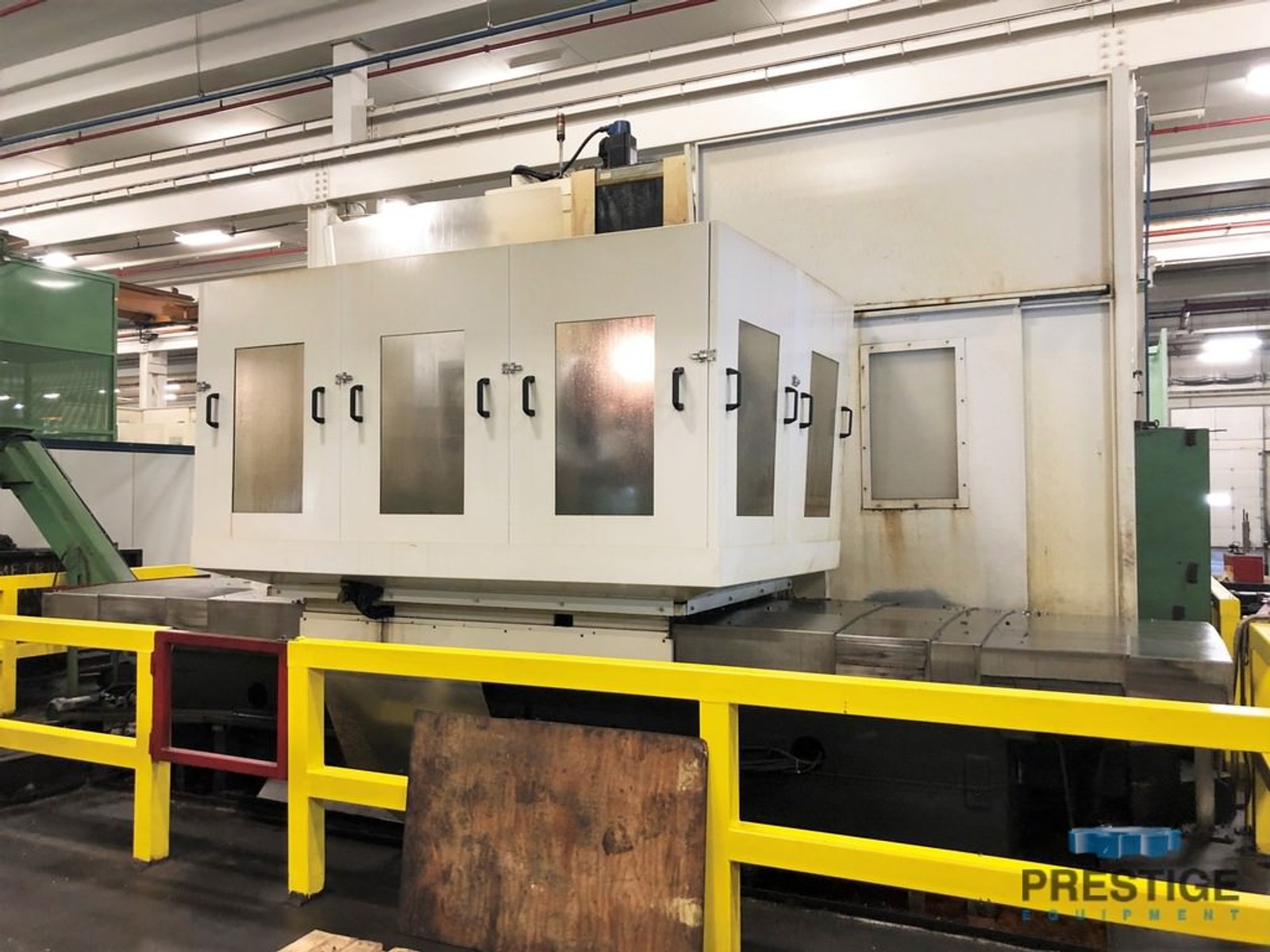

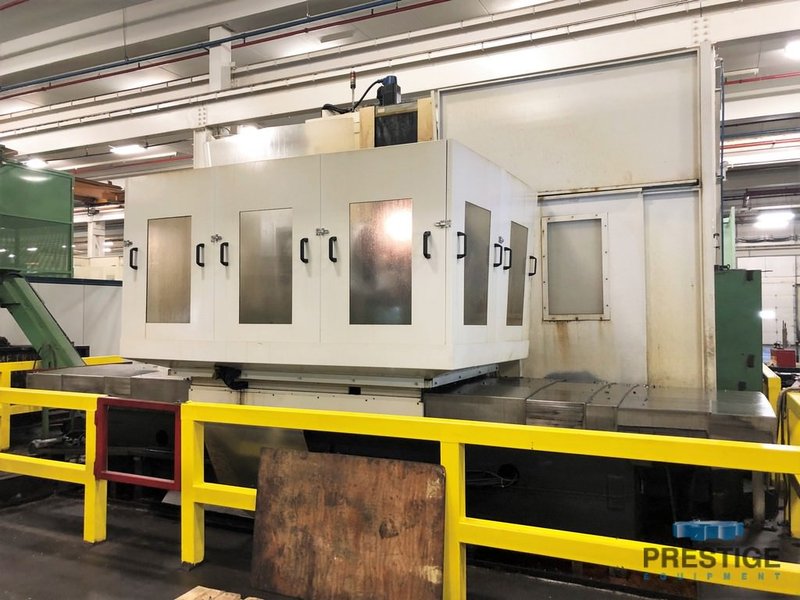

4.33" Toshiba BP-110-P20, Tosnuc 888, X-100", Y-65",TSC, 38-ATC, 3K RPM, B-Axis Table, #31014

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

31014

Model

BP-110.R20

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31014

Toshiba BP110-P20 4.3" CNC Table Type Horizontal Boring Mill

FEATURES:

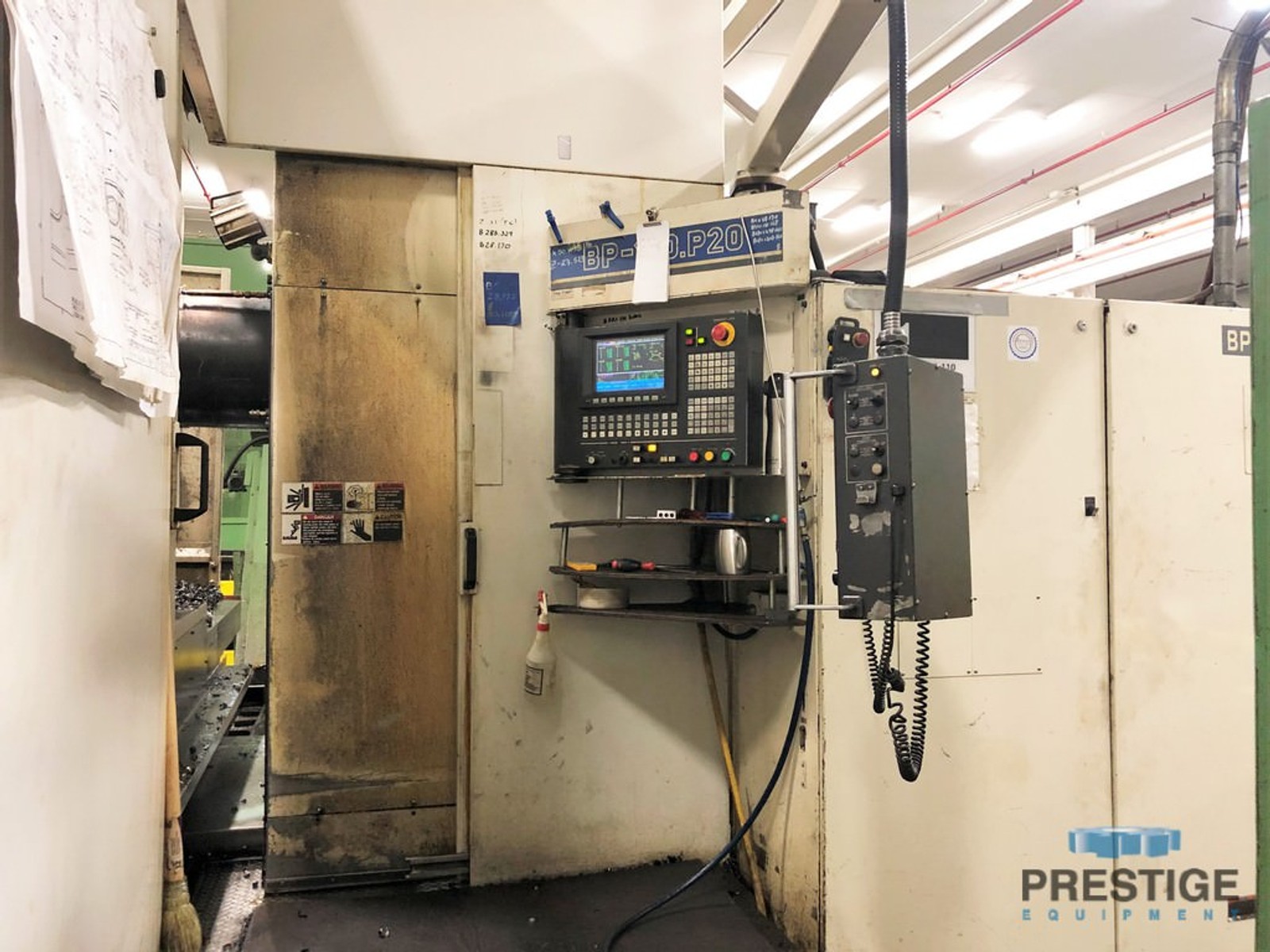

Tosnuc 888 CNC Control
38-Station Automatic Tool Changer
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
59" x 39" Delken SCNI-100 CNC Rotary Table
Through Spindle Coolant
Hardened & Ground Ways Box Ways
Way Covers on X,Y & Z Axes
40 HP / 30 HP Spindle Drive Motor
Chip Conveyor

CAPACITY:
Spindle Diameter ...................... 4.33"
Milling Spindle Nose Diameter ......... 8.85"
Spindle Taper ......................... #50 ISO
Vertical Head Travel, Y ............... 65"
Table Travel, X ....................... 100"
Column Infeed, Z ...................... 45"
Spindle (Quill) Travel, W ............. 20"
Table Size ........................... 80" x 55"
Table Size ............................ 59" x 39" Rotary Table
Spindle Speeds ........................ 5-3000 RPM
Table Load Capacity ................... 40,000 Lbs
Rapid Traverse: X,Y,Z Axes ............ 472.4 IPM
Rapid Traverse: W Axes ................ 196.9 IPM
Feed Rate: X,Y,Z Axes ................. 0.04 to 236.2 IPM
Feed Rate: W Axis ..................... 0.04 to 196.9 IPM
Power Source (65 KVA) ................. 200/220V 50/60 HZ
Floor Space ........................... 289.4" x 259.8"
Overall Height ........................ 162.8"

EQUIPPED WITH:
Tosnuc 888 CNC Control
38-Station Automatic Tool Changer
Ballscrews & Independent Servo Drives
80" x 55" T-Slotted Plain Table
59" x 39" Delken SCNI-100 CNC Rotary Table
Hardened & Ground Ways Box Ways
Through Spindle Coolant
Way Covers on X,Y & Z Axes
40 HP / 30 HP Spindle Drive Motor
Chip Conveyor
