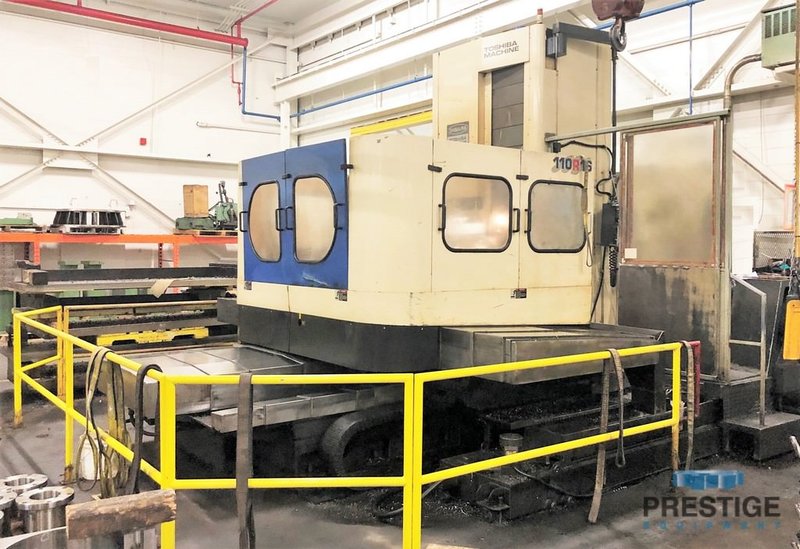

Toshiba BTD-110.R16, 4.3"" Spdl, X-78", Y-59.", Z-19.7", W-57", 63"x 55" Tbl, .001 Deg, 2500 RPM, Tosnuc 888, #31013

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

31013

Model

BTD-110.R16

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31013

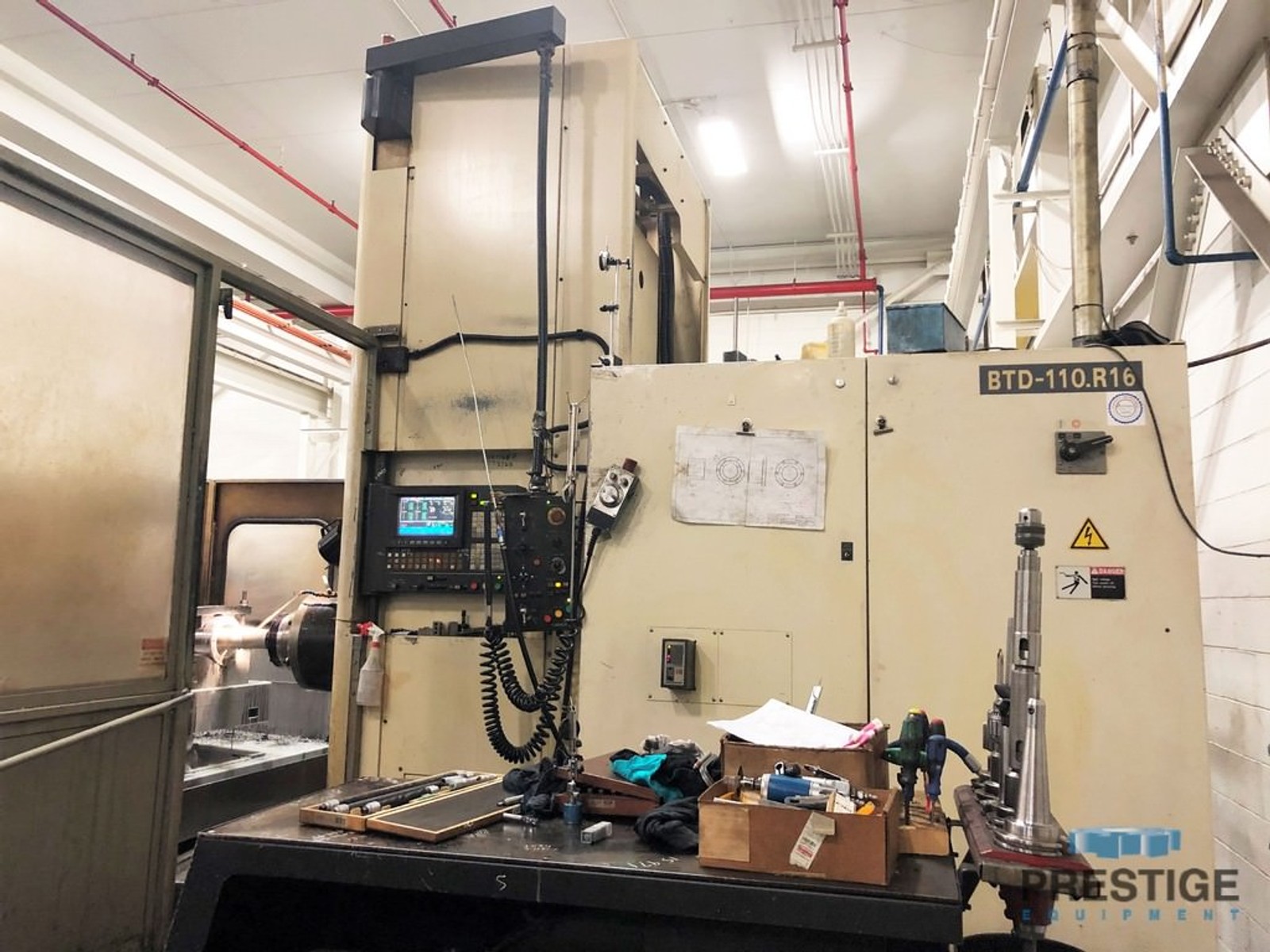

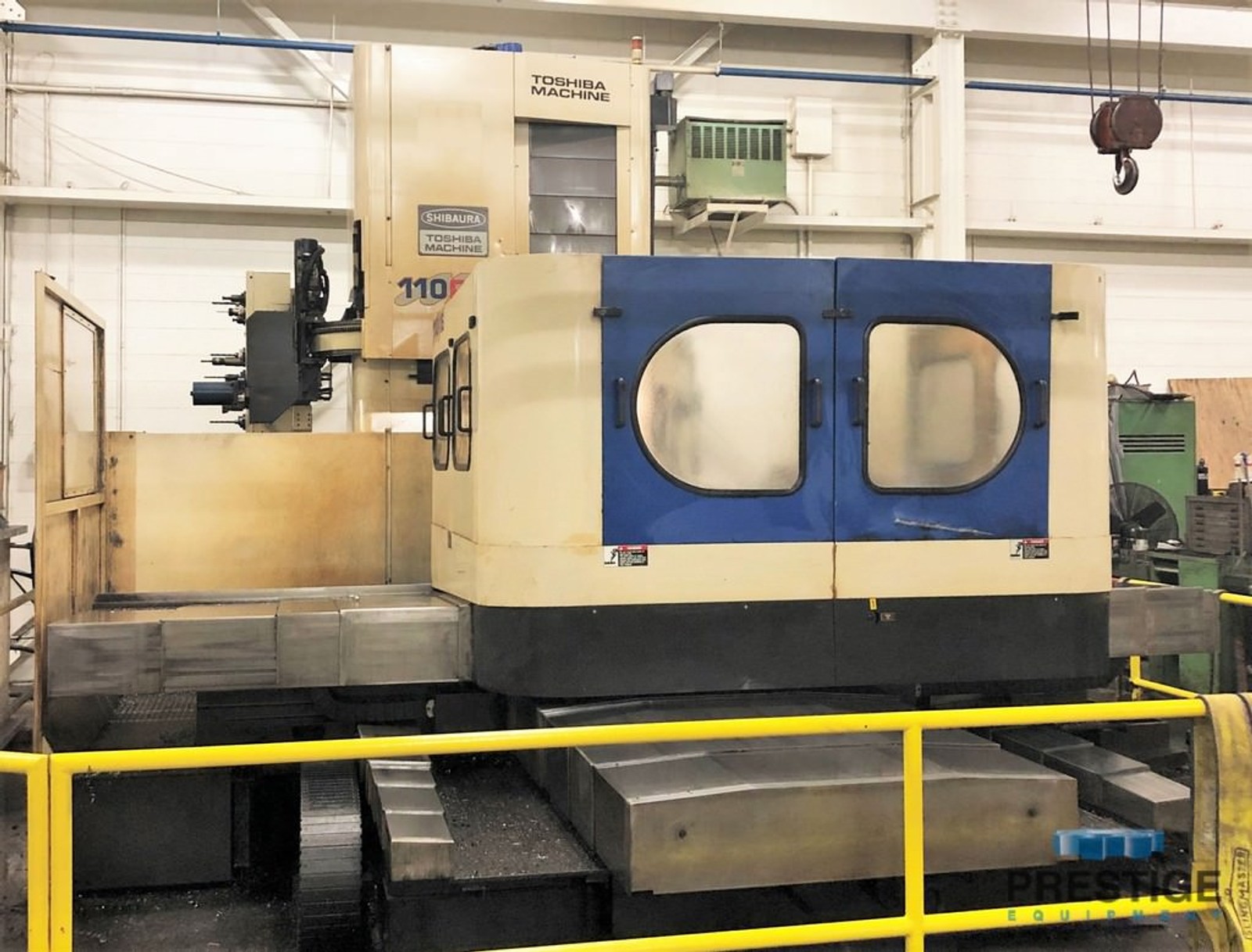

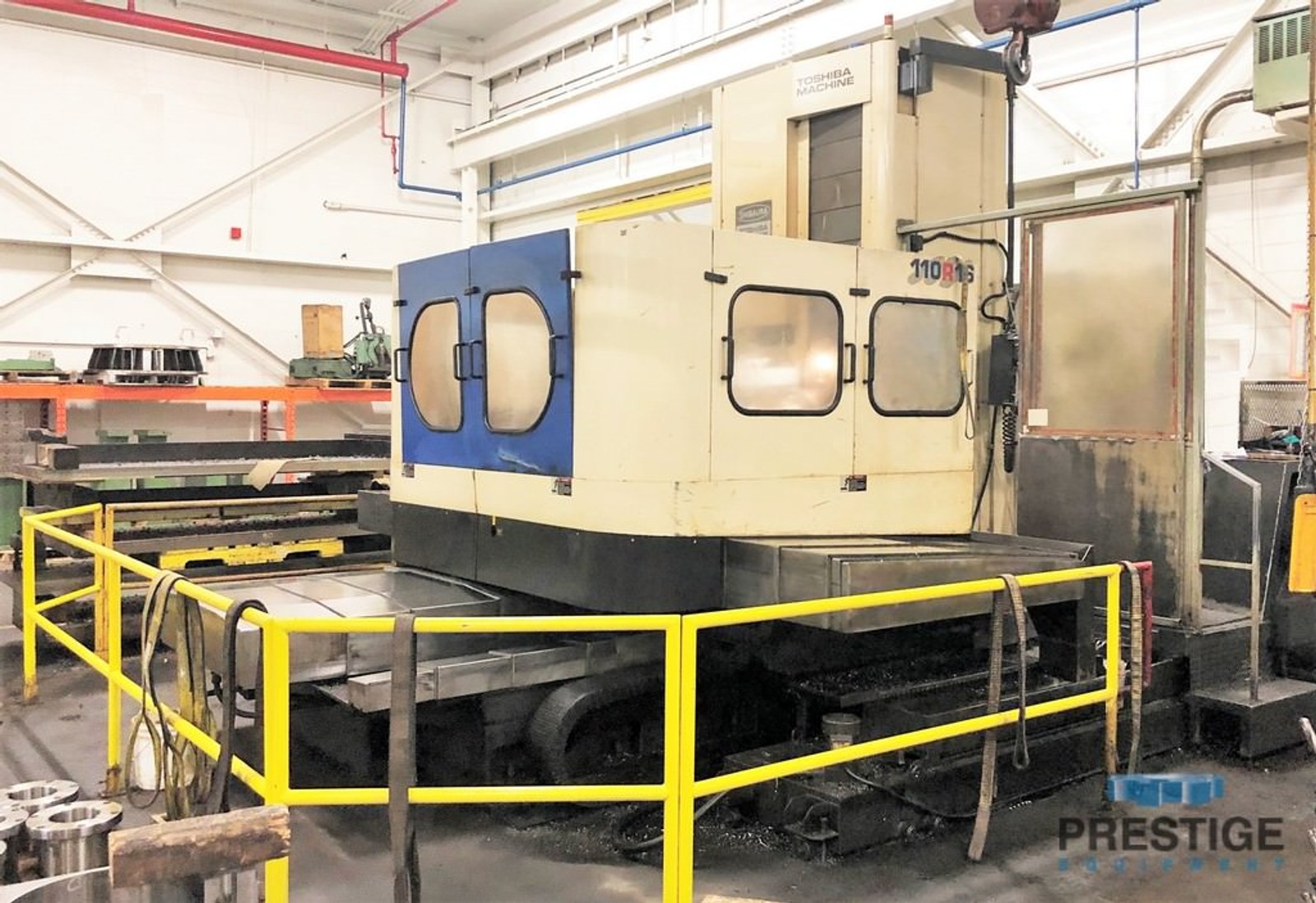

Toshiba BTD-110R.16 CNC Table Type Horizontal Boring Mill

FEATURES:

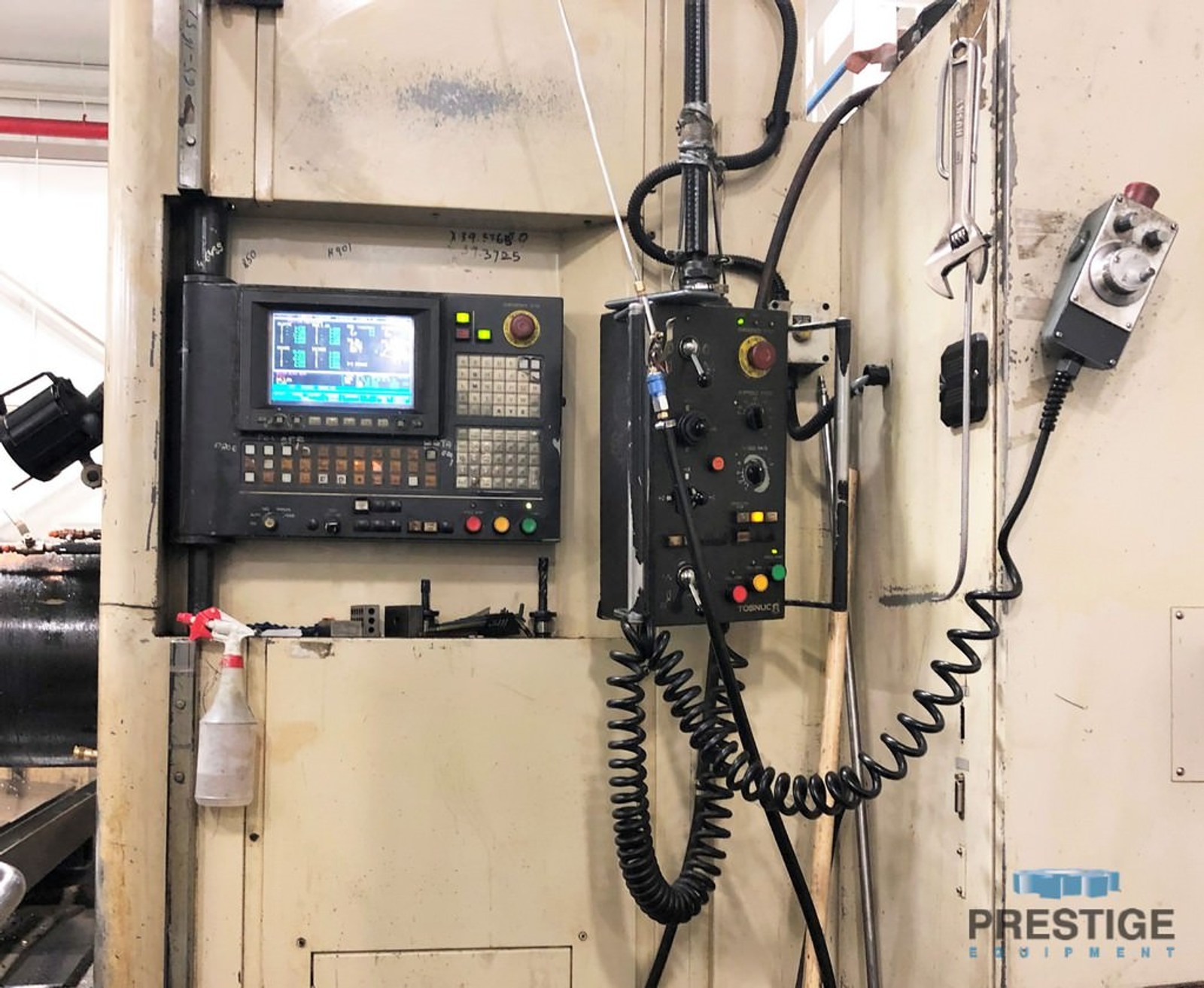

Tosnuc 888 CNC Controls
55" x 63" Full B-Axis Rotary Table

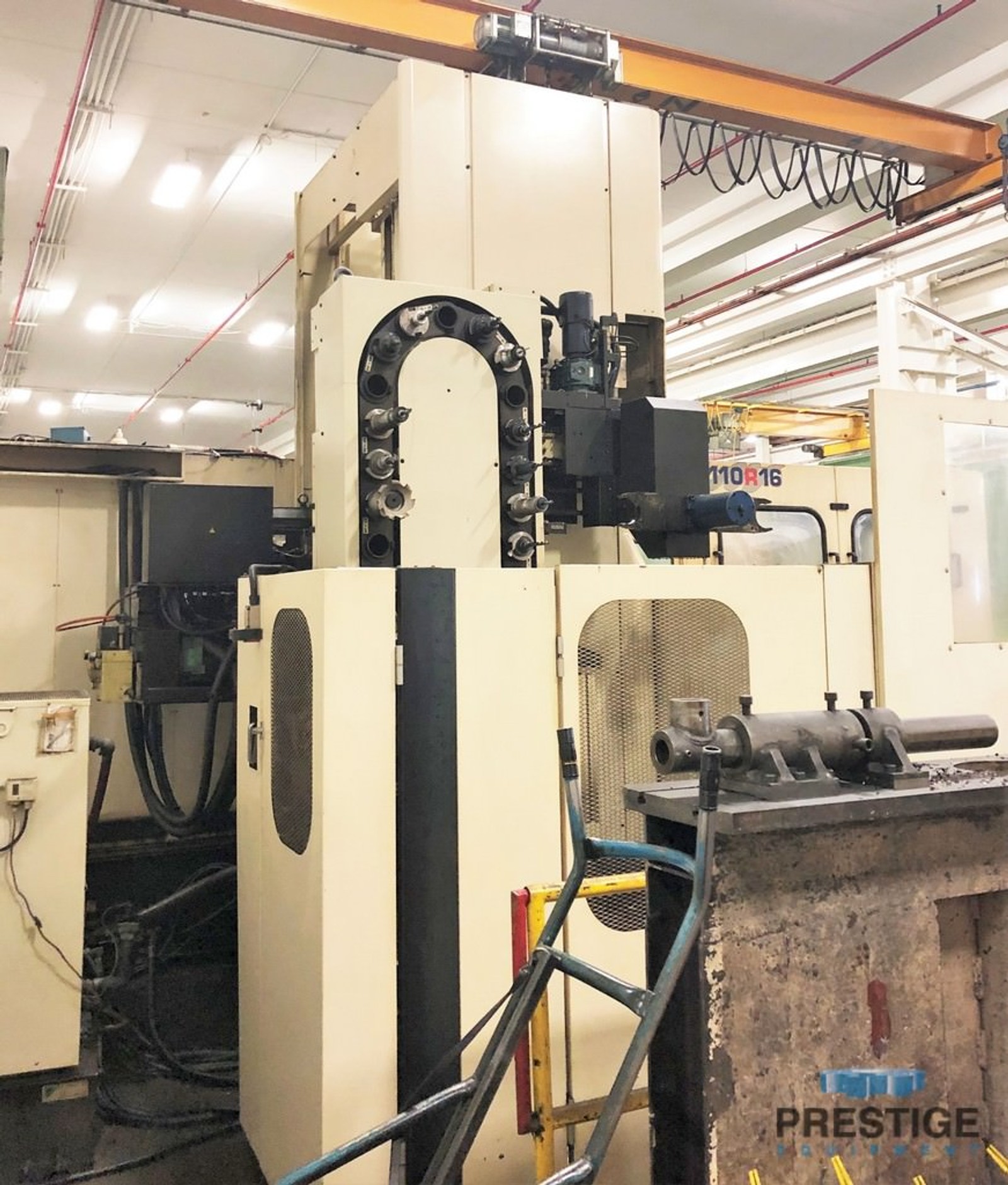

38-Station Automatic Tool Changer
Marposs Probing System
Coolant System & Splash Guards
Full Enclosures
Chip Conveyor

CAPACITY:
Spindle Diameter ...................... 4.3"
Milling Spindle Diameter .............. 8.86"
Spindle Taper ......................... #50
Vertical Head Travel, Y-Axis .......... 59"
Table Cross Travel, X-Axis ............ 78.74"
Spindle Travel, Z-Axis ............... 19.71"
Saddle Travel, W-Axis ................ 57.08"
Rotary Table Size ..................... 55" x 63"
Table Index ........................... 0.001 Degree
Feed Rates ............................ .04-236.2 IPM
Rapid Traverse ........................ 394 IPM
Table Load Capacity ................... 13,860 LBS
Spindle Speeds (3 Ranges) ............. 5-2500 RPM
Floor Space ........................... 202" x 242.5"
Machine Weight ........................ 63,800 LBS

EQUIPPED WITH:
Tosnuc 888 CNC Control
55" x 63" Full B-Axis Rotary Table
38-Station Automatic Tool Changer
Marposs Probing System
Coolant System & Splash Guards
Full Enclosures
Chip Conveyor
30 HP / 25 HP Spindle Drive Motor

NOTE:
Inspect In Plant Under Power!
