Waldrich Coburg 5-Face, Gantry Type, X-669", Y-181" , BC 149" 787" x 78" Table, 3K RPM, Siemens 840D #31010

Manufacturer

WALDRICH

Category

Milling Machines

Type

MILLERS, PLANER TYPE (Including Millers, Slab)

Stock

31010

Model

15-10 GM 300 NC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31010

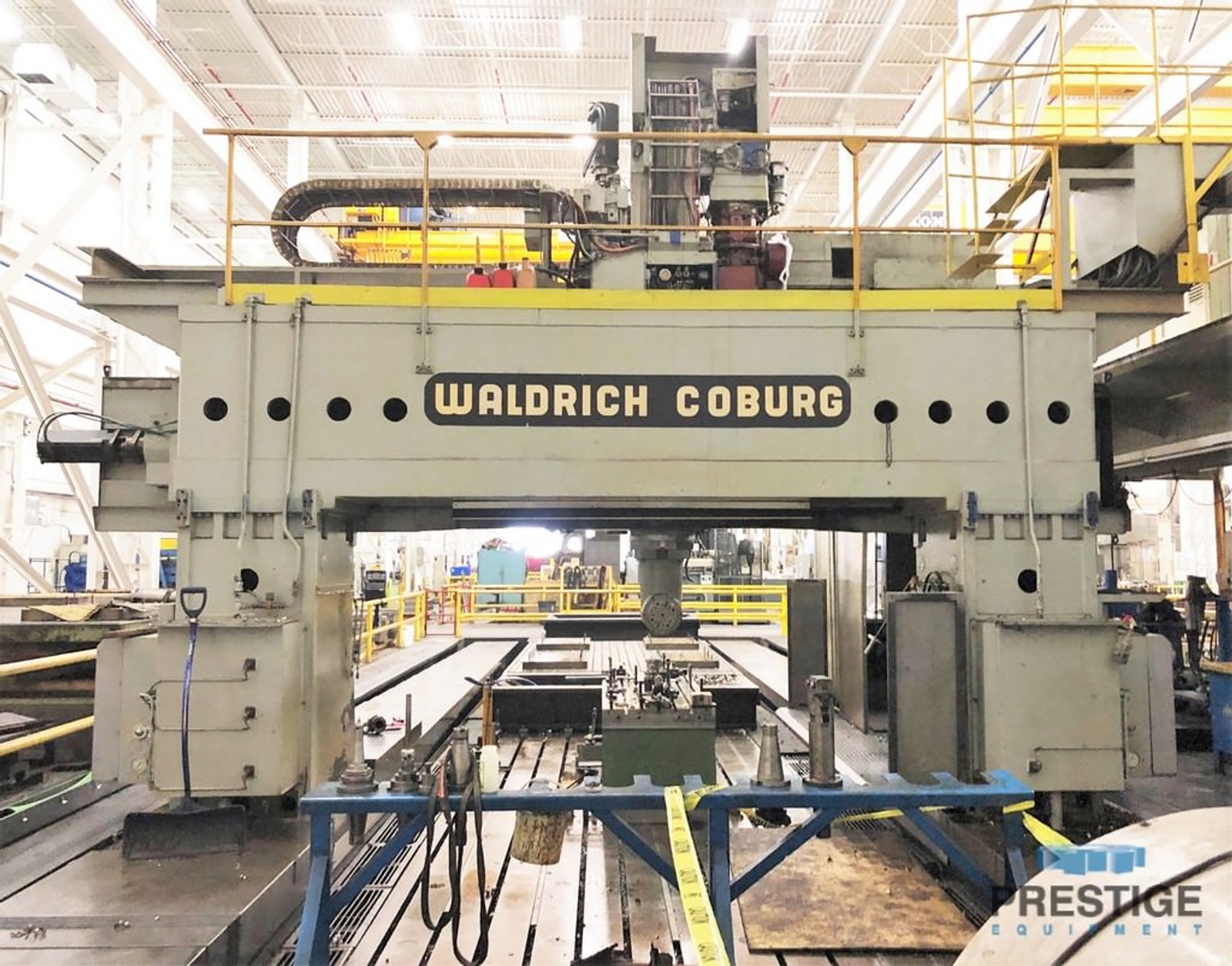

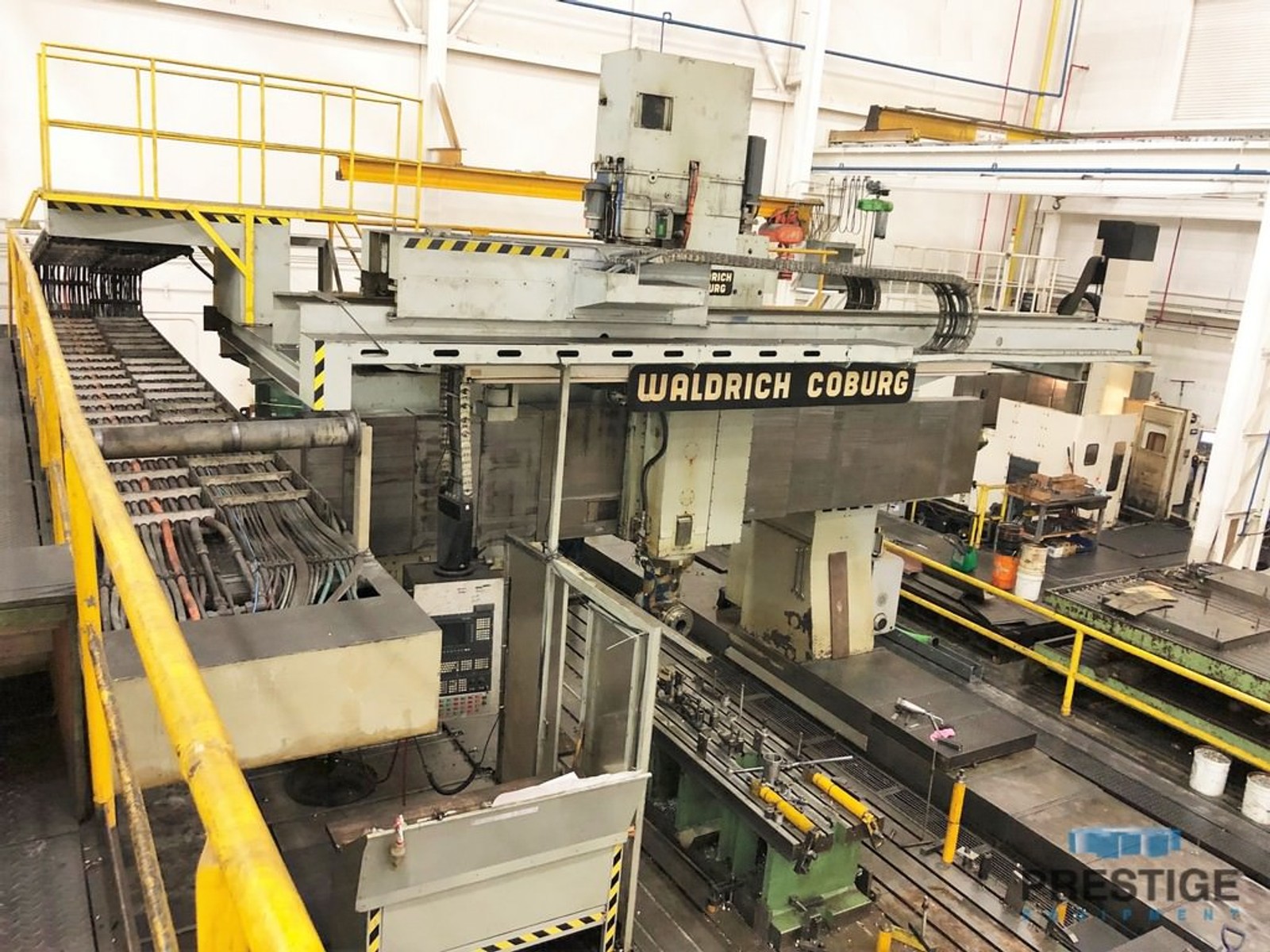

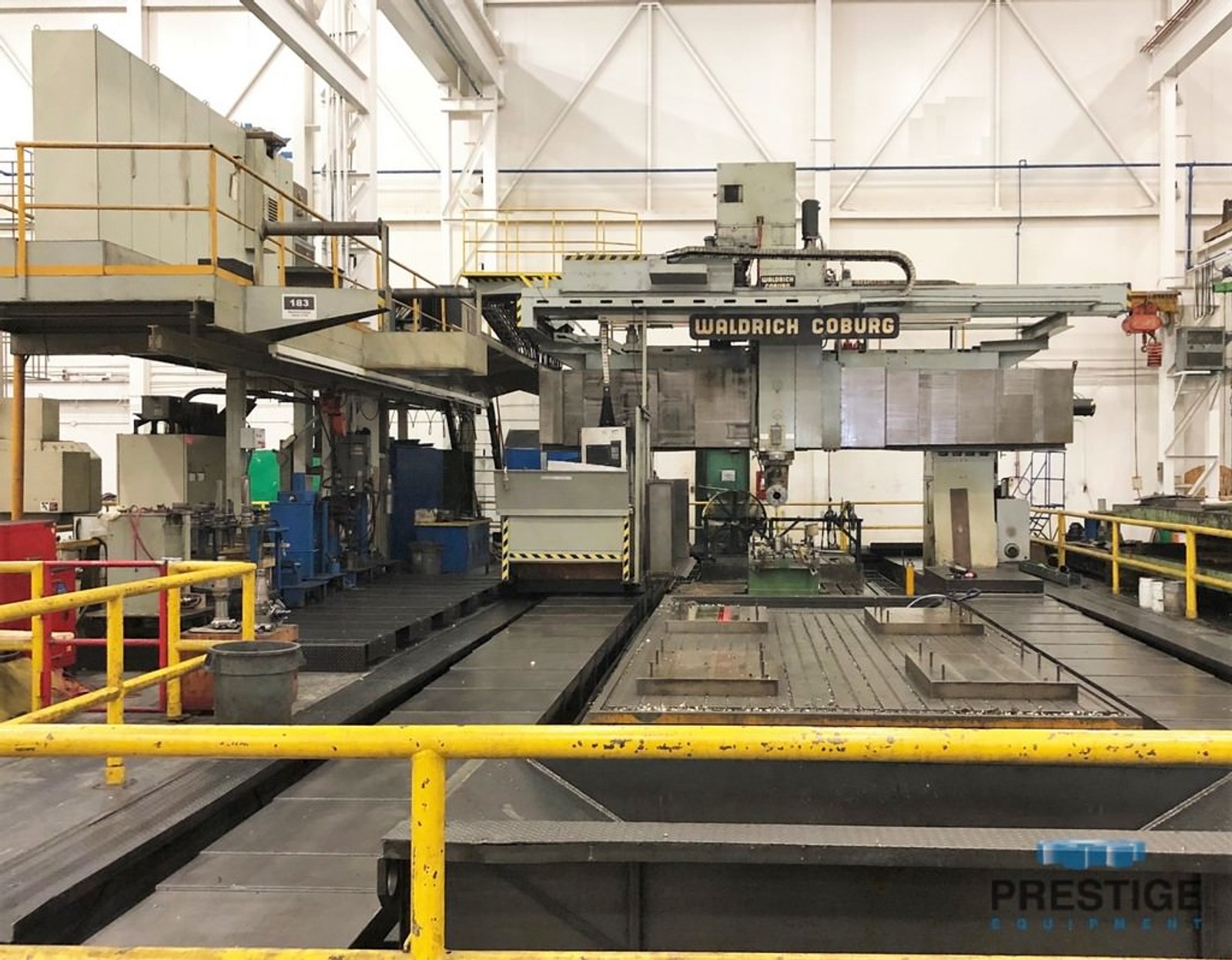

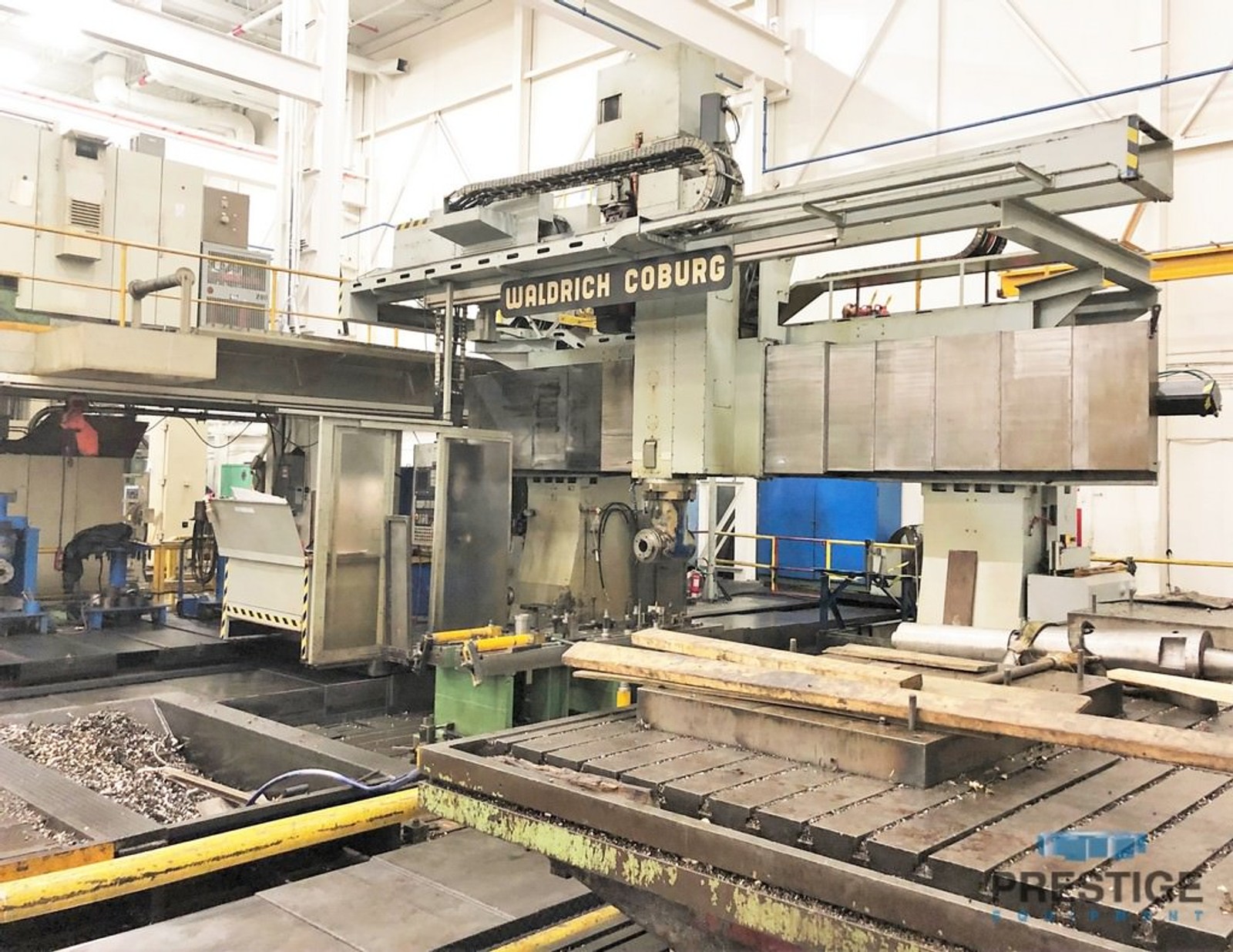

Waldrich Coburg CNC Gantry Mill

Features:

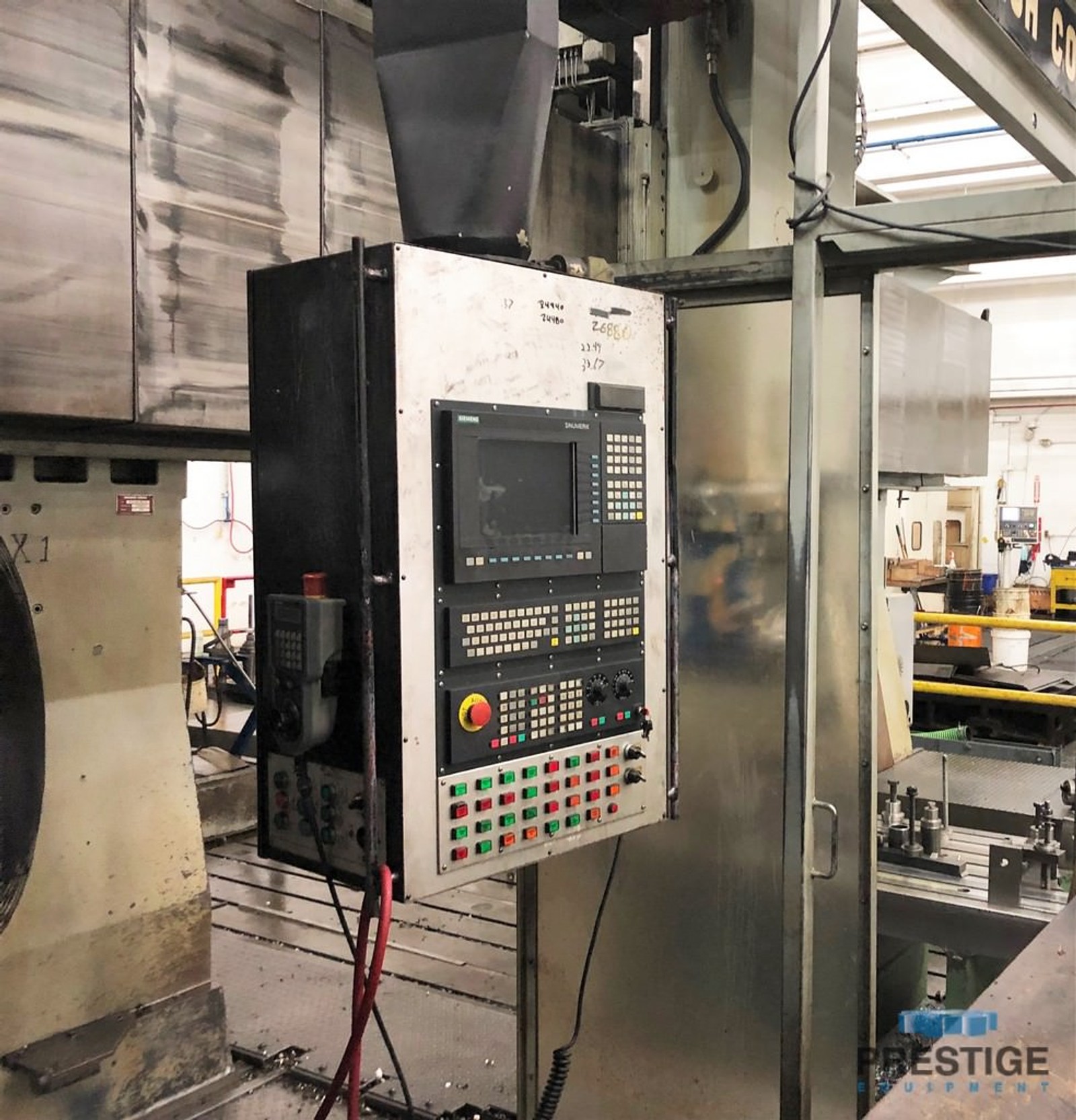

Siemens 840D CNC Control (Retrofit 2013)
Right Angle Head with Auto Indexing
Rigid Tapping
New Control, All New Wiring, New Electrical Cabinets
Heidenhain Glass Scales on All Axis

CAPACITY:
Gantry Travel, X-Axis ................. 669"
Head Travel, Y-Axis, .................. 181"
Ram Stroke, Z-Axis .................... 59.05"
Distance Between Columns .............. 149.6"
Distance Table To Ram Face ............ 90.55"
Table Size ............................ 78.74" x 787"
Spindle Taper ......................... #50
Spindle Speeds, 2-Ranges .............. 3000 RPM
Spindle Motor .........................

EQUIPPED WITH;
Siemens 840D CNC Control (Retrofit 2013)
Right Angle Head with Auto Indexing
Rigid Tapping

NOTE:
New Control, All New Wiring, New Electrical Cabinets
Heidenhain Glass Scales on All Axis
