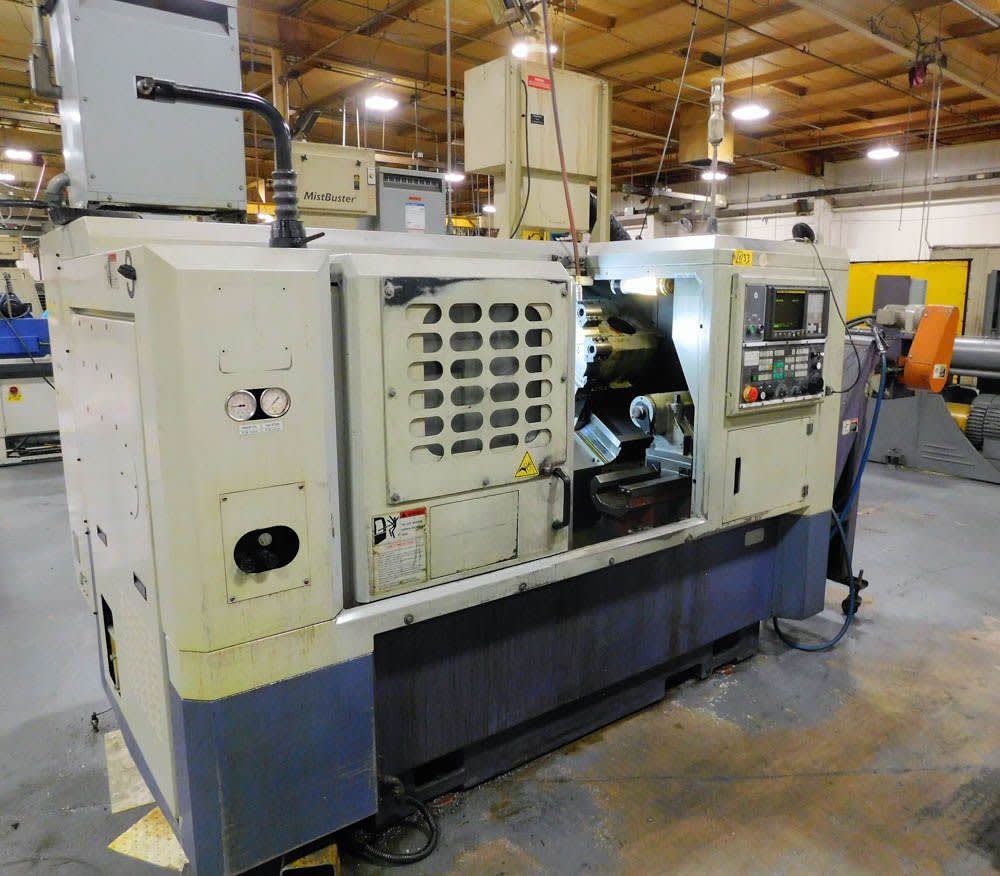

2003 HWACHEON Hi-Tech 200C - CNC Horizontal Lathe

Manufacturer

HWACHEON

Category

Lathes

Stock

13054

Model

Hi-Tech 200C

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 0i-T
Chuck Size - 10 inches
Swing - 19.69 inches
Turning Diameter - 13.78 inches
Center Distance - 24.05 inches
Bar Capacity - 3 inches
X Axis Travel - 7.68 inches
Z Axis Travel - 25.98 inches
Rapid Traverse (X/Z) - 1181 IPM
Spindle Speed (RPM) - 3500
Main Motor - 20 HP

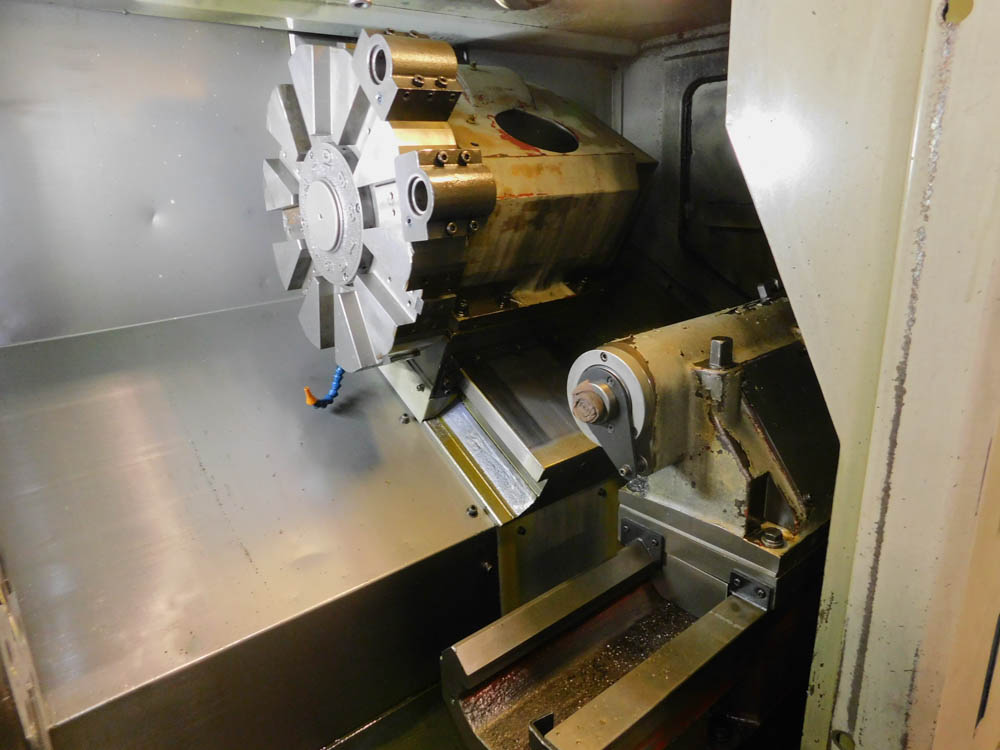

Turret Capacity - 10
Tailstock - yes
Y Axis - no
Dimensions - 108" x 69" x 69 "
Weight - 10000 pounds

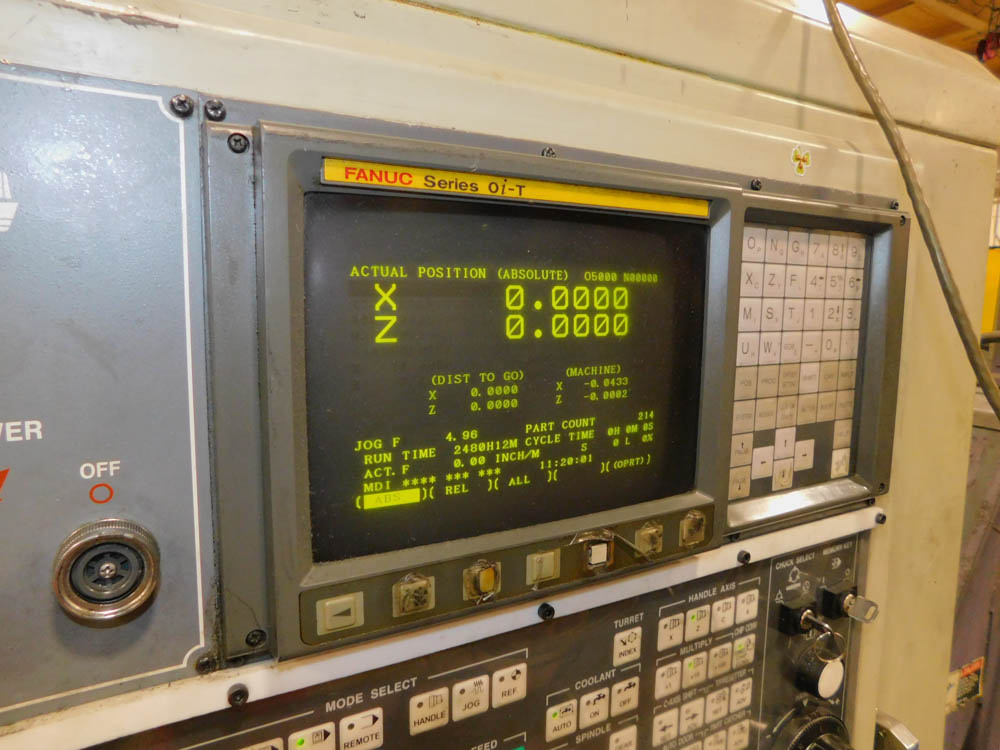

- Fanuc 0i-T Control

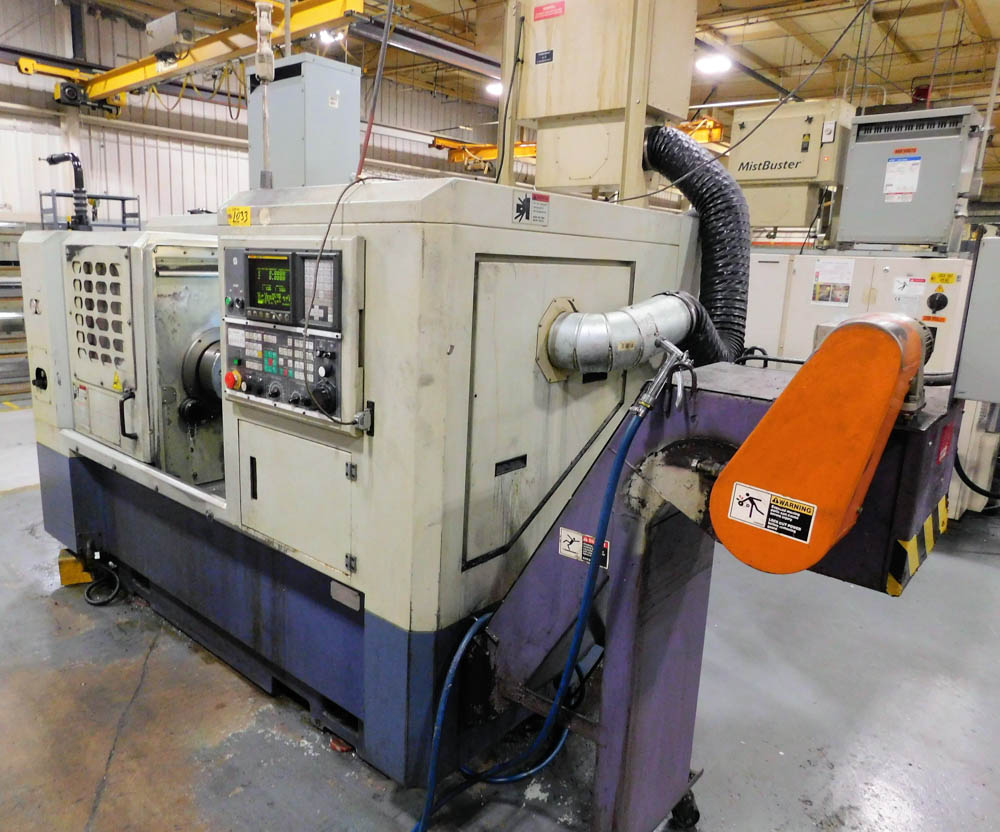

- Chip Conveyor
- Coolant Tank

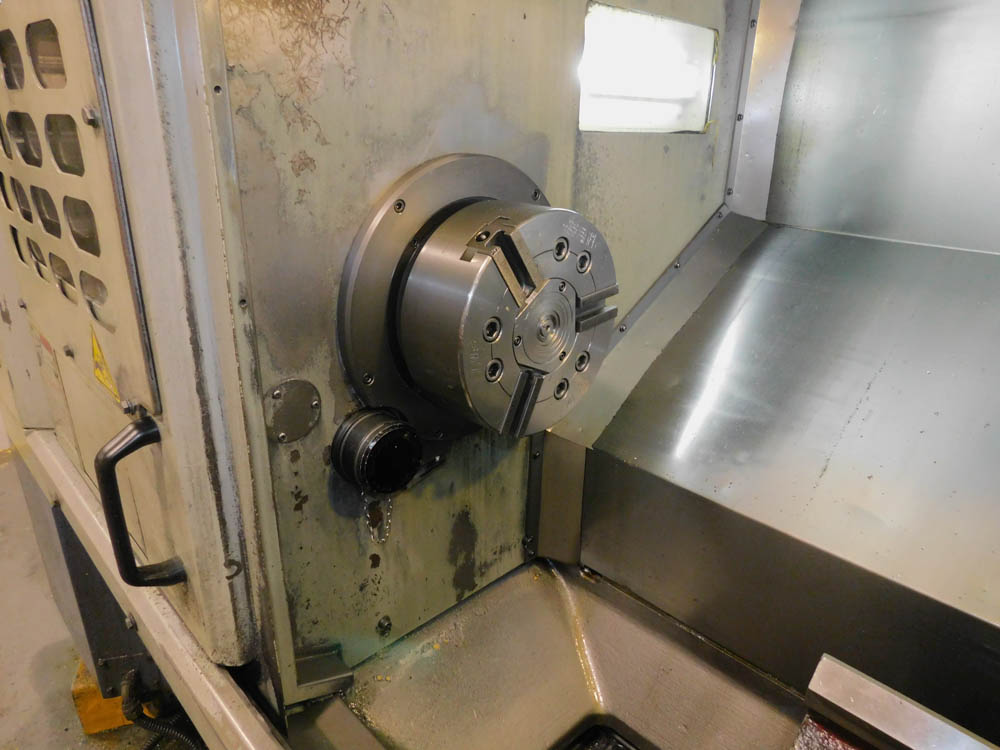

- 10" Hydraulic 3 Jaw Chuck
- Tailstock



No Video Available
