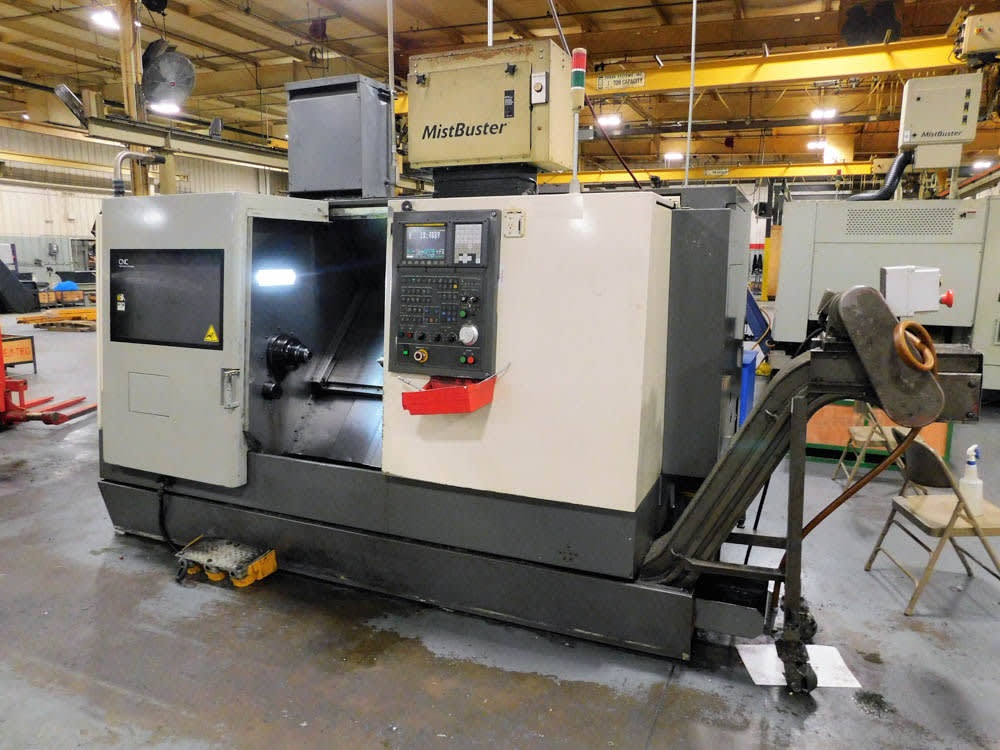

2005 HWACHEON Cutex 240 - CNC Horizontal Lathe

Manufacturer

HWACHEON

Category

Lathes

Stock

13051

Model

Cutex 240

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 0i-TB
Swing - 22.8 inches
Turning Diameter - 15 inches
Center Distance - 23.6 inches
Bar Capacity - 2 inches
X Axis Travel - 8.47 inches
Z Axis Travel - 27.56 inches
Spindle Speed (RPM) - 5000
Main Motor - 20 HP

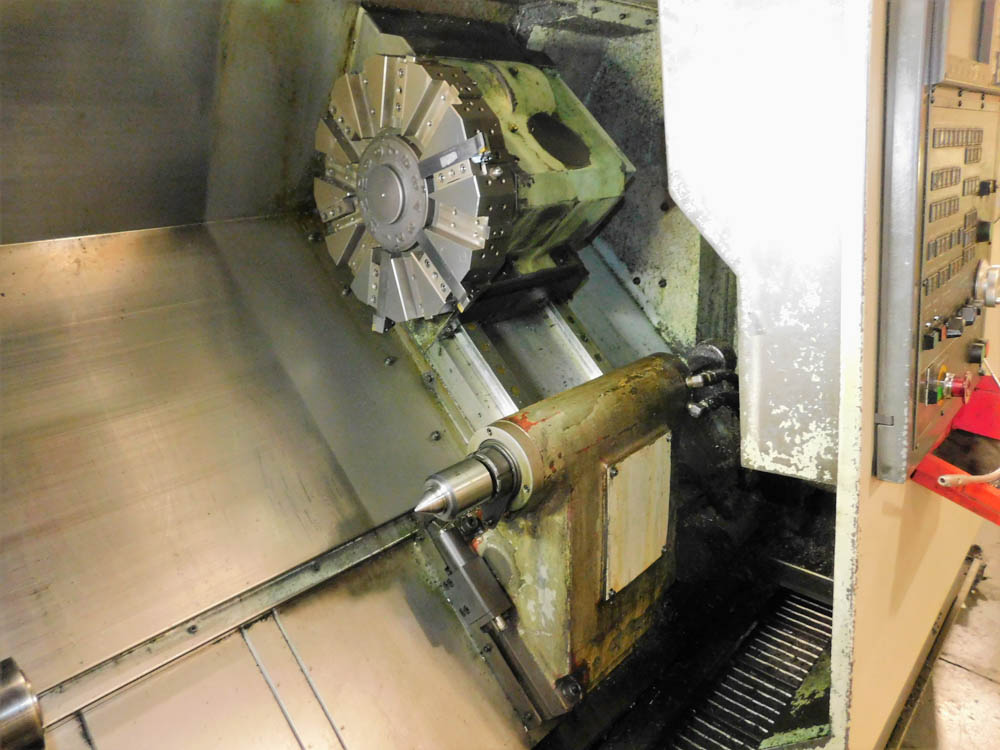

Turret Capacity - 12
Tailstock - yes
Y Axis - no
Dimensions - 127" x 72" x 76"
Weight - 9250 pounds
Live Tooling - no
Sub Spindle - no
# Axis - 2


- Fanuc 0i-TB Control
- Chip Conveyor

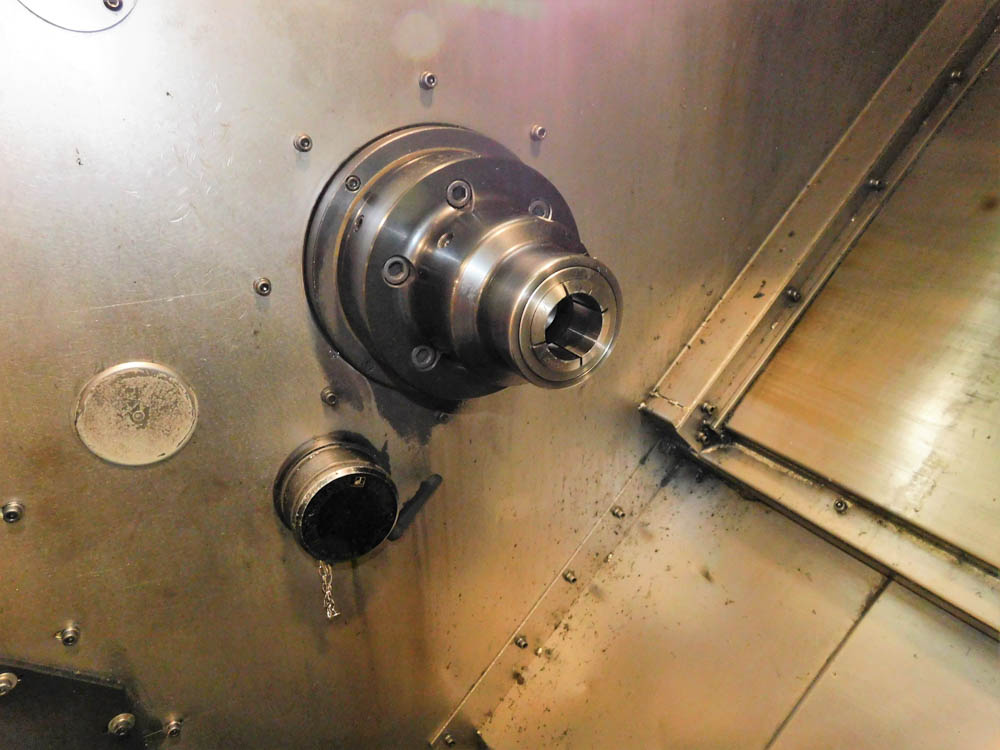

- Collet Chuck on Spindle
- Tailstock
