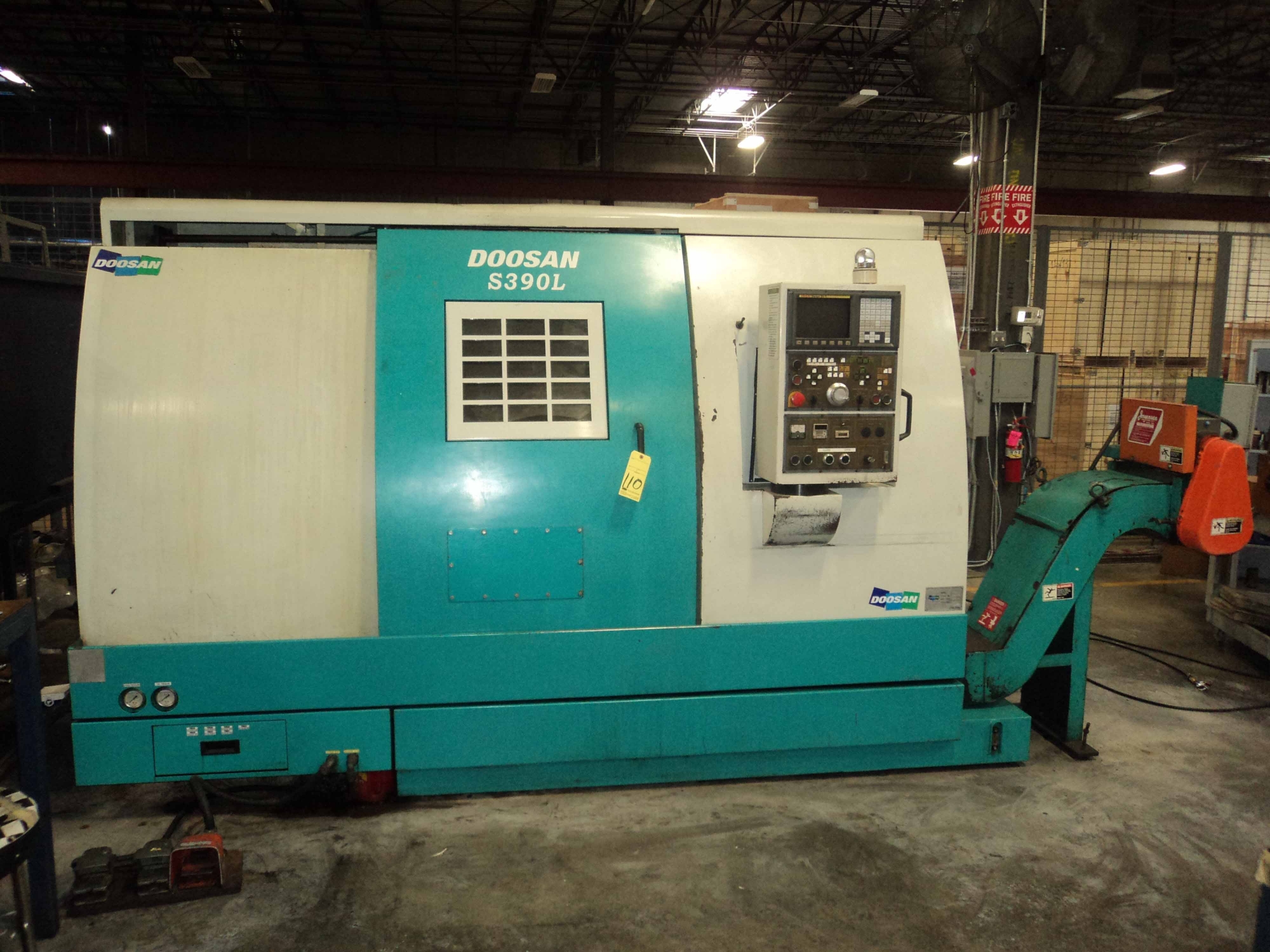

2001 DOOSAN 390L - CNC Horizontal Lathe

Manufacturer

DOOSAN

Category

Lathes

Stock

13159

Model

390L

Dealer Location

Michigan

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 21T
Chuck Size - 12 inches
Swing - 22.8 inches
Turning Diameter - 15.35 inches
Center Distance - 30 inches
Bar Capacity - 3 inches
X Axis Travel - 7.68 inches
Z Axis Travel - 31 inches
Spindle Speed (RPM) - 3500
Main Motor - 20 HP

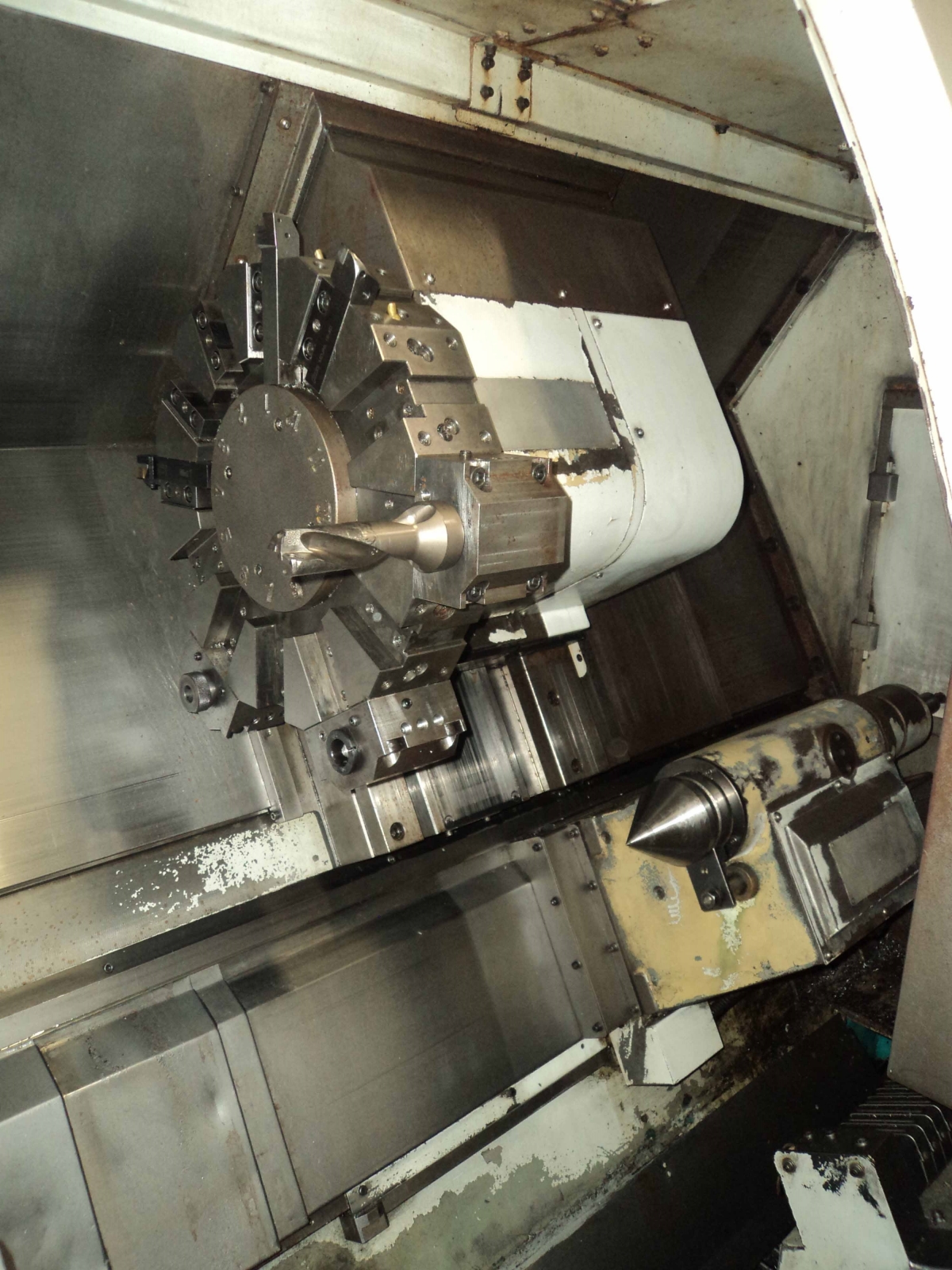

Turret Capacity - 12
Tailstock - yes
Y Axis - no
Weight - 11000 pounds
Live Tooling - no
Sub Spindle - no
# Axis - 2

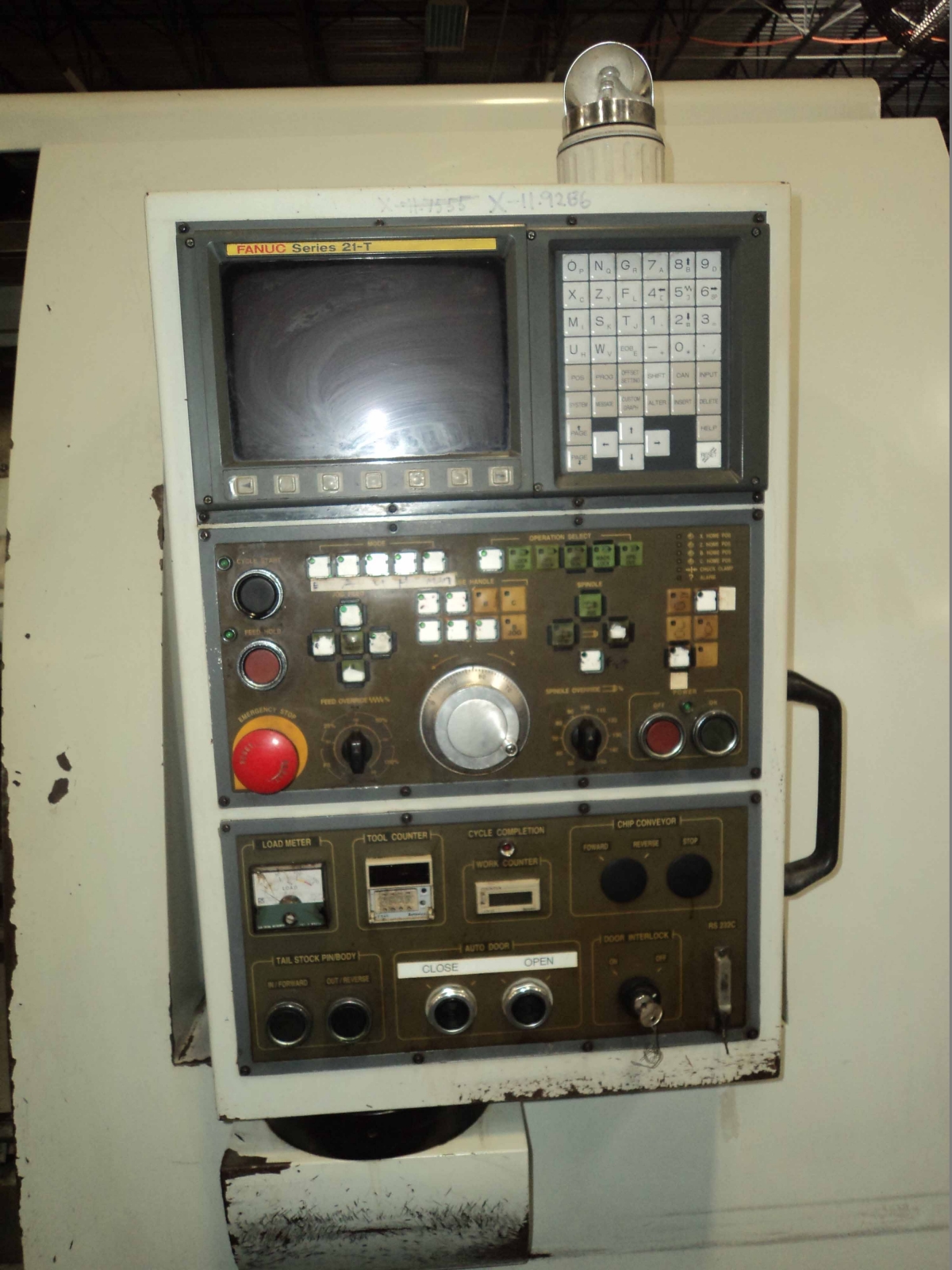

- Fanuc 21T Control
- Chip Conveyor
- Coolant Tank

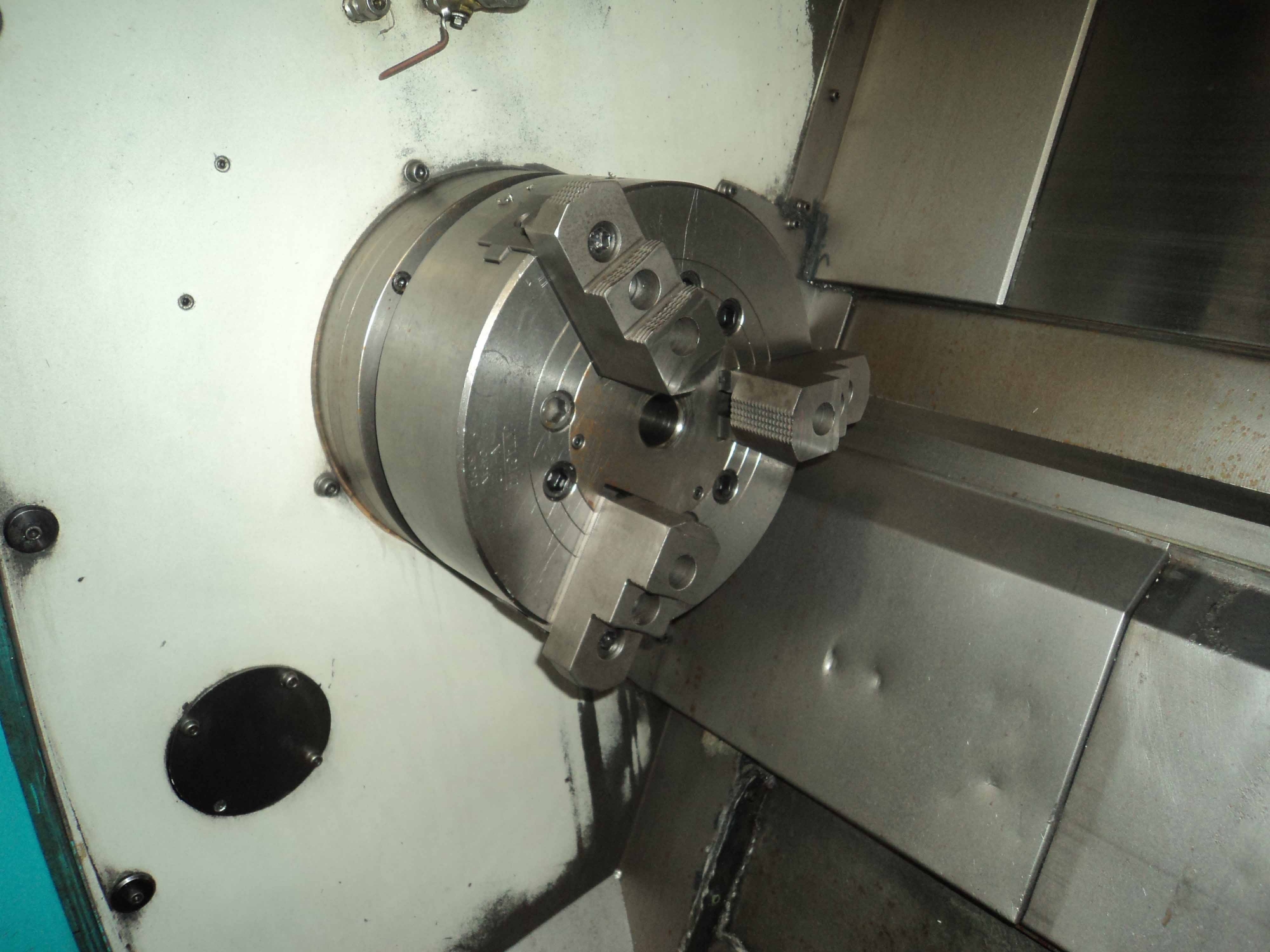

- 12" Hydraulic 3 Jaw Chuck
- Tailstock



Spindle Nose A2-8
